2 |
COVER; INL
ENGINE OIL TEMPERATURE GAUGE<UG3>
(A)
|
8-94394-301-5 |
01 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
2 |
COVER; INL
(A)
|
8-94394-301-5 |
01 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
2 |
COVER; INL
(A)
|
8-94394-301-5 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
2 |
COVER; INL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
(A)
|
8-94391-107-2 |
01 |
1 |
9710-9710 |
● |
|
|
|
|
|
| |
2 |
COVER; INL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
(A)
|
8-94391-107-2 |
01 |
1 |
9711-0004 |
● |
|
|
|
|
|
| |
2 |
COVER; INL
(A)
|
8-94391-107-2 |
01 |
1 |
9711-0004 |
|
|
● |
|
|
|
| |
2 |
COVER; INL
(A)
|
8-94391-107-2 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
2 |
COVER; INL
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENT<TDZ>
(B)
|
8-94395-899-0 |
01 |
1 |
9510-9802 |
|
|
|
● |
● |
|
| |
2 |
COVER; INL
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION
SYSTEM ECE REQUIREMENT<TDZ>
(B)
|
8-94395-899-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
2 |
COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(B)
|
8-94395-899-1 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
2 |
COVER; INL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENT<TDZ>
(C)
|
8-94395-960-0 |
01 |
1 |
9510-9612 |
|
|
|
● |
● |
|
| |
2 |
COVER; INL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
ANTI NOISE EQUIPMENT ECE<SLK>,EMISSION SYSTEM
ECE REQUIREMENT<TDZ>
(C)
|
8-94395-960-0 |
01 |
1 |
9701-9802 |
|
|
|
● |
● |
|
| |
2 |
COVER; INL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT<TDZ>
(C)
|
8-94395-960-0 |
01 |
1 |
9803-9910 |
|
|
|
● |
● |
|
| |
2 |
COVER; INL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT<TDZ>,EURO2
SPECIFICATION<THN>
(C)
|
8-94395-960-0 |
01 |
1 |
9911-0004 |
|
|
|
● |
● |
|
| |
2 |
COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(C)
|
8-94395-960-0 |
01 |
1 |
0005- |
|
|
|
● |
● |
|
| |
2 |
COVER; INL
EURO2 SPECIFICATION<THN>
(C)
|
8-94395-823-0 |
01 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
2 |
COVER; INL
(C)
|
8-94395-823-0 |
01 |
1 |
0005-0009 |
|
|
|
|
|
● |
| |
2 |
COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2
SPECIFICATION<THN>
(C)
|
8-94395-823-1 |
01 |
1 |
0010- |
|
|
|
|
|
● |
| |
2 |
COVER; INL
(A)
|
8-94391-106-1 |
01 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
2 |
COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
(D)
|
8-94392-317-2 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94397-039-1 |
01 |
1 |
9510-9810 |
● |
● |
● |
● |
● |
|
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94397-039-1 |
01 |
1 |
9811-0004 |
● |
● |
● |
|
● |
|
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EXC. EURO2 SPECIFICATION<THN>
|
8-94397-039-1 |
01 |
1 |
9811-0004 |
|
|
|
● |
|
|
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94397-039-1 |
01 |
1 |
0005- |
|
● |
● |
● |
● |
|
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EURO2 SPECIFICATION<THN>
|
8-94395-841-0 |
01 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94395-841-0 |
01 |
1 |
0005-0009 |
|
|
|
|
|
● |
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2
SPECIFICATION<THN>
|
8-94395-841-0 |
01 |
1 |
0010- |
|
|
|
|
|
● |
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
|
8-94392-319-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
32 |
STUD; INL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3>
(A)
M6X25 L=34
|
9-04110-625-0 |
04 |
1 |
9510-9802 |
● |
|
|
|
|
|
| |
32 |
STUD; INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENT<TDZ>
(A)
M6X25 L=34
|
9-04110-625-0 |
04 |
1 |
9510-9802 |
|
|
|
● |
● |
|
| |
32 |
STUD; INL PIPE
(A)
M6X25 L=34
|
9-04110-625-0 |
04 |
1 |
9510-9802 |
|
● |
|
|
|
|
| |
32 |
STUD; INL PIPE
(A)
M6X25 L=34
|
9-04110-625-0 |
03 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
32 |
STUD; INL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3>
(A)
M6X25 L=34
|
9-04110-625-0 |
04 |
1 |
9803-0004 |
● |
|
|
|
|
|
| |
32 |
STUD; INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION
SYSTEM ECE REQUIREMENT<TDZ>
(A)
M6X25 L=34
|
9-04110-625-0 |
04 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
32 |
STUD; INL PIPE
(A)
M6X25 L=34
|
9-04110-625-0 |
04 |
1 |
9803-0004 |
|
● |
|
|
|
|
| |
32 |
STUD; INL PIPE
(A)
M6X25 L=34
|
9-04110-625-0 |
04 |
1 |
0005-0210 |
|
|
|
● |
● |
|
| |
32 |
STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(A)
M6X25 L=34
|
9-04110-625-0 |
04 |
1 |
0211-0604 |
|
|
|
● |
|
|
| |
32 |
STUD; INL PIPE
(A)
M6X25 L=34
|
9-04110-625-0 |
04 |
1 |
0211-0604 |
|
● |
|
|
|
|
| |
32 |
STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(A)
M6X25 L=34
|
0-41010-625-0 |
04 |
1 |
0605- |
|
|
|
● |
|
|
| |
32 |
STUD; INL PIPE
(A)
M6X25 L=34
|
0-41010-625-0 |
04 |
1 |
0605- |
|
● |
|
|
|
|
| |
32 |
STUD; INL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
(B)
M6X30 L=38
|
9-04110-630-0 |
03 |
1 |
9710-9710 |
● |
|
|
|
|
|
| |
32 |
STUD; INL PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
(B)
M6X30 L=38
|
9-04110-630-0 |
03 |
1 |
9711-0004 |
● |
|
|
|
|
|
| |
32 |
STUD; INL PIPE
(B)
M6X30 L=38
|
9-04110-630-0 |
03 |
1 |
9711-0004 |
|
|
● |
|
|
|
| |
32 |
STUD; INL PIPE
(B)
M6X30 L=38
|
9-04110-630-0 |
03 |
1 |
0005-0604 |
|
|
● |
|
|
|
| |
32 |
STUD; INL PIPE
(B)
M6X30 L=38
|
0-41010-630-0 |
03 |
1 |
0605- |
|
|
● |
|
|
|
| |
32 |
STUD; INL PIPE
(B)
M10X20 L=35
|
9-04411-020-0 |
04 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
32 |
STUD; INL PIPE
(B)
M10X20 L=35
|
9-04411-020-0 |
04 |
1 |
0005- |
|
● |
● |
|
|
|
| |
32 |
STUD; INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENT<TDZ>
(B)
M8X20 L=32
|
9-04110-820-0 |
05 |
1 |
9510-9802 |
|
|
|
● |
● |
|
| |
32 |
STUD; INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION
SYSTEM ECE REQUIREMENT<TDZ>
(B)
M8X20 L=32
|
9-04110-820-0 |
05 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
32 |
STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(B)
M8X20 L=32
|
9-04110-820-0 |
05 |
1 |
0005-0604 |
|
|
|
● |
|
|
| |
32 |
STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(B)
M8X20 L=32
|
0-41010-820-0 |
05 |
1 |
0605- |
|
|
|
● |
|
|
| |
32 |
STUD; INL PIPE
EURO2 SPECIFICATION<THN>
(B)
M6X30 L=38
|
9-04110-630-0 |
04 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
32 |
STUD; INL PIPE
(B)
M6X30 L=38
|
9-04110-630-0 |
04 |
1 |
0005-0604 |
|
|
|
|
|
● |
| |
32 |
STUD; INL PIPE
(B)
M6X30 L=38
|
0-41010-630-0 |
04 |
1 |
0605- |
|
|
|
|
|
● |
| |
32 |
STUD; INL PIPE
EURO2 SPECIFICATION<THN>
(A)
M8X30 L=41
|
9-04110-830-0 |
03 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
32 |
STUD; INL PIPE
(A)
M8X30 L=41
|
9-04110-830-0 |
03 |
1 |
0005-0604 |
|
|
|
|
|
● |
| |
32 |
STUD; INL PIPE
(A)
M8X30 L=41
|
0-41010-830-0 |
03 |
1 |
0605- |
|
|
|
|
|
● |
| |
44 |
NUT; PIPE BRKT
ENGINE OIL TEMPERATURE GAUGE<UG3>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
44 |
NUT; PIPE BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
44 |
NUT; PIPE BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
|
● |
|
|
|
|
| |
44 |
NUT; PIPE BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
|
|
|
|
| |
44 |
NUT; PIPE BRKT
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9710-0004 |
● |
|
|
|
|
|
| |
44 |
NUT; PIPE BRKT
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9710-0004 |
|
|
● |
|
|
|
| |
44 |
NUT; PIPE BRKT
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0005-0602 |
|
|
● |
|
|
|
| |
44 |
NUT; PIPE BRKT
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
|
● |
|
|
|
| |
50 |
PIPE; INL
ENGINE OIL TEMPERATURE GAUGE<UG3>
|
8-94394-400-1 |
01 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
50 |
PIPE; INL
|
8-94394-400-1 |
01 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
50 |
PIPE; INL
|
8-94394-400-1 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
50 |
PIPE; INL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
|
8-94391-478-1 |
01 |
1 |
9710-0001 |
● |
|
|
|
|
|
| |
50 |
PIPE; INL
|
8-94391-478-1 |
01 |
1 |
9710-0001 |
|
|
● |
|
|
|
| |
50 |
PIPE; INL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
|
8-97601-301-0 |
01 |
1 |
0002-0004 |
● |
|
|
|
|
|
| |
50 |
PIPE; INL
|
8-97601-301-0 |
01 |
1 |
0002-0004 |
|
|
● |
|
|
|
| |
50 |
PIPE; INL
|
8-97601-301-0 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
50 |
PIPE; INL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENT<TDZ>
|
8-94397-063-2 |
01 |
1 |
9510-9802 |
|
|
|
● |
● |
|
| |
50 |
PIPE; INL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT<TDZ>
|
8-94397-063-2 |
01 |
1 |
9803-9910 |
|
|
|
● |
● |
|
| |
50 |
PIPE; INL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT<TDZ>,EURO2
SPECIFICATION<THN>
|
8-94397-063-2 |
01 |
1 |
9911-0004 |
|
|
|
● |
● |
|
| |
50 |
PIPE; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94397-063-2 |
01 |
1 |
0005- |
|
|
|
● |
● |
|
| |
53 |
BOLT; INL PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
53 |
BOLT; INL PIPE
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
53 |
BOLT; INL PIPE
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0005-0512 |
|
● |
|
|
|
|
| |
53 |
BOLT; INL PIPE
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
53 |
BOLT; INL PIPE
M8X12 FLANGE
|
0-28080-812-0 |
04 |
1 |
9510-9910 |
|
|
|
● |
● |
|
| |
53 |
BOLT; INL PIPE
M8X12 FLANGE
|
0-28080-812-0 |
04 |
1 |
9911-0004 |
|
|
|
|
● |
|
| |
53 |
BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN>
M8X12 FLANGE
|
0-28080-812-0 |
04 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
53 |
BOLT; INL PIPE
M8X12 FLANGE
|
0-28080-812-0 |
04 |
1 |
0005-0512 |
|
|
|
● |
● |
|
| |
53 |
BOLT; INL PIPE
M8X12 FLANGE
|
0-28050-812-0 |
04 |
1 |
0601-1006 |
|
|
|
● |
● |
|
| |
53 |
BOLT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
M8X12 FLANGE
|
0-28050-812-0 |
04 |
1 |
1007- |
|
|
|
● |
|
|
| |
53 |
BOLT; INL PIPE
EURO2 SPECIFICATION<THN>
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
53 |
BOLT; INL PIPE
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0005-0009 |
|
|
|
|
|
● |
| |
53 |
BOLT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2
SPECIFICATION<THN>
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0010-0512 |
|
|
|
|
|
● |
| |
53 |
BOLT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2
SPECIFICATION<THN>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
|
|
|
|
|
● |
| |
53 |
BOLT; INL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
0011-0512 |
|
|
|
|
|
● |
| |
53 |
BOLT; INL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0601- |
|
|
|
|
|
● |
| |
55 |
NUT; INL PIPE
(A)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
55 |
NUT; INL PIPE
(A)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0005-0602 |
|
● |
● |
|
|
|
| |
55 |
NUT; INL PIPE
(A)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0603- |
|
● |
● |
|
|
|
| |
55 |
NUT; INL PIPE
(B)
M8
|
9-09110-408-0 |
03 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
55 |
NUT; INL PIPE
(B)
M8
|
9-09110-408-0 |
03 |
1 |
0005-0512 |
|
● |
● |
|
|
|
| |
55 |
NUT; INL PIPE
(B)
M8
|
0-91110-508-0 |
03 |
1 |
0601- |
|
● |
● |
|
|
|
| |
55 |
NUT; INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENT<TDZ>
(C)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9510-9802 |
|
|
|
● |
● |
|
| |
55 |
NUT; INL PIPE
EURO2 SPECIFICATION<THN>
(C)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
55 |
NUT; INL PIPE
(A)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0005-0602 |
|
|
|
|
|
● |
| |
55 |
NUT; INL PIPE
(A)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
|
|
|
|
● |
| |
55 |
NUT; INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION
SYSTEM ECE REQUIREMENT<TDZ>
(C)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
55 |
NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(C)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0005-0602 |
|
|
|
● |
|
|
| |
55 |
NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(C)
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603- |
|
|
|
● |
|
|
| |
55 |
NUT; INL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
(B)
M8
|
9-09111-508-0 |
01 |
1 |
0011-0512 |
|
|
|
|
|
● |
| |
55 |
NUT; INL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
(B)
M8
|
0-91111-508-0 |
01 |
1 |
0601- |
|
|
|
|
|
● |
| |
70 |
STUD; WATER PIPE
ENGINE OIL TEMPERATURE GAUGE<UG3>
M10X30 L=45
|
9-04411-030-0 |
02 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
70 |
STUD; WATER PIPE
M10X30 L=45
|
9-04411-030-0 |
02 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
70 |
STUD; WATER PIPE
M10X30 L=45
|
9-04411-030-0 |
02 |
1 |
0005-0604 |
|
● |
|
|
|
|
| |
70 |
STUD; WATER PIPE
M10X30 L=45
|
0-44011-030-0 |
02 |
1 |
0605- |
● |
|
|
|
|
|
| |
75 |
STUD; BRKT,AIR PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
M10X25 L=40
|
9-04411-025-0 |
02 |
1 |
9710-0004 |
● |
|
|
|
|
|
| |
75 |
STUD; BRKT,AIR PIPE
M10X25 L=40
|
9-04411-025-0 |
02 |
1 |
9710-0004 |
|
|
● |
|
|
|
| |
75 |
STUD; BRKT,AIR PIPE
M10X25 L=40
|
9-04411-025-0 |
02 |
1 |
0005-0604 |
|
|
● |
|
|
|
| |
75 |
STUD; BRKT,AIR PIPE
M10X25 L=40
|
0-44011-025-0 |
02 |
1 |
0605- |
|
|
● |
|
|
|
| |
167 |
PLUG; INL MANIF
ENGINE OIL TEMPERATURE GAUGE<UG3>
|
1-09604-078-0 |
06 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
167 |
PLUG; INL MANIF
|
1-09604-078-0 |
06 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
167 |
PLUG; INL MANIF
|
1-09604-078-0 |
06 |
1 |
0005- |
● |
|
|
|
|
|
| |
167 |
PLUG; INL MANIF
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
|
9-09201-314-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
170 |
BOLT; BRKT
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
M10X25 FLANGE
|
0-28081-025-0 |
01 |
1 |
9710-0004 |
● |
|
|
|
|
|
| |
170 |
BOLT; BRKT
M10X25 FLANGE
|
0-28081-025-0 |
01 |
1 |
9710-0004 |
|
|
● |
|
|
|
| |
170 |
BOLT; BRKT
M10X25 FLANGE
|
0-28081-025-0 |
01 |
1 |
0005-0512 |
|
|
● |
|
|
|
| |
170 |
BOLT; BRKT
M10X25 FLANGE
|
0-28051-025-0 |
01 |
1 |
0601- |
|
|
● |
|
|
|
| |
170 |
BOLT; BRKT
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9709 |
● |
● |
|
|
|
|
| |
170 |
BOLT; BRKT
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
170 |
BOLT; BRKT
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
0005-0512 |
|
● |
● |
|
|
|
| |
170 |
BOLT; BRKT
M8X25 FLANGE
|
0-28050-825-0 |
01 |
1 |
0601- |
|
● |
● |
|
|
|
| |
170 |
BOLT; BRKT
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9710-9910 |
● |
● |
● |
|
|
|
| |
170 |
BOLT; BRKT
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9911-0004 |
● |
● |
● |
|
|
|
| |
170 |
BOLT; BRKT
EURO2 SPECIFICATION<THN>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
170 |
BOLT; BRKT
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0005-0512 |
|
● |
● |
|
|
● |
| |
170 |
BOLT; BRKT
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
|
● |
● |
|
|
● |
| |
192 |
WASHER; PL,INL PIPE
ID=8.4 OD=26
|
9-09164-808-0 |
03 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
192 |
WASHER; PL,INL PIPE
ID=8.4 OD=26
|
9-09164-808-0 |
03 |
1 |
0005-0605 |
|
● |
● |
|
|
|
| |
192 |
WASHER; PL,INL PIPE
ID=8.4 OD=26
|
0-91614-808-0 |
03 |
1 |
0606- |
|
● |
● |
|
|
|
| |
200 |
BRACKET; AIR DUCT
ENGINE OIL TEMPERATURE GAUGE<UG3>
(B)
|
8-97600-201-0 |
01 |
1 |
9901-0004 |
● |
|
|
|
|
|
| |
200 |
BRACKET; AIR DUCT
(B)
|
8-97600-201-0 |
01 |
1 |
9901-0004 |
|
● |
|
|
|
|
| |
200 |
BRACKET; AIR DUCT
(B)
|
8-97600-201-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
200 |
BRACKET; AIR DUCT
(B)
|
8-94390-088-0 |
01 |
1 |
9510-9709 |
● |
● |
● |
|
|
|
| |
200 |
BRACKET; AIR DUCT
(B)
|
8-94390-088-0 |
01 |
1 |
9510-9812 |
● |
● |
● |
|
|
|
| |
200 |
BRACKET; AIR DUCT
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
(B)
|
8-94390-088-0 |
01 |
1 |
9901-0004 |
● |
|
|
|
|
|
| |
200 |
BRACKET; AIR DUCT
(B)
|
8-94390-088-0 |
01 |
1 |
9901-0004 |
|
|
● |
|
|
|
| |
200 |
BRACKET; AIR DUCT
(B)
|
8-94390-088-0 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
200 |
BRACKET; AIR DUCT
(A)
|
8-94394-312-1 |
01 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
200 |
BRACKET; AIR DUCT
(A)
|
8-94394-312-1 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
201 |
BOLT; BRKT,AIR DUCT
M8X16 FLANGE
|
0-28080-816-0 |
05 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
201 |
BOLT; BRKT,AIR DUCT
M8X16 FLANGE
|
0-28080-816-0 |
05 |
1 |
0005-0512 |
|
● |
● |
|
|
|
| |
201 |
BOLT; BRKT,AIR DUCT
M8X16 FLANGE
|
0-28050-816-0 |
05 |
1 |
0601- |
|
● |
● |
|
|
|
| |
228 |
STUD; INL COVER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
(A)
M8X25 L=37
|
9-04110-825-0 |
01 |
1 |
9710-0004 |
● |
|
|
|
|
|
| |
228 |
STUD; INL COVER
(A)
M8X25 L=37
|
9-04110-825-0 |
01 |
1 |
9710-0004 |
|
|
● |
|
|
|
| |
228 |
STUD; INL COVER
(A)
M8X25 L=37
|
9-04110-825-0 |
01 |
1 |
0005-0604 |
|
|
● |
|
|
|
| |
228 |
STUD; INL COVER
(A)
M8X25 L=37
|
0-41010-825-0 |
01 |
1 |
0605- |
|
|
● |
|
|
|
| |
228 |
STUD; INL COVER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
(B)
M8X40 L=52
|
9-04110-840-0 |
01 |
1 |
9710-0004 |
● |
|
|
|
|
|
| |
228 |
STUD; INL COVER
(B)
M8X40 L=52
|
9-04110-840-0 |
01 |
1 |
9710-0004 |
|
|
● |
|
|
|
| |
228 |
STUD; INL COVER
(B)
M8X40 L=52
|
9-04110-840-0 |
01 |
1 |
0005-0604 |
|
|
● |
|
|
|
| |
228 |
STUD; INL COVER
(B)
M8X40 L=52
|
0-41010-840-0 |
01 |
1 |
0605- |
|
|
● |
|
|
|
| |
228 |
STUD; INL COVER
(C)
M8X16 L=28
|
9-04110-816-0 |
06 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
228 |
STUD; INL COVER
(C)
M8X16 L=28
|
9-04110-816-0 |
06 |
1 |
0005-0604 |
|
● |
● |
|
|
|
| |
228 |
STUD; INL COVER
(C)
M8X16 L=28
|
0-41010-816-0 |
06 |
1 |
0605- |
|
● |
● |
|
|
|
| |
232 |
BRACKET; INJ PIPE
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
(A)
|
8-94395-027-0 |
01 |
1 |
9803-0004 |
● |
|
|
|
|
|
| |
232 |
BRACKET; INJ PIPE
(A)
|
8-94395-027-0 |
01 |
1 |
9803-0004 |
|
|
● |
|
|
|
| |
232 |
BRACKET; INJ PIPE
(A)
|
8-94395-027-0 |
01 |
1 |
0005-0108 |
|
|
● |
|
|
|
| |
232 |
BRACKET; INJ PIPE
(B)
|
8-94391-452-0 |
01 |
1 |
0109- |
|
|
● |
|
|
|
| |
284 |
RUBBER; INL PIPE MTG
|
8-94394-268-1 |
02 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
284 |
RUBBER; INL PIPE MTG
|
8-94394-268-1 |
02 |
1 |
0005-0910 |
|
● |
● |
|
|
|
| |
284 |
RUBBER; INL PIPE MTG
|
8-98148-109-0 |
02 |
1 |
0911- |
|
● |
● |
|
|
|
| |
284 |
RUBBER; INL PIPE MTG
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
(B)
ID=19.5
|
8-94202-456-3 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
284 |
RUBBER; INL PIPE MTG
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
(A)
OD=23
|
8-97105-689-6 |
04 |
1 |
0011- |
|
|
|
|
|
● |
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=62.6
|
1-09623-505-0 |
02 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=62.6
|
1-09623-505-0 |
02 |
1 |
0005- |
|
● |
● |
|
|
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENT<TDZ>
|
8-94394-141-0 |
01 |
1 |
9510-9802 |
|
|
|
● |
● |
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION
SYSTEM ECE REQUIREMENT<TDZ>
|
8-94394-141-0 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94394-141-0 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENT<TDZ>
|
8-94399-417-0 |
01 |
1 |
9510-9612 |
|
|
|
● |
● |
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
ANTI NOISE EQUIPMENT ECE<SLK>,EMISSION SYSTEM
ECE REQUIREMENT<TDZ>
|
8-94399-417-0 |
01 |
1 |
9701-9802 |
|
|
|
● |
● |
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT<TDZ>
|
8-94399-417-0 |
01 |
1 |
9803-9910 |
|
|
|
● |
● |
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT<TDZ>,EURO2
SPECIFICATION<THN>
|
8-94399-417-0 |
01 |
1 |
9911-0004 |
|
|
|
● |
● |
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94399-417-0 |
01 |
1 |
0005- |
|
|
|
● |
● |
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EURO2 SPECIFICATION<THN>
|
8-94392-243-0 |
01 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94392-243-0 |
01 |
1 |
0005-0009 |
|
|
|
|
|
● |
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2
SPECIFICATION<THN>
|
8-94392-243-2 |
01 |
1 |
0010- |
|
|
|
|
|
● |
| |
324 |
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
|
8-94392-573-0 |
02 |
1 |
0011- |
|
|
|
|
|
● |
| |
327 |
VALVE; SAFETY,TURBOCHARGER
ENGINE OIL TEMPERATURE GAUGE<UG3>
|
8-94393-227-0 |
01 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
327 |

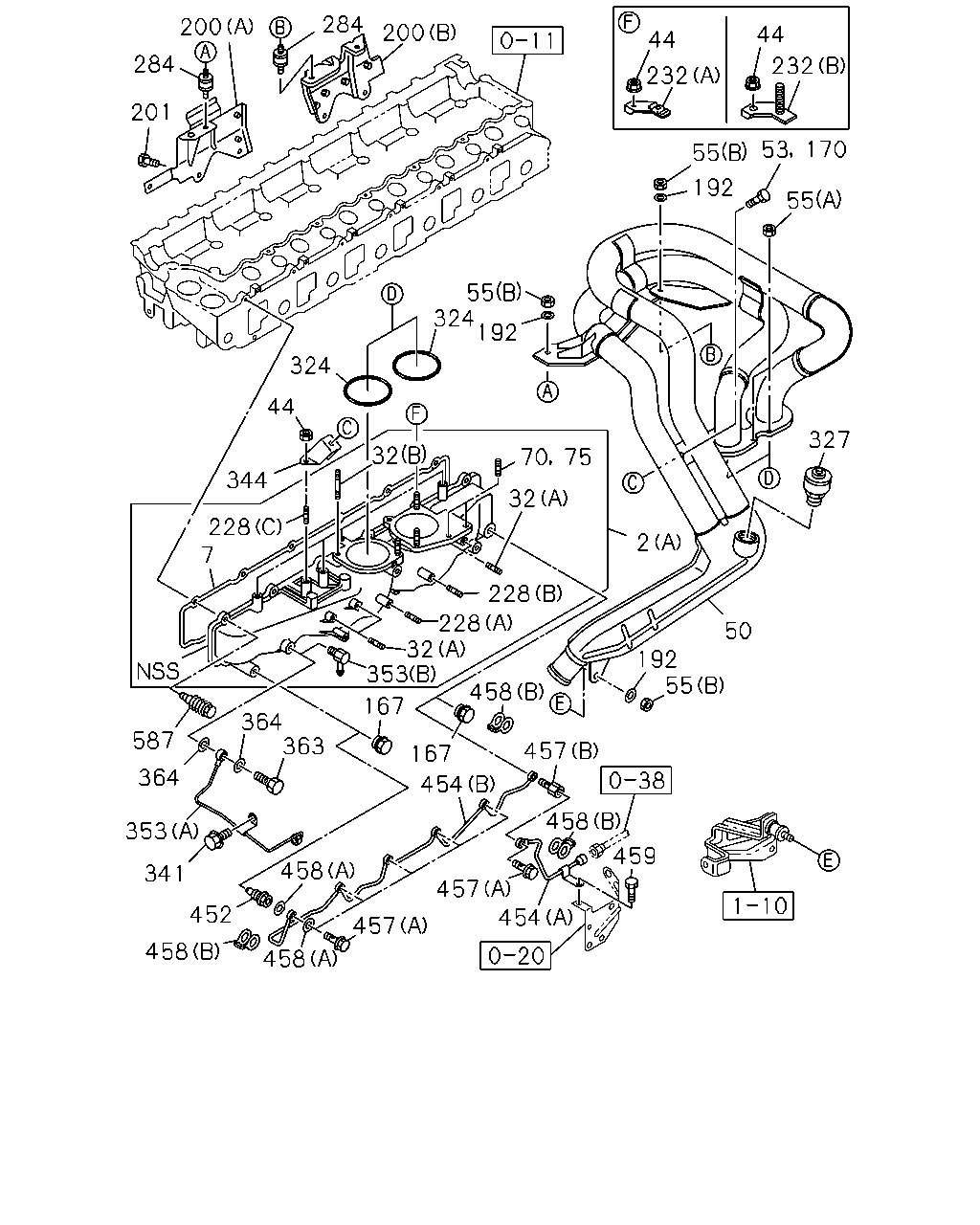

VALVE; SAFETY,TURBOCHARGER
|
8-94393-227-0 |
01 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
327 |
VALVE; SAFETY,TURBOCHARGER
|
8-94393-227-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
341 |
BOLT; BRKT,INL COVER
ENGINE OIL TEMPERATURE GAUGE<UG3>
M10X20 FLANGE
|
0-28181-020-0 |
01 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
341 |
BOLT; BRKT,INL COVER
M10X20 FLANGE
|
0-28181-020-0 |
01 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
341 |
BOLT; BRKT,INL COVER
M10X20 FLANGE
|
0-28181-020-0 |
01 |
1 |
0005-0512 |
|
● |
|
|
|
|
| |
341 |
BOLT; BRKT,INL COVER
M10X20 FLANGE
|
0-28151-020-0 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
341 |
BOLT; BRKT,INL COVER
EURO2 SPECIFICATION<THN>
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9911-0004 |
|
|
|
● |
|
|
| |
341 |
BOLT; BRKT,INL COVER
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0005-0009 |
|
|
|
|
|
● |
| |
341 |
BOLT; BRKT,INL COVER
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2
SPECIFICATION<THN>
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0010-0512 |
|
|
|
|
|
● |
| |
341 |
BOLT; BRKT,INL COVER
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2
SPECIFICATION<THN>
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601- |
|
|
|
|
|
● |
| |
344 |
BRACKET; INL PIPE
|
8-94393-865-0 |
01 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
344 |
BRACKET; INL PIPE
|
8-94393-865-0 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
353 |
PIPE; AIR,BOOST
ENGINE OIL TEMPERATURE GAUGE<UG3>
(A)
|
8-94394-439-0 |
01 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
353 |
PIPE; AIR,BOOST
(A)
|
8-94394-439-0 |
01 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
353 |
PIPE; AIR,BOOST
(A)
|
8-94394-439-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
353 |
PIPE; AIR,BOOST
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>
(B)
PT1/4 ELBOW
|
8-94221-562-0 |
01 |
1 |
9710-0004 |
● |
|
|
|
|
|
| |
353 |
PIPE; AIR,BOOST
(B)
PT1/4 ELBOW
|
8-94221-562-0 |
01 |
1 |
9710-0004 |
|
|
● |
|
|
|
| |
353 |
PIPE; AIR,BOOST
(B)
PT1/4 ELBOW
|
8-94221-562-0 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
363 |
BOLT; EYE
ENGINE OIL TEMPERATURE GAUGE<UG3>
|
1-09675-184-0 |
01 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
363 |
BOLT; EYE
|
1-09675-184-0 |
01 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
363 |
BOLT; EYE
|
1-09675-184-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
364 |
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE OIL TEMPERATURE GAUGE<UG3>.
ID=10.2 OD=15.2
|
1-09630-083-0 |
02 |
1 |
9510-0004 |
● |
|
|
|
|
|
| |
364 |
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=10.2 OD=15.2
|
1-09630-083-0 |
02 |
1 |
9510-0004 |
|
● |
|
|
|
|
| |
364 |
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=10.2 OD=15.2
|
1-09630-083-0 |
02 |
1 |
0005- |
● |
|
|
|
|
|
| |
452 |

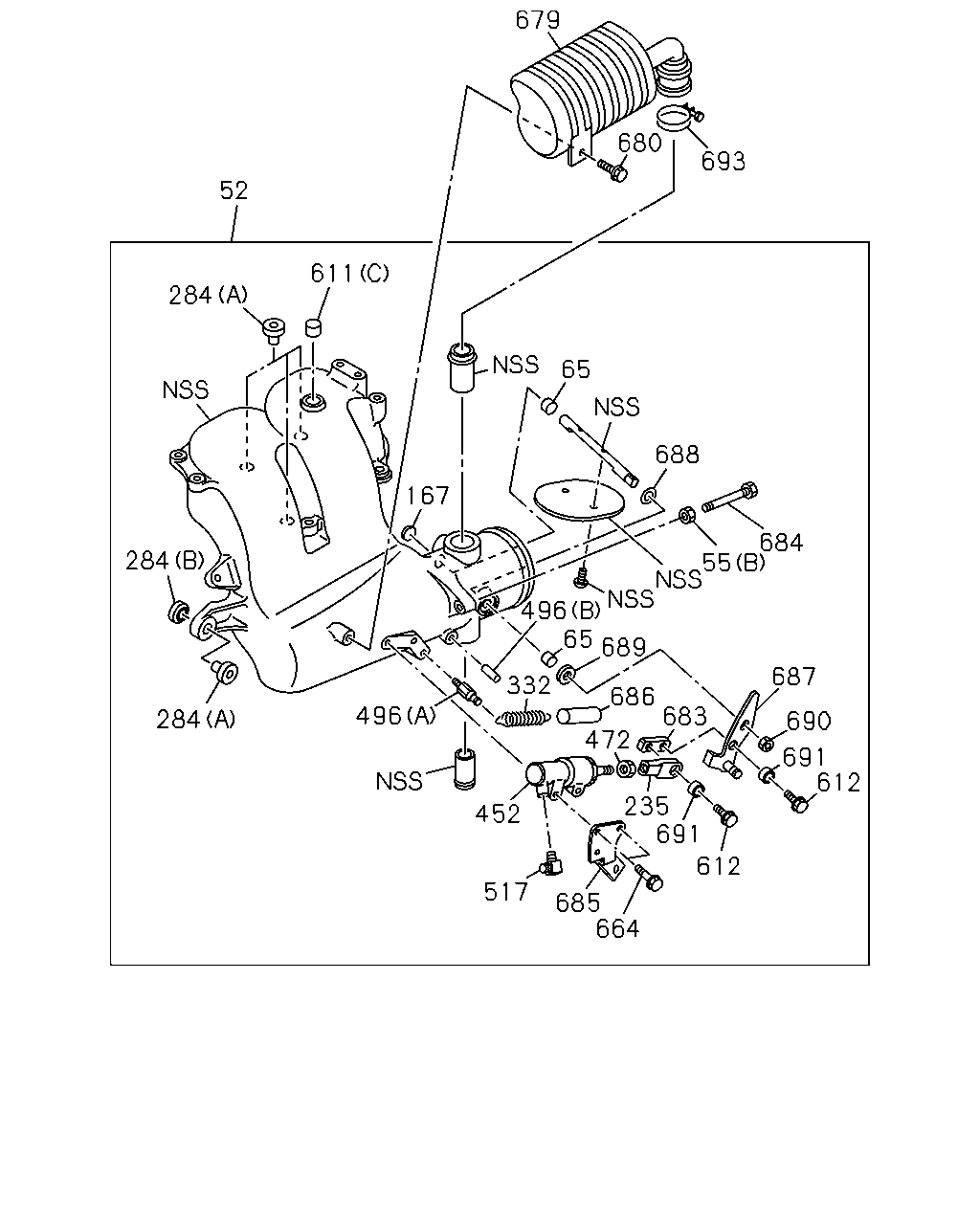

CYLINDER ASM; AIR
|
1-14370-007-0 |
06 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
452 |
CYLINDER ASM; AIR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
|
8-94390-985-1 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
454 |
PIPE; AIR,IVES
(B)
6-JOINT
|
8-94394-415-1 |
01 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
454 |
PIPE; AIR,IVES
(A)
JOINT & NUT W/BRKT
|
8-94395-743-0 |
01 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
457 |
BOLT; EYE,AIR PIPE,IVES
(A)
M8X18 EYE-BOLT
|
1-09675-037-1 |
06 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
457 |
BOLT; EYE,AIR PIPE,IVES
(B)
M8X19
|
1-09675-220-0 |
01 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
458 |
GASKET; AIR PIPE,VSS
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
02 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
458 |
GASKET; AIR PIPE,VSS
(B)
ID=8.6
|
8-94395-214-0 |
06 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
459 |
BOLT; CLIP FIX
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
9710-9710 |
|
|
● |
|
|
|
| |
587 |

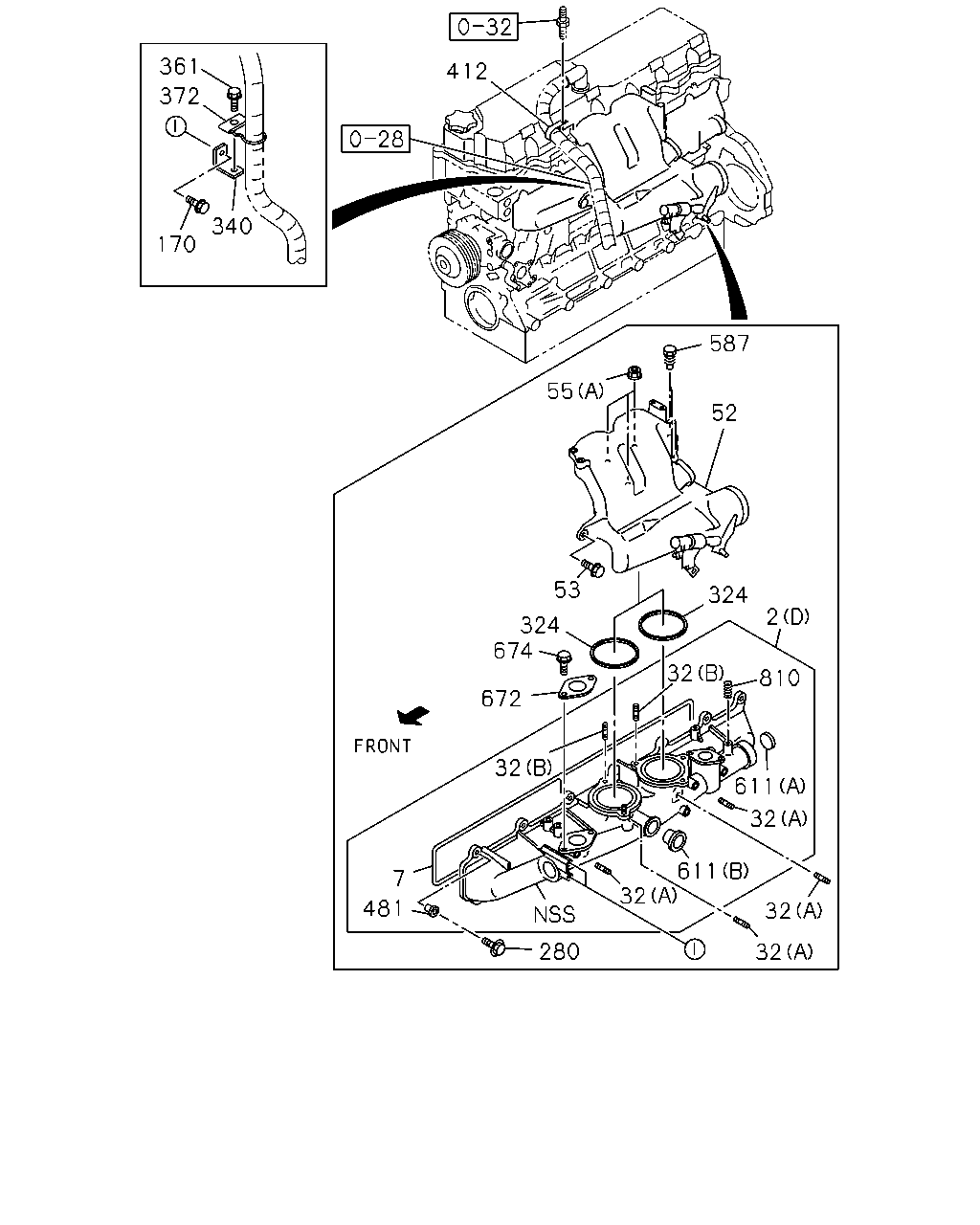

MOUNTING; INTAKE DUCT
|
8-94395-966-0 |
13 |
1 |
9510-0004 |
● |
● |
● |
|
|
|
| |
587 |
MOUNTING; INTAKE DUCT
|
8-94395-966-0 |
13 |
1 |
0005- |
|
● |
● |
|
|
|
| |
587 |
MOUNTING; INTAKE DUCT
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EURO2 SPECIFICATION<THN>
|
8-94395-966-0 |
02 |
1 |
0011- |
|
|
|
|
|
● |
