Sayfa 2-81A - Isuzu EPC

2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#3783) — 192 parça

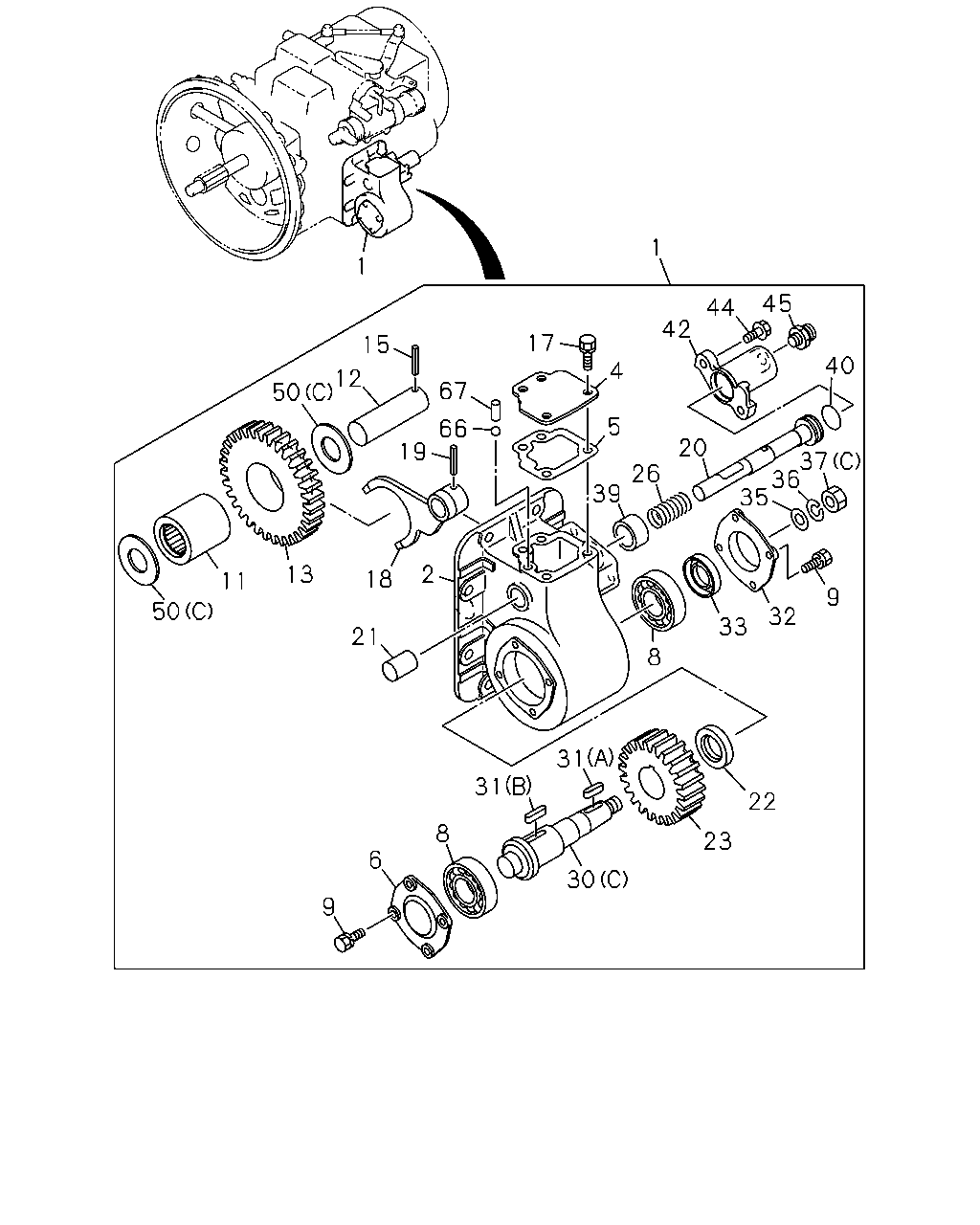

1 1 45 44 42 17 15 40 4 12 50 67 5 66 20 19 37 36 35 26 39 2 13 18 11 9 50 32 33 21 8 31 31 22 8 23 6 30 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-247-1	01	1	9601-9612	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-325-0	01	1	9701-0204	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-326-1	01	1	0205-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-294-0	01	1	9601-9803		●	●	●	●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-309-1	01	1	9804-		●	●		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-065-0	01	1	9601-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-085-0	01	1	9601-9803		●	●	●	●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-085-0	01	1	9804-		●	●		●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38131-008-0	01	1	9601-9803		●	●	●	●	●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38131-008-0	01	1	9804-		●	●		●
5	GASKET; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38132-007-0	01	1	9601-9803		●	●	●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97333-347-0	01	1	0005-		●	●		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-006-0	01	1	9601-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	9601-9803		●	●	●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	9804-0004		●	●		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-00098-057-0	02	1	9601-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	9601-9803		●	●	●	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	9804-		●	●		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	9-02341-016-0	08	1	9601-0512	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	0-23801-016-0	08	1	0601-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	0-50040-816-0	08	1	9601-9803		●	●	●	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	0-50040-816-0	08	1	9804-0003		●	●		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28080-812-0	08	1	0004-		●	●		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	9601-9803	●	●	●	●	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	9804-	●	●	●		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-018-0	01	1	9601-0004	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	9601-9803		●	●	●	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	9804-0004		●	●		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0005-	●	●	●		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=35	1-38241-056-0	01	1	9601-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	9601-9803		●	●	●	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	9804-		●	●		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	9601-9803	●	●	●	●	●	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	9804-	●	●	●		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	04	1	9601-9803		●	●	●	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	04	1	9804-0003		●	●		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	04	1	0004-		●	●		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-027-0	01	1	9601-0204	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-025-0	01	1	0205-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	9601-9803		●	●	●	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	9804-		●	●		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	9601-9803	●	●	●	●	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	9804-	●	●	●		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-049-1	01	1	9601-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-0	01	1	9601-9803		●	●	●	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	9804-		●	●		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	9601-9803	●	●	●	●	●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	9804-	●	●	●		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-044-0	01	1	9601-9803		●	●	●	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-044-0	01	1	9804-		●	●		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21	1-38241-087-0	01	1	9601-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=22	1-38241-064-0	01	1	9601-9803		●	●	●	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=22	1-38241-064-0	01	1	9804-		●	●		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-0	01	1	9601-9803	●	●	●	●	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	9804-	●	●	●		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38211-023-0	01	1	9601-9612	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38211-030-0	01	1	9701-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38211-009-0	01	1	9601-9803		●	●	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38211-009-1	01	1	9804-		●	●		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	9-08050-732-0	01	1	9601-9612	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=25	1-09735-024-0	01	1	9601-9803		●	●	●	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=25	1-09735-024-0	01	1	9804-		●	●		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=30	9-08011-030-0	01	1	9601-9803		●	●	●	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=30	9-08011-030-0	01	1	9804-		●	●		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-016-0	01	1	9601-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38161-608-0	01	1	9601-9803		●	●	●	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38161-608-0	01	1	9804-0003		●	●		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-024-0	01	1	0004-		●	●		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09924-142-0	01	1	9601-9612	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-040-0	01	1	9701-0512	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98028-794-0	01	1	0601-	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09924-533-1	01	1	9601-9803		●	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09924-533-1	01	1	9804-0003		●	●		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	0004-		●	●		●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	9-09160-514-0	01	1	9601-9803		●	●	●	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	9-09160-514-0	01	1	9804-		●	●		●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	9-09150-514-0	01	1	9601-9803		●	●	●	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	9-09150-514-0	01	1	9804-		●	●		●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8	9-09111-508-0	01	1	9601-9612	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M16	1-38119-036-0	01	1	9701-	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M14	9-99111-414-0	01	1	9601-9803		●	●	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M14	9-99111-414-0	01	1	9804-		●	●		●
39	STOPPER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38379-006-0	01	1	9601-9803		●	●	●	●	●
39	STOPPER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38379-006-0	01	1	9804-		●	●		●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	9601-9803	●	●	●	●	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	9804-	●	●	●		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-007-0	01	1	9601-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	9601-9803		●	●	●	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	9804-		●	●		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28181-025-0	02	1	9601-9803	●	●	●	●	●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28181-025-0	02	1	9804-	●	●	●		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	9601-9803	●	●	●	●	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	9804-0512	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9804-0512		●	●		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0601-	●	●	●		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38226-045-0	01	1	9601-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38226-052-0	01	1	9601-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38226-043-0	02	1	9601-9803		●	●	●	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38226-043-0	02	1	9804-		●	●		●
66	BALL; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-00097-009-0	01	1	9601-9803		●	●	●	●	●
66	BALL; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-00097-009-0	01	1	9804-		●	●		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	9601-9803		●	●	●	●	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	9804-		●	●		●

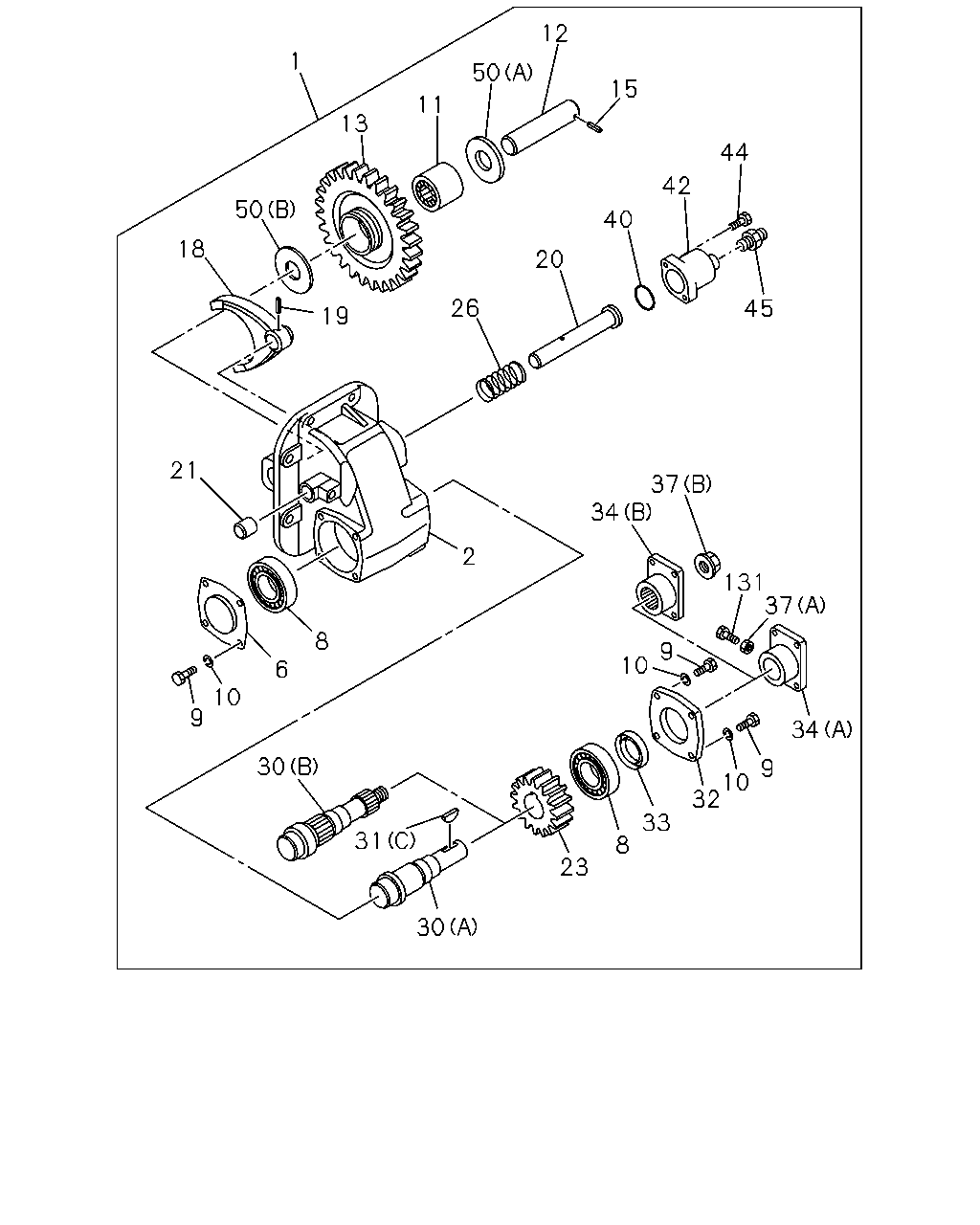

12 1 50 15 11 13 44 42 50 40 18 20 26 45 19 21 37 34 2 131 37 8 9 10 6 10 9 34 30 9 10 32 33 31 8 23 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-247-1	01	1	9601-9612	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-325-0	01	1	9701-0204	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-326-1	01	1	0205-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-294-0	01	1	9601-9803		●	●	●	●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-309-1	01	1	9804-		●	●		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-065-0	01	1	9601-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-085-0	01	1	9601-9803		●	●	●	●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-085-0	01	1	9804-		●	●		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97333-347-0	01	1	0005-		●	●		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-006-0	01	1	9601-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	9601-9803		●	●	●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	9804-0004		●	●		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-00098-057-0	02	1	9601-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	9601-9803		●	●	●	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	9804-		●	●		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	9-02341-016-0	08	1	9601-0512	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	0-23801-016-0	08	1	0601-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	0-50040-816-0	08	1	9601-9803		●	●	●	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	0-50040-816-0	08	1	9804-0003		●	●		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28080-812-0	08	1	0004-		●	●		●
10	WASHER; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	08	1	9601-	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	9601-9803	●	●	●	●	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	9804-	●	●	●		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-018-0	01	1	9601-0004	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	9601-9803		●	●	●	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	9804-0004		●	●		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0005-	●	●	●		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=35	1-38241-056-0	01	1	9601-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	9601-9803		●	●	●	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	9804-		●	●		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	9601-9803	●	●	●	●	●	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	9804-	●	●	●		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-027-0	01	1	9601-0204	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-025-0	01	1	0205-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	9601-9803		●	●	●	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	9804-		●	●		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	9601-9803	●	●	●	●	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	9804-	●	●	●		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-049-1	01	1	9601-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-0	01	1	9601-9803		●	●	●	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	9804-		●	●		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	9601-9803	●	●	●	●	●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	9804-	●	●	●		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21	1-38241-087-0	01	1	9601-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=22	1-38241-064-0	01	1	9601-9803		●	●	●	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=22	1-38241-064-0	01	1	9804-		●	●		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-0	01	1	9601-9803	●	●	●	●	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	9804-	●	●	●		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38211-023-0	01	1	9601-9612	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38211-030-0	01	1	9701-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38211-009-0	01	1	9601-9803		●	●	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38211-009-1	01	1	9804-		●	●		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	9-08050-732-0	01	1	9601-9612	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=25	1-09735-024-0	01	1	9601-9803		●	●	●	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=25	1-09735-024-0	01	1	9804-		●	●		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=30	9-08011-030-0	01	1	9601-9803		●	●	●	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=30	9-08011-030-0	01	1	9804-		●	●		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-016-0	01	1	9601-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38161-608-0	01	1	9601-9803		●	●	●	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38161-608-0	01	1	9804-0003		●	●		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-024-0	01	1	0004-		●	●		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09924-142-0	01	1	9601-9612	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-040-0	01	1	9701-0512	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98028-794-0	01	1	0601-	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09924-533-1	01	1	9601-9803		●	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09924-533-1	01	1	9804-0003		●	●		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	0004-		●	●		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38512-013-1	01	1	9601-9612	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38512-019-1	01	1	9701-	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8	9-09111-508-0	01	1	9601-9612	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M16	1-38119-036-0	01	1	9701-	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M14	9-99111-414-0	01	1	9601-9803		●	●	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M14	9-99111-414-0	01	1	9804-		●	●		●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	9601-9803	●	●	●	●	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	9804-	●	●	●		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-007-0	01	1	9601-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	9601-9803		●	●	●	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	9804-		●	●		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28181-025-0	02	1	9601-9803	●	●	●	●	●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28181-025-0	02	1	9804-	●	●	●		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	9601-9803	●	●	●	●	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	9804-0512	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9804-0512		●	●		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0601-	●	●	●		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38226-045-0	01	1	9601-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38226-052-0	01	1	9601-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38226-043-0	02	1	9601-9803		●	●	●	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38226-043-0	02	1	9804-		●	●		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20	0-20800-820-0	01	1	9601-9612	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
