Sayfa 0-20 - Isuzu EPC

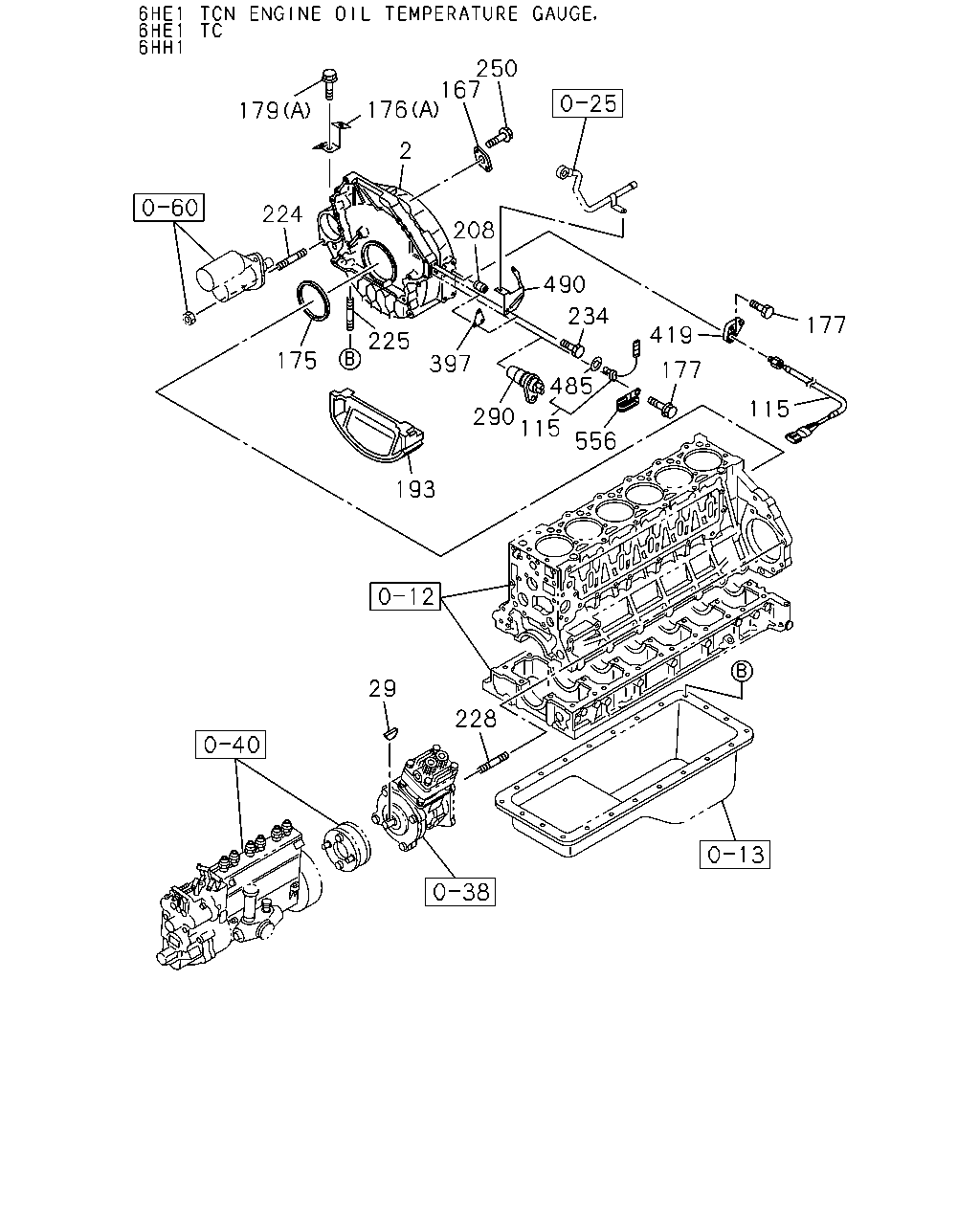

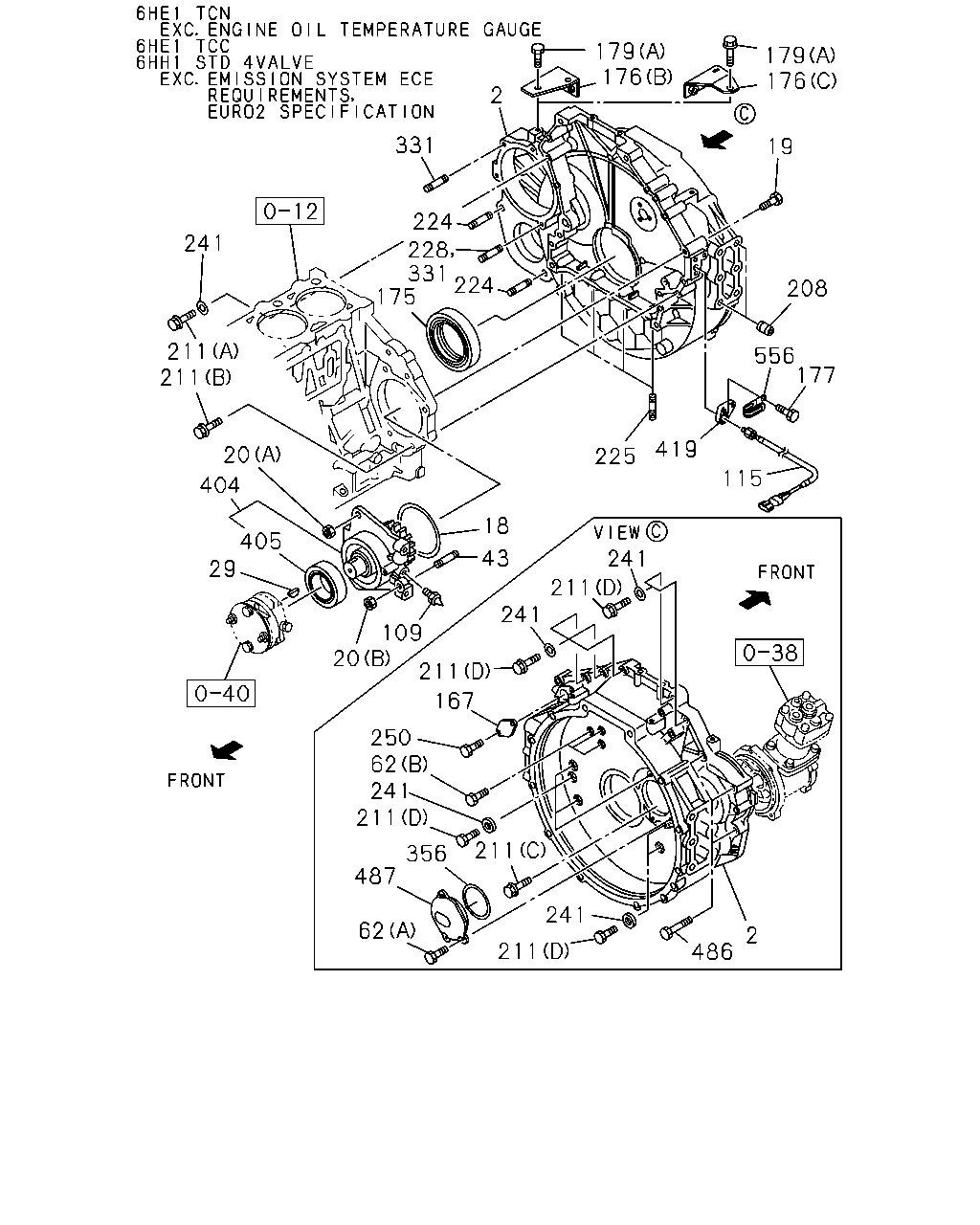

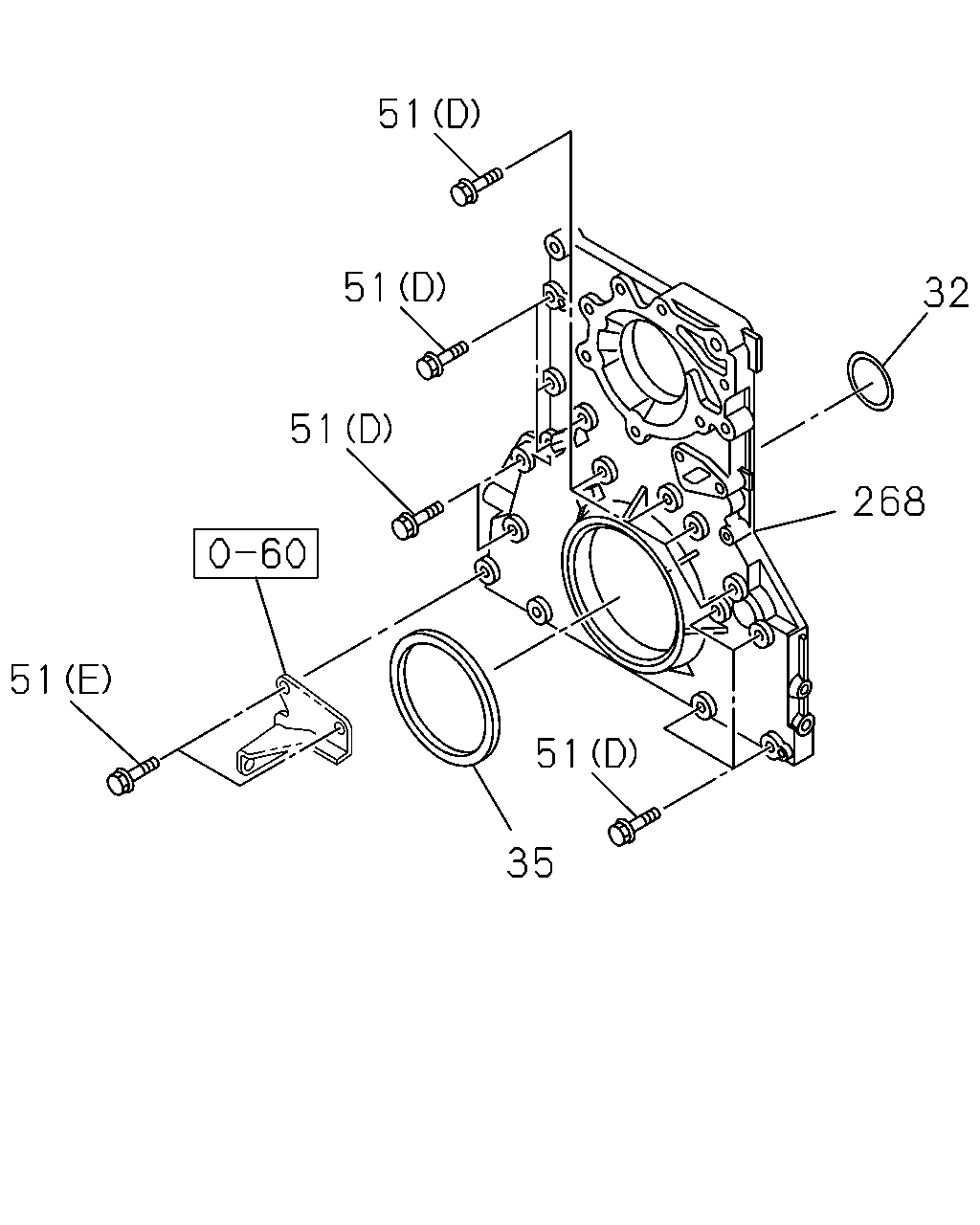

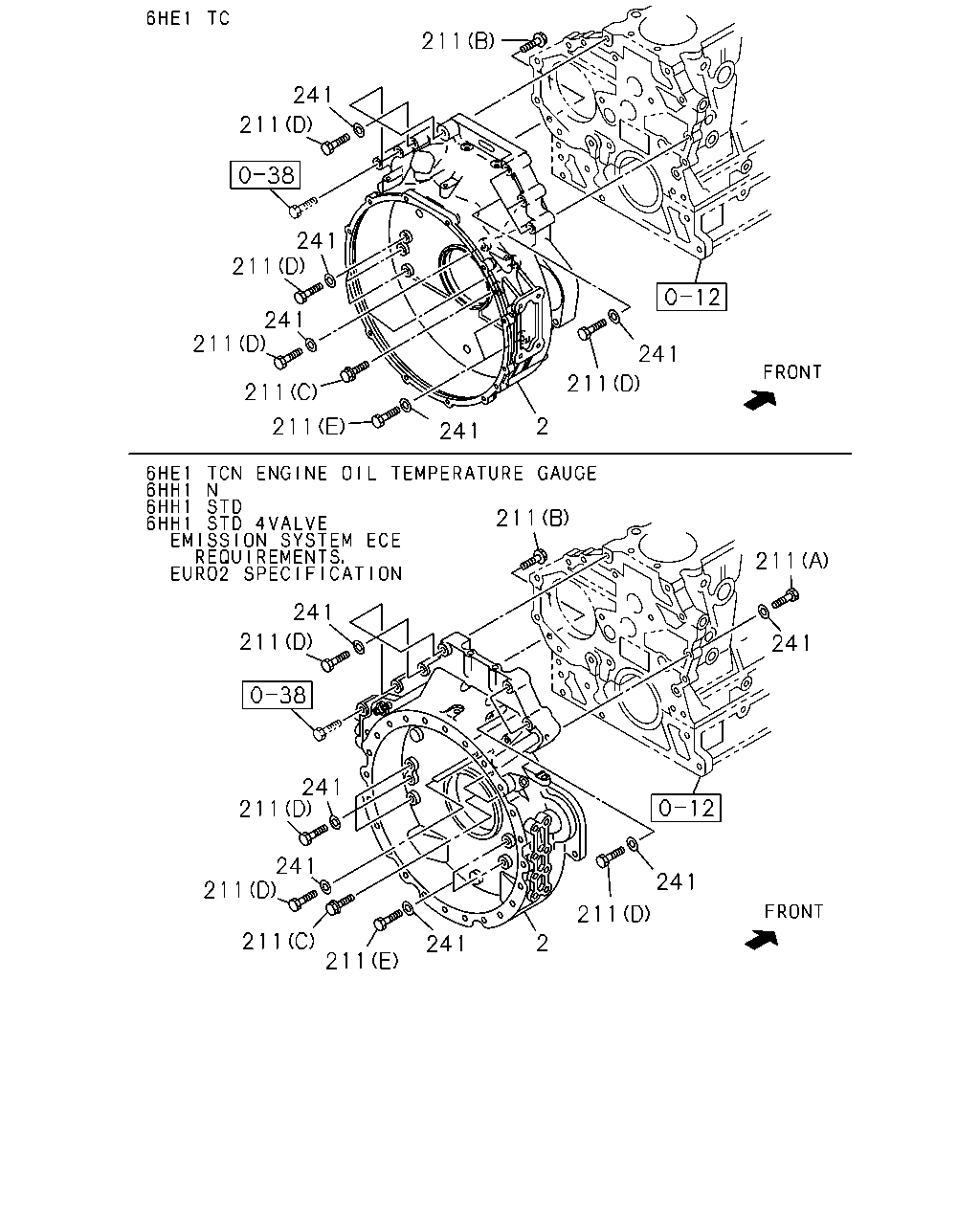

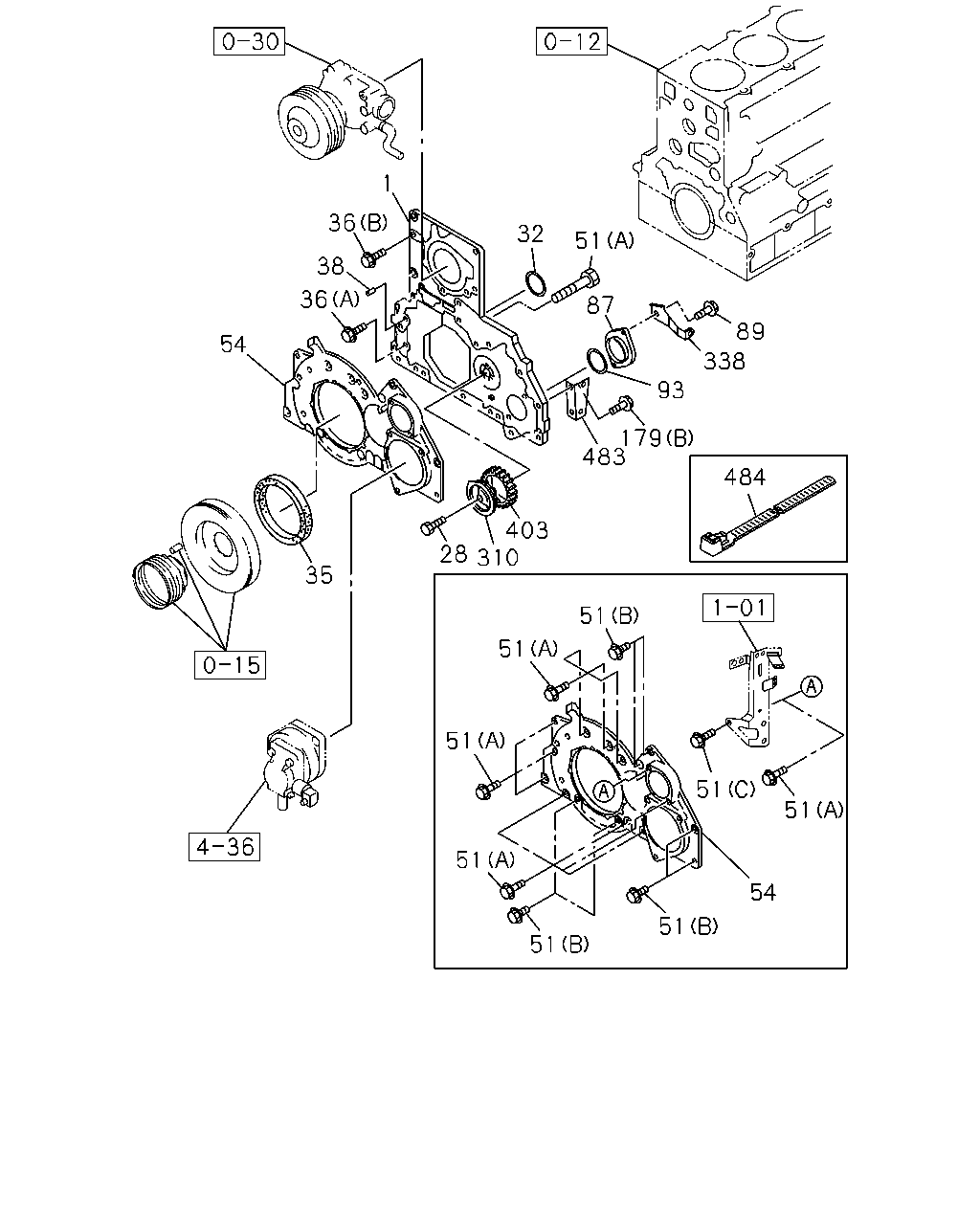

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#37829) — 667 parça

250 167 176 179 2 224 208 490 234 177 419 225 175 397 485 177 115 290 115 556 193 29 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	HOUSING; FLYWHEEL ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94393-411-2	01	1	9510-0004	●
2	HOUSING; FLYWHEEL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94391-103-3	01	1	9710-9910	●
2	HOUSING; FLYWHEEL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94392-208-2	01	1	9911-0004	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9510-9910		●	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9911-0004			●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	8-94394-757-4	01	1	9911-0004		●
2	HOUSING; FLYWHEEL	8-94394-757-8	01	1	0005-		●	●
2	HOUSING; FLYWHEEL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-757-8	01	1	0005-				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-94392-120-1	01	1	9911-0004		●
2	HOUSING; FLYWHEEL	8-94392-120-1	01	1	0005-0009				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-94392-120-5	01	1	0010-				●
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	9702-0004					●
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	0005-	●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9710-9902						●
2	HOUSING; FLYWHEEL	8-97600-260-9	01	1	9903-						●
2	HOUSING; FLYWHEEL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94390-834-8	01	1	0011-				●
29	KEY; COUPLING ENGINE OIL TEMPERATURE GAUGE<UG3>	9-08055-416-0	01	1	9510-9910	●
29	KEY; COUPLING	9-08055-416-0	01	1	9510-9910		●	●		●
29	KEY; COUPLING ENGINE OIL TEMPERATURE GAUGE<UG3>	9-08055-416-0	01	1	9911-0004	●
29	KEY; COUPLING	9-08055-416-0	01	1	9911-0004			●		●
29	KEY; COUPLING EXC. EURO2 SPECIFICATION<THN>	9-08055-416-0	01	1	9911-0004		●
29	KEY; COUPLING	9-08055-416-0	01	1	0005-		●	●		●
29	KEY; COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-08055-416-0	01	1	0005-				●
29	KEY; COUPLING EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	9-08055-516-0	01	1	9710-0004	●
29	KEY; COUPLING	9-08055-516-0	01	1	9710-0004						●
29	KEY; COUPLING	9-08055-516-0	01	1	0005-0010						●
29	KEY; COUPLING EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	0005-0010				●
29	KEY; COUPLING	9-08055-516-0	01	1	0011-						●
29	KEY; COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-08055-516-0	01	1	0011-				●
115	SENSOR; REVOLUTION,ENG SPD ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-561-0	01	1	9510-9910	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	9510-9910		●	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9510-9910					●
115	SENSOR; REVOLUTION,ENG SPD ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-561-0	01	1	9911-0004	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	9911-0004			●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7> EXC. EURO2 SPECIFICATION<THN>	1-81510-561-0	01	1	9911-0004		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9911-0004					●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	0005-		●	●		●
115	SENSOR; REVOLUTION,ENG SPD EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-549-1	01	1	9710-9910	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-549-1	01	1	9710-9910						●
115	SENSOR; REVOLUTION,ENG SPD EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-549-1	01	1	9911-9912	●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	1-81510-549-1	01	1	9911-9912		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-549-1	01	1	9911-9912						●
115	SENSOR; REVOLUTION,ENG SPD EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-549-1	01	1	0001-0002	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-549-1	01	1	0001-0002						●
115	SENSOR; REVOLUTION,ENG SPD EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-97601-117-0	01	1	0003-0004	●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-0	01	1	0003-0004						●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-2	01	1	0005-						●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	8-97600-829-0	01	1	0001-0004		●
115	SENSOR; REVOLUTION,ENG SPD	8-97600-829-0	01	1	0005-0009				●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	8-97600-829-2	01	1	0010-				●
115	SENSOR; REVOLUTION,ENG SPD EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> L=1750	8-97600-085-3	01	1	0011-				●
167	COVER; OIL	1-11219-163-0	01	1	9510-0004	●	●	●			●
167	COVER; OIL	1-11219-163-0	01	1	0005-		●	●	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9510-0004	●	●	●		●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	0005-0112		●	●	●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-		●	●	●	●	●
176	BRACKET; HARNESS ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-82699-412-1	01	1	9510-0004	●
176	BRACKET; HARNESS (A)	1-82699-412-1	01	1	9510-0004		●	●		●
176	BRACKET; HARNESS (A)	1-82699-412-1	01	1	0005-0009		●	●	●	●
176	BRACKET; HARNESS (A)	1-82699-412-1	01	1	0010-		●	●		●
176	BRACKET; HARNESS EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	1-82699-412-1	01	1	0010-				●
176	BRACKET; HARNESS EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-82699-828-1	01	1	9710-0004	●
176	BRACKET; HARNESS (B)	1-82699-828-1	01	1	9710-0004						●
176	BRACKET; HARNESS (B)	1-82699-828-1	01	1	0005-						●
176	BRACKET; HARNESS EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C)	1-82698-079-1	01	1	0011-				●
177	BOLT; SENSOR ENGINE OIL TEMPERATURE GAUGE<UG3> M6X16 FLANGE	0-28080-616-0	01	1	9510-9910	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9510-9910		●	●		●
177	BOLT; SENSOR ENGINE OIL TEMPERATURE GAUGE<UG3> M6X16 FLANGE	0-28080-616-0	01	1	9911-0004	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9911-0004			●		●
177	BOLT; SENSOR EXC. EURO2 SPECIFICATION<THN> M6X16 FLANGE	0-28080-616-0	01	1	9911-0004		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0005-0512		●	●		●
177	BOLT; SENSOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X16 FLANGE	0-28080-616-0	01	1	0005-0512				●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-		●	●		●
177	BOLT; SENSOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X16 FLANGE	0-28050-616-0	01	1	0601-				●
177	BOLT; SENSOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M8X20 FLANGE	0-28680-820-0	02	1	9710-9710	●
177	BOLT; SENSOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M8X20 FLANGE	0-28680-820-0	02	1	9711-0004	●
177	BOLT; SENSOR M8X20 FLANGE	0-28680-820-0	02	1	9711-0004						●
177	BOLT; SENSOR M8X20 FLANGE	0-28680-820-0	02	1	0005-0512						●
177	BOLT; SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0601-						●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	9911-0004		●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	0005-0009				●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	0010-0512				●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	9710-9710						●
177	BOLT; SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28080-820-0	02	1	0011-0512				●
177	BOLT; SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0004	●	●	●		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●	●	●	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●	●	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-0004	●	●	●		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0205		●	●	●	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0206-0512		●	●		●	●
179	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	02	1	0206-0512				●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●		●	●
179	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
193	SPACER; STAY TO OIL,PAN ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	8-94395-674-0	01	1	9510-0004		●	●
193	SPACER; STAY TO OIL,PAN EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-674-0	01	1	0005-		●
193	SPACER; STAY TO OIL,PAN EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-674-0	01	1	0005-				●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9510-9908	●	●	●		●	●
208	DOWEL; ENG FOOT ENGINE OIL TEMPERATURE GAUGE<UG3>	9-43269-009-1	04	1	9909-9910	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9909-9910		●	●		●
208	DOWEL; ENG FOOT ENGINE OIL TEMPERATURE GAUGE<UG3>	9-43269-009-1	04	1	9911-9912	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9911-9912			●		●
208	DOWEL; ENG FOOT EXC. EURO2 SPECIFICATION<THN>	9-43269-009-1	04	1	9911-9912		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0001-0004	●	●	●		●	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0005-		●	●	●	●	●
208	DOWEL; ENG FOOT EURO2 SPECIFICATION<THN>	8-94396-208-0	04	1	9911-9912		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9510-0004	●	●	●		●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0604		●	●	●	●	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●	●	●	●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9510-0004	●	●	●		●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0005-		●	●	●	●	●
228	STUD; AIR CMPR ENGINE OIL TEMPERATURE GAUGE<UG3> M12X60 L=78	9-94411-260-0	01	1	9510-9910	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9510-9910		●	●		●
228	STUD; AIR CMPR ENGINE OIL TEMPERATURE GAUGE<UG3> M12X60 L=78	9-94411-260-0	01	1	9911-0004	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9911-0004			●		●
228	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M12X60 L=78	9-94411-260-0	01	1	9911-0004		●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0005-0604		●	●		●
228	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X60 L=78	9-94411-260-0	01	1	0005-0604				●
228	STUD; AIR CMPR M12X60 L=78	0-44011-260-0	01	1	0605-		●	●		●
228	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X60 L=78	0-44011-260-0	01	1	0605-				●
228	STUD; AIR CMPR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M12X35 L=53	9-94411-235-0	01	1	9710-0004	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9710-0004						●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0005-0604						●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-						●
228	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M12X77 L=95	9-09831-161-0	01	1	9911-0004		●
228	STUD; AIR CMPR M12X77 L=95	9-09831-161-0	01	1	0005-0009				●
228	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M12X77 L=95	9-09831-161-0	01	1	0010-0010				●
228	STUD; AIR CMPR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X77 L=95	9-09831-161-0	01	1	0011-				●
234	BOLT; BRKT ENGINE OIL TEMPERATURE GAUGE<UG3> M8X12 FLANGE	0-28080-812-0	02	1	9510-9910	●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	9510-9910		●	●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9510-9910					●
234	BOLT; BRKT ENGINE OIL TEMPERATURE GAUGE<UG3> M8X12 FLANGE	0-28080-812-0	02	1	9911-0004	●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	9911-0004			●
234	BOLT; BRKT TACHOMETER<UD7> EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28080-812-0	02	1	9911-0004		●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9911-0004					●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	0005-0512		●	●		●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28050-812-0	02	1	0601-		●	●		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9510-0004	●	●	●			●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0005-		●	●	●		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	1-11349-157-0	01	1	9510-0004		●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	1-11349-157-0	01	1	0005-0205		●	●
290	PLUG; SENSOR HOLE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-11349-157-0	01	1	0005-0205				●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	8-97101-974-0	01	1	0206-		●	●
290	PLUG; SENSOR HOLE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97101-974-0	01	1	0206-				●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	9510-9910		●	●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	9911-0004			●
397	BRACKET; CONNECTOR EXC. EURO2 SPECIFICATION<THN>	8-94394-411-1	01	1	9911-0004		●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	0005-		●	●
419	BRACKET; SENSOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-773-1	01	1	9710-0004	●
419	BRACKET; SENSOR	8-94394-773-1	01	1	9710-0004						●
419	BRACKET; SENSOR	8-94394-773-1	01	1	0005-0010						●
419	BRACKET; SENSOR EURO2 SPECIFICATION<THN>	8-94394-773-1	01	1	0005-0010				●
419	BRACKET; SENSOR	8-94394-773-1	01	1	0011-						●
419	BRACKET; SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-773-1	01	1	0011-				●
485	GASKET; SENSOR ENGINE OIL TEMPERATURE GAUGE<UG3>	9-09565-212-0	01	1	9510-9910	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9510-9910		●	●
485	GASKET; SENSOR	9-09565-212-0	01	1	9510-9910					●
485	GASKET; SENSOR ENGINE OIL TEMPERATURE GAUGE<UG3>	9-09565-212-0	01	1	9911-0004	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9911-0004			●
485	GASKET; SENSOR TACHOMETER<UD7> EXC. EURO2 SPECIFICATION<THN>	9-09565-212-0	01	1	9911-0004		●
485	GASKET; SENSOR	9-09565-212-0	01	1	9911-0004					●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	0005-		●	●		●
490	BRACKET; AIR PIPE,VSS ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-857-0	01	1	9510-0004	●
490	BRACKET; AIR PIPE,VSS	8-94394-857-0	01	1	9510-0004					●
490	BRACKET; AIR PIPE,VSS	8-94394-857-0	01	1	0005-	●
556	CLIP; HARNESS,SENSOR EURO2 SPECIFICATION<THN> ID=18 L=44	8-94225-185-0	01	1	9911-0002		●
556	CLIP; HARNESS,SENSOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=18 L=44	8-94225-185-0	01	1	0003-0004	●
556	CLIP; HARNESS,SENSOR EURO2 SPECIFICATION<THN> ID=18 L=44	8-94225-185-0	01	1	0003-0004		●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0003-0004						●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0005-0010						●
556	CLIP; HARNESS,SENSOR EURO2 SPECIFICATION<THN> ID=18 L=44	8-94225-185-0	01	1	0005-0010				●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0011-0801						●
556	CLIP; HARNESS,SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=18 L=44	8-94225-185-0	01	1	0011-0801				●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-97367-985-1	01	1	0802-						●
556	CLIP; HARNESS,SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=18 L=44	8-97367-985-1	01	1	0802-				●

1 36 32 51 38 36 87 89 54 338 93 179 483 484 403 28 310 35 51 51 51 51 51 51 54 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CASE; TIMING GEAR	8-94393-110-2	01	1	9510-9802	●	●	●		●	●
1	CASE; TIMING GEAR	8-94396-434-5	01	1	9803-0004	●	●	●		●	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0005-0205		●	●	●	●	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0206-		●	●		●	●
1	CASE; TIMING GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94396-434-6	01	1	0206-				●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9510-0004	●	●	●		●	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0005-0009		●	●	●	●	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0010-		●	●		●	●
28	BOLT; DRIVE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8X28	8-94399-256-0	03	1	0010-				●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9510-9805	●	●	●		●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9806-0004	●	●	●		●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0005-		●	●	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9510-0004	●	●	●		●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0005-0112		●	●	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-		●	●	●	●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9510-0004	●	●	●		●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0005-0009		●	●	●	●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0010-0801		●	●		●	●
36	BOLT; GEAR CASE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X28 FLANGE	0-28080-828-0	02	1	0010-0801				●
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0802-		●	●		●	●
36	BOLT; GEAR CASE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE	0-28650-830-0	02	1	0802-				●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9510-0004	●	●	●		●	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0005-0009		●	●	●	●	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0010-0801		●	●		●	●
36	BOLT; GEAR CASE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X32 FLANGE	0-28080-832-0	04	1	0010-0801				●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-		●	●		●	●
36	BOLT; GEAR CASE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-				●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9510-0004	●	●	●		●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0005-0009		●	●	●	●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0010-		●	●		●	●
38	PIN; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=22	8-94483-674-0	02	1	0010-				●
51	BOLT; GEAR CASE COVER ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X40 FLANGE	0-28080-840-0	10	1	9510-9910	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9510-9910		●	●		●
51	BOLT; GEAR CASE COVER ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X40 FLANGE	0-28080-840-0	10	1	9911-0004	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9911-0004			●		●
51	BOLT; GEAR CASE COVER EXC. EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	10	1	9911-0004		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	0005-0512		●	●		●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X40 FLANGE	0-28080-840-0	10	1	0005-0512				●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-		●	●		●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-				●
51	BOLT; GEAR CASE COVER ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X45 FLANGE	0-28080-845-0	01	1	9510-9910	●
51	BOLT; GEAR CASE COVER (A) M8X45 FLANGE	0-28080-845-0	01	1	9510-9910		●	●		●
51	BOLT; GEAR CASE COVER ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M8X45 FLANGE	0-28080-845-0	01	1	9911-0004	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9911-0004			●		●
51	BOLT; GEAR CASE COVER EXC. EURO2 SPECIFICATION<THN> (C) M8X45 FLANGE	0-28080-845-0	01	1	9911-0004		●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0512		●	●		●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0512				●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●	●		●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-				●
51	BOLT; GEAR CASE COVER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X40 FLANGE	0-28080-840-0	11	1	9710-9910	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	9710-9910						●
51	BOLT; GEAR CASE COVER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X40 FLANGE	0-28080-840-0	11	1	9911-0004	●
51	BOLT; GEAR CASE COVER EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	11	1	9911-0004		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	9911-0004						●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0005-0512						●
51	BOLT; GEAR CASE COVER EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	11	1	0005-0512				●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-						●
51	BOLT; GEAR CASE COVER EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-				●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9510-0004	●	●	●		●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0005-0009		●	●	●	●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0010-0512		●	●		●	●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28680-820-0	06	1	0010-0512				●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-		●	●		●	●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-				●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M8X35 FLANGE	0-28080-835-0	14	1	0011-0512				●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M8X35 FLANGE	0-28050-835-0	14	1	0601-				●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (E) M8X40 FLANGE	0-28080-840-0	02	1	0011-0512				●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (E) M8X40 FLANGE	0-28050-840-0	02	1	0601-				●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9510-0004	●	●	●		●	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0005-0205		●	●	●	●	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0206-		●	●		●	●
54	COVER; GEAR CASE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94393-304-1	01	1	0206-				●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9510-0004	●	●	●		●	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0005-0009		●	●	●	●	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0010-		●	●		●	●
87	COVER; TACHOMETER DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94396-370-0	01	1	0010-				●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9510-0004	●	●	●		●	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0005-0009		●	●	●	●	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0010-		●	●		●	●
89	BOLT; ELBOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8X18 FLANGE	0-28080-818-0	02	1	0010-				●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9510-0004	●	●	●		●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0005-0009		●	●	●	●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-180-0	01	1	0010-		●	●		●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> OD=54.7	1-09623-180-0	01	1	0010-				●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0004	●	●	●		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●	●	●	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●	●	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-0004	●	●	●		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0205		●	●	●	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0206-0512		●	●		●	●
179	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	02	1	0206-0512				●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●		●	●
179	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9510-0004	●	●	●		●	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0005-0009		●	●	●	●	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0010-		●	●		●	●
310	SHAFT; IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94394-806-0	01	1	0010-				●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	9510-0004	●	●	●		●	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0005-0205		●	●	●	●	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0206-		●	●		●	●
338	BRACKET; CLIP,HARNESS EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-82699-889-0	01	1	0206-				●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9510-0004	●	●	●		●	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0005-0009		●	●	●	●	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0010-		●	●		●	●
403	GEAR; IDLE,FRONT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=33	8-94395-943-1	01	1	0010-				●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9510-0004	●	●	●		●	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0005-0205		●	●	●	●	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0206-		●	●		●	●
483	BRACKET; WATER DUCT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94394-405-1	01	1	0206-				●
484	CLIP; BAND TACHOMETER<UD7> L=250	5-09707-030-1	01	1	1201-1205		●	●
484	CLIP; BAND TACHOMETER<UD7> L=250	8-98216-430-0	01	1	1206-		●	●

211 241 211 241 211 241 211 241 211 211 2 211 241 211 211 241 211 241 241 211 241 211 241 211 211 2 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	HOUSING; FLYWHEEL ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94393-411-2	01	1	9510-0004	●
2	HOUSING; FLYWHEEL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94391-103-3	01	1	9710-9910	●
2	HOUSING; FLYWHEEL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94392-208-2	01	1	9911-0004	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9510-9910		●	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9911-0004			●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	8-94394-757-4	01	1	9911-0004		●
2	HOUSING; FLYWHEEL	8-94394-757-8	01	1	0005-		●	●
2	HOUSING; FLYWHEEL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-757-8	01	1	0005-				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-94392-120-1	01	1	9911-0004		●
2	HOUSING; FLYWHEEL	8-94392-120-1	01	1	0005-0009				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-94392-120-5	01	1	0010-				●
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	9702-0004					●
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	0005-	●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9710-9902						●
2	HOUSING; FLYWHEEL	8-97600-260-9	01	1	9903-						●
2	HOUSING; FLYWHEEL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94390-834-8	01	1	0011-				●
211	BOLT; HSG ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10X50 FLANGE	0-28181-050-0	02	1	9510-0004	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	9510-0004					●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	0005-0512					●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-	●
211	BOLT; HSG ENGINE OIL TEMPERATURE GAUGE<UG3> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	9510-0004	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	9510-0004					●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	0005-	●
211	BOLT; HSG ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M12X65	9-01666-265-0	03	1	9510-0004	●
211	BOLT; HSG (C) M12X65	9-01666-265-0	03	1	9510-0004					●
211	BOLT; HSG (C) M12X65	9-01666-265-0	03	1	0005-	●
211	BOLT; HSG ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M12X70	9-01666-270-0	10	1	9510-0004	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	10	1	9510-0004					●
211	BOLT; HSG (D) M12X70	9-01666-270-0	10	1	0005-0512					●
211	BOLT; HSG (D) M12X70	0-16956-270-0	10	1	0601-	●
211	BOLT; HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M12X60	0-16806-260-0	01	1	9710-0004	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9710-0004		●	●			●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0512		●	●	●		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●	●	●		●
211	BOLT; HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10X50 FLANGE	0-28181-050-0	01	1	9710-0004	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9710-0004		●	●			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0512		●	●	●		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●	●	●		●
211	BOLT; HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M14X27 FLANGE	8-94393-995-0	01	1	9710-0004	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9710-0004						●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0005-0010						●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0011-						●
211	BOLT; HSG EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	8-94393-995-0	01	1	0011-				●
211	BOLT; HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M12X70	9-01666-270-0	11	1	9710-0004	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9710-0004						●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0005-0010						●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0011-0512						●
211	BOLT; HSG EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M12X70	9-01666-270-0	11	1	0011-0512				●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-						●
211	BOLT; HSG EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M12X70	0-16956-270-0	11	1	0601-				●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9510-9709		●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9510-9802		●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	9510-0004		●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	0005-0205		●	●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	0206-0512		●	●
211	BOLT; HSG EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M12X70	9-01666-270-0	12	1	0206-0512				●
211	BOLT; HSG (D) M12X70	0-16956-270-0	12	1	0601-		●	●
211	BOLT; HSG EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M12X70	0-16956-270-0	12	1	0601-				●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9608-9709		●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9803-0004		●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0005-0205		●	●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0206-		●	●
211	BOLT; HSG EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0206-				●
241	WASHER; PL,HSG ENGINE OIL TEMPERATURE GAUGE<UG3> ID=12.5 OD=22	8-94393-140-1	13	1	9510-0004	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9510-0004		●	●		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0005-0009		●	●	●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0010-		●	●		●
241	WASHER; PL,HSG EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=12.5 OD=22	8-94393-140-1	13	1	0010-				●
241	WASHER; PL,HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=12.5 OD=22	8-94393-140-1	12	1	9510-0004	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9510-0004						●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0005-0010						●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0011-						●
241	WASHER; PL,HSG EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> ID=12.5 OD=22	8-94393-140-1	12	1	0011-				●

179 176 179 176 2 331 19 224 241 228 331 175 224 208 211 211 556 177 419 20 225 115 404 18 241 405 29 43 211 241 109 20 211 167 250 62 241 211 211 356 487 241 62 2 211 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	HOUSING; FLYWHEEL ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94393-411-2	01	1	9510-0004	●
2	HOUSING; FLYWHEEL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94391-103-3	01	1	9710-9910	●
2	HOUSING; FLYWHEEL EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94392-208-2	01	1	9911-0004	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9510-9910		●	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9911-0004			●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	8-94394-757-4	01	1	9911-0004		●
2	HOUSING; FLYWHEEL	8-94394-757-8	01	1	0005-		●	●
2	HOUSING; FLYWHEEL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-757-8	01	1	0005-				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-94392-120-1	01	1	9911-0004		●
2	HOUSING; FLYWHEEL	8-94392-120-1	01	1	0005-0009				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-94392-120-5	01	1	0010-				●
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	9702-0004					●
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	0005-	●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9710-9902						●
2	HOUSING; FLYWHEEL	8-97600-260-9	01	1	9903-						●
2	HOUSING; FLYWHEEL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94390-834-8	01	1	0011-				●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. ID=139.6	1-09623-464-0	01	1	9710-0004	●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9710-0004						●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-						●
19	BOLT; BRG CASE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M12X100 FLANGE	0-28181-200-0	01	1	9710-0004	●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	9710-0004						●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	0005-0512						●
19	BOLT; BRG CASE M12X100 FLANGE	0-28151-200-0	01	1	0601-						●
20	NUT; BRG CASE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M10 FLANGE	0-91150-110-0	02	1	9710-0004	●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	9710-0004						●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	0005-0602						●
20	NUT; BRG CASE (A) M10 FLANGE	0-91180-110-0	02	1	0603-						●
20	NUT; BRG CASE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M12 FLANGE	0-91150-212-0	01	1	9710-0004	●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	9710-0004						●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	0005-0602						●
20	NUT; BRG CASE (B) M12 FLANGE	0-91180-212-0	01	1	0603-						●
29	KEY; COUPLING ENGINE OIL TEMPERATURE GAUGE<UG3>	9-08055-416-0	01	1	9510-9910	●
29	KEY; COUPLING	9-08055-416-0	01	1	9510-9910		●	●		●
29	KEY; COUPLING ENGINE OIL TEMPERATURE GAUGE<UG3>	9-08055-416-0	01	1	9911-0004	●
29	KEY; COUPLING	9-08055-416-0	01	1	9911-0004			●		●
29	KEY; COUPLING EXC. EURO2 SPECIFICATION<THN>	9-08055-416-0	01	1	9911-0004		●
29	KEY; COUPLING	9-08055-416-0	01	1	0005-		●	●		●
29	KEY; COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-08055-416-0	01	1	0005-				●
29	KEY; COUPLING EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	9-08055-516-0	01	1	9710-0004	●
29	KEY; COUPLING	9-08055-516-0	01	1	9710-0004						●
29	KEY; COUPLING	9-08055-516-0	01	1	0005-0010						●
29	KEY; COUPLING EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	0005-0010				●
29	KEY; COUPLING	9-08055-516-0	01	1	0011-						●
29	KEY; COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	9-08055-516-0	01	1	0011-				●
43	STUD; BRG COVER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M12X67 L=82	1-09302-112-0	01	1	9710-0004	●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	9710-0004						●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	0005-						●
62	BOLT; COVER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X14 FLANGE	0-28080-814-0	03	1	9710-0004	●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9710-0004						●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0005-0010						●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0011-						●
62	BOLT; COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) M8X14 FLANGE	0-28080-814-0	03	1	0011-				●
62	BOLT; COVER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X20 FLANGE	0-28080-820-0	03	1	9710-9910	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9710-9910						●
62	BOLT; COVER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8X20 FLANGE	0-28080-820-0	03	1	9911-0004	●
62	BOLT; COVER EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	03	1	9911-0004		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9911-0004						●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0005-0010						●
62	BOLT; COVER EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	03	1	0005-0010				●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0011-0512						●
62	BOLT; COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 FLANGE	0-28080-820-0	03	1	0011-0512				●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-						●
62	BOLT; COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-				●
109	POINTER; TIMING EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> L=21	9-11327-602-0	01	1	9710-0004	●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	9710-0004						●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	0005-						●
115	SENSOR; REVOLUTION,ENG SPD ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-561-0	01	1	9510-9910	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	9510-9910		●	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9510-9910					●
115	SENSOR; REVOLUTION,ENG SPD ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-561-0	01	1	9911-0004	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	9911-0004			●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7> EXC. EURO2 SPECIFICATION<THN>	1-81510-561-0	01	1	9911-0004		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9911-0004					●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	0005-		●	●		●
115	SENSOR; REVOLUTION,ENG SPD EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-549-1	01	1	9710-9910	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-549-1	01	1	9710-9910						●
115	SENSOR; REVOLUTION,ENG SPD EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-549-1	01	1	9911-9912	●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	1-81510-549-1	01	1	9911-9912		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-549-1	01	1	9911-9912						●
115	SENSOR; REVOLUTION,ENG SPD EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-81510-549-1	01	1	0001-0002	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-549-1	01	1	0001-0002						●
115	SENSOR; REVOLUTION,ENG SPD EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-97601-117-0	01	1	0003-0004	●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-0	01	1	0003-0004						●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-2	01	1	0005-						●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	8-97600-829-0	01	1	0001-0004		●
115	SENSOR; REVOLUTION,ENG SPD	8-97600-829-0	01	1	0005-0009				●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	8-97600-829-2	01	1	0010-				●
115	SENSOR; REVOLUTION,ENG SPD EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> L=1750	8-97600-085-3	01	1	0011-				●
167	COVER; OIL	1-11219-163-0	01	1	9510-0004	●	●	●			●
167	COVER; OIL	1-11219-163-0	01	1	0005-		●	●	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9510-0004	●	●	●		●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	0005-0112		●	●	●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-		●	●	●	●	●
176	BRACKET; HARNESS ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-82699-412-1	01	1	9510-0004	●
176	BRACKET; HARNESS (A)	1-82699-412-1	01	1	9510-0004		●	●		●
176	BRACKET; HARNESS (A)	1-82699-412-1	01	1	0005-0009		●	●	●	●
176	BRACKET; HARNESS (A)	1-82699-412-1	01	1	0010-		●	●		●
176	BRACKET; HARNESS EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	1-82699-412-1	01	1	0010-				●
176	BRACKET; HARNESS EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-82699-828-1	01	1	9710-0004	●
176	BRACKET; HARNESS (B)	1-82699-828-1	01	1	9710-0004						●
176	BRACKET; HARNESS (B)	1-82699-828-1	01	1	0005-						●
176	BRACKET; HARNESS EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C)	1-82698-079-1	01	1	0011-				●
177	BOLT; SENSOR ENGINE OIL TEMPERATURE GAUGE<UG3> M6X16 FLANGE	0-28080-616-0	01	1	9510-9910	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9510-9910		●	●		●
177	BOLT; SENSOR ENGINE OIL TEMPERATURE GAUGE<UG3> M6X16 FLANGE	0-28080-616-0	01	1	9911-0004	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9911-0004			●		●
177	BOLT; SENSOR EXC. EURO2 SPECIFICATION<THN> M6X16 FLANGE	0-28080-616-0	01	1	9911-0004		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0005-0512		●	●		●
177	BOLT; SENSOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X16 FLANGE	0-28080-616-0	01	1	0005-0512				●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-		●	●		●
177	BOLT; SENSOR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X16 FLANGE	0-28050-616-0	01	1	0601-				●
177	BOLT; SENSOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M8X20 FLANGE	0-28680-820-0	02	1	9710-9710	●
177	BOLT; SENSOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M8X20 FLANGE	0-28680-820-0	02	1	9711-0004	●
177	BOLT; SENSOR M8X20 FLANGE	0-28680-820-0	02	1	9711-0004						●
177	BOLT; SENSOR M8X20 FLANGE	0-28680-820-0	02	1	0005-0512						●
177	BOLT; SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0601-						●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	9911-0004		●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	0005-0009				●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	0010-0512				●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	9710-9710						●
177	BOLT; SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28080-820-0	02	1	0011-0512				●
177	BOLT; SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0004	●	●	●		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●	●	●	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●	●	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-0004	●	●	●		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0205		●	●	●	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0206-0512		●	●		●	●
179	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	02	1	0206-0512				●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●		●	●
179	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9510-9908	●	●	●		●	●
208	DOWEL; ENG FOOT ENGINE OIL TEMPERATURE GAUGE<UG3>	9-43269-009-1	04	1	9909-9910	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9909-9910		●	●		●
208	DOWEL; ENG FOOT ENGINE OIL TEMPERATURE GAUGE<UG3>	9-43269-009-1	04	1	9911-9912	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9911-9912			●		●
208	DOWEL; ENG FOOT EXC. EURO2 SPECIFICATION<THN>	9-43269-009-1	04	1	9911-9912		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0001-0004	●	●	●		●	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0005-		●	●	●	●	●
208	DOWEL; ENG FOOT EURO2 SPECIFICATION<THN>	8-94396-208-0	04	1	9911-9912		●
211	BOLT; HSG ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10X50 FLANGE	0-28181-050-0	02	1	9510-0004	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	9510-0004					●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	0005-0512					●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-	●
211	BOLT; HSG ENGINE OIL TEMPERATURE GAUGE<UG3> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	9510-0004	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	9510-0004					●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	0005-	●
211	BOLT; HSG ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M12X65	9-01666-265-0	03	1	9510-0004	●
211	BOLT; HSG (C) M12X65	9-01666-265-0	03	1	9510-0004					●
211	BOLT; HSG (C) M12X65	9-01666-265-0	03	1	0005-	●
211	BOLT; HSG ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M12X70	9-01666-270-0	10	1	9510-0004	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	10	1	9510-0004					●
211	BOLT; HSG (D) M12X70	9-01666-270-0	10	1	0005-0512					●
211	BOLT; HSG (D) M12X70	0-16956-270-0	10	1	0601-	●
211	BOLT; HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M12X60	0-16806-260-0	01	1	9710-0004	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9710-0004		●	●			●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0512		●	●	●		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●	●	●		●
211	BOLT; HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M10X50 FLANGE	0-28181-050-0	01	1	9710-0004	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9710-0004		●	●			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0512		●	●	●		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●	●	●		●
211	BOLT; HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M14X27 FLANGE	8-94393-995-0	01	1	9710-0004	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9710-0004						●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0005-0010						●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0011-						●
211	BOLT; HSG EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	8-94393-995-0	01	1	0011-				●
211	BOLT; HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (D) M12X70	9-01666-270-0	11	1	9710-0004	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9710-0004						●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0005-0010						●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0011-0512						●
211	BOLT; HSG EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M12X70	9-01666-270-0	11	1	0011-0512				●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-						●
211	BOLT; HSG EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M12X70	0-16956-270-0	11	1	0601-				●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9510-9709		●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9510-9802		●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	9510-0004		●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	0005-0205		●	●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	0206-0512		●	●
211	BOLT; HSG EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M12X70	9-01666-270-0	12	1	0206-0512				●
211	BOLT; HSG (D) M12X70	0-16956-270-0	12	1	0601-		●	●
211	BOLT; HSG EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M12X70	0-16956-270-0	12	1	0601-				●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9608-9709		●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9803-0004		●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0005-0205		●	●	●
211	BOLT; HSG (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0206-		●	●
211	BOLT; HSG EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0206-				●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9510-0004	●	●	●		●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0604		●	●	●	●	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●	●	●	●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9510-0004	●	●	●		●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0005-		●	●	●	●	●
228	STUD; AIR CMPR ENGINE OIL TEMPERATURE GAUGE<UG3> M12X60 L=78	9-94411-260-0	01	1	9510-9910	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9510-9910		●	●		●
228	STUD; AIR CMPR ENGINE OIL TEMPERATURE GAUGE<UG3> M12X60 L=78	9-94411-260-0	01	1	9911-0004	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9911-0004			●		●
228	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M12X60 L=78	9-94411-260-0	01	1	9911-0004		●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0005-0604		●	●		●
228	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X60 L=78	9-94411-260-0	01	1	0005-0604				●
228	STUD; AIR CMPR M12X60 L=78	0-44011-260-0	01	1	0605-		●	●		●
228	STUD; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X60 L=78	0-44011-260-0	01	1	0605-				●
228	STUD; AIR CMPR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M12X35 L=53	9-94411-235-0	01	1	9710-0004	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9710-0004						●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0005-0604						●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-						●
228	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M12X77 L=95	9-09831-161-0	01	1	9911-0004		●
228	STUD; AIR CMPR M12X77 L=95	9-09831-161-0	01	1	0005-0009				●
228	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M12X77 L=95	9-09831-161-0	01	1	0010-0010				●
228	STUD; AIR CMPR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> M12X77 L=95	9-09831-161-0	01	1	0011-				●
241	WASHER; PL,HSG ENGINE OIL TEMPERATURE GAUGE<UG3> ID=12.5 OD=22	8-94393-140-1	13	1	9510-0004	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9510-0004		●	●		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0005-0009		●	●	●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0010-		●	●		●
241	WASHER; PL,HSG EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=12.5 OD=22	8-94393-140-1	13	1	0010-				●
241	WASHER; PL,HSG EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=12.5 OD=22	8-94393-140-1	12	1	9510-0004	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9510-0004						●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0005-0010						●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0011-						●
241	WASHER; PL,HSG EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> ID=12.5 OD=22	8-94393-140-1	12	1	0011-				●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9510-0004	●	●	●			●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0005-		●	●	●		●
331	STUD; P/S PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	0011-0301				●
331	STUD; P/S PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X25 L=40	0-49841-025-0	02	1	0302-0512				●
331	STUD; P/S PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X25 L=48.5	0-49241-025-0	02	1	0601-				●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>. ID=110	8-94394-186-0	01	1	9710-0004	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9710-0004						●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0005-0010						●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94394-186-0	01	1	0011-						●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> ID=110	8-94394-186-0	01	1	0011-				●
404	CASE ASM; BRG,INJ PUMP EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94391-643-0	01	1	9710-0004	●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	9710-0004						●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	0005-						●
405	SEAL; OIL,BRG CASE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-09625-576-0	01	1	9710-0004	●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	9710-0004						●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	0005-						●
419	BRACKET; SENSOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-773-1	01	1	9710-0004	●
419	BRACKET; SENSOR	8-94394-773-1	01	1	9710-0004						●
419	BRACKET; SENSOR	8-94394-773-1	01	1	0005-0010						●
419	BRACKET; SENSOR EURO2 SPECIFICATION<THN>	8-94394-773-1	01	1	0005-0010				●
419	BRACKET; SENSOR	8-94394-773-1	01	1	0011-						●
419	BRACKET; SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-773-1	01	1	0011-				●
486	BOLT; AIR CMPR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M12X70 FLANGE	0-28181-270-0	03	1	9710-0004	●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	03	1	9710-0004						●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	03	1	0005-0512						●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28151-270-0	03	1	0601-						●
487	COVER; HOLE EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94394-513-1	01	1	9710-0004	●
487	COVER; HOLE	8-94394-513-1	01	1	9710-0004						●
487	COVER; HOLE	8-94394-513-1	01	1	0005-0010						●
487	COVER; HOLE	8-94394-513-1	01	1	0011-0805						●
487	COVER; HOLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94394-513-1	01	1	0011-0805				●
487	COVER; HOLE	8-98023-824-1	01	1	0806-						●
487	COVER; HOLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-98023-824-1	01	1	0806-				●
556	CLIP; HARNESS,SENSOR EURO2 SPECIFICATION<THN> ID=18 L=44	8-94225-185-0	01	1	9911-0002		●
556	CLIP; HARNESS,SENSOR EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> ID=18 L=44	8-94225-185-0	01	1	0003-0004	●
556	CLIP; HARNESS,SENSOR EURO2 SPECIFICATION<THN> ID=18 L=44	8-94225-185-0	01	1	0003-0004		●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0003-0004						●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0005-0010						●
556	CLIP; HARNESS,SENSOR EURO2 SPECIFICATION<THN> ID=18 L=44	8-94225-185-0	01	1	0005-0010				●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0011-0801						●
556	CLIP; HARNESS,SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=18 L=44	8-94225-185-0	01	1	0011-0801				●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-97367-985-1	01	1	0802-						●
556	CLIP; HARNESS,SENSOR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=18 L=44	8-97367-985-1	01	1	0802-				●

51 51 32 51 268 51 51 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9510-9805	●	●	●		●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9806-0004	●	●	●		●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0005-		●	●	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9510-0004	●	●	●		●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0005-0112		●	●	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-		●	●	●	●	●
51	BOLT; GEAR CASE COVER ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X40 FLANGE	0-28080-840-0	10	1	9510-9910	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9510-9910		●	●		●
51	BOLT; GEAR CASE COVER ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X40 FLANGE	0-28080-840-0	10	1	9911-0004	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9911-0004			●		●
51	BOLT; GEAR CASE COVER EXC. EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	10	1	9911-0004		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	0005-0512		●	●		●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X40 FLANGE	0-28080-840-0	10	1	0005-0512				●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-		●	●		●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-				●
51	BOLT; GEAR CASE COVER ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X45 FLANGE	0-28080-845-0	01	1	9510-9910	●
51	BOLT; GEAR CASE COVER (A) M8X45 FLANGE	0-28080-845-0	01	1	9510-9910		●	●		●
51	BOLT; GEAR CASE COVER ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M8X45 FLANGE	0-28080-845-0	01	1	9911-0004	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9911-0004			●		●
51	BOLT; GEAR CASE COVER EXC. EURO2 SPECIFICATION<THN> (C) M8X45 FLANGE	0-28080-845-0	01	1	9911-0004		●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0512		●	●		●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0512				●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●	●		●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-				●
51	BOLT; GEAR CASE COVER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X40 FLANGE	0-28080-840-0	11	1	9710-9910	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	9710-9910						●
51	BOLT; GEAR CASE COVER EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M8X40 FLANGE	0-28080-840-0	11	1	9911-0004	●
51	BOLT; GEAR CASE COVER EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	11	1	9911-0004		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	9911-0004						●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0005-0512						●
51	BOLT; GEAR CASE COVER EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	11	1	0005-0512				●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-						●
51	BOLT; GEAR CASE COVER EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-				●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9510-0004	●	●	●		●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0005-0009		●	●	●	●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0010-0512		●	●		●	●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28680-820-0	06	1	0010-0512				●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-		●	●		●	●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-				●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M8X35 FLANGE	0-28080-835-0	14	1	0011-0512				●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M8X35 FLANGE	0-28050-835-0	14	1	0601-				●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (E) M8X40 FLANGE	0-28080-840-0	02	1	0011-0512				●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (E) M8X40 FLANGE	0-28050-840-0	02	1	0601-				●
268	COVER; FRT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94392-480-0	01	1	0011-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
