◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#37822) — 570 parça

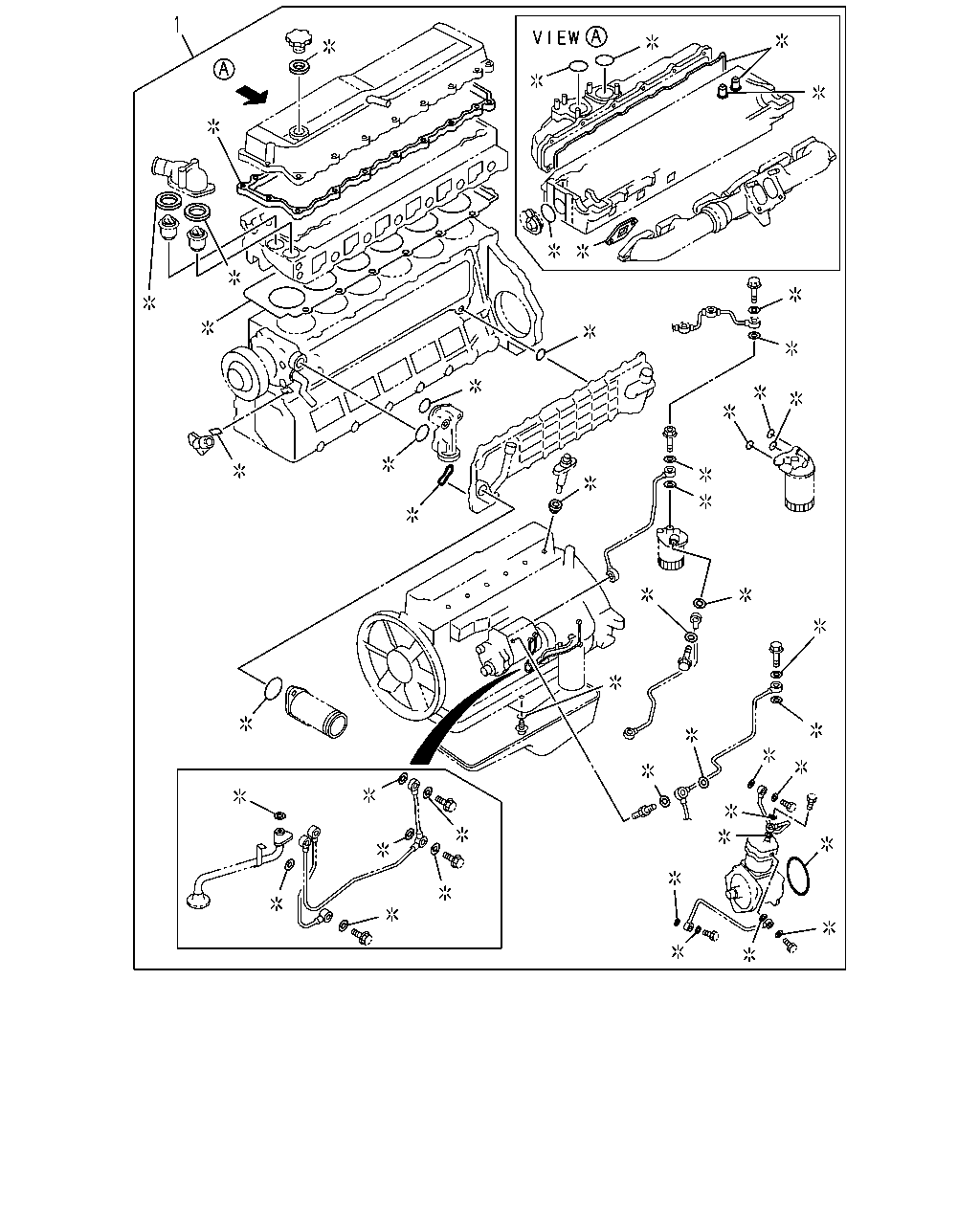

çizim 151456
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-87813-544-1 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-544-2 01 1 1001-1312 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-187-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-736-0 01 1 1409-1501 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-387-0 01 1 1502- ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-107-0 01 1 0607-0912 ●
1 GASKET SET; ENG OVERHAUL 1-87813-543-2 01 1 1001-1308 ●
1 GASKET SET; ENG OVERHAUL 1-87814-130-0 01 1 1309-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-189-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-807-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87810-927-5 01 1 9510-9703 ● ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-185-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-307-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-105-3 01 1 0607-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-426-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-675-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87811-078-1 01 1 9510-9805 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9806-9911 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 0005-0006 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0007-0105 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-199-0 01 1 0106-0112 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-304-3 01 1 0201-0606 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-104-6 01 1 0607-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-145-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-428-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-674-1 01 1 1409- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-042-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-042-0 01 1 0005-0006 ●
1 GASKET SET; ENG OVERHAUL 1-87812-090-0 01 1 0007-0009 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-090-0 01 1 0010-0105 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-181-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-330-2 01 1 0201-0406 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-865-0 01 1 0407-0407 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-909-2 01 1 0408-0606 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-108-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-265-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0909-0911 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-154-0 01 1 0011-0105 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-338-3 01 1 0106-0407 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-915-0 01 1 0408-0507 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-991-0 01 1 0508-0606 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-109-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-288-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-451-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-323-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-275-0 01 1 1409- ●

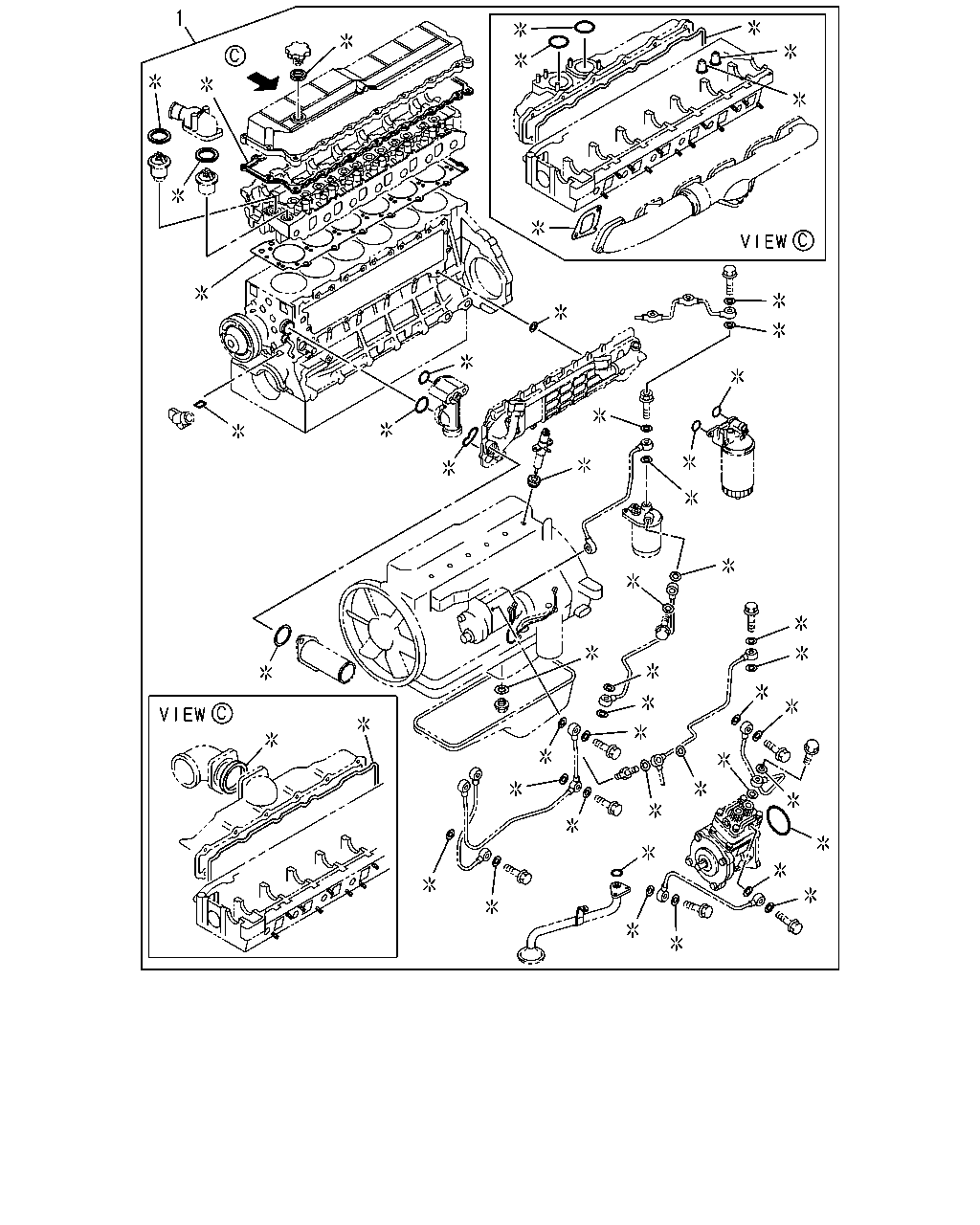

çizim 151457
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-87813-544-1 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-544-2 01 1 1001-1312 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-187-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-736-0 01 1 1409-1501 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-387-0 01 1 1502- ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-107-0 01 1 0607-0912 ●
1 GASKET SET; ENG OVERHAUL 1-87813-543-2 01 1 1001-1308 ●
1 GASKET SET; ENG OVERHAUL 1-87814-130-0 01 1 1309-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-189-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-807-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87810-927-5 01 1 9510-9703 ● ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-185-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-307-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-105-3 01 1 0607-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-426-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-675-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87811-078-1 01 1 9510-9805 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9806-9911 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 0005-0006 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0007-0105 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-199-0 01 1 0106-0112 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-304-3 01 1 0201-0606 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-104-6 01 1 0607-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-145-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-428-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-674-1 01 1 1409- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-042-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-042-0 01 1 0005-0006 ●
1 GASKET SET; ENG OVERHAUL 1-87812-090-0 01 1 0007-0009 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-090-0 01 1 0010-0105 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-181-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-330-2 01 1 0201-0406 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-865-0 01 1 0407-0407 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-909-2 01 1 0408-0606 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-108-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-265-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0909-0911 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-154-0 01 1 0011-0105 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-338-3 01 1 0106-0407 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-915-0 01 1 0408-0507 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-991-0 01 1 0508-0606 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-109-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-288-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-451-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-323-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-275-0 01 1 1409- ●

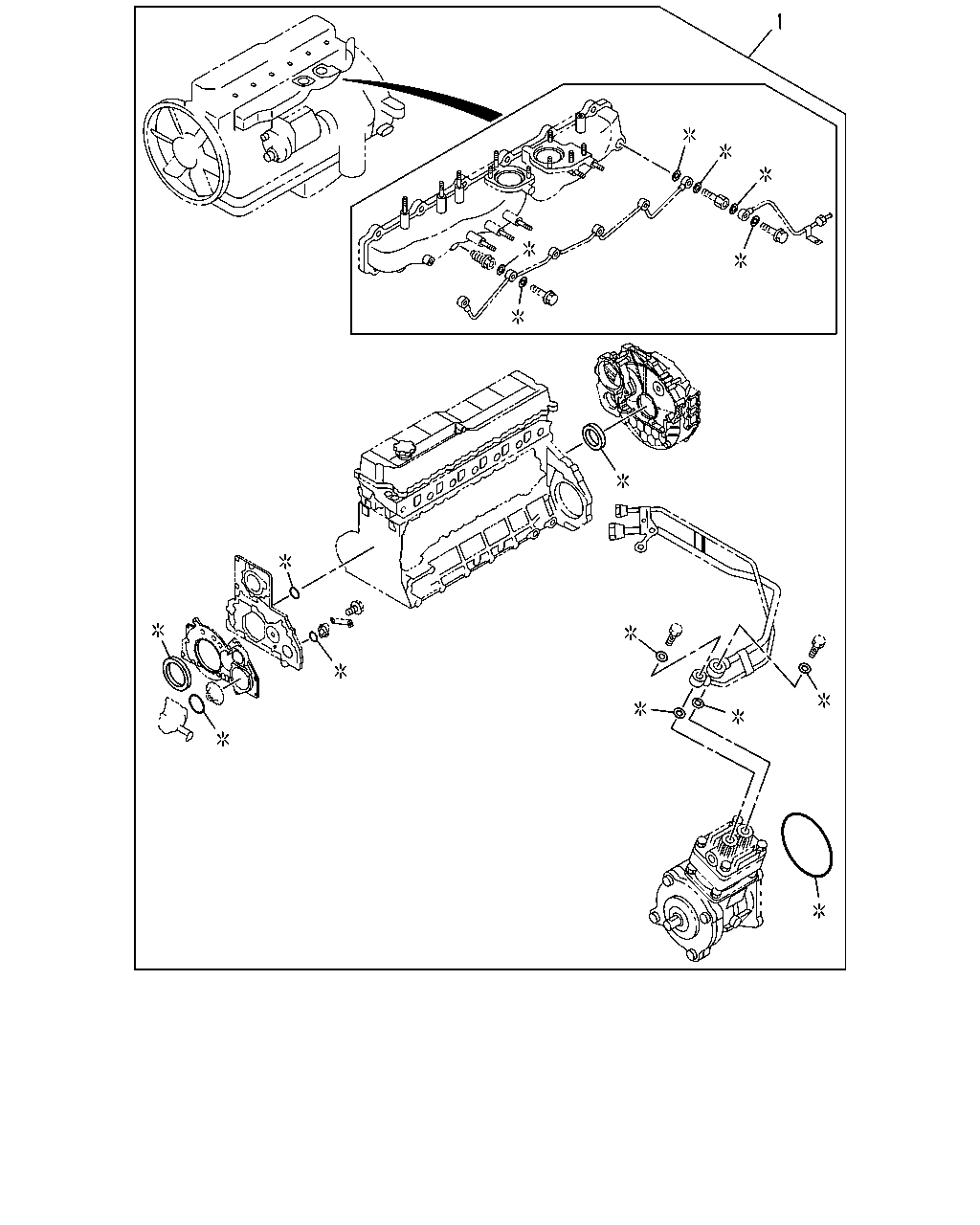

çizim 151458
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-87813-544-1 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-544-2 01 1 1001-1312 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-187-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-736-0 01 1 1409-1501 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-387-0 01 1 1502- ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-107-0 01 1 0607-0912 ●
1 GASKET SET; ENG OVERHAUL 1-87813-543-2 01 1 1001-1308 ●
1 GASKET SET; ENG OVERHAUL 1-87814-130-0 01 1 1309-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-189-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-807-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87810-927-5 01 1 9510-9703 ● ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-185-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-307-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-105-3 01 1 0607-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-426-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-675-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87811-078-1 01 1 9510-9805 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9806-9911 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 0005-0006 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0007-0105 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-199-0 01 1 0106-0112 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-304-3 01 1 0201-0606 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-104-6 01 1 0607-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-145-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-428-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-674-1 01 1 1409- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-042-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-042-0 01 1 0005-0006 ●
1 GASKET SET; ENG OVERHAUL 1-87812-090-0 01 1 0007-0009 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-090-0 01 1 0010-0105 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-181-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-330-2 01 1 0201-0406 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-865-0 01 1 0407-0407 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-909-2 01 1 0408-0606 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-108-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-265-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0909-0911 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-154-0 01 1 0011-0105 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-338-3 01 1 0106-0407 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-915-0 01 1 0408-0507 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-991-0 01 1 0508-0606 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-109-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-288-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-451-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-323-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-275-0 01 1 1409- ●

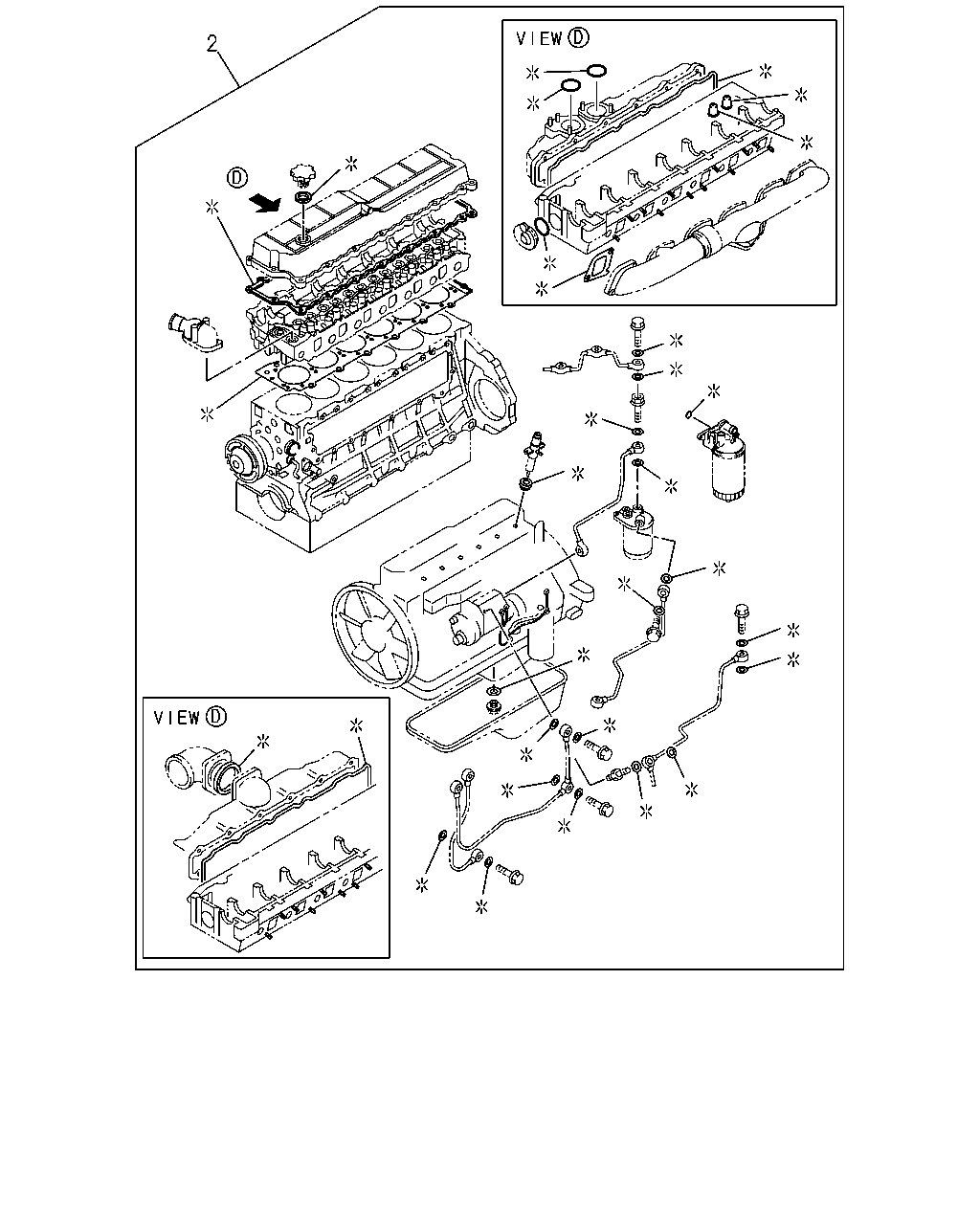

çizim 151459
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GASKET SET; ENG HD OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-624-0 01 1 9803-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9803-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-186-0 01 1 0106-0305 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-459-4 01 1 0306-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-429-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-678-1 01 1 1409- ●
2 GASKET SET; ENG HD OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-626-0 01 1 9704-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 9704-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-4 01 1 0106-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-190-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-735-1 01 1 1409- ●
2 GASKET SET; ENG HD OVERHAUL 1-87810-928-3 01 1 9510-9703 ● ●
2 GASKET SET; ENG HD OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-624-0 01 1 9704-9802 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9704-9802 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 9510-9910 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87811-080-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 0005-0006 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-202-0 01 1 0007-0105 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-308-1 01 1 0106-0305 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-460-3 01 1 0306-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-314-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-677-1 01 1 1409- ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-043-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-043-0 01 1 0005-0006 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-093-0 01 1 0007-0009 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-093-0 01 1 0010-0105 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-183-2 01 1 0106-0406 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-866-0 01 1 0407-0407 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-911-2 01 1 0408-0707 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-266-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-450-2 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-188-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-737-0 01 1 1409-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-388-0 01 1 1502- ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-155-0 01 1 0011-0105 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-302-2 01 1 0106-0305 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-461-0 01 1 0306-0407 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-918-1 01 1 0408-0707 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-285-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-452-2 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-218-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-320-0 01 1 1409- ●

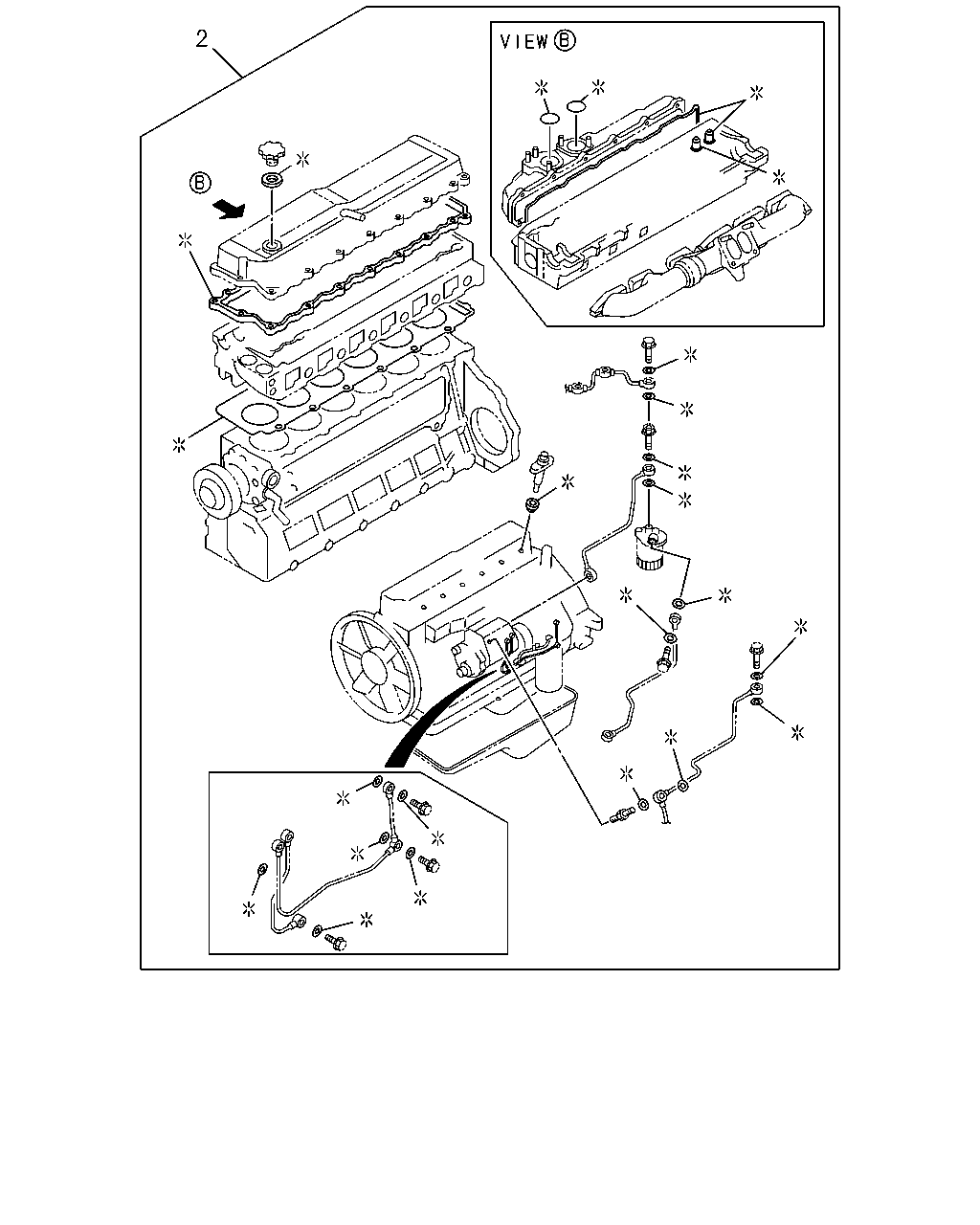

çizim 151460
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GASKET SET; ENG HD OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-624-0 01 1 9803-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9803-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-186-0 01 1 0106-0305 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-459-4 01 1 0306-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-429-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-678-1 01 1 1409- ●
2 GASKET SET; ENG HD OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-626-0 01 1 9704-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 9704-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-4 01 1 0106-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-190-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-735-1 01 1 1409- ●
2 GASKET SET; ENG HD OVERHAUL 1-87810-928-3 01 1 9510-9703 ● ●
2 GASKET SET; ENG HD OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-624-0 01 1 9704-9802 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9704-9802 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 9510-9910 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87811-080-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 0005-0006 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-202-0 01 1 0007-0105 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-308-1 01 1 0106-0305 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-460-3 01 1 0306-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-314-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-677-1 01 1 1409- ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-043-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-043-0 01 1 0005-0006 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-093-0 01 1 0007-0009 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-093-0 01 1 0010-0105 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-183-2 01 1 0106-0406 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-866-0 01 1 0407-0407 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-911-2 01 1 0408-0707 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-266-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-450-2 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-188-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-737-0 01 1 1409-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-388-0 01 1 1502- ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-155-0 01 1 0011-0105 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-302-2 01 1 0106-0305 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-461-0 01 1 0306-0407 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-918-1 01 1 0408-0707 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-285-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-452-2 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-218-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-320-0 01 1 1409- ●

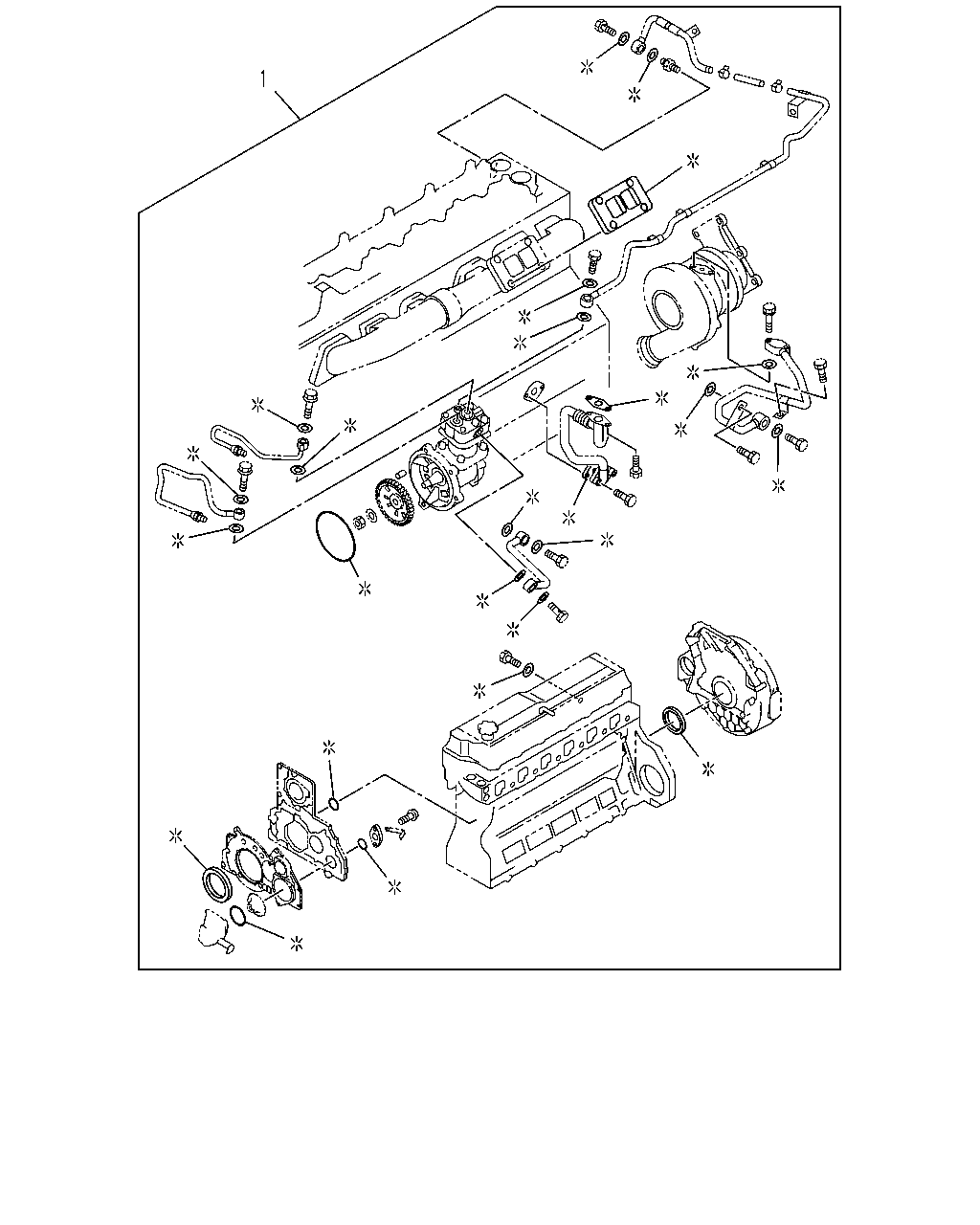

çizim 151461
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-87813-544-1 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-544-2 01 1 1001-1312 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-187-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-736-0 01 1 1409-1501 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-387-0 01 1 1502- ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-107-0 01 1 0607-0912 ●
1 GASKET SET; ENG OVERHAUL 1-87813-543-2 01 1 1001-1308 ●
1 GASKET SET; ENG OVERHAUL 1-87814-130-0 01 1 1309-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-189-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-807-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87810-927-5 01 1 9510-9703 ● ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-185-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-307-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-105-3 01 1 0607-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-426-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-675-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87811-078-1 01 1 9510-9805 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9806-9911 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 0005-0006 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0007-0105 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-199-0 01 1 0106-0112 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-304-3 01 1 0201-0606 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-104-6 01 1 0607-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-145-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-428-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-674-1 01 1 1409- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-042-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-042-0 01 1 0005-0006 ●
1 GASKET SET; ENG OVERHAUL 1-87812-090-0 01 1 0007-0009 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-090-0 01 1 0010-0105 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-181-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-330-2 01 1 0201-0406 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-865-0 01 1 0407-0407 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-909-2 01 1 0408-0606 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-108-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-265-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0909-0911 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-154-0 01 1 0011-0105 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-338-3 01 1 0106-0407 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-915-0 01 1 0408-0507 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-991-0 01 1 0508-0606 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-109-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-288-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-451-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-323-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-275-0 01 1 1409- ●

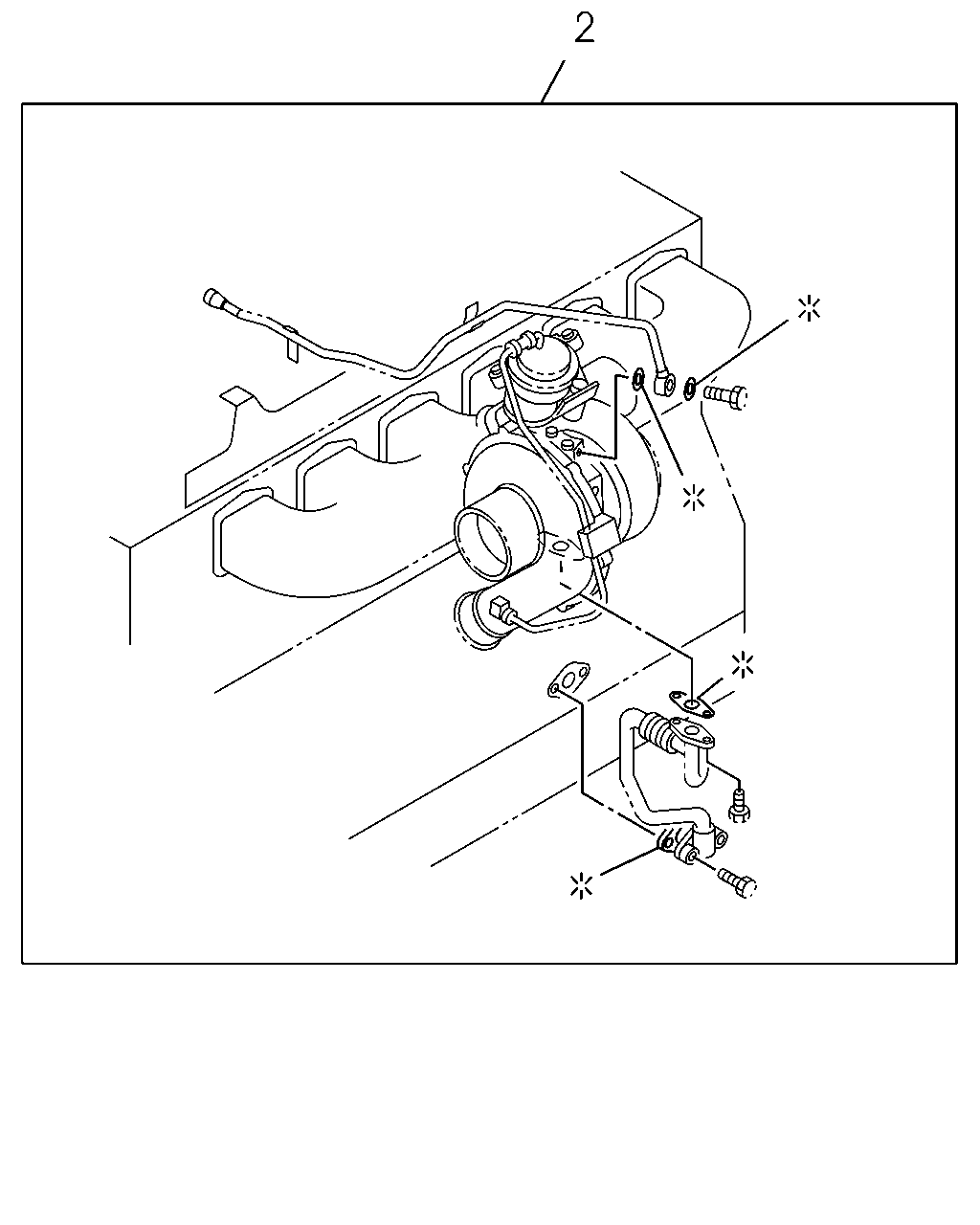

çizim 151462
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GASKET SET; ENG HD OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-624-0 01 1 9803-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9803-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-186-0 01 1 0106-0305 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-459-4 01 1 0306-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-429-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-678-1 01 1 1409- ●
2 GASKET SET; ENG HD OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-626-0 01 1 9704-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 9704-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-4 01 1 0106-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-190-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-735-1 01 1 1409- ●
2 GASKET SET; ENG HD OVERHAUL 1-87810-928-3 01 1 9510-9703 ● ●
2 GASKET SET; ENG HD OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-624-0 01 1 9704-9802 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9704-9802 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 9510-9910 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87811-080-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 0005-0006 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-202-0 01 1 0007-0105 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-308-1 01 1 0106-0305 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-460-3 01 1 0306-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-314-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-677-1 01 1 1409- ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-043-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-043-0 01 1 0005-0006 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-093-0 01 1 0007-0009 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-093-0 01 1 0010-0105 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-183-2 01 1 0106-0406 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-866-0 01 1 0407-0407 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-911-2 01 1 0408-0707 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-266-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-450-2 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-188-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-737-0 01 1 1409-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-388-0 01 1 1502- ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-155-0 01 1 0011-0105 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-302-2 01 1 0106-0305 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-461-0 01 1 0306-0407 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-918-1 01 1 0408-0707 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-285-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-452-2 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-218-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-320-0 01 1 1409- ●

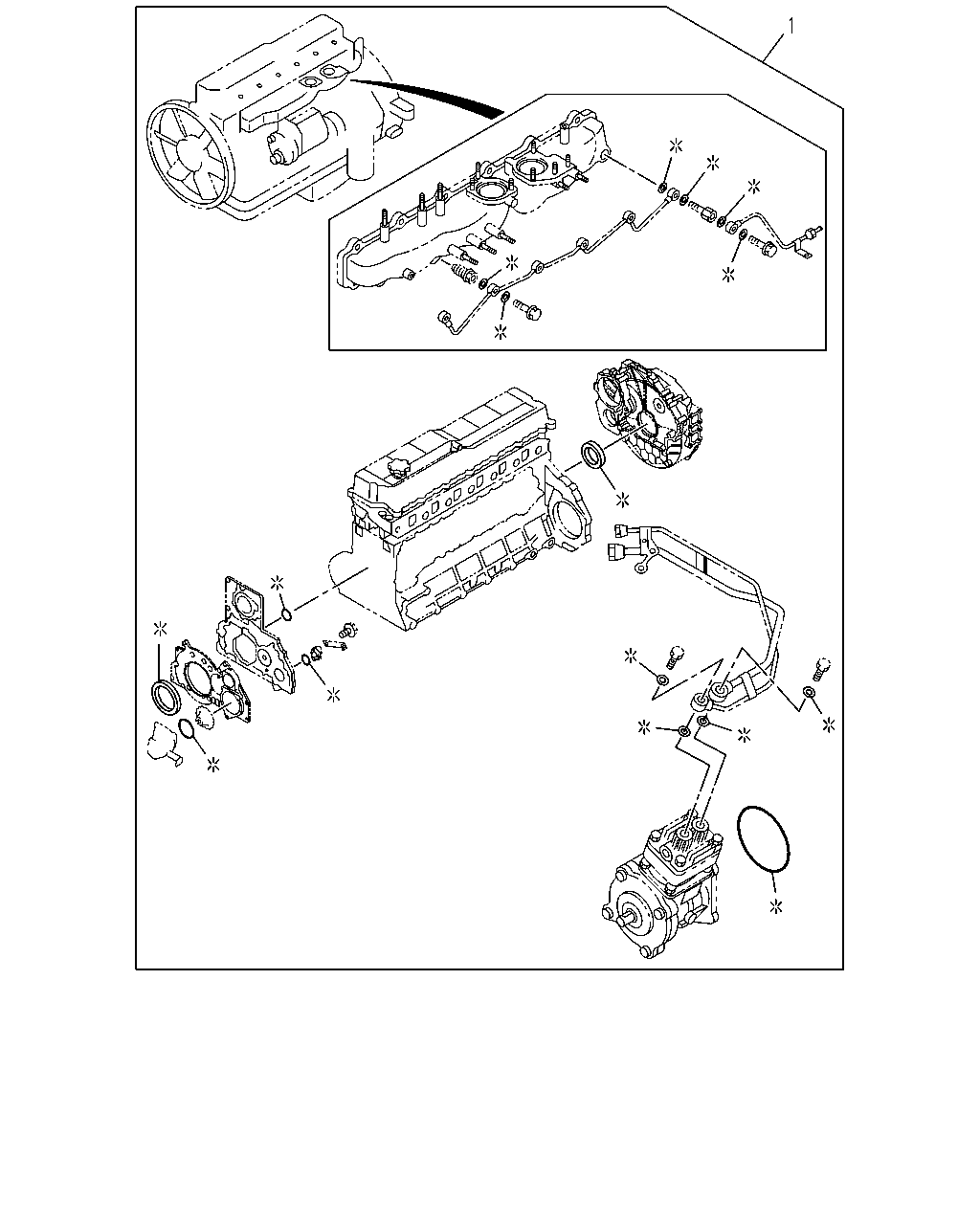

çizim 151463
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-87813-544-1 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-544-2 01 1 1001-1312 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-187-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-736-0 01 1 1409-1501 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-387-0 01 1 1502- ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-107-0 01 1 0607-0912 ●
1 GASKET SET; ENG OVERHAUL 1-87813-543-2 01 1 1001-1308 ●
1 GASKET SET; ENG OVERHAUL 1-87814-130-0 01 1 1309-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-189-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-807-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87810-927-5 01 1 9510-9703 ● ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-185-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-307-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-105-3 01 1 0607-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-426-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-675-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87811-078-1 01 1 9510-9805 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9806-9911 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 0005-0006 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0007-0105 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-199-0 01 1 0106-0112 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-304-3 01 1 0201-0606 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-104-6 01 1 0607-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-145-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-428-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-674-1 01 1 1409- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-042-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-042-0 01 1 0005-0006 ●
1 GASKET SET; ENG OVERHAUL 1-87812-090-0 01 1 0007-0009 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-090-0 01 1 0010-0105 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-181-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-330-2 01 1 0201-0406 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-865-0 01 1 0407-0407 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-909-2 01 1 0408-0606 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-108-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-265-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0909-0911 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-154-0 01 1 0011-0105 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-338-3 01 1 0106-0407 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-915-0 01 1 0408-0507 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-991-0 01 1 0508-0606 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-109-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-288-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-451-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-323-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-275-0 01 1 1409- ●

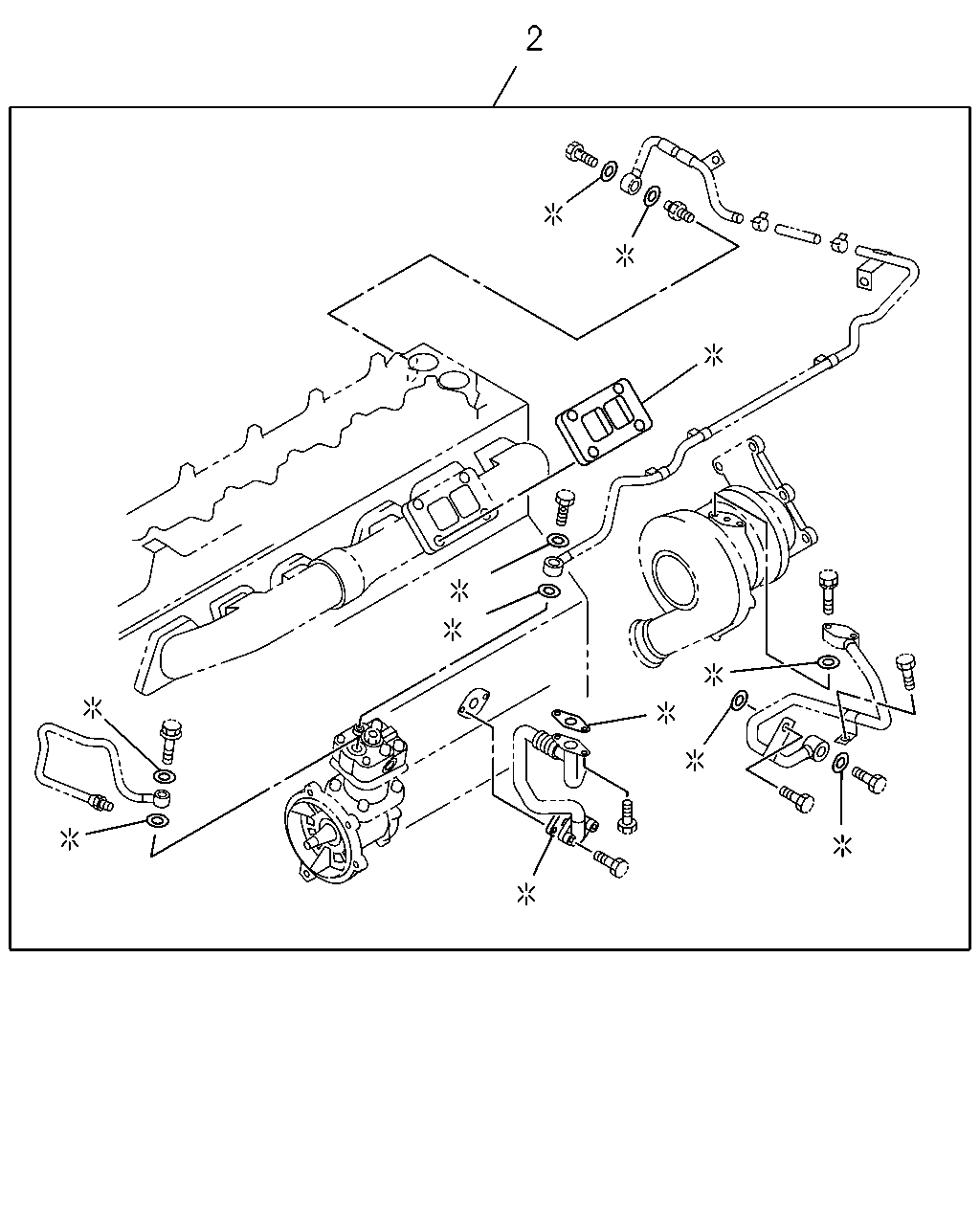

çizim 151465
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GASKET SET; ENG HD OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-624-0 01 1 9803-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9803-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-186-0 01 1 0106-0305 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-459-4 01 1 0306-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-429-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-678-1 01 1 1409- ●
2 GASKET SET; ENG HD OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-626-0 01 1 9704-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 9704-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-4 01 1 0106-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-190-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-735-1 01 1 1409- ●
2 GASKET SET; ENG HD OVERHAUL 1-87810-928-3 01 1 9510-9703 ● ●
2 GASKET SET; ENG HD OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-624-0 01 1 9704-9802 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9704-9802 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 9510-9910 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87811-080-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 0005-0006 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-202-0 01 1 0007-0105 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-308-1 01 1 0106-0305 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-460-3 01 1 0306-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-314-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-677-1 01 1 1409- ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-043-0 01 1 9911-0004 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-043-0 01 1 0005-0006 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-093-0 01 1 0007-0009 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-093-0 01 1 0010-0105 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-183-2 01 1 0106-0406 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-866-0 01 1 0407-0407 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-911-2 01 1 0408-0707 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-266-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-450-2 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-188-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-737-0 01 1 1409-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-388-0 01 1 1502- ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-155-0 01 1 0011-0105 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-302-2 01 1 0106-0305 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-461-0 01 1 0306-0407 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-918-1 01 1 0408-0707 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-285-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-452-2 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-218-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-320-0 01 1 1409- ●

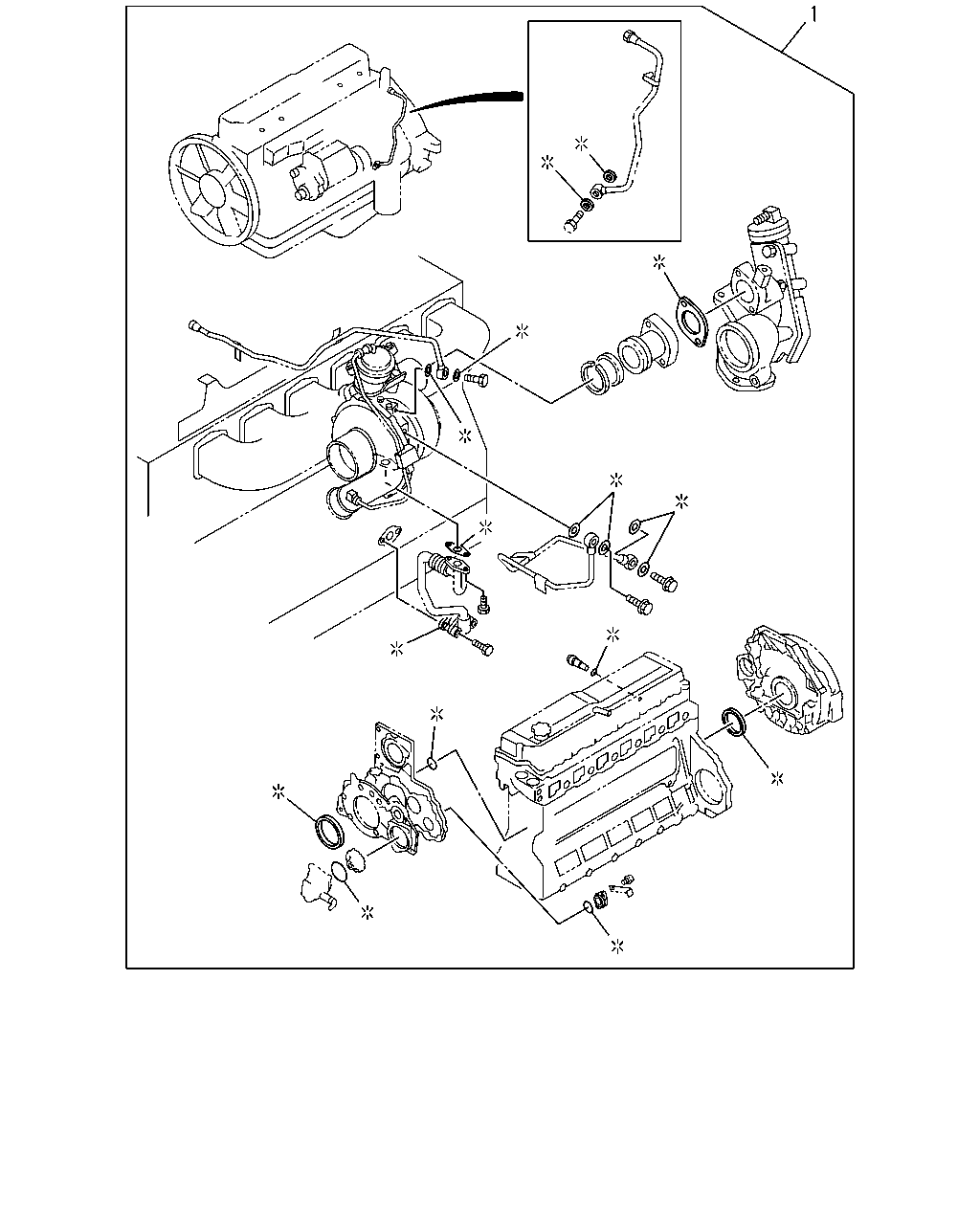

çizim 151469
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-87813-544-1 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-544-2 01 1 1001-1312 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-187-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87814-736-0 01 1 1409-1501 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87815-387-0 01 1 1502- ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-625-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-091-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-107-0 01 1 0607-0912 ●
1 GASKET SET; ENG OVERHAUL 1-87813-543-2 01 1 1001-1308 ●
1 GASKET SET; ENG OVERHAUL 1-87814-130-0 01 1 1309-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-189-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-807-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87810-927-5 01 1 9510-9703 ● ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87811-622-0 01 1 9704-9805 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-025-0 01 1 9806-9910 ●
1 GASKET SET; ENG OVERHAUL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-185-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-307-2 01 1 0201-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-105-3 01 1 0607-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-426-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-675-1 01 1 1409- ●
1 GASKET SET; ENG OVERHAUL 1-87811-078-1 01 1 9510-9805 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9806-9911 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-023-1 01 1 9912-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 0005-0006 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0007-0105 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-199-0 01 1 0106-0112 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-304-3 01 1 0201-0606 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-104-6 01 1 0607-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-145-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-428-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-674-1 01 1 1409- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-042-0 01 1 9911-0004 ●
1 GASKET SET; ENG OVERHAUL 1-87812-042-0 01 1 0005-0006 ●
1 GASKET SET; ENG OVERHAUL 1-87812-090-0 01 1 0007-0009 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-090-0 01 1 0010-0105 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-181-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-330-2 01 1 0201-0406 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-865-0 01 1 0407-0407 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87812-909-2 01 1 0408-0606 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-108-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-265-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0909-0911 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87813-449-0 01 1 0912-0912 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-154-0 01 1 0011-0105 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-338-3 01 1 0106-0407 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-915-0 01 1 0408-0507 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87812-991-0 01 1 0508-0606 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-109-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-288-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87813-451-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87814-323-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-87815-275-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
