9-01 — TOOLS (#37820) — 236 parça
çizim 151362
274 271 268 209 285 281 280 283 282 284
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 9510-0004 ● ●
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0005-0708 ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9510-0604 ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ●
268 SCREW; CLIP
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9510-0004 ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 9510-0004 ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0005-0708 ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9510-0604 ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ●
274 SCREW; CLIP
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9510-0004 ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-2 01 1 9510-0004 ● ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-3 01 1 0005- ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 9510-0004 ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 0005- ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9510-9606 ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0004 ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 9510-0004 ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 0005-0603 ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		0-91510-510-0 04 1 0604- ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER 		0-50041-020-0 04 1 9510-9606 ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 9607-0004 ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 0005-0512 ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0601- ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9510-9606 ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0004 ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ●

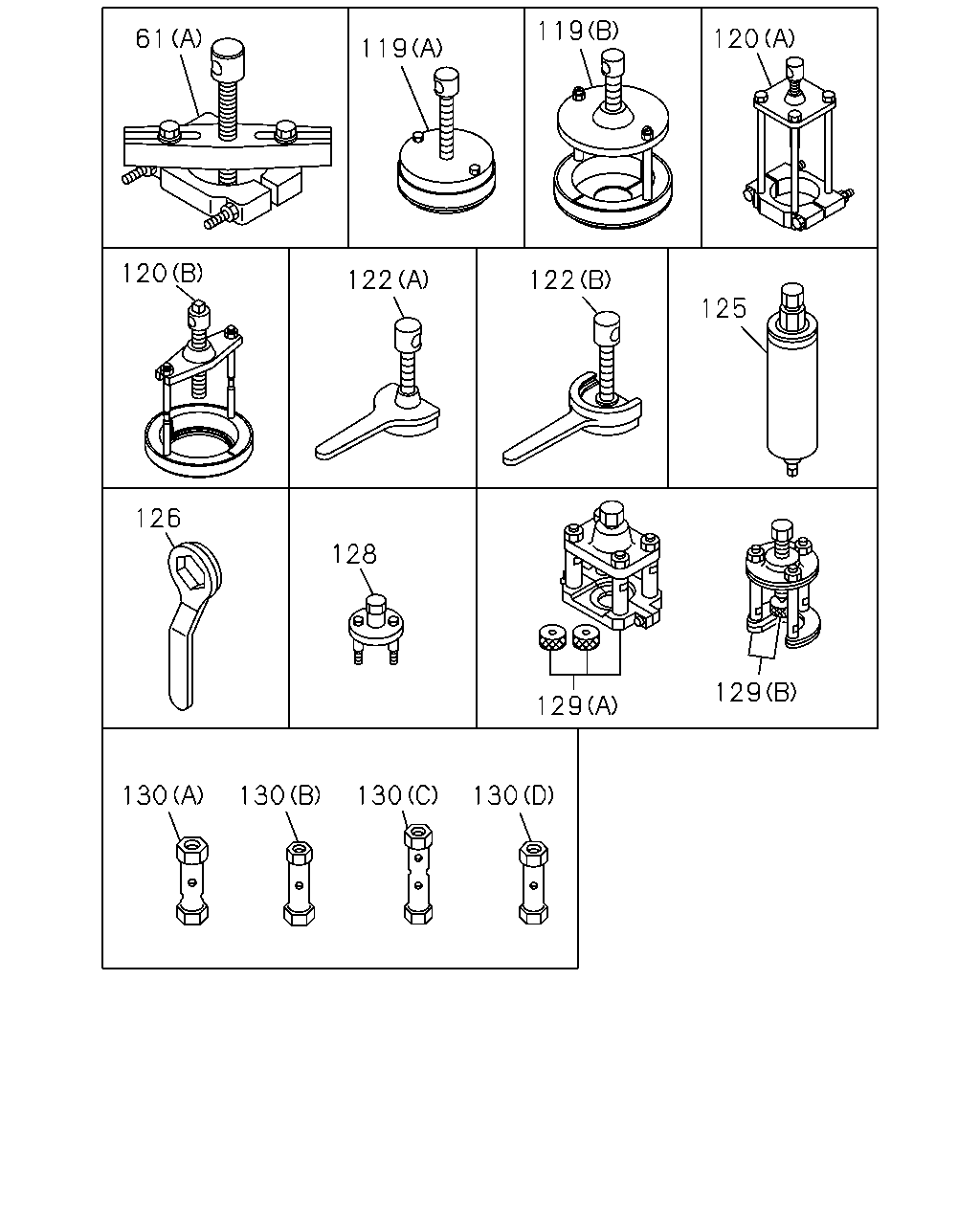

çizim 151364
61 119 119 120 125 122 122 120 126 128 129 129 130 130 130 130
BalonParca AdiParca NoAdetTipApplied Date A B
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9510-0004 ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 0005- ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9510-0004 ● ●
119 PULLER ASM; TOP GEAR BRG
MLD6 M/T<X9Y> (B) 		9-85210-185-0 01 1 9807-0004 ●
119 PULLER ASM; TOP GEAR BRG
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) 		9-85210-186-0 01 1 9510-9806 ● ●
119 PULLER ASM; TOP GEAR BRG
MLD6 M/T<X9Y>,MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) 		9-85210-186-0 01 1 9807-0004 ●
119 PULLER ASM; TOP GEAR BRG
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) 		9-85210-186-0 01 1 9807-0004 ●
120 PULLER ASM; MAIN REAR BRG
MLD6 M/T<X9Y> (B) 		9-85210-192-0 01 1 9807-0004 ●
120 PULLER ASM; MAIN REAR BRG
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) 		9-85210-169-0 01 1 9510-0004 ● ●
120 PULLER ASM; MAIN REAR BRG
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) 		9-85210-169-0 01 1 0005- ●
122 PULLER ASM; COUNTER FRT
MLD6 M/T<X9Y> (B) 		9-85210-129-1 01 1 9807-0004 ●
122 PULLER ASM; COUNTER FRT
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) 		9-85210-168-0 01 1 9510-0004 ● ●
122 PULLER ASM; COUNTER FRT
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) 		9-85210-168-0 01 1 0005- ●
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9510-0004 ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=54 		1-85111-011-0 01 1 9510-0004 ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9510-0004 ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0005- ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 01 1 9510-0004 ● ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 01 1 9510-0004 ●
129 PULLER ASM; PITMAN ARM
(B) 		9-85210-170-0 01 1 9510-0004 ● ●
129 PULLER ASM; PITMAN ARM
(B) 		9-85210-170-0 01 1 0005- ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9510-0004 ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9510-0004 ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9510-0004 ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 9510-0004 ● ●

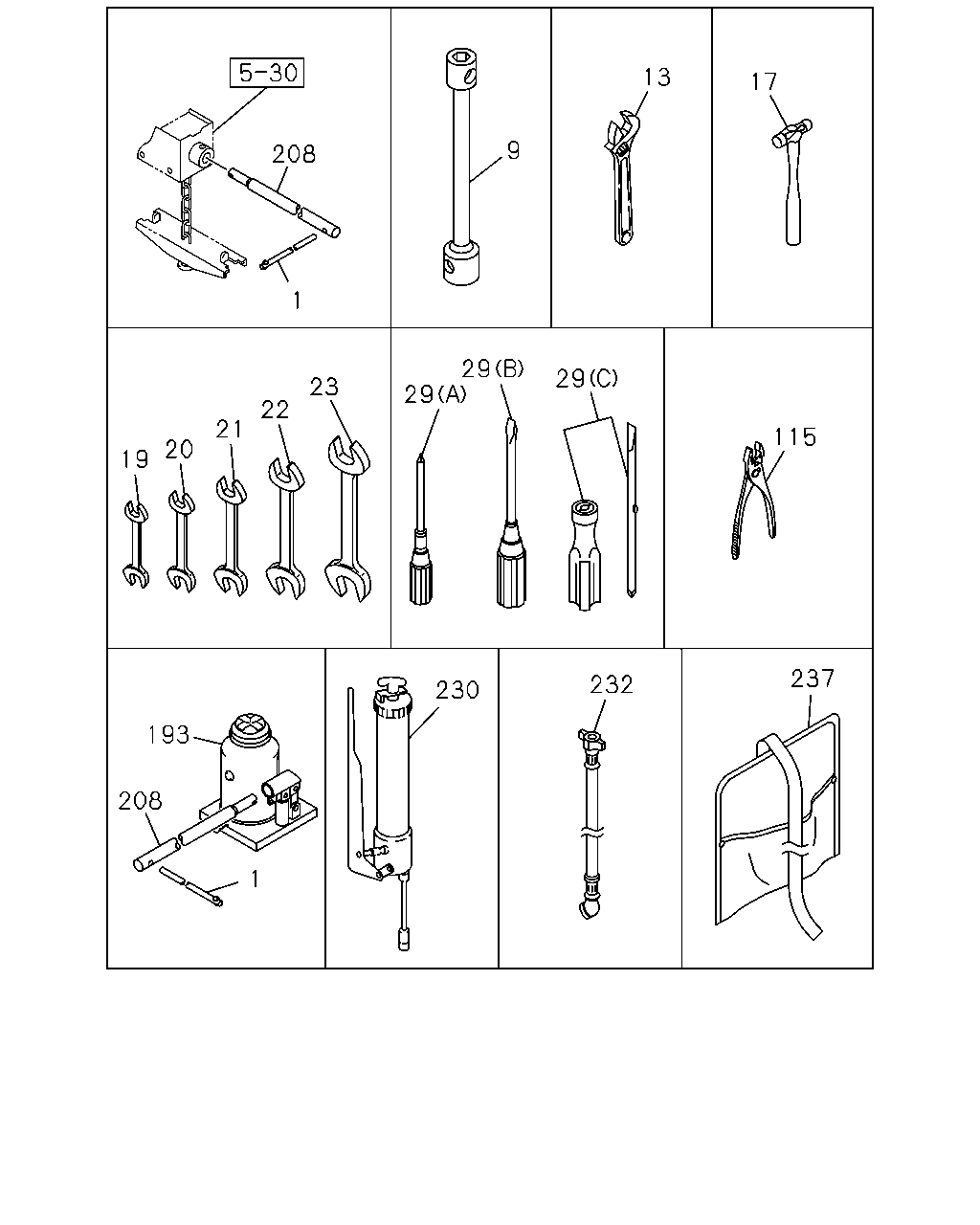

çizim 151369
13 17 9 208 1 29 29 23 29 22 21 115 20 19 237 232 230 193 208 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> L=280 		1-85515-007-0 01 1 9510-0004 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> L=280 		1-85515-007-0 01 1 9510-0004 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> L=280 		1-85515-007-0 01 1 0005-0208 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9>,TOOL B KIT<SL1> L=280 		1-85515-007-0 01 1 0209-1107 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9>,TOOL B KIT<SL1> L=280 		8-98181-251-0 01 1 1108- ●
9 WRENCH; WHEEL PIN
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> 41X21 L=330 		8-94340-033-2 01 1 0209-1601 ●
9 WRENCH; WHEEL PIN
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> 41X21 L=330 		8-98316-704-0 01 1 1602- ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 9510-0004 ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 0005-0208 ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9> EXC. SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> B=41X21 L=440 		1-85113-015-1 01 1 0209-1601 ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=41X21 L=440 		1-85113-015-1 01 1 0209-1601 ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9> EXC. SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> B=41X21 L=445 		8-98316-703-0 01 1 1602- ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=41X21 L=445 		8-98316-703-0 01 1 1602- ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9510-0004 ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0005-0208 ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0211 ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-1407 ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ●
17 HAMMER 9-85121-406-0 01 1 9510-0004 ● ●
17 HAMMER 9-85121-406-0 01 1 0005-0208 ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209- ●
19 WRENCH; 7X8
8X10 		9-99592-108-0 01 1 9510-9602 ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9510-0004 ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0005-0208 ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0607 ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608- ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9510-0004 ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0005-0208 ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0607 ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608- ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9510-0004 ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0005-0208 ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0607 ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608- ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9510-0004 ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0005-0208 ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0607 ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0608- ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9510-0004 ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 0005-0208 ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0209-0611 ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=275 		8-98061-105-0 01 1 0612- ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9510-0004 ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0005-0208 ●
29 DRIVER; SCREW
TOOL A KIT<SK9>,TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0209- ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9510-0004 ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0005-0208 ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0209- ●
115 PLIER 5-85171-001-0 01 1 9510-9602 ● ●
115 PLIER 5-85171-002-0 01 1 9603-0004 ● ●
115 PLIER 5-85171-002-0 01 1 0005-0208 ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0209-1410 ●
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411- ●
193 JACK ASM
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> 7TON 		1-85510-017-0 01 1 0209- ●
193 JACK ASM
7TON 		1-85510-005-2 01 1 9510-0004 ● ●
193 JACK ASM
7TON 		1-85510-005-2 01 1 0005-0208 ●
193 JACK ASM
TOOL A KIT<SK9> EXC. SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 7TON 		1-85510-005-2 01 1 0209- ●
193 JACK ASM
TOOL B KIT<SL1> 7TON 		1-85510-005-2 01 1 0209- ●
208 HANDLE; JACK
L=580 		1-85515-005-1 01 1 9510-0004 ● ●
208 HANDLE; JACK
L=580 		1-85515-005-1 01 1 0005-0208 ●
208 HANDLE; JACK
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> L=580 		1-85515-005-1 01 1 0209-1107 ●
208 HANDLE; JACK
L=580 		1-85515-005-1 01 1 0209-1107 ●
208 HANDLE; JACK
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> L=580 		8-98181-249-0 01 1 1108- ●
208 HANDLE; JACK
L=580 		8-98181-249-0 01 1 1108- ●
230 PUMP; GREASE 1-85556-007-2 01 1 9510-0004 ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 0005-0208 ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0209- ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9510- ●
237 BAG; TOOL
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> 		8-97312-893-0 01 1 0209- ●
237 BAG; TOOL 8-97130-902-0 01 1 9510-0004 ● ●
237 BAG; TOOL 8-97130-902-0 01 1 0005-0208 ●
237 BAG; TOOL
TOOL A KIT<SK9> EXC. SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-97130-902-1 01 1 0209- ●
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 0209- ●

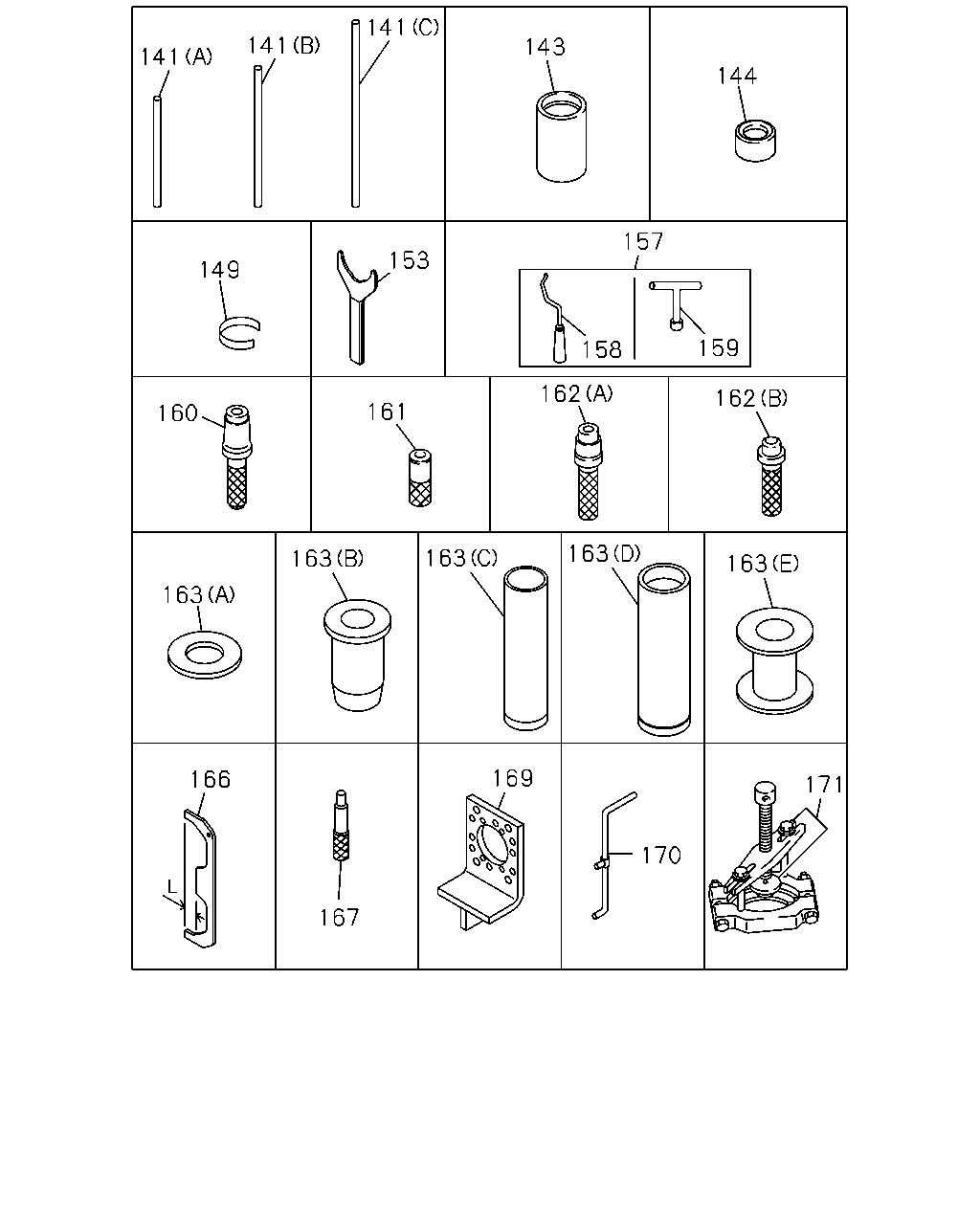

çizim 151370
141 141 141 143 144 157 153 149 158 159 162 162 161 160 163 163 163 163 163 171 170 169 167 166
BalonParca AdiParca NoAdetTipApplied Date A B
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9510-0004 ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9510-0004 ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 0005-1501 ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 0005-1501 ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		8-98257-407-0 01 1 1502- ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		8-98257-407-0 01 1 1502- ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9510-0004 ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9510-0004 ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 9510-0004 ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 0005- ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 9510-0004 ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 0005- ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 9510-0004 ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0005- ●
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 9510-0004 ● ●
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 9510-0004 ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9510-0004 ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9510-0004 ●
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 9510-0004 ● ●
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 9510-0004 ●
160 REMOVER; NEEDLE BRG
L=215 		1-85238-007-0 01 1 9510-0004 ● ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 9510-0004 ● ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0005- ●
162 SETTING TOOL; NEEDLE BRG
(A) L=200 		1-85238-005-0 01 1 9510-0004 ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=175 		1-85238-006-0 01 1 9510-0004 ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y> (B) L=195 		1-85221-162-1 01 1 0601- ●
163 TOOL; SETTING
MLD6 M/T<X9Y> (E) L=150 		1-85221-163-0 01 1 0601- ●
163 TOOL; SETTING
MLD6 M/T<X9Y> (B) L=195 		1-85221-162-1 01 1 9807-0004 ●
163 TOOL; SETTING
MLD6 M/T<X9Y> (E) L=150 		1-85221-163-0 01 1 9807-0004 ●
163 TOOL; SETTING
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) OD=120 		1-85221-164-0 01 1 9510-9806 ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) OD=120 		1-85221-164-0 01 1 9807-0004 ●
163 TOOL; SETTING
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A) OD=120 		1-85221-164-0 01 1 9807-0004 ●
163 TOOL; SETTING
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) L=150 		9-85221-248-0 01 1 9510-9806 ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) L=150 		9-85221-248-0 01 1 9807-0004 ●
163 TOOL; SETTING
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (B) L=150 		9-85221-248-0 01 1 9807-0004 ●
163 TOOL; SETTING
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (C) L=350 		9-85221-310-0 01 1 9510-9806 ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (C) L=350 		9-85221-310-0 01 1 9807-0004 ●
163 TOOL; SETTING
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (C) L=350 		9-85221-310-0 01 1 9807-0004 ●
163 TOOL; SETTING
MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (D) L=220 		9-85221-323-0 01 1 9510-0004 ● ●
166 ALIGNER; CLU RELEASE LEVER
13" CLUTCH(WD4) L=460 		9-85241-420-0 01 1 9510-0004 ● ●
166 ALIGNER; CLU RELEASE LEVER
13" CLUTCH(WD4) L=460 		9-85241-420-0 01 1 0005- ●
166 ALIGNER; CLU RELEASE LEVER
14" CLUTCH(WF6) L=480 C=9 		1-85253-011-0 01 1 9510-0004 ● ●
166 ALIGNER; CLU RELEASE LEVER
14" CLUTCH(WF6) L=480 C=6 		1-85253-023-0 01 1 9610-0004 ● ●
166 ALIGNER; CLU RELEASE LEVER
14" CLUTCH(WF6) L=480 C=6 		1-85253-023-0 01 1 0005- ●
167 ALIGNER; CLU PILOT
ISUZU M/T<X9A> L=185 		1-85253-012-0 01 1 9510-9609 ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 9510-9609 ●
167 ALIGNER; CLU PILOT
13" CLUTCH(WD4) L=185 		1-85253-012-0 01 1 9610-0004 ● ●
167 ALIGNER; CLU PILOT
13" CLUTCH(WD4) L=185 		1-85253-012-0 01 1 0005- ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) L=185 		1-85253-008-0 01 1 9610-0004 ● ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) L=185 		1-85253-008-0 01 1 0005- ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9510-0004 ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9510-0004 ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9510-0004 ● ●

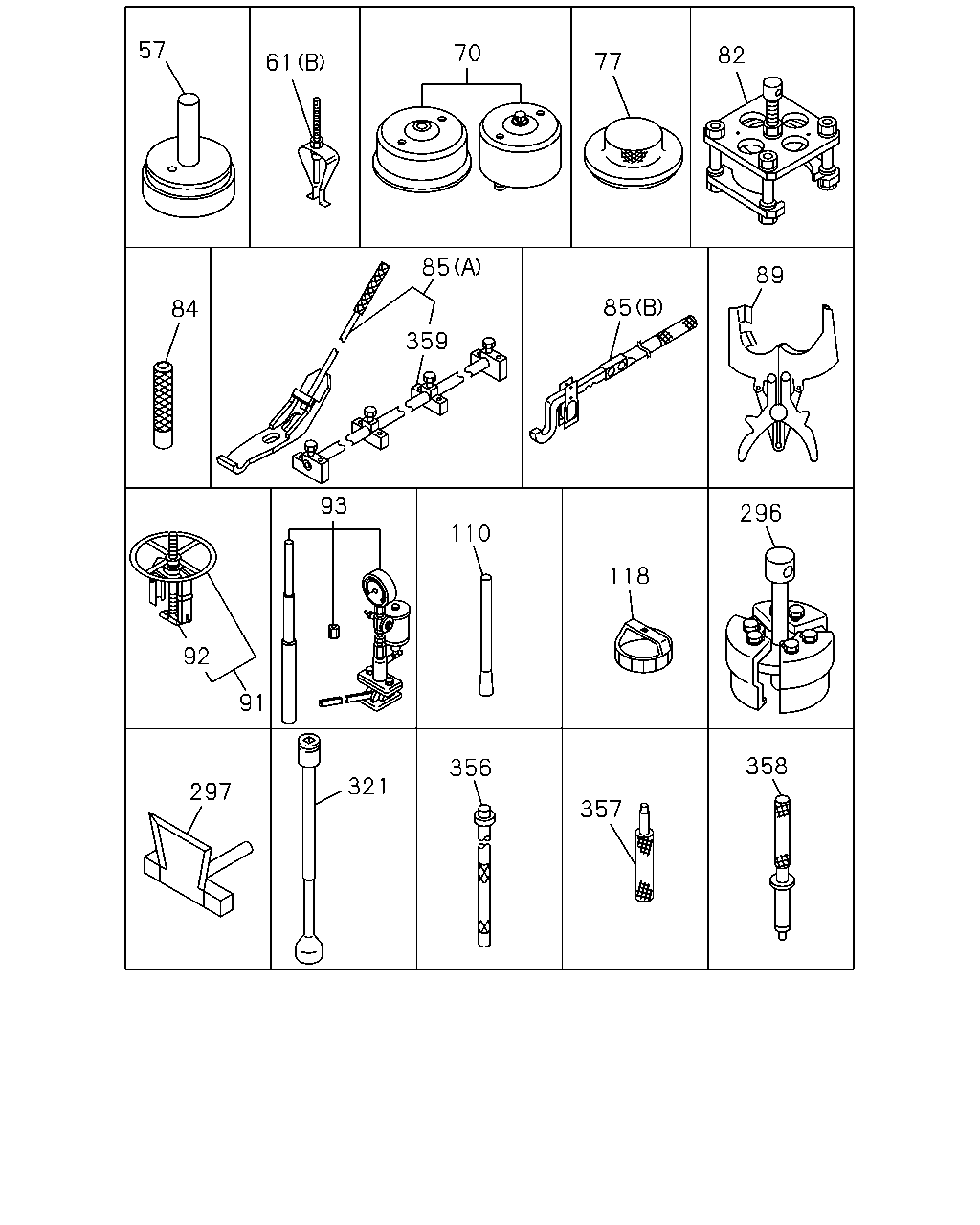

çizim 151408
57 61 70 77 82 89 85 85 359 84 93 92 91 110 118 296 358 357 356 321 297
BalonParca AdiParca NoAdetTipApplied Date A B
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9510-0004 ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9510-0004 ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 0005- ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9510-0004 ● ●
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9510-0004 ● ●
77 TOOL; SETTING,CYL LINER
6HE1 TCN ENG(58L) 		8-94396-816-0 01 1 9610- ●
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9510-0004 ● ●
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9510-0004 ● ●
84 REPLACER; VALVE SEAL
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		8-94396-815-0 01 1 0005- ●
85 REPLACER ASM; VALVE SPR
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (B) 		8-94391-528-0 01 1 0005-0010 ●
85 REPLACER ASM; VALVE SPR
6HH1 STD 4VALVE ENG(1A6) (B) 		8-94391-528-0 01 1 0011-0512 ●
85 REPLACER ASM; VALVE SPR
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) (B) 		8-94391-528-0 01 1 0601- ●
85 REPLACER ASM; VALVE SPR
(A) 		8-94396-861-0 01 1 9510-0004 ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9510-0004 ● ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9510-0004 ● ●
91 REPLACER ASM; CYL LINER
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		8-94396-849-0 01 1 0005- ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9510-0004 ● ●
92 ANKLE; REPLACER,CYL LINER
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		8-94396-821-0 01 1 0005- ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9510-0004 ● ●
93 SETTING KIT; VALVE GUIDE
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-85220-001-0 01 1 0005- ●
110 CAP; VALVE 9-85163-906-1 01 1 9510-9602 ● ●
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 9510-9804 ● ●
118 WRENCH; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-85221-097-0 01 1 9805-0004 ●
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 9805-0004 ●
296 REPLACER; SLINGER 8-94396-858-0 01 1 9510-0004 ● ●
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9510-0004 ● ●
321 SOCKET; PROP SHAFT
6HE1 TCN ENG(58L) L=300 		1-85115-024-0 01 1 9610-9802 ●
321 SOCKET; PROP SHAFT
P46 PROP SHAFT(C4Z) L=300 		1-85115-024-0 01 1 9803-0004 ●
321 SOCKET; PROP SHAFT
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=250 		1-85115-023-0 01 1 9510-9802 ●
321 SOCKET; PROP SHAFT
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=250 		1-85115-023-0 01 1 9803-0004 ● ●
321 SOCKET; PROP SHAFT
P30 PROP SHAFT(B2F) L=250 		1-85115-023-0 01 1 0005- ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD
6HK1 TCC ENG(81L) 		8-94391-527-0 01 1 0601- ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94391-555-0 01 1 0005-0010 ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) 		8-94391-555-0 01 1 0011-0512 ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) 		8-94391-555-0 01 1 0601- ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94391-556-0 01 1 0005-0010 ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) 		8-94391-556-0 01 1 0011-0512 ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) 		8-94391-556-0 01 1 0601- ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94396-862-0 01 1 0005-0010 ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6) 		8-94396-862-0 01 1 0011-0512 ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) 		8-94396-862-0 01 1 0601- ●
çizim 151415
177 172 174 180 180 179 178 182 186
BalonParca AdiParca NoAdetTipApplied Date A B
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9510-0004 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9510-0004 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0005- ●
177 SETTING TOOL KIT 9-85220-040-0 01 1 9510-0004 ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9510-0004 ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0005- ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9510-0004 ● ●
180 PULLER; FRT & RR HUB
(B) L=260 B=90 		9-85113-534-0 01 1 9510-0004 ●
180 PULLER; FRT & RR HUB
(A) M20 		9-85210-187-0 01 1 9510-0004 ● ●
182 REMOVER ASM 9-85210-095-0 01 1 9510-0004 ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 9510-0004 ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0005-0208 ●
186 ADJUSTER; BRAKE
TOOL B KIT<SL1> 		1-85269-008-0 01 1 0209- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
