◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#37818) — 98 parça

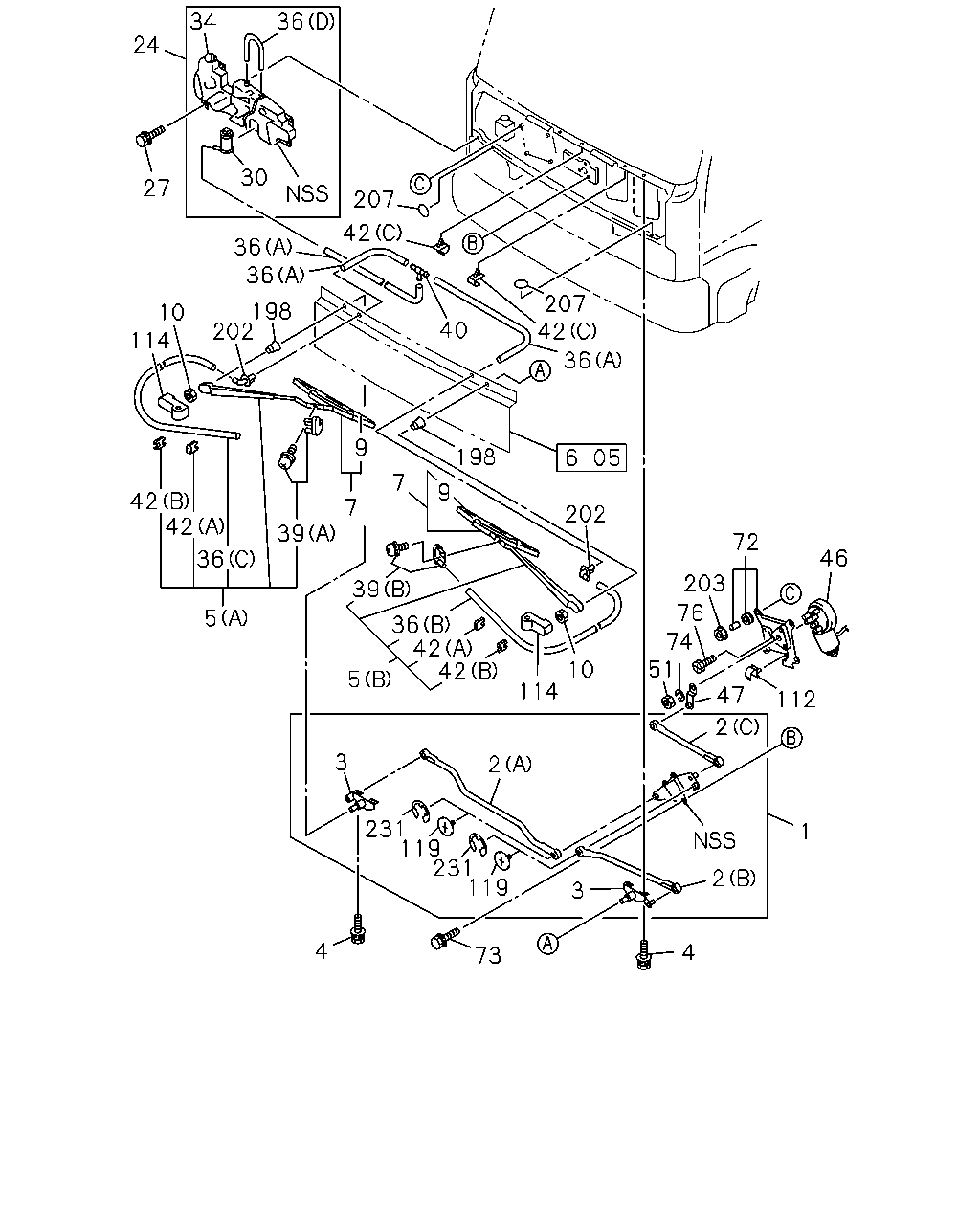

çizim 151384
34 36 24 27 30 36 36 198 10 202 114 42 42 36 5 39 7 9 40 42 207 207 42 36 198 7 9 39 36 42 42 114 10 5 3 231 119 231 4 73 119 2 51 76 74 203 72 46 112 47 2 1 2 4 3 202
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-86810-002-6 01 1 9510-9705 ● ●
1 LINK ASM; FRT WIPER 1-83312-137-1 01 1 9706-0004 ● ●
1 LINK ASM; FRT WIPER 1-83312-137-3 01 1 0005- ●
2 LINK; FRT WIPER
(A) 		1-86810-064-0 01 1 9510-9705 ● ●
2 LINK; FRT WIPER
(B) 		1-86810-065-0 01 1 9510-9705 ● ●
2 LINK; FRT WIPER
(C) 		1-86810-066-1 01 1 9510-0004 ● ●
2 LINK; FRT WIPER
(C) 		1-86810-066-2 01 1 0005- ●
2 LINK; FRT WIPER
(B) 		1-83312-142-1 01 1 9706-0004 ● ●
2 LINK; FRT WIPER
(B) 		1-83312-142-2 01 1 0005- ●
2 LINK; FRT WIPER
(A) 		1-83312-143-1 01 1 9706-0004 ● ●
2 LINK; FRT WIPER
(A) 		1-83312-143-2 01 1 0005- ●
3 PIVOT ASM; FRT WIPER 1-86810-067-1 02 1 9510-0004 ● ●
3 PIVOT ASM; FRT WIPER 1-86810-067-2 02 1 0005- ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004 ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
5 ARM; WIPER
(B) 		1-86810-143-0 01 1 9510-0004 ● ●
5 ARM; WIPER
(B) 		1-86810-143-0 01 1 0005-0205 ●
5 ARM; WIPER
(B) 		1-83315-087-0 01 1 0206- ●
5 ARM; WIPER
(A) 		1-86810-142-0 01 1 9510-0004 ● ●
5 ARM; WIPER
(A) 		1-86810-142-0 01 1 0005-0205 ●
5 ARM; WIPER
(A) 		1-83315-089-0 01 1 0206- ●
7 BLADE; WIPER 1-86810-020-0 01 1 9510-9703 ● ●
7 BLADE; WIPER 1-83315-046-1 01 1 9704-0004 ● ●
7 BLADE; WIPER 1-83315-046-2 01 1 0005- ●
7 BLADE; WIPER 1-86810-019-0 01 1 9510-9703 ● ●
7 BLADE; WIPER 1-83315-045-1 01 1 9704-0004 ● ●
7 BLADE; WIPER 1-83315-045-2 01 1 0005- ●
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-035-0 02 1 9510-9703 ● ●
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-035-0 02 1 0005- ●
9 RUBBER; FRT WIPER BLADE
L=550 		1-86810-033-0 02 1 9510-9703 ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 9704-0004 ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 0005- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 9510-0004 ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 0005- ●
24 TANK ASM; WASHER 1-86815-013-6 01 1 9510-0004 ● ●
24 TANK ASM; WASHER 1-86815-013-7 01 1 0005- ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9510-0004 ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0005- ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-0 01 1 9510-0004 ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 0005- ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 9510-0004 ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 0005- ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9510-0004 ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0005- ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 9510-0004 ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 0005- ●
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 9510-0004 ● ●
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 0005- ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 9510-0004 ● ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 0005-0011 ●
36 HOSE; WASHER
(C) L=670 		1-86810-147-0 01 1 0012- ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-041-0 01 1 9510-0004 ● ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-041-0 01 1 0005-0205 ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-086-0 01 1 0206- ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-040-0 01 1 9510-0004 ● ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-040-0 01 1 0005-0205 ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-085-0 01 1 0206- ●
40 JOINT; WASHER HOSE
3WAY 		1-83338-005-0 01 1 9510-0004 ● ●
40 JOINT; WASHER HOSE
3WAY 		1-83338-005-0 01 1 0005- ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9510-0004 ● ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 0005- ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 9510-0004 ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 0005- ●
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 9510-0004 ● ●
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 0005- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-059-1 01 1 9510-0004 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-059-2 01 1 0005- ●
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 9510-0004 ● ●
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 0005- ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 9510-0004 ● ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 0005- ●
72 BRACKET; WIPER MOTOR 1-86810-056-0 01 1 9510-0004 ● ●
72 BRACKET; WIPER MOTOR 1-86810-056-0 01 1 0005- ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-0004 ● ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0904 ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 9510-0004 ● ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 0005- ●
76 SCREW; BRKT TO WIPER MOTOR
M6X14 W/WASHER 		1-86810-062-0 03 1 9510-9802 ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 9803-0004 ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 0005- ●
112 CLIP; HARNESS,WIPER MOTOR 1-86810-061-0 01 1 9510-0004 ● ●
112 CLIP; HARNESS,WIPER MOTOR 1-86810-061-0 01 1 0005- ●
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 9510-0004 ● ●
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 0005- ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9706-0004 ● ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 0005-0805 ●
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 9510-0004 ● ●
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 0005- ●
202 GROMMET; WIPER 1-86815-003-1 02 1 9510-0004 ● ●
202 GROMMET; WIPER 1-86815-003-2 02 1 0005- ●
203 NUT; WIPER MOTOR
M8 FLANGE 		8-94279-517-0 04 1 9510-9611 ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9612-0004 ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0005- ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9510-0004 ● ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0005- ●
231 RING; STOPPER 8-98120-195-0 02 1 0806- ●
