8-71 — COMPRESSOR; AIR CONDITIONING (#37814) — 66 parça

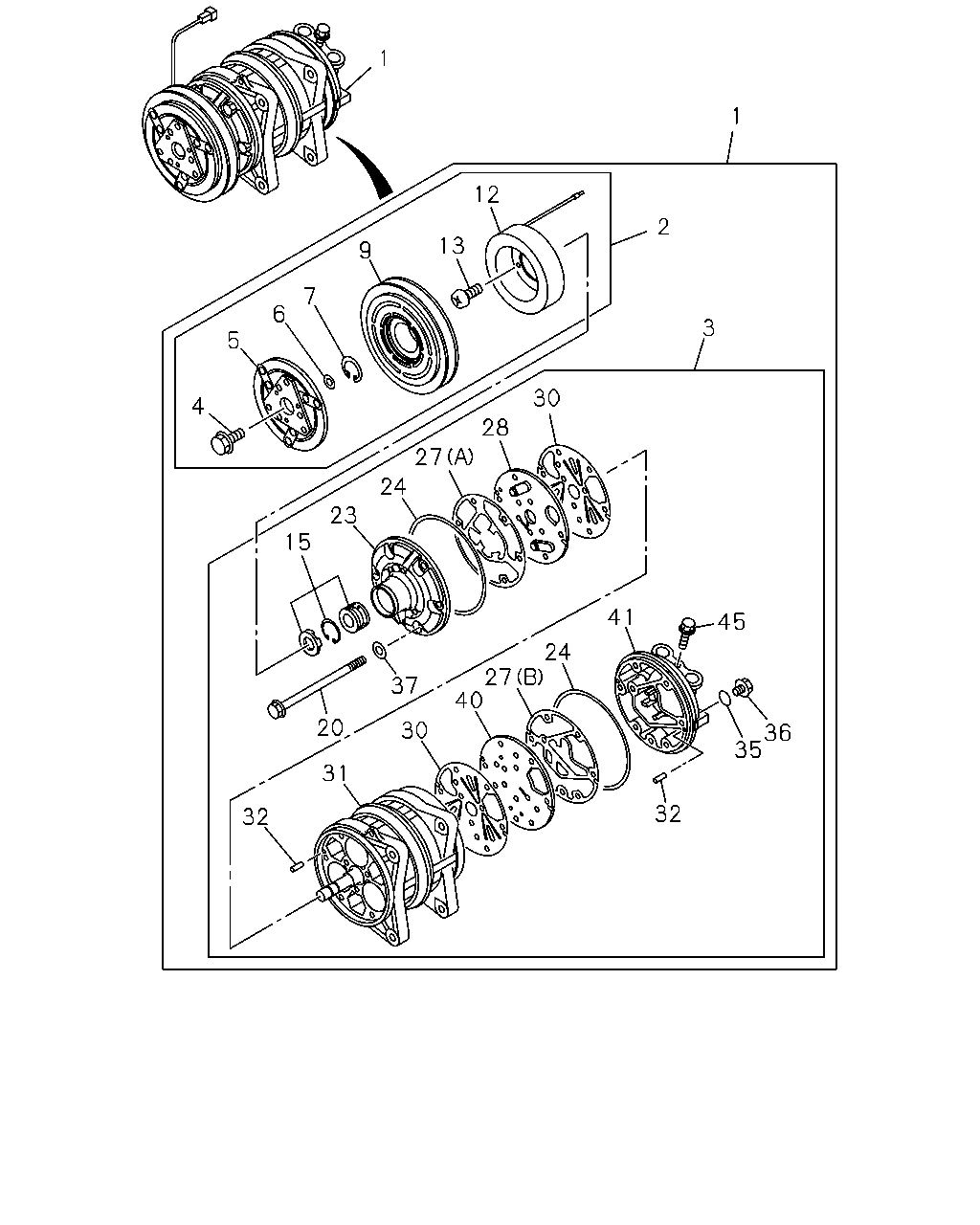

çizim 151372
1 1 12 2 13 9 7 6 3 5 30 4 28 27 24 23 15 41 45 24 27 40 37 20 30 36 35 31 32 32
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
6HK1 TCC ENG(81L) 		1-83532-314-0 01 1 0601-
1 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-0 01 1 9803-0004
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0005-0512
1 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0601-
2 CLUTCH; MAGNET,A/C
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 9803-0004
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 0005-0512
2 CLUTCH; MAGNET,A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-037-0 01 1 0601-
3 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 9803-0004
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 0005-0512
3 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-290-0 01 1 0601-
4 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 0005-0512
4 BOLT; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 0601-
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 0005-0512
5 ARMATURE ASM; MAGNET CLU,A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 0601-
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 0005-0512
6 SHIM; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 0601-
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 0005-0512
6 SHIM; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 0601-
6 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 0005-0512
6 SHIM; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 0601-
7 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 0005-0512
7 RING; SNAP,PULLEY
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 0601-
9 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-609-1 01 1 0005-0512
9 PULLEY; MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-609-1 01 1 0601-
12 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 0005-0512
12 COIL; FIELD,MAGNET CLU
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-091-0 01 1 0601-
13 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 0005-0512
13 SCREW; COIL FIELD
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 0601-
15 SEAL; SHAFT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 0005-0512
15 SEAL; SHAFT
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 0601-
20 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 0005-0512
20 BOLT; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 0601-
23 HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 0005-0512
23 HEAD; CYL,FRT
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 0601-
24 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 0005-0512
24 GASKET; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-953-0 02 1 0601-
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 0005-0512
27 GASKET; CYL HD
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-930-0 01 1 0601-
27 GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 0005-0512
27 GASKET; CYL HD
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-933-0 01 1 0601-
28 PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 0005-0512
28 PLATE; VLV,CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 0601-
30 VALVE; SUCTION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 0005-0512
30 VALVE; SUCTION
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 0601-
31 CYLINDER & SHAFT ASM; AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-175-0 01 1 0005-0512
31 CYLINDER & SHAFT ASM; AIR CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-175-0 01 1 0601-
32 PIN; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 0005-0512
32 PIN; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 0601-
35 GASKET; PLUG,CYL
AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 0005-0512
35 GASKET; PLUG,CYL
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 0601-
36 PLUG; CYL
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 0005-0512
36 PLUG; CYL
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 0601-
37 GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 0005-0512
37 GASKET; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 0601-
40 PLATE; VLV,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 0005-0512
40 PLATE; VLV,RR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 0601-
41 HEAD; CYL,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 0005-0512
41 HEAD; CYL,RR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-402-0 01 1 0601-
45 BOLT; PLATE TO CYL HD
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 0005-0512
45 BOLT; PLATE TO CYL HD
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 0601-

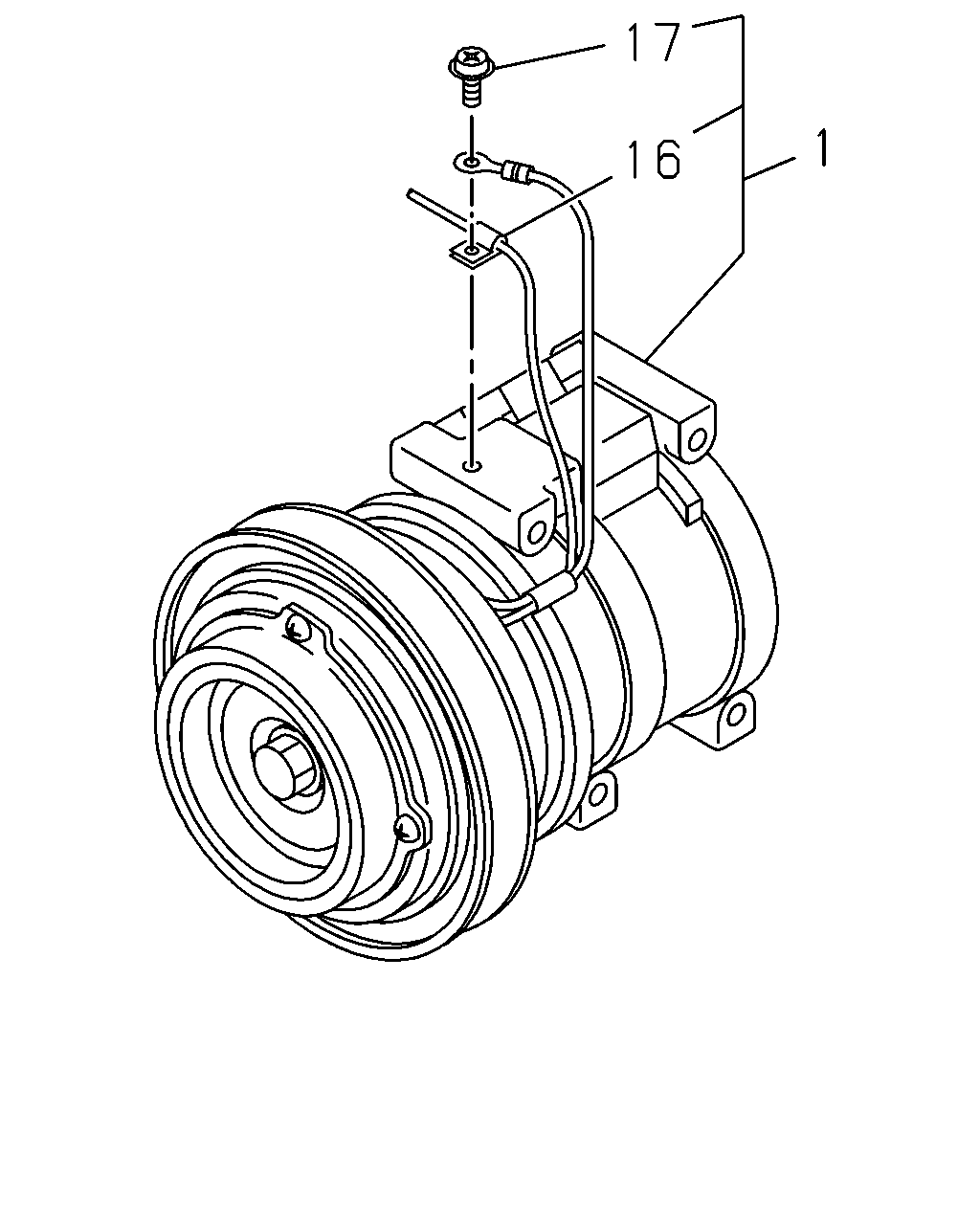

çizim 151437
17 1 16
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
6HK1 TCC ENG(81L) 		1-83532-314-0 01 1 0601-
1 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-0 01 1 9803-0004
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0005-0512
1 COMPRESSOR ASM; A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-287-1 01 1 0601-
16 CLIP; WIRE,MAGNET CLU
6HK1 TCC ENG(81L) 		1-83579-893-0 01 1 0601-
17 SCREW; WIRE CLIP MAGNET CLU
6HK1 TCC ENG(81L) 		5-81129-130-0 01 1 0601-
