Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#37812) — 291 parça

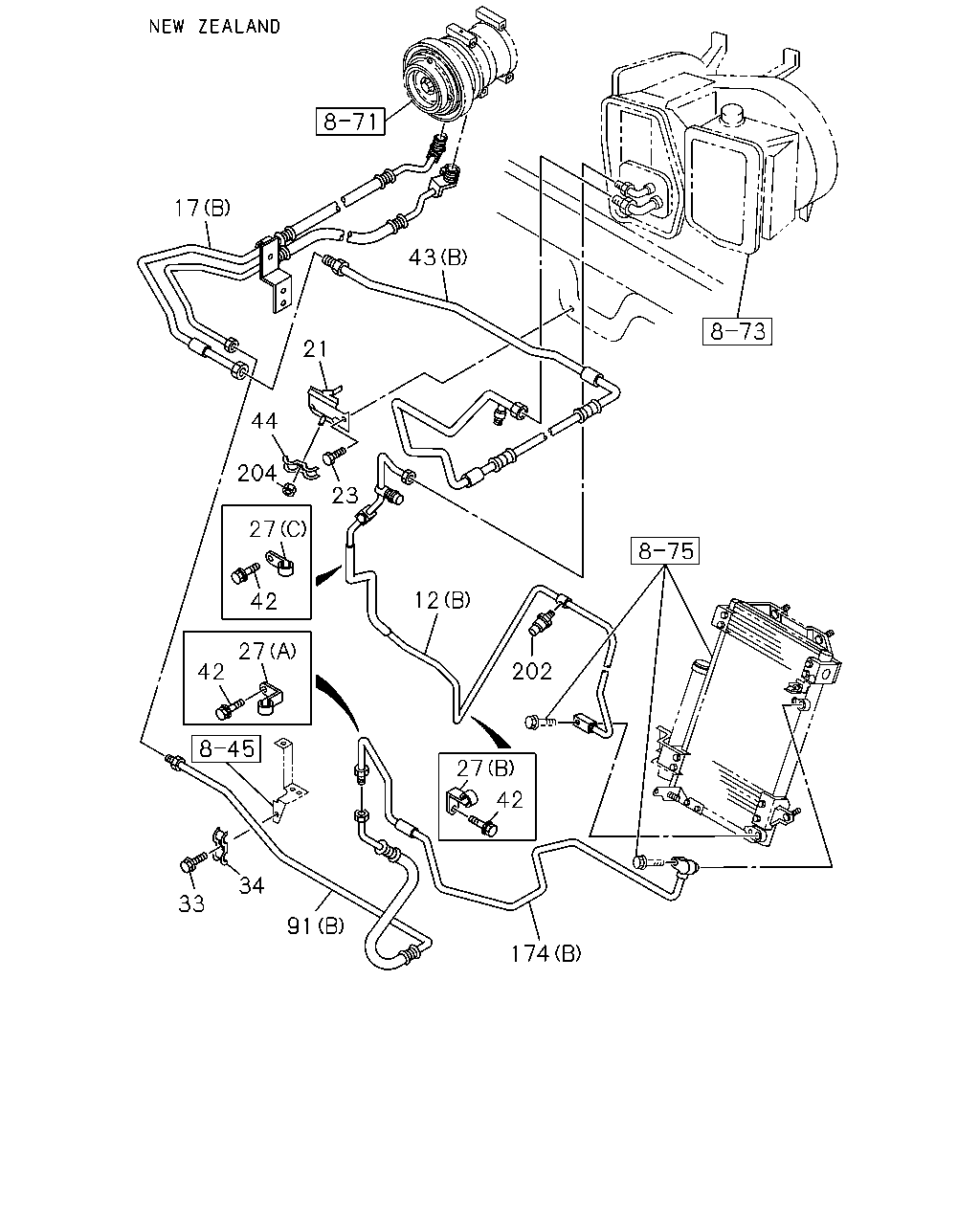

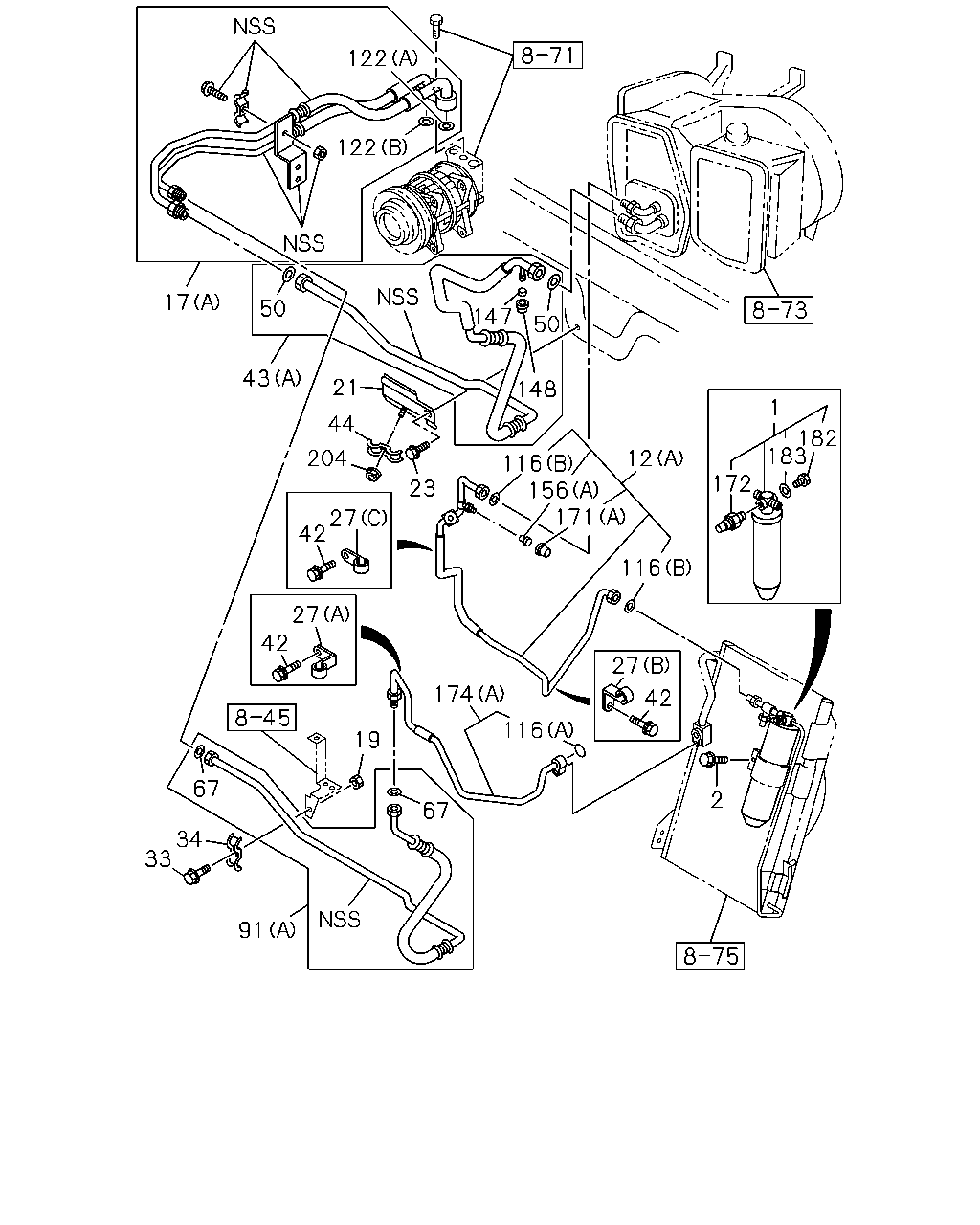

122 122 17 50 43 21 44 204 23 27 42 27 42 67 34 33 91 67 19 174 116 2 42 27 116 172 183 182 1 12 171 156 116 148 50 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	9803-0403	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0404-	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0602-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	9803-0403	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0404-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-028-0	01	1	0601-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9803-0403	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-519-1	01	1	0404-	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9803-0104	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	9803-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9803-0512	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0601-0601	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9803-9902	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9803-0707	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9803-0606	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9903-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9803-	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9803-0904	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-029-0	01	1	0601-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9803-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9803-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> ID=14.5	8-97095-908-0	01	1	0601-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	9803-0403	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=18.3	8-97161-778-0	02	1	0404-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> ID=11.7	8-97095-907-0	01	1	0601-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	9803-0004	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0005-0403	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=15.5	8-97161-777-0	02	1	0404-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-027-0	01	1	0601-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-518-1	01	1	9803-0403	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-518-1	01	1	0404-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0602-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0602-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	9803-0004	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0005-0403	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0404-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9803-0403	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0404-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (C) ID=11.7	8-97095-907-0	02	1	0601-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (D) ID=14.5	8-97095-908-0	02	1	0601-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9803-0004	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9803-0004	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	01	1	0005-0403	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (B) ID=15.5	8-97161-777-0	01	1	0404-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	01	1	0005-0403	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) ID=18.3	8-97161-778-0	01	1	0404-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> CAP MARK L	8-97095-910-0	01	1	0601-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9803-0403	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> CAP MARK L	8-97083-102-0	01	1	0404-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-97095-909-0	01	1	0601-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9803-0109	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-892-0	01	1	0110-0209	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0210-0403	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q>	8-97083-100-0	01	1	0404-	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0602-	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	9803-0403	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0404-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0602-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	9803-0403	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0404-	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0005-0403	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0404-	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-97085-786-0	01	1	9803-0004	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0602-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-663-0	01	1	9803-0403	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0404-	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	9803-0403	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0404-	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	9803-0403	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0404-	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9803-0602	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●

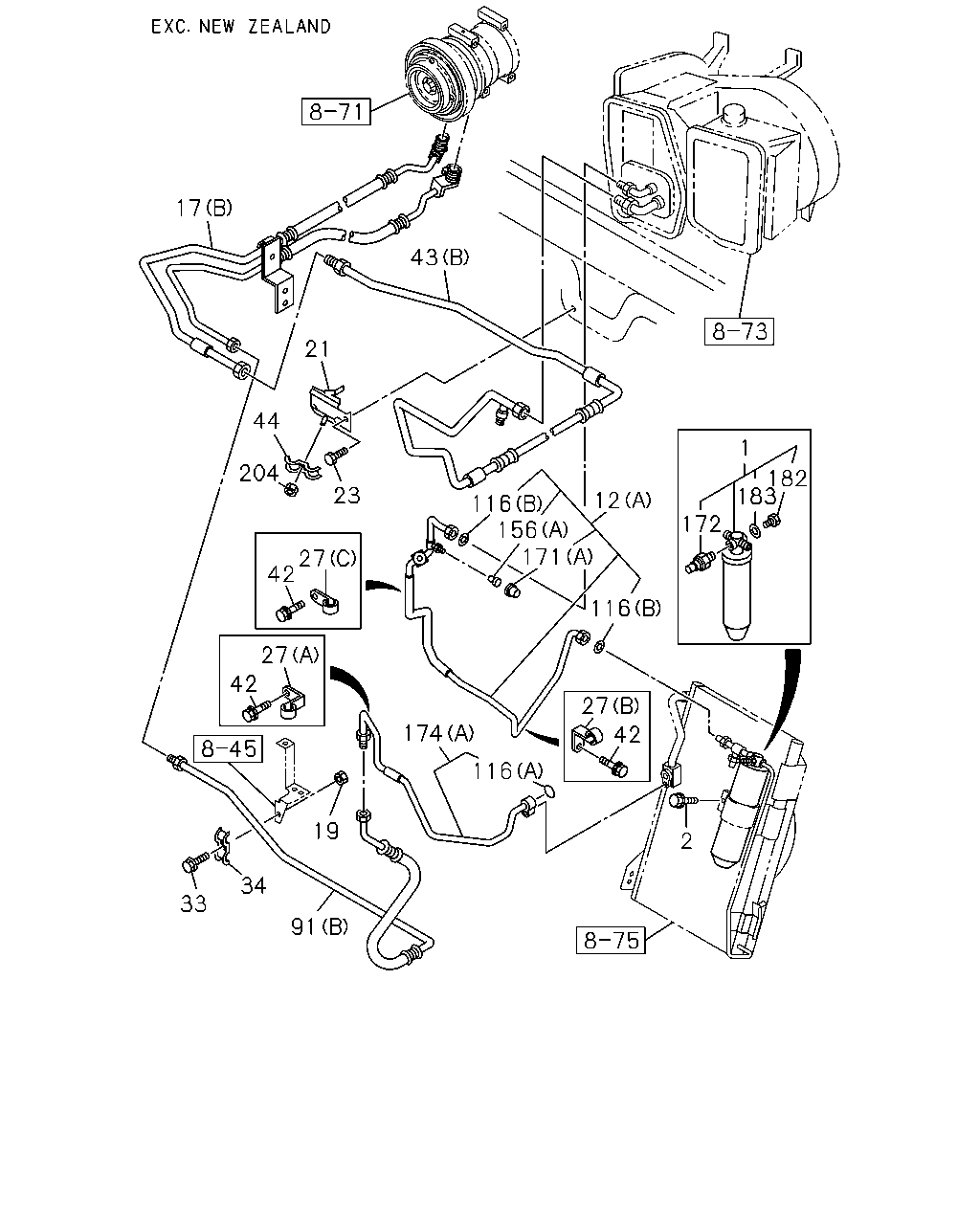

17 43 21 44 204 23 27 42 27 42 33 34 91 19 174 116 2 42 27 116 172 183 182 1 12 171 156 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	9803-0403	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0404-	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0602-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	9803-0403	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0404-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-028-0	01	1	0601-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9803-0403	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-519-1	01	1	0404-	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9803-0104	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	9803-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9803-0512	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0601-0601	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9803-9902	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9803-0707	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9803-0606	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9903-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9803-	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9803-0904	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-029-0	01	1	0601-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9803-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9803-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-027-0	01	1	0601-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-518-1	01	1	9803-0403	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-518-1	01	1	0404-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0602-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0602-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	9803-0004	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0005-0403	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0404-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9803-0403	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0404-	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0602-	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	9803-0403	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0404-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0602-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	9803-0403	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0404-	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0005-0403	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0404-	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-97085-786-0	01	1	9803-0004	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0602-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-663-0	01	1	9803-0403	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0404-	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	9803-0403	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0404-	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	9803-0403	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0404-	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9803-0602	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●

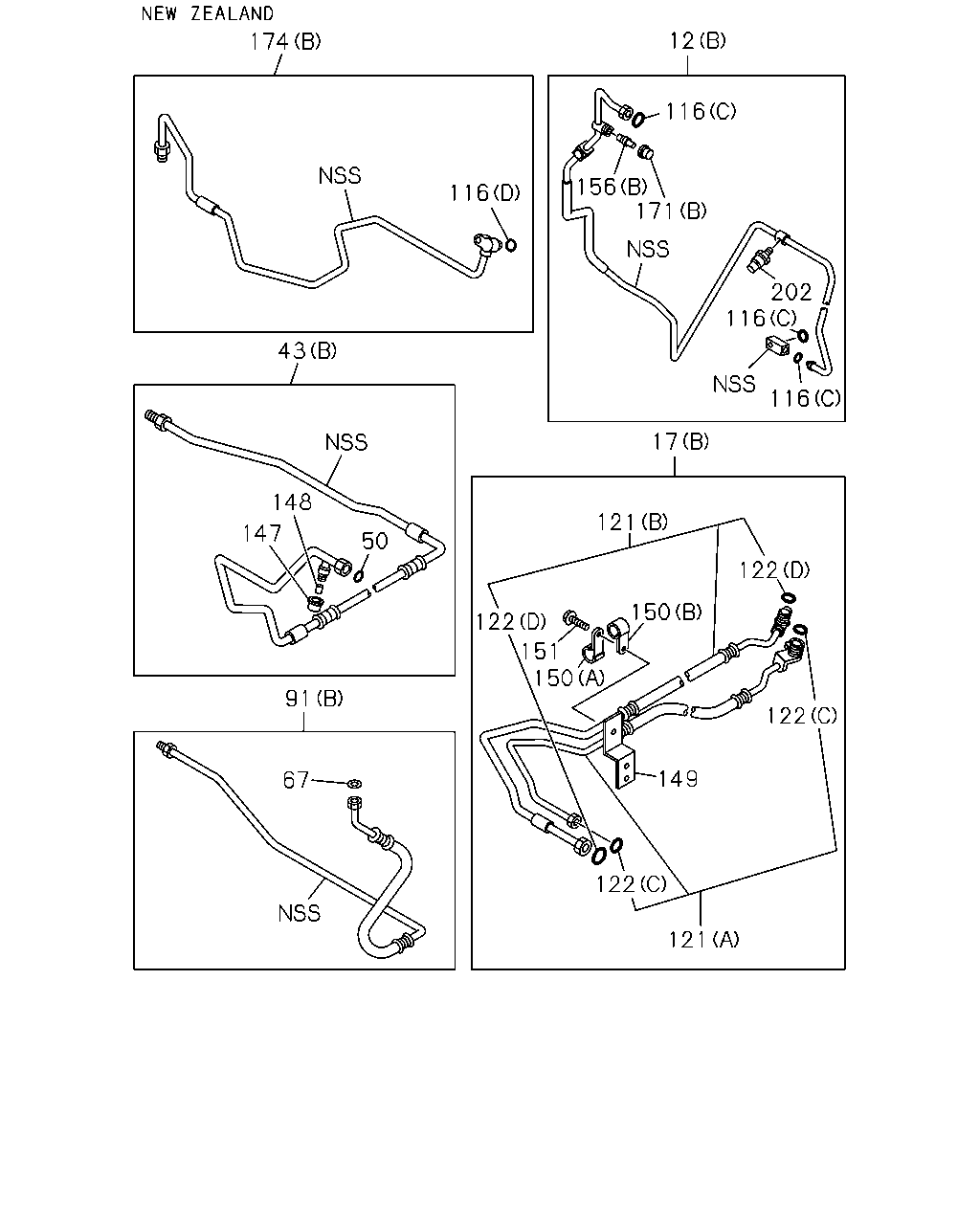

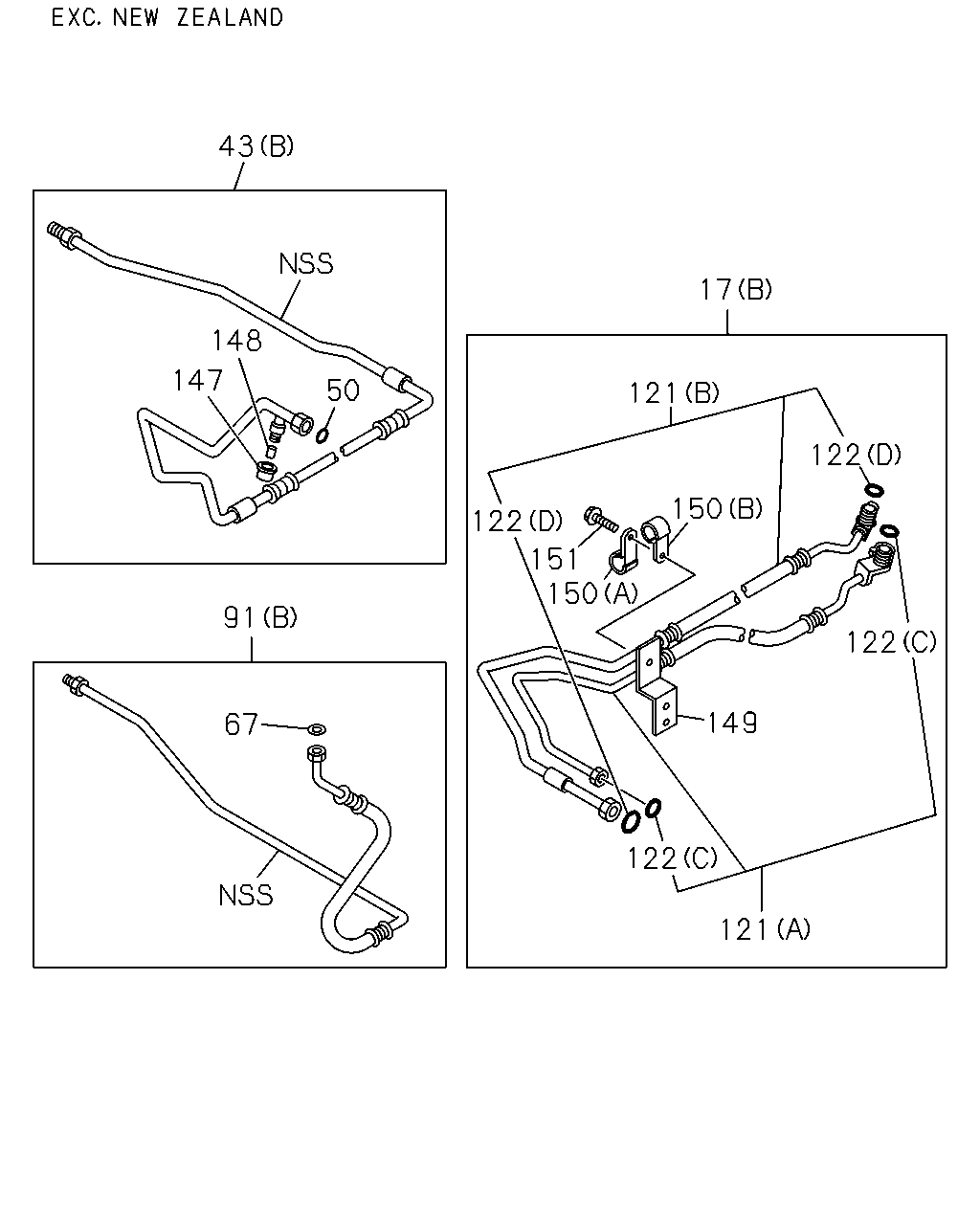

174 116 43 148 147 50 91 67 12 116 156 171 202 116 116 17 121 122 150 122 151 150 122 149 122 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0602-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	9803-0403	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0404-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-028-0	01	1	0601-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9803-0403	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-519-1	01	1	0404-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-029-0	01	1	0601-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9803-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> ID=14.5	8-97095-908-0	01	1	0601-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	9803-0403	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=18.3	8-97161-778-0	02	1	0404-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> ID=11.7	8-97095-907-0	01	1	0601-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	9803-0004	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0005-0403	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=15.5	8-97161-777-0	02	1	0404-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-027-0	01	1	0601-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-518-1	01	1	9803-0403	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-518-1	01	1	0404-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0602-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0602-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	9803-0004	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0005-0403	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0404-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9803-0403	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0404-	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (A)	1-83577-048-0	01	1	0601-	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-049-0	01	1	0601-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (C) ID=11.7	8-97095-907-0	02	1	0601-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (D) ID=14.5	8-97095-908-0	02	1	0601-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9803-0004	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9803-0004	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	01	1	0005-0403	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (B) ID=15.5	8-97161-777-0	01	1	0404-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	01	1	0005-0403	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) ID=18.3	8-97161-778-0	01	1	0404-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> CAP MARK L	8-97095-910-0	01	1	0601-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9803-0403	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> CAP MARK L	8-97083-102-0	01	1	0404-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-97095-909-0	01	1	0601-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9803-0109	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-892-0	01	1	0110-0209	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0210-0403	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q>	8-97083-100-0	01	1	0404-	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83573-013-0	01	1	0601-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (A)	1-83574-289-0	01	1	0601-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83574-290-0	01	1	0601-	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-328-0	01	1	0601-	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0602-	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	9803-0403	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0404-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0602-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	9803-0403	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0404-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0602-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-663-0	01	1	9803-0403	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0404-	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83564-391-0	01	1	0602-	●

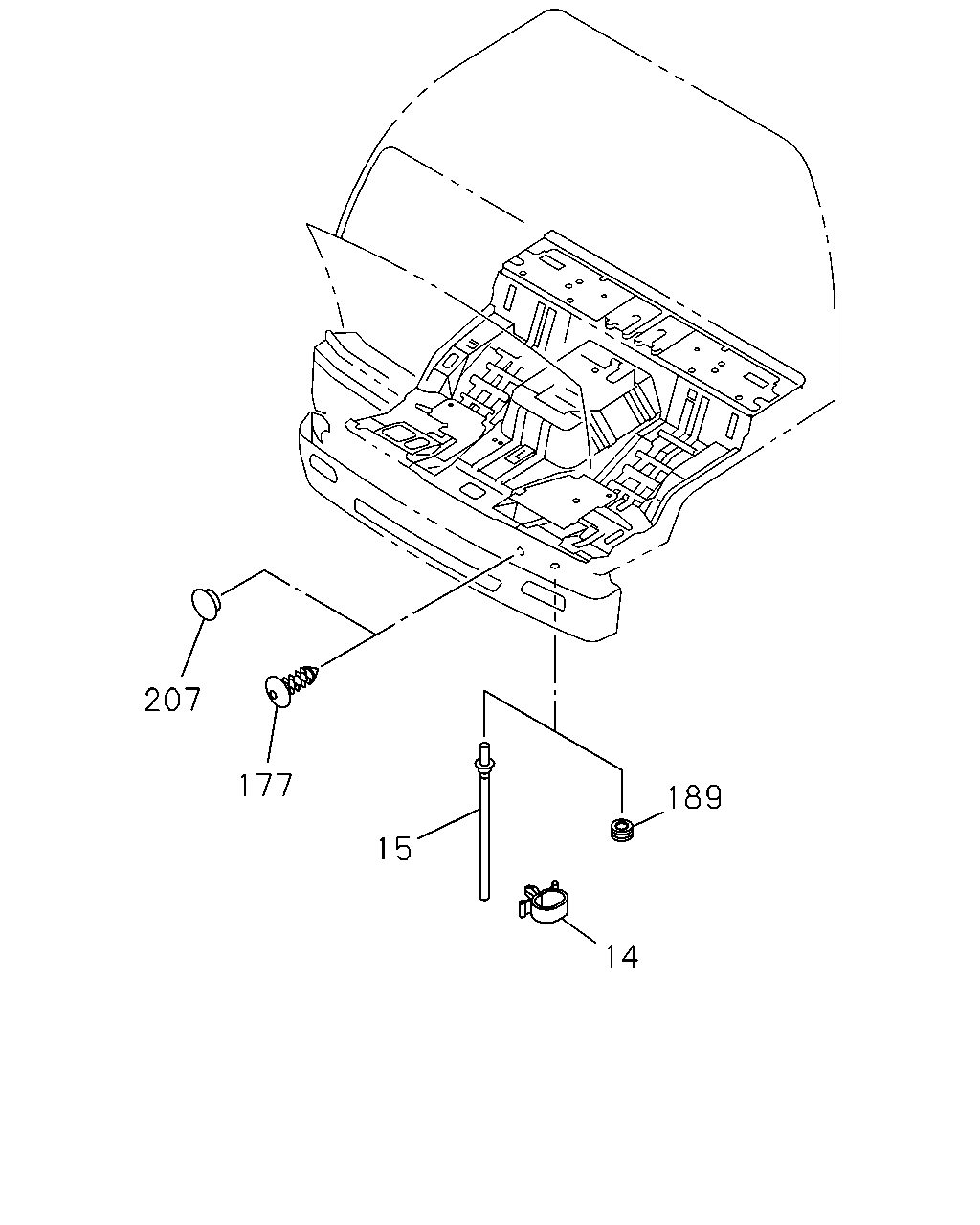

207 177 189 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	9803-0004	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	0005-0512	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0601-	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-411-0	01	1	9803-9904	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	9905-	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83566-904-2	01	1	9510-9702	●
15	HOSE; DRAIN	1-83566-904-2	01	1	9510-9702		●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9703-0004	●
15	HOSE; DRAIN	1-83572-412-0	01	1	9703-0004		●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	0005-	●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK	8-94279-804-0	01	1	9803-9803	●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9804-9804	●
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	01	1	9510-9711	●	●
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	02	1	9712-9801	●	●
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	03	1	9802-9802	●	●
177	PLUG; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK	8-94279-804-0	03	1	9803-9803	●
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	03	1	9803-9803		●
177	PLUG; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	03	1	9804-9804	●
177	PLUG; CLIP OD=25 BLACK	1-76798-019-0	03	1	9804-9804		●
189	GROMMET EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9510-9802	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9803-	●
207	SEAL; FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9903-0004	●
207	SEAL; FLEX HOSE OD=25 BLACK	1-76798-019-0	01	1	9903-0004		●
207	SEAL; FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0005-	●

17 43 21 44 204 23 27 42 27 42 33 34 91 174 42 27 202 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0602-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	9803-0403	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0404-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-028-0	01	1	0601-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9803-0403	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-519-1	01	1	0404-	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	9803-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9803-0512	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0601-0601	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9803-9902	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9803-0707	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9803-0606	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9903-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9803-	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9803-0904	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-029-0	01	1	0601-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9803-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9803-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-027-0	01	1	0601-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-518-1	01	1	9803-0403	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-518-1	01	1	0404-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0602-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-663-0	01	1	9803-0403	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0404-	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83564-391-0	01	1	0602-	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9803-0602	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●

43 17 148 147 50 121 122 150 122 151 150 91 122 149 67 122 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-028-0	01	1	0601-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9803-0403	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-519-1	01	1	0404-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-029-0	01	1	0601-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9803-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> ID=14.5	8-97095-908-0	01	1	0601-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	9803-0403	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=18.3	8-97161-778-0	02	1	0404-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> ID=11.7	8-97095-907-0	01	1	0601-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	9803-0004	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0005-0403	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=15.5	8-97161-777-0	02	1	0404-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-027-0	01	1	0601-	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-518-1	01	1	9803-0403	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-518-1	01	1	0404-	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (A)	1-83577-048-0	01	1	0601-	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83577-049-0	01	1	0601-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (C) ID=11.7	8-97095-907-0	02	1	0601-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (D) ID=14.5	8-97095-908-0	02	1	0601-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9803-0004	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9803-0004	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	01	1	0005-0403	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (B) ID=15.5	8-97161-777-0	01	1	0404-	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	01	1	0005-0403	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) ID=18.3	8-97161-778-0	01	1	0404-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> CAP MARK L	8-97095-910-0	01	1	0601-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9803-0403	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> CAP MARK L	8-97083-102-0	01	1	0404-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	8-97095-909-0	01	1	0601-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9803-0109	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-892-0	01	1	0110-0209	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0210-0403	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q>	8-97083-100-0	01	1	0404-	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83573-013-0	01	1	0601-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (A)	1-83574-289-0	01	1	0601-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> (B)	1-83574-290-0	01	1	0601-	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83539-328-0	01	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
