8-50 — AIR CONDITIONING SYSTEM; FRONT (#37811) — 69 parça

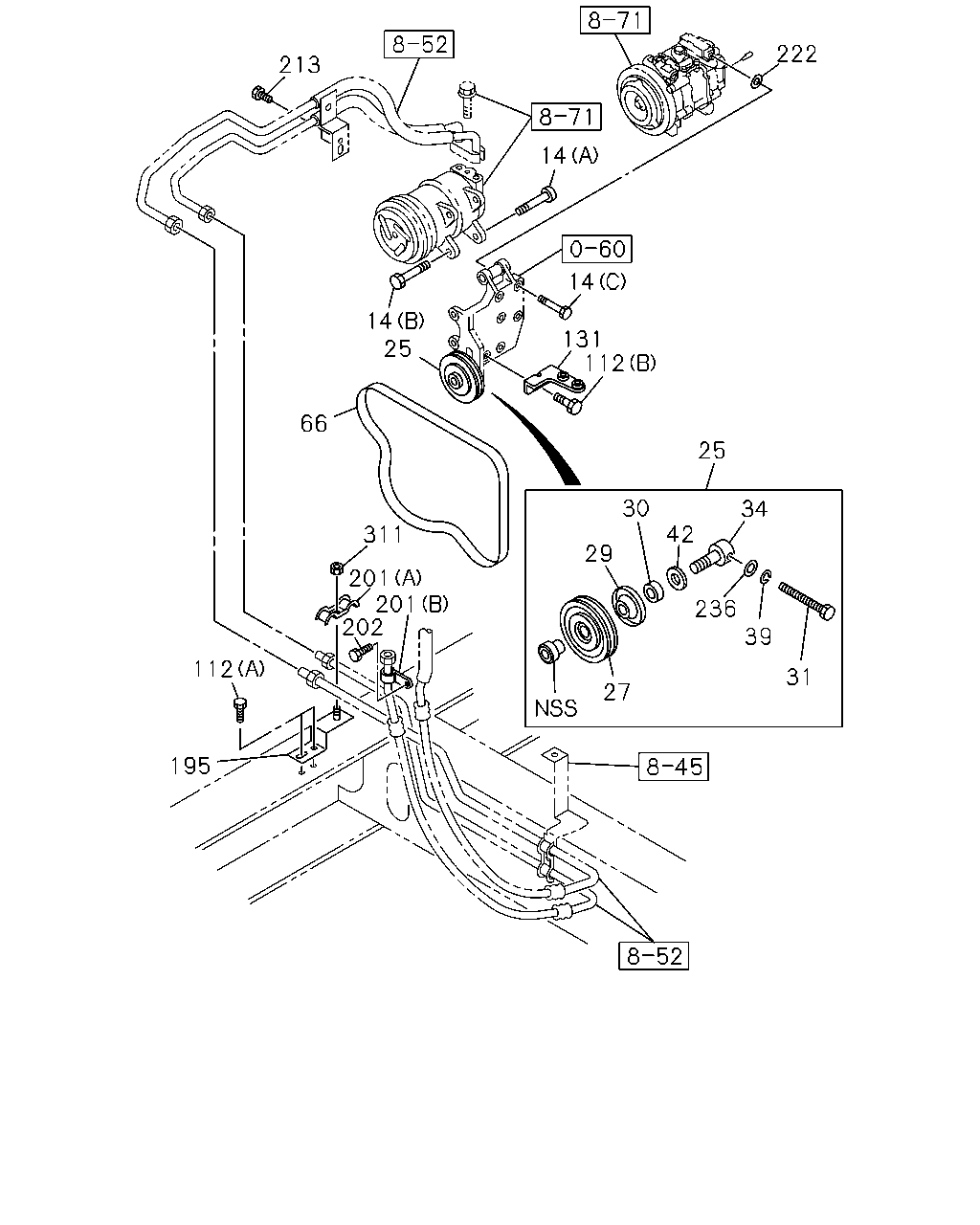

çizim 151394
222 213 14 14 14 25 131 112 66 25 30 34 42 311 29 201 201 202 236 39 112 31 27 195
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
6HK1 TCC ENG(81L) (C) M8X80 FLANGE 		0-28050-880-0 04 1 0601-
14 BOLT; CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE 		0-28081-045-0 02 1 9803-0004
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE 		0-28081-045-0 02 1 0005-0512
14 BOLT; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE 		0-28051-045-0 02 1 0601-
14 BOLT; CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE 		0-28681-035-0 02 1 9803-0004
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE 		0-28681-035-0 02 1 0005-0512
14 BOLT; CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
25 PULLEY ASM; IDLER,CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94399-957-0 01 1 9803-0004
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94399-957-0 01 1 0005-0512
25 PULLEY ASM; IDLER,CMPR
6HE1 TCN ENG(58L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94399-957-0 01 1 0601-
27 PULLEY; IDLE,A/C
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-116-0 01 1 9803-0004
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-116-0 01 1 0005-0512
27 PULLEY; IDLE,A/C
6HE1 TCN ENG(58L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-116-0 01 1 0601-
29 COVER; DUST,IDLE PULLEY
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		9-13369-603-0 01 1 9803-0004
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		9-13369-603-0 01 1 0005-0512
29 COVER; DUST,IDLE PULLEY
6HE1 TCN ENG(58L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) 		9-13369-603-0 01 1 0601-
30 COLLAR; IDLE PULLEY
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-144-0 01 1 9803-0004
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-144-0 01 1 0005-0512
30 COLLAR; IDLE PULLEY
6HE1 TCN ENG(58L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-144-0 01 1 0601-
31 BOLT; ADJ,IDLE PULLEY
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-143-0 01 1 9803-0004
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-143-0 01 1 0005-0512
31 BOLT; ADJ,IDLE PULLEY
6HE1 TCN ENG(58L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-143-0 01 1 0601-
34 SHAFT; IDLE PULLEY
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-236-0 01 1 9803-0004
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-236-0 01 1 0005-0512
34 SHAFT; IDLE PULLEY
6HE1 TCN ENG(58L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-236-0 01 1 0601-
39 WASHER; LK,ADJ BOLT
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		9-09150-608-0 01 1 9803-0004
39 WASHER; LK,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		9-09150-608-0 01 1 0005-0512
39 WASHER; LK,ADJ BOLT
6HE1 TCN ENG(58L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		9-09150-608-0 01 1 0601-
42 WASHER; PULLEY
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97014-636-0 01 1 9803-0004
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97014-636-0 01 1 0005-0512
42 WASHER; PULLEY
6HE1 TCN ENG(58L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97014-636-0 01 1 0601-
66 BELT; A/C CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110 		8-94395-172-0 01 1 9803-0004
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1110 		8-94395-172-0 01 1 0005-0302
66 BELT; A/C CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110 		8-94395-172-0 01 1 0303-0512
66 BELT; A/C CMPR
6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110 		8-94395-172-0 01 1 0601-
66 BELT; A/C CMPR
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 0110-1402
66 BELT; A/C CMPR
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) L=1077 		8-98253-452-0 01 1 1403-
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0512
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
112 BOLT; STAY
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 9803-0004
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0512
112 BOLT; STAY
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0512
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
112 BOLT; STAY
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
131 STAY; CMPR BRKT
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94393-451-0 01 1 9803-0004
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94393-451-0 01 1 0005-0010
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94393-451-0 01 1 0011-
131 STAY; CMPR BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 		8-94393-451-0 01 1 0011-
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> 		1-83573-172-0 01 1 0601-
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-088-0 01 1 9803-0403
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> 		1-83573-088-0 01 1 0404-
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9803-
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20 		9-09525-836-0 01 1 9803-0606
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20 		0-95235-836-0 01 1 0607-
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28680-825-0 01 1 9803-0512
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4> M6X25 FLANGE 		0-28050-625-0 02 1 0601-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0512
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE 		0-28681-035-0 01 1 9806-0403
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> M10X35 FLANGE 		0-28681-035-0 01 1 0404-0512
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> M10X35 FLANGE 		0-28651-035-0 01 1 0601-
222 GASKET; CONNECTOR
6HK1 TCC ENG(81L) ID=8.4 OD=19 		5-11779-001-0 04 1 0601-
236 WASHER; PL,ADJ BOLT
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-09503-216-0 01 1 9803-0004
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09503-216-0 01 1 0005-0512
236 WASHER; PL,ADJ BOLT
6HE1 TCN ENG(58L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-09503-216-0 01 1 0601-
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9803-0602
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603-
