Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#37809) — 159 parça

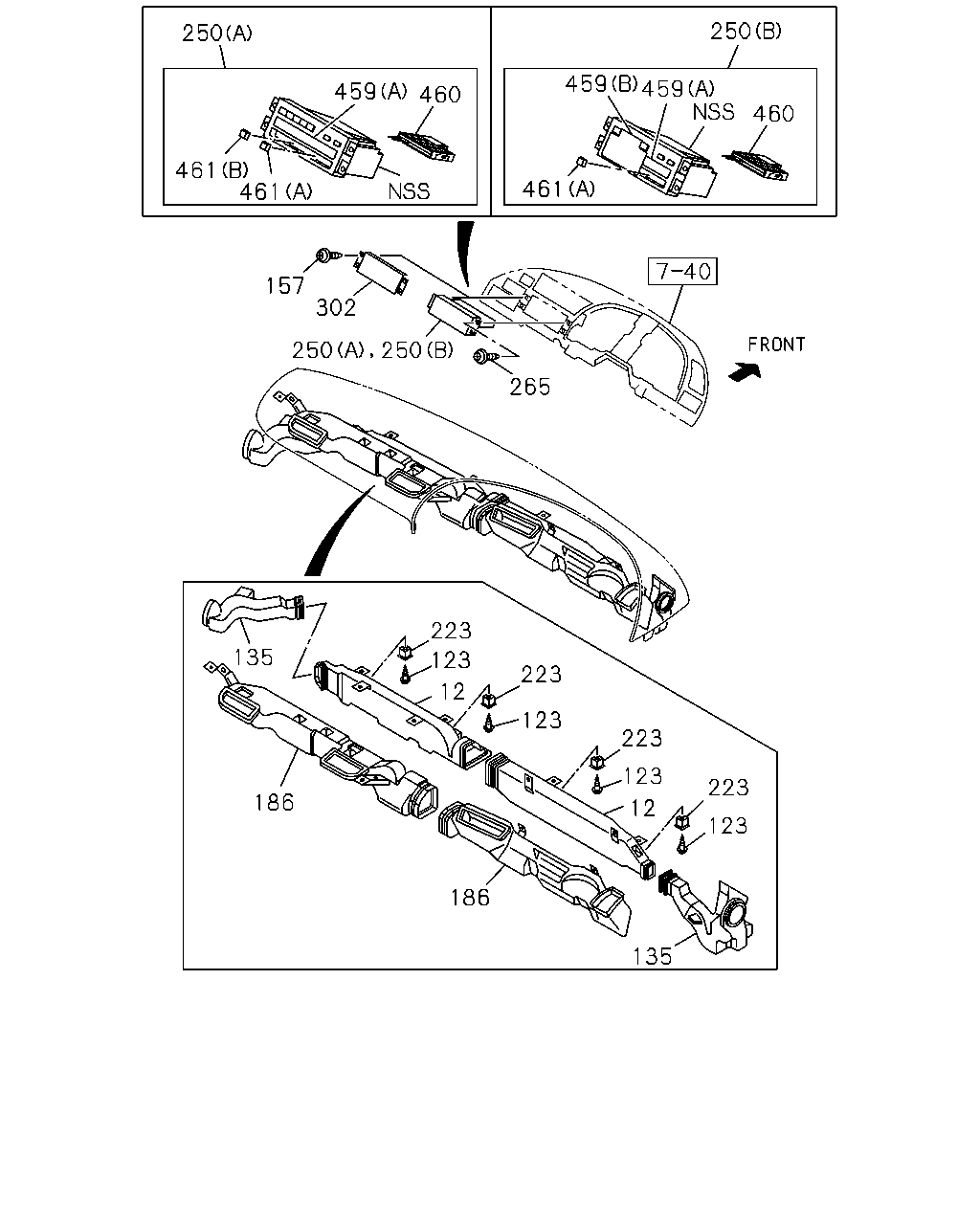

250 459 459 459 460 460 461 461 461 157 302 250 265 223 135 123 223 12 123 223 123 223 186 12 123 186 135 250 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-5	01	1	9510-9801	●
12	NOZZLE; DEFROSTER	1-76378-321-5	01	1	9510-9801		●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-5	01	1	9510-9801	●
12	NOZZLE; DEFROSTER	1-76377-172-5	01	1	9510-9801		●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-6	01	1	9802-0004	●
12	NOZZLE; DEFROSTER	1-76378-321-6	01	1	9802-0004		●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-6	01	1	0005-	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-6	01	1	9802-0004	●
12	NOZZLE; DEFROSTER	1-76377-172-6	01	1	9802-0004		●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-7	01	1	0005-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9510-9802	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9510-9802		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9803-0004	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9803-0004		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9510-9802	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9510-9802		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9803-0004	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9803-0004		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	0005-	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-253-4	01	1	9510-0004	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	9510-0004		●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-253-4	01	1	0005-	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-252-7	01	1	9510-0004	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	9510-0004		●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-252-7	01	1	0005-	●
157	SCREW EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9510-0004	●
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0604	●
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-322-9	01	1	9510-9903	●
186	DUCT; VENTILATOR	1-76378-322-9	01	1	9510-9903		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-418-0	01	1	9904-0004	●
186	DUCT; VENTILATOR	1-76378-418-0	01	1	9904-0004		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-418-0	01	1	0005-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-173-6	01	1	9510-0004	●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	9510-0004		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-173-6	01	1	0005-0710	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-246-0	01	1	0711-	●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9510-9802	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9510-9802		●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9803-0004	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9803-0004		●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0005-	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41) (A)	1-83543-033-2	01	1	9510-9802	●
250	CONTROL ASM; A/C (A)	1-83543-033-2	01	1	9510-9802		●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-033-2	01	1	9803-9909	●
250	CONTROL ASM; A/C (A)	1-83543-033-2	01	1	9803-9909		●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	9910-0004	●
250	CONTROL ASM; A/C (A)	1-83543-050-0	01	1	9910-0004		●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	0005-	●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83543-034-1	01	1	9510-	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9510-0004	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9510-0004		●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0604	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	9510-9802	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	9803-	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	9510-	●
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-017-0	01	1	0005-	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	9510-	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	9510-	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	0005-	●

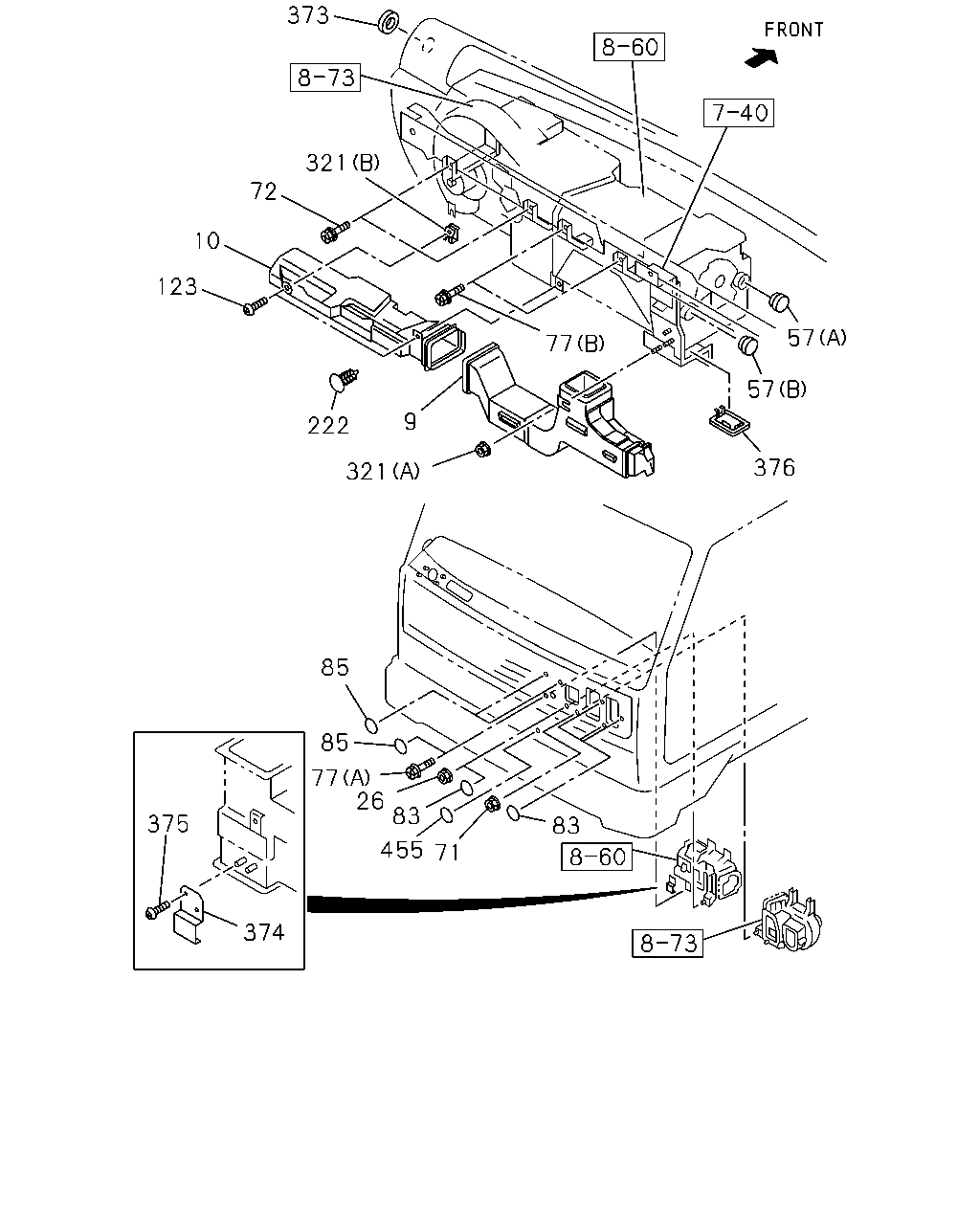

373 321 72 10 123 57 77 57 9 222 376 321 85 85 77 26 83 375 83 455 71 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-370-3	01	1	9510-9801	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-370-3	01	1	9510-9801		●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-409-0	01	1	9802-9805	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-409-0	01	1	9802-9805		●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-409-0	01	1	9806-0004	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-409-0	01	1	9806-0004		●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-409-0	01	1	0005-0006	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-426-2	01	1	0007-	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-278-7	01	1	9510-9801	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-278-7	01	1	9510-9801		●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-413-0	01	1	9802-9805	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	9802-9805		●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	9806-0004	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	9806-0004		●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	0005-	●
26	NUT; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802		●
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-0004	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-0004		●
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41) (A)	1-83579-617-0	02	1	9510-9802	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9510-9802		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-617-0	02	1	9803-0004	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9803-0004		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-617-0	02	1	0005-	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41) (B)	1-83579-618-0	01	1	9510-9802	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9510-9802		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-618-0	01	1	9803-0004	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9803-0004		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-618-0	01	1	0005-	●
57	COVER; INL DUCT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	01	1	0205-	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-9802	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-9802		●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9803-0004	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9803-0004		●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0005-	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802		●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004		●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9510-9802	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9510-9802		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9803-0004	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9803-0004		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	0005-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-0004		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9510-9802	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9803-	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9510-9802	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9803-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9510-9802	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9510-9802		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9803-0004	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9803-0004		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9510-9802	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9510-9802		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9803-0004	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9803-0004		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	0005-	●
222	FASTENER; DUCT HEATER & DEFROSTER(C41) ID=6 OD=16 L=18	8-94178-705-0	01	1	9802-9811	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	9802-9811		●
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	9911-0004	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	9911-0004		●
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	0005-	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (A) M6 FLANGE	0-91150-106-0	01	1	9510-9802	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	9510-9802		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91150-106-0	01	1	9803-0004	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	9803-0004		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91150-106-0	01	1	0005-0602	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (B) M5	1-09984-150-0	01	1	9510-9802	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	9510-9802		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-150-0	01	1	9803-0004	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	9803-0004		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-150-0	01	1	0005-0409	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-196-0	01	1	0410-	●
373	RUBBER; JOINT	1-76378-291-0	02	1	9510-0004	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	0005-	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41)	1-76398-012-1	01	1	9510-9802	●
374	HOLDER; DUCT	1-76398-012-1	01	1	9510-9802		●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	9803-0004	●
374	HOLDER; DUCT	1-76398-012-1	01	1	9803-0004		●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0005-	●
375	SCREW; HOLDER HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9510-9802	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9510-9802		●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9803-0004	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9803-0004		●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-	●
376	COVER; BED HEATER HEATER & DEFROSTER(C41)	1-83579-599-2	01	1	9510-9702	●
376	COVER; BED HEATER	1-83579-599-2	01	1	9510-9702		●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9902-	●
