◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#37808) — 134 parça

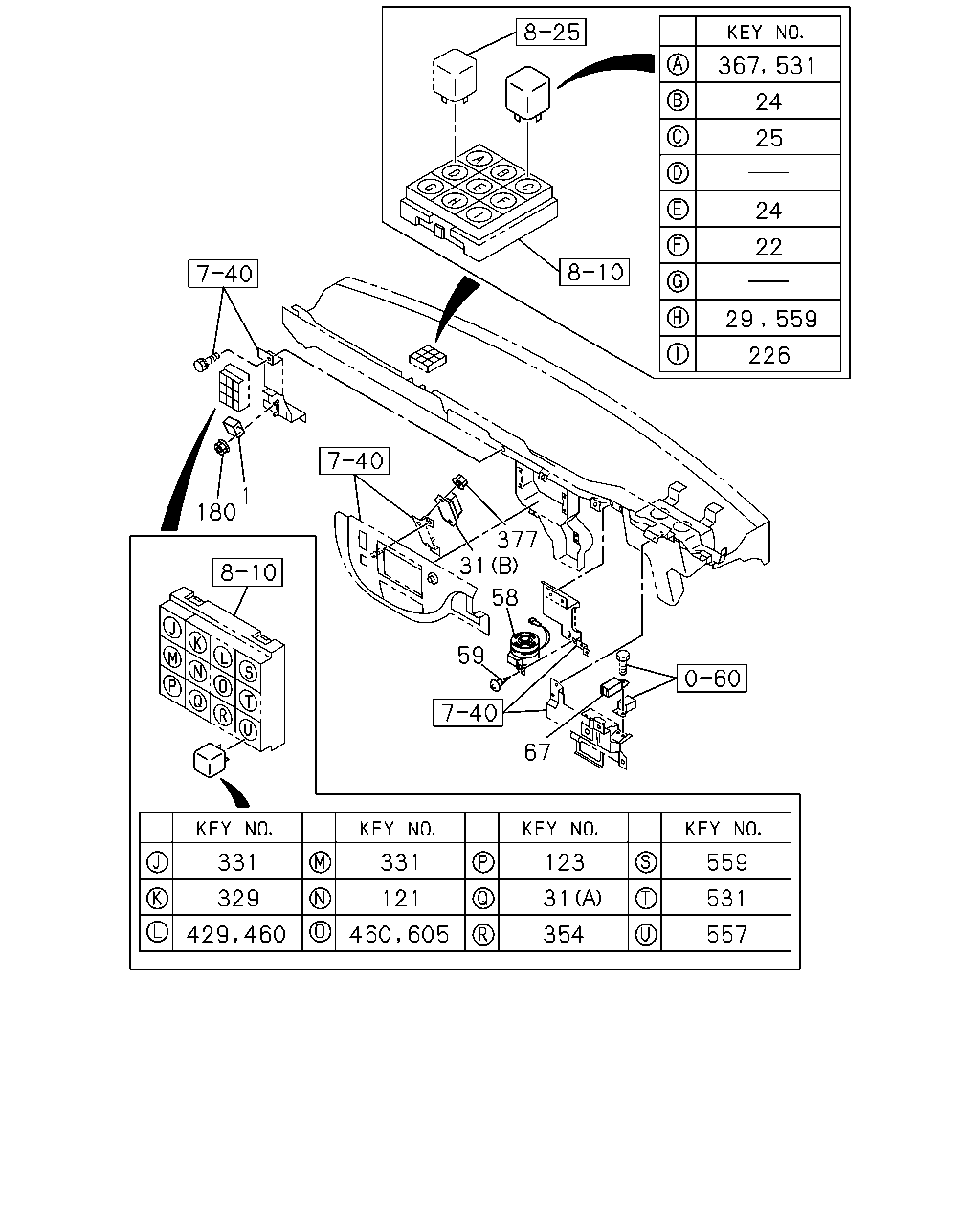

çizim 151357
367 531 24 25 24 22 29 559 226 1 180 377 31 58 59 67 331 331 123 559 329 121 31 531 354 557 429 460 460 605
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-060-0 01 1 9510-0004 ● ●
1 UNIT; FLASHER 1-83470-060-1 01 1 0005- ●
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004 ● ●
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
24 RELAY; LIGHTING
24V 12.5A MITUBA 		8-97062-815-1 02 1 9510-0004 ● ●
24 RELAY; LIGHTING
24V 12.5A MITUBA 		8-97062-815-1 02 1 0005-0111 ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112- ●
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004 ● ●
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004 ● ●
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ●
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 		1-82550-187-1 01 1 9510- ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111 ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
58 BUZZER; AIR PRESSURE WARNING
6HK1 TCC ENG(81L) METRO DENSO 		1-83460-075-0 01 1 0601-0612 ●
58 BUZZER; AIR PRESSURE WARNING
6HK1 TCC ENG(81L) METRO DENSO 		8-98069-859-0 01 1 0701- ●
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 9510-0004 ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-1 01 1 0005-0512 ●
58 BUZZER; AIR PRESSURE WARNING
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) METRO DENSO 		1-83460-074-1 01 1 0601-0612 ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-865-0 01 1 0701- ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-0 01 1 9904-9907 ● ●
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO DENSO 		1-83460-074-1 01 1 9908-0004 ● ●
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 9510-0004 ● ●
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 0005- ●
67 BUZZER; ENG OVERRUN
ENGINE OVERRUN BUZZER<SK4> 		1-83460-051-1 01 1 9510- ●
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004 ● ●
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ●
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-9802 ●
123 RELAY; HTR
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-9802 ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9803-0004 ●
123 RELAY; HTR
24V 12.5A MITUBA 		8-97062-815-1 01 1 9803-0004 ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 9510-0004 ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004 ●
226 RELAY; EXH BRK
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004 ●
226 RELAY; EXH BRK
24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
329 RELAY; BACK LAMP
AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004 ● ●
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA 		8-97062-815-1 02 1 9803-0111 ●
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112- ●
354 RELAY; BRAKE FLUID CHECK
AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004 ● ●
367 RELAY; NEUTRAL
6HK1 TCC ENG(81L) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0601- ●
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91150-106-0 02 1 9510-0602 ●
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 02 1 0603- ●
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9610-0010 ●
429 RELAY; POWER CUT
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0011-0111 ●
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0011-0111 ●
429 RELAY; POWER CUT
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
460 RELAY; IVES
AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA 		8-97062-815-1 02 1 9510-9806 ● ●
460 RELAY; IVES
AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA 		8-97062-815-1 02 1 9807-0004 ●
460 RELAY; IVES
AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA 		8-97062-815-1 02 1 9807-0004 ●
531 RELAY; MAIN
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0011-0111 ●
531 RELAY; MAIN
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0512 ●
531 RELAY; MAIN
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0601- ●
557 RELAY; WASHER
6HH1 STD 4VALVE ENG(1A6) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A MITUBA 		8-97062-815-1 01 1 0011-0111 ●
557 RELAY; WASHER
6HH1 STD 4VALVE ENG(1A6) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0512 ●
557 RELAY; WASHER
6HH1 STD 4VALVE ENG(1A6) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0601- ●
557 RELAY; WASHER
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0601- ●
559 RELAY; MAG VLV
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0011-0111 ●
559 RELAY; MAG VLV
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
605 RELAY; PCV
6HK1 TCC ENG(81L) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0601- ●

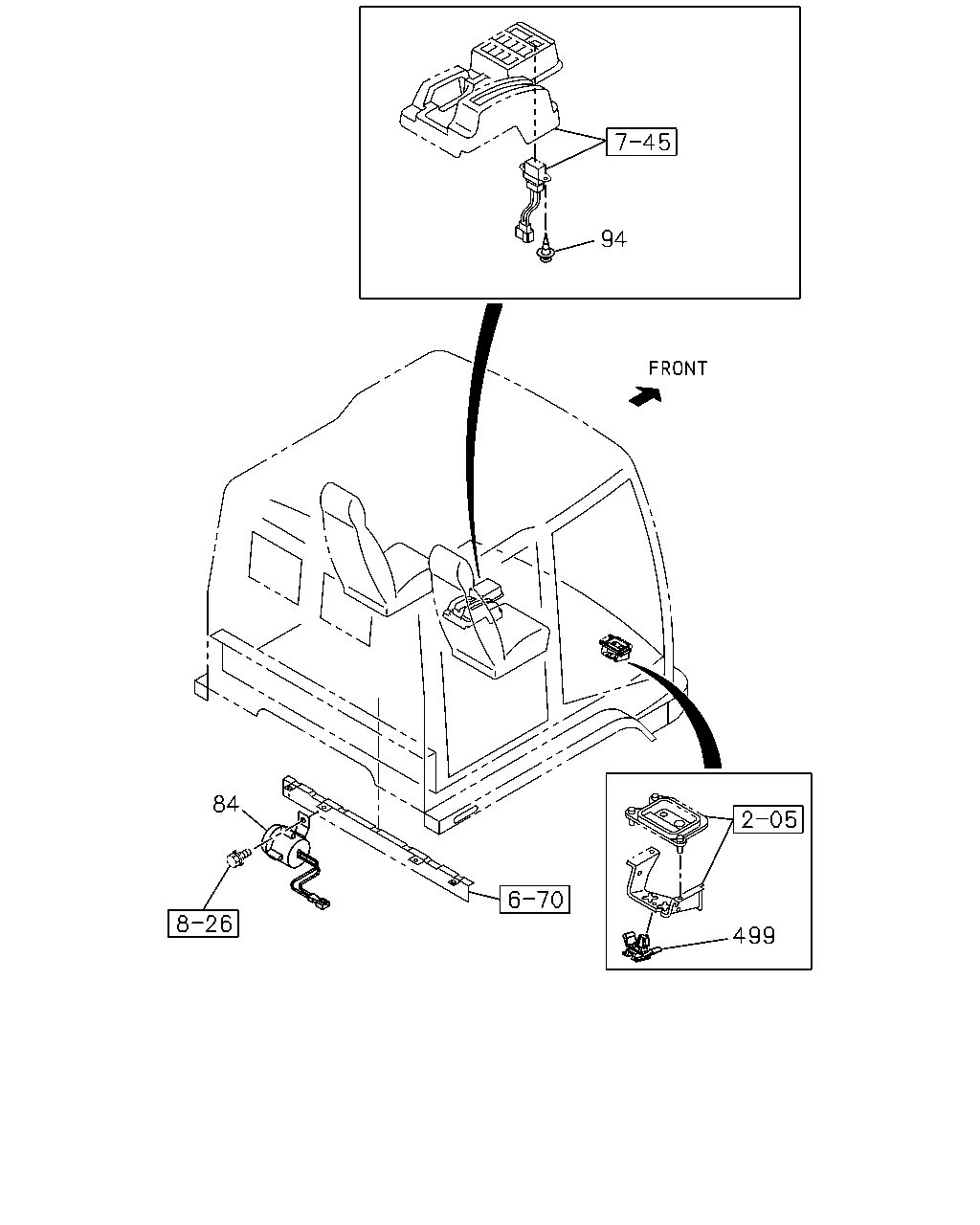

çizim 151358
94 84 499
BalonParca AdiParca NoAdetTipApplied Date A B
84 BUZZER; POWER CAB TILT
NIKKO 		1-83460-054-0 01 1 9510-0004 ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		1-83460-096-1 01 1 9904-9907 ●
84 BUZZER; POWER CAB TILT
EXC. NIKKO<Y70> METRO DENSO 		1-83460-096-2 01 1 9908-0004 ●
94 SCREW; CONSENT TO BLIND PNL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9510-9810 ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 9811-0004 ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0005-0604 ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0605- ●
499 CLIP; SWITCH
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) OD=9 H=6 		1-09709-178-0 01 1 0304-0512 ●
499 CLIP; SWITCH
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) OD=9 H=6 		1-09709-178-0 01 1 0601- ●

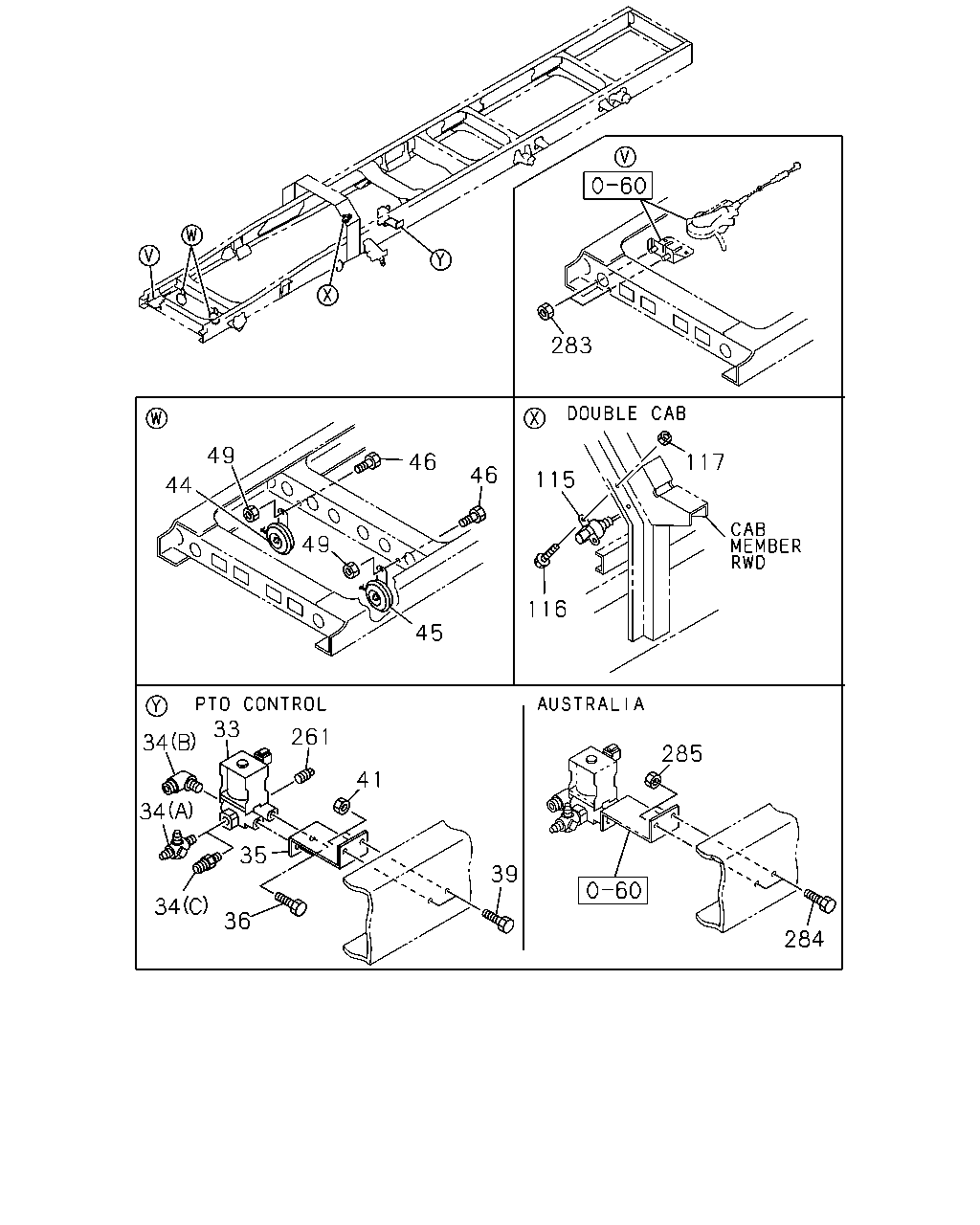

çizim 151359
283 49 46 117 46 115 44 49 116 45 33 261 34 285 41 34 35 39 34 36 284
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-600-4 01 1 9510-0004 ●
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-600-5 01 1 0005- ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9510-9802 ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 9803-9804 ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9805-0004 ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005- ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9510-9802 ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-0004 ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005- ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-462-0 01 1 9510-9704 ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-953-0 01 1 9705-0004 ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-953-1 01 1 0005- ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28080-820-0 02 1 9510-9810 ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28680-820-0 02 1 9811-0004 ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 		9-09110-408-0 02 1 9510-9606 ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
44 HORN; HIGH NOTE 1-83410-057-1 01 1 9510-0004 ● ●
44 HORN; HIGH NOTE 1-83410-057-1 01 1 0005-0210 ●
44 HORN; HIGH NOTE 1-83410-065-1 01 1 0211- ●
45 HORN; LOW NOTE 1-83410-058-1 01 1 9510-0004 ● ●
45 HORN; LOW NOTE 1-83410-058-1 01 1 0005-0210 ●
45 HORN; LOW NOTE 1-83410-064-1 01 1 0211- ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
49 NUT; HORN TO BODY
M8 FLANGE 		5-09440-005-0 02 1 9510-9606 ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-063-0 01 1 9510-0004 ●
115 RELAY; POWER CAB TILT UNIT
HITACHI 		1-81171-086-0 01 1 9904-9907 ●
115 RELAY; POWER CAB TILT UNIT
EXC. NIKKO<Y70> HITACHI 		1-81171-086-0 01 1 9908-0004 ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
116 BOLT; RELAY FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ●
117 NUT; RELAY FIX
M8 		9-09110-408-0 02 1 9510-9606 ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 9510-0004 ●
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 0005- ●
283 NUT; BRKT
M8 FLANGE 		5-09440-005-0 02 1 9510-9606 ● ●
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0512 ●
283 NUT; BRKT
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) M8 FLANGE 		0-91150-108-0 02 1 0601-0602 ●
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
284 BOLT; MAG VLV
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
284 BOLT; MAG VLV
AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ●
285 NUT; MAG VLV
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9510-9606 ● ●
285 NUT; MAG VLV
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
