◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#37807) — 198 parça

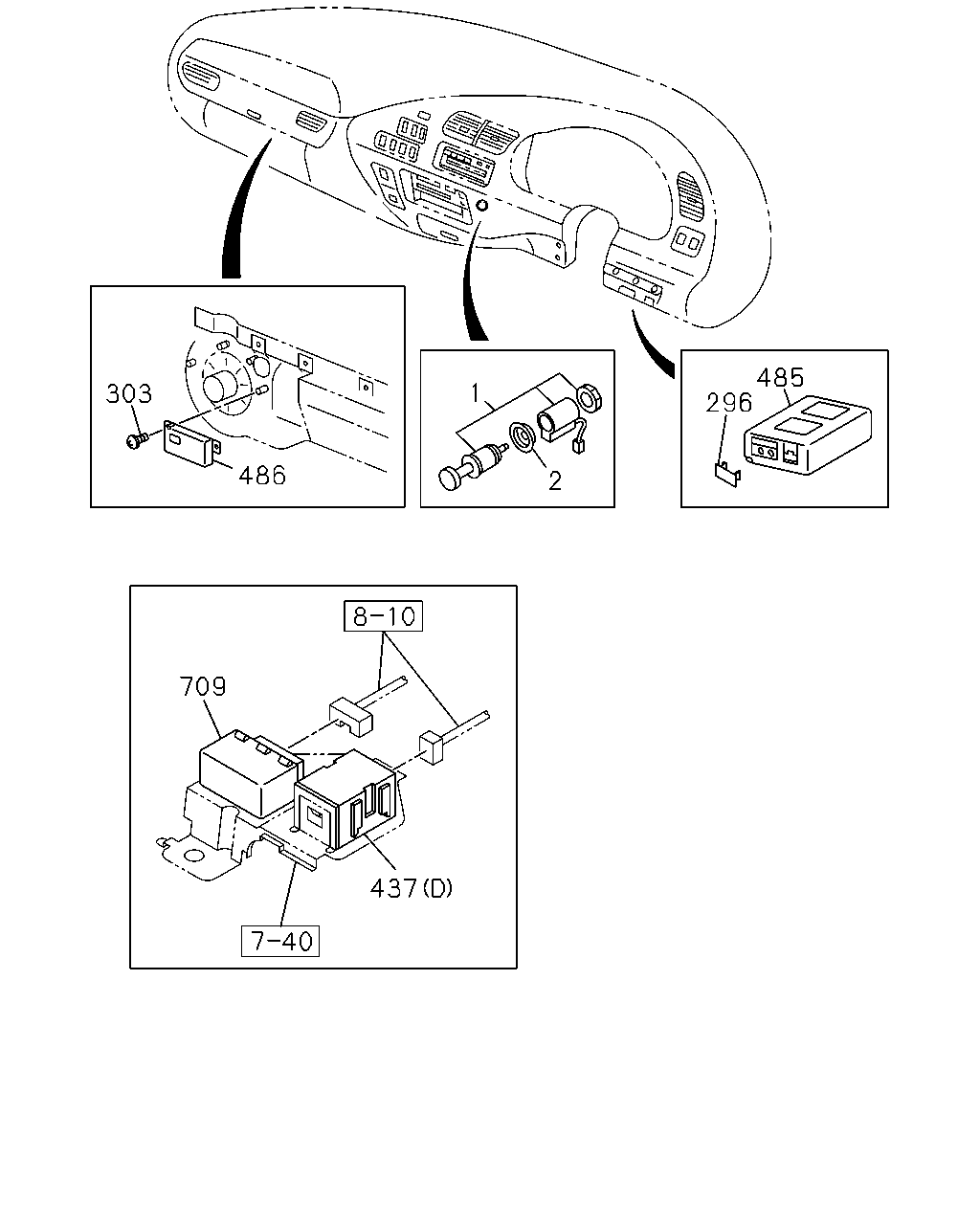

çizim 151348
485 296 1 303 486 2 709 437
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9510-0004 ● ●
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0005-0108 ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9510-0004 ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0005- ●
296 COVER; CONT UNIT
CUSTOM CAB(SR5) 		1-80199-003-0 01 1 9910-0004 ●
296 COVER; CONT UNIT 1-82549-010-0 01 1 9803-9909 ● ●
296 COVER; CONT UNIT
EXC. CUSTOM CAB(SR5) 		1-82549-010-0 01 1 9910-0004 ●
296 COVER; CONT UNIT 1-82549-010-0 01 1 9910-0004 ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 9911- ●
437 CONVERTER; DC
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (D) KOITO 		8-97359-129-0 01 1 0601- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9807-0004 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-1 01 1 0005-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) METRO DENSO 		8-98046-423-0 01 1 0604- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0004 ● ●
485 CONTROL UNIT; SPEED SENSOR
CUSTOM CAB(SR5) 		1-80190-038-1 01 1 9910-0004 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0402 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9510-9909 ● ●
485 CONTROL UNIT; SPEED SENSOR
EXC. CUSTOM CAB(SR5) 		1-82540-065-0 01 1 9910-0004 ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9910-0004 ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 9803- ●
709 RESISTOR; HD LAMP LEVELING
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-97359-130-1 01 1 0601- ●

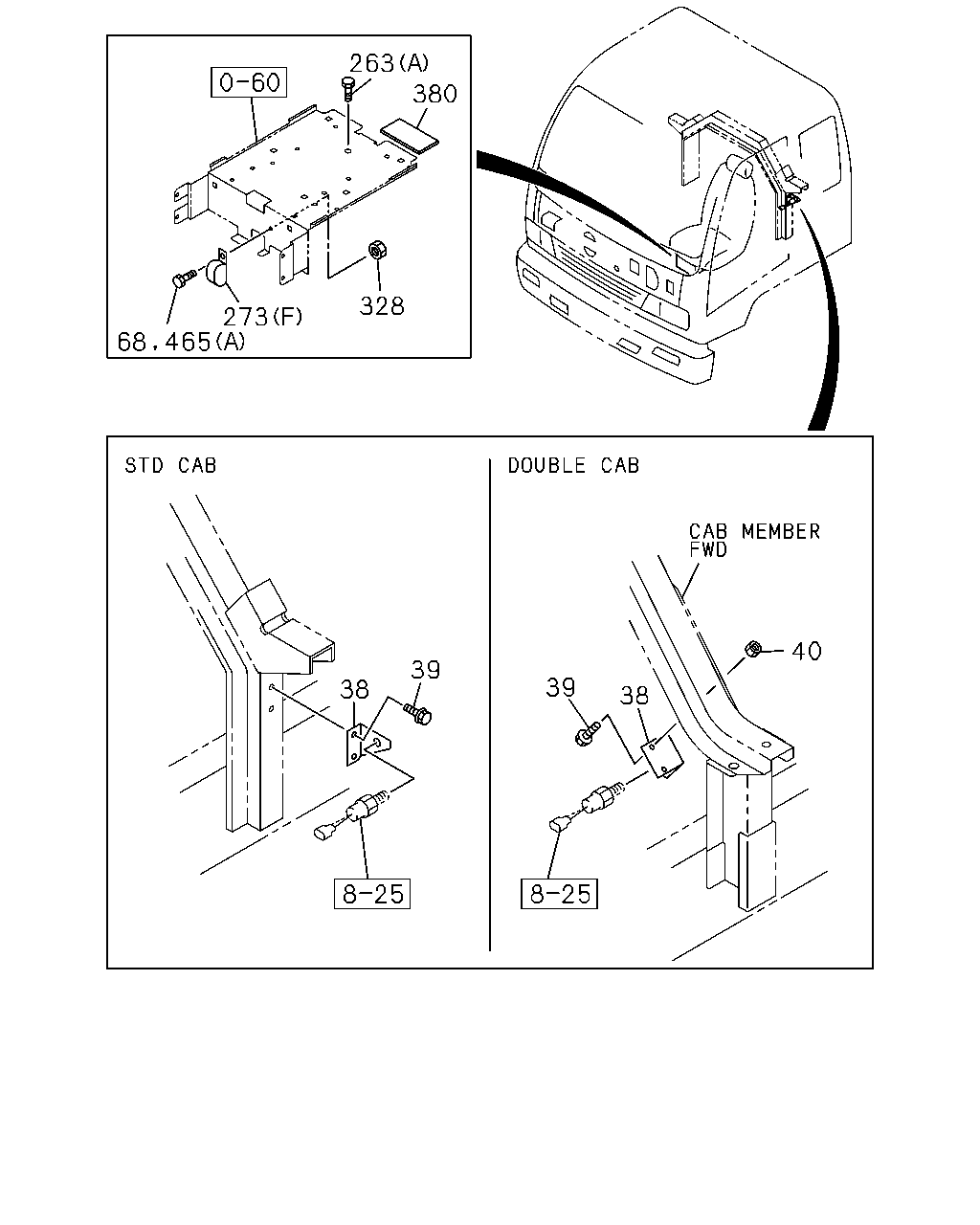

çizim 151352
263 380 328 273 40 39 39 38 38 68 465
BalonParca AdiParca NoAdetTipApplied Date A B
38 BRACKET; SW,STARTER SUB
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0601- ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9510-0004 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) 		1-82699-351-0 01 1 0005-0211 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0212-0403 ●
38 BRACKET; SW,STARTER SUB
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0404- ●
38 BRACKET; SW,STARTER SUB 1-82699-370-0 01 1 9510-0004 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0211 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 		9-09110-408-0 02 1 9510-9606 ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
68 BOLT; BRKT
A/T<X9D> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803-9804 ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0004 ● ●
263 BOLT; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0212- ●
263 BOLT; CONT UNIT
A/T<X9D> (A) M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 9803-9804 ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) (H) ID=35 L=35 		1-09700-726-0 01 1 0601- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		9-09525-536-0 02 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		0-95235-536-0 02 1 0607- ●
273 CLIP; HARNESS
A/T<X9D> (F) ID=42.7 L=38 		1-09700-583-1 02 1 9803-9804 ●
328 NUT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ● ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ● ●
380 SEAL
A/T<X9D> 100X30 		1-72498-014-1 03 1 9803-9804 ●
380 SEAL
6HH1 STD 4VALVE ENG(1A6) EXC. NEW ZEALAND EQUIPMENT(PK5) OD=25 BLACK 		1-76798-019-0 02 1 0201- ●
380 SEAL
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) OD=25 BLACK 		1-76798-019-0 02 1 0201- ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
465 BOLT; CLIP
A/T<X9D> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9804 ●

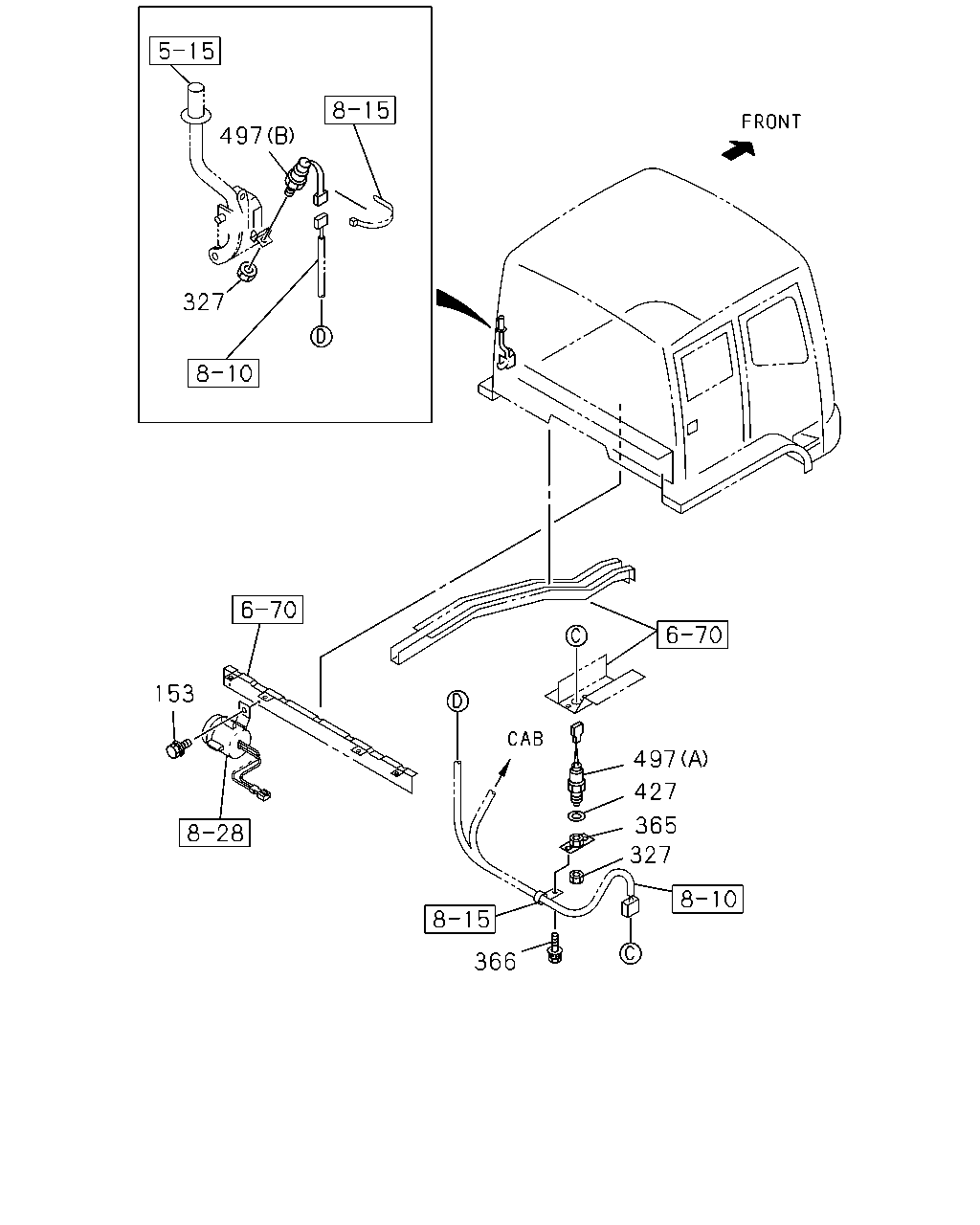

çizim 151354
497 327 153 497 427 365 327 366
BalonParca AdiParca NoAdetTipApplied Date A B
153 BOLT; BUZZER FIX
M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9510-0004 ●
327 NUT; SWITCH
M16 		9-99111-416-0 02 1 9803-0004 ●
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 9512-0004 ●
366 BOLT; PLATE,SW,CAB TILT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9512-0004 ●
427 WASHER; PL,SWITCH
ID=17 		9-09160-516-0 01 1 9510-0004 ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9510-0004 ●
497 SWITCH; CAB TILT
(B) STAMP NO 		1-82380-126-0 01 1 9510-0004 ●

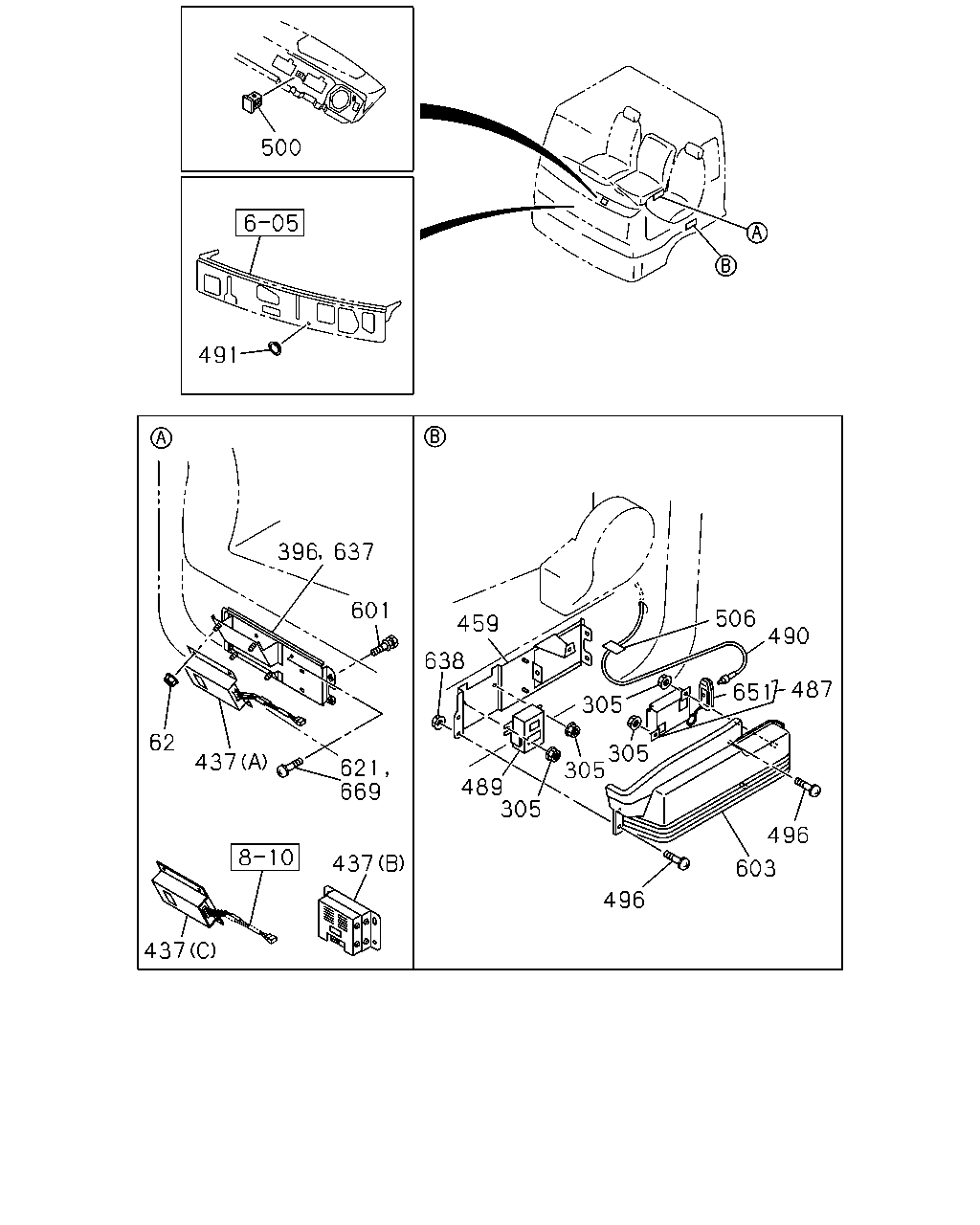

çizim 151356
500 491 396 637 601 506 459 490 638 651 487 305 305 305 62 437 621 669 489 305 496 437 603 496 437
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 9811-0004 ● ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 0005-0602 ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91180-106-0 02 1 0603- ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0803-0809 ●
305 NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 04 1 9910-0004 ●
396 BRACKET
ELEC OUTLET 12V<TAW> 		1-75557-483-0 01 1 9905-9907 ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-483-1 01 1 9908-0004 ● ●
437 CONVERTER; DC
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (D) KOITO 		8-97359-129-0 01 1 0601- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9807-0004 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-1 01 1 0005-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) METRO DENSO 		8-98046-423-0 01 1 0604- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0004 ● ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 9811-0004 ● ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 0005- ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-033-2 01 1 0212-0809 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-006-1 01 1 9910-0004 ●
489 CONTROL UNIT; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82540-049-1 01 1 9910-0004 ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
REMOTE CONT DOOR LOCK<SLG> 		1-86855-023-1 01 1 0212-0809 ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
CUSTOM CAB(SR5) 		1-86855-023-1 01 1 9910-0004 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9510-9609 ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 9610-0004 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9610-0004 ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0005-0112 ●
491 PLUG; HOLE,CONT UNIT
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0201-0512 ●
491 PLUG; HOLE,CONT UNIT
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0601- ●
491 PLUG; HOLE,CONT UNIT
6HK1 TCC ENG(81L) OD=54.5 		1-73907-309-0 01 1 0601- ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9811-0004 ● ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0005-0703 ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704- ●
500 SENSOR; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82486-002-0 01 1 9910-0004 ●
506 TAPE; ANTENNA
REMOTE CONT DOOR LOCK<SLG> 100X30 		1-74998-068-0 06 1 0803-0809 ●
506 TAPE; ANTENNA
CUSTOM CAB(SR5) 100X30 		1-74998-068-0 06 1 9910-0004 ●
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0005-0703 ●
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704- ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		1-72538-160-2 01 1 9811-0004 ● ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		1-72538-160-3 01 1 0005-0810 ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		8-97589-725-0 01 1 0811- ●
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 9912-0004 ● ●
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 0005- ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9811-0004 ● ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 0005-0602 ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86860-008-0 01 1 0212-0809 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-017-0 01 1 9910-0004 ●
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0005- ●

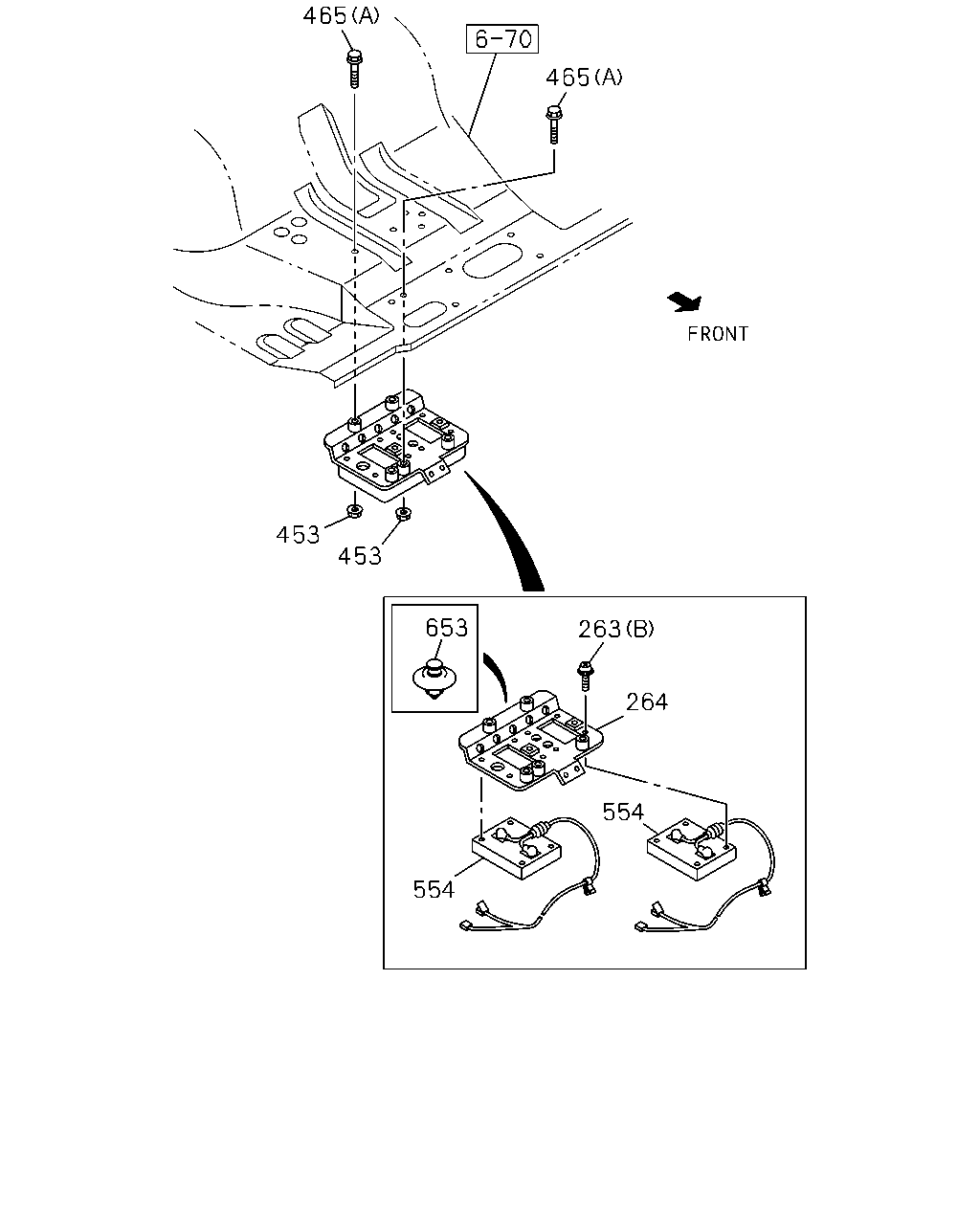

çizim 151398
465 465 453 453 653 263 264 554 554
BalonParca AdiParca NoAdetTipApplied Date A B
263 BOLT; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0212- ●
263 BOLT; CONT UNIT
A/T<X9D> (A) M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 9803-9804 ●
264 BRACKET; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82547-037-5 01 1 0212- ●
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91150-108-0 04 1 0212-0602 ●
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
465 BOLT; CLIP
A/T<X9D> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9804 ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-076-6 01 1 0212- ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-077-5 01 1 0212- ●
653 CLIP; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> D8X13.5 		1-09987-248-1 01 1 0212- ●

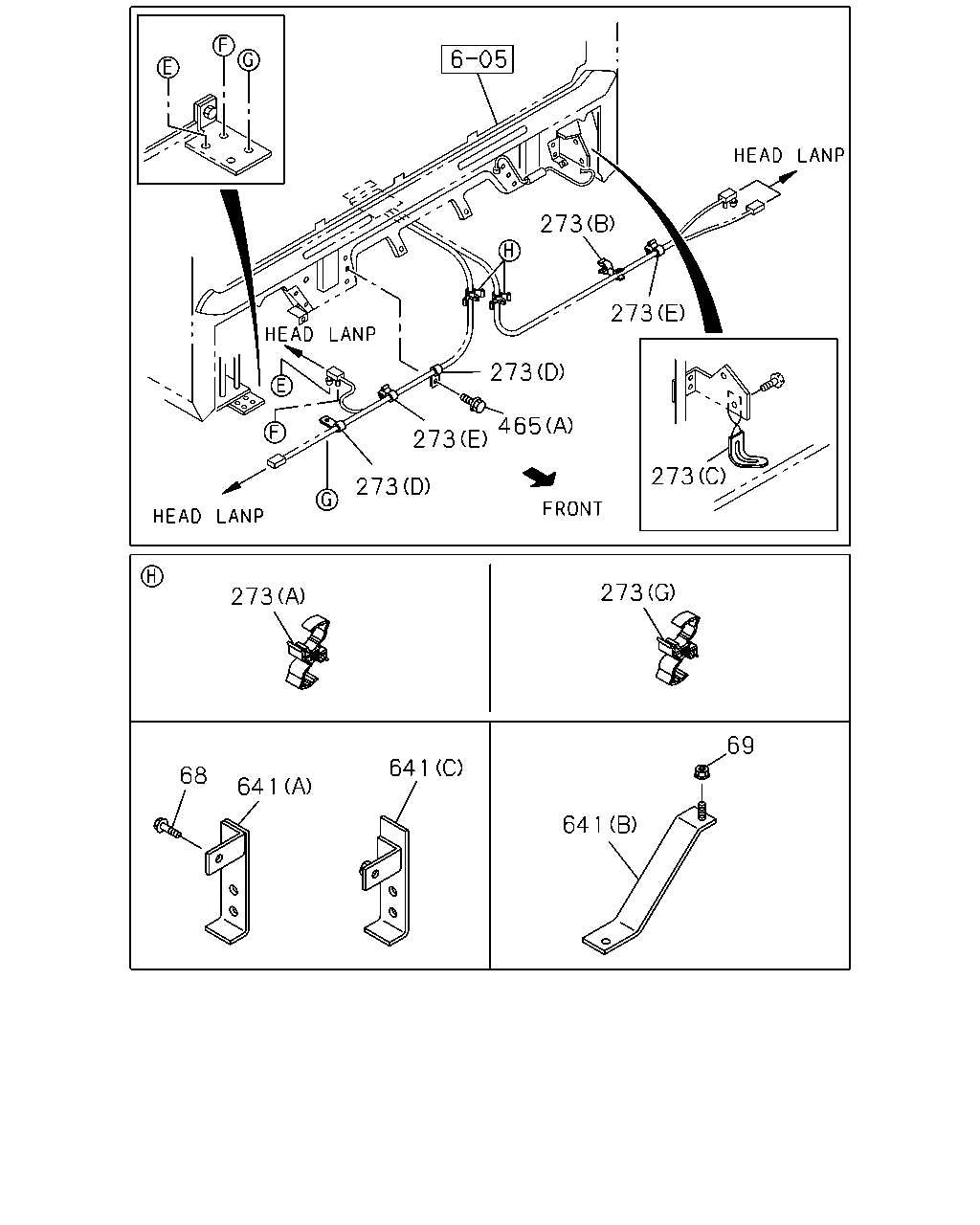

çizim 151399
273 273 273 465 273 273 273 273 273 69 641 68 641 641
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
68 BOLT; BRKT
A/T<X9D> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803-9804 ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0004 ● ●
69 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0212-0602 ●
69 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) (H) ID=35 L=35 		1-09700-726-0 01 1 0601- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		9-09525-536-0 02 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		0-95235-536-0 02 1 0607- ●
273 CLIP; HARNESS
A/T<X9D> (F) ID=42.7 L=38 		1-09700-583-1 02 1 9803-9804 ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
465 BOLT; CLIP
A/T<X9D> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9804 ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82698-073-1 01 1 0212-0309 ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-82698-503-0 01 1 0310- ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82698-072-2 01 1 0212- ●

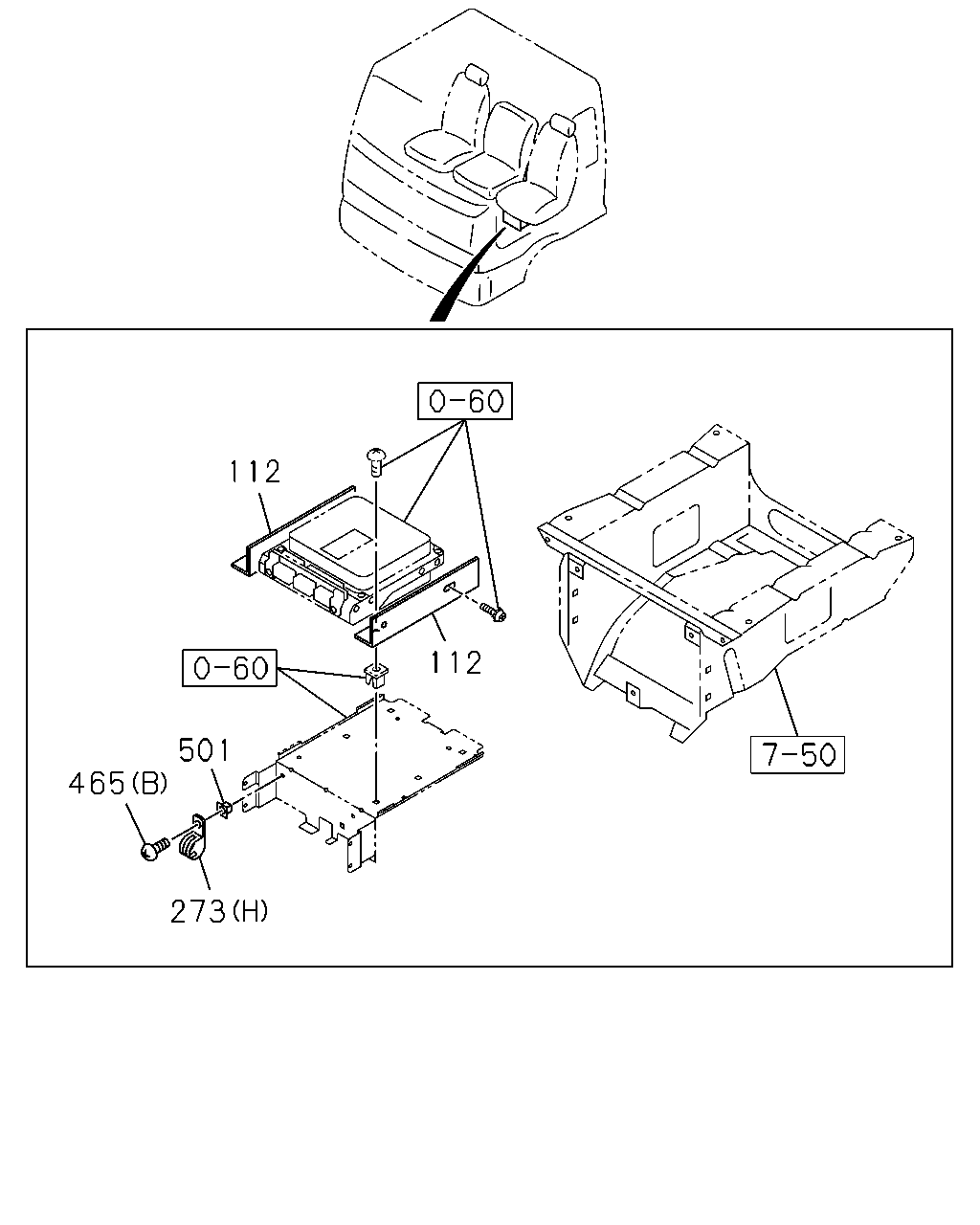

çizim 151429
112 112 501 465 273
BalonParca AdiParca NoAdetTipApplied Date A B
112 BRACKET; CONT UNIT
EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> 		1-75558-566-0 02 1 0601- ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) (H) ID=35 L=35 		1-09700-726-0 01 1 0601- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		9-09525-536-0 02 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		0-95235-536-0 02 1 0607- ●
273 CLIP; HARNESS
A/T<X9D> (F) ID=42.7 L=38 		1-09700-583-1 02 1 9803-9804 ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
465 BOLT; CLIP
A/T<X9D> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9804 ●
501 GROMMET; SCREW
6HK1 TCC ENG(81L) D=9.7X9.7 L=8 		8-94222-314-0 01 1 0601- ●

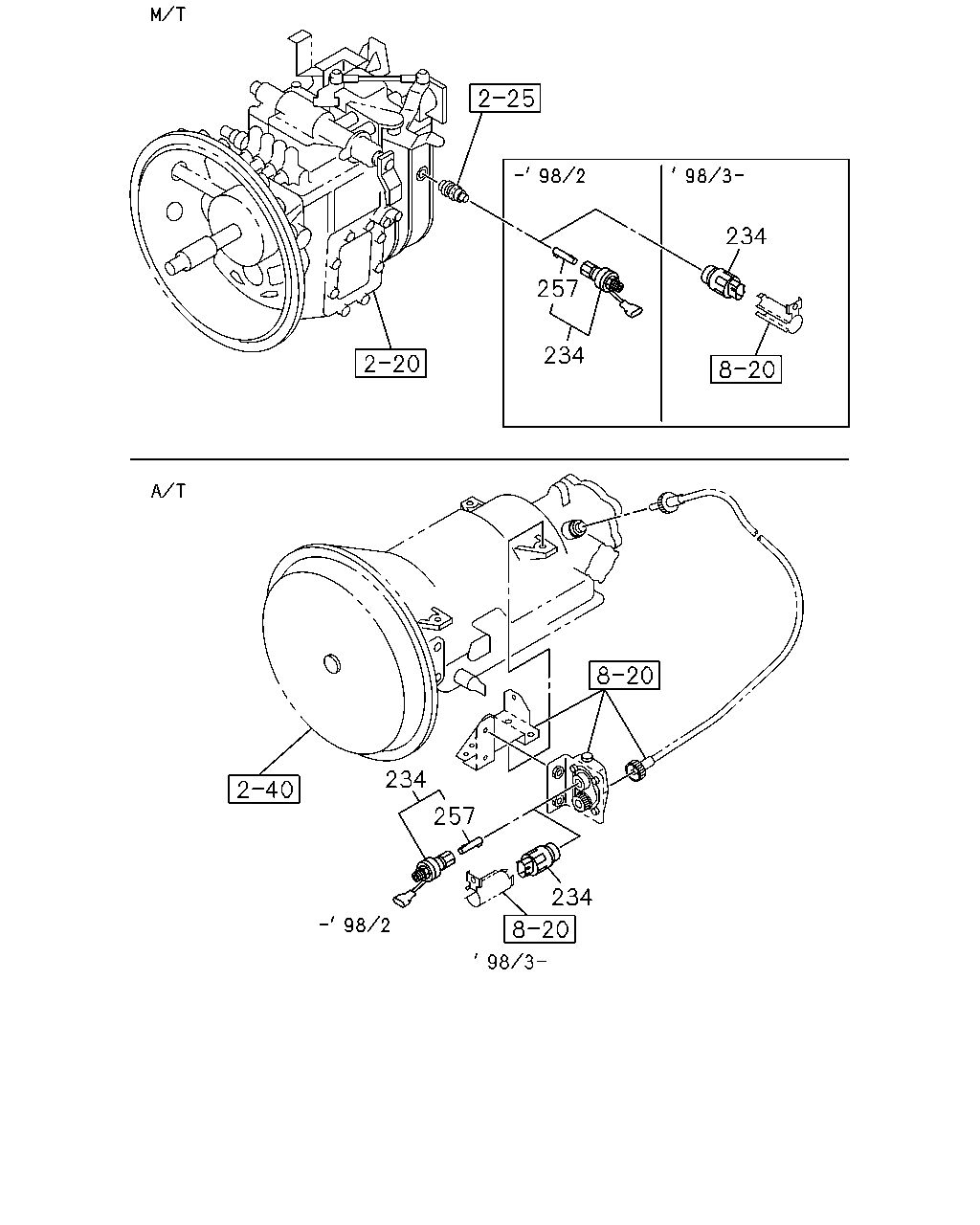

çizim 151436
234 257 234 234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD 1-83127-241-1 01 1 9510-9802 ● ●
234 SENSOR; VEHICLE SPD 1-80240-001-0 01 1 9803-0004 ● ●
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 0005-0202 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203- ●
257 KEY; SPEED SENSOR 1-83129-126-0 01 1 9510-9802 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
