8-05 — INTERIOR LAMP (#37801) — 161 parça

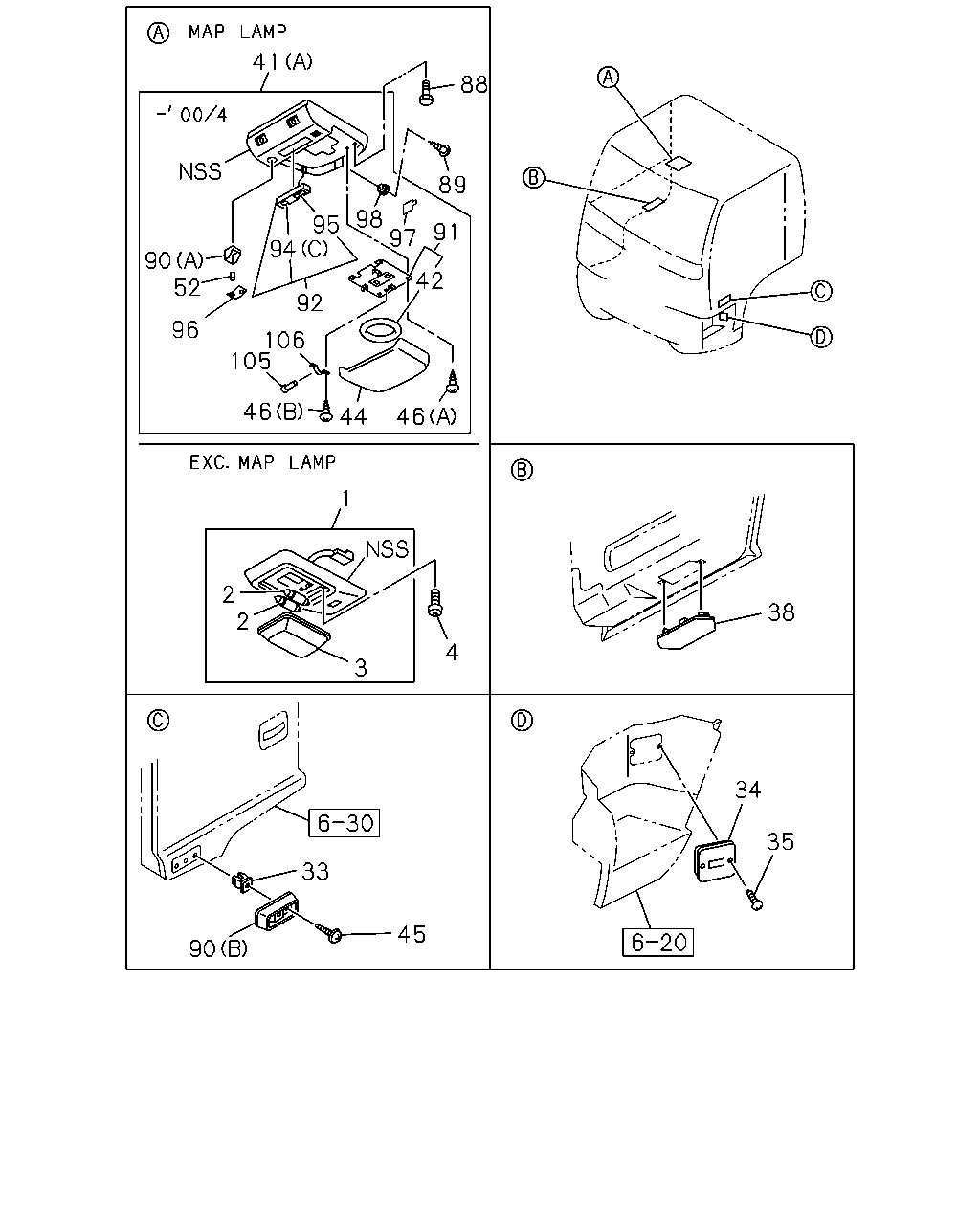

41 88 89 98 97 95 94 91 90 52 42 92 96 106 105 46 46 44 1 2 2 38 4 3 34 35 33 45 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; ROOM FRONT	1-82140-050-0	01	1	9510-9602	●	●
1	LAMP ASM; ROOM FRONT AND REAR	1-82140-050-1	01	1	9603-0004	●	●
1	LAMP ASM; ROOM FRONT AND REAR	1-82140-050-1	01	1	9603-0004		●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	0005-0211	●
1	LAMP ASM; ROOM EXC. MAP LAMP<C85>	1-82140-050-1	01	1	0212-	●
1	LAMP ASM; ROOM REAR	1-82140-021-3	01	1	9510-9602		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9510-9909	●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9510-9909		●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	9910-0004	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9910-0004		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9910-0004		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	0005-0211	●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	0212-	●
3	LENS; ROOM LAMP FRONT	8-94206-208-0	01	1	9510-9602	●	●
3	LENS; ROOM LAMP FRONT AND REAR	8-94206-208-0	01	1	9603-9709	●	●
3	LENS; ROOM LAMP FRONT AND REAR	8-94206-208-0	01	1	9603-9709		●
3	LENS; ROOM LAMP FRONT AND REAR	1-82145-020-0	01	1	9710-0004	●	●
3	LENS; ROOM LAMP FRONT AND REAR	1-82145-020-0	01	1	9710-0004		●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	0005-0211	●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85>	1-82145-020-0	01	1	0212-	●
3	LENS; ROOM LAMP REAR	1-82145-002-0	01	1	9510-9602		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9510-9909	●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9510-9909		●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	9910-0004	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9910-0004		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9910-0004		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	0005-0211	●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	0212-0603	●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	0-71040-520-0	03	1	0604-	●
33	GROMMET; SCREW,LAMP AUSTRALIA EQUIPMENT(RR3) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9510-9604	●
33	GROMMET; SCREW,LAMP D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9510-9604		●
33	GROMMET; SCREW,LAMP AUSTRALIA EQUIPMENT(RR3) D=8.6X7.7 L=7.5	1-09983-177-0	04	1	9605-0004	●
33	GROMMET; SCREW,LAMP D=8.6X7.7 L=7.5	1-09983-177-0	04	1	9605-0004		●
34	COVER; STEP LAMP	1-79998-925-0	02	1	9510-0004	●	●
34	COVER; STEP LAMP	1-79998-925-0	02	1	0005-	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	9510-0004	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	0005-0604	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74360-420-0	04	1	0605-	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9510-0004	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	0005-	●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (B)	1-86830-315-2	01	1	0212-	●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (A)	1-86830-305-2	01	1	9910-0004	●
42	LAMP; FLUORESCENT MAP LAMP<C85>	1-86830-094-1	01	1	0212-	●
42	LAMP; FLUORESCENT MAP LAMP<C85>	1-86830-094-1	01	1	9910-0004	●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-092-0	01	1	0212-	●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-092-0	01	1	9910-0004	●
45	SCREW; BASE FIX AUSTRALIA EQUIPMENT(RR3) M5X16 TAPPING W/PL WASHER	0-74100-516-0	04	1	9510-0004	●
45	SCREW; BASE FIX M5X16 TAPPING W/PL WASHER	0-74100-516-0	04	1	9510-0004		●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING	1-86830-095-0	08	1	0212-	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12	1-86830-202-0	07	1	0212-	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (C) M3X6 TAPPING	1-86830-336-0	01	1	0212-	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING	1-86830-095-0	04	1	9910-0004	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12	1-86830-202-0	02	1	9910-0004	●
52	BULB; SPOT LAMP MAP LAMP<C85> 28V 6W	1-86830-090-0	01	1	9910-0004	●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0212-	●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-0004	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	9-07076-510-0	01	1	0212-0603	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	0-71240-510-0	01	1	0604-	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	9-07076-510-0	01	1	9910-0004	●
90	BASE; LAMP AUSTRALIA EQUIPMENT(RR3) (B)	1-79998-977-1	01	1	9510-0004	●
90	BASE; LAMP (B)	1-79998-977-1	01	1	9510-0004		●
90	BASE; LAMP AUSTRALIA EQUIPMENT(RR3) (B)	1-79998-976-1	01	1	9510-0004	●
90	BASE; LAMP (B)	1-79998-976-1	01	1	9510-0004		●
90	BASE; LAMP MAP LAMP<C85> (A)	1-86830-091-0	01	1	9910-0004	●
91	LAMP SUB ASM; FLUORESCENT MAP LAMP<C85>	1-86830-207-0	01	1	9910-0004	●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85>	1-86830-306-0	01	1	0212-	●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85>	1-86830-306-0	01	1	9910-0004	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (A)	1-86830-312-0	01	1	0212-	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (B)	1-86830-313-0	01	1	0212-	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (C)	1-86830-304-0	01	1	9910-0004	●
95	KNOB; SPOT LAMP SW MAP LAMP<C85>	1-86830-099-0	01	1	9910-0004	●
96	CAP; SPOT LAMP MAP LAMP<C85>	1-86830-385-0	01	1	0212-	●
96	CAP; SPOT LAMP MAP LAMP<C85>	1-86830-282-0	01	1	9910-0004	●
97	CAP; LENS FIX MAP LAMP<C85>	1-86830-311-0	01	1	0212-	●
97	CAP; LENS FIX MAP LAMP<C85>	1-86830-101-0	01	1	9910-0004	●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85>	1-86830-102-0	01	1	0212-	●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85>	1-86830-102-0	01	1	9910-0004	●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W	1-86830-200-0	01	1	0212-	●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W	1-86830-200-0	01	1	9910-0004	●
106	SOCKET; BULB MAP LAMP<C85>	1-86830-201-0	01	1	0212-	●
106	SOCKET; BULB MAP LAMP<C85>	1-86830-201-0	01	1	9910-0004	●

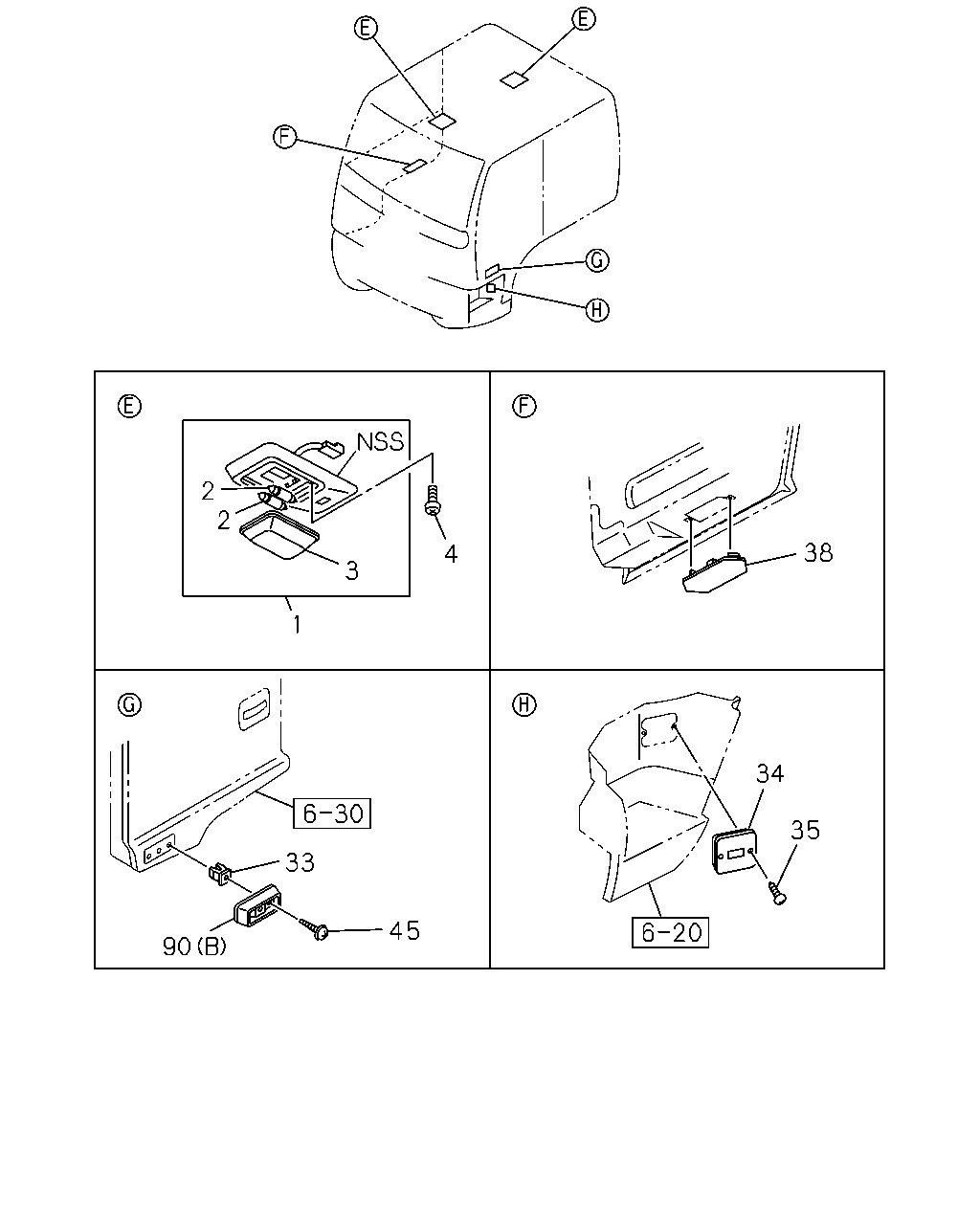

2 2 38 4 3 1 34 35 33 45 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; ROOM FRONT	1-82140-050-0	01	1	9510-9602	●	●
1	LAMP ASM; ROOM FRONT AND REAR	1-82140-050-1	01	1	9603-0004	●	●
1	LAMP ASM; ROOM FRONT AND REAR	1-82140-050-1	01	1	9603-0004		●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	0005-0211	●
1	LAMP ASM; ROOM EXC. MAP LAMP<C85>	1-82140-050-1	01	1	0212-	●
1	LAMP ASM; ROOM REAR	1-82140-021-3	01	1	9510-9602		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9510-9909	●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9510-9909		●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	9910-0004	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9910-0004		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9910-0004		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	0005-0211	●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	0212-	●
3	LENS; ROOM LAMP FRONT	8-94206-208-0	01	1	9510-9602	●	●
3	LENS; ROOM LAMP FRONT AND REAR	8-94206-208-0	01	1	9603-9709	●	●
3	LENS; ROOM LAMP FRONT AND REAR	8-94206-208-0	01	1	9603-9709		●
3	LENS; ROOM LAMP FRONT AND REAR	1-82145-020-0	01	1	9710-0004	●	●
3	LENS; ROOM LAMP FRONT AND REAR	1-82145-020-0	01	1	9710-0004		●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	0005-0211	●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85>	1-82145-020-0	01	1	0212-	●
3	LENS; ROOM LAMP REAR	1-82145-002-0	01	1	9510-9602		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9510-9909	●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9510-9909		●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	9910-0004	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9910-0004		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9910-0004		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	0005-0211	●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	0212-0603	●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	0-71040-520-0	03	1	0604-	●
33	GROMMET; SCREW,LAMP AUSTRALIA EQUIPMENT(RR3) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9510-9604	●
33	GROMMET; SCREW,LAMP D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9510-9604		●
33	GROMMET; SCREW,LAMP AUSTRALIA EQUIPMENT(RR3) D=8.6X7.7 L=7.5	1-09983-177-0	04	1	9605-0004	●
33	GROMMET; SCREW,LAMP D=8.6X7.7 L=7.5	1-09983-177-0	04	1	9605-0004		●
34	COVER; STEP LAMP	1-79998-925-0	02	1	9510-0004	●	●
34	COVER; STEP LAMP	1-79998-925-0	02	1	0005-	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	9510-0004	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	0005-0604	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74360-420-0	04	1	0605-	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9510-0004	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	0005-	●
45	SCREW; BASE FIX AUSTRALIA EQUIPMENT(RR3) M5X16 TAPPING W/PL WASHER	0-74100-516-0	04	1	9510-0004	●
45	SCREW; BASE FIX M5X16 TAPPING W/PL WASHER	0-74100-516-0	04	1	9510-0004		●
90	BASE; LAMP AUSTRALIA EQUIPMENT(RR3) (B)	1-79998-977-1	01	1	9510-0004	●
90	BASE; LAMP (B)	1-79998-977-1	01	1	9510-0004		●
90	BASE; LAMP AUSTRALIA EQUIPMENT(RR3) (B)	1-79998-976-1	01	1	9510-0004	●
90	BASE; LAMP (B)	1-79998-976-1	01	1	9510-0004		●
90	BASE; LAMP MAP LAMP<C85> (A)	1-86830-091-0	01	1	9910-0004	●

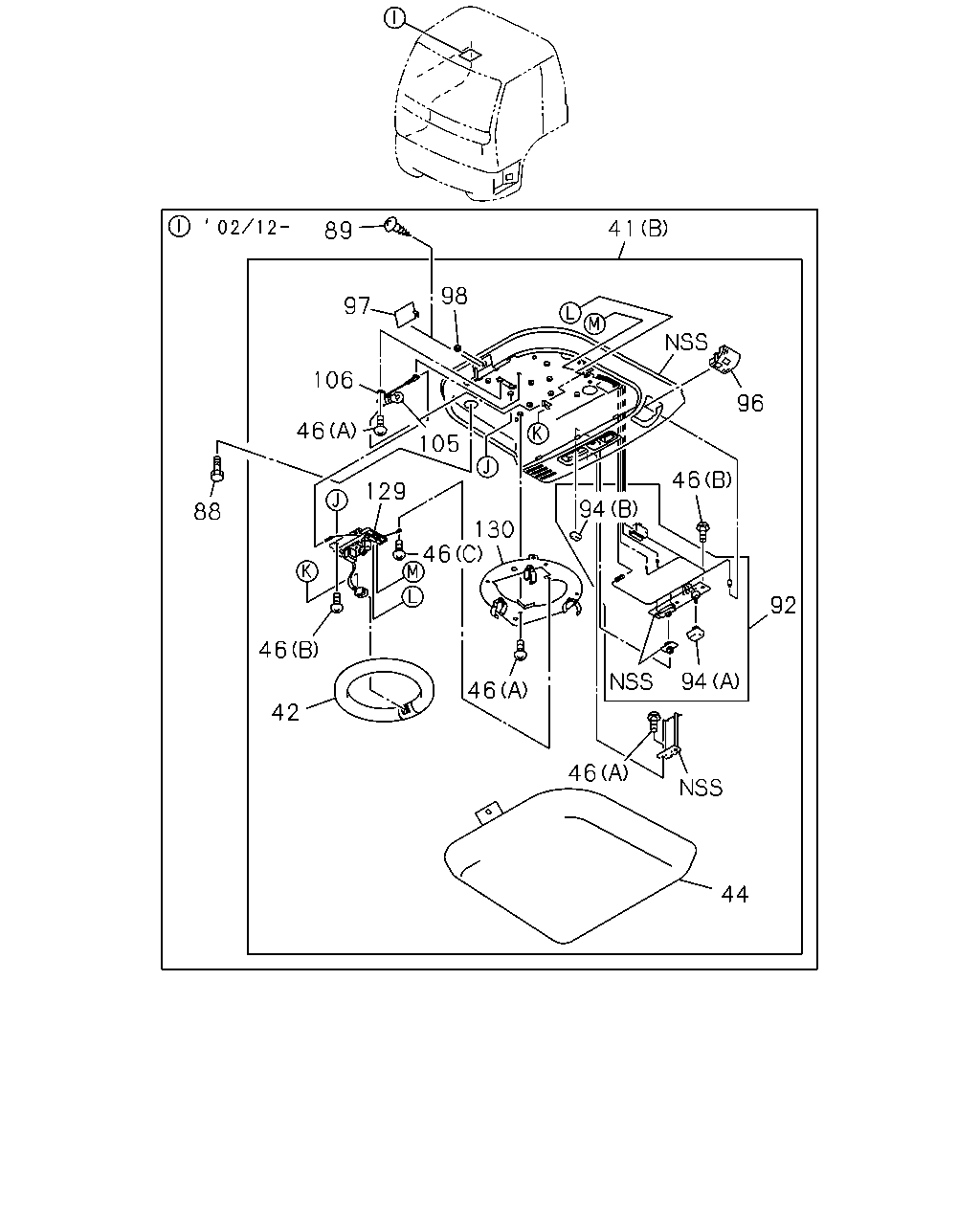

41 89 98 97 106 96 46 105 46 129 94 88 130 46 92 46 94 46 42 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (B)	1-86830-315-2	01	1	0212-	●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (A)	1-86830-305-2	01	1	9910-0004	●
42	LAMP; FLUORESCENT MAP LAMP<C85>	1-86830-094-1	01	1	0212-	●
42	LAMP; FLUORESCENT MAP LAMP<C85>	1-86830-094-1	01	1	9910-0004	●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-092-0	01	1	0212-	●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-092-0	01	1	9910-0004	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING	1-86830-095-0	08	1	0212-	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12	1-86830-202-0	07	1	0212-	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (C) M3X6 TAPPING	1-86830-336-0	01	1	0212-	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING	1-86830-095-0	04	1	9910-0004	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12	1-86830-202-0	02	1	9910-0004	●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0212-	●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-0004	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	9-07076-510-0	01	1	0212-0603	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	0-71240-510-0	01	1	0604-	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	9-07076-510-0	01	1	9910-0004	●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85>	1-86830-306-0	01	1	0212-	●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85>	1-86830-306-0	01	1	9910-0004	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (A)	1-86830-312-0	01	1	0212-	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (B)	1-86830-313-0	01	1	0212-	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (C)	1-86830-304-0	01	1	9910-0004	●
96	CAP; SPOT LAMP MAP LAMP<C85>	1-86830-385-0	01	1	0212-	●
96	CAP; SPOT LAMP MAP LAMP<C85>	1-86830-282-0	01	1	9910-0004	●
97	CAP; LENS FIX MAP LAMP<C85>	1-86830-311-0	01	1	0212-	●
97	CAP; LENS FIX MAP LAMP<C85>	1-86830-101-0	01	1	9910-0004	●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85>	1-86830-102-0	01	1	0212-	●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85>	1-86830-102-0	01	1	9910-0004	●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W	1-86830-200-0	01	1	0212-	●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W	1-86830-200-0	01	1	9910-0004	●
106	SOCKET; BULB MAP LAMP<C85>	1-86830-201-0	01	1	0212-	●
106	SOCKET; BULB MAP LAMP<C85>	1-86830-201-0	01	1	9910-0004	●
129	INVERTER ASM; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-338-0	01	1	0212-	●
130	PLATE ASM; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-339-0	01	1	0212-	●
