Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#378) — 286 parça

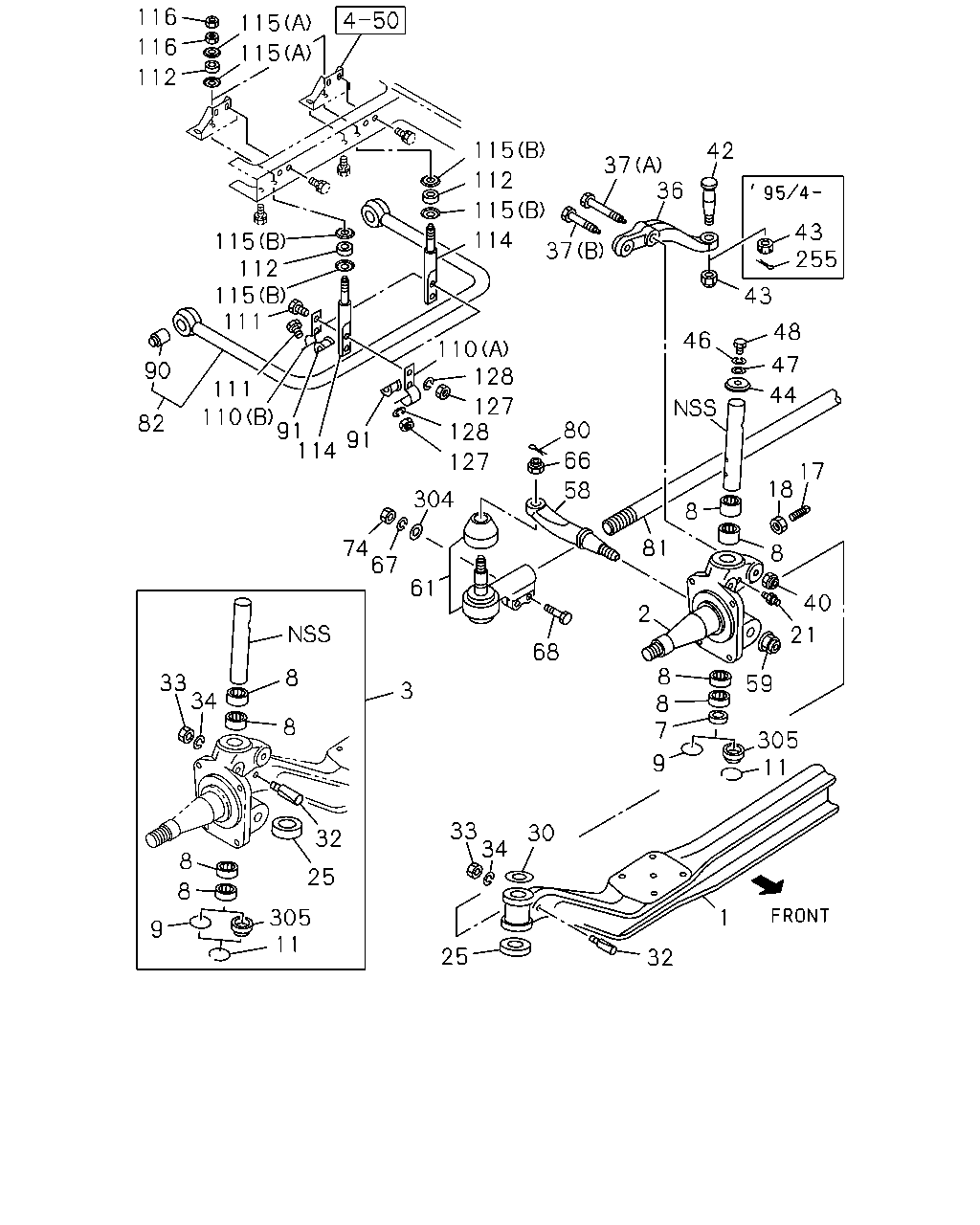

116 115 37 116 115 37 112 36 115 112 115 21 114 115 112 115 111 48 44 45 110 128 90 111 110 91 114 127 128 8 80 91 6 66 82 127 58 61 68 67 304 81 59 2 17 18 8 74 5 40 33 34 21 25 60 6 3 6 8 8 305 11 9 32 32 30 25 8 8 6 9 1 305 11 34 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-070-0	01	1	9202-9412	●	●
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-133-0	01	1	9501-	●	●
1	AXLE; FRT FRONT AXLE F063(FS7) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-43111-102-2	01	1	9202-9312	●	●
1	AXLE; FRT FRONT AXLE F063(FS7) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-43111-113-1	01	1	9202-9312		●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-1	01	1	9401-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-039-7	01	1	9202-9412	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-083-0	01	1	9501-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-039-7	01	1	9202-9412	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-083-0	01	1	9501-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-046-3	01	1	9202-9404	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-0	01	1	9405-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-046-4	01	1	9202-9404	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-0	01	1	9405-	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-363-0	02	1	9202-9412	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-804-0	02	1	9501-	●	●
3	KING PIN SET FRONT AXLE F063(FS7) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-039-5	02	1	9202-9404	●	●
3	KING PIN SET FRONT AXLE F063(FS7) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-737-0	02	1	9405-9412	●	●
3	KING PIN SET FRONT AXLE F063(FS7) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-640-0	02	1	9202-9404		●
3	KING PIN SET FRONT AXLE F063(FS7) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-738-0	02	1	9405-9412		●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-0	02	1	9501-	●	●
5	PIN; KNUCKLE TO DRUM COVER FRONT AXLE F063(FS7)	9-09878-625-0	02	1	9202-9404	●	●
5	PIN; KNUCKLE TO DRUM COVER FRONT AXLE F063(FS7)	1-09740-072-0	02	1	9405-	●	●
6	SEAL; KING PIN FRONT AXLE F063(FS7)	9-09926-024-0	04	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) NTN	1-09811-071-0	08	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) NSK	1-09811-072-0	08	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9202-	●	●
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9202-9404	●	●
9	PLUG; KNUCKLE FRONT AXLE F049(FS4)	9-09201-363-0	02	1	9405-9412	●	●
11	RING; SNAP,KNUCKLE PLUG FRONT AXLE F063(FS7)	9-09950-204-0	02	1	9202-9412	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9501-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-058-0	02	1	9202-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X35	1-09009-065-0	02	1	9202-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	9-99112-814-0	02	1	9202-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049(FS4) PT1/8 STRAIGHT	9-09031-010-0	04	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) ANGLE 67.5? PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) ANGLE 90? PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NTN	1-09829-026-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-028-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) NTN	1-09829-027-1	02	1	9202-9412	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) NSK	1-09829-043-2	02	1	9202-9412		●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9501-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.800	1-43171-229-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.850	1-43171-230-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.900	1-43171-231-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.950	1-43171-232-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.000	1-43171-233-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.050	1-43171-234-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.100	1-43171-235-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.150	1-43171-236-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.200	1-43171-237-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.250	1-43171-238-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.300	1-43171-239-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9202-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F049(FS4)	1-43116-005-1	02	1	9202-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-1	02	1	9202-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9202-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9202-	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-030-1	01	1	9202-9501	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-068-0	01	1	9502-	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-057-1	01	1	9202-9404	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-0	01	1	9405-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (A) M22X162	1-09000-107-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (B) M22X147	1-09000-108-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (B) M22X179	1-09000-578-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (A) M22X167	9-09806-847-2	01	1	9202-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-0	02	1	9202-	●	●
44	COVER; KING PIN FRONT AXLE F049(FS4)	1-43175-016-0	02	1	9202-	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9202-	●	●
45	GASKET; KING PIN COVER FRONT AXLE F063(FS7)	1-42319-044-0	02	1	9202-	●	●
48	BOLT; COVER FRONT AXLE F049(FS4) M12X25	1-09009-081-0	02	1	9202-	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X20 W/LK WASHER	0-50041-220-0	08	1	9202-9501	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9502-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-021-1	01	1	9202-9404	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-044-0	01	1	9405-	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-021-1	01	1	9202-9404	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-044-0	01	1	9405-	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43135-015-1	01	1	9202-	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43134-015-1	01	1	9202-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-036-0	01	1	9202-9404		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-043-0	01	1	9405-		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-036-0	01	1	9202-9404		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-043-0	01	1	9405-		●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27	1-09449-016-0	02	1	9202-	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-0	04	1	9202-	●	●
60	BOLT; TIE ROD ARM FRONT AXLE F063(FS7) M22X193	1-09000-154-1	04	1	9202-	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-671-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-671-1	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-670-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-670-1	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-658-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-657-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-627-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-627-2	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-626-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-626-2	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-662-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-661-1	01	1	9202-9302	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9202-	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9202-9205	●	●
67	WASHER; LK,TIE ROD END FRONT AXLE F063(FS7) ID=12.2	9-09150-512-0	04	1	9206-9207	●	●
67	WASHER; LK,TIE ROD END FRONT AXLE F049(FS4) ID=12.2	9-09150-812-0	04	1	9206-9207	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9208-9410	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9202-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9202-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9202-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	9-43151-120-1	01	1	9202-	●
81	ROD; TIE FRONT AXLE F049(FS4)	1-43151-077-0	01	1	9202-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	9-43151-119-1	01	1	9202-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> W/BUSH	1-51770-041-2	01	1	9202-	●	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	9202-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	9202-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-1	02	1	9202-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9202-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> M12X30	0-20801-230-0	02	1	9202-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> M12X50	0-20801-250-0	04	1	9202-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	9202-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-064-0	02	1	9202-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.8	1-51631-022-0	04	1	9202-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B)	9-51631-051-0	04	1	9202-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9202-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-512-0	06	1	9202-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9202-	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9411-	●	●
305	COVER; KNUCKLE FRONT AXLE F063(FS7)	1-43175-021-0	02	1	9405-9412	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9501-	●	●

116 115 116 115 112 115 42 37 36 112 115 43 255 114 115 112 115 111 37 43 48 46 110 128 47 90 11 110 91 114 44 127 128 82 80 91 66 127 17 18 58 304 8 81 74 67 8 61 40 2 21 68 8 8 7 8 33 34 59 3 8 305 11 9 33 34 30 32 8 25 8 305 11 1 9 25 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-070-0	01	1	9202-9412	●	●
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-133-0	01	1	9501-	●	●
1	AXLE; FRT FRONT AXLE F063(FS7) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-43111-102-2	01	1	9202-9312	●	●
1	AXLE; FRT FRONT AXLE F063(FS7) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-43111-113-1	01	1	9202-9312		●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-1	01	1	9401-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-039-7	01	1	9202-9412	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-083-0	01	1	9501-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-039-7	01	1	9202-9412	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-083-0	01	1	9501-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-046-3	01	1	9202-9404	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-0	01	1	9405-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-046-4	01	1	9202-9404	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-0	01	1	9405-	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-363-0	02	1	9202-9412	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-804-0	02	1	9501-	●	●
3	KING PIN SET FRONT AXLE F063(FS7) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-039-5	02	1	9202-9404	●	●
3	KING PIN SET FRONT AXLE F063(FS7) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-737-0	02	1	9405-9412	●	●
3	KING PIN SET FRONT AXLE F063(FS7) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-640-0	02	1	9202-9404		●
3	KING PIN SET FRONT AXLE F063(FS7) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-738-0	02	1	9405-9412		●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-0	02	1	9501-	●	●
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) NSK	1-09625-087-0	02	1	9202-	●	●
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) NTN	1-09625-089-0	02	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) NTN	1-09811-071-0	08	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) NSK	1-09811-072-0	08	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9202-	●	●
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9202-9404	●	●
9	PLUG; KNUCKLE FRONT AXLE F049(FS4)	9-09201-363-0	02	1	9405-9412	●	●
11	RING; SNAP,KNUCKLE PLUG FRONT AXLE F063(FS7)	9-09950-204-0	02	1	9202-9412	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9501-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-058-0	02	1	9202-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X35	1-09009-065-0	02	1	9202-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	9-99112-814-0	02	1	9202-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049(FS4) PT1/8 STRAIGHT	9-09031-010-0	04	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) ANGLE 67.5? PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) ANGLE 90? PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NTN	1-09829-026-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-028-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) NTN	1-09829-027-1	02	1	9202-9412	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) NSK	1-09829-043-2	02	1	9202-9412		●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9501-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.800	1-43171-229-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.850	1-43171-230-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.900	1-43171-231-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.950	1-43171-232-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.000	1-43171-233-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.050	1-43171-234-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.100	1-43171-235-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.150	1-43171-236-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.200	1-43171-237-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.250	1-43171-238-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.300	1-43171-239-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9202-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F049(FS4)	1-43116-005-1	02	1	9202-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-1	02	1	9202-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9202-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9202-	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-030-1	01	1	9202-9501	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-068-0	01	1	9502-	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-057-1	01	1	9202-9404	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-0	01	1	9405-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (A) M22X162	1-09000-107-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (B) M22X147	1-09000-108-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (B) M22X179	1-09000-578-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (A) M22X167	9-09806-847-2	01	1	9202-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-0	02	1	9202-	●	●
42	JOINT; BALL,KNUCKLE ARM FRONT AXLE F049(FS4)	1-44361-060-0	01	1	9202-9503	●	●
42	JOINT; BALL,KNUCKLE ARM FRONT AXLE F049(FS4)	1-44361-110-1	01	1	9504-	●	●
43	NUT; JOINT BALL,KNUCKLE ARM FRONT AXLE F049(FS4) M24	9-09844-669-2	01	1	9202-9503	●	●
43	NUT; JOINT BALL,KNUCKLE ARM FRONT AXLE F049(FS4) M24 SLOTTED	1-09442-020-0	01	1	9504-	●	●
44	COVER; KING PIN FRONT AXLE F049(FS4)	1-43175-016-0	02	1	9202-	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9202-	●	●
46	WASHER; LK,COVER FRONT AXLE F049(FS4) ID=12.2	9-09150-512-0	02	1	9202-	●	●
47	WASHER; PL,COVER,KING PIN FRONT AXLE F049(FS4) ID=12.5 OD=32	9-09164-712-0	02	1	9202-	●	●
48	BOLT; COVER FRONT AXLE F049(FS4) M12X25	1-09009-081-0	02	1	9202-	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X20 W/LK WASHER	0-50041-220-0	08	1	9202-9501	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9502-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-021-1	01	1	9202-9404	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-044-0	01	1	9405-	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-021-1	01	1	9202-9404	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-044-0	01	1	9405-	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43135-015-1	01	1	9202-	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43134-015-1	01	1	9202-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-036-0	01	1	9202-9404		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-043-0	01	1	9405-		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-036-0	01	1	9202-9404		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-043-0	01	1	9405-		●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27	1-09449-016-0	02	1	9202-	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-0	04	1	9202-	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-671-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-671-1	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-670-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-670-1	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-658-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-657-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-627-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-627-2	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-626-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-626-2	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-662-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>	1-43150-661-1	01	1	9202-9302	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9202-	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9202-9205	●	●
67	WASHER; LK,TIE ROD END FRONT AXLE F063(FS7) ID=12.2	9-09150-512-0	04	1	9206-9207	●	●
67	WASHER; LK,TIE ROD END FRONT AXLE F049(FS4) ID=12.2	9-09150-812-0	04	1	9206-9207	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9208-9410	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9202-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9202-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9202-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	9-43151-120-1	01	1	9202-	●
81	ROD; TIE FRONT AXLE F049(FS4)	1-43151-077-0	01	1	9202-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	9-43151-119-1	01	1	9202-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> W/BUSH	1-51770-041-2	01	1	9202-	●	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	9202-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	9202-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-1	02	1	9202-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9202-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> M12X30	0-20801-230-0	02	1	9202-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> M12X50	0-20801-250-0	04	1	9202-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	9202-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-064-0	02	1	9202-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.8	1-51631-022-0	04	1	9202-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B)	9-51631-051-0	04	1	9202-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9202-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-512-0	06	1	9202-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9202-	●	●
255	PIN; SPLIT,JOINT BALL FRONT AXLE F049(FS4) OD=4.6 L=35	9-08115-035-0	01	1	9504-	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9411-	●	●
305	COVER; KNUCKLE FRONT AXLE F063(FS7)	1-43175-021-0	02	1	9405-9412	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9501-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
