◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#37799) — 891 parça

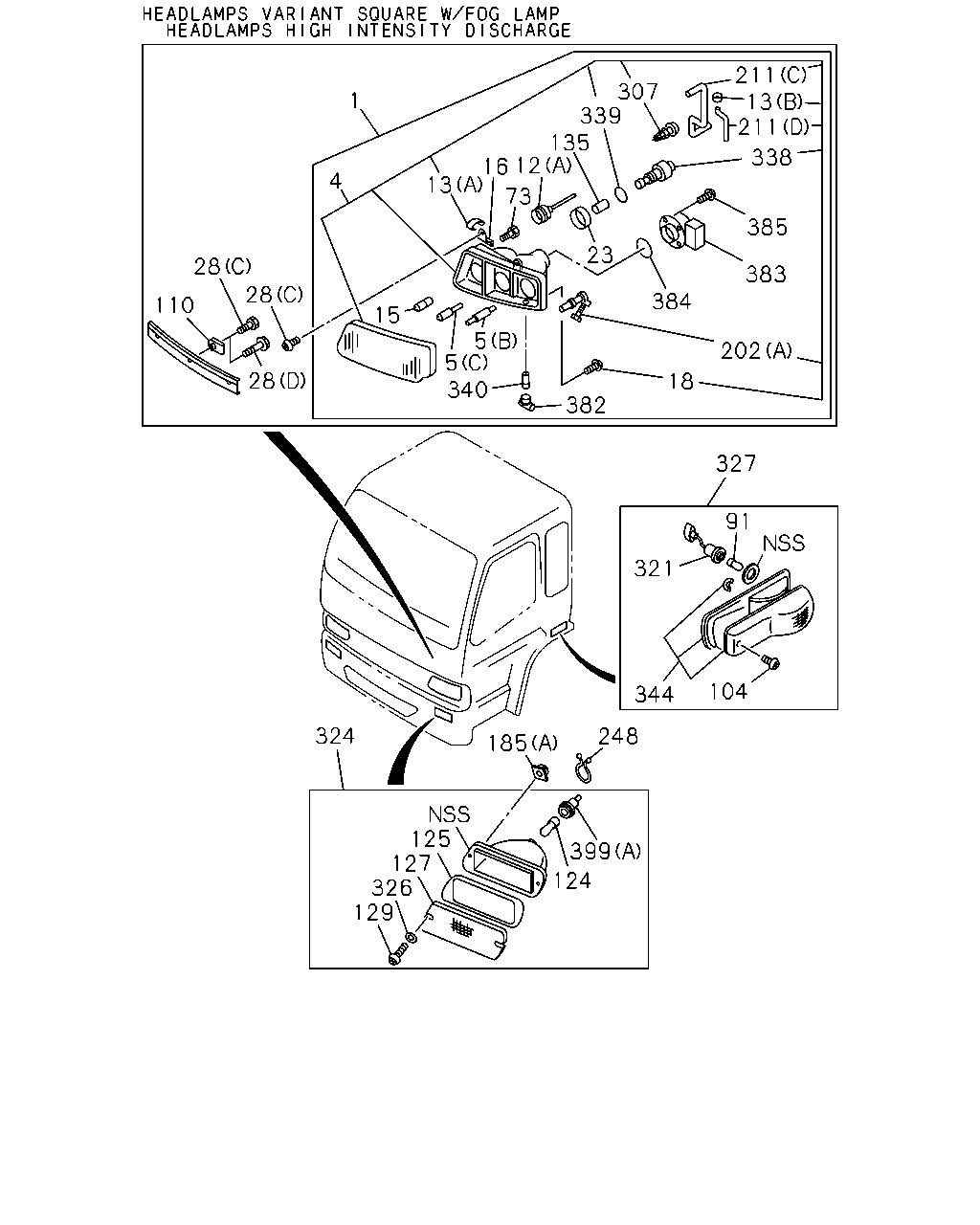

çizim 151086
1 4 28 110 28 28 382 340 5 5 15 13 73 16 12 135 339 307 211 13 211 338 385 383 384 202 18 327 91 321 104 344 248 185 324 125 127 326 129 399 124
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-379-1 01 1 0601- ●
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-380-1 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-121-4 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-122-4 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-424-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-425-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-865-1 01 1 0511- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-425-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-426-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-866-1 01 1 0511- ●

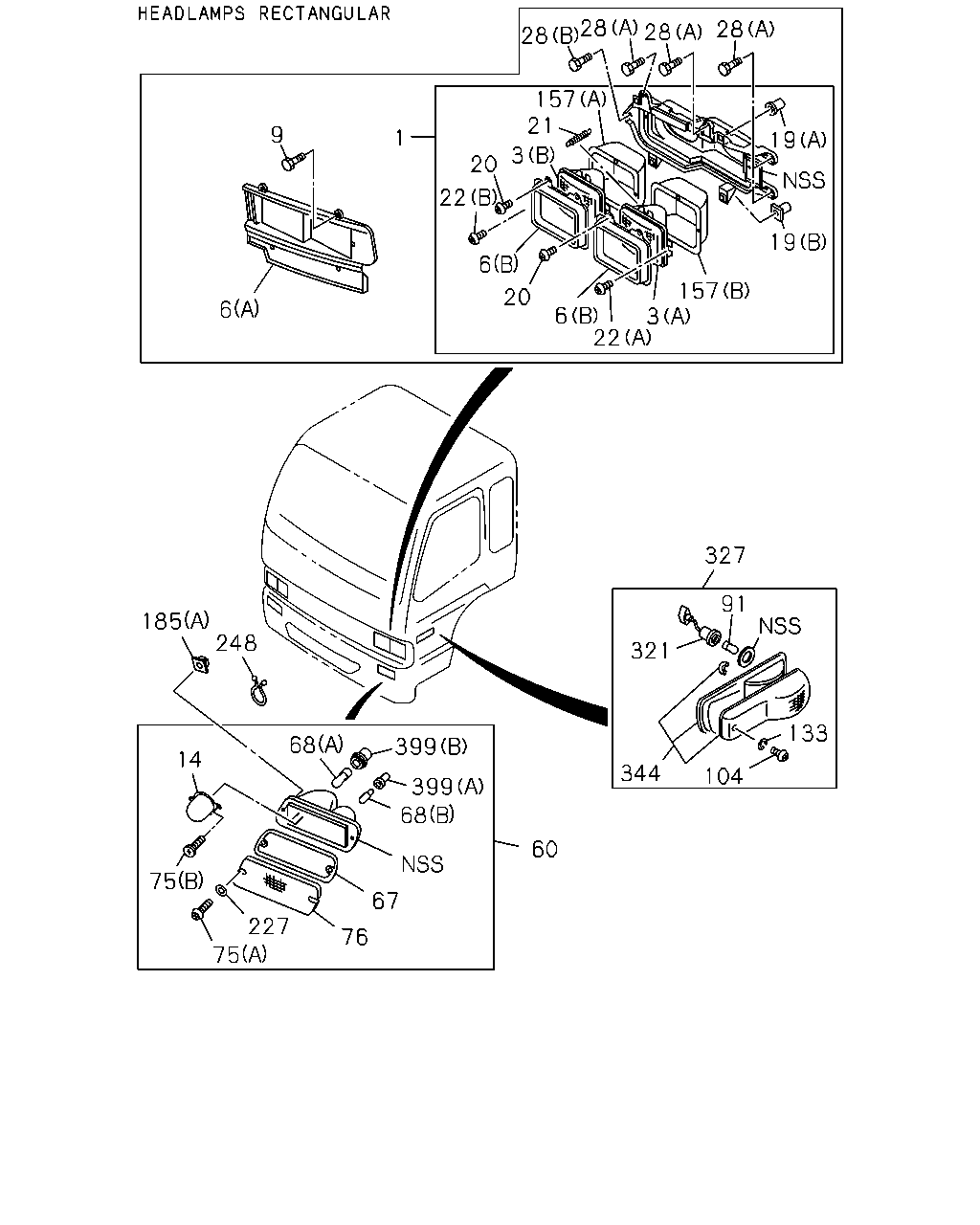

1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-169-1 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-168-1 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-6 01 1 9510-0210 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0211-0211 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-359-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-6 01 1 9510-0210 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0211-0211 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-358-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD 1-86830-122-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD 1-86830-121-3 01 1 9510-0004 ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-222-0 01 1 0601- ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-223-0 01 1 0601- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-193-1 01 1 0601- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-194-1 01 1 0601- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-177-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-178-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-190-1 01 1 9510-0210 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-200-0 01 1 0211-0211 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-200-0 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-189-1 01 1 9510-0210 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-199-0 01 1 0211-0211 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-199-0 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 9510-0004 ●
4 HEADLAMP UNIT 1-86830-194-1 01 1 9510-0004 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 9510-0004 ●
4 HEADLAMP UNIT 1-86830-193-1 01 1 9510-0004 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (A) 24V 75/70W 		8-94405-657-0 02 1 0601- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 85V 35W 		1-82194-092-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 24V 70W 		8-94405-658-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 9712-0004 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		8-94405-657-0 02 1 9712-0004 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9510-9711 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 9510-9711 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9712-0211 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0212-0512 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0601- ●
5 BULB; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 0601- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 0601- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82118-013-0 02 1 0212- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 9510-0211 ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-145-0 02 1 0212- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 9510-0004 ●
12 HARNESS; HEADLAMP
(B) 		1-86830-199-0 02 1 9510-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82119-084-0 04 1 0601- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0601- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 9510-0004 ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 9510-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0005-0512 ●
13 CLIP; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-084-0 02 1 0601- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 9510-0004 ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 9510-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0005-0512 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0601- ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 9510- ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0005-0512 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0601- ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0005-0512 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0601- ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 9510-0004 ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 9510-0004 ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0005-0512 ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0601- ●
28 BOLT; HEADLAMP
(D) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0004 ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9510-0004 ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 9510-0004 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0005-0512 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0601- ●
91 BULB; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 10W 		1-82194-037-0 02 1 0601- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9510-9809 ● ●
91 BULB; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 24V 10W 		1-82194-037-0 02 1 9810-0004 ● ●
91 BULB; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W 		1-82194-030-0 02 1 9810-0004 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0005-0512 ●
91 BULB; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 12W 		1-82194-030-0 02 1 0601- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9510-0004 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005-0512 ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0601- ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-213-0 04 1 9510-0004 ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 9510-0004 ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 0005- ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 9510-0004 ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 9510-0004 ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0005-0512 ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0601- ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 9510-0004 ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 9510-0004 ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0005-0512 ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0601- ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0005-0512 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0601- ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0005-0512 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0601- ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 9510-0004 ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 9510-0004 ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0005-0512 ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0601- ●
135 ADAPTER; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-149-0 02 1 0212- ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 9510-0512 ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0601- ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9510-0004 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) OUTER 		1-86830-139-0 02 1 0212-0512 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) OUTER 		1-86830-139-0 02 1 0601- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) OUTER 		1-86830-139-0 02 1 0601- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0005-0211 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-139-0 04 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0005-0211 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) INNER 		1-86830-140-0 02 1 0212-0512 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) INNER 		1-86830-140-0 02 1 0601- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) INNER 		1-86830-140-0 02 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-415-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-416-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-328-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-329-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-142-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(A) 		1-86830-142-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 0005-0105 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-144-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(B) 		1-86830-144-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0005-0211 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-331-0 01 1 0212-0512 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-331-0 01 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-141-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(A) 		1-86830-141-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 0005-0105 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-143-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(B) 		1-86830-143-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0005-0211 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-330-0 01 1 0212-0512 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-330-0 01 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0601- ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 9510- ●
307 SCREW; TAPPING,HEAD LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M4X16 TAPPING 		1-82119-067-0 02 1 0212- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9510-0004 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005-0512 ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0601- ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0005-0512 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0601- ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0005-0512 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0601- ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 9510-0004 ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 9510-0004 ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0005-0512 ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-264-2 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-265-2 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9510-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-263-0 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9510-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-262-0 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-011-5 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0005-0512 ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-011-6 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-007-5 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0005-0512 ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-007-6 01 1 0601- ●
338 LEVELING; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		8-98010-256-0 02 1 0601- ●
338 LEVELING; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-138-0 02 1 0212- ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-158-0 02 1 0212-0512 ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-158-0 02 1 0601- ●
339 GASKET; LEVELING
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-158-0 02 1 0601- ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 9510-0004 ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 9510-0004 ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0005-0512 ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-266-2 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-267-1 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 9510-0004 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005-0512 ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-241-1 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 9510-0004 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005-0512 ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-240-1 01 1 0601- ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-193-1 02 1 0212- ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-179-1 01 1 0212- ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-180-1 01 1 0212- ●
384 GASKET; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-152-0 02 1 0212- ●
385 SCREW; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-153-0 06 1 0212-0509 ●
385 SCREW; DISCHARGE,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-203-0 06 1 0510- ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-033-0 02 1 9510-0004 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9510-9705 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9510-9705 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4>, AMBER HEADLAMPS<T75> (B) 		1-82219-034-0 02 1 9706-9709 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9706-9709 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9710-0004 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9710-0004 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0005-0512 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0601- ●

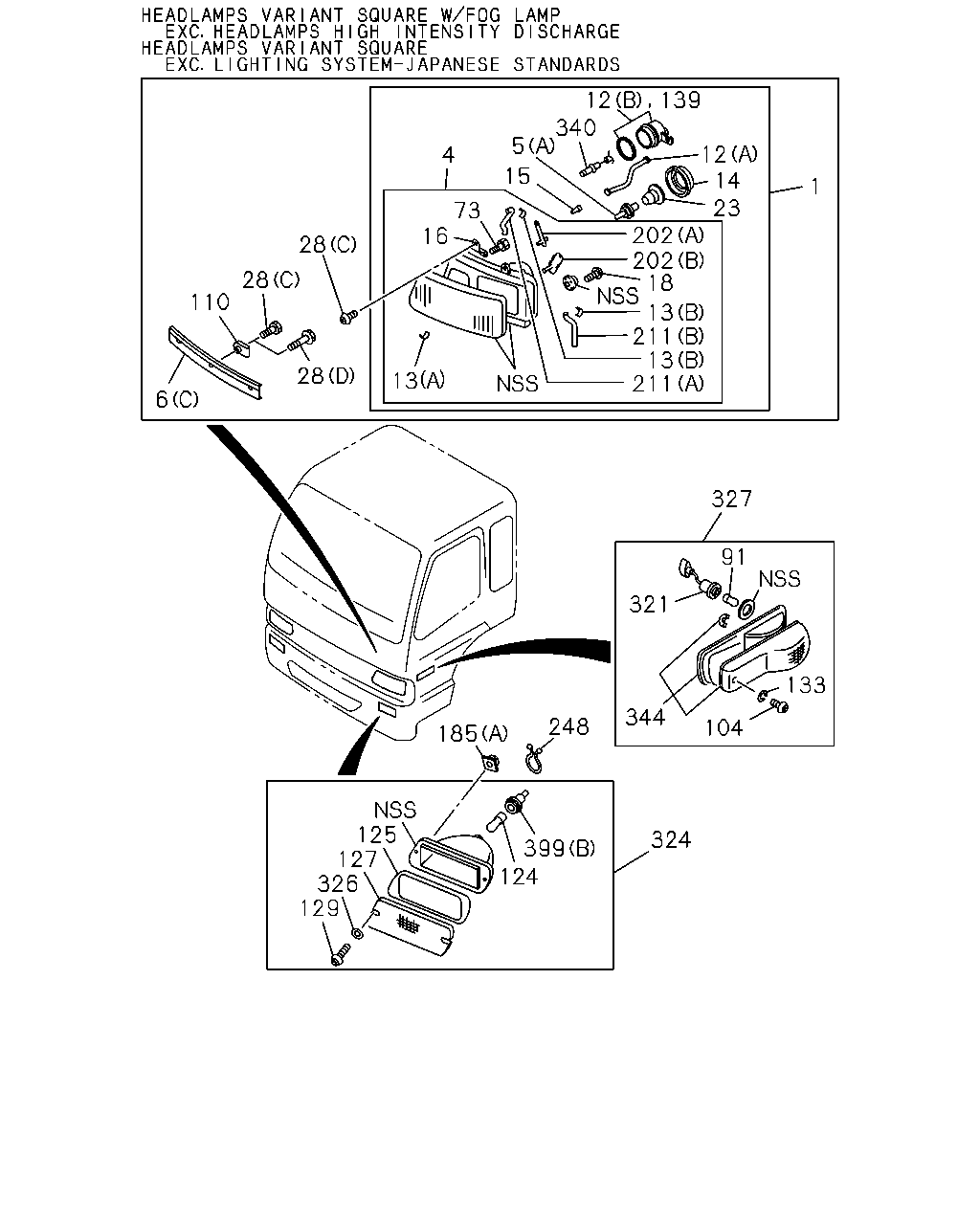

çizim 151328
6 28 28 28 110 13 16 73 15 4 5 340 12 139 12 14 23 1 202 202 18 13 211 13 211 327 91 321 133 104 344 248 185 324 399 124 125 127 326 129
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-379-1 01 1 0601- ●
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-380-1 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-121-4 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-122-4 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-424-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-425-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-865-1 01 1 0511- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-425-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-426-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-866-1 01 1 0511- ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-169-1 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-168-1 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-6 01 1 9510-0210 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0211-0211 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-359-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-6 01 1 9510-0210 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0211-0211 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-358-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD 1-86830-122-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD 1-86830-121-3 01 1 9510-0004 ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-222-0 01 1 0601- ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-223-0 01 1 0601- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-193-1 01 1 0601- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-194-1 01 1 0601- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-177-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-178-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-190-1 01 1 9510-0210 ●
4 HEADLAMP UNIT

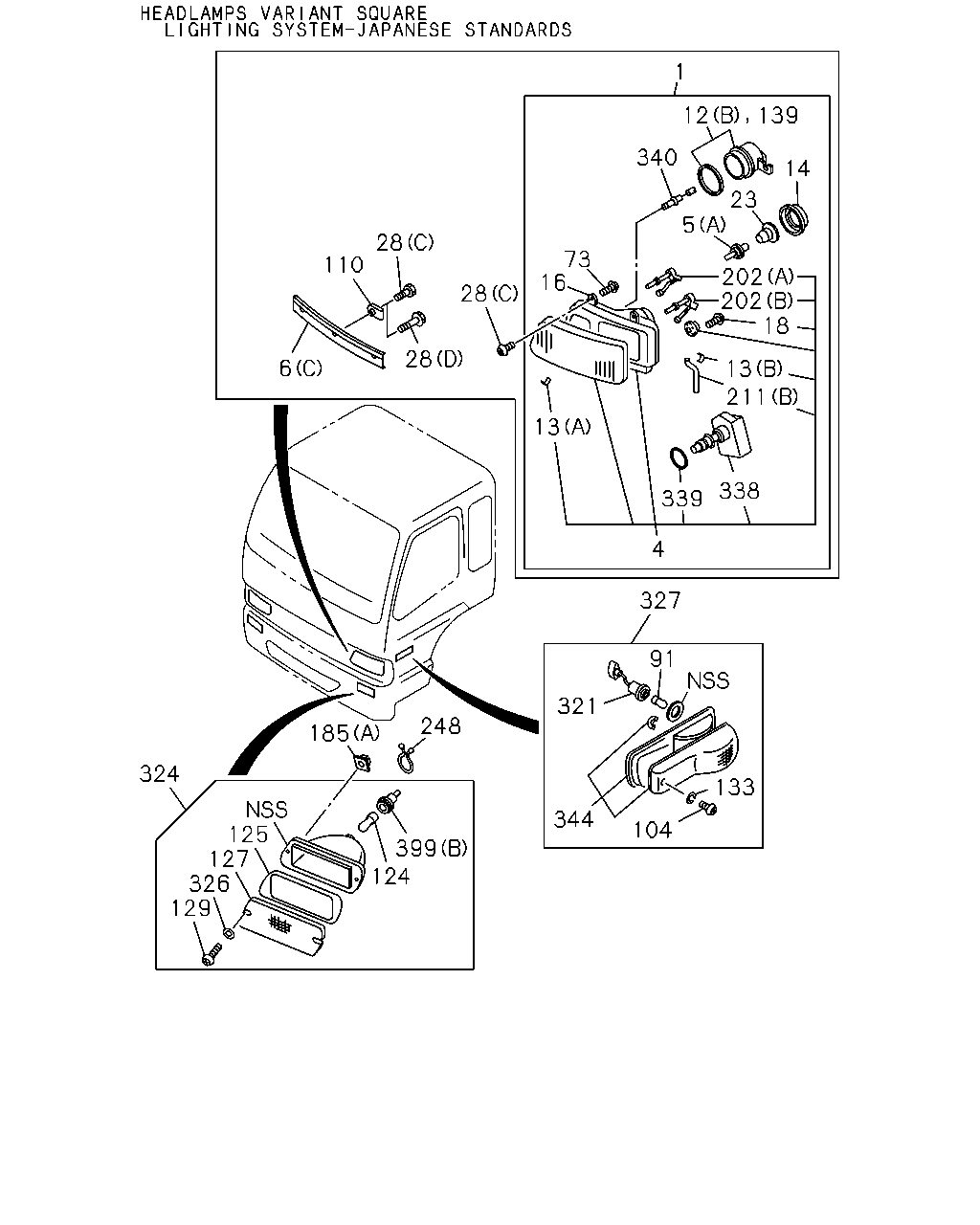

HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-200-0 01 1 0211-0211 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-200-0 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-189-1 01 1 9510-0210 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-199-0 01 1 0211-0211 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-199-0 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 9510-0004 ●
4 HEADLAMP UNIT 1-86830-194-1 01 1 9510-0004 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 9510-0004 ●
4 HEADLAMP UNIT 1-86830-193-1 01 1 9510-0004 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (A) 24V 75/70W 		8-94405-657-0 02 1 0601- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 85V 35W 		1-82194-092-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 24V 70W 		8-94405-658-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 9712-0004 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		8-94405-657-0 02 1 9712-0004 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9510-9711 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 9510-9711 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9712-0211 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0212-0512 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0601- ●
5 BULB; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 0601- ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) (C) 		1-88434-533-0 01 1 9910-0004 ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) (C) 		1-88434-532-0 01 1 9910-0004 ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-94165-573-0 04 1 9510-0004 ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9510-0004 ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9510-0004 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C) 		1-86830-006-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-006-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-006-5 01 1 0005- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C) 		1-86830-005-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-005-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-005-5 01 1 0005- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 0601- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82118-013-0 02 1 0212- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 9510-0211 ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-145-0 02 1 0212- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 9510-0004 ●
12 HARNESS; HEADLAMP
(B) 		1-86830-199-0 02 1 9510-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82119-084-0 04 1 0601- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0601- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 9510-0004 ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 9510-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0005-0512 ●
13 CLIP; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-084-0 02 1 0601- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 9510-0004 ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 9510-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0005-0512 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0601- ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9609-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 9510-0004 ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 9510-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0005-0211 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-148-0 02 1 0212-0512 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-148-0 02 1 0601- ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0601- ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 9510- ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0005-0512 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0601- ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0005-0512 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0601- ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 9510-0004 ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 9510-0004 ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0005-0512 ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0601- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-150-0 02 1 0212- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 9510-0004 ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 9510-0004 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0005-0211 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-147-0 02 1 0212-0512 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-147-0 02 1 0601- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 0601- ●
28 BOLT; HEADLAMP
(D) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0004 ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9510-0004 ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 9510-0004 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0005-0512 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0601- ●
91 BULB; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 10W 		1-82194-037-0 02 1 0601- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9510-9809 ● ●
91 BULB; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 24V 10W 		1-82194-037-0 02 1 9810-0004 ● ●
91 BULB; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W 		1-82194-030-0 02 1 9810-0004 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0005-0512 ●
91 BULB; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 12W 		1-82194-030-0 02 1 0601- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9510-0004 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005-0512 ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0601- ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-213-0 04 1 9510-0004 ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 9510-0004 ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 0005- ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 9510-0004 ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 9510-0004 ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0005-0512 ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0601- ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 9510-0004 ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 9510-0004 ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0005-0512 ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0601- ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0005-0512 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0601- ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0005-0512 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0601- ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 9510-0004 ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 9510-0004 ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0005-0512 ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0601- ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9510-0004 ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0206 ●
139 COVER; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-224-0 02 1 0601- ●

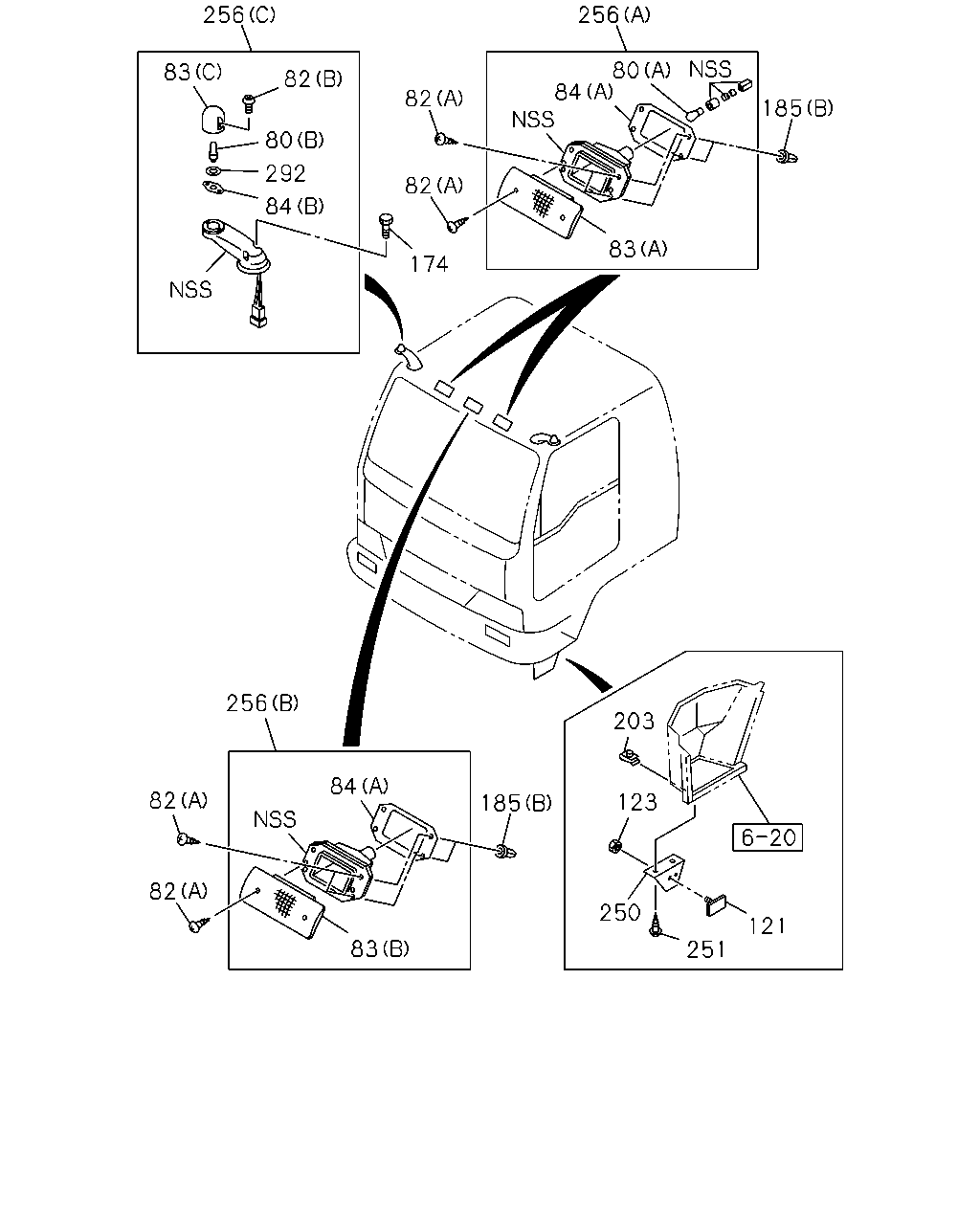

185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 9510-0512 ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0601- ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9510-0004 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) OUTER 		1-86830-139-0 02 1 0212-0512 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) OUTER 		1-86830-139-0 02 1 0601- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) OUTER 		1-86830-139-0 02 1 0601- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0005-0211 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-139-0 04 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0005-0211 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) INNER 		1-86830-140-0 02 1 0212-0512 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) INNER 		1-86830-140-0 02 1 0601- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) INNER 		1-86830-140-0 02 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-415-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-416-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-328-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-329-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-142-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(A) 		1-86830-142-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 0005-0105 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-144-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(B) 		1-86830-144-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0005-0211 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-331-0 01 1 0212-0512 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-331-0 01 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-141-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(A) 		1-86830-141-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 0005-0105 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-143-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(B) 		1-86830-143-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0005-0211 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-330-0 01 1 0212-0512 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-330-0 01 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0601- ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 9510- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9510-0004 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005-0512 ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0601- ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0005-0512 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0601- ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0005-0512 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0601- ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 9510-0004 ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 9510-0004 ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0005-0512 ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-264-2 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-265-2 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9510-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-263-0 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9510-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-262-0 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-011-5 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0005-0512 ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-011-6 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-007-5 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0005-0512 ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-007-6 01 1 0601- ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 9510-0004 ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 9510-0004 ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0005-0512 ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-266-2 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-267-1 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 9510-0004 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005-0512 ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-241-1 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 9510-0004 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005-0512 ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-240-1 01 1 0601- ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-033-0 02 1 9510-0004 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9510-9705 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9510-9705 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4>, AMBER HEADLAMPS<T75> (B) 		1-82219-034-0 02 1 9706-9709 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9706-9709 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9710-0004 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9710-0004 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0005-0512 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0601- ●
çizim 151339
28 28 28 28 157 21 9 3 1 19 20 22 19 6 157 20 6 6 22 3 327 91 185 248 321 133 68 399 14 344 104 399 68 60 75 67 227 76 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-379-1 01 1 0601- ●
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-380-1 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-121-4 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-122-4 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-424-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-425-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-865-1 01 1 0511- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-425-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-426-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-866-1 01 1 0511- ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-169-1 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-168-1 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-6 01 1 9510-0210 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0211-0211 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-359-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-6 01 1 9510-0210 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0211-0211 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-358-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD 1-86830-122-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD 1-86830-121-3 01 1 9510-0004 ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 65/50W 		1-82113-011-0 02 1 9510-0004 ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W 		8-94111-276-0 02 1 9510-0004 ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) (C) 		1-88434-533-0 01 1 9910-0004 ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) (C) 		1-88434-532-0 01 1 9910-0004 ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-94165-573-0 04 1 9510-0004 ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9510-0004 ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9510-0004 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C) 		1-86830-006-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-006-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-006-5 01 1 0005- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C) 		1-86830-005-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-005-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-005-5 01 1 0005- ●
9 SCREW; HEADLAMP RIM
HEADLAMPS RECTANGULAR<TR4> M4X20 TAPPING W/PL WASHER 		0-74110-420-0 08 1 9510-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9609-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 9510-0004 ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 9510-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0005-0211 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-148-0 02 1 0212-0512 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-148-0 02 1 0601- ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0601- ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-117-0 08 1 9510-0004 ●
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-97044-618-0 08 1 9510-0004 ●
20 SCREW; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> M4X8 		8-94165-886-0 16 1 9510-0004 ●
21 SPRING; ADJ HEADLAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82119-120-0 04 1 9510-0004 ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-118-0 07 1 9510-0004 ●
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82119-119-0 01 1 9510-0004 ●
28 BOLT; HEADLAMP
(D) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0004 ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004 ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-211-0 01 1 9510-9608 ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-221-0 01 1 9609-0004 ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-210-0 01 1 9510-9608 ●
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-220-0 01 1 9609-0004 ●
67 GASKET; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82216-033-0 02 1 9510-0004 ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W 		1-82194-036-0 02 1 9510-0004 ●
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W 		8-94135-397-0 02 1 9510-0004 ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-026-0 04 1 9510-0004 ●
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-031-0 04 1 9609-0004 ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-065-0 01 1 9510-9608 ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-071-0 01 1 9609-0004 ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-064-0 01 1 9510-9608 ●
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-070-0 01 1 9609-0004 ●
91 BULB; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 10W 		1-82194-037-0 02 1 0601- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9510-9809 ● ●
91 BULB; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 24V 10W 		1-82194-037-0 02 1 9810-0004 ● ●
91 BULB; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W 		1-82194-030-0 02 1 9810-0004 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0005-0512 ●
91 BULB; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 12W 		1-82194-030-0 02 1 0601- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9510-0004 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005-0512 ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0601- ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9510-0004 ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0206 ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82119-032-0 01 1 9510-0004 ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-033-0 01 1 9510-0004 ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82119-031-0 01 1 9510-0004 ●
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82119-034-0 01 1 9510-0004 ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 9510-0512 ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0601- ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9510-0004 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ●
227 SEAT; SET SCREW,FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82216-032-0 04 1 9510-0004 ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 9510- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9510-0004 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005-0512 ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-264-2 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-265-2 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9510-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-263-0 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9510-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-262-0 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-011-5 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0005-0512 ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-011-6 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-007-5 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0005-0512 ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-007-6 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-266-2 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-267-1 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 9510-0004 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005-0512 ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-241-1 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 9510-0004 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005-0512 ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-240-1 01 1 0601- ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-033-0 02 1 9510-0004 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9510-9705 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9510-9705 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4>, AMBER HEADLAMPS<T75> (B) 		1-82219-034-0 02 1 9706-9709 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9706-9709 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9710-0004 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9710-0004 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0005-0512 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0601- ●
çizim 151410
1 12 139 340 5 23 14 202 202 18 13 211 338 339 13 73 16 28 28 28 110 6 4 327 91 321 133 104 344 248 185 324 125 127 326 129 399 124
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-379-1 01 1 0601- ●
1 LAMP ASM; HEAD
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-380-1 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-121-4 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-122-4 01 1 0601- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-424-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-425-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-865-1 01 1 0511- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82110-425-3 01 1 0212-0509 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97609-426-0 01 1 0510-0510 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98028-866-1 01 1 0511- ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-169-1 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-168-1 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-178-6 01 1 9510-0210 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-359-0 01 1 0211-0211 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-359-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-177-6 01 1 9510-0210 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-358-0 01 1 0211-0211 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-358-0 01 1 0212- ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-122-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD 1-86830-122-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-121-3 01 1 9510-0004 ●
1 LAMP ASM; HEAD 1-86830-121-3 01 1 9510-0004 ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-222-0 01 1 0601- ●
4 HEADLAMP UNIT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-223-0 01 1 0601- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-193-1 01 1 0601- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-194-1 01 1 0601- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-177-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-178-1 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-190-1 01 1 9510-0210 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-200-0 01 1 0211-0211 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-200-0 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-189-1 01 1 9510-0210 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-199-0 01 1 0211-0211 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-199-0 01 1 0212- ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-194-1 01 1 9510-0004 ●
4 HEADLAMP UNIT 1-86830-194-1 01 1 9510-0004 ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-193-1 01 1 9510-0004 ●
4 HEADLAMP UNIT 1-86830-193-1 01 1 9510-0004 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (A) 24V 75/70W 		8-94405-657-0 02 1 0601- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 85V 35W 		1-82194-092-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 24V 70W 		8-94405-658-0 02 1 0212- ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		8-94405-657-0 02 1 9712-0004 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		8-94405-657-0 02 1 9712-0004 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9510-9711 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 9510-9711 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 9712-0211 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0212-0512 ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 75/70W 		1-82194-063-0 02 1 0601- ●
5 BULB; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 0601- ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) (C) 		1-88434-533-0 01 1 9910-0004 ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) (C) 		1-88434-532-0 01 1 9910-0004 ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		8-94165-573-0 04 1 9510-0004 ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-746-1 01 1 9510-0004 ●
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-71118-745-1 01 1 9510-0004 ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C) 		1-86830-006-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-006-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-006-5 01 1 0005- ●
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C) 		1-86830-005-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-005-5 01 1 9510-0004 ●
6 RIM; HEADLAMP
(C) 		1-86830-005-5 01 1 0005- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 0601- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82118-013-0 02 1 0212- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 9510-0211 ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-145-0 02 1 0212- ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 9510-0004 ●
12 HARNESS; HEADLAMP
(B) 		1-86830-199-0 02 1 9510-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-82119-084-0 04 1 0601- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0601- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 9510-0004 ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 9510-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0005-0512 ●
13 CLIP; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-084-0 02 1 0601- ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 9510-0004 ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 9510-0004 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0005-0512 ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0601- ●
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9609-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 9510-0004 ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 9510-0004 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0005-0211 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-148-0 02 1 0212-0512 ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-148-0 02 1 0601- ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0601- ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0005-0512 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 0601- ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 9510-0004 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0005-0512 ●
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 0601- ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 9510-0004 ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 9510-0004 ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0005-0512 ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0601- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82119-150-0 02 1 0212- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 9510-0004 ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 9510-0004 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0005-0211 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-147-0 02 1 0212-0512 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-147-0 02 1 0601- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 0601- ●
28 BOLT; HEADLAMP
(D) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ●
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0004 ●
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004 ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9510-0004 ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 9510-0004 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0005-0512 ●
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 0601- ●
91 BULB; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 10W 		1-82194-037-0 02 1 0601- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9510-9809 ● ●
91 BULB; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 24V 10W 		1-82194-037-0 02 1 9810-0004 ● ●
91 BULB; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W 		1-82194-030-0 02 1 9810-0004 ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0005-0512 ●
91 BULB; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 24V 12W 		1-82194-030-0 02 1 0601- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9510-0004 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005-0512 ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0601- ●
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-213-0 04 1 9510-0004 ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 9510-0004 ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 0005- ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 9510-0004 ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 9510-0004 ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0005-0512 ●
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 0601- ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 9510-0004 ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 9510-0004 ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0005-0512 ●
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 0601- ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0005-0512 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 0601- ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 9510-0004 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0005-0512 ●
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 0601- ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 9510-0004 ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 9510-0004 ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0005-0512 ●
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 0601- ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9510-0004 ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0206 ●
139 COVER; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-224-0 02 1 0601- ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 9510-0512 ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0601- ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9510-0004 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) OUTER 		1-86830-139-0 02 1 0212-0512 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) OUTER 		1-86830-139-0 02 1 0601- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) OUTER 		1-86830-139-0 02 1 0601- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER 		1-86830-139-0 02 1 0005-0211 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-86830-139-0 04 1 0212- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 9510-0004 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER 		1-86830-140-0 02 1 0005-0211 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) INNER 		1-86830-140-0 02 1 0212-0512 ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) INNER 		1-86830-140-0 02 1 0601- ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) INNER 		1-86830-140-0 02 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-415-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 		1-86830-416-0 01 1 0510- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-328-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		1-86830-329-0 02 1 0212- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-142-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(A) 		1-86830-142-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 0005-0105 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-144-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(B) 		1-86830-144-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0005-0211 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-331-0 01 1 0212-0512 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-331-0 01 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-141-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(A) 		1-86830-141-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 0005-0105 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-143-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
(B) 		1-86830-143-0 01 1 9510-9911 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 9912-0004 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0005-0211 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-330-0 01 1 0212-0512 ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-86830-330-0 01 1 0601- ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0601- ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 9510- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9510-0004 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005-0512 ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0601- ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0005-0512 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 0601- ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 9510-0004 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0005-0512 ●
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 0601- ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 9510-0004 ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 9510-0004 ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0005-0512 ●
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-264-2 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-265-2 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9510-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-263-0 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9510-9809 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) 		1-86830-262-0 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-011-5 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0005-0512 ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-011-6 01 1 0601- ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-86830-007-5 01 1 9810-0004 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0005-0512 ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-007-6 01 1 0601- ●
338 LEVELING; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		8-98010-256-0 02 1 0601- ●
338 LEVELING; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-138-0 02 1 0212- ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-158-0 02 1 0212-0512 ●
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-86830-158-0 02 1 0601- ●
339 GASKET; LEVELING
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-158-0 02 1 0601- ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 9510-0004 ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 9510-0004 ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0005-0512 ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-266-2 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-267-1 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 9510-0004 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005-0512 ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-241-1 01 1 0601- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 9510-0004 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005-0512 ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-86830-240-1 01 1 0601- ●
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-033-0 02 1 9510-0004 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9510-9705 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9510-9705 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4>, AMBER HEADLAMPS<T75> (B) 		1-82219-034-0 02 1 9706-9709 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9706-9709 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9710-0004 ●
399 SOCKET; TURN SIGNAL
(B) 		1-82219-034-0 02 1 9710-0004 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0005-0512 ●
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0601- ●
çizim 151435
256 256 80 83 82 84 82 185 80 292 82 84 83 174 256 203 84 82 123 185 82 250 121 83 251
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 24V 12W 		9-82691-302-0 02 1 9510- ●
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B) 12V 5W 		1-82194-053-0 02 1 9510-0004 ●
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (B) 12V 5W 		1-82194-053-0 02 1 9510-0004 ●
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 12V 5W 		1-82194-053-0 02 1 0005- ●
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) M5X20 TAPPING 		0-71090-520-0 18 1 9510- ●
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B) 		1-82219-011-0 04 1 9510-0004 ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (B) 		1-82219-011-0 04 1 9510-0004 ●
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-82219-011-0 04 1 0005- ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (C) 		1-82215-048-0 02 1 9510- ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-82215-068-0 02 1 9510- ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-82215-069-0 01 1 9510- ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (C) 		1-82215-046-0 02 1 9510-0004 ● ●
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-86830-153-0 03 1 9510- ●
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B) 		1-86830-288-0 04 1 9510-0004 ●
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (B) 		1-86830-288-0 04 1 9510-0004 ●
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-288-0 04 1 0005- ●
121 REFLECTOR; REFLEX
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-82290-061-0 02 1 0601- ●
121 REFLECTOR; REFLEX
AUSTRALIA EQUIPMENT(RR3) 		1-82290-061-0 02 1 9510-0004 ● ●
123 NUT; REFLECTOR
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> M6 		0-91110-506-0 02 1 0601- ●
123 NUT; REFLECTOR
AUSTRALIA EQUIPMENT(RR3) M6 		9-09110-406-0 02 1 9510-0004 ● ●
174 BOLT
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER 		1-09039-006-1 04 1 9510-0004 ●
174 BOLT
LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER 		1-09039-006-1 04 1 9510-0004 ●
174 BOLT
LAMPS FOUR ROOF MARKER<PJ5> M6X25 W/PL WASHER 		1-09039-006-1 04 1 0005-0906 ●
174 BOLT
LAMPS FOUR ROOF MARKER<PJ5> M6X25 W/PL WASHER 		8-98064-173-0 04 1 0907- ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 9510-0512 ●
185 GROMMET; SCREW
LAMPS FOUR ROOF MARKER<PJ5> (B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0601- ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9510-0004 ● ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005- ●
203 FASTENER; HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-035-1 04 1 0601- ●
203 FASTENER; HEADLAMP
AUSTRALIA EQUIPMENT(RR3) 		1-71996-035-1 04 1 9510-0004 ● ●
250 BRACKET ASM
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-094-1 01 1 0601- ●
250 BRACKET ASM
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-118-0 01 1 0601- ●
250 BRACKET ASM
AUSTRALIA EQUIPMENT(RR3) 		1-71996-094-1 01 1 9510-0004 ● ●
250 BRACKET ASM
AUSTRALIA EQUIPMENT(RR3) 		1-71996-118-0 01 1 9510-0004 ● ●
251 SCREW; BRKT FIX
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> M6X22 		1-65481-386-0 04 1 0601- ●
251 SCREW; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) M6X22 		1-65481-386-0 04 1 9510-0004 ● ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-131-0 01 1 9510- ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-86830-170-0 02 1 9510- ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (C) 		1-86830-295-0 01 1 9510- ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (C) 		1-86830-294-0 01 1 9510- ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (C) 		1-86830-293-0 01 1 9510-0004 ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (C) 		1-86830-292-0 01 1 9510-0004 ● ●
292 WASHER; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 9510-0004 ●
292 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 9510-0004 ●
292 WASHER; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> 		1-82219-012-0 04 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
