◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#37793) — 388 parça

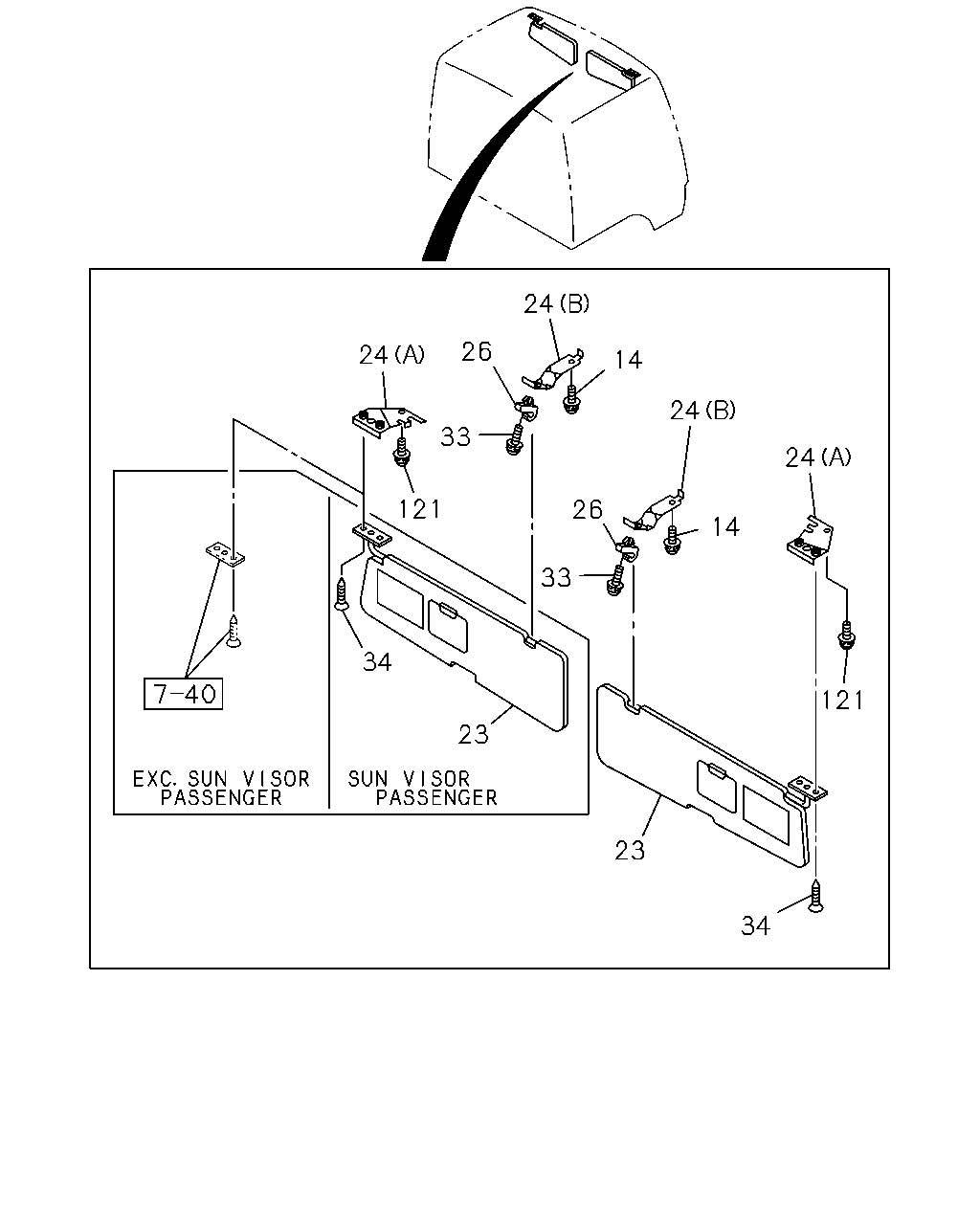

çizim 151058
24 26 24 14 24 33 24 121 26 14 33 34 121 23 23 34
BalonParca AdiParca NoAdetTipApplied Date A B
14 SCREW; BRKT
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9510-0004 ●
14 SCREW; BRKT
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0005- ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-150-1 01 1 9510-0004 ●
23 SUN VISOR 1-73138-150-1 01 1 9510-0004 ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-157-1 01 1 0005- ●
23 SUN VISOR 1-73138-148-1 01 1 9510-0004 ● ●
23 SUN VISOR 1-73138-156-1 01 1 0005-0512 ●
23 SUN VISOR 1-73138-156-1 01 1 0601- ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (B) 		1-73138-145-0 02 1 9510- ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-144-1 01 1 9510- ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-143-1 01 1 9510- ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-0004 ● ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005- ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-0004 ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0101 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ●
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9510-9704 ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 9510-9704 ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705-0004 ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9705-0004 ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705-0004 ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 0005- ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 0005- ●
121 SCREW; BRKT,SUN VISOR
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0005- ●
121 SCREW; BRKT,SUN VISOR
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9510-0004 ●

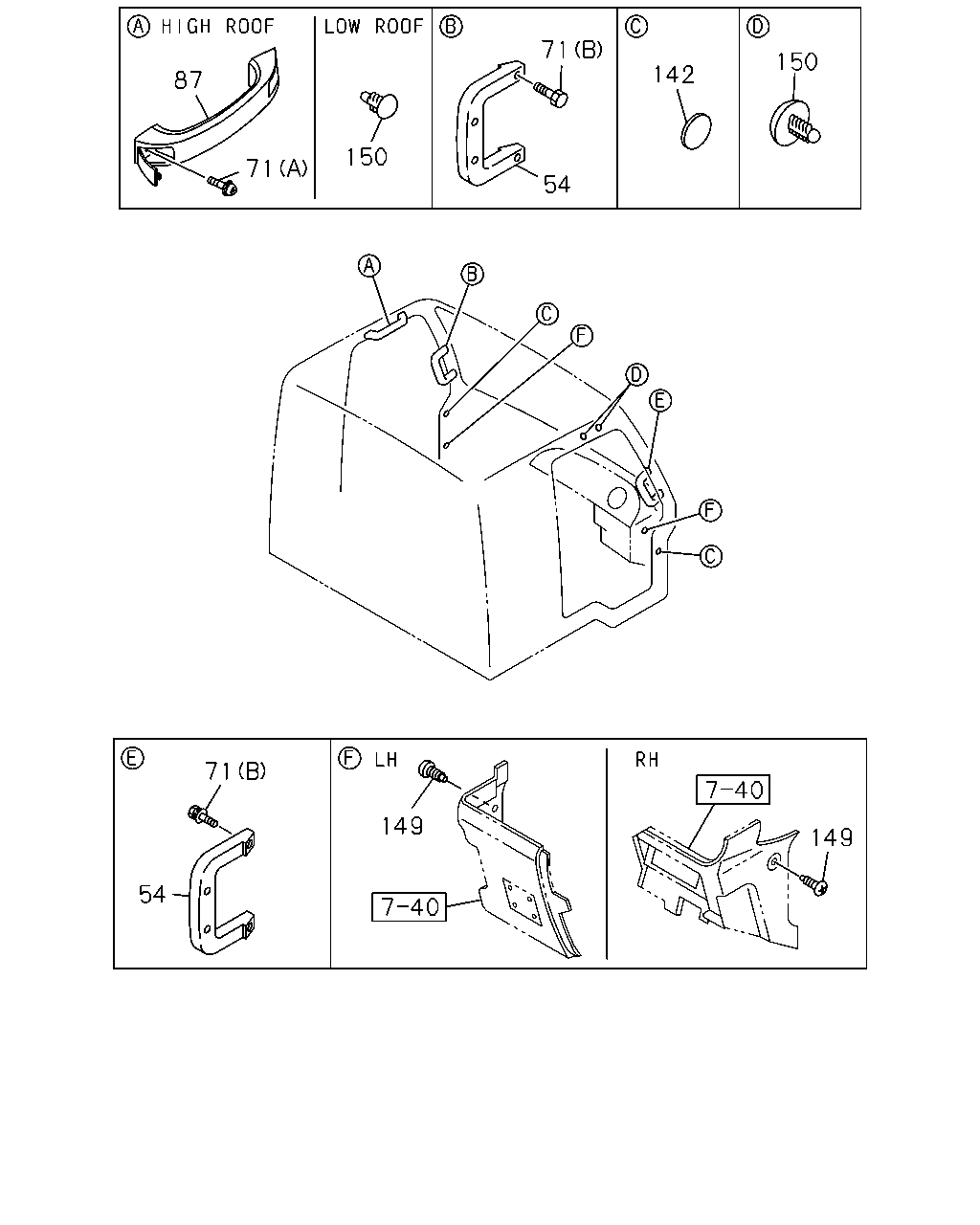

çizim 151066
71 150 142 87 150 71 54 71 149 149 54
BalonParca AdiParca NoAdetTipApplied Date A B
54 GRIP; ASSIST,QUARTER SIDE 1-73618-158-2 02 1 9510-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE 1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE 1-73618-185-1 02 1 0212- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512 ●
71 SCREW
(C) M5X14 		8-94279-325-0 06 1 9510-9512 ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-0004 ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-0004 ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9510-0004 ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> 		1-73618-170-0 01 1 9510-0004 ●
87 GRIP; ASSIST,CANT RAIL SIDE 1-73618-170-0 01 1 9510-0004 ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0005-0212 ●
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0301- ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 9510-0004 ● ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 0005-0512 ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 0601- ●
149 SCREW; ASSIST GRIP HOLE
M6X16 		8-94479-534-0 02 1 9510-0004 ● ●
149 SCREW; ASSIST GRIP HOLE
M6X16 		8-94479-534-0 02 1 0005-0302 ●
149 SCREW; ASSIST GRIP HOLE
M6X12 		8-97094-854-0 02 1 0303- ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-0004 ●
150 CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-0004 ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0212 ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9510-0212 ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●

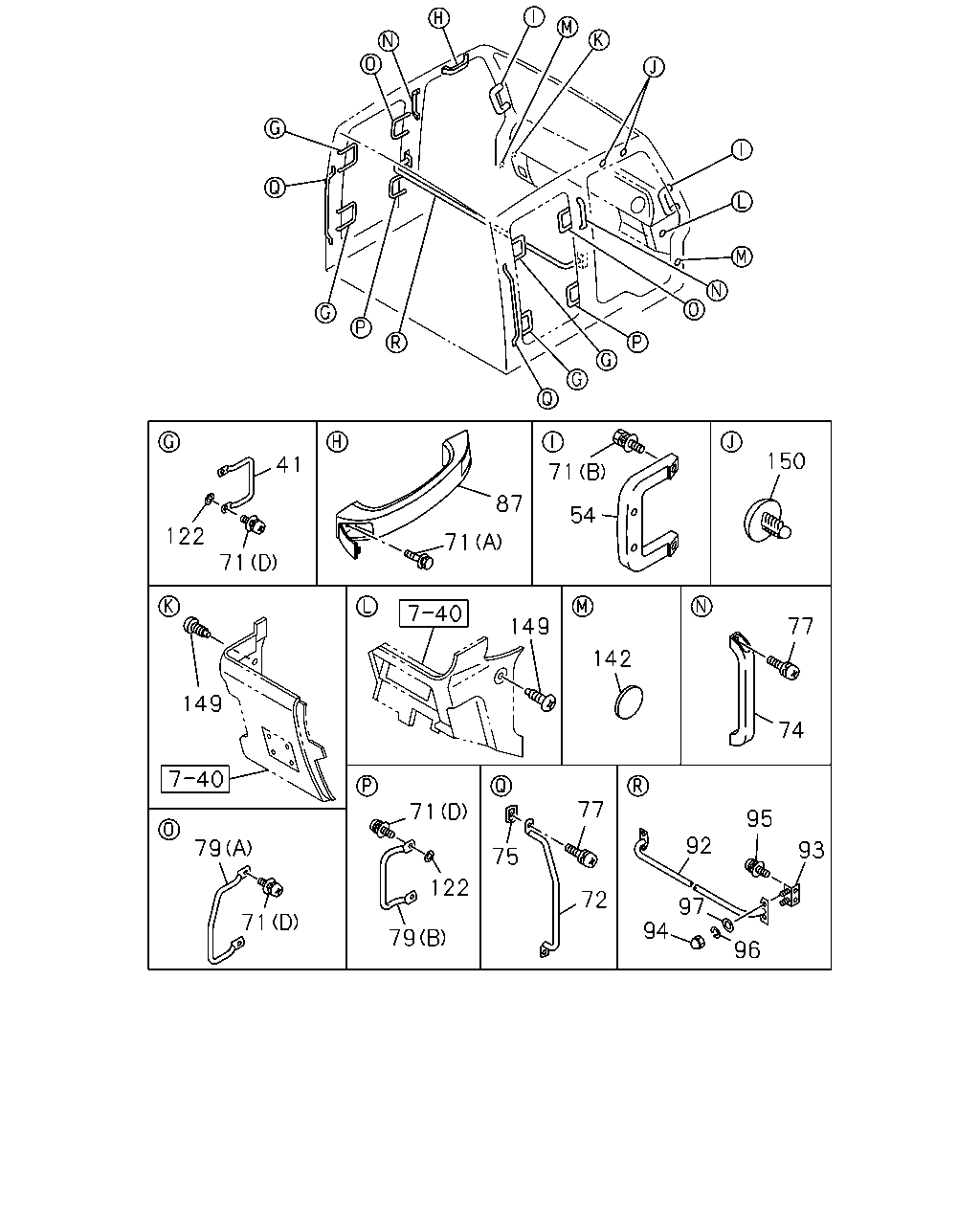

çizim 151071
150 41 71 87 54 122 71 71 149 77 142 149 74 77 71 95 92 79 93 75 122 72 97 71 94 79 96
BalonParca AdiParca NoAdetTipApplied Date A B
41 GRIP; ASSIST,BACK SIDE 1-71998-467-0 04 1 9510-0004 ●
54 GRIP; ASSIST,QUARTER SIDE 1-73618-158-2 02 1 9510-0004 ● ●
54 GRIP; ASSIST,QUARTER SIDE 1-73618-158-2 02 1 0005-0211 ●
54 GRIP; ASSIST,QUARTER SIDE 1-73618-185-1 02 1 0212- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512 ●
71 SCREW
(C) M5X14 		8-94279-325-0 06 1 9510-9512 ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-0004 ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-0004 ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9510-0004 ●
72 GRIP; ASSIST,CAB ENTRY,BACK
WHITE 		1-71998-278-0 02 1 9510-0004 ●
74 GRIP; ASSIST,CAB ENTRY,BACK CENTER 1-71998-944-2 02 1 9510-0004 ●
75 SHEET; ASSIST GRIP,CAB ENTRY 1-71997-478-1 04 1 9510-0004 ●
77 SCREW; ASSIST GRIP 8-94279-407-0 08 1 9510-0004 ●
79 GRIP; ASSIST
(A) 		1-71996-134-0 02 1 9510-0004 ●
79 GRIP; ASSIST
(B) 		1-71998-467-0 02 1 9510-0004 ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> 		1-73618-170-0 01 1 9510-0004 ●
87 GRIP; ASSIST,CANT RAIL SIDE 1-73618-170-0 01 1 9510-0004 ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0005-0212 ●
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0301- ●
92 BAR; ASSIST 1-73618-123-2 01 1 9510-0004 ●
93 BRACKET; ASSIST BAR 1-73618-126-1 02 1 9510-0004 ●
94 NUT; CAP,ASSIST BAR
M8 FLANGE 		1-09984-126-0 04 1 9510-0004 ●
95 SCREW; ASSIST BAR BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004 ●
96 WASHER; LK,ASSIST BAR
ID=8.2 		1-09985-177-0 04 1 9510-0004 ●
97 WASHER; PL,ASSIST BAR
ID=8.4 OD=16 		1-09985-174-0 04 1 9510-0004 ●
122 WASHER; PL,ASSIST GRIP
ID=10.2 OD=22 T=6 		1-09989-009-1 02 1 9510-0004 ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 9510-0004 ● ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 0005-0512 ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 0601- ●
149 SCREW; ASSIST GRIP HOLE
M6X16 		8-94479-534-0 02 1 9510-0004 ● ●
149 SCREW; ASSIST GRIP HOLE
M6X16 		8-94479-534-0 02 1 0005-0302 ●
149 SCREW; ASSIST GRIP HOLE
M6X12 		8-97094-854-0 02 1 0303- ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-0004 ●
150 CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-0004 ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0212 ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9510-0212 ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●

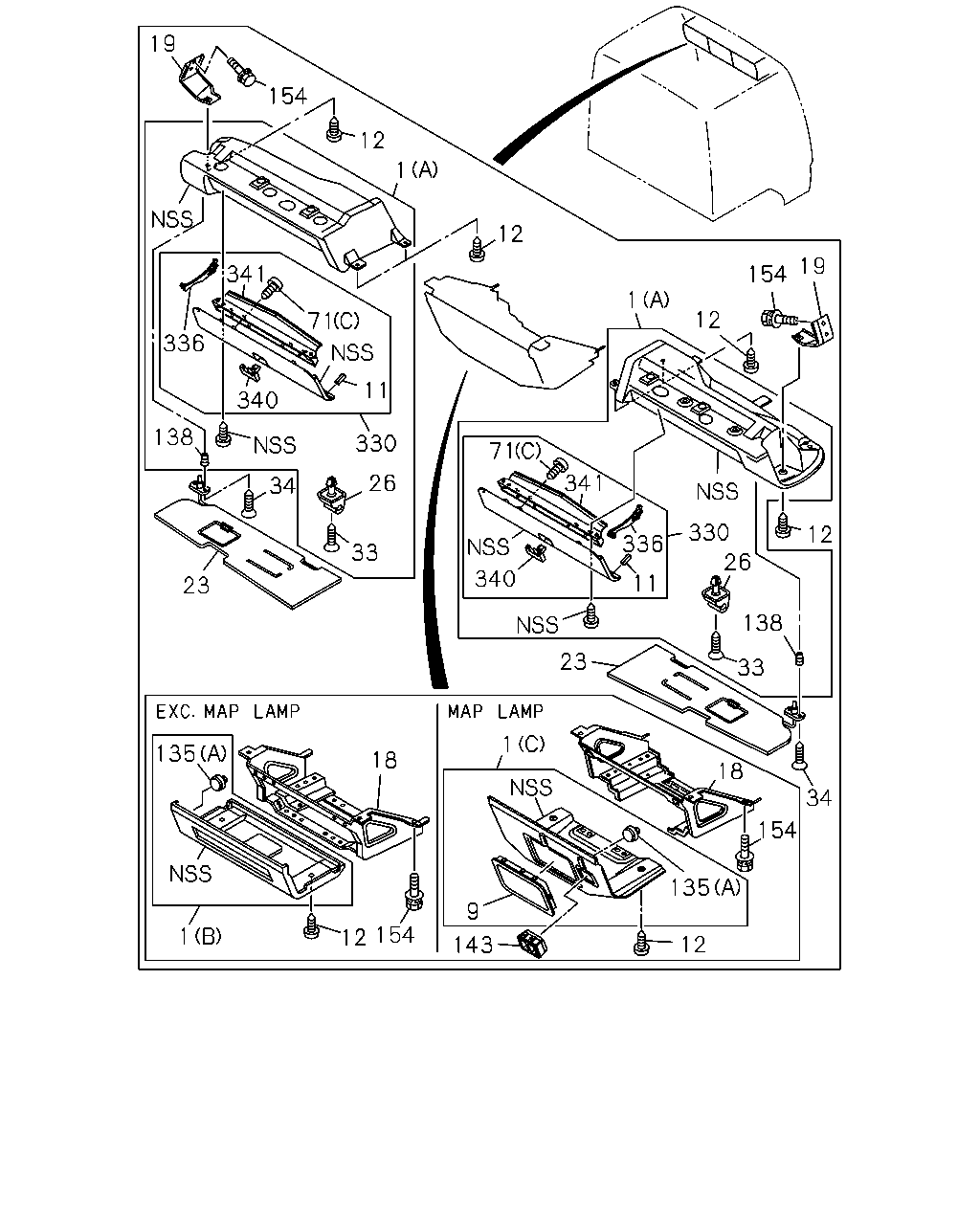

çizim 151077
19 154 12 1 12 19 154 341 1 12 71 336 11 340 138 330 71 26 341 34 330 12 336 33 26 340 11 23 138 23 33 1 135 18 18 34 154 135 9 154 1 12 12 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (C) CENTER 		1-72448-667-0 01 1 0301- ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-597-2 01 1 9910-0004 ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-596-2 01 1 9910-0004 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-568-1 01 1 9510-9909 ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-568-1 01 1 9510-9909 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER 		1-72448-568-1 01 1 9910-0004 ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-568-1 01 1 9910-0004 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-663-0 01 1 0005-0211 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0212- ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-597-2 01 1 9510-9802 ●
1 BOARD; HEADER SHELF
(A) 		1-72448-597-2 01 1 9510-9802 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-616-1 01 1 9803-9909 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-616-1 01 1 9803-9909 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) 		1-73318-616-1 01 1 9910-0003 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-616-1 01 1 9910-0003 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) 		1-73318-689-0 01 1 0004-0004 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-689-0 01 1 0004-0004 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-691-0 01 1 0005- ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-596-2 01 1 9510-9802 ●
1 BOARD; HEADER SHELF
(A) 		1-72448-596-2 01 1 9510-9802 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73317-362-1 01 1 9803-9909 ●
1 BOARD; HEADER SHELF
(D) 		1-73317-362-1 01 1 9803-9909 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) 		1-73317-362-1 01 1 9910-0003 ●
1 BOARD; HEADER SHELF
(D) 		1-73317-362-1 01 1 9910-0003 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) 		1-73318-687-0 01 1 0004-0004 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-687-0 01 1 0004-0004 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-690-0 01 1 0005- ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> (C) CENTER 		1-72448-535-1 01 1 9910-0004 ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-547-2 01 1 0301- ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-547-2 01 1 9910-0004 ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9510-0004 ●
11 CAP; HEADER SHELF 8-94270-538-0 04 1 9510-0004 ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 0005- ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 0005- ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 14 1 9510-9512 ●
12 SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER 		8-94279-404-0 14 1 9510-9512 ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9601-0004 ●
12 SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9601-0004 ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-632-1 01 1 0301- ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		1-72448-552-4 01 1 9510-9604 ●
18 SUPPORT; HEADER SHELF CENTER 1-72448-552-4 01 1 9510-9604 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-0 01 1 9605-9909 ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-0 01 1 9605-9909 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97865-124-0 01 1 9910-0004 ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-0 01 1 9910-0004 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-1 01 1 0005-0211 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 0212- ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-632-0 01 1 9910-0004 ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9510-0004 ●
19 SUPPORT ASM; HEADER SHELF 1-72448-324-1 01 1 9510-0004 ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 0005- ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9510-0004 ●
19 SUPPORT ASM; HEADER SHELF 1-72448-323-1 01 1 9510-0004 ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 0005- ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-150-1 01 1 9510-0004 ●
23 SUN VISOR 1-73138-150-1 01 1 9510-0004 ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-157-1 01 1 0005- ●
23 SUN VISOR 1-73138-148-1 01 1 9510-0004 ● ●
23 SUN VISOR 1-73138-156-1 01 1 0005-0512 ●
23 SUN VISOR 1-73138-156-1 01 1 0601- ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-0004 ● ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005- ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-0004 ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0101 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ●
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9510-9704 ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 9510-9704 ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705-0004 ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9705-0004 ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705-0004 ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 0005- ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 0005- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512 ●
71 SCREW
(C) M5X14 		8-94279-325-0 06 1 9510-9512 ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-0004 ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-0004 ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9510-0004 ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0301- ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 9510-0004 ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 03 1 9510-0004 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0005-0005 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006-0211 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0212- ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 9803-0004 ●
135 CLIP; HEADER SHELF
(B) D6X23 DARK GRAY 		1-09987-238-0 02 1 9803-0004 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 0005-0209 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 BLACK 		1-09987-114-0 02 1 0210- ●
138 NUT; BRKT,HEADER SHELF
CUSTOM CAB(SR5) 		1-09984-166-0 04 1 9910-0004 ●
138 NUT; BRKT,HEADER SHELF
HIGH ROOF<S2F> 		1-09984-166-0 04 1 9510-9802 ●
138 NUT; BRKT,HEADER SHELF 1-09984-166-0 04 1 9510-9802 ●
143 BEZEL
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-532-0 01 1 9910-0004 ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004 ●
154 BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004 ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005- ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9510-0004 ●
330 LID; HEADER SHELF 1-72448-360-3 02 1 9510-0004 ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-679-0 02 1 0005- ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9510-0004 ●
336 STAY; LID 1-72448-379-3 04 1 9510-0004 ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 0005- ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9510-0004 ●
340 LOCK; HEADER SHELF 1-72448-376-0 02 1 9510-0004 ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 0005- ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9510-0004 ●
341 HINGE; LID,HEADER SHELF 1-72448-403-1 02 1 9510-0004 ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 0005- ●

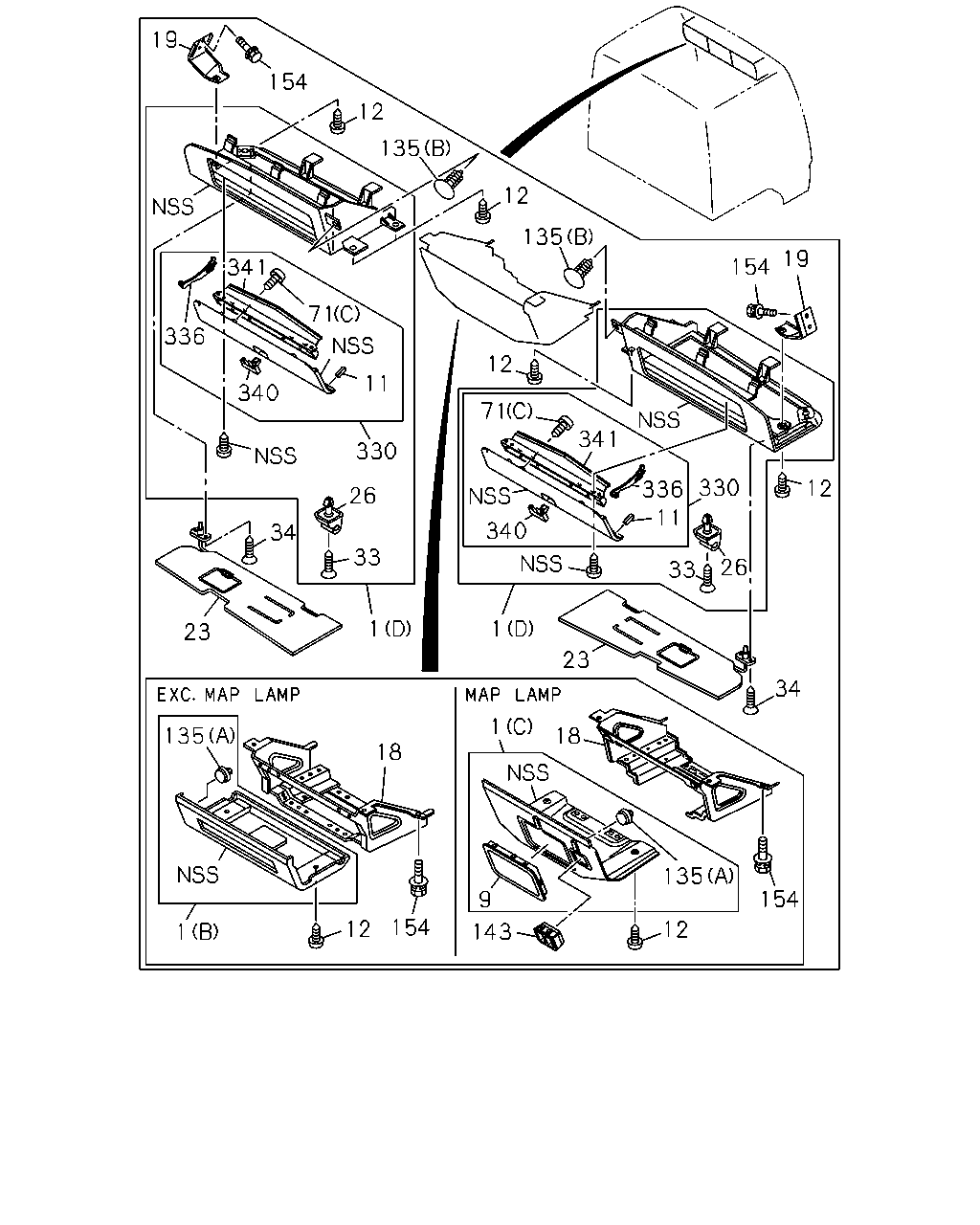

çizim 151079
19 154 12 135 12 135 19 154 341 71 336 12 11 340 71 341 330 330 12 336 26 11 340 34 33 26 33 1 1 23 23 34 1 135 18 18 135 154 9 154 12 12 1 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (C) CENTER 		1-72448-667-0 01 1 0301- ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-597-2 01 1 9910-0004 ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-596-2 01 1 9910-0004 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-568-1 01 1 9510-9909 ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-568-1 01 1 9510-9909 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER 		1-72448-568-1 01 1 9910-0004 ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-568-1 01 1 9910-0004 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (B) CENTER 		1-72448-663-0 01 1 0005-0211 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0212- ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-597-2 01 1 9510-9802 ●
1 BOARD; HEADER SHELF
(A) 		1-72448-597-2 01 1 9510-9802 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-616-1 01 1 9803-9909 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-616-1 01 1 9803-9909 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) 		1-73318-616-1 01 1 9910-0003 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-616-1 01 1 9910-0003 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) 		1-73318-689-0 01 1 0004-0004 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-689-0 01 1 0004-0004 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-691-0 01 1 0005- ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-596-2 01 1 9510-9802 ●
1 BOARD; HEADER SHELF
(A) 		1-72448-596-2 01 1 9510-9802 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73317-362-1 01 1 9803-9909 ●
1 BOARD; HEADER SHELF
(D) 		1-73317-362-1 01 1 9803-9909 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) 		1-73317-362-1 01 1 9910-0003 ●
1 BOARD; HEADER SHELF
(D) 		1-73317-362-1 01 1 9910-0003 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) 		1-73318-687-0 01 1 0004-0004 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-687-0 01 1 0004-0004 ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-690-0 01 1 0005- ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> (C) CENTER 		1-72448-535-1 01 1 9910-0004 ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-547-2 01 1 0301- ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-547-2 01 1 9910-0004 ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9510-0004 ●
11 CAP; HEADER SHELF 8-94270-538-0 04 1 9510-0004 ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 0005- ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 0005- ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 14 1 9510-9512 ●
12 SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER 		8-94279-404-0 14 1 9510-9512 ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9601-0004 ●
12 SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9601-0004 ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-632-1 01 1 0301- ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		1-72448-552-4 01 1 9510-9604 ●
18 SUPPORT; HEADER SHELF CENTER 1-72448-552-4 01 1 9510-9604 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-0 01 1 9605-9909 ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-0 01 1 9605-9909 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97865-124-0 01 1 9910-0004 ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-0 01 1 9910-0004 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> 		8-97865-124-1 01 1 0005-0211 ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 0212- ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-632-0 01 1 9910-0004 ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9510-0004 ●
19 SUPPORT ASM; HEADER SHELF 1-72448-324-1 01 1 9510-0004 ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 0005- ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9510-0004 ●
19 SUPPORT ASM; HEADER SHELF 1-72448-323-1 01 1 9510-0004 ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 0005- ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-150-1 01 1 9510-0004 ●
23 SUN VISOR 1-73138-150-1 01 1 9510-0004 ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-157-1 01 1 0005- ●
23 SUN VISOR 1-73138-148-1 01 1 9510-0004 ● ●
23 SUN VISOR 1-73138-156-1 01 1 0005-0512 ●
23 SUN VISOR 1-73138-156-1 01 1 0601- ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-0004 ● ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005- ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-0004 ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0101 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0102-0603 ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ●
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9510-9704 ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 9510-9704 ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705-0004 ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9705-0004 ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705-0004 ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 0005- ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 0005- ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ●
71 SCREW
(A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0004 ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512 ●
71 SCREW
(C) M5X14 		8-94279-325-0 06 1 9510-9512 ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-0004 ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-0004 ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0004 ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ●
71 SCREW
(D) M6X24 W/LK&PL WASHER 		8-94279-404-0 16 1 9510-0004 ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0301- ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 9510-0004 ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 03 1 9510-0004 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0005-0005 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006-0211 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0212- ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 9803-0004 ●
135 CLIP; HEADER SHELF
(B) D6X23 DARK GRAY 		1-09987-238-0 02 1 9803-0004 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 0005-0209 ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 BLACK 		1-09987-114-0 02 1 0210- ●
143 BEZEL
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-532-0 01 1 9910-0004 ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004 ●
154 BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004 ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005- ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9510-0004 ●
330 LID; HEADER SHELF 1-72448-360-3 02 1 9510-0004 ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-679-0 02 1 0005- ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9510-0004 ●
336 STAY; LID 1-72448-379-3 04 1 9510-0004 ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 0005- ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9510-0004 ●
340 LOCK; HEADER SHELF 1-72448-376-0 02 1 9510-0004 ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 0005- ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9510-0004 ●
341 HINGE; LID,HEADER SHELF 1-72448-403-1 02 1 9510-0004 ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 0005- ●

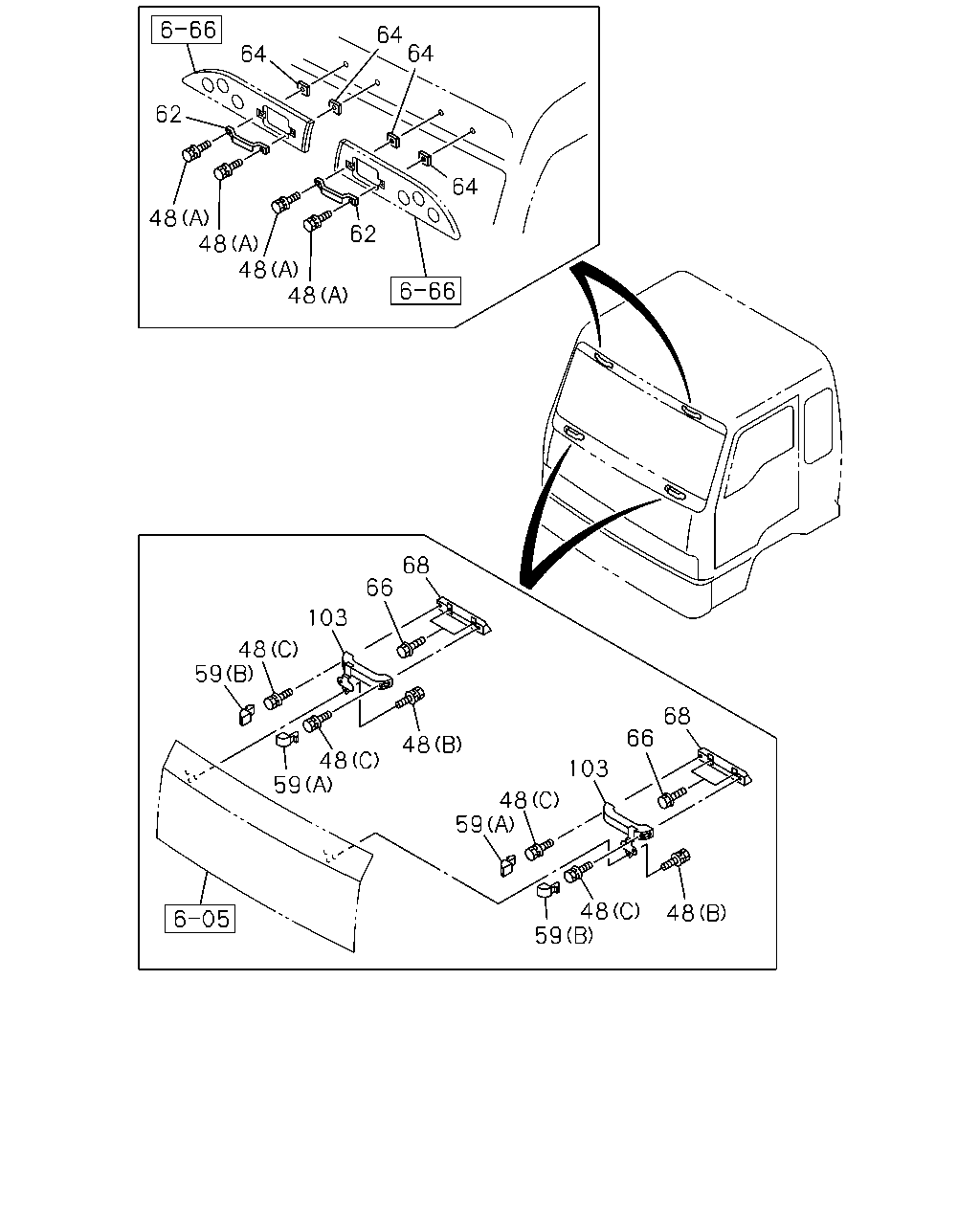

çizim 151089
64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER 		8-94279-215-0 04 1 9510-9603 ●
48 BOLT; ASSIST GRIP
(A) M6X40 LK&PL WASHER 		8-94279-215-0 04 1 9510-9603 ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ●
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604-0004 ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0005- ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 06 1 9510-9602 ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9603-0004 ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0005- ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9510-0004 ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0005- ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 9510-0004 ● ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0005- ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 9510-0004 ● ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0005- ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		1-71997-895-1 02 1 9510-9610 ●
62 GRIP; ASSIST,ROOF PANEL 1-71997-895-1 02 1 9510-9610 ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		1-71907-492-0 02 1 9611-0004 ●
62 GRIP; ASSIST,ROOF PANEL 1-71907-492-0 02 1 9611-0004 ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		1-71907-492-0 02 1 0005-0907 ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		8-97630-819-0 02 1 0908- ●
64 SHEET; ASSIST GRIP
HIGH ROOF<S2F> 25X25 		8-94272-533-0 04 1 9510-0004 ●
64 SHEET; ASSIST GRIP
25X25 		8-94272-533-0 04 1 9510-0004 ●
64 SHEET; ASSIST GRIP
HIGH ROOF<S2F> 25X25 		8-94272-533-0 04 1 0005- ●
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9510-0004 ● ●
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0005- ●
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-203-0 02 1 9510-0004 ● ●
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-203-0 02 1 0005- ●
103 GRIP; ASSIST,FRT PNL 1-71998-792-2 01 1 9510-0004 ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-792-2 01 1 0005- ●
103 GRIP; ASSIST,FRT PNL 1-71998-791-2 01 1 9510-0004 ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-791-2 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
