Isuzu WW
▶
TRUCKS
▶
FVR
▶
10705 - FVR(LHD) EXC.EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP
▶

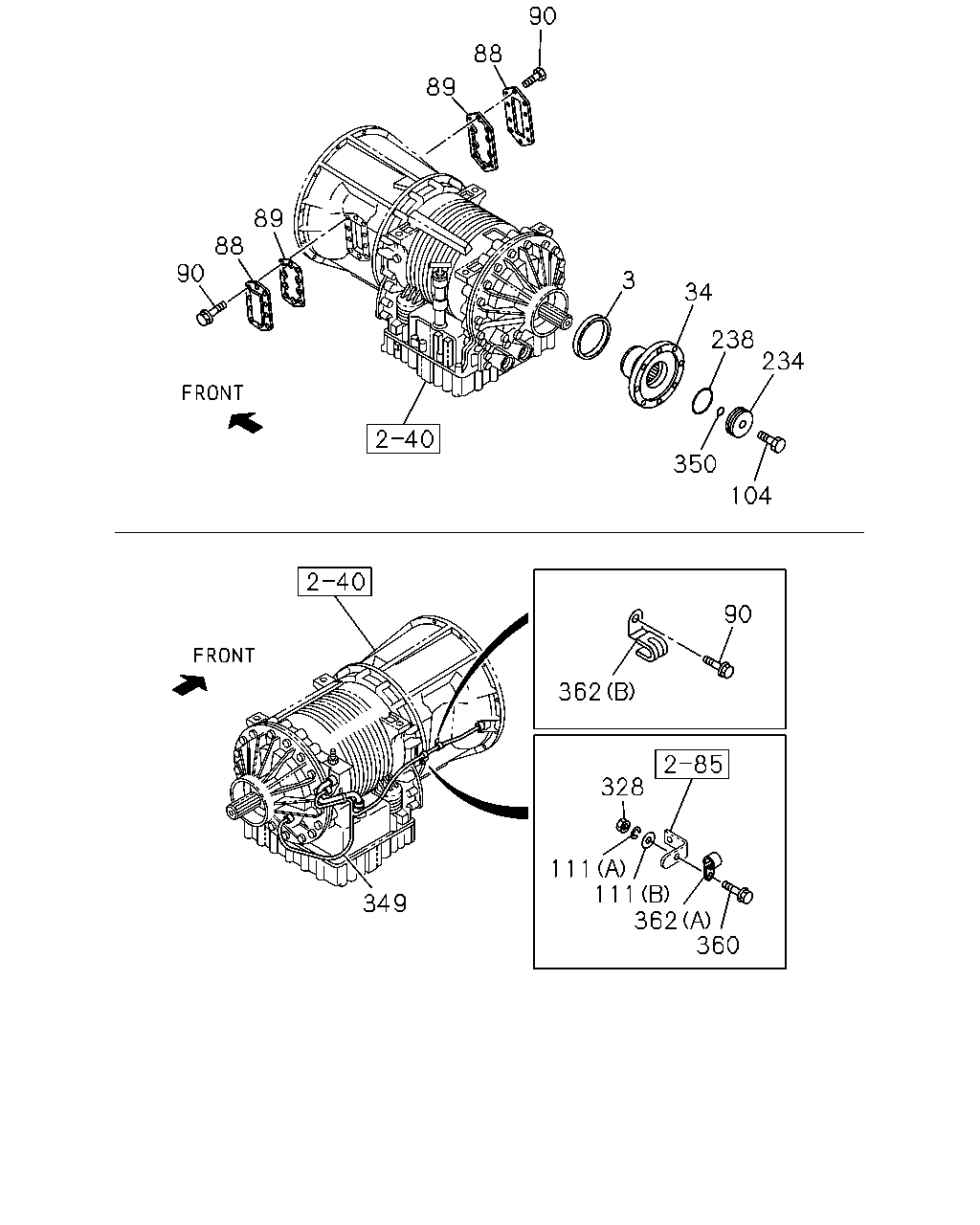

2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP
(#3779) — 20 parça
90
88
89
89
88
90
3
34
238
234
350
104
90
362
328
111
111
362
360
349
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
SEAL; OIL,RR COVER,A/T
SERIAL NO.652038442-
1-34119-127-0
01
1
0502-
3
SEAL; OIL,RR COVER,A/T
SERIAL NO.-652038441
1-34119-071-0
01
1
0005-
34
FLANGE; OIL PUMP,A/T
SERIAL NO.652038442-
1-37243-412-0
01
1
0502-
34
FLANGE; OIL PUMP,A/T
SERIAL NO.-652038441
1-34119-072-0
01
1
0005-
88
COVER; SIDE,A/T
1-38181-011-0
02
1
0005-
89
GASKET; SIDE COVER
1-38183-012-0
02
1
0005-
90
BOLT; SIDE COVER
1-34119-068-0
20
1
0005-
104
BOLT; RET
1-09029-100-0
01
1
0005-
111
WASHER; PL,RR COVER
(B)
1-34119-091-0
01
1
0201-
111
WASHER; PL,RR COVER
(A)
1-34119-092-0
01
1
0201-
234
PLATE; RETAINER
1-37249-191-0
01
1
0005-0501
234
PLATE; RETAINER
1-37249-192-0
01
1
0502-
238
GASKET; PLUG
1-09623-634-0
01
1
0005-
328
NUT; RR COVER
1-34119-093-0
01
1
0201-
349
HARNESS; SENSOR
1-82673-917-0
01
1
0201-
350
GASKET; BOLT,FLANGE
1-09623-666-0
01
1
0005-0112
350
GASKET; BOLT,FLANGE
1-09623-674-0
01
1
0201-
360
BOLT; CLIP
M6X1.00
1-34119-090-0
01
1
0201-
362
CLIP; HARNESS
(A) ID=9 L=30
1-34119-089-0
01
1
0005-
362
CLIP; HARNESS
(B)
5-09709-095-0
01
1
0006-
