7-01 — EMBLEM AND NAME PLATE (#37788) — 31 parça

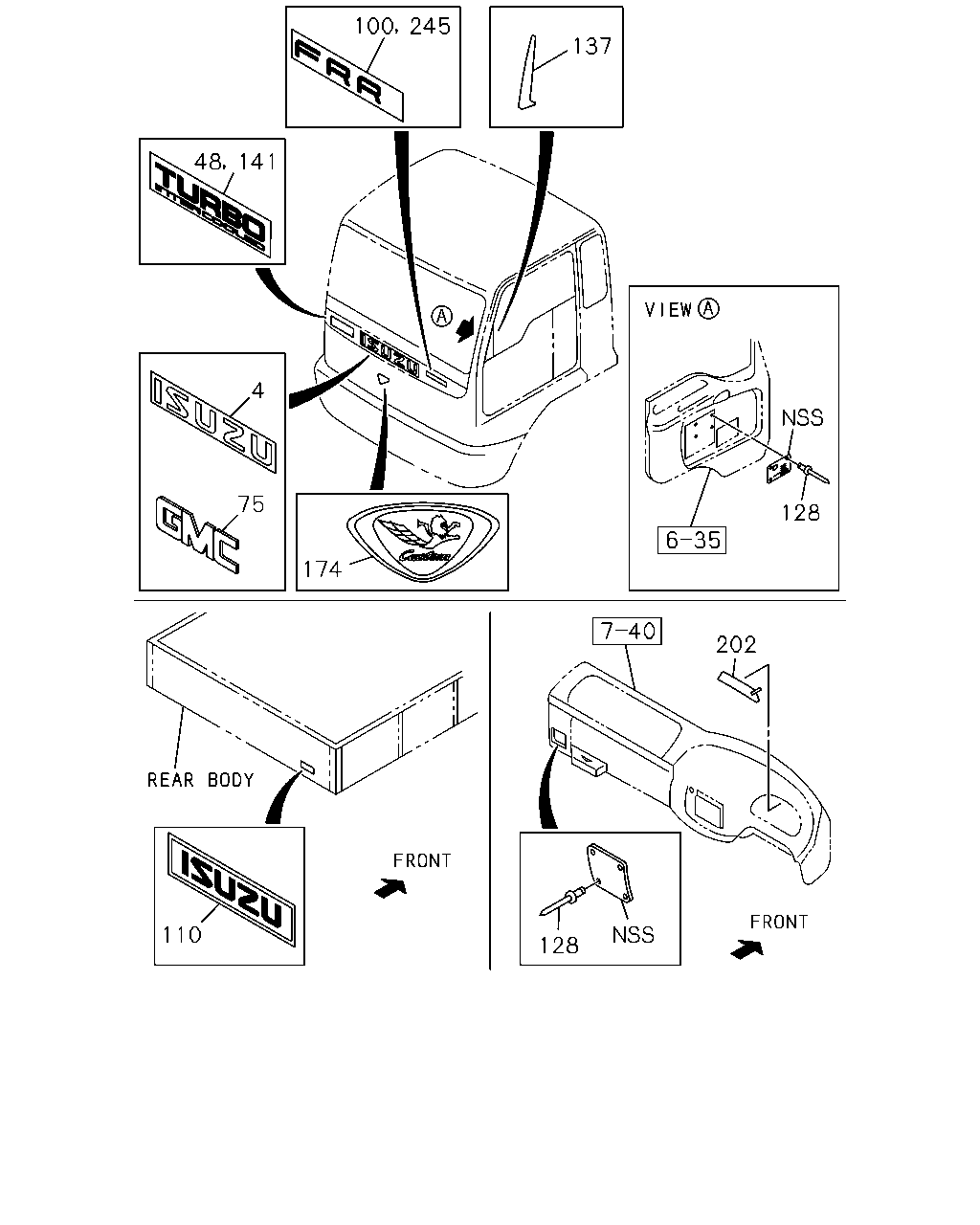

çizim 151041
100 245 137 48 141 4 75 128 174 202 110 128
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE
CUSTOM CAB(SR5) 		1-76210-669-2 01 1 9910-0004 ●
4 EMBLEM; RAD GRILLE 1-76210-634-0 01 1 9510-9802 ● ●
4 EMBLEM; RAD GRILLE 1-76210-668-2 01 1 9803-9909 ● ●
4 EMBLEM; RAD GRILLE
EXC. CUSTOM CAB(SR5) 		1-76210-668-2 01 1 9910-0004 ●
4 EMBLEM; RAD GRILLE 1-76210-668-2 01 1 9910-0004 ●
4 EMBLEM; RAD GRILLE 1-76210-668-3 01 1 0005-0512 ●
4 EMBLEM; RAD GRILLE 1-76210-668-3 01 1 0601- ●
48 DECAL; TURBOCHARGER
6HE1 TCN ENG(58L) AUSTRALIA EQUIPMENT(RR3) 		1-76218-114-0 01 1 9610-9802 ●
48 DECAL; TURBOCHARGER
6HE1 TCN ENG(58L) 		1-76218-114-0 01 1 9803-9806 ●
48 DECAL; TURBOCHARGER
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) 		1-76218-114-0 01 1 9807-0004 ●
48 DECAL; TURBOCHARGER
6HE1 TCN ENG(58L) 		1-76218-114-0 01 1 0005-0512 ●
48 DECAL; TURBOCHARGER
6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) 		1-76218-114-0 01 1 0601- ●
75 DECAL; FRT CORNER
CUSTOM CAB(SR5) 		1-76210-640-2 01 1 9910-0004 ●
100 EMBLEM; PET NAME 1-76218-108-0 01 1 9510-9512 ● ●
100 EMBLEM; PET NAME
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-76218-108-0 01 1 9601-9802 ● ●
110 EMBLEM; "ISUZU",RR BODY 1-76210-663-0 01 1 9510-0004 ● ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 9510-0004 ● ●
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 9510-0004 ●
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 0005- ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 0005- ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9510-0004 ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0005- ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9510-0004 ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0005- ●
141 EMBLEM; "TURBO"
6HE1 TCN ENG(58L) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-76218-114-0 01 1 9610-9802 ●
174 EMBLEM; FRT PANEL
CUSTOM CAB(SR5) 		1-76210-641-1 01 1 9910-0004 ●
202 DECAL; METER CLUSTER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-016-1 01 1 0212- ●
202 DECAL; METER CLUSTER
CUSTOM CAB(SR5) 		1-72418-016-1 01 1 9910-0004 ●
245 DECAL; MODEL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-76218-108-0 01 1 9803-0004 ●
245 DECAL; MODEL 1-76218-108-0 01 1 0005-0512 ●
245 DECAL; MODEL 1-76218-108-0 01 1 0601- ●
