◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#37782) — 88 parça

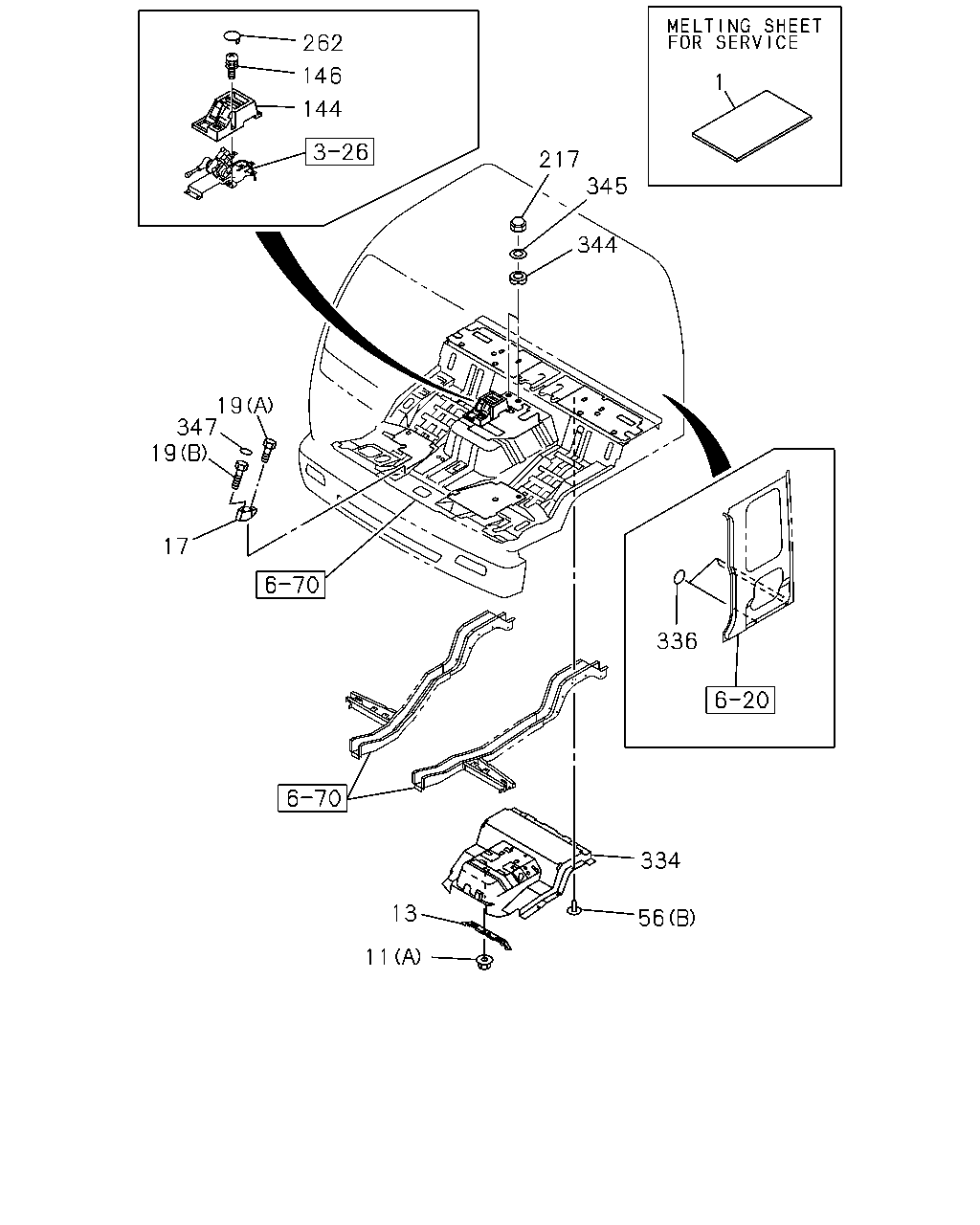

çizim 151032
262 146 1 144 217 345 344 19 347 19 17 336 334 13 56 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9510-0004 ● ●
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0005- ●
11 NUT; HEAT INSULATOR
(A) M8 FLANGE 		8-94279-504-1 02 1 9510-9705 ● ●
11 NUT; HEAT INSULATOR
(A) M8 FLANGE 		8-94279-518-0 02 1 9706-0004 ● ●
11 NUT; HEAT INSULATOR
(A) M8 FLANGE 		8-94279-518-0 02 1 0005-0401 ●
11 NUT; HEAT INSULATOR
(A) M8 FLANGE 		1-75538-207-0 02 1 0402- ●
11 NUT; HEAT INSULATOR
(B) M6 FLANGE 		1-09984-141-0 02 1 9510-0004 ●
13 PLATE; HEAT INSULATOR 1-71998-812-4 01 1 9510-0004 ● ●
13 PLATE; HEAT INSULATOR 1-71998-812-4 01 1 0005- ●
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 9510-0004 ● ●
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0005-0512 ●
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0601- ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-0004 ● ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005-0512 ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0601- ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 9510-0004 ● ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 0005-0512 ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 0601- ●
56 CLIP; HEAT INSULATOR,ENG HOOD
(B) ID=6.2 L=11.4 		8-97808-623-0 17 1 9510- ●
56 CLIP; HEAT INSULATOR,ENG HOOD
(A) D6X23 BLACK 		1-09987-114-0 10 1 9510-0004 ●
56 CLIP; HEAT INSULATOR,ENG HOOD
(B) ID=6.2 L=11.4 		8-97808-623-0 12 1 9510-0004 ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-73908-075-3 01 1 9510-9802 ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-73908-308-0 01 1 9803-9810 ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FULL TRACTOR TRUCK(RD6),ELEC OUTLET 12V<TAW> 		1-73908-308-1 01 1 9811-0004 ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ELEC OUTLET 12V<TAW> 		1-73908-307-2 01 1 0005- ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ELEC OUTLET 12V<TAW> EXC. FULL TRACTOR TRUCK(RD6) 		1-73908-351-0 01 1 9811-0004 ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ELEC OUTLET 12V<TAW> 		1-73908-372-1 01 1 0005- ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0005- ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 9510-0004 ● ●
217 NUT
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> M8 		1-09984-109-0 02 1 9511-9512 ●
262 COVER; CHECK HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-166-0 04 1 9510-0004 ● ●
262 COVER; CHECK HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-76337-461-0 04 1 0005- ●
334 INSULATOR; ENG HOOD 1-71996-034-4 01 1 0005- ●
334 INSULATOR; ENG HOOD
DUAL AIR GAUGE<UG2> 		1-71996-034-4 01 1 9510-0004 ●
334 INSULATOR; ENG HOOD
EXC. DUAL AIR GAUGE<UG2> 		1-71998-811-9 01 1 9510-0004 ●
336 SEAL; FLOOR SIDE
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 04 1 9510-9803 ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 06 1 9804-0512 ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 06 1 0601- ●
336 SEAL; FLOOR SIDE
EXC. CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 06 1 9510-9803 ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9510-0004 ●
344 SHEET
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> ID=8.5 T=3 OD=30 		1-71736-247-0 02 1 9511-9512 ●
345 WASHER
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9511-9512 ●
347 SEAL; FOOT RESTR
OD=25 BLACK 		1-76798-019-0 02 1 9703- ●

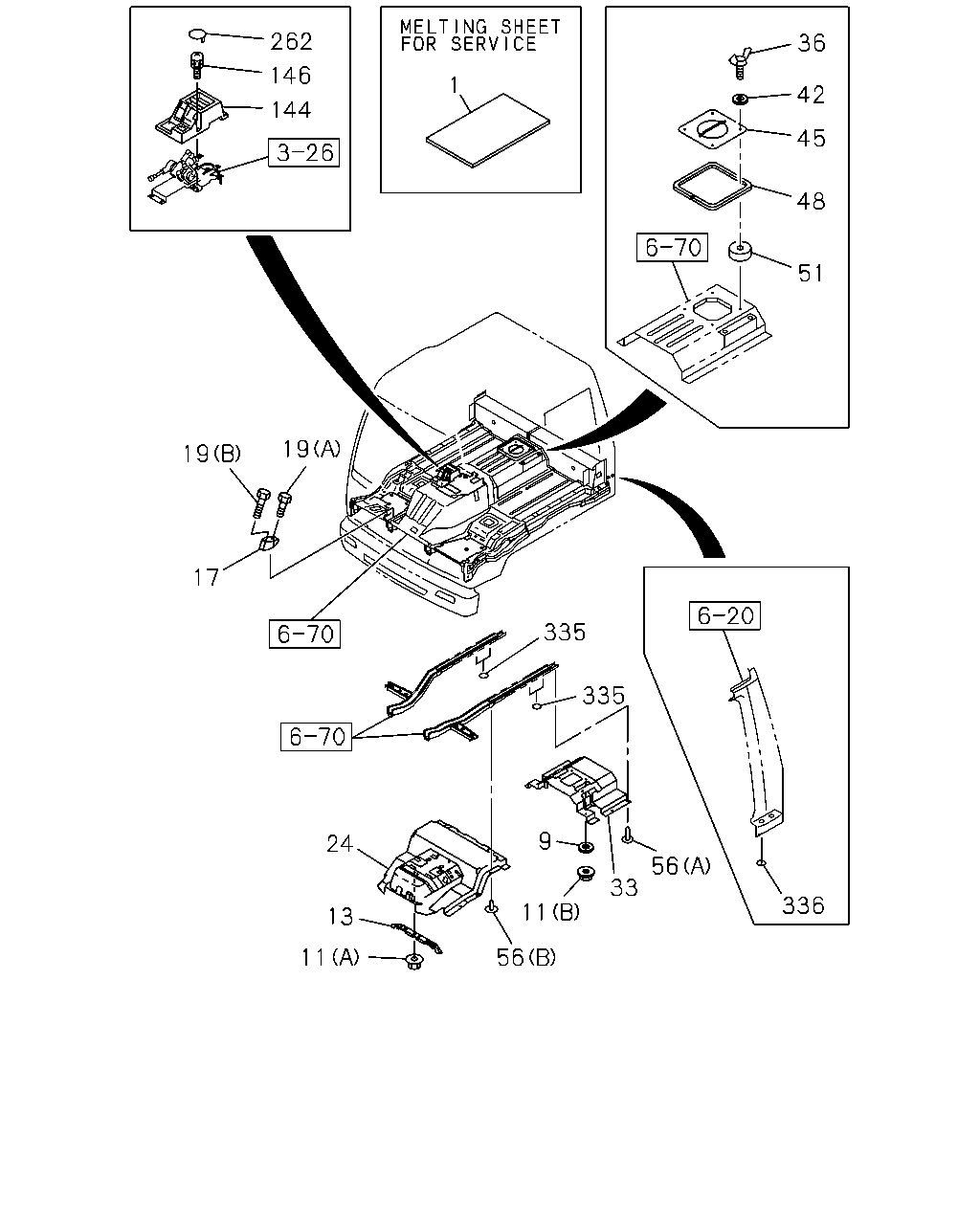

çizim 151045
262 36 146 1 42 144 45 48 51 19 19 17 335 335 9 24 56 33 336 11 13 11 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9510-0004 ● ●
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0005- ●
9 WASHER; HEAT INSULATOR 1-73377-052-1 02 1 9510-0004 ●
11 NUT; HEAT INSULATOR
(A) M8 FLANGE 		8-94279-504-1 02 1 9510-9705 ● ●
11 NUT; HEAT INSULATOR
(A) M8 FLANGE 		8-94279-518-0 02 1 9706-0004 ● ●
11 NUT; HEAT INSULATOR
(A) M8 FLANGE 		8-94279-518-0 02 1 0005-0401 ●
11 NUT; HEAT INSULATOR
(A) M8 FLANGE 		1-75538-207-0 02 1 0402- ●
11 NUT; HEAT INSULATOR
(B) M6 FLANGE 		1-09984-141-0 02 1 9510-0004 ●
13 PLATE; HEAT INSULATOR 1-71998-812-4 01 1 9510-0004 ● ●
13 PLATE; HEAT INSULATOR 1-71998-812-4 01 1 0005- ●
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 9510-0004 ● ●
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0005-0512 ●
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0601- ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-0004 ● ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005-0512 ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0601- ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 9510-0004 ● ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 0005-0512 ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 0601- ●
24 INSULATOR; HEAT,FRT 1-71998-901-9 01 1 9510-0004 ●
33 INSULATOR; HEAT,RR 1-71996-090-0 01 1 9510-0004 ●
36 BOLT; WING,COVER 9-61405-010-0 04 1 9510-0004 ●
42 WASHER; PL,COVER
ID=10.5 OD=18 		9-09160-510-0 04 1 9510-0004 ●
45 COVER; CENTER,CHECK HOLE 1-65380-056-0 01 1 9510-0004 ●
48 SEAL; CHECK HOLE LID,CENTER 1-65380-091-0 01 1 9510-0004 ●
51 SEAL; LID,CHECK HOLE 1-65380-121-0 04 1 9510-0004 ●
56 CLIP; HEAT INSULATOR,ENG HOOD
(B) ID=6.2 L=11.4 		8-97808-623-0 17 1 9510- ●
56 CLIP; HEAT INSULATOR,ENG HOOD
(A) D6X23 BLACK 		1-09987-114-0 10 1 9510-0004 ●
56 CLIP; HEAT INSULATOR,ENG HOOD
(B) ID=6.2 L=11.4 		8-97808-623-0 12 1 9510-0004 ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-73908-075-3 01 1 9510-9802 ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-73908-308-0 01 1 9803-9810 ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FULL TRACTOR TRUCK(RD6),ELEC OUTLET 12V<TAW> 		1-73908-308-1 01 1 9811-0004 ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ELEC OUTLET 12V<TAW> 		1-73908-307-2 01 1 0005- ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ELEC OUTLET 12V<TAW> EXC. FULL TRACTOR TRUCK(RD6) 		1-73908-351-0 01 1 9811-0004 ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ELEC OUTLET 12V<TAW> 		1-73908-372-1 01 1 0005- ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0005- ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 9510-0004 ● ●
262 COVER; CHECK HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-166-0 04 1 9510-0004 ● ●
262 COVER; CHECK HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-76337-461-0 04 1 0005- ●
335 SEAL; UNDER FRAME
OD=25 BLACK 		1-76798-019-0 08 1 9510-0004 ●
336 SEAL; FLOOR SIDE
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 04 1 9510-9803 ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 06 1 9804-0512 ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 06 1 0601- ●
336 SEAL; FLOOR SIDE
EXC. CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 06 1 9510-9803 ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9510-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
