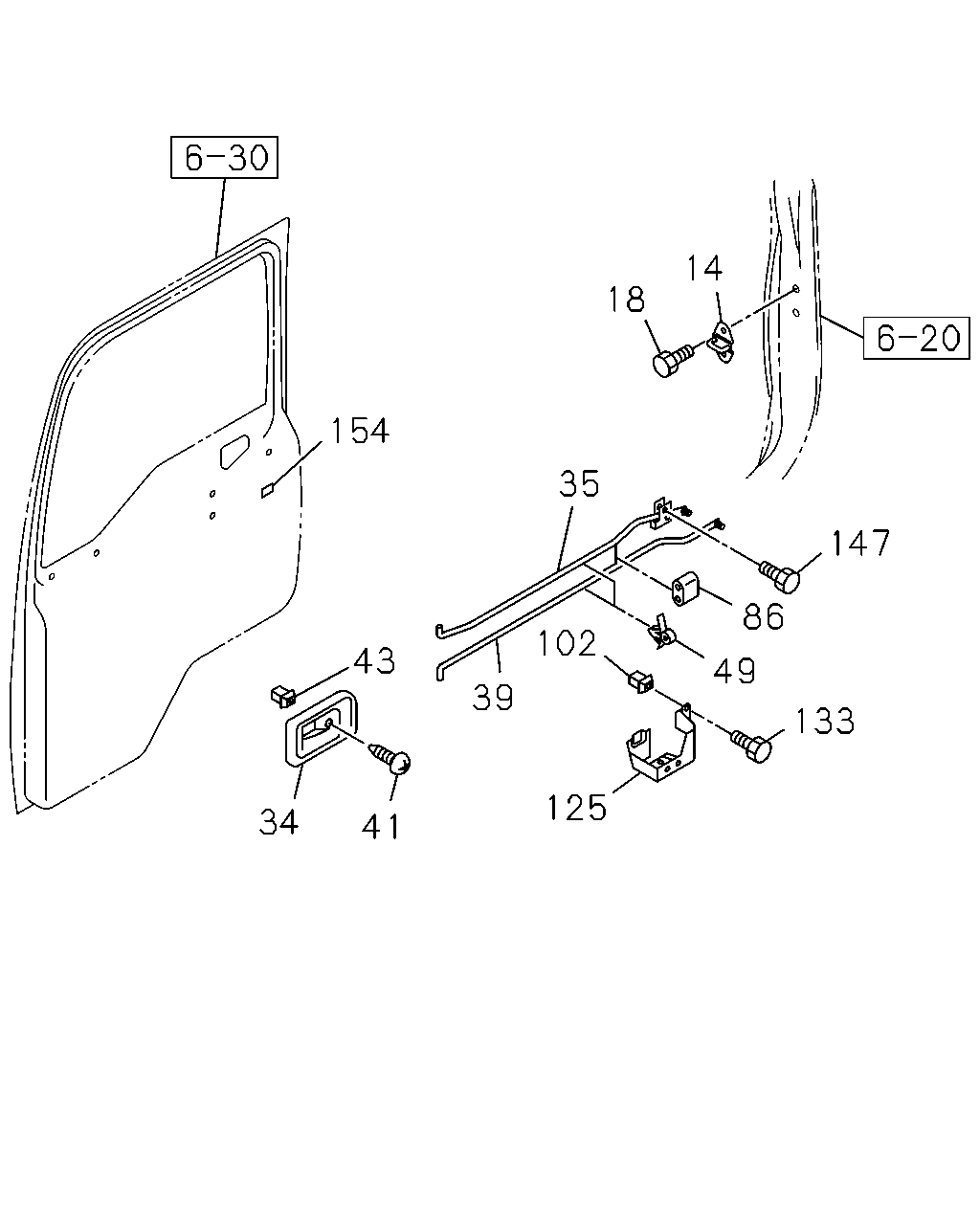

6-32 — FRONT DOOR LOCK AND HANDLE (#37769) — 88 parça

14 18 154 35 147 86 102 43 49 39 133 125 34 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	STRIKER; FRT DOOR	8-97852-106-1	02	1	9510-9903	●	●
14	STRIKER; FRT DOOR	8-97221-702-0	02	1	9904-0004	●	●
14	STRIKER; FRT DOOR	8-97221-702-1	02	1	0005-	●
18	SCREW; DOOR STRIKER M8X20	1-09981-450-3	04	1	9510-9903	●	●
18	SCREW; DOOR STRIKER M8X23 W/LK WASHER	8-97221-701-0	04	1	9904-0004	●	●
18	SCREW; DOOR STRIKER M8X23 W/LK WASHER	8-97221-701-0	04	1	0005-	●
34	HANDLE; INSIDE,FRT DOOR	1-74718-023-4	01	1	9510-0004	●	●
34	HANDLE; INSIDE,FRT DOOR	1-74718-023-4	01	1	0005-	●
34	HANDLE; INSIDE,FRT DOOR	1-74718-022-4	01	1	9510-0004	●	●
34	HANDLE; INSIDE,FRT DOOR	1-74718-022-4	01	1	0005-	●
35	LINK; DOOR LOCK,INSIDE AUTO DOOR LOCK<AU4>	1-74518-129-2	01	1	0303-	●
35	LINK; DOOR LOCK,INSIDE	1-74518-094-3	01	1	9510-0004	●	●
35	LINK; DOOR LOCK,INSIDE	1-74518-094-3	01	1	0005-	●
35	LINK; DOOR LOCK,INSIDE	1-74518-093-3	01	1	9510-0004	●	●
35	LINK; DOOR LOCK,INSIDE	1-74518-093-3	01	1	0005-0302	●
35	LINK; DOOR LOCK,INSIDE EXC. AUTO DOOR LOCK<AU4>	1-74518-093-3	01	1	0303-	●
39	LINK; INSIDE HANDLE,FRT DOOR AUTO DOOR LOCK<AU4>	1-74758-033-1	01	1	0303-	●
39	LINK; INSIDE HANDLE,FRT DOOR	1-74758-022-2	01	1	9510-0004	●	●
39	LINK; INSIDE HANDLE,FRT DOOR	1-74758-022-2	01	1	0005-	●
39	LINK; INSIDE HANDLE,FRT DOOR	1-74758-021-2	01	1	9510-0004	●	●
39	LINK; INSIDE HANDLE,FRT DOOR	1-74758-021-2	01	1	0005-0302	●
39	LINK; INSIDE HANDLE,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-74758-021-2	01	1	0303-	●
41	SCREW; INSIDE HANDLE M5X14	8-94152-495-0	02	1	9510-0004	●	●
41	SCREW; INSIDE HANDLE M5X14	8-94152-495-0	02	1	0005-	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9510-0004	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0005-	●
49	CLAMP; DOOR LOCK LINK ROD ID=3.8 WHITE	8-94217-699-0	04	1	9510-0004	●	●
49	CLAMP; DOOR LOCK LINK ROD ID=3.8 WHITE	8-94217-699-0	04	1	0005-	●
86	SEAL; DOOR LOCK LINK	1-76778-044-1	02	1	9510-0004	●	●
86	SEAL; DOOR LOCK LINK	1-76778-044-1	02	1	0005-	●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9510-0004	●	●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0005-	●
125	BRACKET; DOOR PULL	1-74718-011-4	01	1	9510-0004	●	●
125	BRACKET; DOOR PULL	1-74718-011-4	01	1	0005-	●
125	BRACKET; DOOR PULL	1-74718-010-4	01	1	9510-0004	●	●
125	BRACKET; DOOR PULL	1-74718-010-4	01	1	0005-	●
133	SCREW; DOOR PULL STAY M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9510-0004	●	●
133	SCREW; DOOR PULL STAY M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0005-	●
147	BOLT; ROD M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004	●	●
147	BOLT; ROD M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●
154	SEAL; DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 15X30	1-74998-069-0	02	1	0011-0210	●
154	SEAL; DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 30X30	1-74998-128-1	02	1	0211-	●
154	SEAL; DOOR 15X30	1-74998-069-0	02	1	9510-0004	●	●
154	SEAL; DOOR 15X30	1-74998-069-0	02	1	0005-0010	●
154	SEAL; DOOR DOOR WITH UNDER VIEW WINDOW<YD8> 15X30	1-74998-069-0	01	1	0011-0210	●
154	SEAL; DOOR DOOR WITH UNDER VIEW WINDOW<YD8> 30X30	1-74998-128-1	01	1	0211-	●

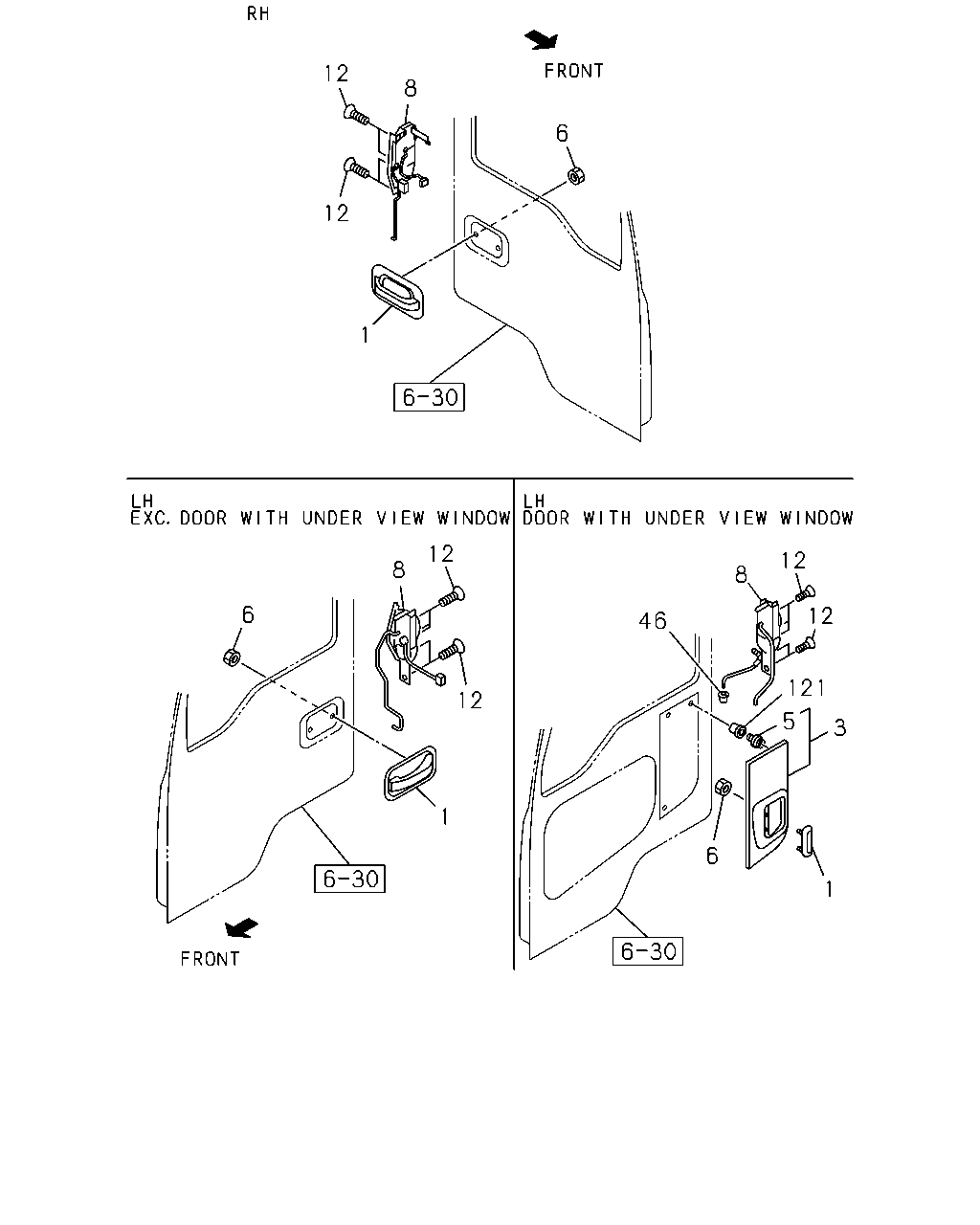

12 8 6 12 1 12 12 8 8 6 12 46 121 12 5 3 1 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; OUTSIDE,FRT DOOR AUTO DOOR LOCK<AU4>	1-74618-040-0	01	1	0303-	●
1	HANDLE; OUTSIDE,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74618-032-0	01	1	0011-	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74618-024-4	02	1	0011-0302	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. AUTO DOOR LOCK<AU4>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-74618-024-4	02	1	0303-	●
1	HANDLE; OUTSIDE,FRT DOOR	1-74618-024-4	02	1	9510-0004	●	●
1	HANDLE; OUTSIDE,FRT DOOR	1-74618-024-4	02	1	0005-0010	●
1	HANDLE; OUTSIDE,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74618-024-4	01	1	0011-0302	●
1	HANDLE; OUTSIDE,FRT DOOR AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74618-024-4	01	1	0303-	●
1	HANDLE; OUTSIDE,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. AUTO DOOR LOCK<AU4>	1-74618-024-4	01	1	0303-	●
3	BASE; HANDLE,DOOR OUTSIDE DOOR WITH UNDER VIEW WINDOW<YD8>	1-74618-039-1	01	1	0011-	●
5	CLIP; BASE DOOR WITH UNDER VIEW WINDOW<YD8> D5.4X8	1-09983-174-0	03	1	0011-	●
6	NUT; OUTSIDE HANDLE M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-0004	●	●
6	NUT; OUTSIDE HANDLE M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0005-	●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<SLG>	1-74518-107-6	01	1	0212-	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4>	1-74518-115-3	01	1	9510-0010	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74518-115-3	01	1	0011-	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4>	1-74518-091-7	01	1	9510-9909	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. CUSTOM CAB(SR5)	1-74518-091-7	01	1	9910-0004	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4>	1-74518-091-7	01	1	0005-0302	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4>	1-74518-125-3	01	1	0303-	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74518-092-7	01	1	0011-0212	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<SLG> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74518-092-7	01	1	0301-	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-74518-119-2	01	1	9510-9909	●
8	LOCK; DOOR,FRT DOOR	1-74518-119-2	01	1	9510-9909		●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>,CUSTOM CAB(SR5)	1-74518-119-2	01	1	9910-0004	●
8	LOCK; DOOR,FRT DOOR	1-74518-119-2	01	1	9910-0004		●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-74518-119-2	01	1	0005-0212	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<SLG>	1-74518-119-2	01	1	0301-	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-74518-118-2	01	1	9510-9909	●
8	LOCK; DOOR,FRT DOOR	1-74518-118-2	01	1	9510-9909		●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>,CUSTOM CAB(SR5)	1-74518-118-2	01	1	9910-0004	●
8	LOCK; DOOR,FRT DOOR	1-74518-118-2	01	1	9910-0004		●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-74518-118-2	01	1	0005-0211	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<SLG>	1-74518-118-2	01	1	0212-	●
8	LOCK; DOOR,FRT DOOR CUSTOM CAB(SR5)	1-74518-107-6	01	1	9910-0004	●
12	SCREW; DOOR LK M6X16	1-09981-447-1	06	1	9510-0004	●	●
12	SCREW; DOOR LK M6X16	1-09981-447-1	06	1	0005-0805	●
12	SCREW; DOOR LK M6X16	8-97581-217-0	06	1	0806-	●
12	SCREW; DOOR LK M6X14	1-09981-512-1	04	1	9510-0004	●	●
12	SCREW; DOOR LK M6X14	1-09981-512-1	04	1	0005-	●
46	BUSHING; DOOR LOCK TO OUTSIDE HANDLE DOOR WITH UNDER VIEW WINDOW<YD8>	5-74617-009-0	01	1	0011-	●
121	FASTENER; COVER DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.4 OD=6.8	1-09989-019-0	03	1	0011-	●
