◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#37761) — 61 parça

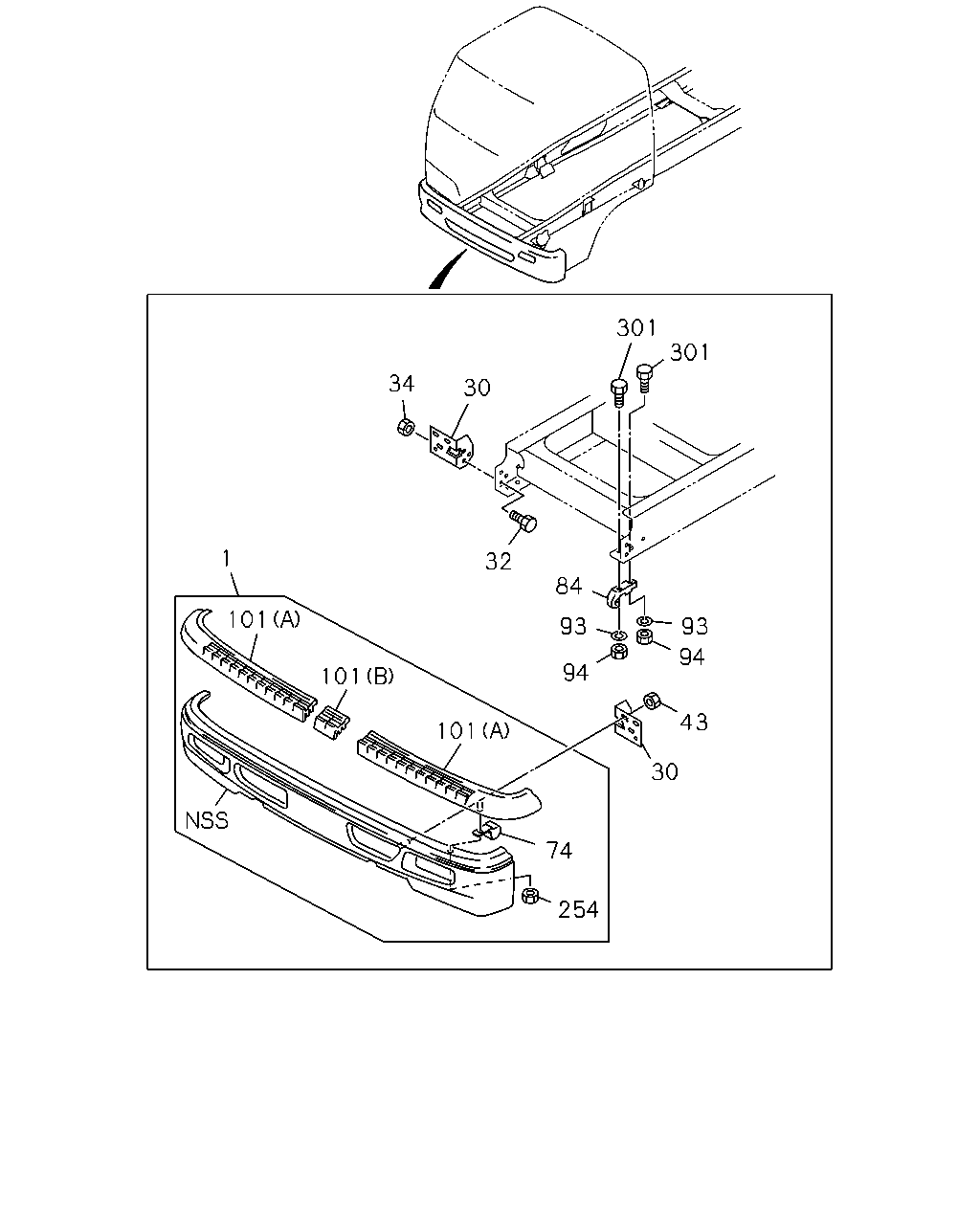

çizim 151002
301 301 34 30 1 32 84 101 93 93 94 94 101 43 101 30 74 254
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		1-71210-583-3 01 1 9510-0004 ● ●
1 BUMPER ASM; FRT
WHITE 		1-71210-583-4 01 1 0005-0512 ●
1 BUMPER ASM; FRT
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) WHITE 		1-71210-583-4 01 1 0601- ●
1 BUMPER ASM; FRT
6HK1 TCC ENG(81L) 		1-71210-941-1 01 1 0601- ●
30 BRACKET; FRT BUMPER
6HK1 TCC ENG(81L) 		1-71230-481-0 01 1 0601- ●
30 BRACKET; FRT BUMPER
6HK1 TCC ENG(81L) 		1-71230-482-0 01 1 0601- ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 9510-0004 ● ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 0005-0512 ●
30 BRACKET; FRT BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-71230-208-3 01 1 0601- ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 9510-0004 ● ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 0005-0111 ●
30 BRACKET; FRT BUMPER 1-71230-568-1 01 1 0112-0512 ●
30 BRACKET; FRT BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-71230-568-1 01 1 0601- ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9510-9606 ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-0004 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 0005-0512 ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9510-9606 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0004 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0005-0602 ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 9609-0004 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9510-0004 ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 0005-0512 ●
74 CLIP; FOG LAMP HARNESS
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-09701-203-0 05 1 0601-0601 ●
74 CLIP; FOG LAMP HARNESS
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) 		1-09701-203-0 05 1 0601- ●
84 HOOK 1-57181-017-2 01 1 9510-0004 ● ●
84 HOOK 1-57181-017-2 01 1 0005- ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-514-0 02 1 9510-0004 ● ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-514-0 02 1 0005-0603 ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-514-0 02 1 0604- ●
94 NUT; HOOK
M14 		9-99110-414-0 02 1 9510-0004 ● ●
94 NUT; HOOK
M14 		9-99110-414-0 02 1 0005-0512 ●
94 NUT; HOOK
M14 		0-91110-514-0 02 1 0601- ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9510-0004 ● ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 0005-0512 ●
101 STEP; BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) 		1-71260-082-1 01 1 0601-0601 ●
101 STEP; BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71260-082-1 01 1 0601- ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9510-0004 ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 0005-0512 ●
101 STEP; BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) 		1-71260-081-1 01 1 0601-0601 ●
101 STEP; BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A) 		1-71260-081-1 01 1 0601- ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9510-0004 ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 0005-0512 ●
101 STEP; BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) 		1-71260-080-1 01 1 0601-0601 ●
101 STEP; BUMPER
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A) 		1-71260-080-1 01 1 0601- ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9510-0004 ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 0005-0512 ●
254 NUT; STEP
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) M8 FLANGE 		0-91150-108-0 11 1 0601-0601 ●
254 NUT; STEP
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) M8 FLANGE 		0-91150-108-0 11 1 0601-0602 ●
254 NUT; STEP
6HH1 STD 4VALVE ENG(1A6),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) M8 FLANGE 		0-91180-108-0 11 1 0603- ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10811-460-0 01 1 9510-0004 ● ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10811-460-0 01 1 0005-0512 ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10861-460-0 01 1 0601- ●
301 BOLT; HOOK TO FRAME
M14X70 		0-10811-470-0 01 1 9510-0004 ● ●
301 BOLT; HOOK TO FRAME
M14X70 		0-10811-470-0 01 1 0005-0512 ●
301 BOLT; HOOK TO FRAME
M14X70 		0-10861-470-0 01 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
