5-01 — FRAME AND OTHER PARTS (#37754) — 118 parça

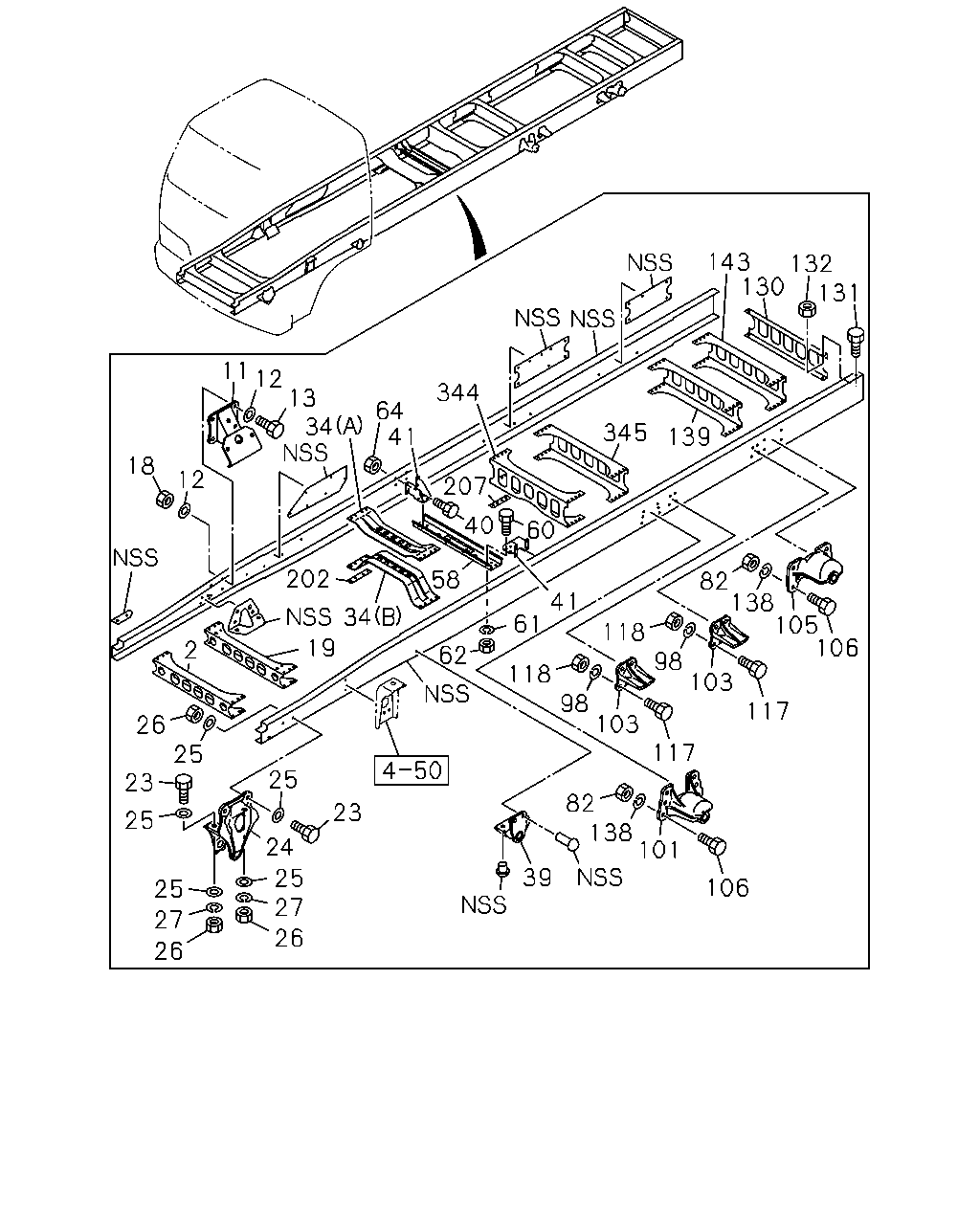

çizim 151008
143 132 130 131 11 12 13 34 344 64 41 345 139 18 12 40 60 58 82 138 105 106 202 41 2 34 61 118 98 103 19 62 118 98 103 117 26 25 117 25 23 82 138 101 23 25 24 39 25 27 106 25 27 26 26 207
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 1-53181-460-9 01 1 9510-0407 ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-892-4 01 1 0408- ● ● ● ●
11 BRACKET; ENG MTG 1-53211-195-0 02 1 9510- ● ● ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9510-9802 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 		9-92061-240-0 08 1 9510-9802 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 9803-0512 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9510-9802 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 9803-0602 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-715-9 01 1 9510-0410 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97606-307-1 01 1 0411- ● ● ● ●
23 BOLT; BRKT,SPR
M14X45 		9-92061-445-0 08 1 9510- ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-216-0 01 1 9510-9902 ● ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-53351-216-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT 1-53351-216-0 01 1 0005- ●
24 BRACKET; FRT SPR,FRT 1-53351-215-0 01 1 9510-9902 ● ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-53351-215-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT 1-53351-215-0 01 1 0005- ●
24 BRACKET; FRT SPR,FRT 1-53351-234-0 01 1 9903-0004 ● ● ●
24 BRACKET; FRT SPR,FRT
AUSTRALIA EQUIPMENT(RR3) 		1-53351-234-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT 1-53351-234-0 01 1 0005-0010 ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-234-0 01 1 0011- ● ●
24 BRACKET; FRT SPR,FRT
EXC. FRONT SPRING LONG SPAN<W36> 		1-53351-234-0 01 1 0011- ●
24 BRACKET; FRT SPR,FRT 1-53351-233-0 01 1 9903-0004 ● ● ●
24 BRACKET; FRT SPR,FRT
AUSTRALIA EQUIPMENT(RR3) 		1-53351-233-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT 1-53351-233-0 01 1 0005-0010 ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-233-0 01 1 0011- ● ●
24 BRACKET; FRT SPR,FRT
EXC. FRONT SPRING LONG SPAN<W36> 		1-53351-233-0 01 1 0011- ●
24 BRACKET; FRT SPR,FRT
FRONT SPRING LONG SPAN<W36> 		1-53351-242-0 01 1 0011- ●
24 BRACKET; FRT SPR,FRT
FRONT SPRING LONG SPAN<W36> 		1-53351-243-0 01 1 0011- ●
25 WASHER; PL,BRKT
ID=15 		9-09651-069-0 16 1 9510-1201 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1202- ● ● ● ●
26 NUT; BRKT,SPR
M14 		9-99110-514-0 08 1 9510-0512 ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0601- ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		9-09150-614-0 08 1 9510-9802 ● ● ● ●
34 MEMBER; CROSS,3RD
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53175-359-1 01 1 9803-9810 ● ●
34 MEMBER; CROSS,3RD
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (B) 		1-53175-359-1 01 1 9811-0004 ●
34 MEMBER; CROSS,3RD
DOUBLE CAB(FR**W*) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (B) 		1-53175-359-1 01 1 9811-0004 ● ●
34 MEMBER; CROSS,3RD
STD CAB(FR**M*) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (B) 		1-53175-359-1 01 1 9811-0004 ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-359-1 01 1 0005- ● ●
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 9510- ● ● ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-360-1 01 1 9510-9802 ● ● ● ●
34 MEMBER; CROSS,3RD
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-53175-360-1 01 1 9803-9810 ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-360-1 01 1 9803-9810 ● ●
34 MEMBER; CROSS,3RD
DOUBLE CAB(FR**W*) FRAME EQUIPMENT HEAVY DUTY(F03) AUSTRALIA EQUIPMENT(RR3) (B) 		1-53175-360-1 01 1 9811-0004 ● ●
34 MEMBER; CROSS,3RD
STD CAB(FR**M*) FRAME EQUIPMENT HEAVY DUTY(F03) (B) 		1-53175-360-1 01 1 9811-0004 ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY(F03) (B) 		1-53175-360-1 01 1 9811-0004 ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-360-1 01 1 0005- ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 9510- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9510-9802 ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28681-030-0 08 1 9803-0512 ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0601- ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-086-0 02 1 9510- ●
58 MEMBER; CENTER BRG 1-37529-082-0 01 1 9510- ●
60 BOLT; MBR
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9510-9802 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28681-025-0 08 1 9803-0512 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
61 WASHER; PL,MBR
ID=10.5 OD=22 		9-09164-610-0 08 1 9510-9802 ●
62 NUT; MBR
M10 		9-09110-410-0 08 1 9510-9802 ●
62 NUT; MBR
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
64 NUT; BRKT TO FRAME
M10 		9-09110-410-0 08 1 9510-9802 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
82 NUT; BRKT
M14 		9-99110-414-0 22 1 9510-0512 ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 22 1 0601- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9510-0603 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 9510- ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 9510- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 9510- ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 22 1 9510-9802 ● ● ● ●
106 BOLT; BRKT
M14X40 		0-20801-440-0 22 1 9803-0512 ● ● ● ●
106 BOLT; BRKT
M14X40 		0-20851-440-0 22 1 0601- ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9510- ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 9510-0512 ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ● ● ●
130 MEMBER; CROSS,END 1-53181-469-1 01 1 9510-9810 ● ●
130 MEMBER; CROSS,END
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-469-2 01 1 9811-0004 ●
130 MEMBER; CROSS,END
DOUBLE CAB(FR**W*) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-469-2 01 1 9811-0004 ● ●
130 MEMBER; CROSS,END
STD CAB(FR**M*) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-469-2 01 1 9811-0004 ●
130 MEMBER; CROSS,END 1-53181-469-2 01 1 0005- ● ●
130 MEMBER; CROSS,END 1-53181-516-1 01 1 9510-9810 ● ●
130 MEMBER; CROSS,END
DOUBLE CAB(FR**W*) FRAME EQUIPMENT HEAVY DUTY(F03) AUSTRALIA EQUIPMENT(RR3) 		1-53181-516-2 01 1 9811-0004 ● ●
130 MEMBER; CROSS,END
STD CAB(FR**M*) FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-516-2 01 1 9811-0004 ●
130 MEMBER; CROSS,END
FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-516-2 01 1 9811-0004 ●
130 MEMBER; CROSS,END 1-53181-516-2 01 1 0005- ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9510-9802 ● ● ● ●
131 BOLT; END C/MBR
M10X25 FLANGE 		0-28681-025-0 04 1 9803-0512 ● ● ● ●
131 BOLT; END C/MBR
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ● ●
132 NUT; END C/MBR
M10 		9-09110-410-0 04 1 9510-9802 ● ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91150-110-0 04 1 9803-0602 ● ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91180-110-0 04 1 0603- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 22 1 9510-0603 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 22 1 0604- ● ● ● ●
139 MEMBER; CROSS,6TH 1-53181-521-3 01 1 9510- ●
139 MEMBER; CROSS,6TH 1-53181-465-7 01 1 9510-9810 ● ●
139 MEMBER; CROSS,6TH
DOUBLE CAB(FR**W*) FRAME EQUIPMENT HEAVY DUTY(F03) AUSTRALIA EQUIPMENT(RR3) 		1-53181-465-9 01 1 9811-0004 ● ●
139 MEMBER; CROSS,6TH
STD CAB(FR**M*) FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-465-9 01 1 9811-0004 ●
139 MEMBER; CROSS,6TH
FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-465-9 01 1 9811-0004 ●
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 0005- ● ●
143 MEMBER; CROSS,7TH 1-53181-465-9 01 1 9606- ●
202 SPACER; 3RD C/MBR 1-53178-015-0 02 1 9510-9802 ● ● ● ●
202 SPACER; 3RD C/MBR
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-53178-015-0 02 1 9803-9810 ● ●
202 SPACER; 3RD C/MBR 1-53178-015-0 02 1 9803-9810 ● ●
202 SPACER; 3RD C/MBR
DOUBLE CAB(FR**W*) FRAME EQUIPMENT HEAVY DUTY(F03) AUSTRALIA EQUIPMENT(RR3) 		1-53178-015-0 02 1 9811-0004 ● ●
202 SPACER; 3RD C/MBR
STD CAB(FR**M*) FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53178-015-0 02 1 9811-0004 ●
202 SPACER; 3RD C/MBR
FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53178-015-0 02 1 9811-0004 ●
202 SPACER; 3RD C/MBR 1-53178-015-0 02 1 0005- ● ●
207 SPACER; 4TH C/MBR
T=7.0 		1-53168-321-0 02 1 9606- ●
344 MEMBER; CROSS,4TH 1-53181-520-8 01 1 9510- ●
344 MEMBER; CROSS,4TH 1-53181-463-3 01 1 9510- ● ●
344 MEMBER; CROSS,4TH 1-53181-604-3 01 1 9606- ●
345 MEMBER; CROSS,5TH 1-53181-521-3 01 1 9510- ●
345 MEMBER; CROSS,5TH 1-53181-520-8 01 1 9510- ●
345 MEMBER; CROSS,5TH 1-53181-465-9 01 1 9510- ●
345 MEMBER; CROSS,5TH 1-53181-604-3 01 1 9606- ●
