4-60 — REAR SUSPENSION (#37751) — 51 parça

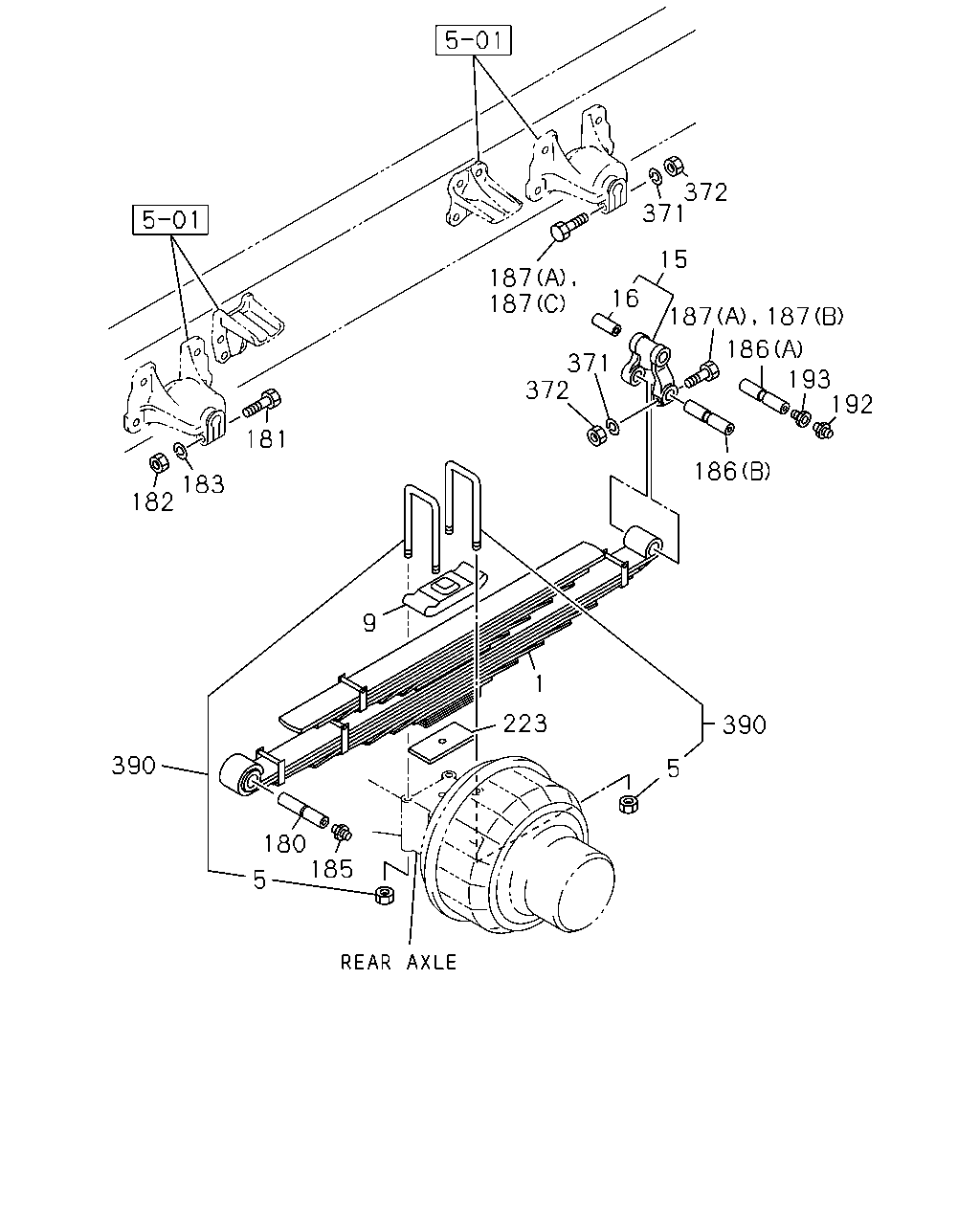

çizim 151363
372 371 15 187 187 16 187 187 186 193 192 371 372 181 186 183 182 9 1 223 390 390 5 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF 		1-51300-362-3 02 1 9510-0004 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF 		1-51300-362-3 02 1 0005- ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 9510-0004 ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0005- ●
9 PAD; U BOLT,RR SPR 1-51372-059-0 02 1 9510-0004 ● ●
9 PAD; U BOLT,RR SPR 1-51372-059-0 02 1 0005- ●
15 SHACKLE; RR SPR 1-51362-038-1 02 1 9510-0004 ● ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 0005- ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 9510-0004 ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 0005-0902 ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 0903- ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 9510-0004 ● ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 0005- ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 9510-9801 ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 9802-0004 ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 0005- ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 9510-9801 ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 9802-0004 ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 0005-0512 ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 02 1 0601- ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-612-0 02 1 9510-9801 ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-612-0 02 1 9802-0004 ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-612-0 02 1 0005-0603 ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 0604- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9510-0004 ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
186 PIN; SHACKLE,RR SPR
(A) DO=25 L=115 PT1/8 		1-51361-016-0 02 1 9510-0004 ● ●
186 PIN; SHACKLE,RR SPR
(A) DO=25 L=115 PT1/8 		1-51361-016-0 02 1 0005- ●
186 PIN; SHACKLE,RR SPR
(B) DO=25 L=115 M12 		1-51361-017-0 02 1 9510-0004 ● ●
186 PIN; SHACKLE,RR SPR
(B) DO=25 L=115 M12 		1-51361-017-0 02 1 0005- ●
187 BOLT; SPR & SHACKLE
(A) M12X65 		0-10811-265-0 04 1 9510-9701 ● ●
187 BOLT; SPR & SHACKLE
(B) M12X65 		0-10811-265-0 02 1 9702-0004 ● ●
187 BOLT; SPR & SHACKLE
(B) M12X65 		0-10811-265-0 02 1 0005- ●
187 BOLT; SPR & SHACKLE
(C) M12X55 		0-10811-255-0 02 1 9702-0004 ● ●
187 BOLT; SPR & SHACKLE
(C) M12X55 		0-10811-255-0 02 1 0005- ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9510-0004 ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 02 1 9510-0004 ● ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 02 1 0005- ●
223 SPACER; U BOLT,RR SPR 1-51377-329-1 02 1 9510-0004 ● ●
223 SPACER; U BOLT,RR SPR 1-51377-329-1 02 1 0005- ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 9510-0004 ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 0005-0603 ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0604- ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 9510-0004 ● ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 0005-0512 ●
372 NUT; SHACKLE
M12 		0-91110-512-0 04 1 0601- ●
390 U-BOLT SET; RR SPRING
L=405 		1-87870-353-0 04 1 9510-0004 ● ●
390 U-BOLT SET; RR SPRING
L=405 		1-87870-353-0 04 1 0005- ●
