◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#37749) — 83 parça

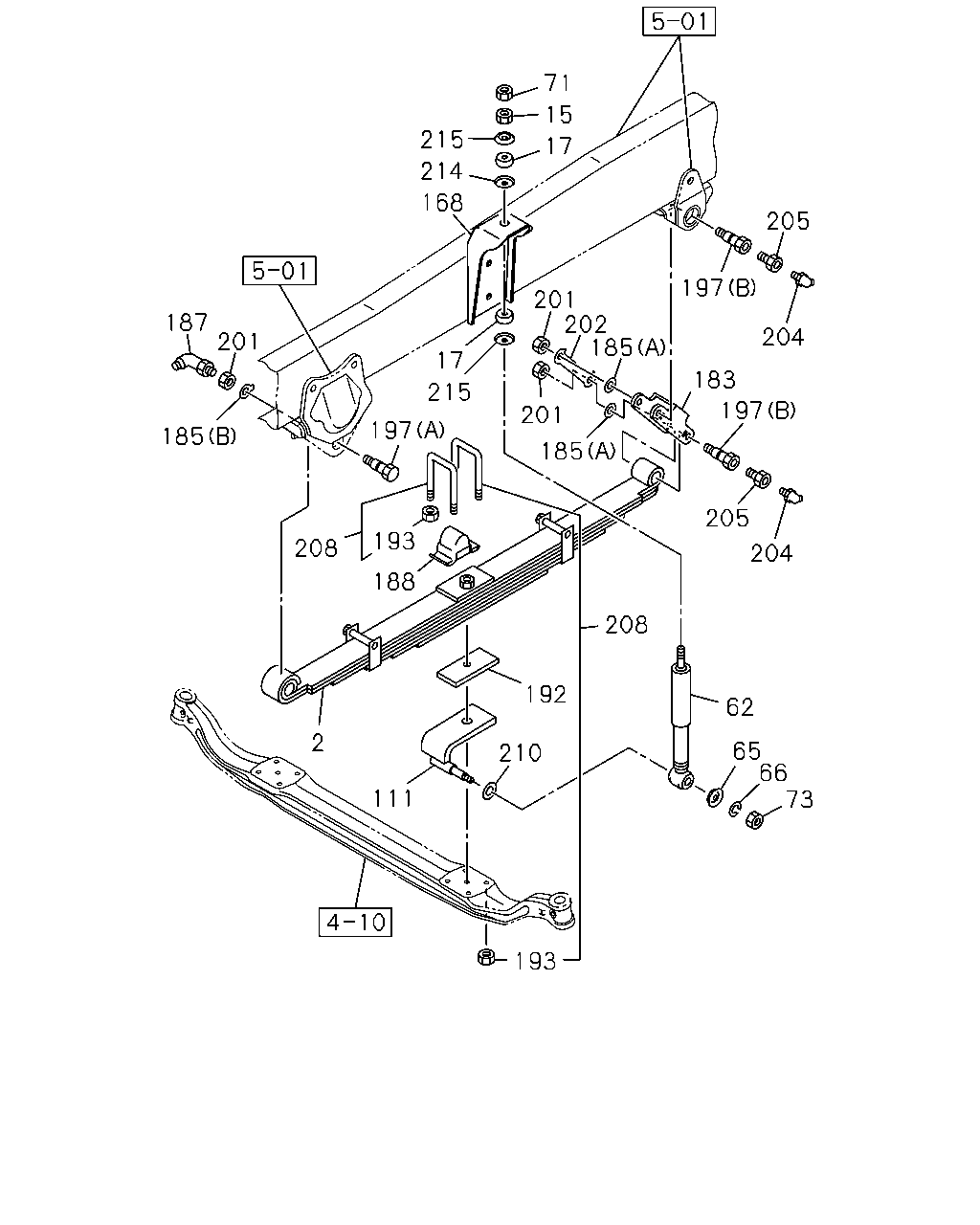

çizim 151009
71 15 215 17 214 168 205 197 201 202 185 187 201 204 17 183 215 197 201 197 185 185 205 193 208 204 188 208 192 62 2 65 66 73 210 111 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> 4-LEAF 		1-51130-531-0 02 1 0011- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-266-0 02 1 9510-0004 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-266-0 02 1 0005-0010 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> 8-LEAF 		1-51130-266-0 02 1 0011-0207 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> 8-LEAF 		1-51130-110-0 02 1 0208- ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91150-110-0 02 1 9510-9608 ● ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91150-210-0 02 1 9609-0004 ● ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 9510-0004 ● ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 0005- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-381-0 02 1 9510-0004 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-381-0 02 1 0005-0308 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-838-0 02 1 0309- ●
65 WASHER; S/ABS
ID=17 		9-09164-516-0 02 1 9510-0004 ● ●
65 WASHER; S/ABS
ID=17 		9-09164-516-0 02 1 0005- ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		9-09150-512-0 02 1 9510-0004 ● ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		9-09150-512-0 02 1 0005-0603 ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		0-91510-512-0 02 1 0604- ●
71 NUT; LK,S/ABS,UPR
M10 		9-09111-410-0 02 1 9510-0004 ● ●
71 NUT; LK,S/ABS,UPR
M10 		9-09111-410-0 02 1 0005-0512 ●
71 NUT; LK,S/ABS,UPR
M10 		0-91111-510-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9510-0004 ● ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 0005-0512 ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 0601-0601 ●
73 NUT; BRKT,SHOCK
M12 		0-91110-512-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-742-0 01 1 9510-0004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-742-0 01 1 0005- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-741-0 01 1 9510-0004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-741-0 01 1 0005- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-494-0 02 1 9510-0004 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-494-0 02 1 0005- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9510-0004 ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0005- ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9510-0004 ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 0005-0910 ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0911- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9510-0004 ● ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 0005-0910 ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0911- ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-0004 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9510-0004 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 0005- ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 01 1 9510-0004 ● ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 01 1 0005- ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9510-0004 ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 0005-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-0706 ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0707- ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9510-0004 ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 0005-0911 ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0912- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9510-0004 ● ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 0005-0911 ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0912- ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9510-0004 ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 0005-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9510-0004 ● ●
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 0005-0910 ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0911- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9510-0004 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9510-0004 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0005- ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> L=150 		1-87870-423-0 04 1 0011-0503 ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> L=150 		1-87870-448-0 04 1 0504-0706 ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> L=150 		1-87870-466-0 04 1 0707- ●
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-350-0 04 1 9510-0004 ● ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-407-0 04 1 0005-0010 ●
208 U-BOLT SET; FRT SPRING
EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> L=165 		1-87870-407-0 04 1 0011-0503 ●
208 U-BOLT SET; FRT SPRING
EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> L=165 		1-87870-447-0 04 1 0504-0706 ●
208 U-BOLT SET; FRT SPRING
EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> L=165 		1-87870-483-0 04 1 0707- ●
210 WASHER; S/ABS,OUTER
ID=12.5 OD=26 		9-09164-612-0 02 1 9510-9612 ● ●
210 WASHER; S/ABS,OUTER
ID=12.5 		1-09503-171-0 02 1 9701-0004 ● ●
210 WASHER; S/ABS,OUTER
ID=12.5 		1-09503-171-0 02 1 0005- ●
214 WASHER; S/ABS,UPR,INNER 1-51631-023-0 02 1 9510-0004 ● ●
214 WASHER; S/ABS,UPR,INNER 1-51631-023-0 02 1 0005- ●
215 WASHER; S/ABS,UPR,OUTER
ID=10.5 OD=40 T=3.2 		9-09651-094-0 04 1 9510-0004 ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=10.5 OD=40 T=3.2 		9-09651-094-0 04 1 0005- ●
