◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#37747) — 97 parça

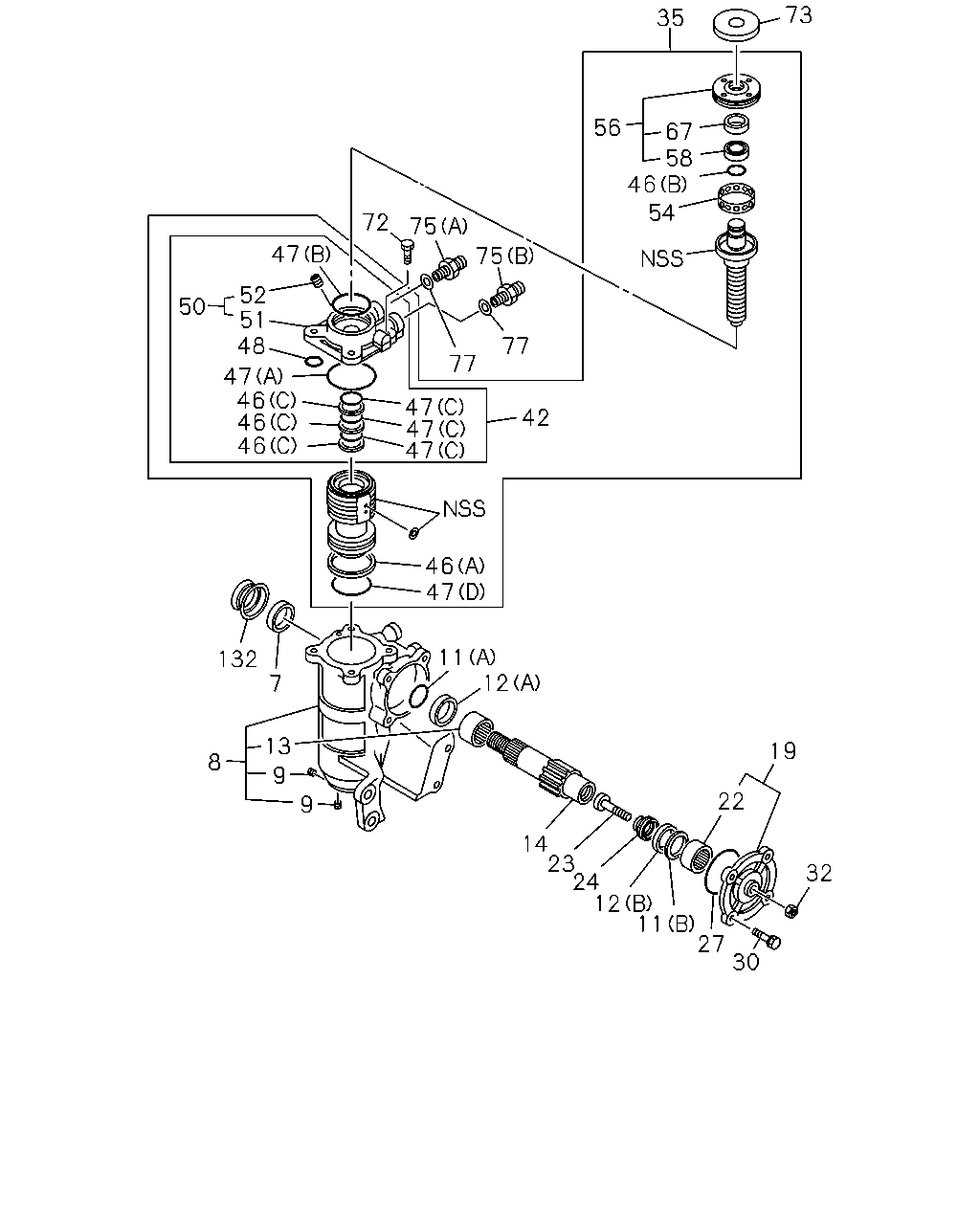

çizim 150978
73 35 56 67 58 46 54 72 75 75 47 52 51 48 50 77 77 47 46 46 46 47 47 47 42 46 47 11 12 32 7 13 19 8 9 22 9 14 23 24 12 11 27 30 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1 		1-44240-094-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44240-133-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-162-1 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44260-027-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1 		1-44519-164-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44150-052-2 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44159-062-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		9-89970-787-0 02 1 -

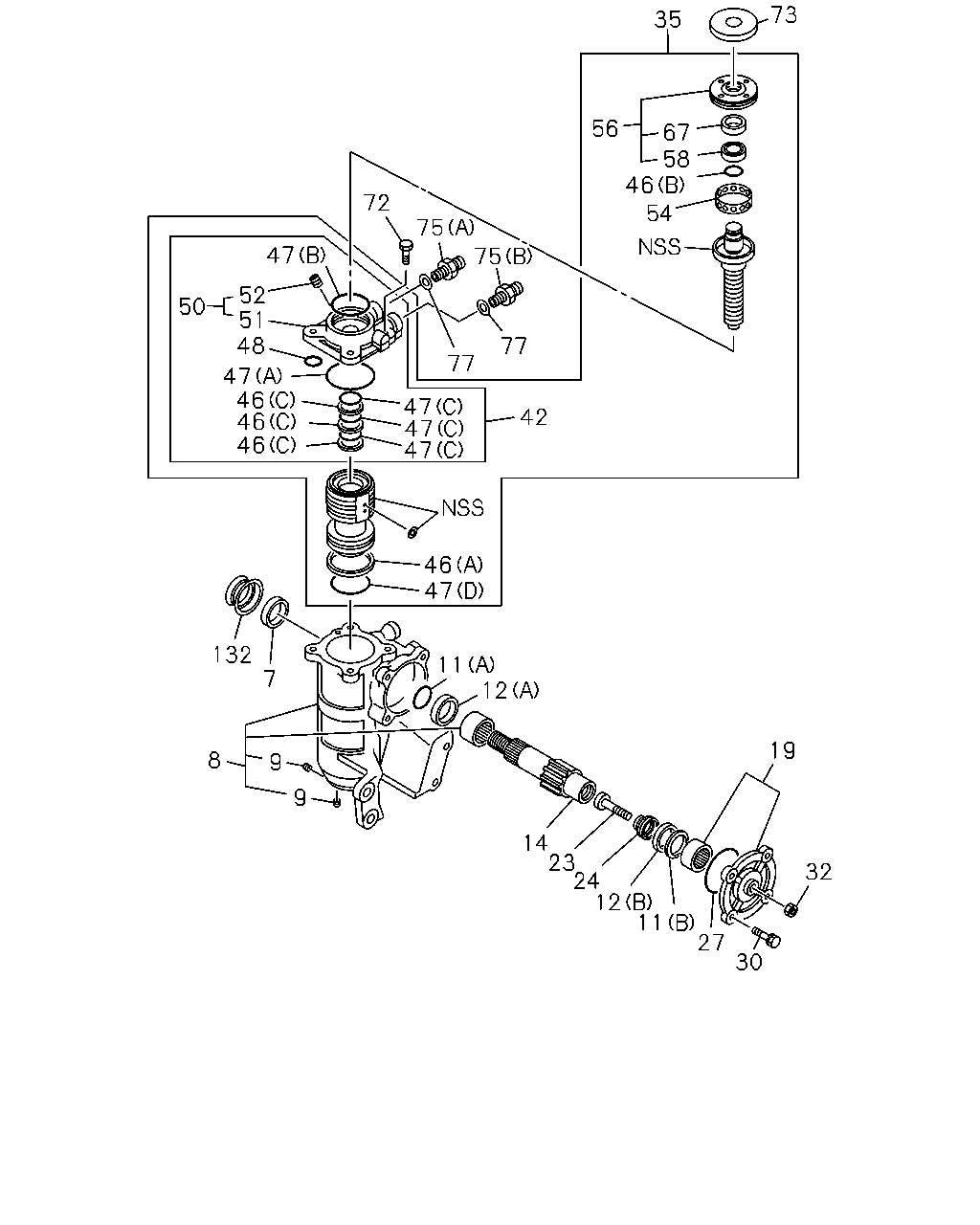

çizim 150982
73 35 56 67 58 46 54 72 75 75 47 52 51 48 50 77 77 47 46 46 46 47 47 47 42 46 47 132 11 12 7 19 8 9 9 14 23 24 12 11 27 32 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1 		1-44240-094-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44240-133-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-162-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44260-027-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44150-052-2 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44159-062-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44159-119-0 01 1 -

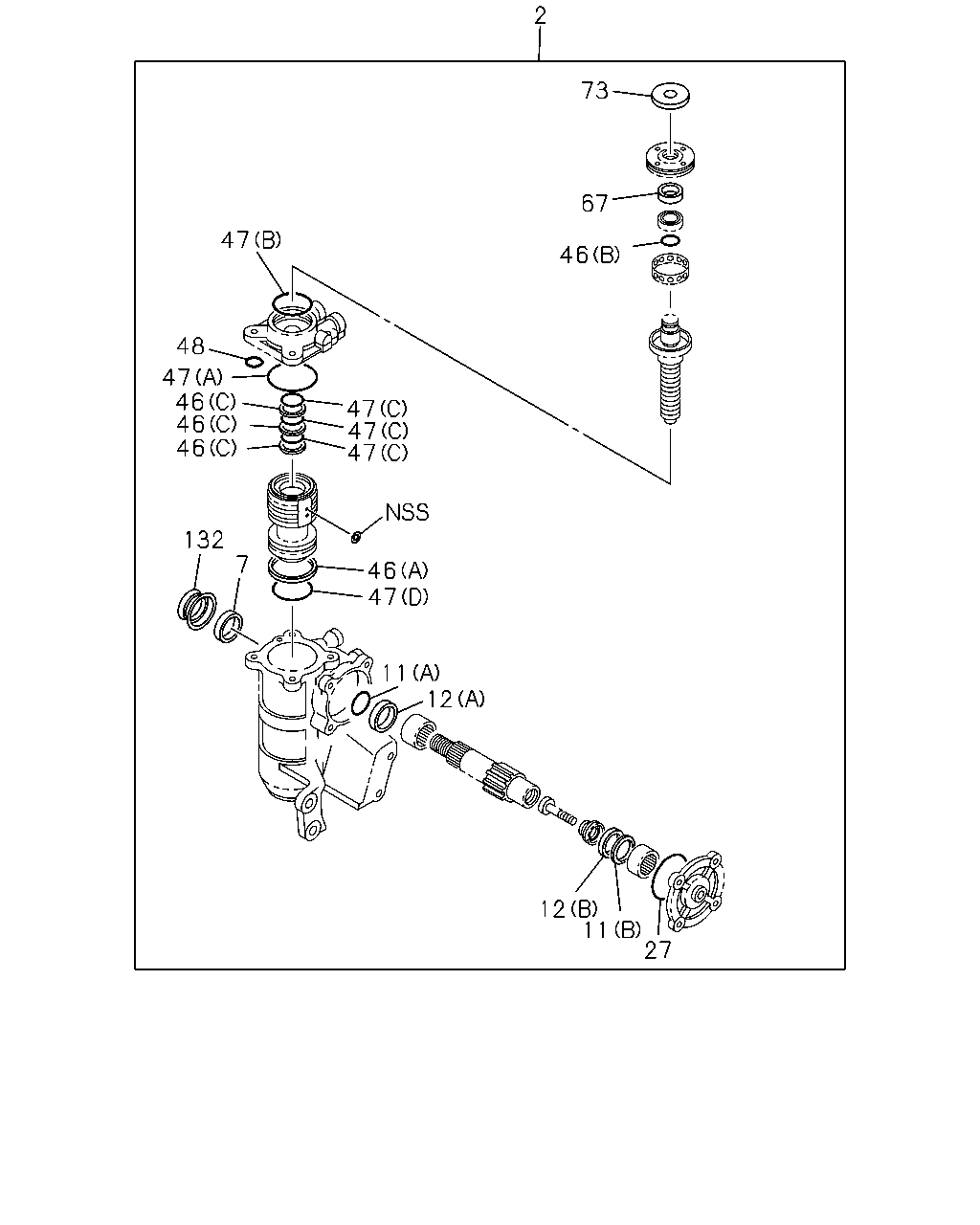

çizim 151426
2 73 67 47 46 48 47 46 46 46 47 47 47 132 7 46 47 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-85574-043-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44159-062-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-838-1, C = 1-44000-884-2 		1-44159-119-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
