Sayfa 4-36 - Isuzu EPC

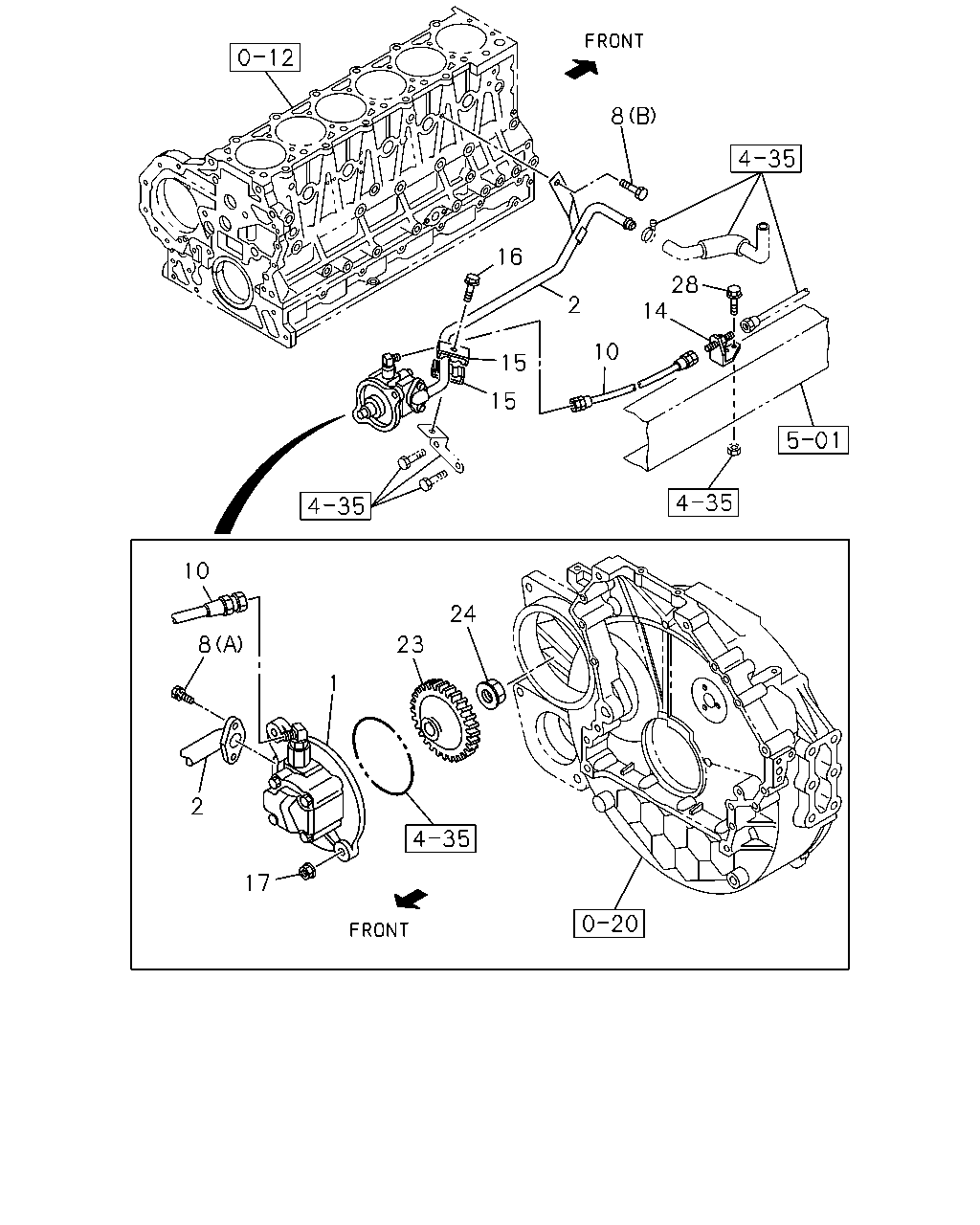

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#37746) — 138 parça

24 23 1 15 7 15 14 28 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	1-19500-538-2	01	1	0011-	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	9510-0004	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-19500-465-0	01	1	0005-0007	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	1-19500-465-0	01	1	0005-0007	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	0008-0109	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-19500-465-0	01	1	0110-0202	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	1-19500-465-0	01	1	0110-0202	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-19500-589-0	01	1	0203-0512	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	1-19500-589-0	01	1	0203-0512	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L)	1-19500-589-1	01	1	0601-1112	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	1-19500-589-1	01	1	0601-1112	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L)	8-98202-666-0	01	1	1201-	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-98202-666-0	01	1	1201-	●
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	9510-0004	●	●
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	0005-0109	●
7	BOLT; OIL PUMP,P/S 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) M10X55 FLANGE	8-94399-863-1	02	1	0110-0512	●
7	BOLT; OIL PUMP,P/S 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	02	1	0110-0512	●
7	BOLT; OIL PUMP,P/S 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) M10X55 FLANGE	8-94399-863-1	02	1	0601-0805	●
7	BOLT; OIL PUMP,P/S 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	02	1	0601-0805	●
7	BOLT; OIL PUMP,P/S 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) M10X55 FLANGE	8-97365-449-0	02	1	0806-	●
7	BOLT; OIL PUMP,P/S 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-97365-449-0	02	1	0806-	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) L=860	1-09365-288-0	01	1	0601-	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) L=460	1-09365-026-0	01	1	0011-	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=810	1-09364-808-2	01	1	9510-9802	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=820	1-09364-931-0	01	1	9803-0004	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=820	1-09365-128-0	01	1	0005-0010	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) L=820	1-09365-128-0	01	1	0011-	●
10	HOSE; FLEX,P/S OIL PUMP,INL EXC. NEW ZEALAND EQUIPMENT(PK5) L=820	1-09365-128-0	01	1	0011-	●
14	UNION; FLEX HOSE,P/S 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-47470-654-0	01	1	0601-	●
14	UNION; FLEX HOSE,P/S 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-47470-552-0	01	1	0011-	●
14	UNION; FLEX HOSE,P/S	1-47470-315-2	01	1	9510-9802	●	●
14	UNION; FLEX HOSE,P/S	1-47470-463-1	01	1	9803-0004	●	●
14	UNION; FLEX HOSE,P/S	1-47470-463-1	01	1	0005-0010	●
14	UNION; FLEX HOSE,P/S 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-47470-463-1	01	1	0011-	●
14	UNION; FLEX HOSE,P/S EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47470-463-1	01	1	0011-	●
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	1-09701-210-0	02	1	0011-	●
15	CLIP; OIL PIPE SUCTION ID=32	1-09704-085-0	02	1	9510-0004	●	●
15	CLIP; OIL PIPE SUCTION 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ID=32	1-09704-085-0	02	1	0005-0512	●
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> ID=32	1-09704-085-0	02	1	0005-0512	●
15	CLIP; OIL PIPE SUCTION 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) ID=32	1-09704-085-0	02	1	0601-	●
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> ID=32	1-09704-085-0	02	1	0601-	●
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> Z=30	8-94390-842-1	01	1	0011-	●
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	9510-0004	●	●
23	GEAR; OIL PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) Z=30	8-94396-957-3	01	1	0005-0512	●
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> Z=30	8-94396-957-3	01	1	0005-0512	●
23	GEAR; OIL PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) Z=30	8-94396-957-3	01	1	0601-	●
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> Z=30	8-94396-957-3	01	1	0601-	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M12 FLANGE	0-91150-112-0	01	1	0011-0602	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M12 FLANGE	0-91180-112-0	01	1	0603-	●
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91150-114-0	01	1	9510-0004	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) M14 FLANGE	0-91150-114-0	01	1	0005-0512	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> M14 FLANGE	0-91150-114-0	01	1	0005-0512	●
24	NUT; GEAR,P/S PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) M14 FLANGE	0-91150-114-0	01	1	0601-0712	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> M14 FLANGE	0-91150-114-0	01	1	0601-0712	●
24	NUT; GEAR,P/S PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) M14 FLANGE	0-91180-114-0	01	1	0801-	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> M14 FLANGE	0-91180-114-0	01	1	0801-	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	02	1	0011-0512	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28680-820-0	02	1	9802-0004	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28680-820-0	02	1	0005-0010	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	02	1	0011-0512	●
28	BOLT; BRKT,FLEX HOSE,P/S EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	02	1	0011-0512	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	02	1	0601-0601	●
28	BOLT; BRKT,FLEX HOSE,P/S EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	02	1	0601-0601	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
28	BOLT; BRKT,FLEX HOSE,P/S EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●

8 16 28 14 2 10 15 15 10 24 8 23 1 2 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	1-19500-538-2	01	1	0011-	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	9510-0004	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-19500-465-0	01	1	0005-0007	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	1-19500-465-0	01	1	0005-0007	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	0008-0109	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-19500-465-0	01	1	0110-0202	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	1-19500-465-0	01	1	0110-0202	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-19500-589-0	01	1	0203-0512	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	1-19500-589-0	01	1	0203-0512	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L)	1-19500-589-1	01	1	0601-1112	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	1-19500-589-1	01	1	0601-1112	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L)	8-98202-666-0	01	1	1201-	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-98202-666-0	01	1	1201-	●
2	PIPE ASM; OIL,SUCTION 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	8-97600-079-1	01	1	0011-0207	●
2	PIPE ASM; OIL,SUCTION 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	8-97602-615-0	01	1	0208-	●
8	BOLT; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	01	1	0011-0512	●
8	BOLT; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
8	BOLT; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE	0-28080-830-0	02	1	0011-0512	●
8	BOLT; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) L=860	1-09365-288-0	01	1	0601-	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) L=460	1-09365-026-0	01	1	0011-	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=810	1-09364-808-2	01	1	9510-9802	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=820	1-09364-931-0	01	1	9803-0004	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=820	1-09365-128-0	01	1	0005-0010	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) L=820	1-09365-128-0	01	1	0011-	●
10	HOSE; FLEX,P/S OIL PUMP,INL EXC. NEW ZEALAND EQUIPMENT(PK5) L=820	1-09365-128-0	01	1	0011-	●
14	UNION; FLEX HOSE,P/S 6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5)	1-47470-654-0	01	1	0601-	●
14	UNION; FLEX HOSE,P/S 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-47470-552-0	01	1	0011-	●
14	UNION; FLEX HOSE,P/S	1-47470-315-2	01	1	9510-9802	●	●
14	UNION; FLEX HOSE,P/S	1-47470-463-1	01	1	9803-0004	●	●
14	UNION; FLEX HOSE,P/S	1-47470-463-1	01	1	0005-0010	●
14	UNION; FLEX HOSE,P/S 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-47470-463-1	01	1	0011-	●
14	UNION; FLEX HOSE,P/S EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47470-463-1	01	1	0011-	●
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN>	1-09701-210-0	02	1	0011-	●
15	CLIP; OIL PIPE SUCTION ID=32	1-09704-085-0	02	1	9510-0004	●	●
15	CLIP; OIL PIPE SUCTION 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ID=32	1-09704-085-0	02	1	0005-0512	●
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> ID=32	1-09704-085-0	02	1	0005-0512	●
15	CLIP; OIL PIPE SUCTION 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) ID=32	1-09704-085-0	02	1	0601-	●
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> ID=32	1-09704-085-0	02	1	0601-	●
16	BOLT; STAY,P/S OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M6X45 FLANGE	0-28080-645-0	01	1	0011-0512	●
16	BOLT; STAY,P/S OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M6X45 FLANGE	0-28050-645-0	01	1	0601-	●
17	NUT; POWER STRG PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91150-110-0	02	1	0011-0602	●
17	NUT; POWER STRG PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91180-110-0	02	1	0603-	●
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> Z=30	8-94390-842-1	01	1	0011-	●
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	9510-0004	●	●
23	GEAR; OIL PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) Z=30	8-94396-957-3	01	1	0005-0512	●
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> Z=30	8-94396-957-3	01	1	0005-0512	●
23	GEAR; OIL PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) Z=30	8-94396-957-3	01	1	0601-	●
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> Z=30	8-94396-957-3	01	1	0601-	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M12 FLANGE	0-91150-112-0	01	1	0011-0602	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> M12 FLANGE	0-91180-112-0	01	1	0603-	●
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91150-114-0	01	1	9510-0004	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) M14 FLANGE	0-91150-114-0	01	1	0005-0512	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> M14 FLANGE	0-91150-114-0	01	1	0005-0512	●
24	NUT; GEAR,P/S PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) M14 FLANGE	0-91150-114-0	01	1	0601-0712	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> M14 FLANGE	0-91150-114-0	01	1	0601-0712	●
24	NUT; GEAR,P/S PUMP 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L),6HK1 TCC ENG(81L) M14 FLANGE	0-91180-114-0	01	1	0801-	●
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> M14 FLANGE	0-91180-114-0	01	1	0801-	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	02	1	0011-0512	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28680-820-0	02	1	9802-0004	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28680-820-0	02	1	0005-0010	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	02	1	0011-0512	●
28	BOLT; BRKT,FLEX HOSE,P/S EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	02	1	0011-0512	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	02	1	0601-0601	●
28	BOLT; BRKT,FLEX HOSE,P/S EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	02	1	0601-0601	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
28	BOLT; BRKT,FLEX HOSE,P/S EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
