Sayfa 4-25 - Isuzu EPC

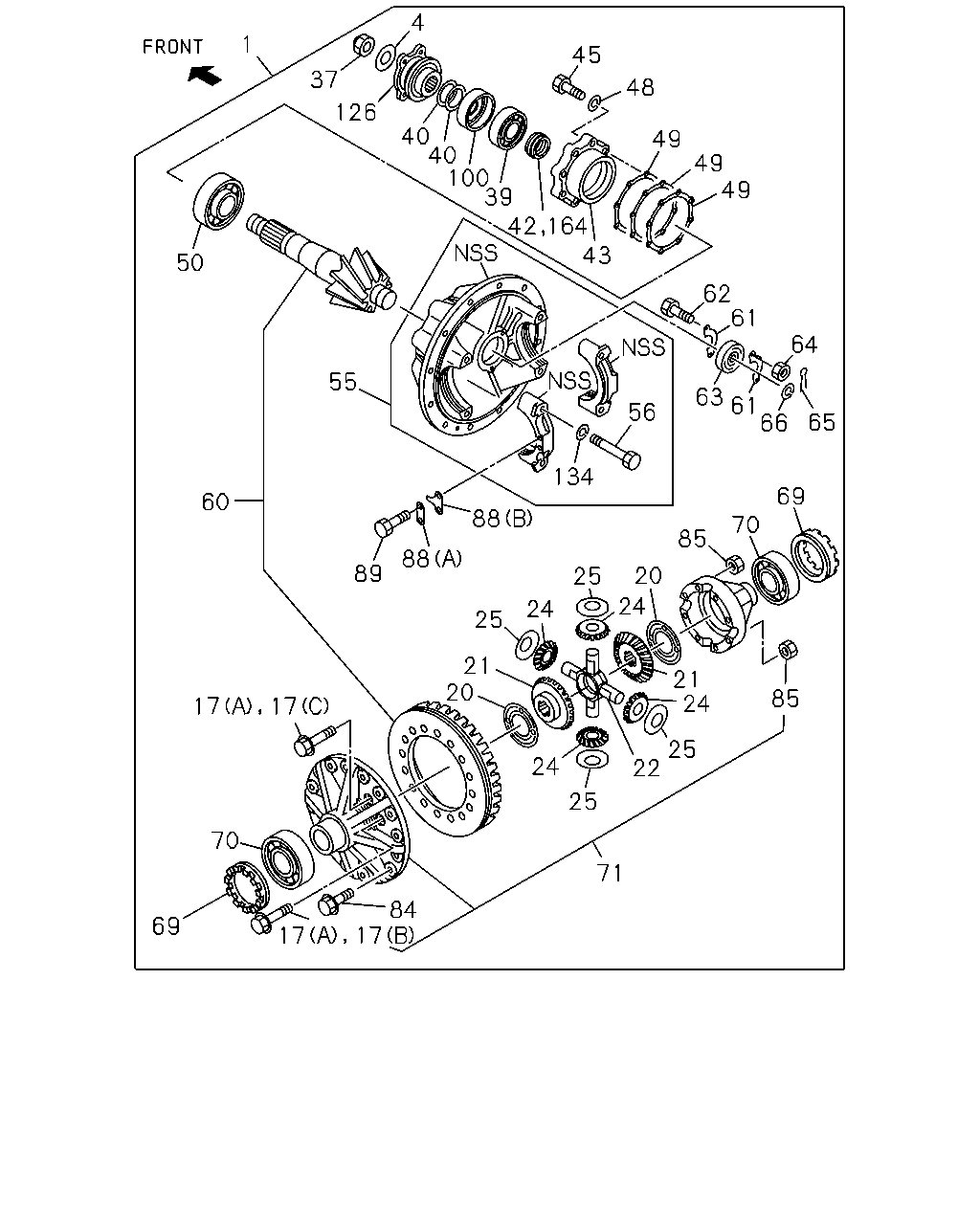

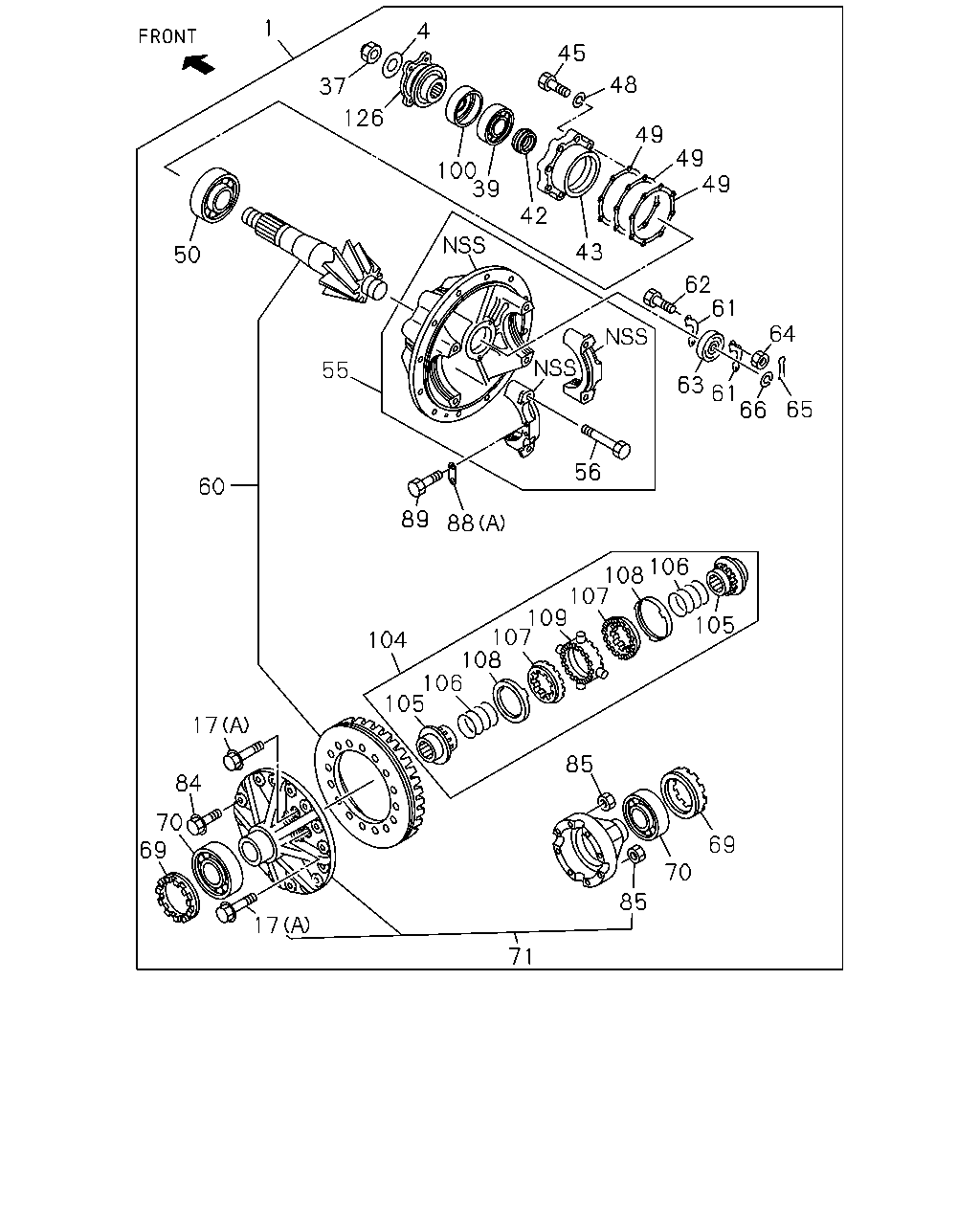

4-25 — REAR FINAL DRIVE (#37741) — 460 parça

1 4 45 48 37 126 49 49 49 100 39 42 43 50 62 61 64 55 63 61 66 65 56 60 89 88 106 108 107 109 107 108 106 105 105 104 17 85 84 70 69 69 70 85 17 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR 39/9	1-41001-684-0	01	1	0601-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/8	1-41001-579-0	01	1	9510-9609		●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) LIMITED SLIP DIFF(G86) 38/8	1-41001-579-0	01	1	9610-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/8	1-41001-461-0	01	1	9510-9609		●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) EXC. LIMITED SLIP DIFF(G86) 38/8	1-41001-461-0	01	1	9610-		●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) LIMITED SLIP DIFF(G86) 38/8	1-41001-583-0	01	1	9702-		●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) EXC. LIMITED SLIP DIFF(G86) 38/8	1-41001-326-0	01	1	9702-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/7	1-41001-577-0	01	1	9510-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41001-463-0	01	1	9510-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/9	1-41001-580-0	01	1	9510-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41001-460-0	01	1	9510-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41001-578-0	01	1	9510-9609					●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) LIMITED SLIP DIFF(G86) 41/8	1-41001-578-0	01	1	9610-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-462-0	01	1	9510-9609					●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-462-0	01	1	9610-					●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) LIMITED SLIP DIFF(G86) 41/8	1-41001-582-0	01	1	9702-					●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-374-0	01	1	9702-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/9	1-41001-769-0	01	1	9510-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41001-723-0	01	1	9510-						●
1	DRIVE ASM; FINAL,RR 39/9	1-41001-684-0	01	1	9807-0004	●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	0601-	●
4	GASKET; FLANGE,FINAL PINION ID=35.7 T=5	1-09623-379-0	01	1	9510-		●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9807-0004	●
17	BOLT; DIFF CAGE SETTING (B) M14X121 FLANGE	1-09044-006-0	04	1	0601-	●
17	BOLT; DIFF CAGE SETTING (C) M14X95 FLANGE	1-09044-007-0	04	1	0601-	●
17	BOLT; DIFF CAGE SETTING (A) M14X100	1-09070-006-0	08	1	9510-		●		●		●
17	BOLT; DIFF CAGE SETTING (A) M14X85	1-09044-023-0	08	1	9510-			●		●
17	BOLT; DIFF CAGE SETTING (B) M14X121 FLANGE	1-09044-006-0	04	1	9807-0004	●
17	BOLT; DIFF CAGE SETTING (C) M14X95 FLANGE	1-09044-007-0	04	1	9807-0004	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	0601-0804	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0805-	●
37	NUT; DRIVING PINION M30 FLANGE	1-09449-066-1	01	1	9510-		●	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9807-0004	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1001-	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9510-9806		●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9807-0004	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0005-0512		●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0601-1001	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1002-	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=15.75	1-41219-004-0	01	1	9510-		●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	0601-	●
43	CAGE; FINAL PINION	1-41151-021-0	01	1	9510-9610		●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-063-0	01	1	9611-		●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9807-0004	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9510-9806		●	●	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9807-0004	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0005-0512		●	●	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0601-	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9510-9806		●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9807-0004	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0005-0512		●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0601-0603	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9510-9806		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9807-0004	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0005-0512		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0601-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9510-9806		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9807-0004	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0005-0512		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0601-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9510-9806		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9807-0004	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0005-0512		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0601-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9510-9806		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9807-0004	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0005-0512		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0601-	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9510-9806		●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9807-0004	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0005-0512		●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0601-	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	0601-1006	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1007-	●
55	CARRIER; DIFF	1-41110-088-1	01	1	9510-9610		●	●	●	●	●
55	CARRIER; DIFF	1-41110-105-0	01	1	9611-		●	●	●	●	●
55	CARRIER; DIFF	1-41110-048-0	01	1	9807-0004	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0601-	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	9510-		●	●	●	●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9807-0004	●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41210-210-5	01	1	0005-1509			●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	0601-	●
60	GEAR SET; FINAL DRIVE,RR 38/8	1-41210-212-5	01	1	9510-9611		●
60	GEAR SET; FINAL DRIVE,RR 38/8	1-41210-501-0	01	1	9612-		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-210-5	01	1	9510-9611			●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-529-0	01	1	9612-0004			●
60	GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF(G86) 38/7	1-41210-529-0	01	1	0005-1509			●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-529-0	01	1	1510-			●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-247-5	01	1	9510-9611				●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-527-0	01	1	9612-				●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-260-5	01	1	9510-9611					●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-528-0	01	1	9612-					●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-494-0	01	1	9510-9611						●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-523-0	01	1	9612-						●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	9807-0004	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0601-	●
61	RETAINER; PILOT BRG,PINION	9-41227-006-0	02	1	9510-		●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9807-0004	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9510-9806		●	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9807-0004	●	●	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	0005-0512		●	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	0601-0804	●	●	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0805-	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	0601-	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	0601-	●
63	BEARING; PINION PILOT NSK	1-09810-062-1	01	1	9510-		●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-063-2	01	1	9510-		●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9807-0004	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9807-0004	●
64	NUT; RET M8	9-09117-408-0	02	1	9510-9707		●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-9806		●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9807-0004	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0005-0512		●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-0601		●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9510-9806		●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9807-0004	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0005-0512		●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0601-0805	●	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	0601-1109	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1110-	●
66	RING; SNAP,PILOT BRG OD=32.2	1-09588-065-2	01	1	9510-		●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9807-0004	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	0601-	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	0601-	●
69	NUT; ADJ,DIFF CAGE M115 H=26	1-41121-028-0	01	1	9510-		●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-030-0	01	1	9510-9708		●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	01	1	9709-		●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9807-0004	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9807-0004	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	0601-	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	0601-	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	0601-	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	0601-0704	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	9510-		●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9807-0004	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9807-0004	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	9911-0004	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-1	01	1	9911-0004	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	0601-1006	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1007-	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-222-0	01	1	9510-9610		●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-230-0	01	1	9611-0105		●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-301-0	01	1	0106-		●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-207-0	01	1	9510-9610			●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-240-0	01	1	9611-0105			●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-298-0	01	1	0106-			●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9807-0004	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0601-	●
84	BOLT; FINAL DRIVE GEAR M14X29.5 FLANGE	1-09070-085-0	16	1	9510-		●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9807-0004	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9510-9806		●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9807-0004	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	0005-0512		●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	0601-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0601-	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	9510-9806		●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	9807-0004	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	0005-0512		●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	0601-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9807-0004	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9510-9806		●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9807-0004	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0005-0512		●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-0601		●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9510-9806		●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9807-9908	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-0004	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0005-0512		●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0601-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9510-9806		●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9807-0004	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0005-0512		●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0601-	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-042-0	01	1	9510-		●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-039-0	02	1	9510-		●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-09580-313-0	02	1	9510-		●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41539-008-0	02	1	9510-		●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-009-0	02	1	9510-		●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-010-0	01	1	9510-		●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-067-4	01	1	9510-9701		●	●	●	●	●
126	COUPLING; DRIVING PINION P30 PROP SHAFT(B2F)	1-37245-067-4	01	1	9702-		●			●
126	COUPLING; DRIVING PINION	1-37245-067-4	01	1	9702-			●	●		●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-069-5	01	1	9702-9806		●			●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-069-6	01	1	9807-0004	●	●			●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-069-6	01	1	0005-0512		●			●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-069-6	01	1	0601-		●			●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	0601-	●

4 1 45 37 48 126 40 40 100 39 49 49 49 43 50 62 61 64 55 63 61 66 56 65 134 69 60 88 70 85 88 89 20 25 24 24 25 21 20 21 24 85 17 17 25 22 24 25 70 71 84 17 69 17 42 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR 39/9	1-41001-684-0	01	1	0601-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/8	1-41001-579-0	01	1	9510-9609		●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) LIMITED SLIP DIFF(G86) 38/8	1-41001-579-0	01	1	9610-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/8	1-41001-461-0	01	1	9510-9609		●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) EXC. LIMITED SLIP DIFF(G86) 38/8	1-41001-461-0	01	1	9610-		●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) LIMITED SLIP DIFF(G86) 38/8	1-41001-583-0	01	1	9702-		●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) EXC. LIMITED SLIP DIFF(G86) 38/8	1-41001-326-0	01	1	9702-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/7	1-41001-577-0	01	1	9510-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41001-463-0	01	1	9510-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/9	1-41001-580-0	01	1	9510-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41001-460-0	01	1	9510-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41001-578-0	01	1	9510-9609					●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) LIMITED SLIP DIFF(G86) 41/8	1-41001-578-0	01	1	9610-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-462-0	01	1	9510-9609					●
1	DRIVE ASM; FINAL,RR P30 PROP SHAFT(B2F) EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-462-0	01	1	9610-					●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) LIMITED SLIP DIFF(G86) 41/8	1-41001-582-0	01	1	9702-					●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-374-0	01	1	9702-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/9	1-41001-769-0	01	1	9510-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41001-723-0	01	1	9510-						●
1	DRIVE ASM; FINAL,RR 39/9	1-41001-684-0	01	1	9807-0004	●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	0601-	●
4	GASKET; FLANGE,FINAL PINION ID=35.7 T=5	1-09623-379-0	01	1	9510-		●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9807-0004	●
17	BOLT; DIFF CAGE SETTING (B) M14X121 FLANGE	1-09044-006-0	04	1	0601-	●
17	BOLT; DIFF CAGE SETTING (C) M14X95 FLANGE	1-09044-007-0	04	1	0601-	●
17	BOLT; DIFF CAGE SETTING (A) M14X100	1-09070-006-0	08	1	9510-		●		●		●
17	BOLT; DIFF CAGE SETTING (A) M14X85	1-09044-023-0	08	1	9510-			●		●
17	BOLT; DIFF CAGE SETTING (B) M14X121 FLANGE	1-09044-006-0	04	1	9807-0004	●
17	BOLT; DIFF CAGE SETTING (C) M14X95 FLANGE	1-09044-007-0	04	1	9807-0004	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	0601-	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	0601-	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	0601-	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	0601-	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	0601-	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	0601-	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	0601-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-073-0	AR	1	9510-		●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-074-0	AR	1	9510-		●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-075-0	AR	1	9510-		●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-076-0	AR	1	9510-		●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-077-0	AR	1	9510-		●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-078-0	AR	1	9510-		●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-079-0	AR	1	9510-		●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	9807-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	9807-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	9807-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	9807-0004	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	9807-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	9807-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	9807-0004	●
21	GEAR; SIDE,DIFF Z=16	1-41561-135-0	02	1	0601-0905	●
21	GEAR; SIDE,DIFF Z=16	1-41561-155-0	02	1	0906-	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-084-1	02	1	9510-1004		●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-150-0	02	1	1005-		●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-107-0	02	1	9807-0004	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	0601-	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-035-2	01	1	9510-1004		●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-062-0	01	1	1005-1309		●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-035-2	01	1	1310-		●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-050-0	01	1	9807-0004	●
24	GEAR; PINION,DIFF Z=10	1-41551-042-0	04	1	0601-0905	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	0906-	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-024-0	04	1	9510-1004		●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-050-0	04	1	1005-		●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-032-0	04	1	9807-0004	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	0601-	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86)	1-41552-020-0	04	1	9510-		●	●	●	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	9807-0004	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	0601-0804	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0805-	●
37	NUT; DRIVING PINION M30 FLANGE	1-09449-066-1	01	1	9510-		●	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9807-0004	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1001-	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9510-9806		●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9807-0004	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0005-0512		●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0601-1001	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1002-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	0601-	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9807-0004	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9807-0004	●
42	COLLAR; DIST,COLLAPSIBLE T=15.75	1-41219-004-0	01	1	9510-		●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	0601-	●
43	CAGE; FINAL PINION	1-41151-021-0	01	1	9510-9610		●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-063-0	01	1	9611-		●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9807-0004	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9510-9806		●	●	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9807-0004	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0005-0512		●	●	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0601-	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9510-9806		●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9807-0004	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0005-0512		●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0601-0603	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9510-9806		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9807-0004	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0005-0512		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0601-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9510-9806		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9807-0004	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0005-0512		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0601-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9510-9806		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9807-0004	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0005-0512		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0601-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9510-9806		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9807-0004	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0005-0512		●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0601-	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9510-9806		●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9807-0004	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0005-0512		●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0601-	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	0601-1006	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1007-	●
55	CARRIER; DIFF	1-41110-088-1	01	1	9510-9610		●	●	●	●	●
55	CARRIER; DIFF	1-41110-105-0	01	1	9611-		●	●	●	●	●
55	CARRIER; DIFF	1-41110-048-0	01	1	9807-0004	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0601-	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	9510-		●	●	●	●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9807-0004	●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41210-210-5	01	1	0005-1509			●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	0601-	●
60	GEAR SET; FINAL DRIVE,RR 38/8	1-41210-212-5	01	1	9510-9611		●
60	GEAR SET; FINAL DRIVE,RR 38/8	1-41210-501-0	01	1	9612-		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-210-5	01	1	9510-9611			●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-529-0	01	1	9612-0004			●
60	GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF(G86) 38/7	1-41210-529-0	01	1	0005-1509			●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-529-0	01	1	1510-			●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-247-5	01	1	9510-9611				●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-527-0	01	1	9612-				●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-260-5	01	1	9510-9611					●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-528-0	01	1	9612-					●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-494-0	01	1	9510-9611						●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-523-0	01	1	9612-						●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	9807-0004	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0601-	●
61	RETAINER; PILOT BRG,PINION	9-41227-006-0	02	1	9510-		●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9807-0004	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9510-9806		●	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9807-0004	●	●	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	0005-0512		●	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	0601-0804	●	●	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0805-	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	0601-	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	0601-	●
63	BEARING; PINION PILOT NSK	1-09810-062-1	01	1	9510-		●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-063-2	01	1	9510-		●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9807-0004	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9807-0004	●
64	NUT; RET M8	9-09117-408-0	02	1	9510-9707		●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-9806		●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9807-0004	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0005-0512		●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-0601		●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9510-9806		●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9807-0004	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0005-0512		●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0601-0805	●	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	0601-1109	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1110-	●
66	RING; SNAP,PILOT BRG OD=32.2	1-09588-065-2	01	1	9510-		●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9807-0004	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	0601-	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	0601-	●
69	NUT; ADJ,DIFF CAGE M115 H=26	1-41121-028-0	01	1	9510-		●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-030-0	01	1	9510-9708		●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	01	1	9709-		●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9807-0004	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9807-0004	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	0601-	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	0601-	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	0601-	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	0601-0704	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	9510-		●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9807-0004	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9807-0004	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	9911-0004	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-1	01	1	9911-0004	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	0601-1006	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1007-	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-222-0	01	1	9510-9610		●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-230-0	01	1	9611-0105		●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-301-0	01	1	0106-		●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-207-0	01	1	9510-9610			●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-240-0	01	1	9611-0105			●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-298-0	01	1	0106-			●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9807-0004	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0601-	●
84	BOLT; FINAL DRIVE GEAR M14X29.5 FLANGE	1-09070-085-0	16	1	9510-		●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9807-0004	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9510-9806		●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9807-0004	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	0005-0512		●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	0601-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0601-	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	9510-9806		●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	9807-0004	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	0005-0512		●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	0601-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9807-0004	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9510-9806		●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9807-0004	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0005-0512		●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-0601		●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9510-9806		●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9807-9908	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-0004	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0005-0512		●	●	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0601-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9510-9806		●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9807-0004	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0005-0512		●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0601-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-067-4	01	1	9510-9701		●	●	●	●	●
126	COUPLING; DRIVING PINION P30 PROP SHAFT(B2F)	1-37245-067-4	01	1	9702-		●			●
126	COUPLING; DRIVING PINION	1-37245-067-4	01	1	9702-			●	●		●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-069-5	01	1	9702-9806		●			●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-069-6	01	1	9807-0004	●	●			●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-069-6	01	1	0005-0512		●			●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-069-6	01	1	0601-		●			●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	0601-	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9807-0004	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	0601-	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0601-	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0601-	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0601-	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0601-	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0601-	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	0601-	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0601-	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0601-	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	9807-0004	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9807-0004	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9807-0004	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9807-0004	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9807-0004	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9807-0004	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9807-0004	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9807-0004	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9807-0004	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
