2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#3774) — 209 parça

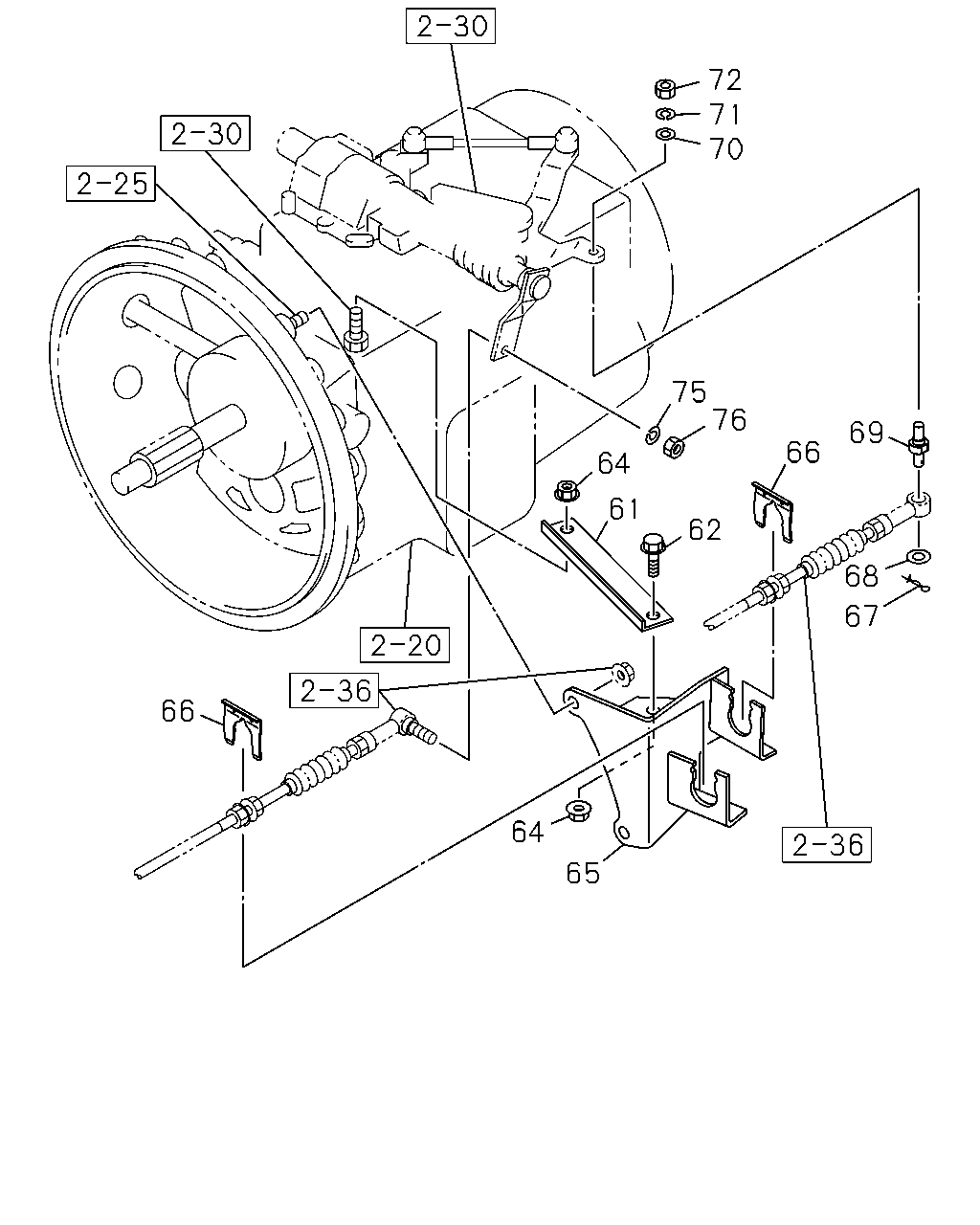

çizim 37557
72 71 70 75 76 69 66 64 61 62 68 67 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9601- ● ● ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9601-9803 ● ● ● ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9804- ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9601-9803 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ● ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9601-9605 ● ● ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9803 ● ● ● ● ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9804-9804 ● ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9601-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9601-9803 ● ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9804-0602 ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-646-1 01 1 9601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-677-0 01 1 9804- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9601-9803 ● ● ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9804- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9601- ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ● ● ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804- ● ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804- ● ● ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9601-9803 ● ● ● ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9804-1509 ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		1-09987-141-0 01 1 1510- ● ● ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9702 ● ● ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9601-9803 ● ● ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9804- ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9803 ● ● ● ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9804-0605 ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ● ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 01 1 9601-9702 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9803 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0607 ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0608- ● ● ● ● ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2 		9-09150-510-0 01 1 9601-9803 ● ● ● ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ● ● ● ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-062-1 01 1 9811- ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 9811- ● ● ●

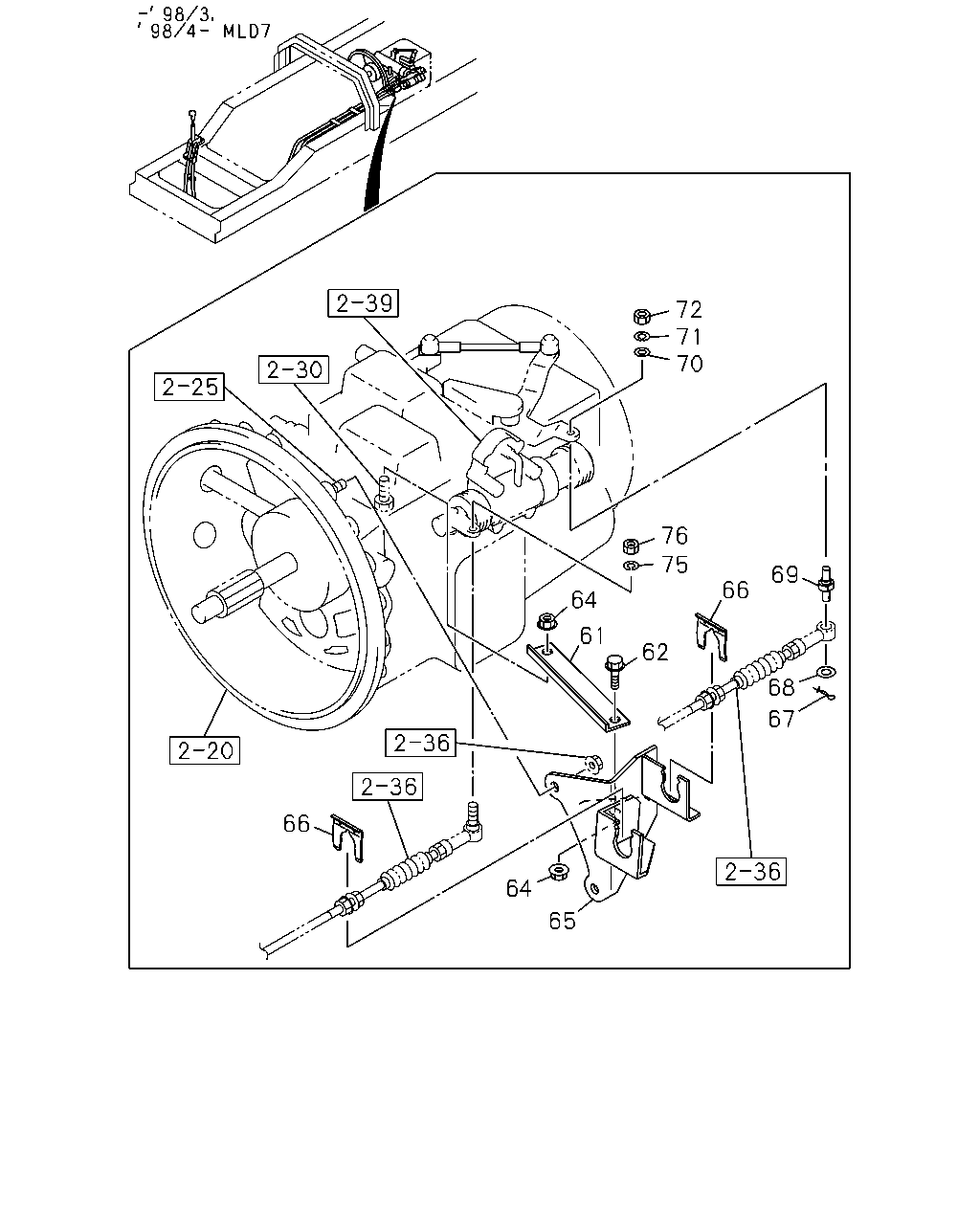

çizim 37879
72 71 70 76 75 69 66 64 61 62 68 67 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9601- ● ● ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9601-9803 ● ● ● ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9804- ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9601-9803 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ● ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9601-9605 ● ● ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9803 ● ● ● ● ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9804-9804 ● ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9601-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9601-9803 ● ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9804-0602 ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-646-1 01 1 9601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-677-0 01 1 9804- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9601-9803 ● ● ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9804- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9601- ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ● ● ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804- ● ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804- ● ● ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9601-9803 ● ● ● ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9804-1509 ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		1-09987-141-0 01 1 1510- ● ● ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9702 ● ● ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9601-9803 ● ● ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9804- ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9803 ● ● ● ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9804-0605 ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ● ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 01 1 9601-9702 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9803 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0607 ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0608- ● ● ● ● ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2 		9-09150-510-0 01 1 9601-9803 ● ● ● ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ● ● ● ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-062-1 01 1 9811- ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 9811- ● ● ●

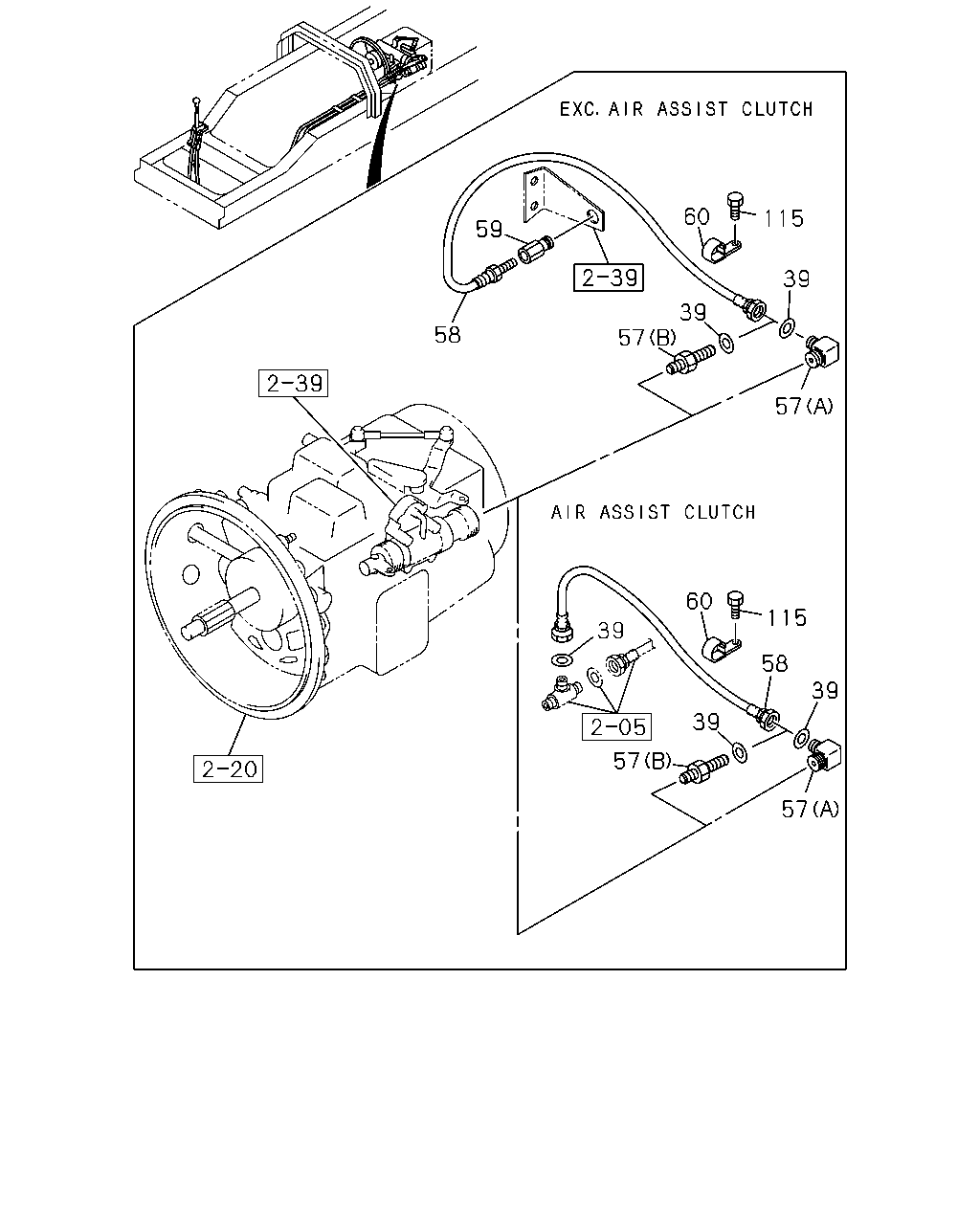

çizim 39082
60 115 59 39 39 57 58 57 60 115 39 58 39 39 57 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 GASKET; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> ID=11 OD=18 		9-09572-510-0 01 1 9601-9803 ● ● ● ● ●
39 GASKET; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> ID=11 OD=18 		9-09572-510-0 01 1 9804-0108 ● ● ● ●
39 GASKET; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> AIR ASSIST CLUTCH<PK1> ID=11 OD=18 		9-09572-510-0 02 1 9601-9803 ● ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-09660-704-0 01 1 9601-9803 ● ● ● ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> (B) M12 & PT1/8 		9-09224-306-2 01 1 9804-9910 ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> (A) M12 & PT1/4 ELBOW 		1-09661-001-1 01 1 9804- ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> L=790 		0-07120-790-0 01 1 9601-9803 ● ● ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> L=800 		1-09363-695-0 01 1 9804-0105 ● ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> L=660 		1-09363-719-0 01 1 0106- ● ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> AIR ASSIST CLUTCH<PK1> L=820 		1-09363-565-1 01 1 9601-9803 ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> AIR ASSIST CLUTCH<PK1> L=740 		1-09363-675-0 01 1 9804- ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> AIR ASSIST CLUTCH<PK1> L=780 		1-09363-620-0 01 1 9804- ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-9803 ● ● ● ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9804-0004 ● ● ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ● ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ● ● ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		9-09525-235-0 02 1 9601-9803 ● ● ● ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		9-09525-235-0 02 1 9804-0606 ● ● ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		0-95235-235-0 02 1 0607- ● ● ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28080-816-0 02 1 9601-9703 ● ● ● ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28680-820-0 02 1 9704-9803 ● ● ● ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28680-820-0 02 1 9804-9812 ● ● ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28080-816-0 02 1 9901-0512 ● ● ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ● ●

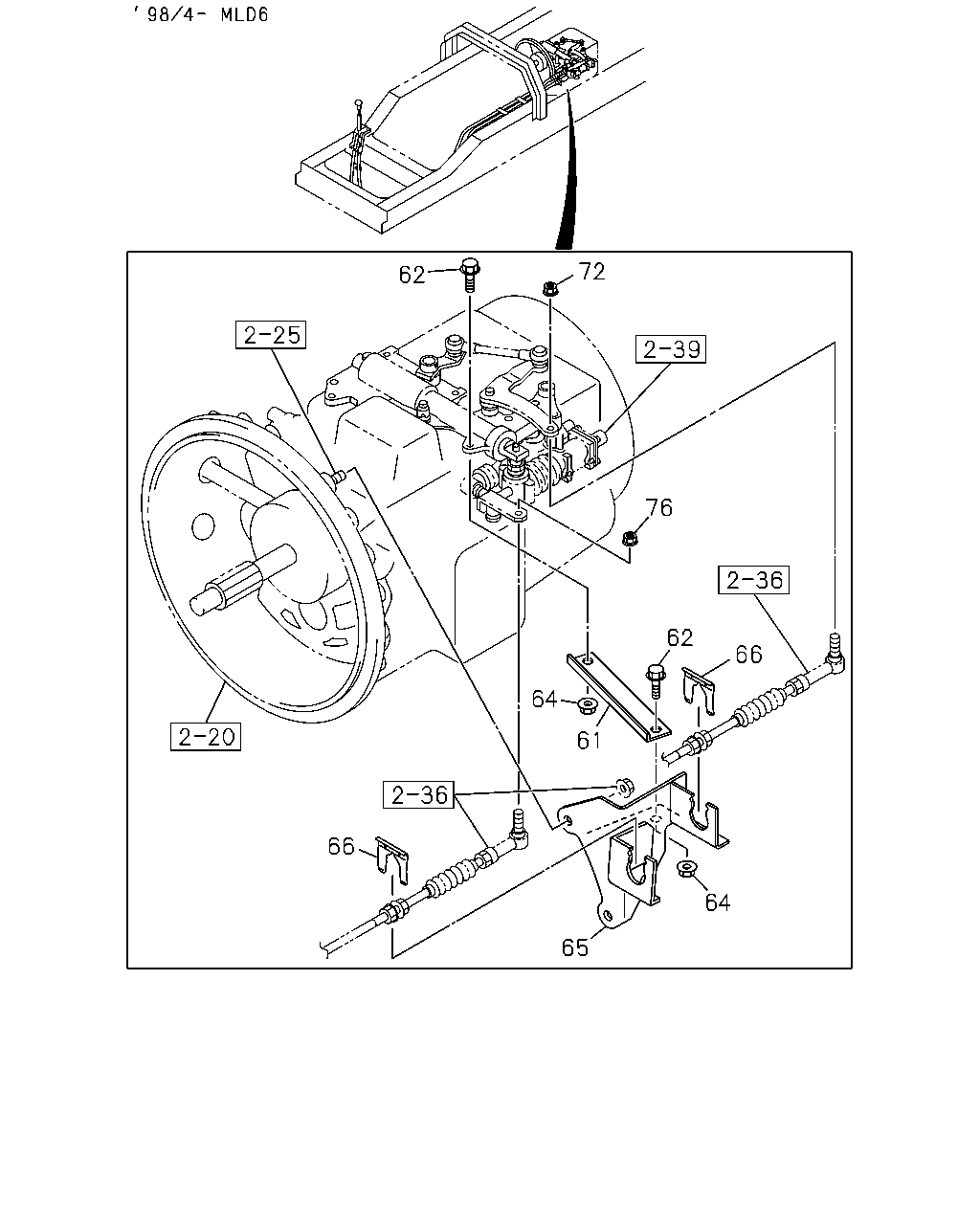

çizim 39087
72 62 76 62 66 64 61 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9601- ● ● ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9601-9803 ● ● ● ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9804- ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9601-9803 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ● ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9601-9605 ● ● ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9803 ● ● ● ● ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9804-9804 ● ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9601-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9601-9803 ● ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9804-0602 ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-646-1 01 1 9601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-677-0 01 1 9804- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9601-9803 ● ● ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9804- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9601- ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ● ● ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804- ● ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804- ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9803 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0607 ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0608- ● ● ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ● ● ● ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-062-1 01 1 9811- ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 9811- ● ● ●

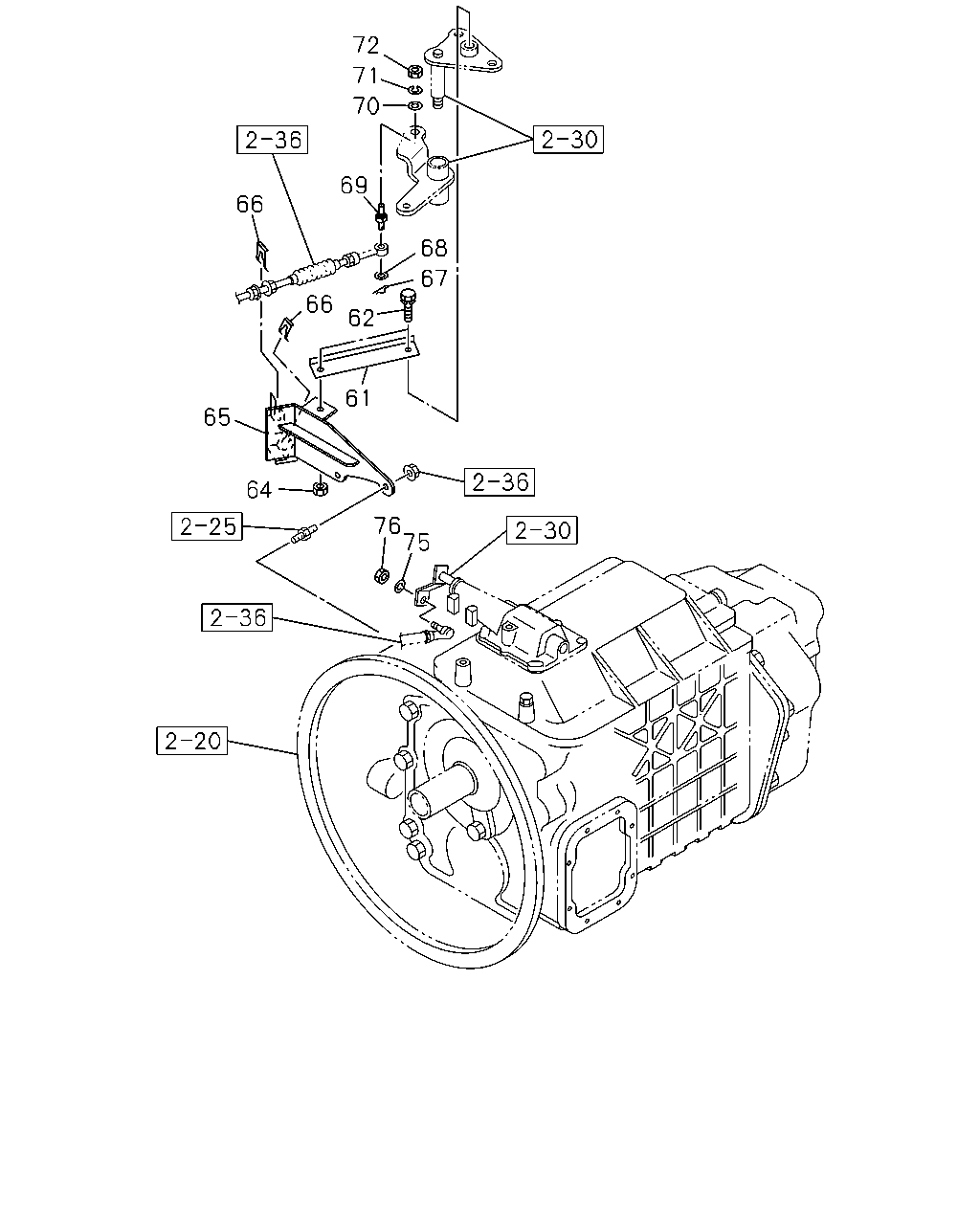

çizim 43364
72 71 70 69 66 68 67 66 62 61 65 64 76 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9601- ● ● ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9601-9803 ● ● ● ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9804- ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9601-9803 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ● ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0512 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ● ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9601-9605 ● ● ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9803 ● ● ● ● ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9804-9804 ● ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9601-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9601-9803 ● ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9804-0602 ● ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-646-1 01 1 9601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-677-0 01 1 9804- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9601-9803 ● ● ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9804- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9601- ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ● ● ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804- ● ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804- ● ● ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9601-9803 ● ● ● ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9804-1509 ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		1-09987-141-0 01 1 1510- ● ● ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9702 ● ● ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9601-9803 ● ● ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9804- ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9803 ● ● ● ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9804-0605 ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ● ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 01 1 9601-9702 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9803 ● ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0607 ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0608- ● ● ● ● ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2 		9-09150-510-0 01 1 9601-9803 ● ● ● ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ● ● ● ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-062-1 01 1 9811- ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 9811- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
