◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#37738) — 165 parça

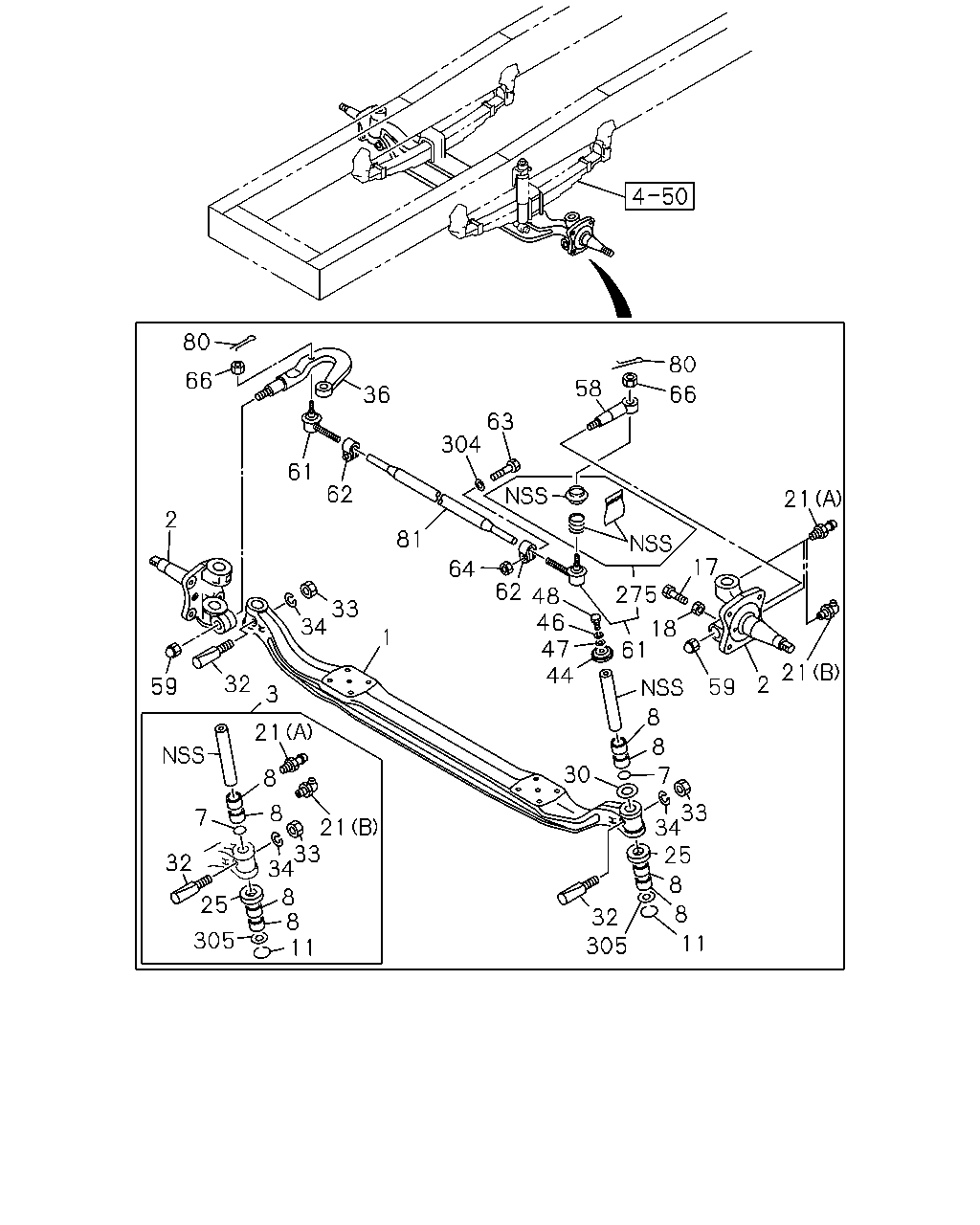

çizim 150973
80 80 66 58 66 36 63 304 61 62 21 2 81 62 48 46 47 44 17 64 275 33 34 18 61 1 21 32 2 59 59 3 8 21 8 30 7 33 34 25 8 8 21 33 34 8 8 11 7 32 8 25 8 32 305 11 305
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-126-2 01 1 9510-9706 ● ●
1 AXLE; FRT 1-43111-138-0 01 1 9707-9905 ● ●
1 AXLE; FRT 1-43111-126-2 01 1 9906-0004 ● ●
1 AXLE; FRT 1-43111-126-2 01 1 0005- ●
2 KNUCKLE; FRT AXLE 1-43132-080-1 01 1 9510-9605 ● ●
2 KNUCKLE; FRT AXLE 1-43132-097-0 01 1 9606-0004 ● ●
2 KNUCKLE; FRT AXLE 1-43132-097-0 01 1 0005- ●
2 KNUCKLE; FRT AXLE 1-43131-080-1 01 1 9510-9605 ● ●
2 KNUCKLE; FRT AXLE 1-43131-097-0 01 1 9606-0004 ● ●
2 KNUCKLE; FRT AXLE 1-43131-097-0 01 1 0005- ●
3 KING PIN SET 1-87830-716-0 01 1 9510-9804 ● ●
3 KING PIN SET 1-87831-144-0 01 1 9805-0004 ● ●
3 KING PIN SET 1-87831-144-6 01 1 0005- ●
3 KING PIN SET 1-87830-717-0 01 1 9510-9804 ● ●
3 KING PIN SET 1-87831-145-0 01 1 9805-0004 ● ●
3 KING PIN SET 1-87831-145-6 01 1 0005- ●
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 9510-0004 ● ●
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 0005- ●
8 BEARING; NEEDLE,KING PIN
NTN 		1-09811-001-0 08 1 9510-0004 ● ●
8 BEARING; NEEDLE,KING PIN
NTN 		1-09811-001-0 08 1 0005- ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 9510-0004 ● ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 0005- ●
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 9510-0004 ● ●
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 0005- ●
17 BOLT; STOPPER KNUCKLE
M14X42.5 		1-09009-008-0 02 1 9510-0004 ● ●
17 BOLT; STOPPER KNUCKLE
M14X42.5 		1-09009-008-0 02 1 0005- ●
18 NUT; STOPPER BOLT,KNUCKLE
M14 		5-09400-034-0 02 1 9510-0004 ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M14 		5-09400-034-0 02 1 0005- ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 9510-9804 ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 9805-0004 ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0005-0512 ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0601- ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 9510-0004 ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 0005- ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 9510-0004 ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 0005- ●
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 0005- ●
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 9510-0004 ● ●
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 0005- ●
32 BOLT; KEY,KING PIN 1-43116-003-1 02 1 9510-0004 ● ●
32 BOLT; KEY,KING PIN 1-43116-003-2 02 1 0005- ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 9510-0004 ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0005-0512 ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0601- ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 9510-0004 ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0005-0603 ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0604- ●
36 ARM; KNUCKLE 1-43133-054-6 01 1 9510-9603 ● ●
36 ARM; KNUCKLE 1-43133-070-1 01 1 9604-0004 ● ●
36 ARM; KNUCKLE 1-43133-070-3 01 1 0005- ●
44 COVER; KING PIN 1-43175-015-0 02 1 9510-0004 ● ●
44 COVER; KING PIN 1-43175-015-0 02 1 0005-0704 ●
44 COVER; KING PIN 1-43175-031-0 02 1 0705- ●
46 WASHER; LK,COVER
ID=12.2 		9-09150-512-0 02 1 9510-0004 ● ●
46 WASHER; LK,COVER
ID=12.2 		9-09150-512-0 02 1 0005-0603 ●
46 WASHER; LK,COVER
ID=12.2 		0-91510-512-0 02 1 0604- ●
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		9-09164-712-0 02 1 9510-0004 ● ●
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		9-09164-712-0 02 1 0005-0605 ●
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 0606- ●
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 9510-0004 ● ●
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 0005- ●
58 ARM; TIE ROD 1-43135-034-2 01 1 9510-0004 ● ●
58 ARM; TIE ROD 1-43135-034-5 01 1 0005- ●
59 NUT; TIE ROD ARM
M27 		1-09449-016-0 02 1 9510-0004 ● ●
59 NUT; TIE ROD ARM
M27 		1-09449-016-0 02 1 0005-0704 ●
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 0705- ●
61 ROD END; TIE ROD 1-43150-680-2 01 1 9510-0004 ● ●
61 ROD END; TIE ROD 1-43150-680-2 01 1 0005- ●
61 ROD END; TIE ROD 1-43150-679-2 01 1 9510-0004 ● ●
61 ROD END; TIE ROD 1-43150-679-2 01 1 0005- ●
62 CLAMP; TIE ROD 1-43159-002-2 02 1 9510-0004 ● ●
62 CLAMP; TIE ROD 1-43159-002-3 02 1 0005- ●
63 BOLT; CLAMP TIE ROD
M12X47 		9-09801-294-0 02 1 9510-9702 ● ●
63 BOLT; CLAMP TIE ROD
M12X45 FLANGE 		0-28091-245-0 02 1 9703-0004 ● ●
63 BOLT; CLAMP TIE ROD
M12X45 FLANGE 		0-28091-245-0 02 1 0005-0512 ●
63 BOLT; CLAMP TIE ROD
M12X45 FLANGE 		0-28061-245-0 02 1 0601- ●
64 NUT; CLAMP
M12 		9-99110-512-0 02 1 9510-0004 ● ●
64 NUT; CLAMP
M12 		9-99110-512-0 02 1 0005-0512 ●
64 NUT; CLAMP
M12 		0-91110-512-0 02 1 0601- ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-021-1 02 1 9510-0004 ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-021-1 02 1 0005-0805 ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 0806- ●
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		9-08114-022-0 02 1 9510-0004 ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		9-08114-022-0 02 1 0005-0606 ●
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 0607- ●
81 ROD; TIE 1-43151-109-0 01 1 9510-0004 ● ●
81 ROD; TIE 1-43151-109-0 01 1 0005- ●
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 9510-0004 ● ●
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 0005- ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 02 1 9510-0004 ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 02 1 0005- ●
305 COVER; KNUCKLE 1-43175-022-0 02 1 9510-0004 ● ●
305 COVER; KNUCKLE 1-43175-022-0 02 1 0005-0704 ●
305 COVER; KNUCKLE 1-43175-030-0 02 1 0705- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
