Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#37736) — 493 parça

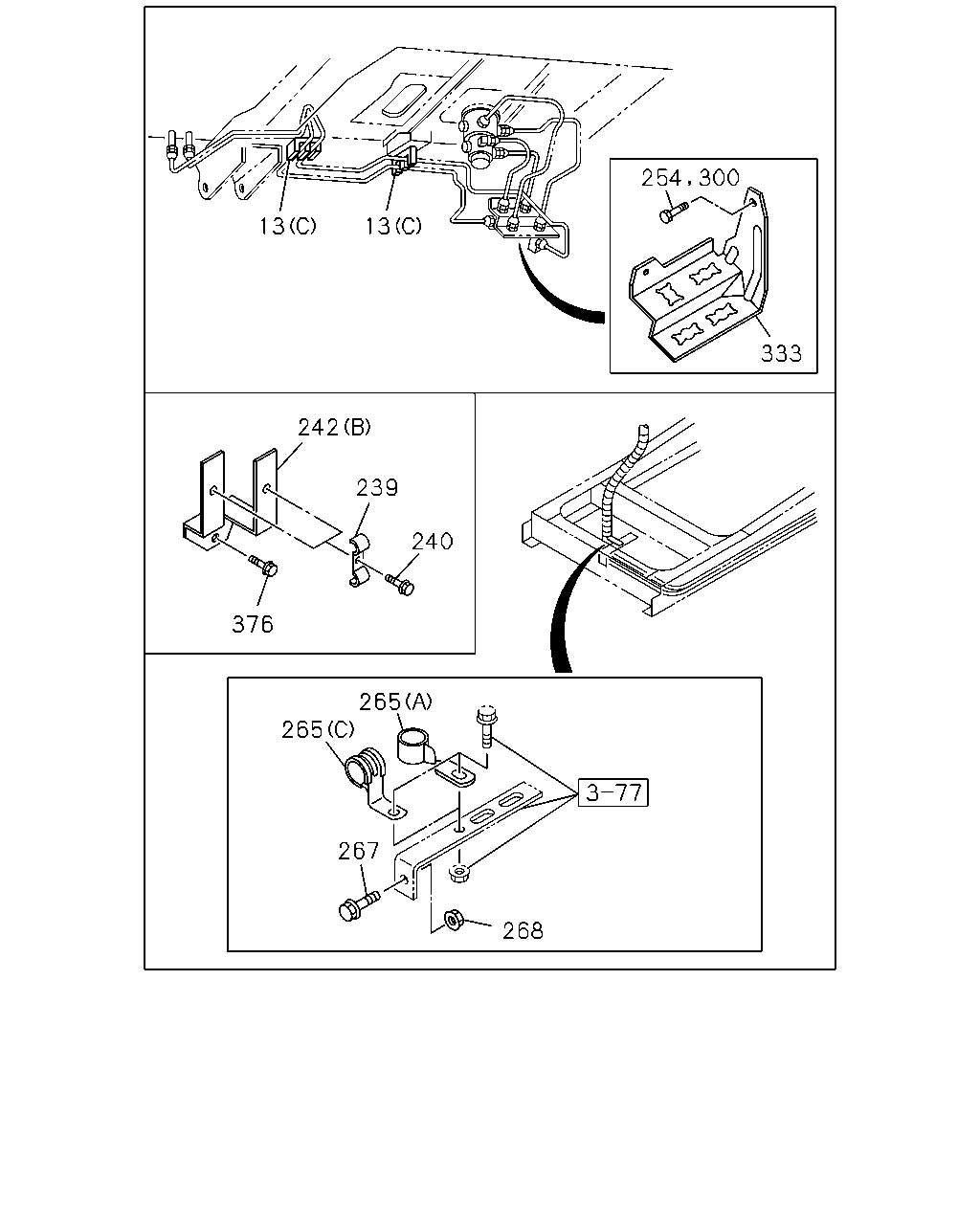

13 13 333 242 239 240 376 265 265 267 268 254 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	8-94435-553-0	03	1	0301-	●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (C)	8-94435-553-0	03	1	9510-0004	●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	9510-0004		●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (C)	8-94435-553-0	03	1	0005-0212	●
13	CLIP; AIR PIPE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (C)	8-94435-553-0	02	1	0301-	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9510-0004	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9510-0004		●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0512	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0601-0601	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0601-	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0601-	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9510-0004	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	9510-0004		●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0005-0403	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0404-0606	●
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-	●
13	CLIP; AIR PIPE 6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	9610-9806	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	9807-0004	●
13	CLIP; AIR PIPE 6HE1 TCN ENG(58L) (B) ID=7 L=20	9-09524-635-0	01	1	0005-0512	●
13	CLIP; AIR PIPE 6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) (B) ID=7 L=20	9-09524-635-0	01	1	0601-0606	●
13	CLIP; AIR PIPE 6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) (B) ID=7 L=20	0-95234-635-0	01	1	0607-	●
239	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802		●
240	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9510-9802		●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-427-1	03	1	9510-9802	●	●
242	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	01	1	9510-9802		●
254	BOLT; PIPE CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	04	1	9606-9606	●
254	BOLT; PIPE CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	04	1	9607-9802	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0004	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0204	●
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205	●
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606	●	●
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●	●
254	BOLT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
254	BOLT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●	●
265	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	12	1	9803-9803	●
265	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	13	1	9804-0004	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=25 L=54	1-09700-392-0	01	1	9803-0004	●	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=25 L=54	1-09700-392-0	01	1	0005-0005	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=31 H=30 L=35	1-09700-994-0	01	1	0006-	●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	10	1	9803-9803	●	●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	9804-0004	●	●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	0005-	●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	9803-9803	●	●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	12	1	9804-0004	●	●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	12	1	0005-0512	●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	13	1	0601-	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0004	●	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0601	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB UP +50MM<W60> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9803-0004	●	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0512	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB UP +50MM<W60> M8 FLANGE	0-91150-108-0	01	1	0601-0602	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0601-0602	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB UP +50MM<W60> M8 FLANGE	0-91180-108-0	01	1	0603-	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0206-0904	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●
333	BRACKET; BRK AIR PIPE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-846-2	01	1	0212-0512	●
333	BRACKET; BRK AIR PIPE LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-846-2	01	1	0601-0601	●
333	BRACKET; BRK AIR PIPE LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-846-2	01	1	0601-	●
333	BRACKET; BRK AIR PIPE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-846-2	01	1	0601-	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	9510-0004	●	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0005-0211	●
333	BRACKET; BRK AIR PIPE EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-815-2	01	1	0212-0512	●
333	BRACKET; BRK AIR PIPE EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>, HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-815-2	01	1	0601-	●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0403	●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
376	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9510-9606		●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9607-9802		●

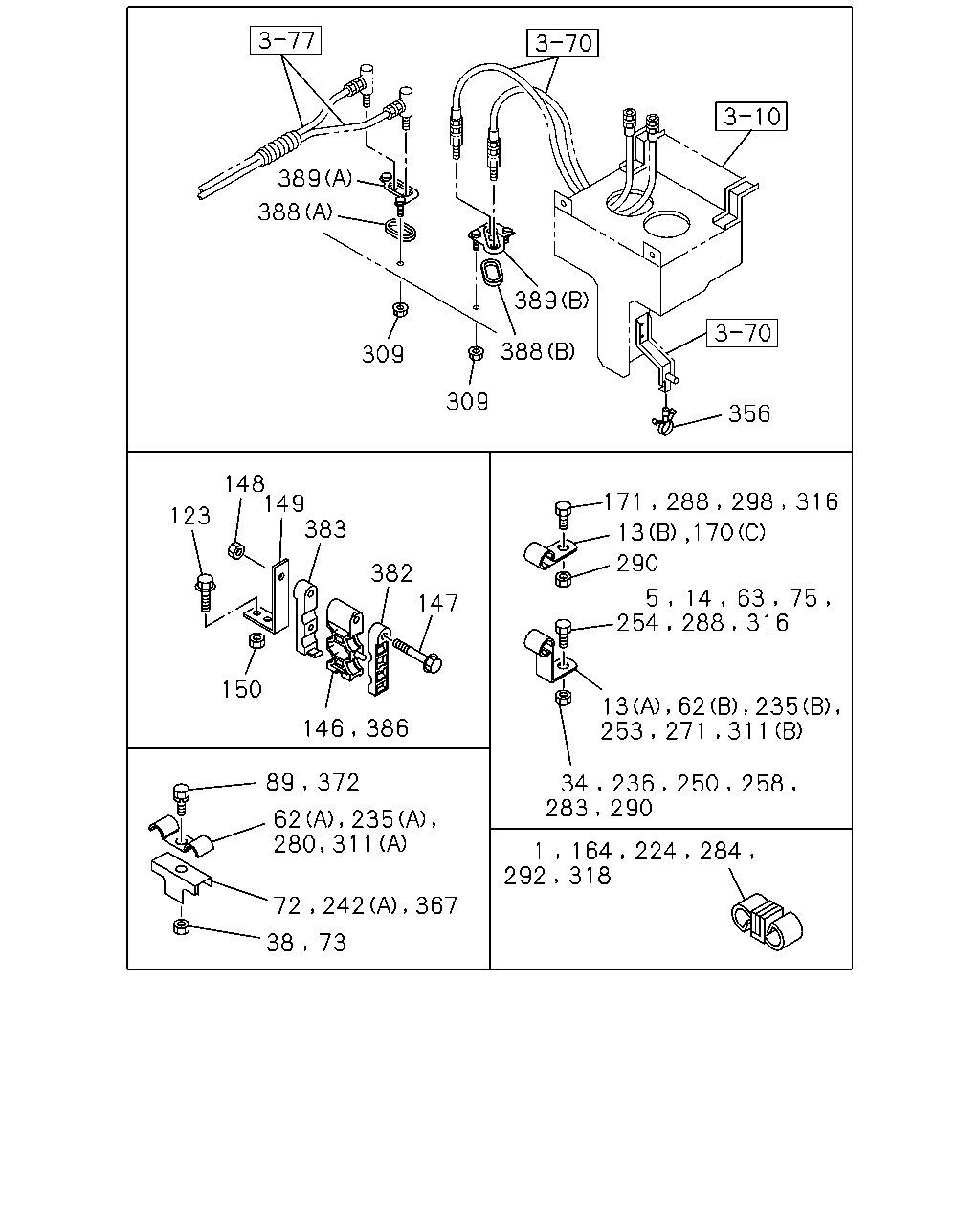

389 388 389 388 309 309 356 148 149 383 171 123 13 170 290 382 5 147 150 1 367 38 73 288 298 316 14 75 254 288 316 235 62 13 253 271 311 258 250 236 34 283 290 164 224 284 292 318 72 242 280 311 62 235 89 372 146 386 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE EXHAUST BRAKE<NF8> ID=6.35 & 6.35	1-09709-273-1	01	1	9510-9802	●
1	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9510-9802		●
1	CLIP; AIR PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ID=6.35 & 6.35	1-09709-273-1	01	1	0011-0512	●
1	CLIP; AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ID=6.35 & 6.35	1-09709-273-1	01	1	0601-	●
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9510-9606	●	●
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9802	●	●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	8-94435-553-0	03	1	0301-	●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (C)	8-94435-553-0	03	1	9510-0004	●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	9510-0004		●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (C)	8-94435-553-0	03	1	0005-0212	●
13	CLIP; AIR PIPE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (C)	8-94435-553-0	02	1	0301-	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9510-0004	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9510-0004		●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0512	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0601-0601	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0601-	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0601-	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9510-0004	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	9510-0004		●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0005-0403	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0404-0606	●
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-	●
13	CLIP; AIR PIPE 6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	9610-9806	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	9807-0004	●
13	CLIP; AIR PIPE 6HE1 TCN ENG(58L) (B) ID=7 L=20	9-09524-635-0	01	1	0005-0512	●
13	CLIP; AIR PIPE 6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) (B) ID=7 L=20	9-09524-635-0	01	1	0601-0606	●
13	CLIP; AIR PIPE 6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) (B) ID=7 L=20	0-95234-635-0	01	1	0607-	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●	●
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 FLANGE	8-94279-517-0	03	1	9510-9611	●
34	NUT; BRKT M8 FLANGE	8-94279-517-0	03	1	9510-9611		●
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0004	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0004		●
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0605	●
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0606-	●
38	NUT; BRKT M8	9-09110-408-0	01	1	9510-9606		●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9802		●
62	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 H=20 L=20	5-09700-351-0	03	1	9510-9802	●	●
62	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9510-9605	●	●
62	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9606-9802	●
62	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9606-9802		●
62	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9510-9802	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> M8X16 FLANGE	0-28080-816-0	01	1	9510-9802	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X35 FLANGE	0-28080-835-0	01	1	9510-9606	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28680-840-0	01	1	9607-9802	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	03	1	9510-9606	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X45 FLANGE	0-28080-845-0	03	1	9607-9802	●	●
63	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	01	1	9510-9606		●
63	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	01	1	9607-9802		●
72	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9510-9605	●	●
72	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9606-9802	●
72	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9606-9802		●
72	BRACKET; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	02	1	9510-9802	●	●
73	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9510-9606	●	●
73	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9607-9802	●	●
73	NUT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9605	●	●
73	NUT; CLIP BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9606-9606	●
73	NUT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9606-9606		●
73	NUT; CLIP BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802	●
73	NUT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802		●
73	NUT; CLIP BRKT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
73	NUT; CLIP BRKT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X16 FLANGE	0-28080-816-0	02	1	9510-9802	●
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	02	1	9510-9802	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	03	1	9607-9802	●
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28680-825-0	03	1	9607-9802	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●
89	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> M8X16 FLANGE	0-28080-816-0	01	1	9510-9802	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9802-9802	●	●
146	CLIP; AIR PIPE ID=10	1-09709-242-0	01	1	9510-9802	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	03	1	9510-9802	●	●
148	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9510-9606	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9802	●	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	9510-9802	●	●
150	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	9510-0004	●	●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0005-0512	●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0601-	●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	02	1	9806-9807	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	02	1	9806-9807	●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	02	1	9806-9807		●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	9808-0004	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) ID=11 L=50	9-09525-085-0	01	1	9808-0004	●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	9808-0004		●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) ID=11 L=50	9-09525-085-0	01	1	0005-0010	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) ID=11 L=50	9-09525-085-0	01	1	0005-0010	●

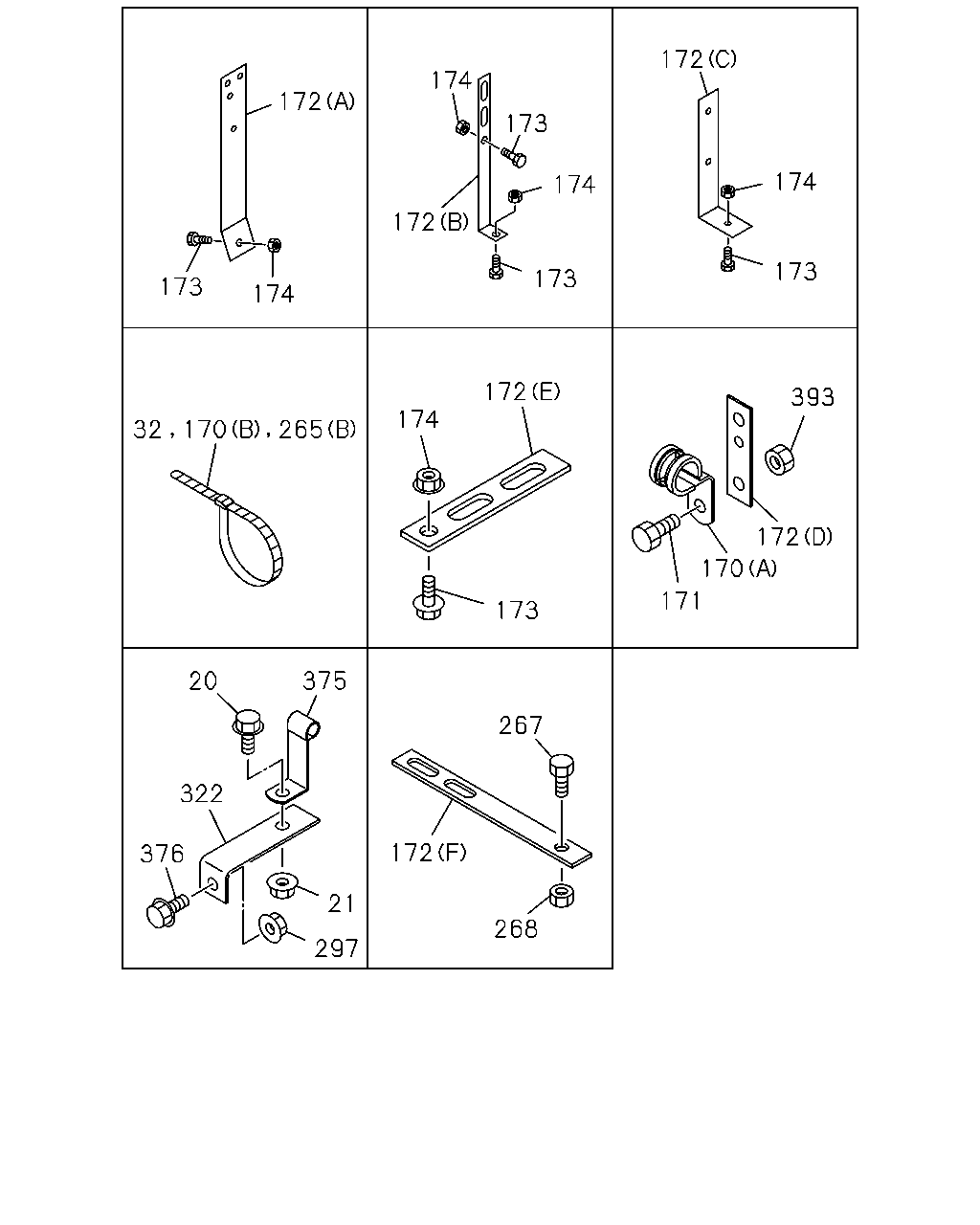

170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	0011-0606	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) ID=11 L=50	9-09525-085-0	01	1	0011-0606	●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	0-95235-085-0	01	1	0607-	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) ID=11 L=50	0-95235-085-0	01	1	0607-	●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	9803-0004	●	●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0005-0512	●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0601-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9803-9807	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9808-0004	●	●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	01	1	9808-0004	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	01	1	9808-0004	●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	01	1	9808-0004		●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) L=250	1-09707-126-0	01	1	0005-0010	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	01	1	0005-0010	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0010	●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	01	1	0011-	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	01	1	0011-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0011-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0004	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0512	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0601-1303	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	1304-	●
171	BOLT; TUBE CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	9808-0004	●
171	BOLT; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28680-820-0	01	1	9808-0004	●
171	BOLT; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	9808-0004		●
171	BOLT; TUBE CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28680-820-0	01	1	0005-0010	●
171	BOLT; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28680-820-0	01	1	0005-0010	●
171	BOLT; TUBE CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	0011-0512	●
171	BOLT; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28680-820-0	01	1	0011-0512	●
171	BOLT; TUBE CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
171	BOLT; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9803-0004	●	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0601-0601	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	9510-0004	●	●
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0005-0512	●
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0601-	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56>,AUSTRALIA EQUIPMENT(RR3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802		●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=9 & 9 L=17 & 17	1-09700-651-0	03	1	9510-9802	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=9 & 9 L=17 & 17	1-09700-651-0	01	1	9510-9802	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802	●
235	CLIP; AIR PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-9802		●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606	●	●
236	NUT; CLIP M8	9-09110-408-0	01	1	9510-9606		●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802	●	●
236	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9802		●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9510-9606	●	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9607-9802	●	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-427-1	03	1	9510-9802	●	●
242	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	01	1	9510-9802		●
250	NUT; PIPE CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9606-9606	●
250	NUT; PIPE CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	04	1	9607-9802	●
250	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606	●	●
250	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802	●	●
250	NUT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
250	NUT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
253	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	04	1	9606-9802	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9802	●	●
253	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9802	●	●
253	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-9802	●	●
254	BOLT; PIPE CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	04	1	9606-9606	●
254	BOLT; PIPE CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	04	1	9607-9802	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0004	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0204	●
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205	●
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606	●	●
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●	●
254	BOLT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
254	BOLT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●	●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-0004	●	●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-	●
280	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802	●
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8	9-09110-408-0	03	1	9510-9606	●
283	NUT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8	9-09110-408-0	03	1	9510-9606	●
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	03	1	9607-9802	●
283	NUT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	03	1	9607-9802	●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	9510-9802	●	●
288	BOLT; CLIP,AIR PIPE 6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28680-825-0	03	1	9610-9712	●
288	BOLT; CLIP,AIR PIPE 6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	03	1	9801-9806	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	03	1	9807-0004	●
288	BOLT; CLIP,AIR PIPE 6HE1 TCN ENG(58L) M8X20 FLANGE	0-28680-820-0	03	1	0005-0512	●
288	BOLT; CLIP,AIR PIPE 6HE1 TCN ENG(58L) M8X20 FLANGE	0-28650-820-0	03	1	0601-0601	●
288	BOLT; CLIP,AIR PIPE 6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28680-825-0	02	1	9607-9712	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9712		●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	9801-0004	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8X20 FLANGE	0-28680-820-0	02	1	9801-0004		●
288	BOLT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
290	NUT; CLIP,AIR PIPE 6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	03	1	9610-9806	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	03	1	9807-0004	●
290	NUT; CLIP,AIR PIPE 6HE1 TCN ENG(58L) M8 FLANGE	0-91150-108-0	03	1	0005-0512	●
290	NUT; CLIP,AIR PIPE 6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) M8 FLANGE	0-91150-108-0	03	1	0601-0602	●
290	NUT; CLIP,AIR PIPE 6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	0603-	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9510-9606	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8	9-09110-408-0	02	1	9510-9606		●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	9607-0004	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) M8 FLANGE	0-91150-108-0	02	1	9607-0004		●
290	NUT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
290	NUT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	9510-0004	●	●
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0005-	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56>,AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9510-9802	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9510-9802		●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	01	1	9510-9802	●	●
309	NUT; BRKT FIX DUAL AIR GAUGE<UG2> M8 FLANGE	8-94279-517-0	02	1	9510-9611	●
309	NUT; BRKT FIX M8 FLANGE	8-94279-517-0	02	1	9510-9611		●
309	NUT; BRKT FIX DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-0004	●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-0004		●
309	NUT; BRKT FIX DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0005-	●
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9510-9802	●
311	CLIP; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9510-9802	●
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802	●
311	CLIP; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER	0-50040-812-0	01	1	9510-9911	●	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28080-810-0	01	1	9912-0004	●	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28080-810-0	01	1	0005-0512	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	01	1	0601-	●
318	CLIP; AIR PIPE ID=6.35 & 12	1-09709-275-1	01	1	9510-0004	●	●
318	CLIP; AIR PIPE ID=6.35 & 12	1-09709-275-1	01	1	0005-0512	●
318	CLIP; AIR PIPE ID=6.35 & 12	1-09709-275-1	01	1	0601-	●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9510-9802	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9510-9802	●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9803-9810	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9803-9810	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	9803-9810		●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9811-0004	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9811-0004	●
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT<SJA> ID=4.8	8-94128-483-0	01	1	9811-0004		●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0005-0010	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0005-0010	●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0011-	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0011-	●
367	BRACKET ASM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9510-9802	●	●
367	BRACKET ASM	1-47475-427-1	01	1	9510-9802		●
372	BOLT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	01	1	9510-9605	●	●
372	BOLT; CLIP BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	01	1	9606-9606	●
372	BOLT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	01	1	9606-9606		●
372	BOLT; CLIP BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X45 FLANGE	0-28080-845-0	01	1	9607-9802	●
372	BOLT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X45 FLANGE	0-28080-845-0	01	1	9607-9802		●
372	BOLT; CLIP BRKT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	02	1	9510-9606	●	●
372	BOLT; CLIP BRKT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X45 FLANGE	0-28080-845-0	02	1	9607-9802	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	9510-9802	●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	9510-9802	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	9510-9802	●	●
388	SEAL DUAL AIR GAUGE<UG2> (A) L=280	1-79738-793-1	01	1	9510-0004	●
388	SEAL (A) L=280	1-79738-793-1	01	1	9510-0004		●
388	SEAL DUAL AIR GAUGE<UG2> (A) L=280	1-79738-793-1	01	1	0005-	●
388	SEAL DUAL AIR GAUGE<UG2> (B)	1-79738-826-0	01	1	9510-0004	●
388	SEAL (B)	1-79738-826-0	01	1	9510-0004		●
388	SEAL DUAL AIR GAUGE<UG2> (B)	1-79738-826-0	01	1	0005-	●
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (B)	1-79738-827-1	01	1	9510-0004	●
389	BRACKET; UNION (B)	1-79738-827-1	01	1	9510-0004		●
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (B)	1-79738-827-1	01	1	0005-	●
389	BRACKET; UNION DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-79738-796-1	01	1	9510-0004	●
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-79738-796-1	01	1	9510-0004		●
389	BRACKET; UNION DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-79738-796-2	01	1	0005-	●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-79738-791-2	01	1	9510-9802	●	●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FULL TRACTOR TRUCK(RD6) (A)	1-79738-814-1	01	1	9803-0004	●	●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-79738-814-2	01	1	0005-	●

172 174 172 173 174 174 172 173 173 173 174 172 393 174 32 172 170 171 173 20 375 267 322 172 376 21 268 297 170 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0403	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0404-0512	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0403	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0404-0602	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●
32	CLIP; BAND,RUBBER SLEEVE L=250	5-09707-030-1	01	1	9810-0004		●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	02	1	9806-9807	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	02	1	9806-9807	●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	02	1	9806-9807		●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	9808-0004	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) ID=11 L=50	9-09525-085-0	01	1	9808-0004	●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	9808-0004		●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) ID=11 L=50	9-09525-085-0	01	1	0005-0010	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) ID=11 L=50	9-09525-085-0	01	1	0005-0010	●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	0011-0606	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) ID=11 L=50	9-09525-085-0	01	1	0011-0606	●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	0-95235-085-0	01	1	0607-	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) ID=11 L=50	0-95235-085-0	01	1	0607-	●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	9803-0004	●	●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0005-0512	●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0601-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9803-9807	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9808-0004	●	●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	01	1	9808-0004	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	01	1	9808-0004	●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	01	1	9808-0004		●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) L=250	1-09707-126-0	01	1	0005-0010	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	01	1	0005-0010	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0010	●
170	CLIP; NYLON TUBE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	01	1	0011-	●
170	CLIP; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	01	1	0011-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0011-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0004	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0512	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0601-1303	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	1304-	●
171	BOLT; TUBE CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	9808-0004	●
171	BOLT; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28680-820-0	01	1	9808-0004	●
171	BOLT; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	9808-0004		●
171	BOLT; TUBE CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28680-820-0	01	1	0005-0010	●
171	BOLT; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28680-820-0	01	1	0005-0010	●
171	BOLT; TUBE CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	0011-0512	●
171	BOLT; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28680-820-0	01	1	0011-0512	●
171	BOLT; TUBE CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
171	BOLT; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9803-0004	●	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0601-0601	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
172	BRACKET; TUBE CLIP CAB UP +50MM<W60> (F) L=215	1-47479-288-0	01	1	0601-	●
172	BRACKET; TUBE CLIP (C) L=59 B=20	1-47479-048-0	01	1	0007-	●
172	BRACKET; TUBE CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=125	1-47477-975-0	01	1	9806-9807	●
172	BRACKET; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> (D) L=125	1-47477-975-0	01	1	9806-9807	●
172	BRACKET; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=125	1-47477-975-0	01	1	9806-9807		●
172	BRACKET; TUBE CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=117	1-47478-116-0	01	1	9808-0004	●
172	BRACKET; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> (D) L=117	1-47478-116-0	01	1	9808-0004	●
172	BRACKET; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=117	1-47478-116-0	01	1	9808-0004		●
172	BRACKET; TUBE CLIP AIR SUSP DRIVER SEAT<A56> (D) L=117	1-47478-116-0	01	1	0005-0010	●
172	BRACKET; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> (D) L=117	1-47478-116-0	01	1	0005-0010	●
172	BRACKET; TUBE CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=117	1-47478-116-0	01	1	0011-	●
172	BRACKET; TUBE CLIP EXC. DUAL AIR GAUGE<UG2> (D) L=117	1-47478-116-0	01	1	0011-	●
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0005-0512	●
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0601-	●
172	BRACKET; TUBE CLIP (E) L=102	1-47477-514-3	01	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (E) L=102	1-47477-514-3	01	1	0005-0512	●
172	BRACKET; TUBE CLIP (E) L=102	1-47477-514-3	01	1	0601-	●
172	BRACKET; TUBE CLIP (B) L=100	1-47477-645-2	03	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (B) L=225	1-47477-646-3	01	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (B) L=225	1-47477-646-3	01	1	0005-0512	●
172	BRACKET; TUBE CLIP (B) L=225	1-47477-646-3	01	1	0601-0601	●
172	BRACKET; TUBE CLIP EXC. CAB UP +50MM<W60> (B) L=225	1-47477-646-3	01	1	0601-	●
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	0005-	●
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-0	02	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0005-	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	01	1	9804-9804		●
172	BRACKET; TUBE CLIP AUSTRALIA EQUIPMENT(RR3) (B) L=100 H=30	1-47477-645-2	01	1	9805-0004	●	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0005-0006	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0007-	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9804-9804		●
173	BOLT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28680-825-0	01	1	9805-9805	●	●
173	BOLT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28680-825-0	01	1	9806-0004	●	●
173	BOLT; CLIP BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	9806-0004	●
173	BOLT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28680-825-0	01	1	9806-0004	●
173	BOLT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	9806-0004		●
173	BOLT; CLIP BRKT AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	01	1	0005-0010	●
173	BOLT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28680-825-0	01	1	0005-0010	●
173	BOLT; CLIP BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	0011-0512	●
173	BOLT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28680-825-0	01	1	0011-0512	●
173	BOLT; CLIP BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
173	BOLT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	10	1	9803-0004	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	10	1	0005-0512	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	10	1	0601-0601	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	10	1	0601-	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9804-9804		●
174	NUT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	01	1	9805-9805	●	●
174	NUT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	01	1	9806-0004	●	●
174	NUT; CLIP BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	9806-0004	●
174	NUT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	01	1	9806-0004	●
174	NUT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	9806-0004		●
174	NUT; CLIP BRKT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0005-0010	●
174	NUT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	01	1	0005-0010	●
174	NUT; CLIP BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0011-0602	●
174	NUT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	01	1	0011-0602	●
174	NUT; CLIP BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91180-108-0	01	1	0603-	●
174	NUT; CLIP BRKT EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91180-108-0	01	1	0603-	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	10	1	9803-0004	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	10	1	0005-0303	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	08	1	0304-0602	●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	08	1	0603-	●
265	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	12	1	9803-9803	●
265	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	13	1	9804-0004	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=25 L=54	1-09700-392-0	01	1	9803-0004	●	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=25 L=54	1-09700-392-0	01	1	0005-0005	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=31 H=30 L=35	1-09700-994-0	01	1	0006-	●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	10	1	9803-9803	●	●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	9804-0004	●	●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	0005-	●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	9803-9803	●	●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	12	1	9804-0004	●	●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	12	1	0005-0512	●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	13	1	0601-	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0004	●	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0601	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB UP +50MM<W60> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9803-0004	●	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0512	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB UP +50MM<W60> M8 FLANGE	0-91150-108-0	01	1	0601-0602	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0601-0602	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB UP +50MM<W60> M8 FLANGE	0-91180-108-0	01	1	0603-	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0403	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0404-0602	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
322	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	0005-0403	●
322	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	0404-	●
375	CLIP; AIR PIPE D=9 T=45	5-09700-021-0	01	1	0005-0403	●
375	CLIP; AIR PIPE D=9 T=45	5-09700-021-0	01	1	0404-	●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0403	●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
376	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9510-9606		●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9607-9802		●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	9803-9807	●	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	9808-0004	●	●
393	NUT; UNION AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	9808-0004	●
393	NUT; UNION EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	01	1	9808-0004	●
393	NUT; UNION DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	9808-0004		●
393	NUT; UNION AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0005-0010	●
393	NUT; UNION EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	01	1	0005-0010	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0005-0010	●
393	NUT; UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0011-0602	●
393	NUT; UNION EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	01	1	0011-0602	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0011-0602	●
393	NUT; UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91180-108-0	01	1	0603-	●
393	NUT; UNION EXC. DUAL AIR GAUGE<UG2> M8 FLANGE	0-91180-108-0	01	1	0603-	●
393	NUT; UNION M8 FLANGE	0-91180-108-0	01	1	0603-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
