Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#37735) — 511 parça

87 118 101 59 97 30 144 192 192 31 46 31 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1785 SERVICED BY L=1800	1-47426-392-0	01	1	9510-9605	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1785 SERVICED BY L=1800	1-47426-392-0	01	1	9606-9802	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1785 SERVICED BY L=1800	1-47426-392-0	01	1	9606-9802		●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9802	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2644 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2015 SERVICED BY L=2150	1-47426-394-0	01	1	9510-9802	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2617 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=3315 SERVICED BY L=3500	1-47428-860-0	01	1	9606-9802	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2624 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2025 SERVICED BY L=2150	1-47426-394-0	01	1	9510-9802		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2628 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9510-9802	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-913-1	01	1	9510-9802	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3273 SERVICED BY L=3300	1-47428-886-0	01	1	9510-9802	●	●
87	PIPE; AIR,AIR TANK TO UNION	1-49115-908-0	01	1	9510-9802	●	●
87	PIPE; AIR,AIR TANK TO UNION	1-49119-151-1	01	1	9803-0004	●	●
87	PIPE; AIR,AIR TANK TO UNION	1-49119-151-1	01	1	0005-0105	●
87	PIPE; AIR,AIR TANK TO UNION	1-49123-092-0	01	1	0106-	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-913-1	01	1	9510-9802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3019 SERVICED BY L=3300	1-47428-886-0	01	1	9510-9802	●	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49114-964-0	01	1	9510-9802	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49114-964-0	01	1	9510-9802		●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49114-965-0	01	1	9510-9802	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49119-148-0	01	1	9803-0004	●	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49119-148-0	01	1	0005-0105	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49123-093-0	01	1	0106-	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2645 SERVICED BY L=3300	1-47426-398-0	01	1	9510-9601	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2648 SERVICED BY L=2700	1-47426-396-0	01	1	9602-9802	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2634 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802		●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1713 SERVICED BY L=1800	1-47426-392-0	01	1	9510-9802	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1767 SERVICED BY L=1800	1-47426-392-0	01	1	9510-9605	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1767 SERVICED BY L=1800	1-47426-392-0	01	1	9606-9802	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1767 SERVICED BY L=1800	1-47426-392-0	01	1	9606-9802		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-0004	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-0212	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-9803	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0005-0005	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0006-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●

85 192 223 192 126 126 316 316 127 181 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9510-9903	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-0	05	1	9904-0004	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	0005-	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	01	1	9510-9802	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9803-0004	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	0005-0512	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9510-9802	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9803-0004	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	0005-0512	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-0004	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-0212	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-9803	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0005-0005	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0006-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2000	1-87410-102-0	01	1	9510-0004	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	0005-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-0004	●	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0106	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0107-0512	●
223	TUBE; CORRUGATE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0601-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0601-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9803-0004	●	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0005-0106	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0107-0512	●
223	TUBE; CORRUGATE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0601-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0601-	●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	9-09160-520-0	02	1	9804-0004	●	●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	9-09160-520-0	02	1	0005-0605	●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	0-91610-520-0	02	1	0606-	●

85 192 223 192 126 126 126 126 127 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9510-9903	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-0	05	1	9904-0004	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	0005-	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	01	1	9510-9802	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9803-0004	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	0005-0512	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9510-9802	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9803-0004	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	0005-0512	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-0004	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-0212	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-9803	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0005-0005	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0006-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2000	1-87410-102-0	01	1	9510-0004	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	0005-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-0004	●	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0106	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0107-0512	●
223	TUBE; CORRUGATE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0601-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0601-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9803-0004	●	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0005-0106	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0107-0512	●
223	TUBE; CORRUGATE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0601-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0601-	●

1 206 1 206 7 7 6 6 285 285 10 10 10 64 64 8 8

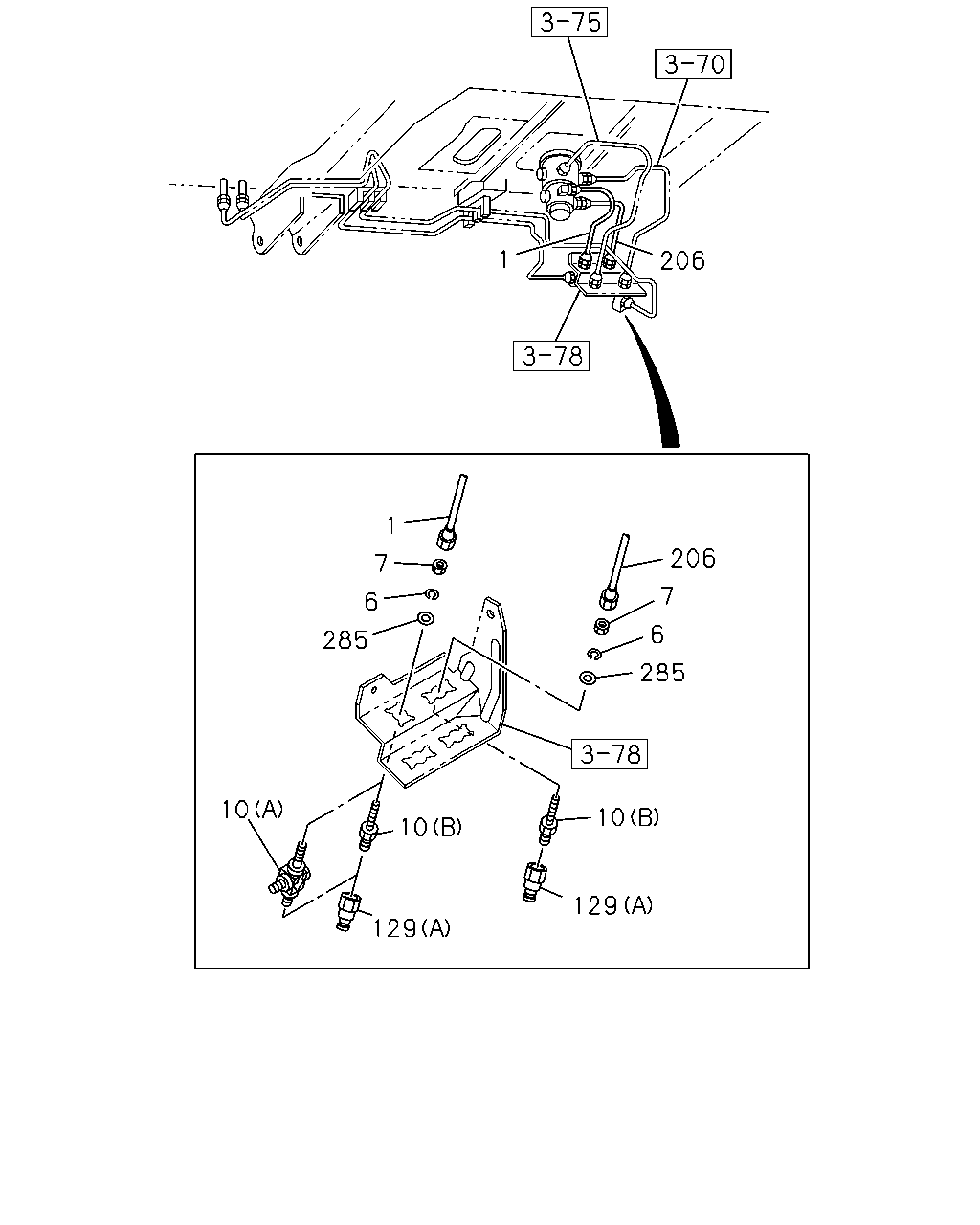

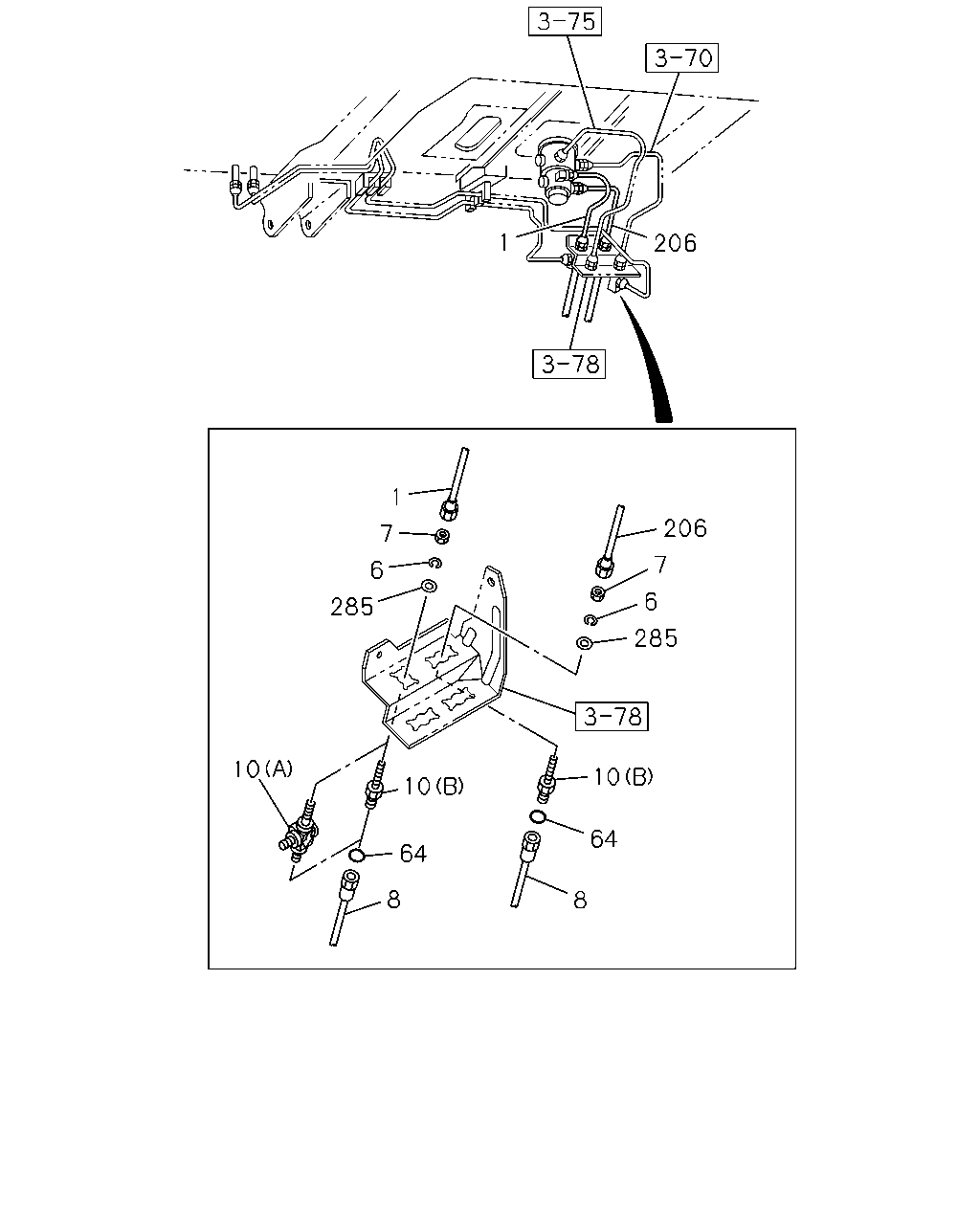

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9510-9902	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	9903-0004	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0005-0512	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0601-	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9512	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9512	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0004	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9510-9512	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9510-9512	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0004	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	0-07474-520-1	02	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-451-1	01	1	9510-9802	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-451-1	01	1	9510-9802		●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-721-0	01	1	9803-0004	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-721-0	01	1	9803-0004		●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-721-0	01	1	0005-0103	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-754-0	01	1	0104-	●
10	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (B)	1-09654-324-0	01	1	9510-9802	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9803-0004	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (B) M16 STRAIGHT	1-09654-380-0	01	1	9803-0004	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-0004	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0005-	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9510-0004	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0005-0512	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0601-	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9510-9801	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9510-9801	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9802-0004	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	0005-0512	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	0601-0605	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-	●

101 91 37 59 19 19 41 41 8 8 46 19 79 162 127 60 21 178 175 46 192 67 163 64 161 97 72 192

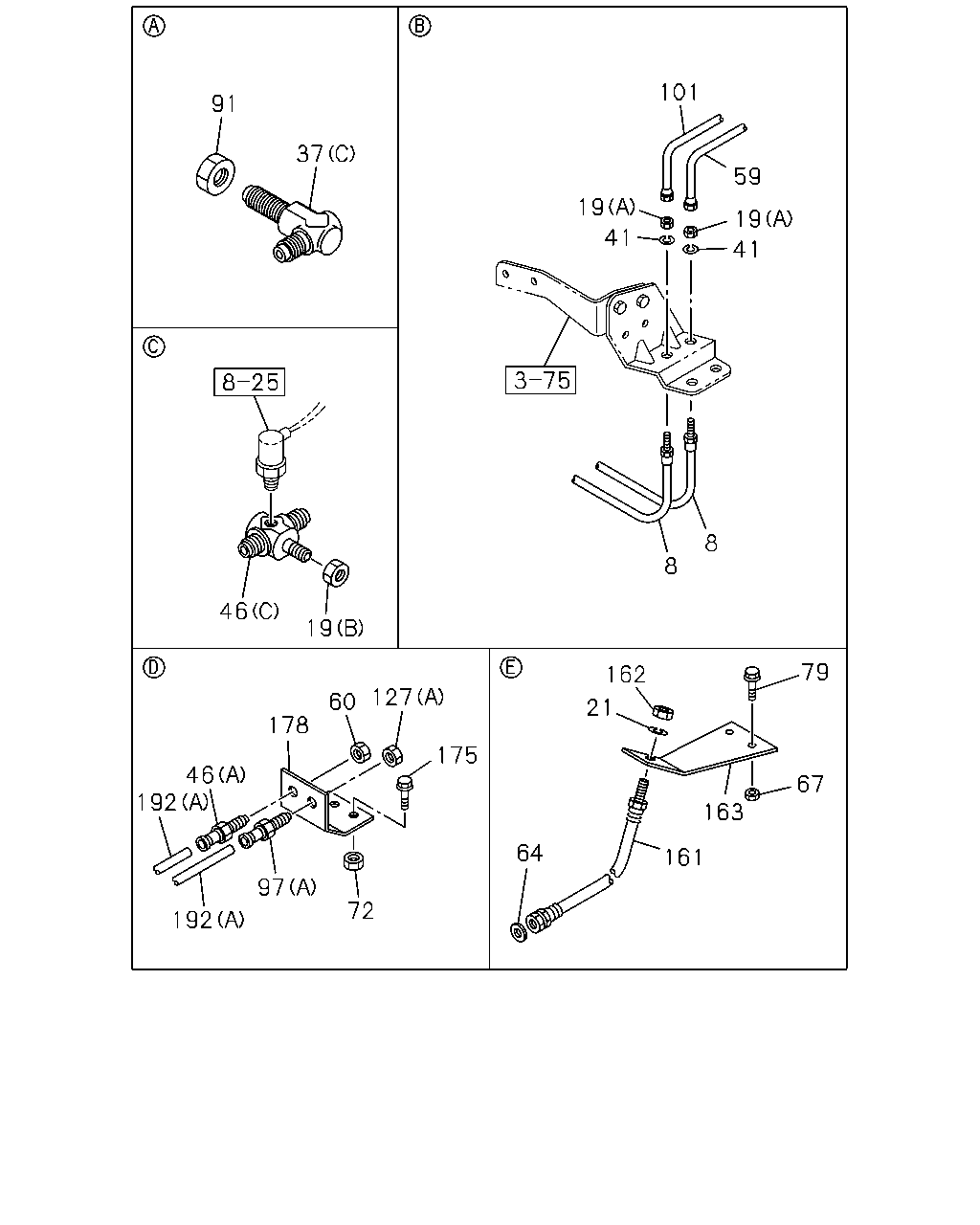

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HOSE; FLEX,AIR,CAB SIDE L=520	0-07474-520-1	02	1	9510-9802	●	●
19	NUT; PIPE UNION (A) M16	9-99111-416-0	02	1	9510-9802	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	9-99111-412-0	01	1	9510-9802	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9510-0004	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0005-0603	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	01	1	0604-	●
37	UNION; AIR PIPE (C) M16 ELBOW	9-09235-210-1	02	1	9510-9802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	9803-0004	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	0005-0512	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	0601-0607	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0608-	●
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	9803-0004	●	●
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	0005-0512	●
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	0601-0607	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0608-	●
41	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9802	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9510-9802	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-913-1	01	1	9510-9802	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3273 SERVICED BY L=3300	1-47428-886-0	01	1	9510-9802	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9510-9802	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-0004	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0005-	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9510-0004	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	0005-0512	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0601-	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-913-1	01	1	9510-9802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3019 SERVICED BY L=3300	1-47428-886-0	01	1	9510-9802	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	01	1	9510-9802	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9803-0004	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	0005-0512	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9510-0004	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0005-0605	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-57462-580-1	01	1	0606-	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9510-0004	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0005-0512	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91111-514-0	01	1	0601-	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-0004	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0005-	●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-611-4	01	1	9510-9802	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-0004	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-0212	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-9803	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0005-0005	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0006-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●

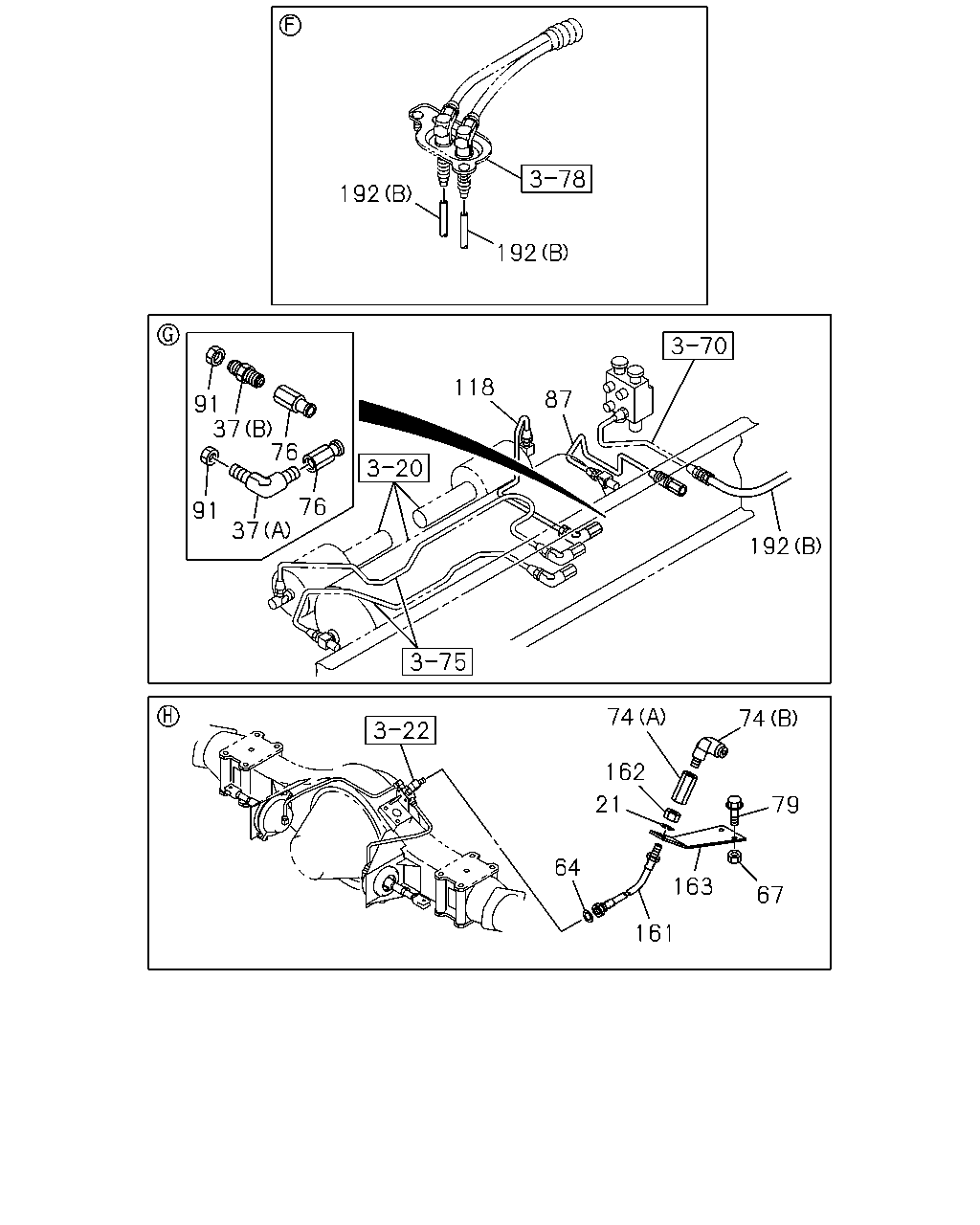

192 192 118 87 91 37 76 76 91 37 192 74 74 162 21 79 64 163 67 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9510-0004	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0005-0603	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	01	1	0604-	●
37	UNION; AIR PIPE (C) M16 ELBOW	9-09235-210-1	02	1	9510-9802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	9803-0004	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	0005-0512	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	0601-0607	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0608-	●
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	9803-0004	●	●
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	0005-0512	●
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	0601-0607	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0608-	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-0004	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0005-	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	9803-0004	●	●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	0005-	●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0004	●	●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●
76	ADAPTER; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9803-0004	●	●
76	ADAPTER; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	0005-0007	●
76	ADAPTER; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
87	PIPE; AIR,AIR TANK TO UNION	1-49115-908-0	01	1	9510-9802	●	●
87	PIPE; AIR,AIR TANK TO UNION	1-49119-151-1	01	1	9803-0004	●	●
87	PIPE; AIR,AIR TANK TO UNION	1-49119-151-1	01	1	0005-0105	●
87	PIPE; AIR,AIR TANK TO UNION	1-49123-092-0	01	1	0106-	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9510-0004	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	0005-0512	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0601-	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49114-964-0	01	1	9510-9802	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49114-964-0	01	1	9510-9802		●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49114-965-0	01	1	9510-9802	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49119-148-0	01	1	9803-0004	●	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49119-148-0	01	1	0005-0105	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49123-093-0	01	1	0106-	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9510-0004	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0005-0605	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-57462-580-1	01	1	0606-	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9510-0004	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0005-0512	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91111-514-0	01	1	0601-	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-0004	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0005-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-0004	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-0212	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-9803	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0005-0005	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0006-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●

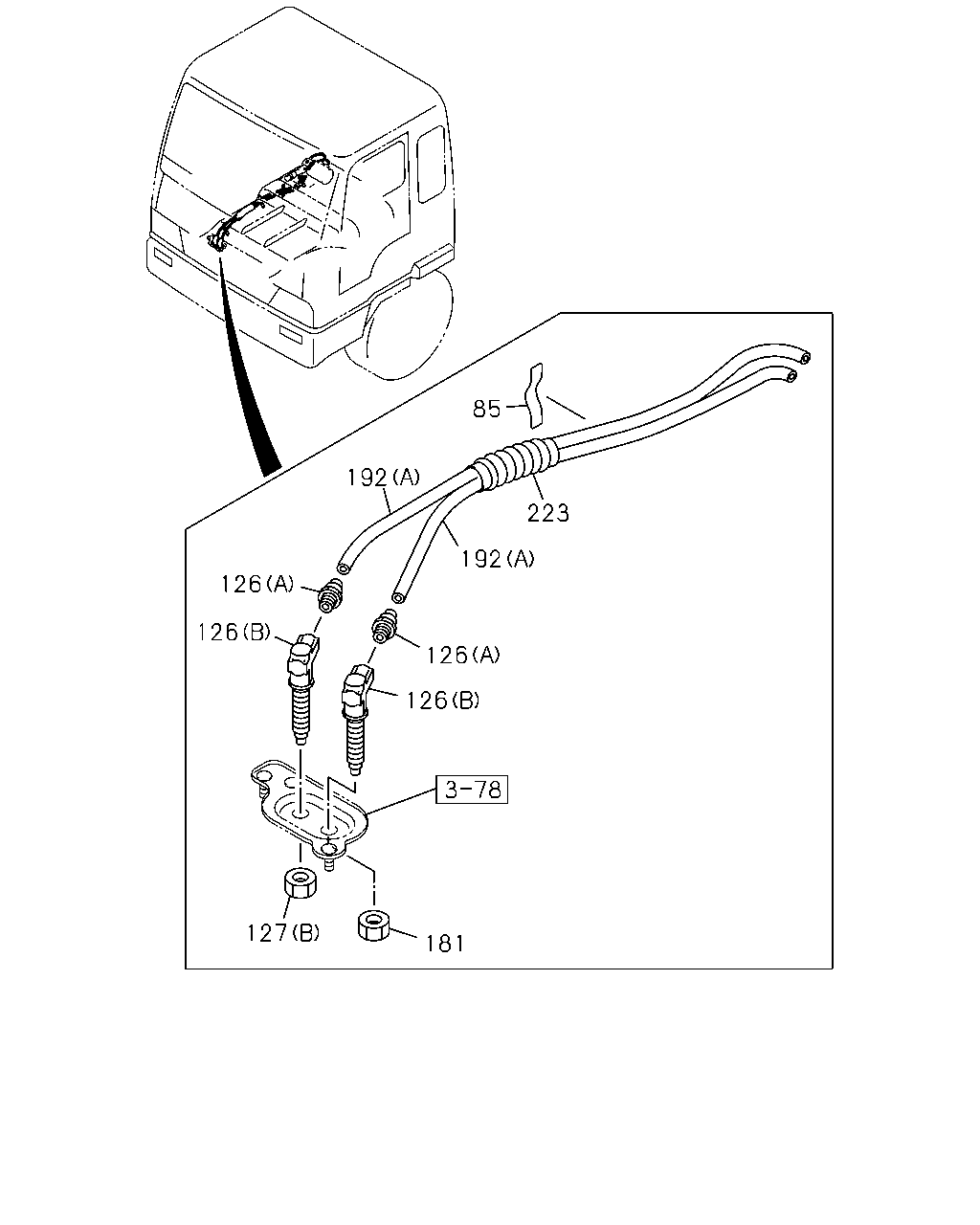

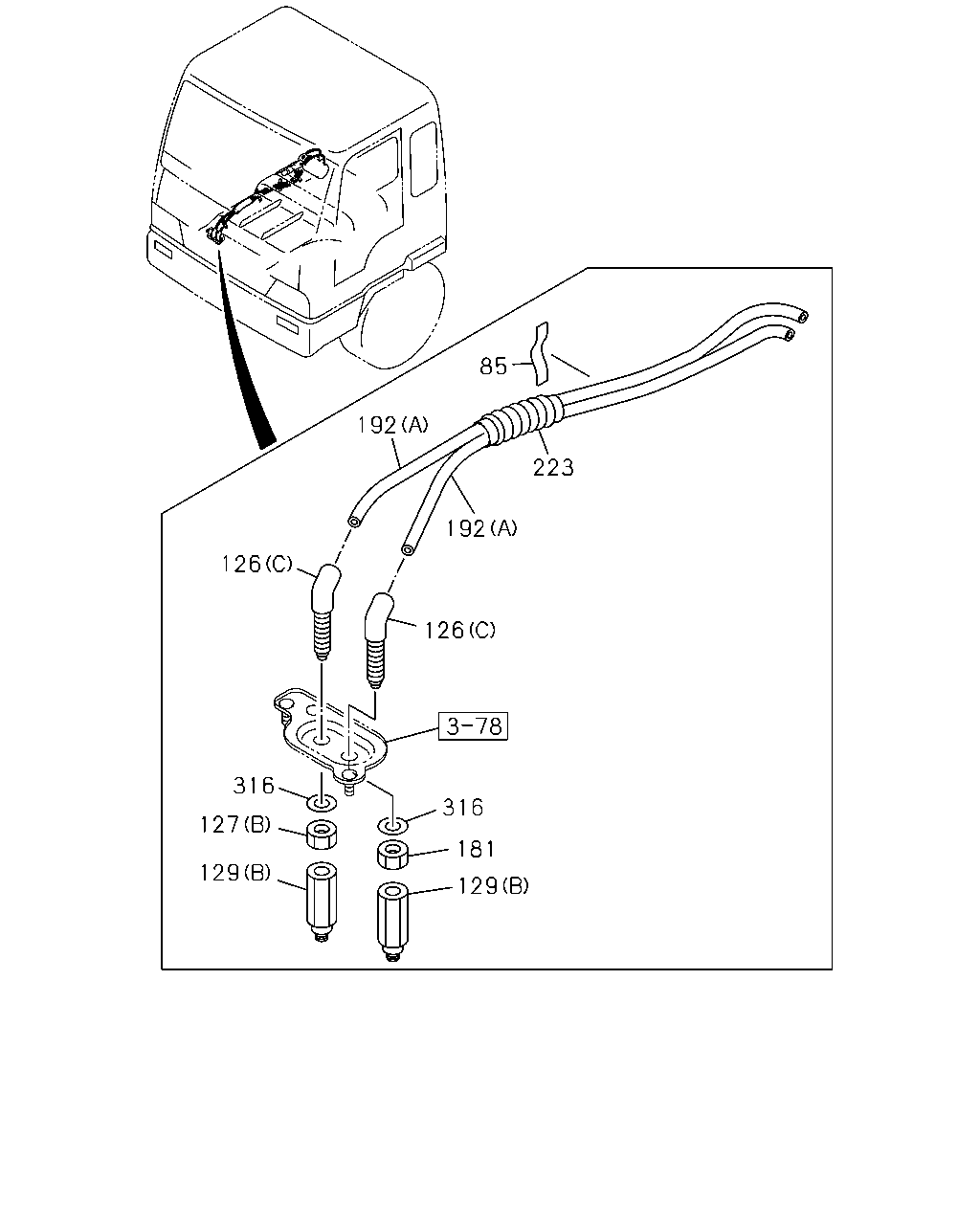

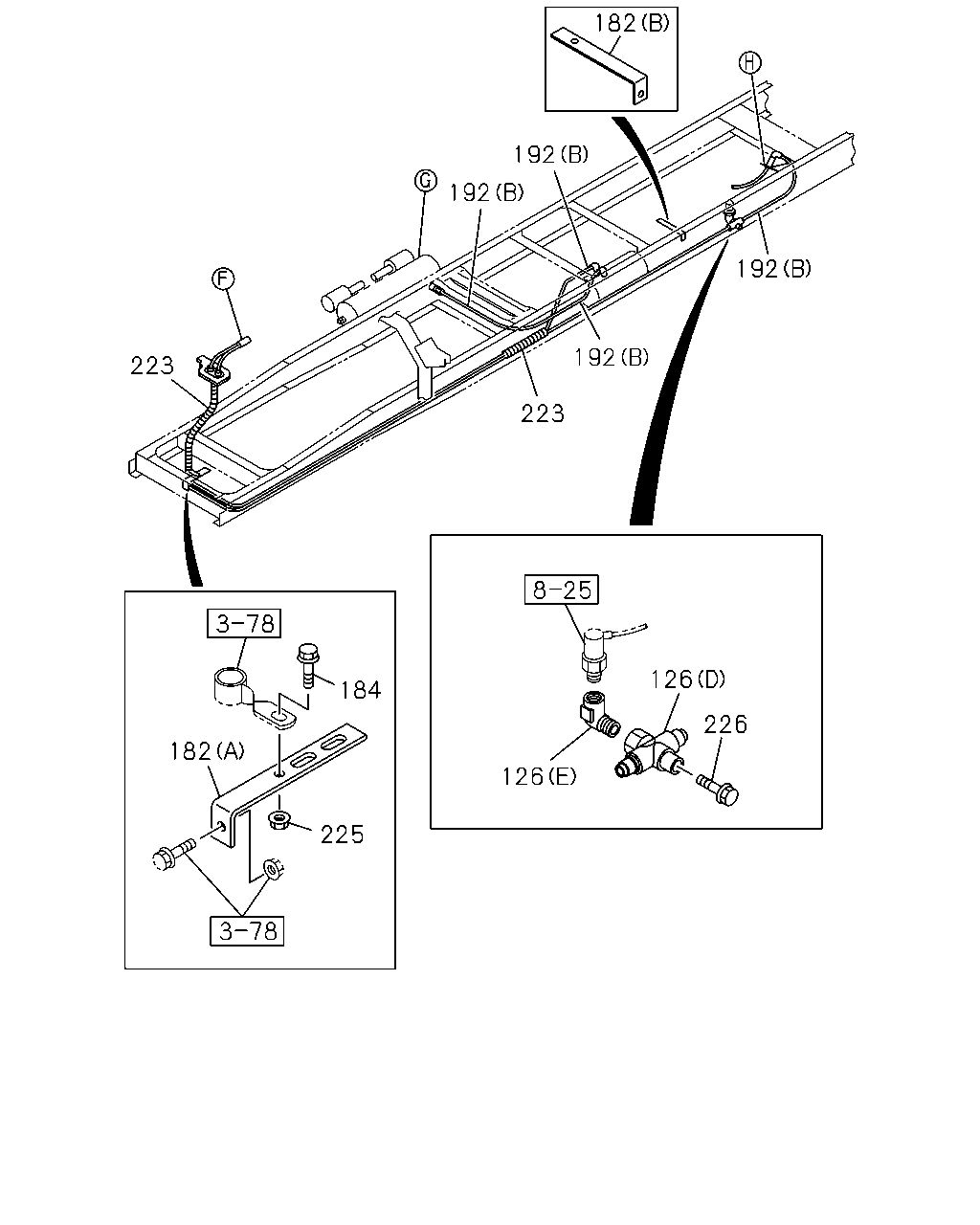

182 192 192 192 192 223 223 126 184 226 182 126 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-	●
182	BRACKET; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB UP +50MM<W60> (B)	1-47479-287-0	01	1	0601-	●
182	BRACKET; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30	1-47477-645-2	01	1	9803-0004	●	●
182	BRACKET; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30	1-47477-645-2	01	1	0005-	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0004	●	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-0004	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0005	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0006-0212	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-9803	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0005-0005	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0006-0106	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-0004	●	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0106	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0107-0512	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●
192	TUBE; NYLON WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0601-	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2000	1-87410-102-0	01	1	9510-0004	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	0005-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-0004	●	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0106	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0107-0512	●
223	TUBE; CORRUGATE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0601-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0601-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9803-0004	●	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0005-0106	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0107-0512	●
223	TUBE; CORRUGATE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK> CAB UP +50MM<W60> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0601-	●
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. CAB UP +50MM<W60> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0601-	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9803-0004	●	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
226	BOLT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0004	●	●
226	BOLT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●
226	BOLT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●

1 206 1 206 7 7 6 6 285 285 10 10 10 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9510-9902	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	9903-0004	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0005-0512	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0601-	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9512	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9512	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0004	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9510-9512	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9510-9512	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0004	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-451-1	01	1	9510-9802	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-451-1	01	1	9510-9802		●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-721-0	01	1	9803-0004	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-721-0	01	1	9803-0004		●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-721-0	01	1	0005-0103	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-754-0	01	1	0104-	●
10	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (B)	1-09654-324-0	01	1	9510-9802	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9803-0004	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (B) M16 STRAIGHT	1-09654-380-0	01	1	9803-0004	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9510-0004	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0005-0512	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0601-	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9510-9801	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9510-9801	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9802-0004	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	0005-0512	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	0601-0605	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
