Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#37734) — 217 parça

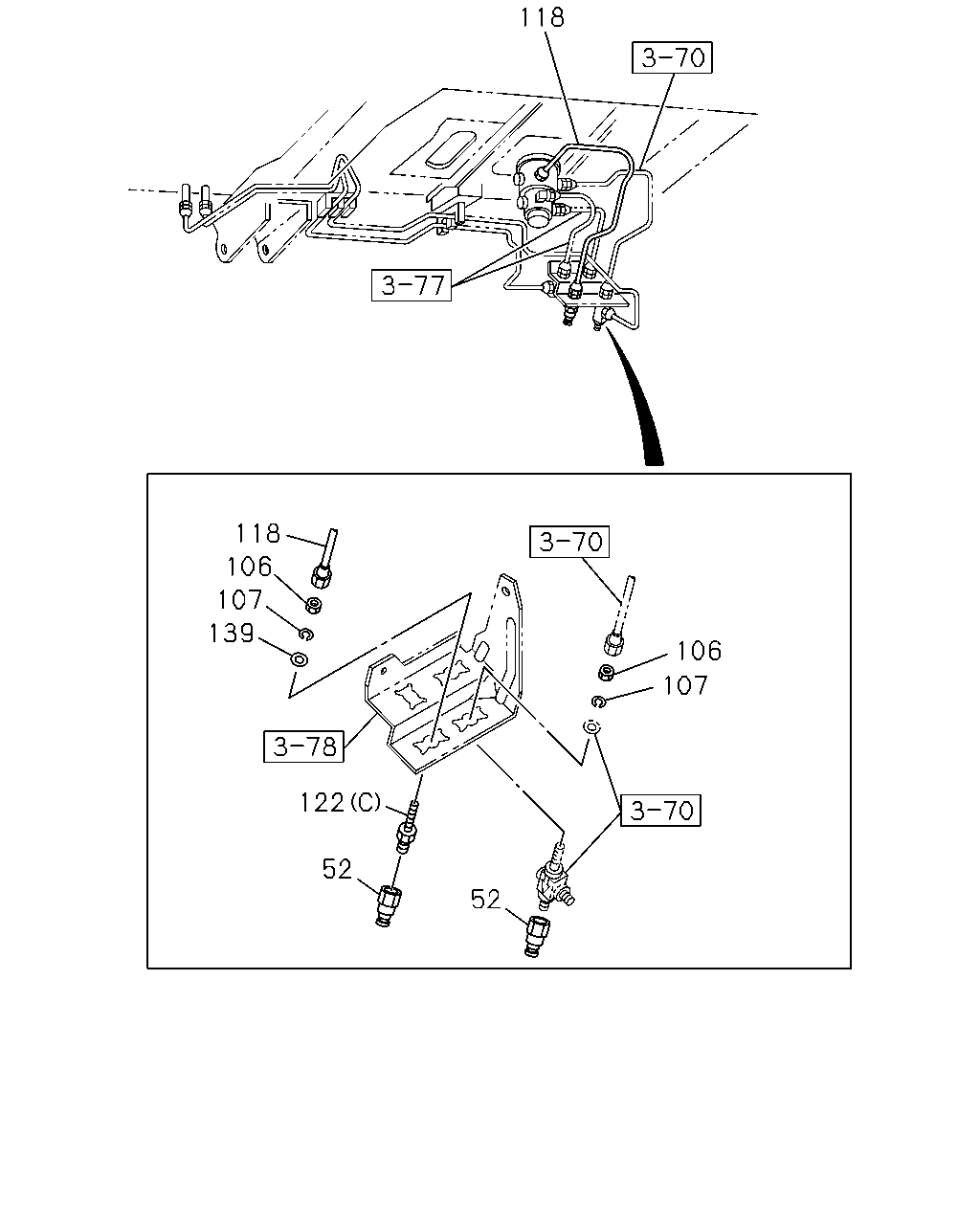

118 118 106 107 139 106 107 122 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0004	●	●
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0004	●	●
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●
106	NUT; FLEX HOSE M16	9-99111-416-0	01	1	9510-9512	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0004	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9512	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9512	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0004	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE	1-49116-428-0	01	1	9510-9512	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	9601-0004	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0005-0512	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0601-	●
122	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-638-0	01	1	9510-9802	●
122	CONNECTOR; FLEX HOSE (A)	1-09656-638-0	01	1	9510-9802		●
122	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (B)	1-09654-324-0	01	1	9510-9802	●
122	CONNECTOR; FLEX HOSE (C) M16 STRAIGHT	1-09654-380-0	01	1	9803-0004	●	●
122	CONNECTOR; FLEX HOSE (C) M16 STRAIGHT	1-09654-380-0	01	1	0005-0512	●
122	CONNECTOR; FLEX HOSE (C) M16 STRAIGHT	1-09654-380-0	01	1	0601-	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9510-0004	●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0512	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0601-0605	●
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●

87 1 70 62 62 66 66 36 70 106 106 64 3 77 64 65 2 65 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION	1-49115-907-0	01	1	9510-9711	●	●
1	PIPE; AIR,AIR TANK TO UNION	1-49119-044-0	01	1	9712-9802	●	●
1	PIPE; AIR,AIR TANK TO UNION	1-49118-367-0	01	1	9803-0004	●	●
1	PIPE; AIR,AIR TANK TO UNION	1-49118-367-0	01	1	0005-0302	●
1	PIPE; AIR,AIR TANK TO UNION	1-49124-022-0	01	1	0303-	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	9510-0004	●	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	0005-0512	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	0601-0607	●
2	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	02	1	0608-	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-0004	●	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0512	●
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-	●
36	NUT; HOSE BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2666 SERVICED BY L=2900	1-47428-885-0	01	1	9510-9802	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE L=710	0-07474-710-1	02	1	9510-9802	●	●
64	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9802	●	●
65	BRACKET; FLEX HOSE (A)	1-47476-761-1	01	1	9510-9802	●	●
65	BRACKET; FLEX HOSE (B)	1-47476-762-0	01	1	9510-9802	●	●
66	BOLT; HOSE BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
66	BOLT; HOSE BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●
66	BOLT; HOSE BRKT (B) M10X16 FLANGE	0-28181-016-0	02	1	9510-9802	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2892 SERVICED BY L=2900	1-47428-885-0	01	1	9510-9802	●	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-0004	●	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0512	●
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-	●
87	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49115-905-0	01	1	9510-9802	●
87	PIPE; AIR,UNION TO AIR MASTER	1-49115-905-0	01	1	9510-9802		●
87	PIPE; AIR,UNION TO AIR MASTER	1-49119-149-0	01	1	9803-0004	●	●
87	PIPE; AIR,UNION TO AIR MASTER	1-49119-149-0	01	1	0005-0106	●
87	PIPE; AIR,UNION TO AIR MASTER L=607	1-49123-213-0	01	1	0107-	●
87	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49115-906-0	01	1	9510-9605	●
87	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49117-430-0	01	1	9606-9802	●
106	NUT; FLEX HOSE M16	9-99111-416-0	01	1	9510-9512	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0004	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●

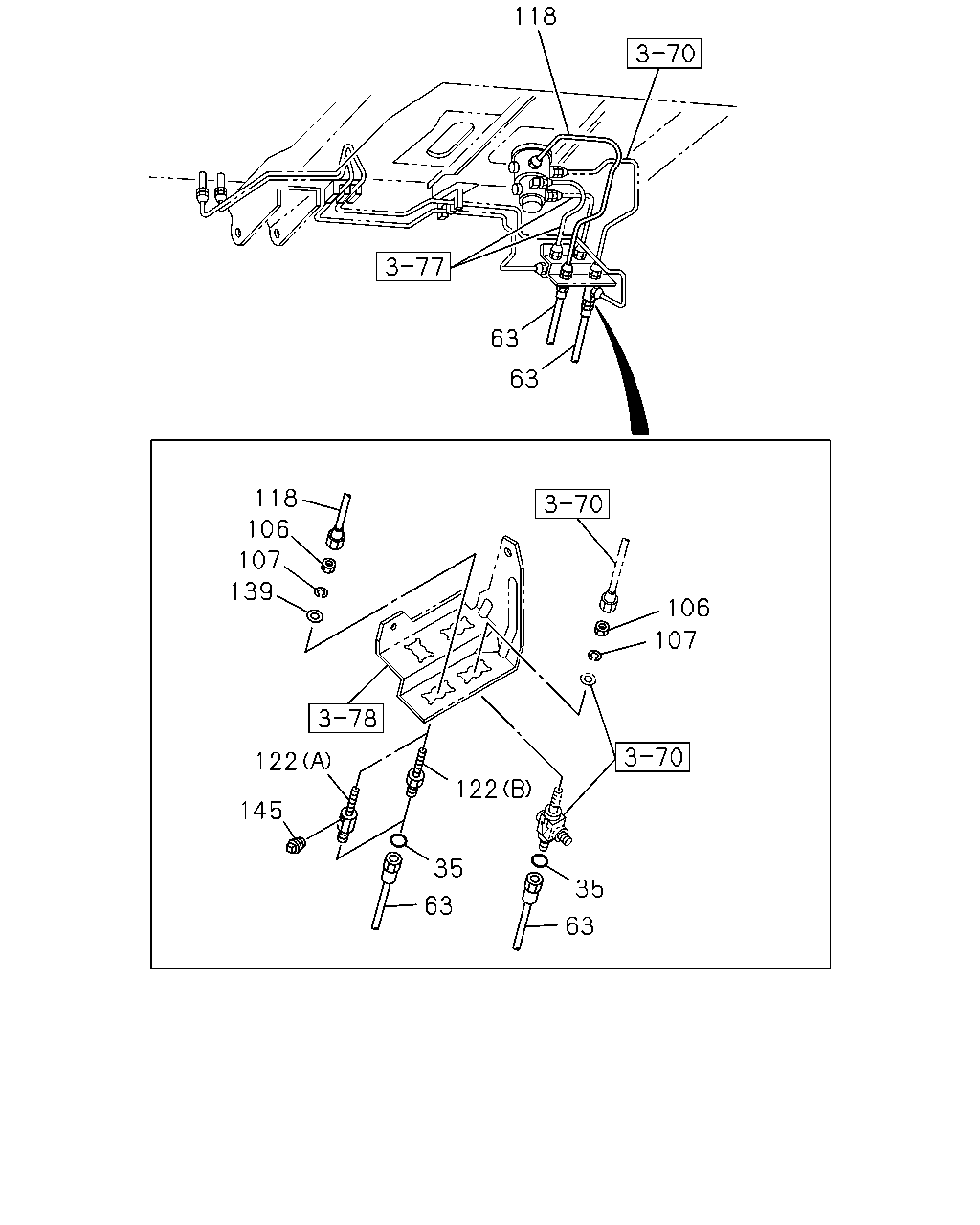

118 63 63 118 106 107 139 106 107 122 122 145 35 35 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE L=710	0-07474-710-1	02	1	9510-9802	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	01	1	9510-9512	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0004	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9512	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9512	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0004	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE	1-49116-428-0	01	1	9510-9512	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	9601-0004	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0005-0512	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0601-	●
122	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (A)	1-09656-638-0	01	1	9510-9802	●
122	CONNECTOR; FLEX HOSE (A)	1-09656-638-0	01	1	9510-9802		●
122	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (B)	1-09654-324-0	01	1	9510-9802	●
122	CONNECTOR; FLEX HOSE (C) M16 STRAIGHT	1-09654-380-0	01	1	9803-0004	●	●
122	CONNECTOR; FLEX HOSE (C) M16 STRAIGHT	1-09654-380-0	01	1	0005-0512	●
122	CONNECTOR; FLEX HOSE (C) M16 STRAIGHT	1-09654-380-0	01	1	0601-	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9510-0004	●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0512	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0601-0605	●
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●
145	PLUG DUAL AIR GAUGE<UG2> PT1/4	9-99204-513-0	01	1	9510-9802	●
145	PLUG PT1/4	9-99204-513-0	01	1	9510-9802		●

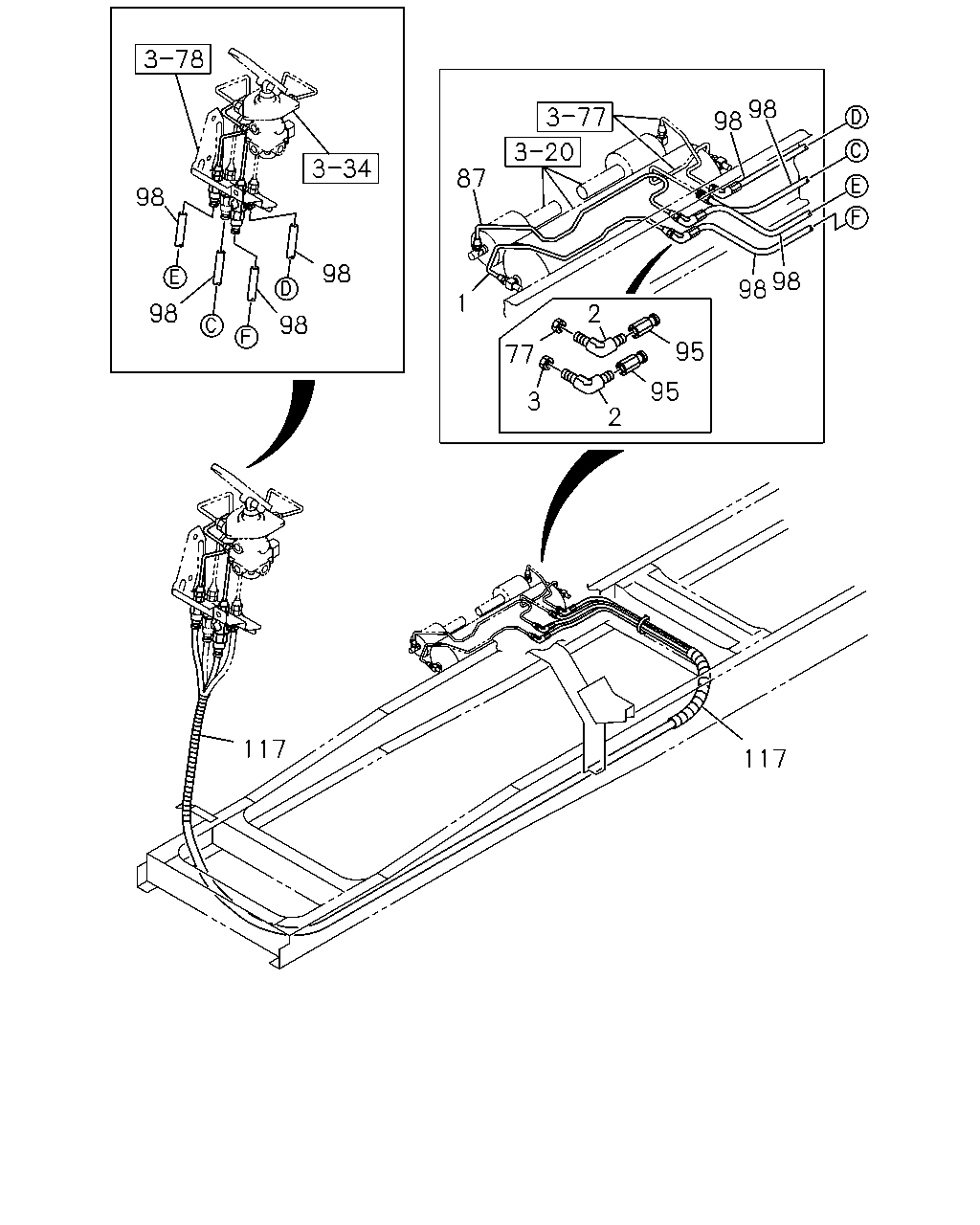

98 98 87 98 98 98 98 1 98 2 98 95 77 95 3 2 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION	1-49115-907-0	01	1	9510-9711	●	●
1	PIPE; AIR,AIR TANK TO UNION	1-49119-044-0	01	1	9712-9802	●	●
1	PIPE; AIR,AIR TANK TO UNION	1-49118-367-0	01	1	9803-0004	●	●
1	PIPE; AIR,AIR TANK TO UNION	1-49118-367-0	01	1	0005-0302	●
1	PIPE; AIR,AIR TANK TO UNION	1-49124-022-0	01	1	0303-	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	9510-0004	●	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	0005-0512	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	0601-0607	●
2	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	02	1	0608-	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-0004	●	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0512	●
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-0004	●	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0512	●
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-	●
87	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49115-905-0	01	1	9510-9802	●
87	PIPE; AIR,UNION TO AIR MASTER	1-49115-905-0	01	1	9510-9802		●
87	PIPE; AIR,UNION TO AIR MASTER	1-49119-149-0	01	1	9803-0004	●	●
87	PIPE; AIR,UNION TO AIR MASTER	1-49119-149-0	01	1	0005-0106	●
87	PIPE; AIR,UNION TO AIR MASTER L=607	1-49123-213-0	01	1	0107-	●
87	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49115-906-0	01	1	9510-9605	●
87	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49117-430-0	01	1	9606-9802	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9803-0004	●	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	0005-0007	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9803-9805	●
98	TUBE; NYLON EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9803-9805	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9803-9805		●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9806-0004	●
98	TUBE; NYLON EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9806-0004	●
98	TUBE; NYLON EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9806-0004		●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0010	●
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0010	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0011-0012	●
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0011-0012	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=4000 OD=8	1-87410-074-0	02	1	0101-0106	●
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=4000 OD=8	1-87410-074-0	02	1	0101-0106	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0107-0512	●
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0107-0512	●
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2>,CAB UP +50MM<W60> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0601-	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0601-	●
98	TUBE; NYLON DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9803-9805	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9803-9805	●
98	TUBE; NYLON EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9803-9805	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9803-9805		●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9806-0004	●
98	TUBE; NYLON EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9806-0004	●
98	TUBE; NYLON DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9806-0004	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9806-0004		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0012	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	08	1	0101-0106	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0107-0512	●
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,CAB UP +50MM<W60> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0601-	●
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0601-	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9803-9805	●
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9803-9805	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9803-9805		●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	9806-0004	●
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	9806-0004	●
117	TUBE; CORRUGATE EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	9806-0004		●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0005-0010	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0005-0010	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0011-0012	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0011-0012	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	04	1	0101-0106	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=28	1-87410-098-0	04	1	0101-0106	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0107-0512	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0107-0512	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2>,CAB UP +50MM<W60> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0601-	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0601-	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9803-9805	●
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9803-9805	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9803-9805		●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9806-9806	●
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9806-9806	●
117	TUBE; CORRUGATE EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9806-9806		●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	9806-0004	●
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	9806-0004	●
117	TUBE; CORRUGATE EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	9806-0004		●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0005-0010	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0005-0010	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0011-0012	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0011-0012	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	0101-0106	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	0101-0106	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0107-0512	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0107-0512	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2>,CAB UP +50MM<W60> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0601-	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0601-	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9806-0004	●
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9806-0004	●
117	TUBE; CORRUGATE EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9806-0004		●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0010	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0010	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0011-0012	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0011-0012	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0101-0106	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0101-0106	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0107-0512	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0107-0512	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2>,CAB UP +50MM<W60> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0601-	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0601-	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9806-9806	●
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9806-9806	●
117	TUBE; CORRUGATE EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9806-9806		●
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	9803-9805	●
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-9805	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-9805	●
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-9805	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-9805		●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9806-0004	●
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9806-0004	●
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9806-0004	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9806-0004		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0012	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0101-0106	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0107-0512	●
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,CAB UP +50MM<W60> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0601-	●
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0601-	●
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	9806-0004	●
117	TUBE; CORRUGATE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	9806-0004		●
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0005-0010	●
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0011-0012	●
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	06	1	0101-0106	●
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0107-0512	●
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,CAB UP +50MM<W60> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
