◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#37733) — 627 parça
çizim 150941
359 358 75 242 244 244 243 243 238 251 238 251
BalonParca AdiParca NoAdetTipApplied Date A B
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2235 SERVICED BY L=2500 		1-47428-798-0 01 1 9510-9605 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2235 SERVICED BY L=2500 		1-47428-798-0 01 1 9606-9802 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2742 SERVICED BY L=2900 		1-47426-425-0 01 1 9510-9802 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2214 SERVICED BY L=2500 		1-47426-423-0 01 1 9510-9802 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2775 SERVICED BY L=2900 		1-47426-425-0 01 1 9510-9802 ●
238 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=1359 SERVICED BY L=1370 		1-47426-354-0 01 1 9510-9802 ● ●
238 PIPE; AIR,UNION TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=1379 SERVICED BY L=1500 		1-47426-355-0 01 1 9510-9802 ● ●
242 PIPE; AIR,AIR TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) 		1-49118-369-0 01 1 9803- ●
242 PIPE; AIR,AIR TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (A) 		1-49118-536-0 01 1 9803- ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (C) 		1-49114-992-0 01 1 9510-9802 ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (A) 		1-49118-368-0 01 1 9803- ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (E) M12 3WAY 		9-09228-906-1 01 1 0601-0607 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (E) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (E) M12 3WAY 		9-09228-906-1 01 1 9807-0004 ●
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (A) M12 		9-09228-306-1 01 1 9510-9802 ●
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9510-9802 ●
243 UNION; AIR PIPE
(E) M12 L=66.5 		9-09223-306-1 01 1 9803-9806 ● ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (E) M12 L=66.5 		9-09223-306-1 01 1 9807-0004 ●
243 UNION; AIR PIPE
(E) M12 L=66.5 		9-09223-306-1 01 1 9807-0004 ●
243 UNION; AIR PIPE
(E) M12 L=66.5 		9-09223-306-1 01 1 0005-0512 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (E) M12 L=66.5 		9-09223-306-1 01 1 0601-0607 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
243 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9802 ●
243 UNION; AIR PIPE
(B) M12 2WAY 		1-09654-059-2 01 1 9510-9802 ●
243 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY 		1-09654-086-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & M16 STRAIGHT 		1-09654-314-1 01 1 9510-9802 ● ●
244 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> (A) M12 		9-99111-412-0 01 1 9510-9802 ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-99111-412-0 01 1 9510-9802 ●
244 NUT; UNION,AIR PIPE
(B) M16 		9-99111-416-0 01 1 9510-9802 ● ●
244 NUT; UNION,AIR PIPE
(C) M12 		9-09840-280-0 01 1 9803-0004 ● ●
244 NUT; UNION,AIR PIPE
(C) M12 		9-09840-280-0 01 1 0005-0512 ●
244 NUT; UNION,AIR PIPE
(C) M12 		9-09840-280-0 01 1 0601- ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49115-028-0 01 1 9510-9802 ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49115-028-0 01 1 9510-9802 ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) 		1-49115-024-0 01 1 9510-9802 ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> 		1-49115-024-0 01 1 9510-9802 ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> 		1-49115-872-0 01 1 9510-9802 ●
358 PIPE; AIR,AIR TANK TO AIR VLV
BRAKE REGULATION ADR<TDU> 		1-49115-872-0 01 1 9510-9802 ●
358 PIPE; AIR,AIR TANK TO AIR VLV 1-49116-411-0 01 1 9510-9802 ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> 		1-49115-873-0 01 1 9510-9802 ●
359 PIPE; AIR,AIR VLV TO UNION
BRAKE REGULATION ADR<TDU> 		1-49115-873-0 01 1 9510-9802 ●
359 PIPE; AIR,AIR VLV TO UNION 1-49115-873-0 01 1 9510-9802 ●
çizim 150945
243 243 140 138 139 244 244 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 HOSE; FLEX,AIR PRESSURE GAGE
AIR SUSP DRIVER SEAT<A56> L=450 		0-07120-450-0 01 1 9510-9802 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450 		0-07120-450-0 01 1 9510-9802 ●
138 NUT; FLEX HOSE,AIR GOV
AIR SUSP DRIVER SEAT<A56> M12 		9-09840-280-0 01 1 9510-9802 ●
138 NUT; FLEX HOSE,AIR GOV
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9510-9802 ●
139 WASHER; LK,FLEX HOSE,AIR GOV
AIR SUSP DRIVER SEAT<A56> ID=12.2 		9-09150-512-0 01 1 9510-9802 ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9510-9802 ●
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ●
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (E) M12 3WAY 		9-09228-906-1 01 1 0601-0607 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (E) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (E) M12 3WAY 		9-09228-906-1 01 1 9807-0004 ●
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (A) M12 		9-09228-306-1 01 1 9510-9802 ●
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9510-9802 ●
243 UNION; AIR PIPE
(E) M12 L=66.5 		9-09223-306-1 01 1 9803-9806 ● ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (E) M12 L=66.5 		9-09223-306-1 01 1 9807-0004 ●
243 UNION; AIR PIPE
(E) M12 L=66.5 		9-09223-306-1 01 1 9807-0004 ●
243 UNION; AIR PIPE
(E) M12 L=66.5 		9-09223-306-1 01 1 0005-0512 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (E) M12 L=66.5 		9-09223-306-1 01 1 0601-0607 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
243 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9802 ●
243 UNION; AIR PIPE
(B) M12 2WAY 		1-09654-059-2 01 1 9510-9802 ●
243 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY 		1-09654-086-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & M16 STRAIGHT 		1-09654-314-1 01 1 9510-9802 ● ●
244 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> (A) M12 		9-99111-412-0 01 1 9510-9802 ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-99111-412-0 01 1 9510-9802 ●
244 NUT; UNION,AIR PIPE
(B) M16 		9-99111-416-0 01 1 9510-9802 ● ●
244 NUT; UNION,AIR PIPE
(C) M12 		9-09840-280-0 01 1 9803-0004 ● ●
244 NUT; UNION,AIR PIPE
(C) M12 		9-09840-280-0 01 1 0005-0512 ●
244 NUT; UNION,AIR PIPE
(C) M12 		9-09840-280-0 01 1 0601- ●

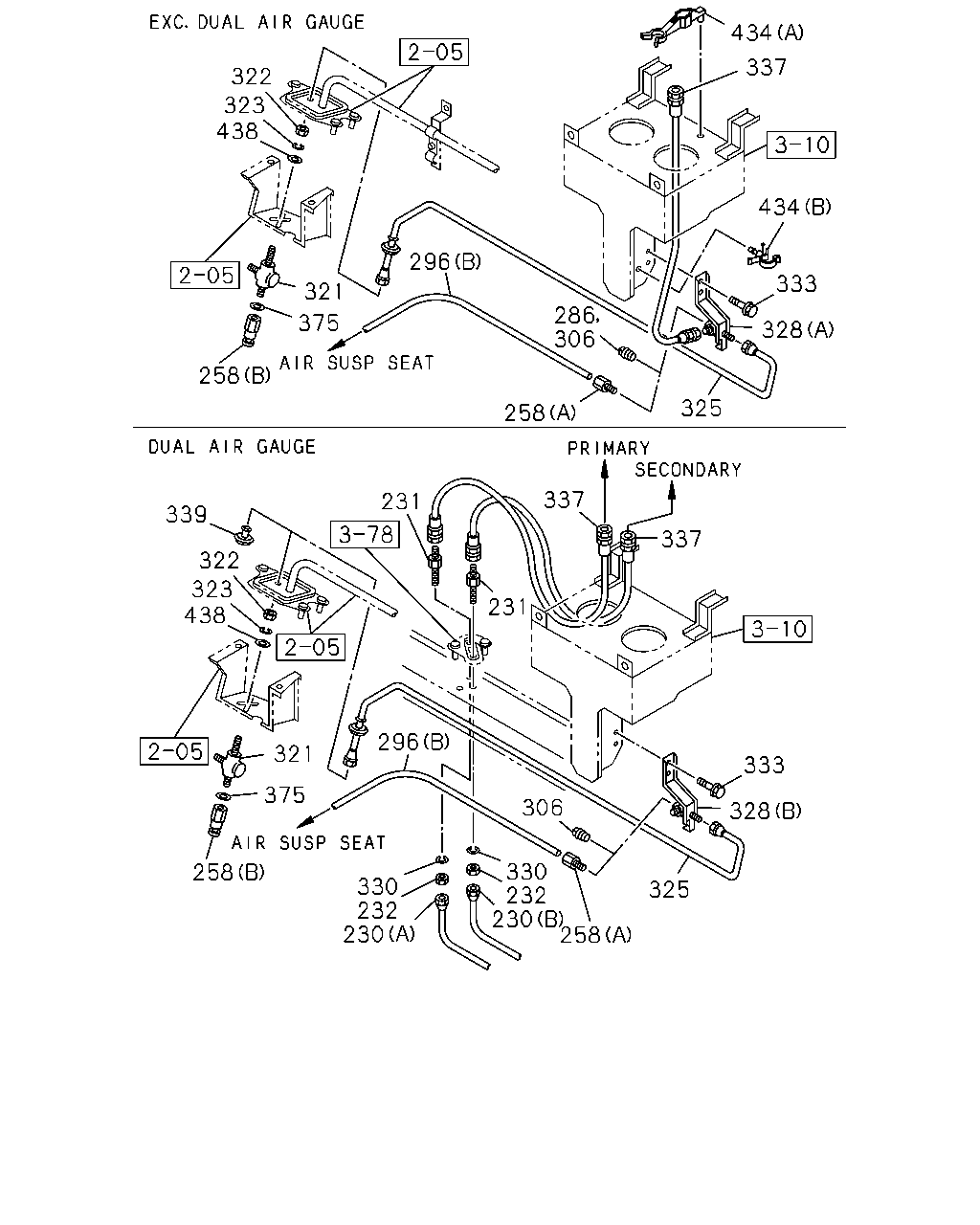

çizim 150952
434 337 322 323 438 434 296 333 321 286 306 375 328 258 325 258 337 231 339 337 322 323 438 231 296 321 333 375 306 328 330 232 230 258 258 330 232 230 325
BalonParca AdiParca NoAdetTipApplied Date A B
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (A) 		1-49123-979-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (B) 		1-49123-980-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49116-429-1 01 1 9510-0004 ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 9510-0004 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49116-429-1 01 1 0005-0103 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49122-777-0 01 1 0104-0212 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-49122-777-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49116-430-1 01 1 9510-0004 ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 9510-0004 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49116-430-1 01 1 0005-0103 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49122-778-0 01 1 0104-0212 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-49122-778-0 01 1 0301- ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> M10 STRAIGHT 		1-09654-361-0 02 1 9510-0004 ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 9510-0004 ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> M10 STRAIGHT 		1-09654-361-0 02 1 0005- ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 02 1 9510-0004 ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 9510-0004 ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 02 1 0005- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9510-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0011-0012 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0101-0512 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0601- ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9510-9802 ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9803-9810 ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9811-0004 ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 0005-0010 ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 0011- ●

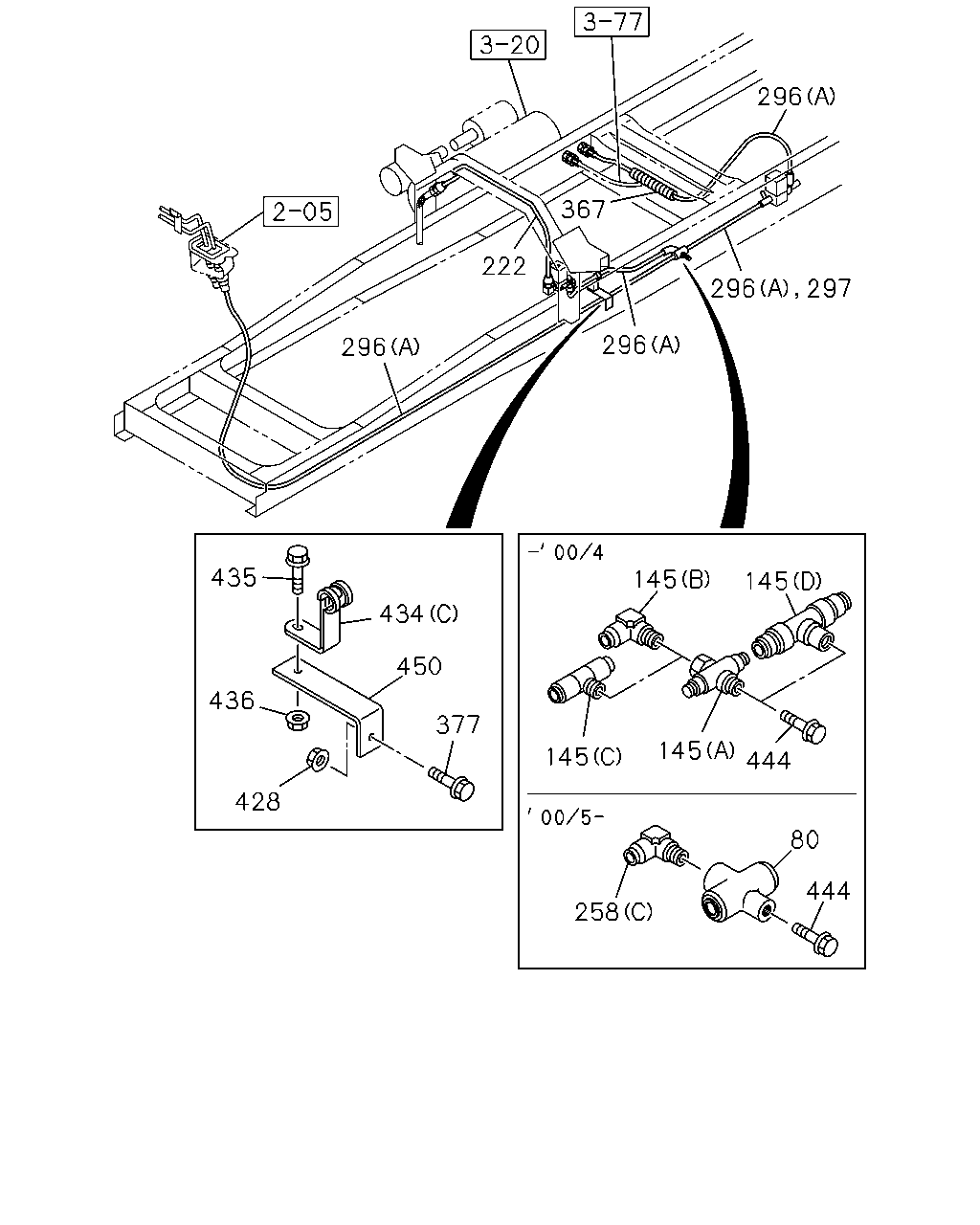

296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9510-9810 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (B) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004 ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=1200 OD=6 		1-09366-256-1 01 1 0011- ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
306 PLUG; NYLON TUBE
AIR CONTROL SEAT<A60> PT1/8 		1-09605-050-0 01 1 9803-0004 ●
306 PLUG; NYLON TUBE
PT1/8 		1-09605-050-0 01 1 9803-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9802 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9802 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9803-9810 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9803-9810 ●
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 9803-9810 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9811-9811 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9811-9811 ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09654-362-1 01 1 9811-9811 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011- ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011- ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-9802 ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-9802 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9803-9810 ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9803-9810 ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9803-9810 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004 ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004 ●
322 NUT; JOINT,FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8 		1-09400-029-0 01 1 9811-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010 ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011- ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011- ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-9802 ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-9802 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9803-9810 ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9803-9810 ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9803-9810 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004 ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004 ●
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		9-09150-510-0 01 1 9811-0004 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010 ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603 ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9510-9802 ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9510-9802 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9803-9810 ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9803-9810 ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 9803-9810 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47492-452-2 01 1 9811-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010 ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011- ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011- ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) 		1-47470-392-0 01 1 9510-9802 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) 		1-47470-392-0 01 1 9803-9810 ●
328 UNION; AIR PIPE
(B) 		1-47470-392-0 01 1 9803-9810 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) 		1-47470-392-0 01 1 9811-0004 ●
328 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-47470-392-0 01 1 9811-0004 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) 		1-47470-392-0 01 1 0005-0010 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) 		1-47470-392-0 01 1 0011- ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (A) 		1-47470-362-2 01 1 9510- ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 9510-0004 ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9510-0004 ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 0005-0603 ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 02 1 0604- ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-9802 ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-9802 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9810 ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9810 ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9810 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ●
333 BOLT; PIPE UNION
DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9510-0004 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9510-0004 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 0005-0608 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-57210-720-0 02 1 0609- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9510-0605 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-57210-810-0 01 1 0606- ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9510-9802 ●
339 GROMMET; AIR PIPE
OD=28 		8-94279-720-0 01 1 9510-9802 ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> OD=28 		8-94279-720-0 01 1 9803-9810 ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 9811-0004 ●
339 GROMMET; AIR PIPE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 9811-0004 ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 0005-0010 ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> OD=28 		8-94279-720-0 01 1 0011- ●
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9810 ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9810 ●
375 GASKET
ID=11 OD=18 		9-09572-510-0 01 1 9803-9810 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ●
375 GASKET
DRIVER ISRINGHAUSEN SEAT<SJA> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9510- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9510- ●
434 CLIP
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=45 L=20 		1-09701-161-0 01 1 9803-0004 ●
434 CLIP
AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=45 L=20 		1-09701-161-0 01 1 9803-0004 ●
434 CLIP
EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3) (C) D=9 T=45 		5-09700-021-0 01 1 9803-0004 ●
434 CLIP
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (C) D=9 T=45 		5-09700-021-0 01 1 9803-0004 ●
434 CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) (C) D=9 T=45 		5-09700-021-0 01 1 9803-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-9802 ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-9802 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-9810 ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-9810 ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-9810 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ●
438 WASHER; PL,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ●

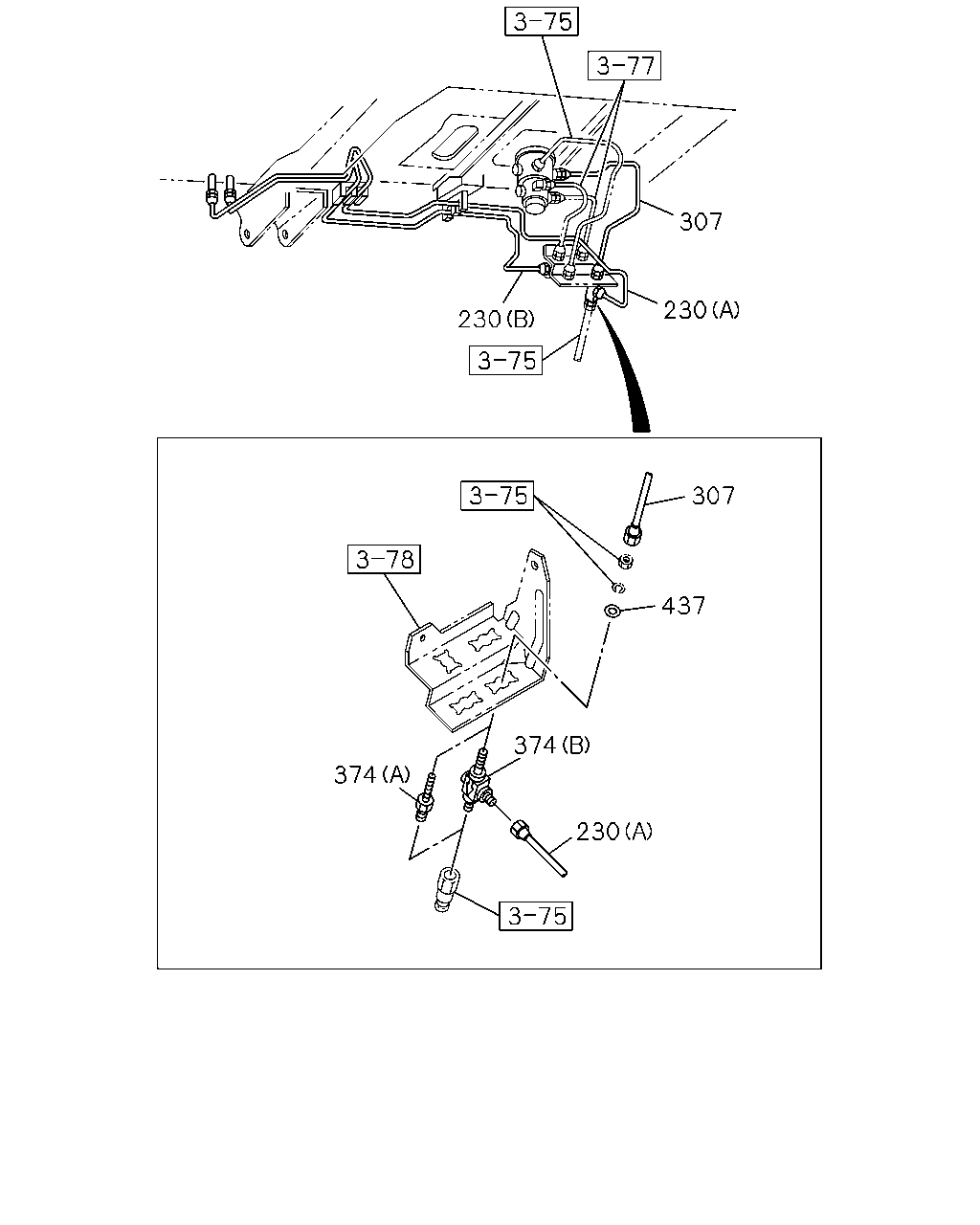

çizim 150957
307 230 230 307 437 374 374 230
BalonParca AdiParca NoAdetTipApplied Date A B
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (A) 		1-49123-979-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (B) 		1-49123-980-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49116-429-1 01 1 9510-0004 ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 9510-0004 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49116-429-1 01 1 0005-0103 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49122-777-0 01 1 0104-0212 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-49122-777-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49116-430-1 01 1 9510-0004 ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 9510-0004 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49116-430-1 01 1 0005-0103 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49122-778-0 01 1 0104-0212 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-49122-778-0 01 1 0301- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV 1-49116-427-0 01 1 9510-9512 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9601-9902 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 9903-0004 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0005-0512 ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0601- ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (B) 		1-09656-451-1 01 1 9510-9802 ●
374 CONNECTOR
(B) 		1-09656-451-1 01 1 9510-9802 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (B) 		1-09656-721-0 01 1 9803-0004 ●
374 CONNECTOR
(B) 		1-09656-721-0 01 1 9803-0004 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (B) 		1-09656-721-0 01 1 0005-0103 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (B) 		1-09656-754-0 01 1 0104- ●
374 CONNECTOR
EXC. DUAL AIR GAUGE<UG2> (A) 		1-09654-324-0 01 1 9510-9802 ●
374 CONNECTOR
EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT 		1-09654-380-0 01 1 9803- ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9510-0004 ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0005-0512 ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0601-0605 ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ●

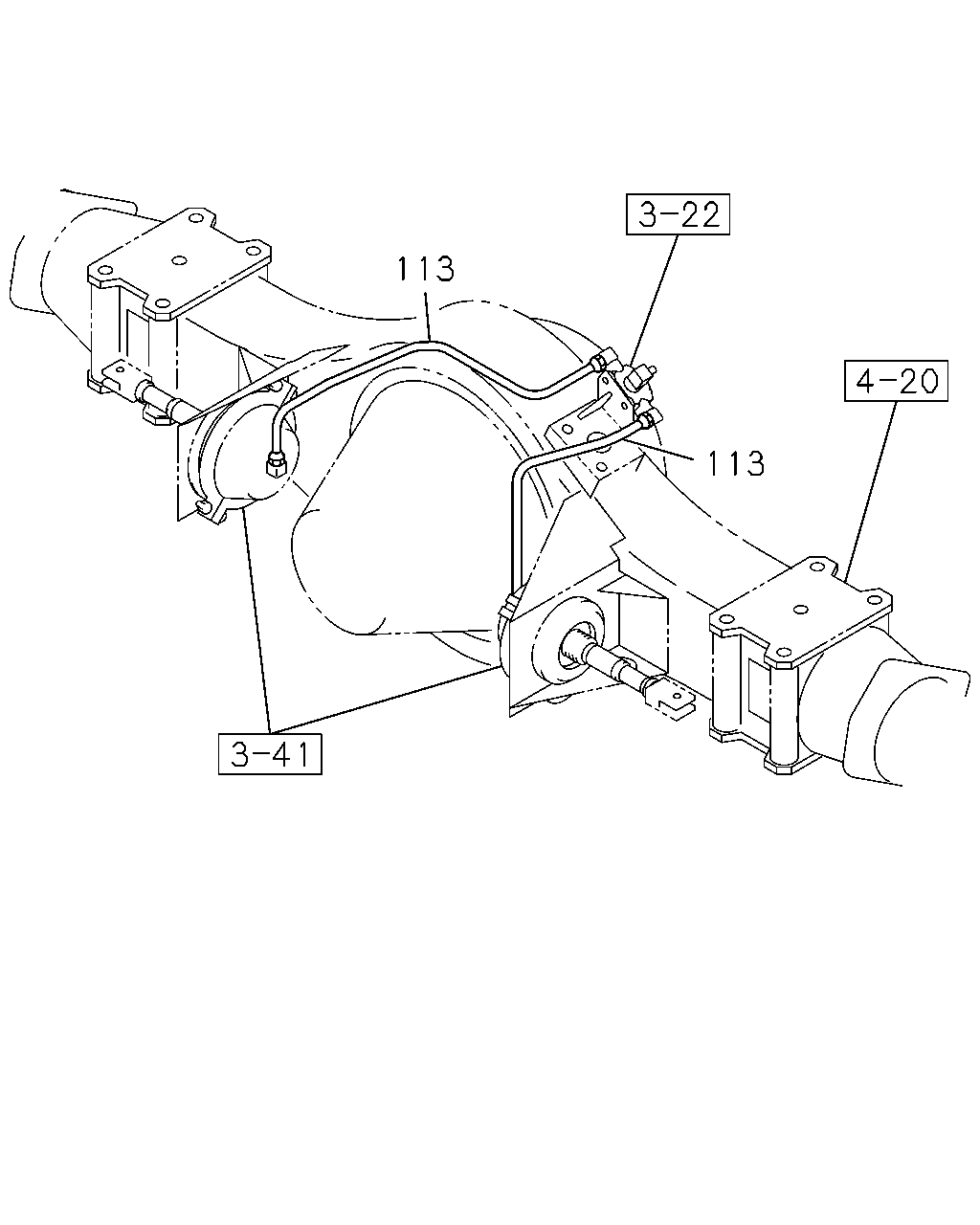

çizim 150958
113 113
BalonParca AdiParca NoAdetTipApplied Date A B
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=324 		1-49112-659-0 01 1 9510-0004 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=324 		1-49112-659-0 01 1 0005- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=635 		1-49112-658-0 01 1 9510-0004 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=635 		1-49112-658-0 01 1 0005- ●

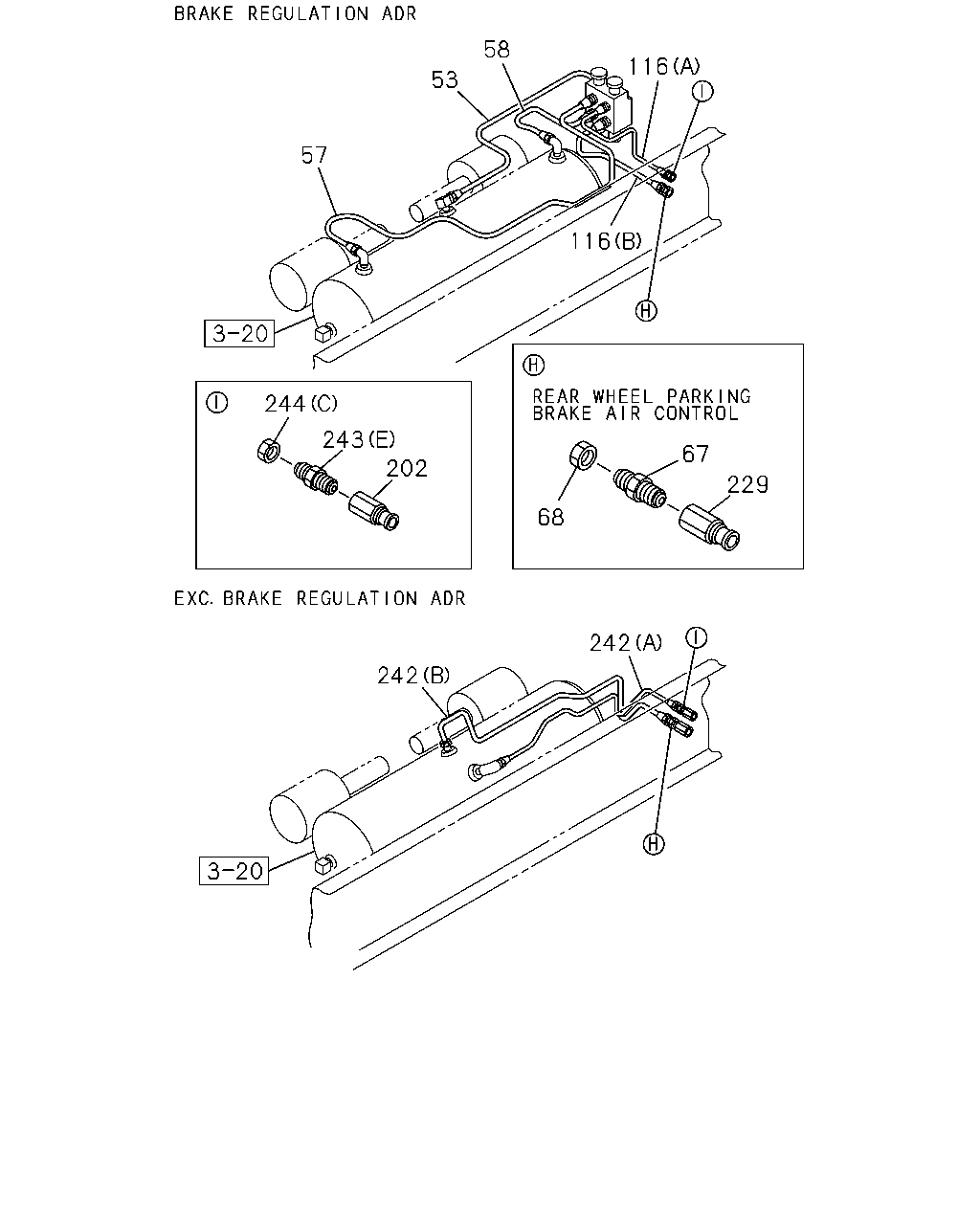

çizim 150970
58 116 53 57 116 244 243 67 202 229 68 242 242
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE
BRAKE REGULATION ADR<TDU> 		1-49118-361-0 01 1 9803-0004 ●
53 PIPE; AIR,AIR TANK TO VALVE 1-49118-361-0 01 1 9803-0004 ●
53 PIPE; AIR,AIR TANK TO VALVE
BRAKE REGULATION ADR<TDU> 		1-49118-361-0 01 1 0005- ●
57 PIPE; AIR,P/VALVE TO A/T
BRAKE REGULATION ADR<TDU> 		1-49118-725-0 01 1 9803-0004 ●
57 PIPE; AIR,P/VALVE TO A/T 1-49118-725-0 01 1 9803-0004 ●
57 PIPE; AIR,P/VALVE TO A/T
BRAKE REGULATION ADR<TDU> 		1-49118-725-0 01 1 0005- ●
58 PIPE; AIR
BRAKE REGULATION ADR<TDU> 		1-49118-363-0 01 1 9803-0004 ●
58 PIPE; AIR 1-49118-363-0 01 1 9803-0004 ●
58 PIPE; AIR
BRAKE REGULATION ADR<TDU> 		1-49118-363-0 01 1 0005- ●
67 JOINT; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=74 		9-09233-310-1 01 1 9803-0004 ● ●
67 JOINT; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=74 		9-09233-310-1 01 1 0005-0607 ●
67 JOINT; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=74 		0-92123-310-0 01 1 0608- ●
68 NUT; JOINT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		9-99111-416-0 01 1 9803-0004 ● ●
68 NUT; JOINT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		9-99111-416-0 01 1 0005-0512 ●
68 NUT; JOINT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0601- ●
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ADR<TDU> (A) 		1-49118-370-0 01 1 9803-0004 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		1-49118-370-0 01 1 9803-0004 ●
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ADR<TDU> (A) 		1-49118-370-0 01 1 0005- ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (B) 		1-49118-537-0 01 1 9803-0004 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-49118-537-0 01 1 9803-0004 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (B) 		1-49118-537-0 01 1 0005- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-9803 ● ●
202 ADAPTER
PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-9803 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-0004 ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0007 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008- ●
229 ADAPTER; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9803-0004 ● ●
229 ADAPTER; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0005-0007 ●
229 ADAPTER; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ●
242 PIPE; AIR,AIR TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) 		1-49118-369-0 01 1 9803- ●
242 PIPE; AIR,AIR TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (A) 		1-49118-536-0 01 1 9803- ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (C) 		1-49114-992-0 01 1 9510-9802 ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (A) 		1-49118-368-0 01 1 9803- ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (E) M12 3WAY 		9-09228-906-1 01 1 0601-0607 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (E) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (E) M12 3WAY 		9-09228-906-1 01 1 9807-0004 ●
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (A) M12 		9-09228-306-1 01 1 9510-9802 ●
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9510-9802 ●
243 UNION; AIR PIPE
(E) M12 L=66.5 		9-09223-306-1 01 1 9803-9806 ● ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (E) M12 L=66.5 		9-09223-306-1 01 1 9807-0004 ●
243 UNION; AIR PIPE
(E) M12 L=66.5 		9-09223-306-1 01 1 9807-0004 ●
243 UNION; AIR PIPE
(E) M12 L=66.5 		9-09223-306-1 01 1 0005-0512 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (E) M12 L=66.5 		9-09223-306-1 01 1 0601-0607 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
243 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9802 ●
243 UNION; AIR PIPE
(B) M12 2WAY 		1-09654-059-2 01 1 9510-9802 ●
243 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY 		1-09654-086-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & M16 STRAIGHT 		1-09654-314-1 01 1 9510-9802 ● ●
244 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> (A) M12 		9-99111-412-0 01 1 9510-9802 ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-99111-412-0 01 1 9510-9802 ●
244 NUT; UNION,AIR PIPE
(B) M16 		9-99111-416-0 01 1 9510-9802 ● ●
244 NUT; UNION,AIR PIPE
(C) M12 		9-09840-280-0 01 1 9803-0004 ● ●
244 NUT; UNION,AIR PIPE
(C) M12 		9-09840-280-0 01 1 0005-0512 ●
244 NUT; UNION,AIR PIPE
(C) M12 		9-09840-280-0 01 1 0601- ●

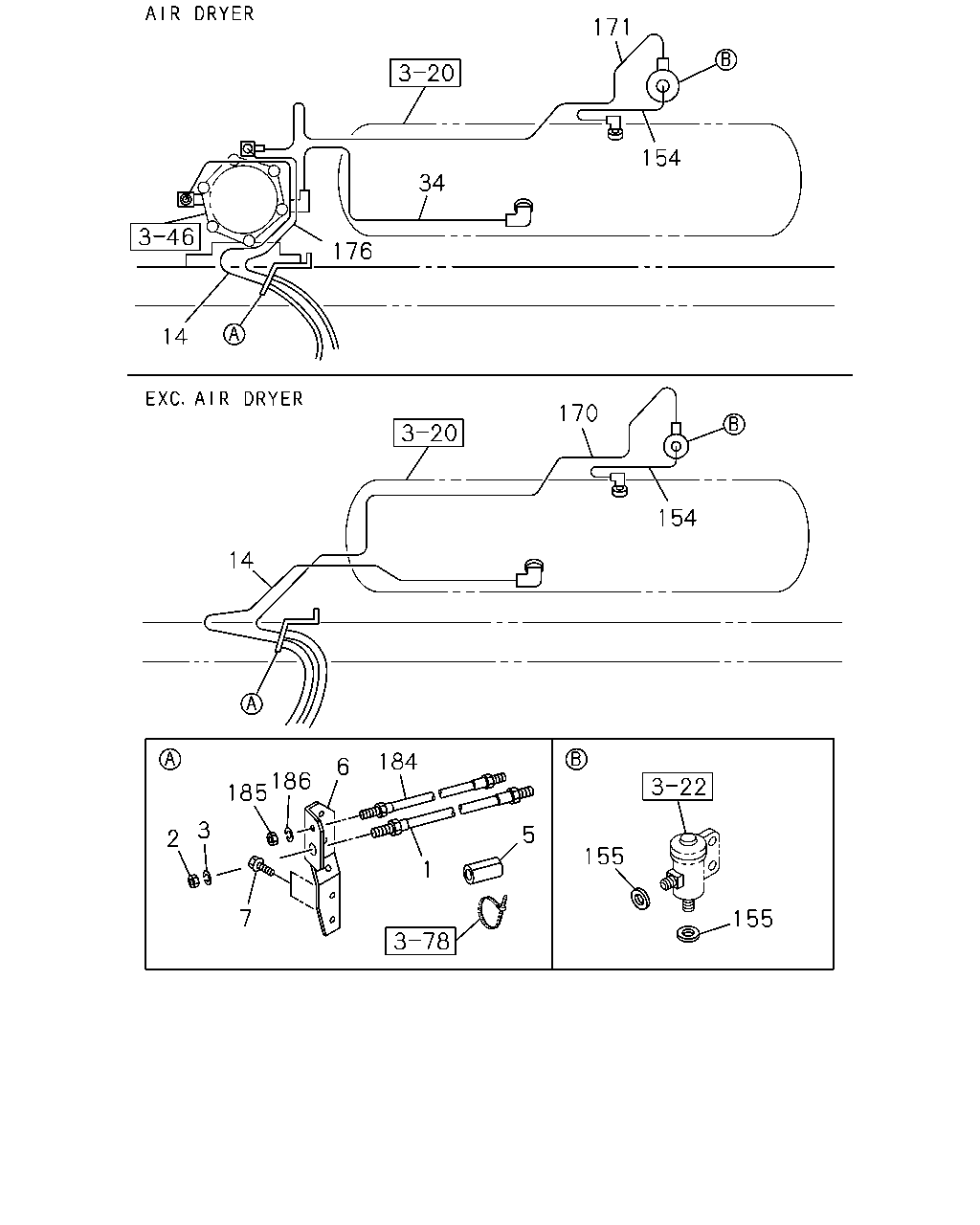

çizim 151317
171 154 34 176 14 170 154 14 184 6 186 185 3 5 2 155 1 7 155
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HE1 TCN ENG(58L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9610-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TCN ENG(58L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0005-0512 ●
1 HOSE; FLEX,AIR TANK
6HE1 TCN ENG(58L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0601- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0601- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L),6HH1 N ENG(66L) ENGINE REAR PTO(SV1) L=430 		1-09363-559-0 01 1 9510-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. ENGINE REAR PTO(SV1) L=350 		1-09363-558-0 01 1 9510-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350 		1-09363-558-0 01 1 9510-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350 		1-09363-558-0 01 1 0005- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0004 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0005-0512 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0004 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0005-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ●
5 SLEEVE; FLEX HOSE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 9810-0004 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0004 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-920-0 01 1 9510-9805 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-920-0 01 1 9806- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49114-923-0 01 1 9510-9802 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49119-158-0 01 1 9803-0004 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49119-158-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49119-645-0 01 1 9806-0004 ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49115-815-0 01 1 9510-9802 ● ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49119-150-1 01 1 9803-0004 ● ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49119-150-1 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-967-0 01 1 9510-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-146-0 01 1 0005-0512 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-146-0 01 1 0601- ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9510-0004 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49115-964-0 01 1 9510-9802 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49119-159-0 01 1 9803-0004 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-148-0 01 1 0005-0208 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-104-0 01 1 0209- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49115-909-0 01 1 9510-0004 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-150-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-910-0 01 1 9510-9805 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-910-0 01 1 9806-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49119-646-0 01 1 0209- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49119-646-0 01 1 9806-0004 ●
184 HOSE; FLEX,AIR GOV
6HE1 TCN ENG(58L) L=330 		1-09363-584-0 01 1 9610-9806 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) L=330 		1-09363-584-0 01 1 9807-0004 ●
184 HOSE; FLEX,AIR GOV
6HE1 TCN ENG(58L) L=330 		1-09363-584-0 01 1 0005-0512 ●
184 HOSE; FLEX,AIR GOV
6HE1 TCN ENG(58L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0601- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) ENGINE REAR PTO(SV1) L=370 		1-09363-586-0 01 1 9510-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=370 		1-09363-586-0 01 1 0005-0012 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) L=370 		1-09363-586-0 01 1 0101- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. ENGINE REAR PTO(SV1) L=330 		1-09363-584-0 01 1 9510-9606 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=330 		1-09363-584-0 01 1 9510-9606 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. ENGINE REAR PTO(SV1) L=350 		1-09363-651-0 01 1 9607-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350 		1-09363-651-0 01 1 9607-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350 		1-09363-651-0 01 1 0005- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510-0004 ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0005- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0004 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0005-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ●
çizim 151321
251 222 217 272 250 238 222 217
BalonParca AdiParca NoAdetTipApplied Date A B
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) L=752 		1-49124-513-0 01 1 0601- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> 		1-49114-871-0 01 1 9510-9802 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) L=952 SERVICED BY L=1000 		1-47428-814-0 01 1 0011-0012 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) L=896 SERVICED BY L=900 		1-47428-813-0 01 1 0101- ●
217 PIPE; VAC,UNION TO MAG VLV 1-49116-412-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0601- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN> L=1047 		1-49113-685-0 01 1 9610-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9712-9806 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCN ENG(58L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0010 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) L=1082 SERVICED BY L=1100 		1-47428-815-0 01 1 0011-0012 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) L=1045 SERVICED BY L=1100 		1-47428-815-0 01 1 0101- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1042 SERVICED BY L=1100 		1-47428-815-0 01 1 9510-0004 ●
238 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=1359 SERVICED BY L=1370 		1-47426-354-0 01 1 9510-9802 ● ●
238 PIPE; AIR,UNION TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=1379 SERVICED BY L=1500 		1-47426-355-0 01 1 9510-9802 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
AIR SUSP DRIVER SEAT<A56> L=2472 SERVICED BY L=2500 		1-47426-362-0 01 1 9510-9802 ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=2472 SERVICED BY L=2500 		1-47426-362-0 01 1 9510-9802 ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49115-028-0 01 1 9510-9802 ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49115-028-0 01 1 9510-9802 ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) 		1-49115-024-0 01 1 9510-9802 ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> 		1-49115-024-0 01 1 9510-9802 ●
272 PIPE; AIR,MAG VLV TO UNION
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) 		1-49116-267-0 01 1 9510-9802 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49116-267-0 01 1 9510-9802 ●
272 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-267-0 01 1 9510-9802 ●
çizim 151325
296 367 222 296 297 296 296 435 145 145 434 450 436 377 145 145 444 428 80 444 258
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0010 ●
80 UNION; 3 WAY
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0010 ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0011-0512 ●
80 UNION; 3 WAY
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0011-0512 ●
80 UNION; 3 WAY
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0011-0512 ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0601- ●
80 UNION; 3 WAY
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0601- ●
80 UNION; 3 WAY
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0601- ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXHAUST BRAKE<NF8> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> PTO CONTROL<SV6> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ●
145 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805 ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805 ●
145 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9807 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9807 ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9807 ●
145 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9807 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9808-0004 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9808-0004 ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9808-0004 ●
145 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9808-0004 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXHAUST BRAKE<NF8> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ●
145 UNION; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9805 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9805 ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9805 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9806-9807 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9806-9807 ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9806-9807 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9808-9808 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9808-9808 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9808-9808 ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9808-9808 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9809-9812 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9809-9812 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9809-9812 ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9809-9812 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9901-0004 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9901-0004 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9901-0004 ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9901-0004 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9901-0004 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXHAUST BRAKE<NF8> PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9803-9804 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9803-9804 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9805-9805 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9805-9805 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9806-0004 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9806-0004 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6> (D) 		1-09660-788-0 01 1 9803-9804 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (D) 		1-09660-788-0 01 1 9803-9804 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0601- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN> L=1047 		1-49113-685-0 01 1 9610-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9712-9806 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCN ENG(58L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0010 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) L=1082 SERVICED BY L=1100 		1-47428-815-0 01 1 0011-0012 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) L=1045 SERVICED BY L=1100 		1-47428-815-0 01 1 0101- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1042 SERVICED BY L=1100 		1-47428-815-0 01 1 9510-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9510-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0011-0012 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0101-0512 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0601- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9510-9810 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (B) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004 ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=1200 OD=6 		1-09366-256-1 01 1 0011- ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
297 TUBE; NYLON
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9811 ● ●
297 TUBE; NYLON
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9811 ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>, SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9812-0004 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9812-0004 ●
297 TUBE; NYLON
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9812-0004 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9812-0004 ●
297 TUBE; NYLON
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9812-0004 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9812-0004 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212 ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212 ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
367 TUBE; CORRUGATE
AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9803-9803 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9803-9803 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9804-9804 ● ●
367 TUBE; CORRUGATE
AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-9811 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-9811 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-9811 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>, SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9812-0004 ●
367 TUBE; CORRUGATE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9812-0004 ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9812-0004 ●
367 TUBE; CORRUGATE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9812-0004 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9812-0004 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 01 1 9803-0004 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9510- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9510- ●
434 CLIP
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=45 L=20 		1-09701-161-0 01 1 9803-0004 ●
434 CLIP
AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=45 L=20 		1-09701-161-0 01 1 9803-0004 ●
434 CLIP
EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3) (C) D=9 T=45 		5-09700-021-0 01 1 9803-0004 ●
434 CLIP
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (C) D=9 T=45 		5-09700-021-0 01 1 9803-0004 ●
434 CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) (C) D=9 T=45 		5-09700-021-0 01 1 9803-0004 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9803-0004 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9803-0001 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0002-0004 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28080-820-0 01 1 0005-0010 ●
444 BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE 		0-28080-820-0 01 1 0005-0010 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE 		0-28080-820-0 01 1 0011-0512 ●
444 BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> M8X20 FLANGE 		0-28080-820-0 01 1 0011-0512 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
444 BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>,DUAL AIR GAUGE<UG2> M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
450 BRACKET; CLIP
L=90 B=25 		1-47475-530-0 01 1 9803-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
