2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#3773) — 60 parça

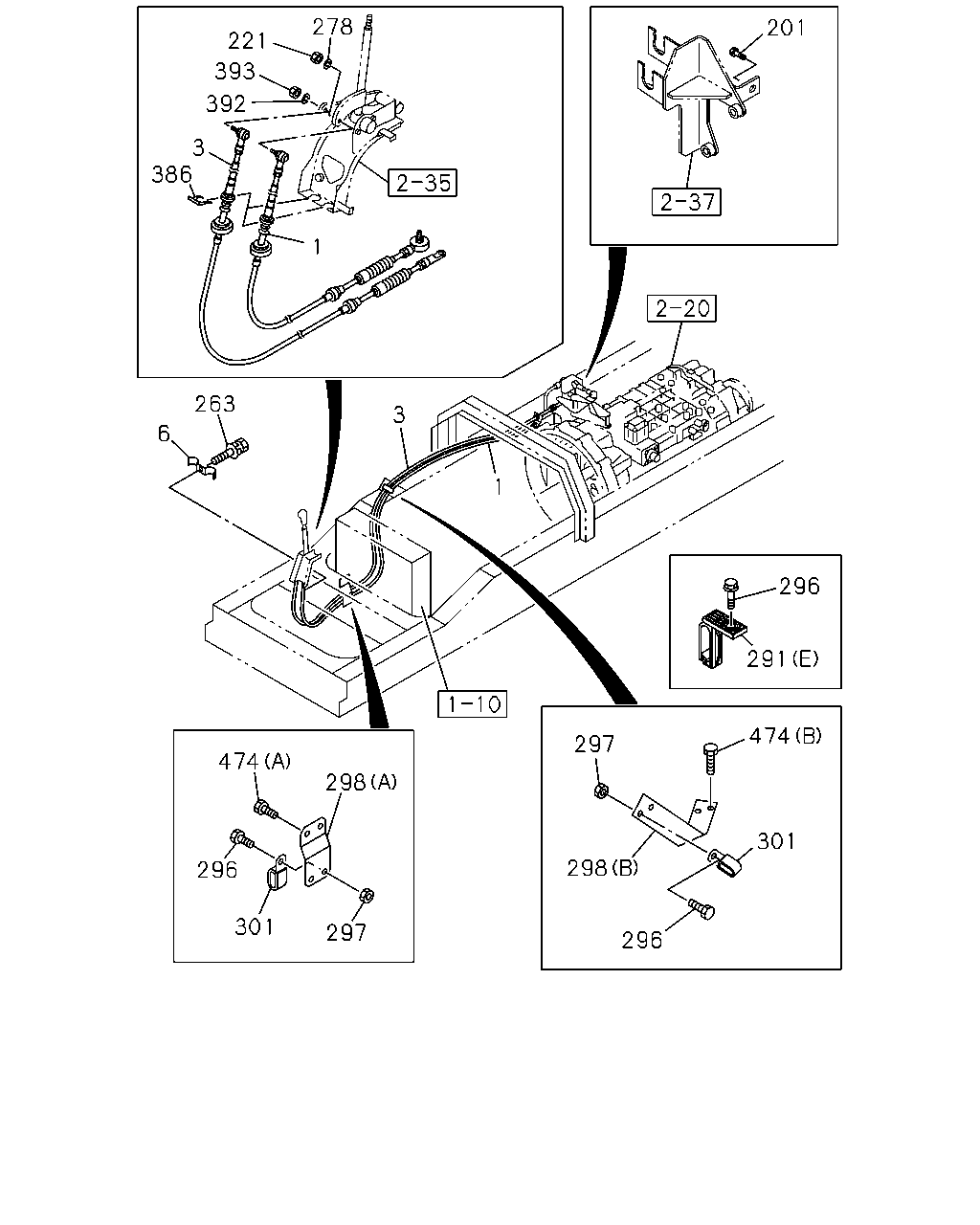

çizim 43366
278 201 221 393 392 3 386 1 263 3 6 1 296 291 474 297 474 298 301 298 296 301 297 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=3849 		1-33670-855-1 01 1 9601-9709 ●
1 CABLE; SHIFT,TRANS CONT
L=3860 		1-33671-184-1 01 1 9710-0004 ●
1 CABLE; SHIFT,TRANS CONT
L=3810 		1-33671-660-0 01 1 0005-1102 ●
1 CABLE; SHIFT,TRANS CONT
L=3810 		1-33671-660-0 01 1 1103- ● ●
3 CABLE; SELECT,TRANS CONT
L=3710 		8-98181-785-0 01 1 1103- ●
3 CABLE; SELECT,TRANS CONT
L=3698 		1-33670-867-2 01 1 9601-9709 ●
3 CABLE; SELECT,TRANS CONT
L=3710 		1-33671-188-1 01 1 9710-0004 ●
3 CABLE; SELECT,TRANS CONT
L=3710 		1-33671-188-1 01 1 0005- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9601-9803 ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9804-0607 ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0608- ● ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28781-020-0 01 1 9601-0512 ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28751-020-0 01 1 0601-1102 ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28751-020-0 01 1 1103- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9601-9803 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-1011 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-9812 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0607 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0608- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9601-9803 ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) 		1-09701-307-2 01 1 0807- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 03 1 0605-1102 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 03 1 1103- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0807- ●
297 NUT; CLIP
M8 		9-09110-408-0 02 1 9601-9606 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-9809 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9810-0602 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0807- ●
298 BRACKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-36183-236-0 01 1 0301- ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9601-0212 ●
298 BRACKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-47477-519-2 01 1 0301- ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9601- ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 01 1 0605-0606 ●
301 CLIP; WIRE
ID=11X2 L=16 		0-95325-026-0 01 1 0607-1102 ●
301 CLIP; WIRE
ID=11X2 L=16 		0-95325-026-0 01 1 1103- ● ●
301 CLIP; WIRE
ID=11X2 L=32 		9-09535-066-0 02 1 0605-0606 ●
301 CLIP; WIRE
ID=11X2 L=32 		0-95325-066-0 02 1 0607-1102 ●
301 CLIP; WIRE
ID=11X2 L=32 		0-95325-066-0 02 1 1103- ● ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 9601-0606 ●
301 CLIP; WIRE
ID=11X2 L=16 		0-95325-026-0 02 1 0607- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9601-9803 ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9804-0607 ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0608- ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9601-9803 ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9601-9803 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9804-1011 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
474 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9601-9606 ●
474 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9610 ●
474 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9611-9803 ●
474 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9804-0512 ●
474 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9607-9709 ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9710-9803 ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9804- ●
