3-46 — AIR DRYER (#37729) — 73 parça

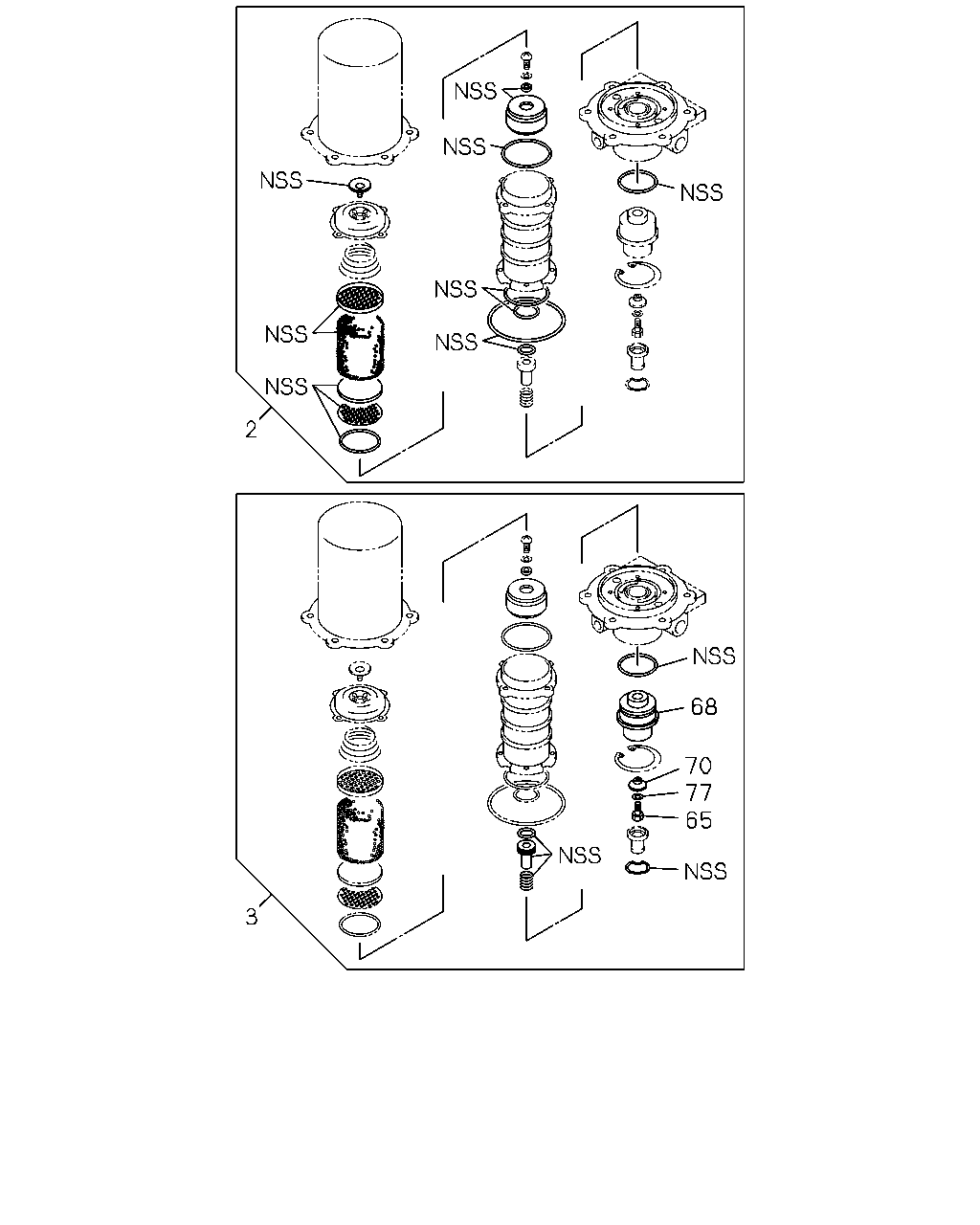

2 68 70 77 65 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-368-0	01	1	9510-9606	●	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-149-0	01	1	9607-9703	●	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-194-0	01	1	9704-0004	●	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-194-0	01	1	0005-	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-150-0	01	1	9510-9703	●	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-193-0	01	1	9704-0004	●	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-193-0	01	1	0005-	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9510-9606	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	9607-0004	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	0005-	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-221-0	01	1	9510-9606	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-391-0	01	1	9607-9703	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-408-0	01	1	9704-0004	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-408-0	01	1	0005-	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9510-0004	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0005-	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9510-9606	●	●

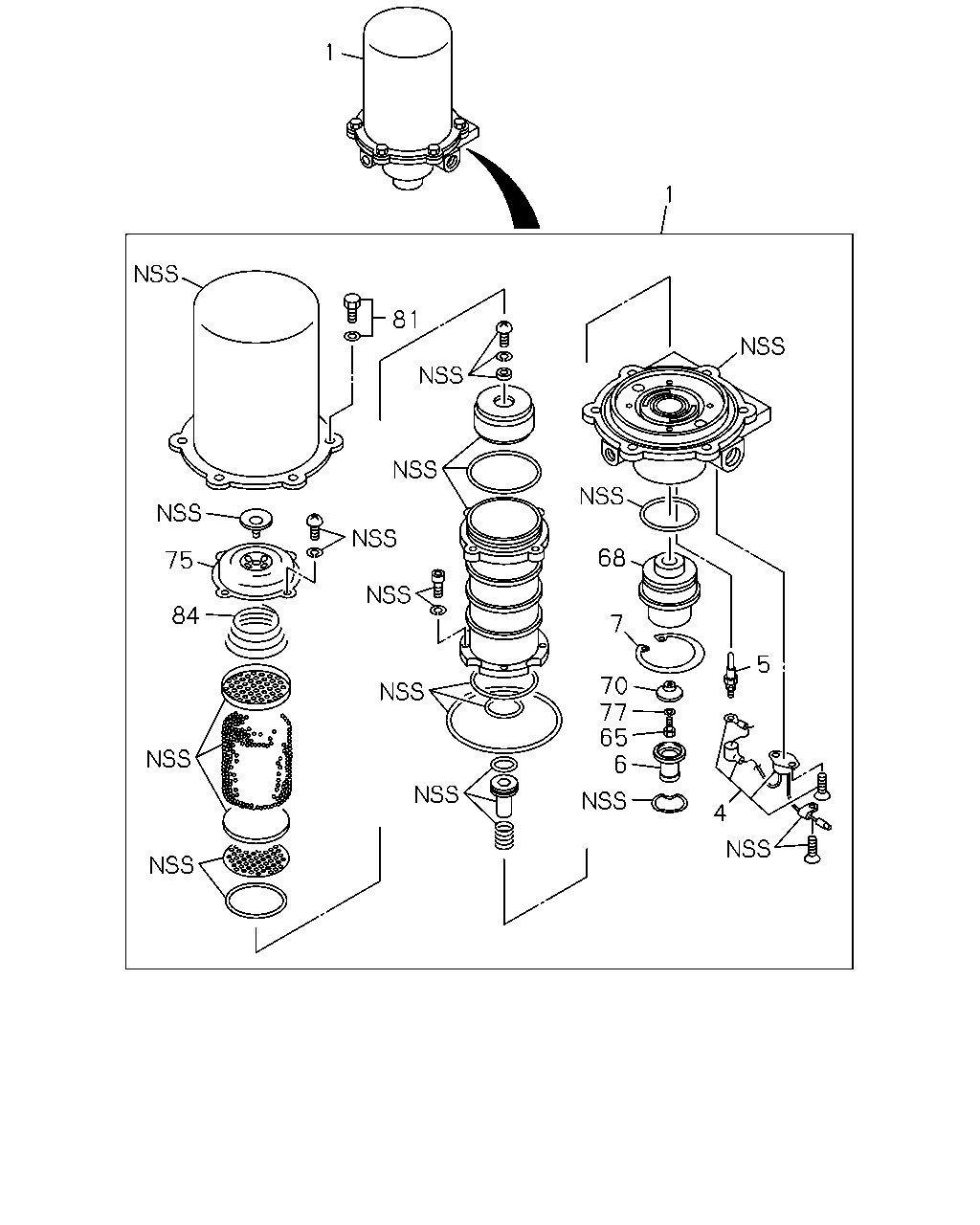

1 1 81 68 75 84 7 5 70 77 65 6 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-157-1	01	1	9510-9703	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-200-0	01	1	9704-0004	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-200-1	01	1	0005-	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-152-0	01	1	9510-0004	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-152-0	01	1	0005-	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	01	1	9510-0004	●	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	01	1	0005-	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-266-0	01	1	9510-9606	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-392-0	01	1	9607-9703	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-404-0	01	1	9704-0004	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-404-0	01	1	0005-	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-223-0	01	1	9510-9703	●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-403-0	01	1	9704-0004	●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-403-0	01	1	0005-	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9510-9606	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	9607-0004	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	0005-	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-221-0	01	1	9510-9606	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-391-0	01	1	9607-9703	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-408-0	01	1	9704-0004	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-408-0	01	1	0005-	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9510-0004	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0005-	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-236-0	01	1	9510-9703	●	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-395-0	01	1	9704-0004	●	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-395-0	01	1	0005-	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9510-9606	●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-365-0	06	1	9510-0004	●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-365-0	06	1	0005-	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-235-0	01	1	9510-9703	●	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-396-0	01	1	9704-0004	●	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-396-0	01	1	0005-	●

13 1 10 8 11 10 9 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-157-1	01	1	9510-9703	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-200-0	01	1	9704-0004	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-200-1	01	1	0005-	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9510-0004	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0005-	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9510-0004	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9510-0004	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0005-	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9510-0004	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0005-	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X16	0-20801-016-0	03	1	9510-0004	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X16	0-20801-016-0	03	1	0005-0512	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X16	0-20851-016-0	03	1	0601-	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X30 FLANGE	0-28081-030-0	04	1	9510-9606	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X35 FLANGE	0-28681-035-0	04	1	9607-0004	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X35 FLANGE	0-28681-035-0	04	1	0005-0512	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
11	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48195-066-0	01	1	9510-0004	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48195-066-0	01	1	0005-	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10	9-09110-510-0	04	1	9510-9606	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-0004	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●
