3-22 — AIR CONTROL PARTS (#37723) — 108 parça

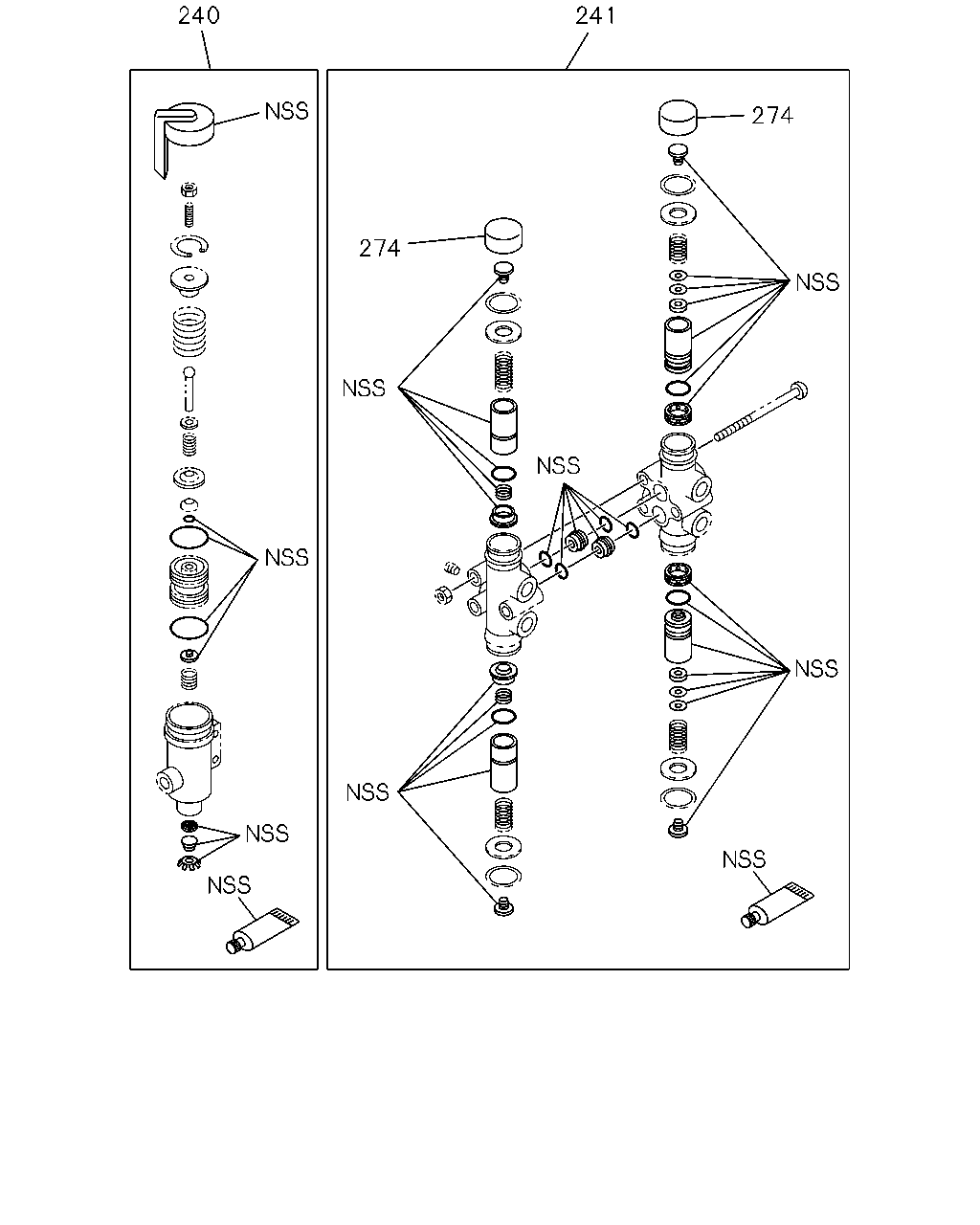

çizim 151315
240 241 274 274
BalonParca AdiParca NoAdetTipApplied Date A B
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0005- ●
241 REPAIR KIT; PROTECTION VALVE
BRAKE REGULATION ADR<TDU> 		1-85576-224-0 01 1 0005- ●
274 COVER; DUST
BRAKE REGULATION ADR<TDU> 		1-48119-450-0 02 1 0005- ●

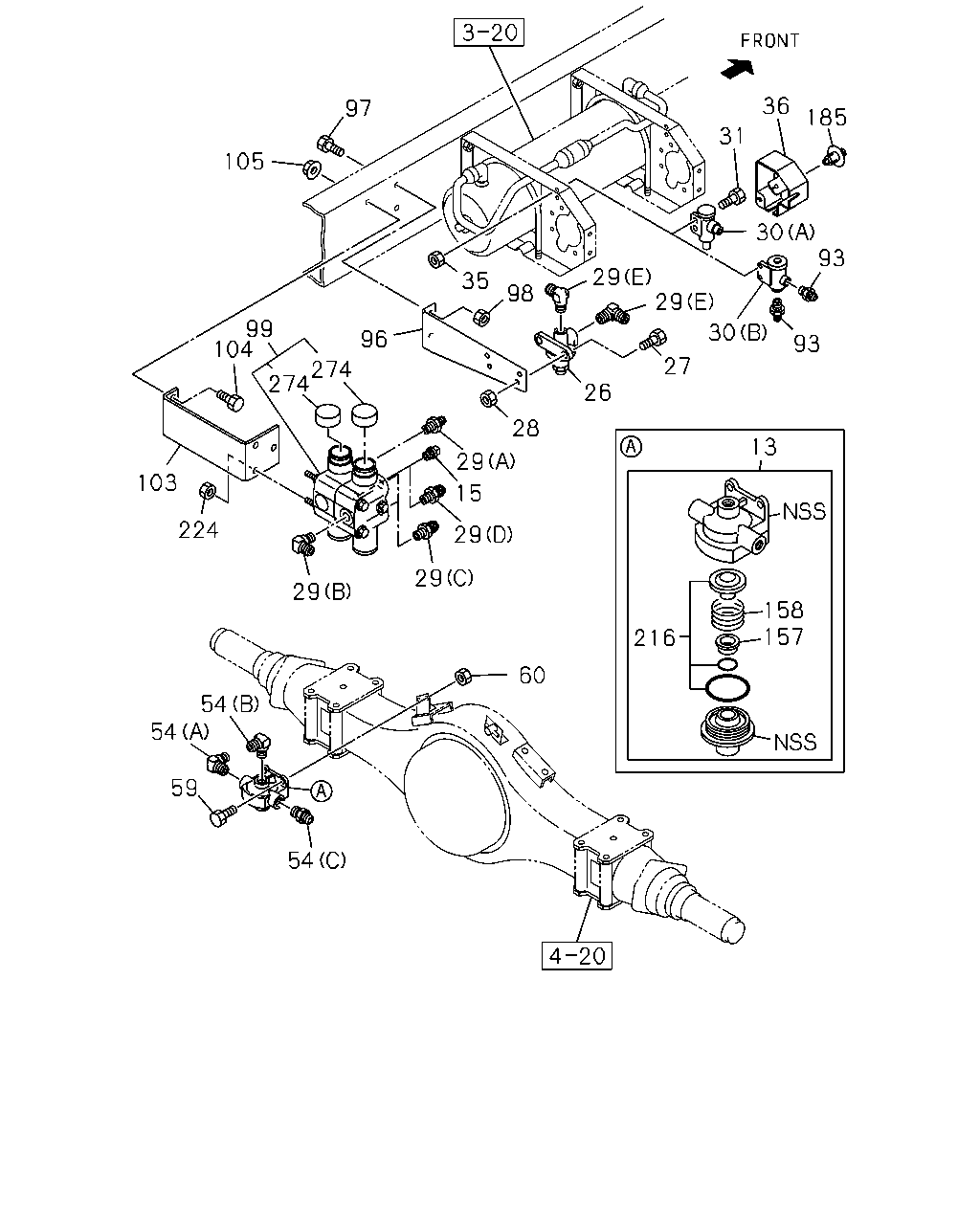

çizim 151324
36 97 185 31 105 30 93 29 29 35 98 99 104 30 96 93 27 274 274 26 28 13 29 103 15 224 29 29 29 158 157 216 60 54 54 59 54
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-320-0 01 1 9510-0004 ● ●
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-320-0 01 1 0005-0109 ●
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-659-0 01 1 0110- ●
15 PLUG; VALVE
BRAKE REGULATION ADR<TDU> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 		9-09204-517-0 01 1 9803- ●
26 VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> 		1-48110-006-0 01 1 9510-9802 ●
26 VALVE; AIR
BRAKE REGULATION ADR<TDU> 		1-48110-006-0 01 1 9510-9802 ●
26 VALVE; AIR 1-48110-006-0 01 1 9510-9802 ●
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ●
27 BOLT; AIR VLV
BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ●
27 BOLT; AIR VLV
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ●
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ●
27 BOLT; AIR VLV
BRAKE REGULATION ADR<TDU> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ●
27 BOLT; AIR VLV
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ●
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> M8 		9-09110-408-0 02 1 9510-9606 ●
28 NUT; AIR VLV
BRAKE REGULATION ADR<TDU> M8 		9-09110-408-0 02 1 9510-9606 ●
28 NUT; AIR VLV
M8 		9-09110-408-0 02 1 9510-9606 ●
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ●
28 NUT; AIR VLV
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ●
28 NUT; AIR VLV
M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ●
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (A) 		1-09650-283-1 01 1 9803-0004 ●
29 CONNECTOR; AIR VLV
(A) 		1-09650-283-1 01 1 9803-0004 ●
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (A) 		1-09650-283-1 01 1 0005- ●
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW 		1-09650-439-0 01 1 9803-0004 ●
29 CONNECTOR; AIR VLV
(B) M20 & PT3/8 ELBOW 		1-09650-439-0 01 1 9803-0004 ●
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW 		1-09650-439-0 01 1 0005-0607 ●
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (B) M20 		0-92121-812-0 02 1 0608- ●
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (C) FLARE M20 PT3/8 		9-09231-812-1 02 1 9803-0004 ●
29 CONNECTOR; AIR VLV
(C) FLARE M20 PT3/8 		9-09231-812-1 02 1 9803-0004 ●
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (C) FLARE M20 PT3/8 		9-09231-812-1 02 1 0005-0607 ●
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (C) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 0608- ●
29 CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (E) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 9510-9802 ●
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (E) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 9510-9802 ●
29 CONNECTOR; AIR VLV
(E) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 9510-9802 ●
29 CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (D) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9803-0004 ●
29 CONNECTOR; AIR VLV
(D) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9803-0004 ●
29 CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (D) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0005- ●
30 GOVERNOR; AIR CONT
(A) 		1-48350-059-0 01 1 9510-0004 ● ●
30 GOVERNOR; AIR CONT
(B) 		1-48350-063-2 01 1 0005-0512 ●
30 GOVERNOR; AIR CONT
(B) 		1-48350-063-2 01 1 0601- ●
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9702 ● ●
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9703-9802 ● ●
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 9803-0004 ● ●
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ●
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
35 NUT; GOV TO FRAME
M8 		9-09110-408-0 02 1 9510-9609 ● ●
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 9610-0004 ● ●
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
36 COVER; GOV 1-48359-043-2 01 1 9510-0004 ● ●
36 COVER; GOV 1-48359-043-3 01 1 0005-0512 ●
36 COVER; GOV 1-48359-043-3 01 1 0601- ●
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT 		1-09650-085-1 01 1 9510-0004 ● ●
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT 		1-09650-085-1 01 1 0005- ●
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW 		1-09650-437-0 01 1 9510-0004 ● ●
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW 		1-09650-437-0 01 1 0005- ●
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9510-0004 ● ●
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0005- ●
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9510-0004 ● ●
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 0005-0906 ●
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50540-820-0 02 1 0907- ●
60 NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9510-0004 ● ●
60 NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 0005-0512 ●
60 NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 02 1 0601- ●
93 CONNECTOR; GOV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0005-0512 ●
93 CONNECTOR; GOV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0601- ●
96 BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> 		1-47477-412-2 01 1 9510-9802 ●
96 BRACKET
BRAKE REGULATION ADR<TDU> 		1-47477-412-2 01 1 9510-9802 ●
96 BRACKET 1-47477-412-2 01 1 9510-9802 ●
97 BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ●
97 BOLT; VLV BRKT
BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ●
97 BOLT; VLV BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ●
97 BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ●
97 BOLT; VLV BRKT
BRAKE REGULATION ADR<TDU> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ●
97 BOLT; VLV BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ●
98 NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> M8 		9-09110-408-0 02 1 9510-9606 ●
98 NUT; VLV BRKT
BRAKE REGULATION ADR<TDU> M8 		9-09110-408-0 02 1 9510-9606 ●
98 NUT; VLV BRKT
M8 		9-09110-408-0 02 1 9510-9606 ●
98 NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ●
98 NUT; VLV BRKT
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ●
98 NUT; VLV BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ●
99 VALVE; PROTECTION
BRAKE REGULATION ADR<TDU> 		1-48110-135-4 01 1 9803-0004 ●
99 VALVE; PROTECTION 1-48110-135-4 01 1 9803-0004 ●
99 VALVE; PROTECTION
BRAKE REGULATION ADR<TDU> 		1-48110-135-5 01 1 0005- ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR<TDU> 		1-47477-971-0 01 1 9803-0004 ●
103 BRACKET; PROTECTION VALVE 1-47477-971-0 01 1 9803-0004 ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR<TDU> 		1-47477-971-0 01 1 0005- ●
104 BOLT; BRKT,VALVE
BRAKE REGULATION ADR<TDU> M8X30 FLANGE 		0-28680-830-0 02 1 9803-0004 ●
104 BOLT; BRKT,VALVE
M8X30 FLANGE 		0-28680-830-0 02 1 9803-0004 ●
104 BOLT; BRKT,VALVE
BRAKE REGULATION ADR<TDU> M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ●
104 BOLT; BRKT,VALVE
BRAKE REGULATION ADR<TDU> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
105 NUT; BRKT,VALVE
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 02 1 9803-0004 ●
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91150-108-0 02 1 9803-0004 ●
105 NUT; BRKT,VALVE
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
105 NUT; BRKT,VALVE
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
157 RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48419-020-0 01 1 0110- ●
158 SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-48419-003-0 01 1 0110- ●
185 FASTENER; COVER 1-09470-006-0 02 1 9510-0004 ● ●
185 FASTENER; COVER 1-09470-006-0 02 1 0005-0512 ●
185 FASTENER; COVER 1-09470-006-0 02 1 0601- ●
216 REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-235-0 01 1 0110- ●
224 NUT; PROTECTION VALVE
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 03 1 9803-0004 ●
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91150-108-0 03 1 9803-0004 ●
224 NUT; PROTECTION VALVE
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ●
224 NUT; PROTECTION VALVE
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91180-108-0 03 1 0603- ●
274 COVER; DUST
BRAKE REGULATION ADR<TDU> 		1-48119-450-0 02 1 0005- ●
