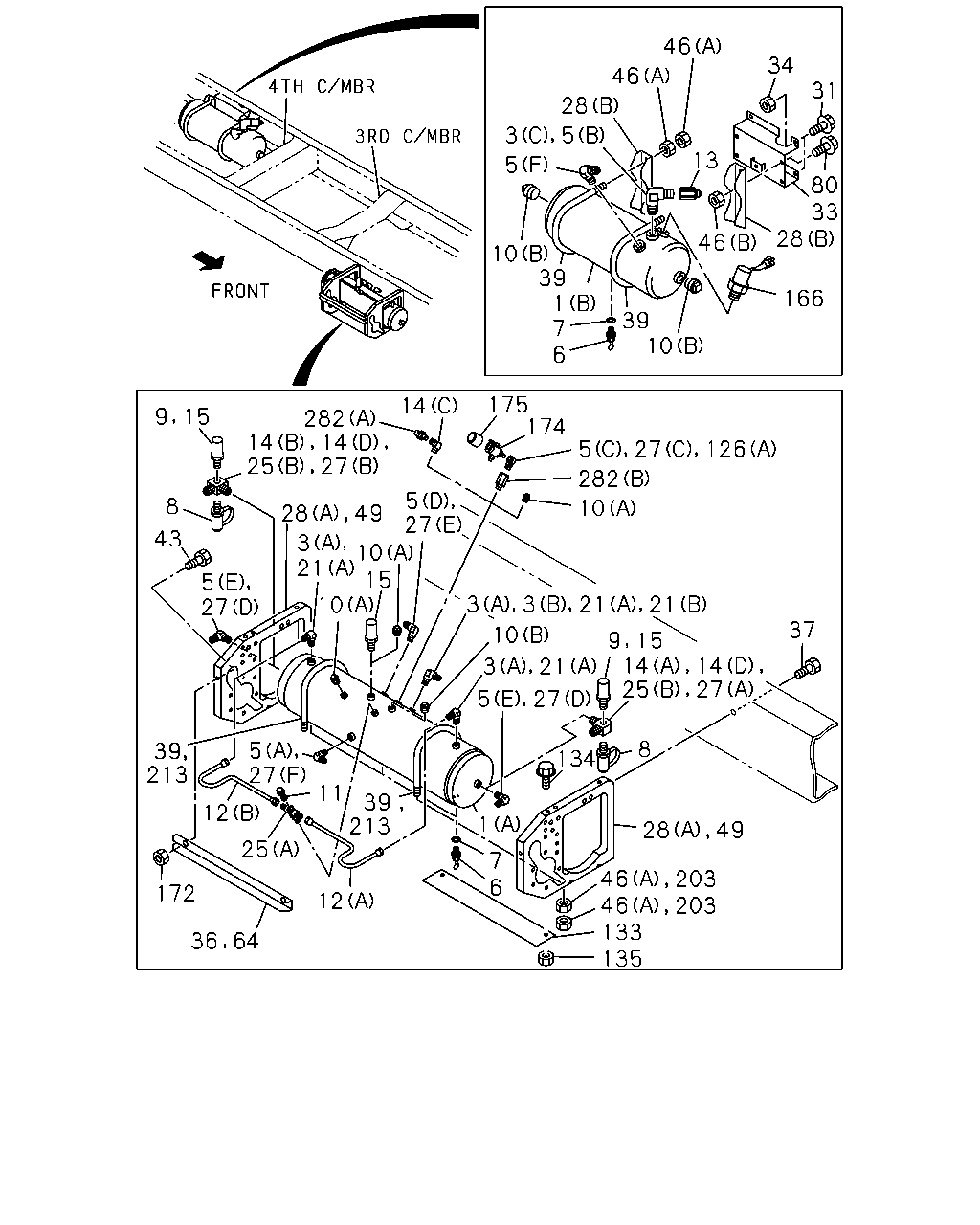

3-20 — AIR TANK (#37722) — 306 parça

46 34 46 31 28 13 80 33 28 5 46 10 39 1 39 7 10 6 166 175 174 14 15 9 282 14 14 126 282 5 27 8 10 28 49 43 3 10 21 15 5 27 10 21 10 37 14 14 3 21 8 5 27 9 213 134 11 39 213 12 1 28 49 25 7 6 46 46 133 135 203 203 172 12 3 5 5 27 25 27 3 3 21 5 27 25 27 9 15 36 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B)	1-48370-719-0	01	1	9805-	●
1	TANK ASM; AIR (A)	1-48330-686-1	01	1	9510-0004	●	●
1	TANK ASM; AIR (A)	1-48330-686-1	01	1	0005-	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-333-0	01	1	9510-9802	●	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-536-0	01	1	9803-9804	●
1	TANK ASM; AIR (B)	1-48370-536-0	01	1	9803-9804		●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (B)	1-48370-536-0	01	1	9805-0004	●
1	TANK ASM; AIR (B)	1-48370-536-0	01	1	9805-0004		●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (B)	1-48370-536-0	01	1	0005-	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9510-9606	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9802	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9803-0004	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9803-0004		●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9510-9606	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-9802	●	●
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9803-0004	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9803-0004		●
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0005-	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9510-9802	●	●
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9803-0004	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9803-0004		●
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48410-132-3	01	1	9510-9802	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (C) M22 & R1/2 W/VALVE	1-48320-026-0	01	1	9803-9804	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-	●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9803-0004	●
5	UNION; AIR TANK (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9803-0004		●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0005-0607	●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (D) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-	●
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (E) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9711	●
5	UNION; AIR TANK EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4>, BRAKE REGULATION ADR<TDU> (E) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9712-9802	●
5	UNION; AIR TANK AIR DRYER<PS7> EXC. BRAKE REGULATION ADR<TDU> (E) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9712-9802	●
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (E) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9803-0607	●
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (E) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9803-0004	●
5	UNION; AIR TANK (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9803-0004		●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	9510-9711	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9802	●	●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9803-0004	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9803-0004		●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●
5	UNION; AIR TANK (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9510-9802	●	●
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9803-	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9510-9802	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0004	●
5	UNION; AIR TANK (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0004		●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	9510-0004	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0005-	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	9510-9802	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	9803-0004	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	9803-0004		●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0005-	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-9604	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9605-9608	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9609-0004	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0005-	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9604	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9608	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	9609-9802	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	9803-0004	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9803-0004		●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0005-	●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-0004	●
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-0004		●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0005-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	03	1	9510-9802	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	03	1	9510-9802		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	02	1	9803-0004	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	02	1	9803-0004		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-1	02	1	0005-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	01	1	9510-9802	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	9803-0004	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	9803-0004	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9803-0004		●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	0005-0304	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	0005-0304	●
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4	9-99204-513-0	01	1	0305-	●
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	9803-0304	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	9510-9610	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	9510-9610		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	9611-9802	●	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	03	1	9803-0004	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	9803-0004		●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	03	1	0005-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	9803-0004	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0005-0304	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0305-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	01	1	0305-	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4	9-99204-513-0	02	1	9510-9610	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9510-9610	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4	9-99204-513-0	02	1	9611-9802	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9611-9802	●	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	01	1	9803-0304	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	0305-	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT1/4	9-99204-513-0	02	1	0305-	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	0305-	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9510-0004	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-008-0	01	1	9510-0004	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A)	1-47497-008-0	01	1	0005-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-009-0	01	1	9510-0004	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B)	1-47497-009-0	01	1	0005-	●
13	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9803-9804	●
13	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9805-	●
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9803-	●
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9803-	●
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9803-0004	●
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9803-0004	●
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0005-	●
14	UNION; 3 WAY,AIR TANK (D)	1-09656-709-0	02	1	9803-0004	●	●
14	UNION; 3 WAY,AIR TANK BRAKE REGULATION ADR<TDU> (D)	1-09656-709-0	02	1	0005-	●
15	SWITCH; LOW PRESS,AIR TANK TIRE INFLATOR DEVICE<SG4> 530KPA	1-48340-054-0	01	1	9712-9802	●
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-0	02	1	9803-0004	●	●
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	02	1	0005-	●
15	SWITCH; LOW PRESS,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-0	01	1	9803-0004	●	●
15	SWITCH; LOW PRESS,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	0005-	●
21	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9803-0004	●	●
21	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-	●
21	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9803-0004	●	●
21	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-	●
21	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9803-0004	●	●
21	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0005-	●
25	UNION; 4 WAY BRAKE REGULATION ADR<TDU> (B)	1-09656-709-0	02	1	9510-9802	●
25	UNION; 4 WAY (B)	1-09656-709-0	02	1	9510-9802		●
25	UNION; 4 WAY (A)	1-09656-699-0	01	1	9510-0004	●	●
25	UNION; 4 WAY EXC. BRAKE REGULATION ADR<TDU> (A)	1-09656-699-0	01	1	0005-	●
27	UNION; ELBOW,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9803-	●
27	UNION; ELBOW,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9803-	●
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> (D) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9712-9802	●
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9803-0607	●
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-	●
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-	●
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9803-	●
27	UNION; ELBOW,AIR TANK (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9803-0004	●	●
27	UNION; ELBOW,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●
28	BRACKET; AIR TANK (A)	1-48317-709-4	02	1	9510-0004	●	●
28	BRACKET; AIR TANK BRAKE REGULATION ADR<TDU> (A)	1-48317-709-4	02	1	0005-	●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48317-430-0	02	1	9510-9802	●	●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48317-430-0	02	1	9803-0004	●
28	BRACKET; AIR TANK (B)	1-48317-430-0	02	1	9803-0004		●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48317-430-0	02	1	0005-	●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28081-030-0	04	1	9510-9606	●	●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28681-035-0	04	1	9607-0004	●	●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28681-035-0	04	1	0005-0512	●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-431-2	01	1	9510-9802	●	●
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-431-2	01	1	9803-0004	●
33	BRACKET; BRKT,AIR TANK	1-48317-431-2	01	1	9803-0004		●
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-431-2	01	1	0005-	●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-510-0	02	1	9510-9606	●	●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91150-210-0	02	1	9607-0004	●	●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0603-	●
36	STAY; MAIN TANK EXC. BRAKE REGULATION ADR<TDU>	1-48317-307-2	01	1	9803-0004	●
36	STAY; MAIN TANK EXC. BRAKE REGULATION ADR<TDU>	1-48317-307-2	01	1	0005-	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9510-0004	●	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	0005-0512	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	9510-0004	●	●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9510-0004	●	●
39	U-BOLT; AIR TANK BRAKE REGULATION ADR<TDU> L=250	1-48317-308-0	02	1	0005-	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	0005-	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	02	1	9510-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28680-820-0	02	1	9703-0004	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	08	1	9510-0004	●	●
46	NUT; U-BOLT (A) M8	9-09110-408-0	08	1	9510-0004	●	●
46	NUT; U-BOLT BRAKE REGULATION ADR<TDU> (A) M8	9-09110-408-0	08	1	0005-0512	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	08	1	0005-0512	●
46	NUT; U-BOLT BRAKE REGULATION ADR<TDU> (A) M8	0-91110-508-0	08	1	0601-	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	0-91110-508-0	08	1	0601-	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10	9-09110-510-0	04	1	9510-9702	●	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91150-210-0	04	1	9703-9802	●	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91150-210-0	04	1	9803-0004	●
46	NUT; U-BOLT (B) M10 FLANGE	0-91150-210-0	04	1	9803-0004		●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●
49	BRACKET; AIR TANK	1-48317-709-4	02	1	0005-	●
64	STAY; AIR TANK,MAIN	1-48317-307-2	01	1	9510-9802	●	●
64	STAY; AIR TANK,MAIN BRAKE REGULATION ADR<TDU>	1-48317-307-2	01	1	9803-0004	●
64	STAY; AIR TANK,MAIN	1-48317-307-2	01	1	9803-0004		●
64	STAY; AIR TANK,MAIN BRAKE REGULATION ADR<TDU>	1-48317-307-2	01	1	0005-	●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 FLANGE	0-28081-020-0	04	1	9510-9702	●	●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28681-025-0	04	1	9703-9802	●	●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28681-025-0	04	1	9803-0004	●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9803-0004		●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28681-025-0	04	1	0005-0512	●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9712-9802	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9803-	●
133	COVER; AIR MASTER	1-48317-641-1	01	1	9510-0004	●	●
133	COVER; AIR MASTER	1-48317-641-1	01	1	0005-0512	●
133	COVER; AIR MASTER	1-48317-641-1	01	1	0601-	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28080-820-0	04	1	9510-9606	●	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28680-820-0	04	1	9607-0004	●	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28680-820-0	04	1	0005-0512	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
135	NUT; COVER M8	9-09110-408-0	04	1	9510-9606	●	●
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	9607-0004	●	●
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0005-0512	●
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0601-0602	●
135	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0603-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-0	01	1	9510-9802	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-0	01	1	9803-0004	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	01	1	9803-0004		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	0005-	●
172	NUT; STAY,AIR TANK,MAIN M8	9-09110-408-0	02	1	9510-9702	●	●
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91150-108-0	02	1	9703-0004	●	●
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0603-	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9510-0010	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9510-	●
203	NUT EXC. BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	08	1	0005-0512	●
203	NUT EXC. BRAKE REGULATION ADR<TDU> M8	0-91110-508-0	08	1	0601-	●
213	BOLT; U AIR TANK EXC. BRAKE REGULATION ADR<TDU> L=250	1-48317-308-0	02	1	0005-	●
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9803-0004	●
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9803-0004	●
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-	●
282	UNION; 2 WAY TIRE INFLATOR DEVICE<SG4> (B) PT3/8	1-48319-058-0	01	1	9803-	●

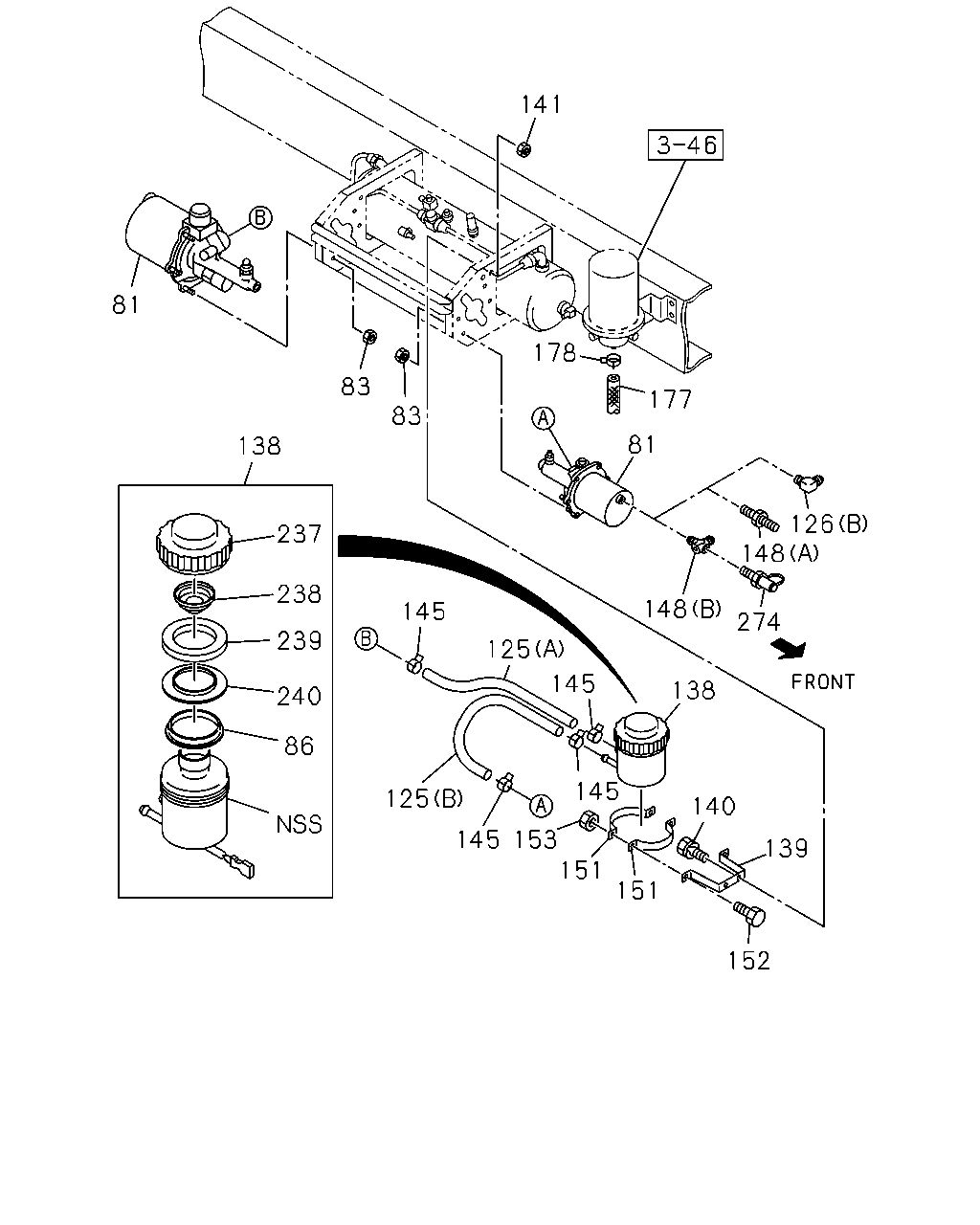

141 81 178 83 177 83 81 138 126 148 237 238 148 145 274 239 125 145 138 240 86 145 125 140 145 153 139 151 151 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47800-575-0	02	1	9510-9802	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE REGULATION ADR<TDU>	1-47800-656-2	02	1	9803-0202	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE REGULATION ADR<TDU>	1-47800-789-0	02	1	0203-0901	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE REGULATION ADR<TDU>	1-47800-827-0	02	1	0902-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47800-500-2	02	1	9510-9802	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE REGULATION ADR<TDU>	1-47800-702-1	02	1	9803-0004	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-702-1	02	1	9803-0004		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE REGULATION ADR<TDU>	1-47800-702-1	02	1	0005-0202	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE REGULATION ADR<TDU>	1-47800-792-0	02	1	0203-0905	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE REGULATION ADR<TDU>	1-47800-829-0	02	1	0906-	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	9510-0004	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	0005-0512	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	0601-0602	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	08	1	0603-	●
86	SEAL; DUST	1-47529-019-0	01	1	9510-0004	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0005-	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9510-0004	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	0005-0512	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	0601-	●
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	9510-0004	●	●
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	0005-0512	●
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	0601-	●
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9712-9802	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9803-	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9510-0004	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	0005-0011	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	9510-0004	●	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	0005-0512	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	0601-	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9510-9606	●	●
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	02	1	9607-9903	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9904-0004	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0512	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9510-9606	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9607-0004	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9510-0004	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0005-	●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR<TDU> (B) DIN1/8 & M16X2 3WAY	1-09656-462-1	02	1	9510-0004	●
148	CONNECTOR; AIR MASTER (B) DIN1/8 & M16X2 3WAY	1-09656-462-1	02	1	9510-0004		●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR<TDU> (B) DIN1/8 & M16X2 3WAY	1-09656-462-1	02	1	0005-	●
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ADR<TDU> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	9510-9802	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9510-0004	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0005-	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28680-825-0	02	1	9607-9712	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9801-0004	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9510-0004	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9510-0004	●	●
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9908-0004	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	0005-0011	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-	●
237	CAP; OIL TANK	1-47525-019-2	01	1	9510-0004	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9510-0004	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0005-	●
239	FILTER; DUST	1-47529-017-0	01	1	9510-0004	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0005-	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9510-0004	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0005-	●
274	CONNECTOR; VLV BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-0004	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9510-0004		●
274	CONNECTOR; VLV BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0005-	●

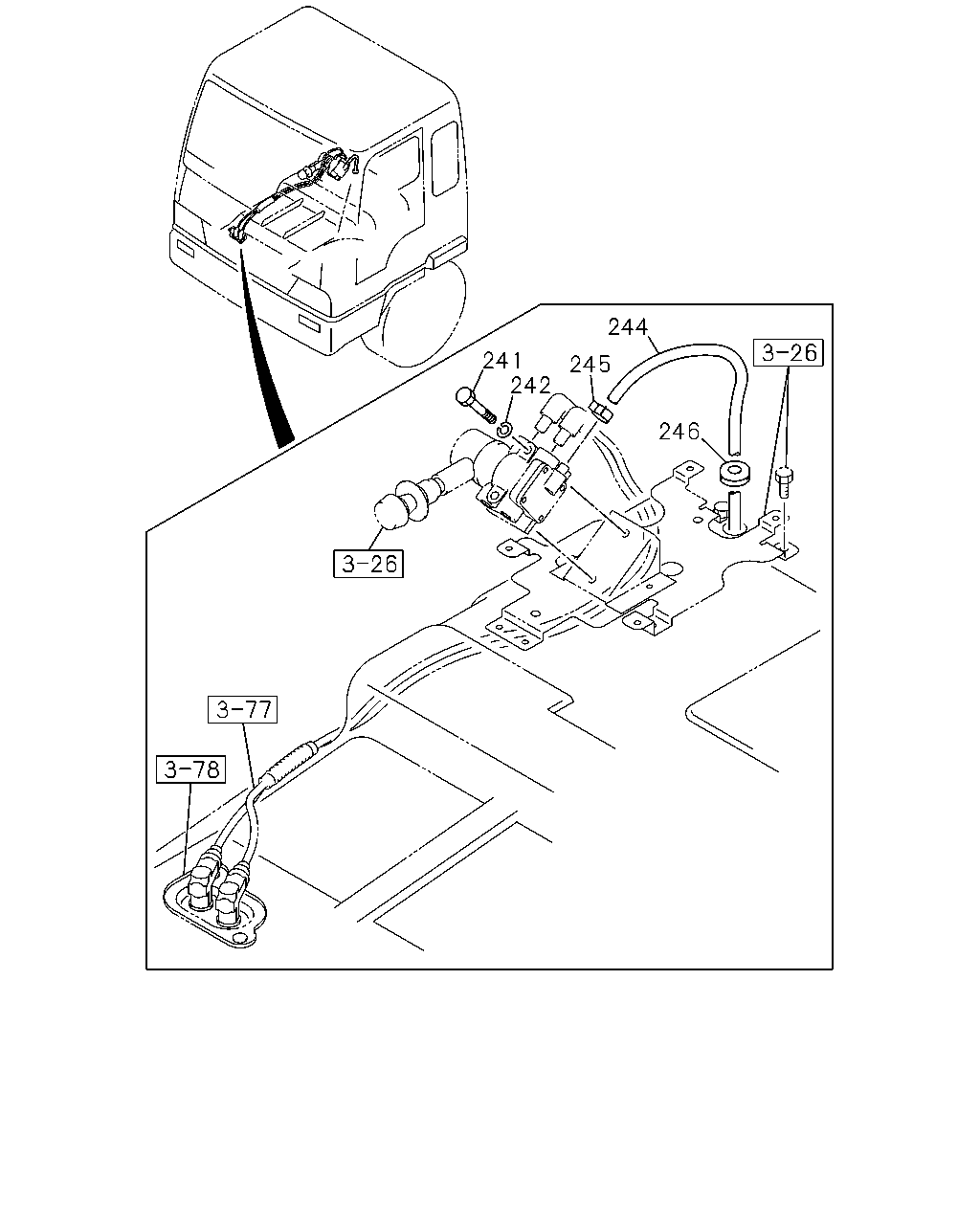

244 241 242 245 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9510-9704	●	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	9705-0004	●	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	0005-0512	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9510-9704	●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9510-0004	●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0005-	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	9510-0004	●	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0005-	●
246	GROMMET; VINYL PIPE DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35	8-94122-971-0	01	1	9510-	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9510-0004	●	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0005-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
