◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#37721) — 106 parça
çizim 151293
97 61 324 218 46 45 46 45
BalonParca AdiParca NoAdetTipApplied Date A B
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-9812 ● ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9901-0004 ● ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0005- ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 03 1 9510-0004 ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 03 1 0005-0606 ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 03 1 0607- ●
61 CABLE; PARKING BRK
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4444 		1-79996-312-0 01 1 9510-9909 ● ●
61 CABLE; PARKING BRK
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4444 		1-79996-477-0 01 1 9910-0004 ● ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-231-1 01 1 9510-9909 ● ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-473-0 01 1 9910-0004 ● ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-473-3 01 1 0005- ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> ENGINE REAR PTO(SV1) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-233-1 01 1 9510-9909 ● ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> ENGINE REAR PTO(SV1) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-475-0 01 1 9910-0004 ● ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ENGINE REAR PTO(SV1) L=4344 		1-79996-232-1 01 1 9510-9909 ● ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ENGINE REAR PTO(SV1) L=4344 		1-79996-474-0 01 1 9910-0004 ● ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4344 		1-79996-474-3 01 1 0005- ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9510-0004 ● ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 0005- ●
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE 		8-94279-517-0 02 1 9510-9611 ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9612-0004 ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0005- ●
324 BRACKET 1-79998-750-3 01 1 9510-0004 ● ●
324 BRACKET 1-79998-750-3 01 1 0005-0512 ●
324 BRACKET 1-79998-750-3 01 1 0601- ●

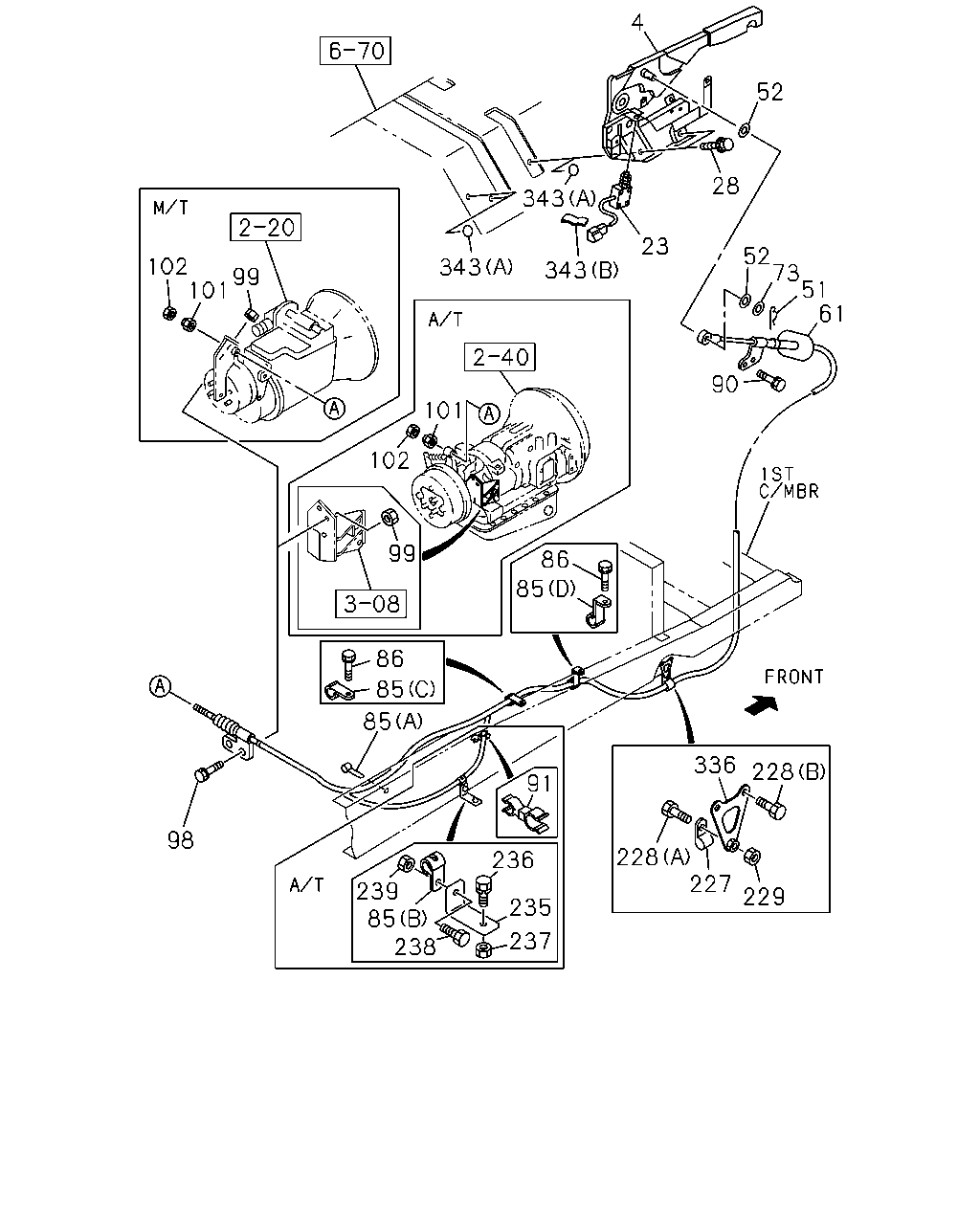

çizim 151320
4 52 28 343 23 52 73 51 61 102 99 101 343 343 90 101 102 99 86 85 86 85 85 336 228 91 98 228 227 236 239 85 238 229 235 237
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-864-1 01 1 9510-9809 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-419-0 01 1 9810-9908 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-481-0 01 1 9909-9911 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-503-0 01 1 9912-0004 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-503-0 01 1 0005-0010 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 0011- ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 9510-0004 ● ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 0005- ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-0004 ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0904 ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 9510-0004 ● ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 0005- ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9510-0004 ● ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 0005- ●
61 CABLE; PARKING BRK
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4444 		1-79996-312-0 01 1 9510-9909 ● ●
61 CABLE; PARKING BRK
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4444 		1-79996-477-0 01 1 9910-0004 ● ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-231-1 01 1 9510-9909 ● ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-473-0 01 1 9910-0004 ● ●
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4244 		1-79996-473-3 01 1 0005- ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> ENGINE REAR PTO(SV1) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-233-1 01 1 9510-9909 ● ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> ENGINE REAR PTO(SV1) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-475-0 01 1 9910-0004 ● ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ENGINE REAR PTO(SV1) L=4344 		1-79996-232-1 01 1 9510-9909 ● ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ENGINE REAR PTO(SV1) L=4344 		1-79996-474-0 01 1 9910-0004 ● ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4344 		1-79996-474-3 01 1 0005- ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9510-0004 ● ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 0005-0605 ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 OD=30 		0-91610-516-0 01 1 0606- ●
85 CLIP; BRKT
A/T<X9D> (B) ID=14.5 L=28 		1-09701-013-0 01 1 9510-9511 ●
85 CLIP; BRKT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=28 		1-09701-013-0 01 1 9512-0004 ●
85 CLIP; BRKT
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9510-0004 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 0005- ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 H=30 L=30 		1-09701-080-0 01 1 9510- ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=24 L=40 		1-09701-139-0 01 1 9510-1101 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.5 L=40 		1-09701-014-0 01 1 1102- ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512 ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0004 ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0005-0904 ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
91 CLIP; PARKING BRK CABLE
A/T<X9D> ID=6 & 13 		8-94459-564-0 01 1 9510-9511 ●
91 CLIP; PARKING BRK CABLE
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6 & 13 		8-94459-564-0 01 1 9512-0004 ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606 ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28681-030-0 02 1 9607-0512 ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 02 1 9510-9702 ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 9703-0602 ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		1-46259-007-0 01 1 9510- ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9510-9709 ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9710-0602 ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		9-09525-235-0 01 1 9510-0606 ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		0-95235-235-0 01 1 0607- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512 ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9510- ●
229 NUT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9510-9606 ●
229 NUT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9607-9608 ●
235 BRACKET; CONT CABLE TO FRAME
A/T<X9D> L=50 		1-47475-663-1 01 1 9510-9511 ●
235 BRACKET; CONT CABLE TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=50 		1-47475-663-1 01 1 9512-0004 ●
236 BOLT; BRKT TO FRAME
A/T<X9D> M8X25 FLANGE 		0-28080-825-0 01 1 9510-9511 ●
236 BOLT; BRKT TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 01 1 9512-9606 ●
236 BOLT; BRKT TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE 		0-28680-830-0 01 1 9607-0004 ●
237 NUT; BRKT TO FRAME
A/T<X9D> M8 		9-09110-408-0 01 1 9510-9511 ●
237 NUT; BRKT TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9512-9606 ●
237 NUT; BRKT TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
238 BOLT; CLIP TO BRKT
A/T<X9D> M8X20 FLANGE 		0-28080-820-0 01 1 9510-9511 ●
238 BOLT; CLIP TO BRKT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28080-820-0 01 1 9512-9606 ●
238 BOLT; CLIP TO BRKT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ●
239 NUT; CLIP TO BRKT
A/T<X9D> M8 		9-09110-408-0 01 1 9510-9511 ●
239 NUT; CLIP TO BRKT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9512-9606 ●
239 NUT; CLIP TO BRKT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-36183-162-1 01 1 9510-0004 ●
336 BRACKET; RADIATOR
PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-36183-162-1 01 1 0005-0212 ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-36183-162-1 01 1 0301- ●
343 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK 		1-76798-019-0 05 1 9510-0004 ● ●
343 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK 		1-76798-019-0 05 1 0005- ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 100X30 		1-74998-068-0 01 1 9510-9510 ● ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK 		1-76798-019-0 02 1 9510-0004 ● ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK 		1-76798-019-0 02 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
