3-10 — BRAKE PEDAL AND CONTROL (#37720) — 49 parça

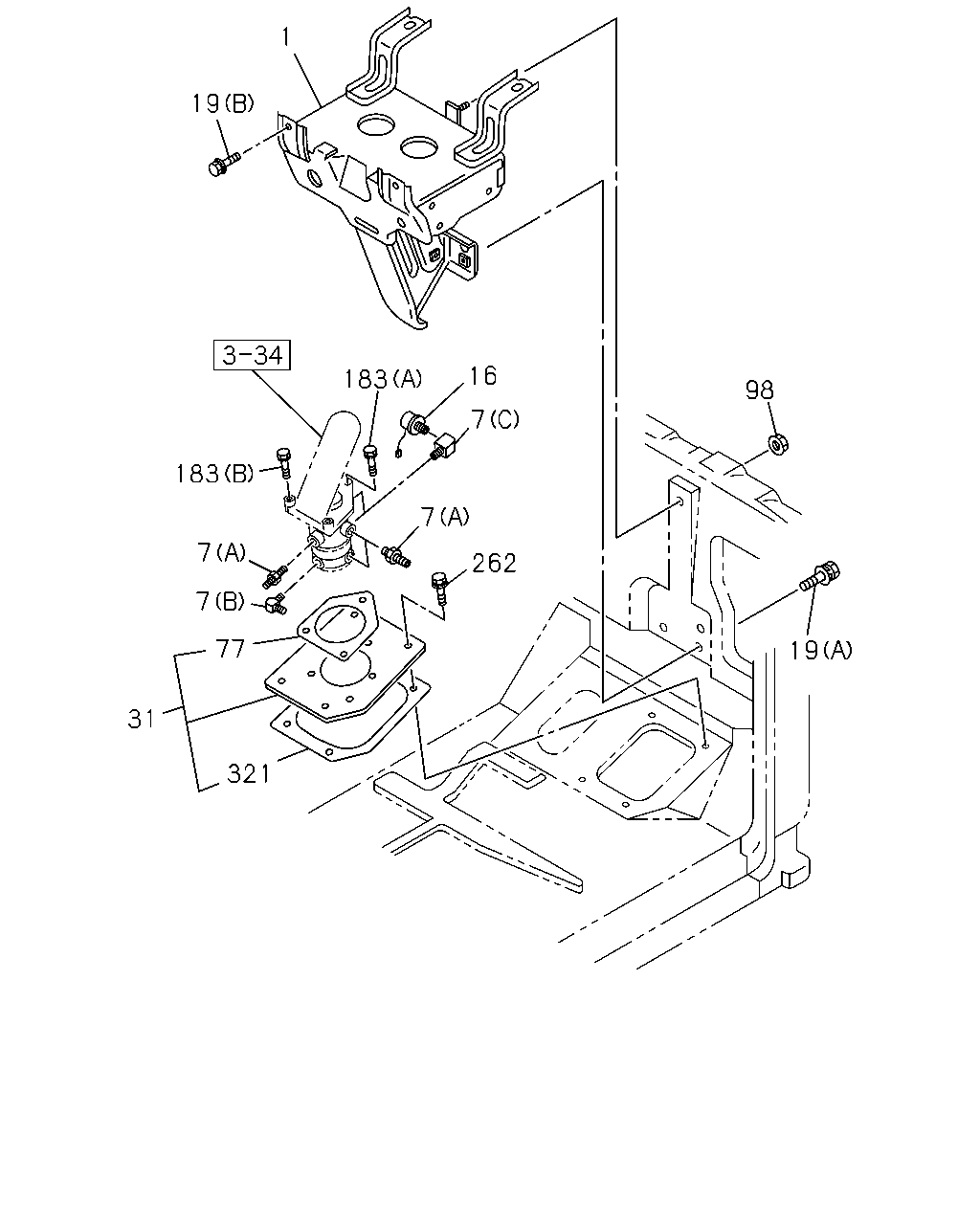

çizim 151306
1 19 16 183 98 7 183 7 7 262 7 77 19 31 321
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73908-280-1 01 1 0601- ●
1 BRACKET ASM; PEDAL
A/T<X9D> 		1-73998-935-9 01 1 9510-9705 ●
1 BRACKET ASM; PEDAL
A/T<X9D> 		1-73908-280-1 01 1 9706-9810 ●
1 BRACKET ASM; PEDAL
A/T<X9D> 		1-73908-280-1 01 1 9811-0004 ●
1 BRACKET ASM; PEDAL
AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> 		1-73908-280-1 01 1 9811-0004 ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A> 		1-73908-050-8 01 1 9510-9810 ● ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-050-8 01 1 9811-0004 ●
1 BRACKET ASM; PEDAL 1-73908-050-8 01 1 9811-0004 ●
1 BRACKET ASM; PEDAL 1-73908-050-8 01 1 0005-0512 ●
1 BRACKET ASM; PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-050-8 01 1 0601- ●
7 CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 9510-0004 ● ●
7 CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 0005-0512 ●
7 CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 0601- ●
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9510-0004 ● ●
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0005-0512 ●
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0601- ●
7 CONNECTOR; BRK VALVE
(C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 9510-0004 ● ●
7 CONNECTOR; BRK VALVE
(C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 0005-0512 ●
7 CONNECTOR; BRK VALVE
(C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 0601- ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-141-1 02 1 9510-9511 ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-0 02 1 9512-0004 ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-1 02 1 0005- ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 9510-0004 ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 0005- ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0004 ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0005-0904 ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
31 PLATE; MTG,BRKT VLV 1-73996-140-0 01 1 9510-9512 ● ●
31 PLATE; MTG,BRKT VLV 1-73996-329-0 01 1 9601-0004 ● ●
31 PLATE; MTG,BRKT VLV 1-73996-329-1 01 1 0005-0512 ●
31 PLATE; MTG,BRKT VLV 1-73996-329-1 01 1 0601- ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 9510-0004 ● ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 0005-0512 ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 0601- ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9510-0004 ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005- ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 9510-0004 ● ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 0005-0512 ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 0601- ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 9510-0004 ● ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 0005-0512 ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 0601- ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004 ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0512 ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0601-0904 ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
321 SEAL; VALVE 1-73996-143-0 01 1 9510-0004 ● ●
321 SEAL; VALVE 1-73996-143-0 01 1 0005-0512 ●
321 SEAL; VALVE 1-73996-143-0 01 1 0601- ●
