2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#3772) — 240 parça

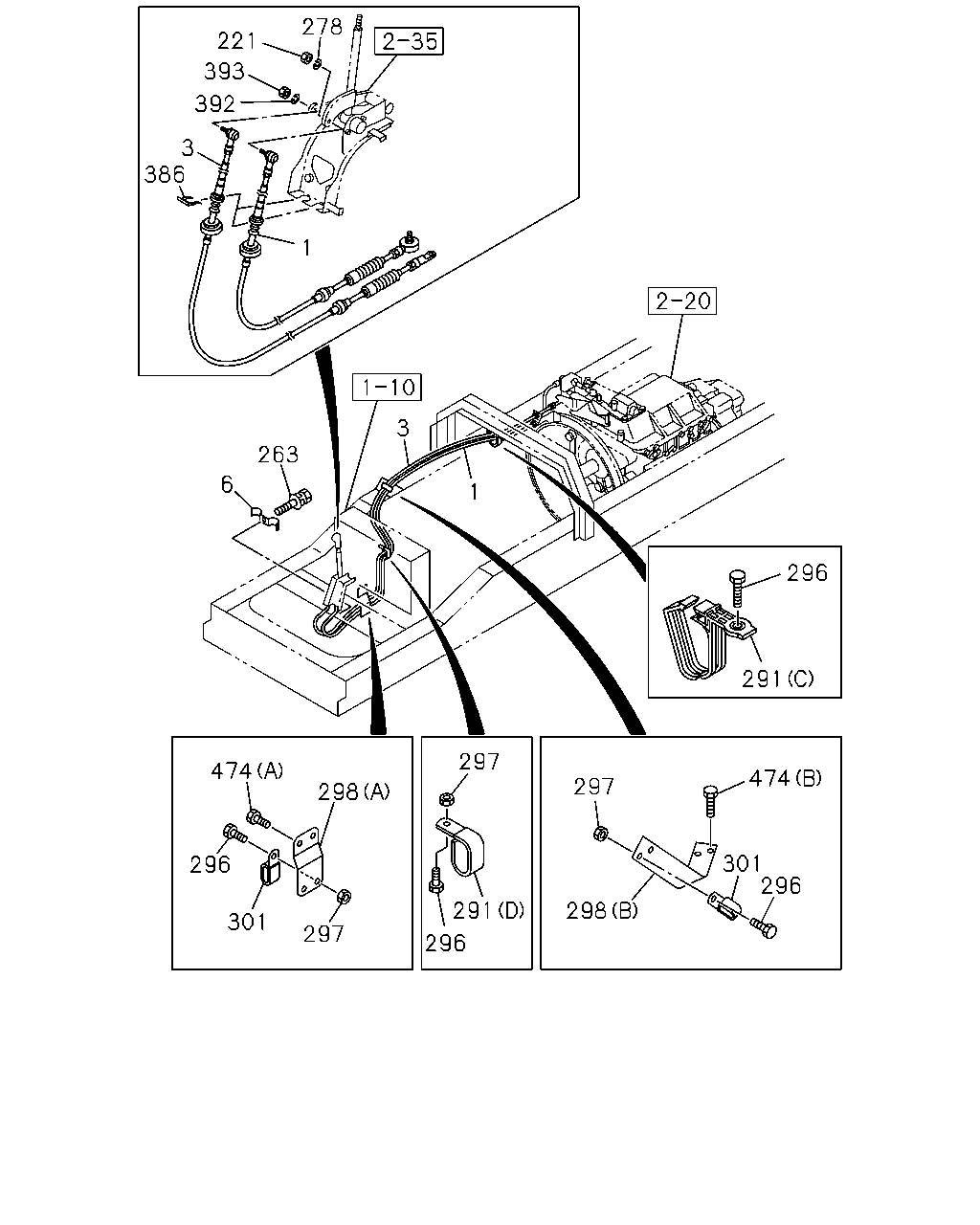

çizim 37911
278 221 393 392 3 386 1 3 263 6 1 296 291 297 474 474 297 298 301 296 296 291 298 301 297 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> WHEEL BASE 6200MM(62W) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3609 		8-98074-072-0 01 1 0701-0703 ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3609 		8-98074-072-1 01 1 0704- ●
1 CABLE; SHIFT,TRANS CONT
6HK1 TCC ENG(81L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98053-703-1 01 1 0608- ●
1 CABLE; SHIFT,TRANS CONT
AIR CONDITIONER MANUAL CONTROL(C60) L=3532.5 		1-33671-895-0 01 1 0301- ●
1 CABLE; SHIFT,TRANS CONT
L=3532.5 		1-33670-951-1 01 1 9601-0212 ●
1 CABLE; SHIFT,TRANS CONT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3532.5 		1-33670-951-1 01 1 0301- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3935 		1-33671-178-0 01 1 9804- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3445 		1-33671-145-0 01 1 9804- ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3484 		1-33670-853-0 01 1 9601-9709 ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3484 		1-33670-853-0 01 1 9710-9803 ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3485 		1-33671-146-0 01 1 9804- ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3357 		1-33670-852-0 01 1 9601-9709 ● ● ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3357 		1-33670-852-0 01 1 9710-9803 ● ● ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3357 		1-33670-852-0 01 1 9804- ● ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3635 		1-33671-224-0 01 1 9710-9803 ● ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3635 		1-33671-179-0 01 1 9804-0612 ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3635 		1-33671-179-0 01 1 0701-0703 ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> ASSISTOR SHIFT CONTROL<WX8> L=3507 		1-33671-177-0 01 1 9710-9803 ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3507 		1-33671-177-0 01 1 9804- ● ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> WHEEL BASE 6200MM(62W) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98074-071-0 01 1 0701-0703 ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98074-071-0 01 1 0704- ●
3 CABLE; SELECT,TRANS CONT
6HK1 TCC ENG(81L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3610 		8-98053-705-0 01 1 0608- ●
3 CABLE; SELECT,TRANS CONT
AIR CONDITIONER MANUAL CONTROL(C60) L=3428.5 		1-33671-896-0 01 1 0301- ●
3 CABLE; SELECT,TRANS CONT
L=3428.5 		1-33670-955-1 01 1 9601-0212 ●
3 CABLE; SELECT,TRANS CONT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3428.5 		1-33670-955-1 01 1 0301- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3675 		1-33671-181-0 01 1 9804- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3525 		1-33671-152-0 01 1 9804- ● ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3546 		1-33670-865-1 01 1 9601-9709 ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3546 		1-33670-865-1 01 1 9710-9803 ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3545 		1-33671-153-0 01 1 9804- ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3564 		1-33670-864-1 01 1 9601-9709 ● ● ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3564 		1-33670-864-1 01 1 9710-9803 ● ● ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3564 		1-33670-864-1 01 1 9804- ● ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3695 		1-33671-225-0 01 1 9710-9803 ● ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3695 		1-33671-182-0 01 1 9804-0612 ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3695 		1-33671-182-0 01 1 0701-0703 ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> ASSISTOR SHIFT CONTROL<WX8> L=3715 		1-33671-180-0 01 1 9710-9803 ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3715 		1-33671-180-0 01 1 9804- ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9601-9803 ● ● ● ● ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9804-0607 ● ● ● ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0608- ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9601-9803 ● ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-1011 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-9812 ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0607 ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0608- ● ● ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) 		1-09701-307-2 01 1 0407-0710 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) 		1-09701-307-2 01 1 0711-0806 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) 		1-09701-307-2 01 1 0807- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) 		8-97028-508-2 01 1 9601-9809 ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9601-9803 ● ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9804-0406 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0407-0710 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09700-621-2 01 1 9601-9602 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9603-9609 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9601-9705 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9706-9803 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9804-0005 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0006-0606 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. EURO2 SPECIFICATION<THN> (A) ID=11X2 L=16 		9-09535-026-0 01 1 0006-0606 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607-0912 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. EURO2 SPECIFICATION<THN> (A) ID=11X2 L=16 		0-95325-026-0 01 1 0607-0912 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 1001- ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09701-258-0 01 1 9702-9702 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9703-9803 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9804-0005 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 0006-0506 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EURO2 SPECIFICATION<THN> (B) ID=13X2 L=32 		1-09701-245-0 01 1 0006-0506 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 0507-0912 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EURO2 SPECIFICATION<THN> (B) ID=13X2 L=32 		1-09701-312-0 01 1 0507-0912 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 1001- ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-0806 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0807- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE 		0-28080-825-0 01 1 9601-9606 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 01 1 9607-9809 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 9601-9803 ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 9804-0512 ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ●
297 NUT; CLIP
M8 		9-09110-408-0 02 1 9601-9606 ●
297 NUT; CLIP
M8 		9-09110-408-0 02 1 9601-9606 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-9809 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-9809 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9810-0602 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9810-0602 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-0806 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0807- ●
298 BRACKET
6HK1 TCC ENG(81L) (C) 		1-36183-235-0 01 1 0608- ●
298 BRACKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-36183-236-0 01 1 0301- ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9601-0212 ●
298 BRACKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-47477-519-2 01 1 0301- ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9601- ●
298 BRACKET
EURO2 SPECIFICATION<THN> (C) 		1-47477-922-0 01 1 9710-9803 ● ● ●
298 BRACKET
EURO2 SPECIFICATION<THN> (C) 		1-47477-922-0 01 1 9804-9810 ● ●
298 BRACKET
EURO2 SPECIFICATION<THN> (C) 		1-47478-354-0 01 1 9811- ● ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 9601-0606 ●
301 CLIP; WIRE
ID=11X2 L=16 		0-95325-026-0 02 1 0607- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9601-9803 ● ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9804-0607 ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0608- ● ● ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9601-9803 ● ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9804-1011 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●
474 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9601-9606 ●
474 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9610 ●
474 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9611-9803 ●
474 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9804-0512 ●
474 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9607-9709 ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9710-9803 ●
474 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9710-9803 ● ● ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9804- ●
474 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9804- ● ●

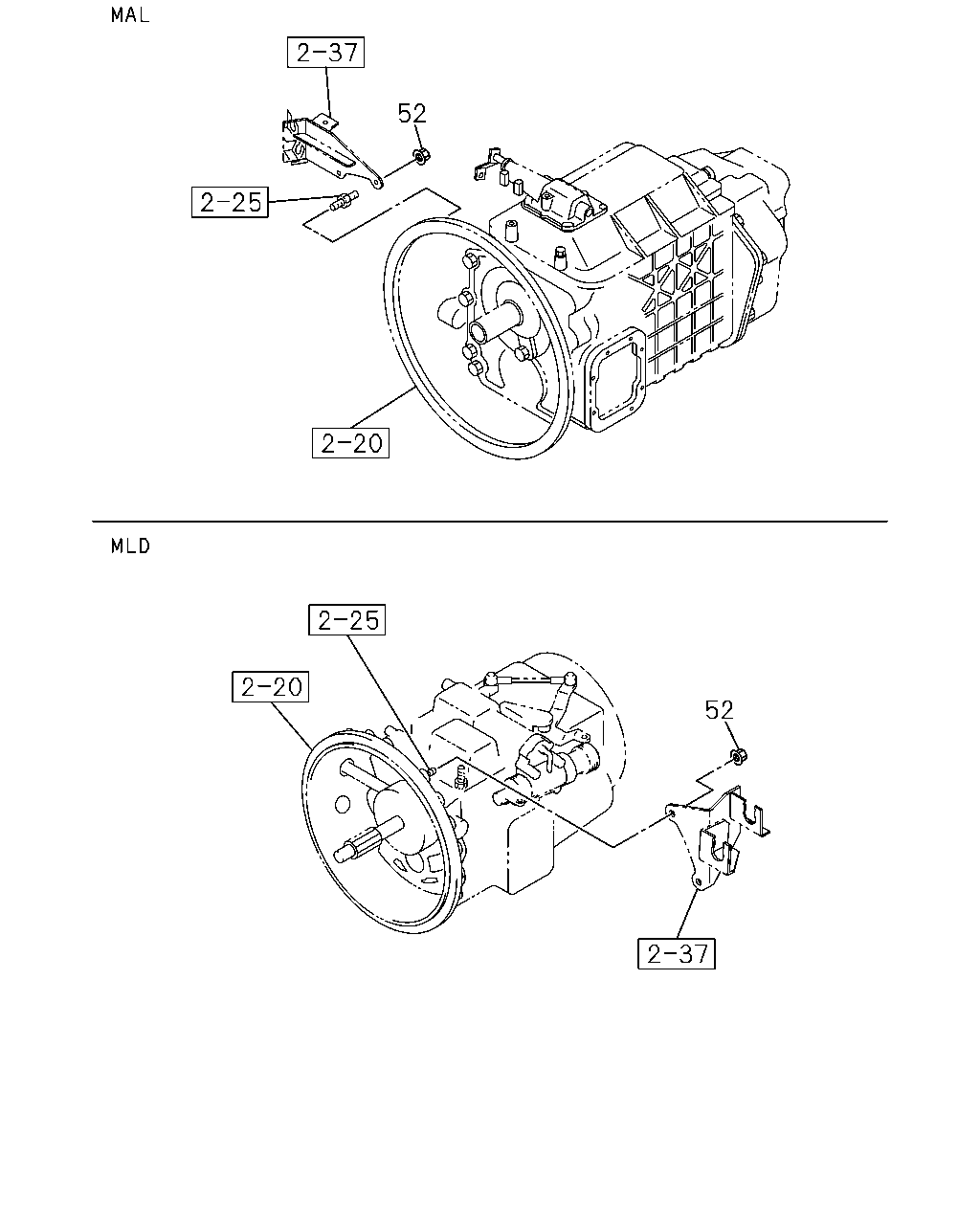

çizim 38031
52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
52 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 9601-9605 ● ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9606-9803 ● ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9804-0602 ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●

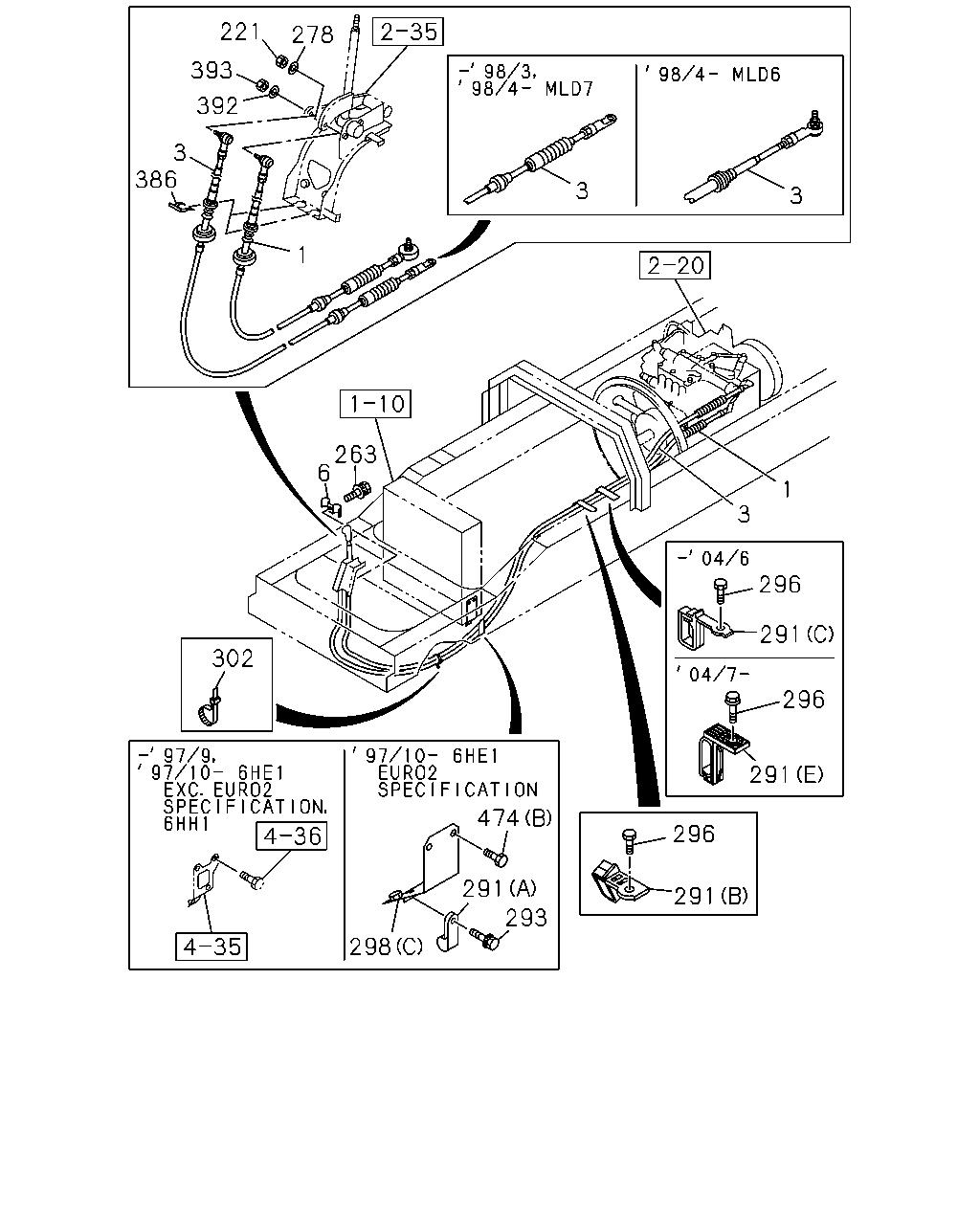

çizim 39085
221 278 393 392 3 386 1 263 6 1 3 296 291 302 296 6 291 474 296 291 293 291 298 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> WHEEL BASE 6200MM(62W) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3609 		8-98074-072-0 01 1 0701-0703 ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3609 		8-98074-072-1 01 1 0704- ●
1 CABLE; SHIFT,TRANS CONT
6HK1 TCC ENG(81L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98053-703-1 01 1 0608- ●
1 CABLE; SHIFT,TRANS CONT
AIR CONDITIONER MANUAL CONTROL(C60) L=3532.5 		1-33671-895-0 01 1 0301- ●
1 CABLE; SHIFT,TRANS CONT
L=3532.5 		1-33670-951-1 01 1 9601-0212 ●
1 CABLE; SHIFT,TRANS CONT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3532.5 		1-33670-951-1 01 1 0301- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3935 		1-33671-178-0 01 1 9804- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3445 		1-33671-145-0 01 1 9804- ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3484 		1-33670-853-0 01 1 9601-9709 ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3484 		1-33670-853-0 01 1 9710-9803 ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3485 		1-33671-146-0 01 1 9804- ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3357 		1-33670-852-0 01 1 9601-9709 ● ● ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3357 		1-33670-852-0 01 1 9710-9803 ● ● ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3357 		1-33670-852-0 01 1 9804- ● ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3635 		1-33671-224-0 01 1 9710-9803 ● ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3635 		1-33671-179-0 01 1 9804-0612 ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3635 		1-33671-179-0 01 1 0701-0703 ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> ASSISTOR SHIFT CONTROL<WX8> L=3507 		1-33671-177-0 01 1 9710-9803 ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3507 		1-33671-177-0 01 1 9804- ● ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> WHEEL BASE 6200MM(62W) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98074-071-0 01 1 0701-0703 ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98074-071-0 01 1 0704- ●
3 CABLE; SELECT,TRANS CONT
6HK1 TCC ENG(81L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3610 		8-98053-705-0 01 1 0608- ●
3 CABLE; SELECT,TRANS CONT
AIR CONDITIONER MANUAL CONTROL(C60) L=3428.5 		1-33671-896-0 01 1 0301- ●
3 CABLE; SELECT,TRANS CONT
L=3428.5 		1-33670-955-1 01 1 9601-0212 ●
3 CABLE; SELECT,TRANS CONT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3428.5 		1-33670-955-1 01 1 0301- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3675 		1-33671-181-0 01 1 9804- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3525 		1-33671-152-0 01 1 9804- ● ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3546 		1-33670-865-1 01 1 9601-9709 ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3546 		1-33670-865-1 01 1 9710-9803 ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3545 		1-33671-153-0 01 1 9804- ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3564 		1-33670-864-1 01 1 9601-9709 ● ● ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3564 		1-33670-864-1 01 1 9710-9803 ● ● ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3564 		1-33670-864-1 01 1 9804- ● ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3695 		1-33671-225-0 01 1 9710-9803 ● ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3695 		1-33671-182-0 01 1 9804-0612 ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3695 		1-33671-182-0 01 1 0701-0703 ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> ASSISTOR SHIFT CONTROL<WX8> L=3715 		1-33671-180-0 01 1 9710-9803 ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3715 		1-33671-180-0 01 1 9804- ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9601-9803 ● ● ● ● ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9804-0607 ● ● ● ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0608- ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9601-9803 ● ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-1011 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-9812 ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0607 ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0608- ● ● ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) 		1-09701-307-2 01 1 0407-0710 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) 		1-09701-307-2 01 1 0711-0806 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) 		1-09701-307-2 01 1 0807- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) 		8-97028-508-2 01 1 9601-9809 ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9601-9803 ● ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9804-0406 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0407-0710 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09700-621-2 01 1 9601-9602 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9603-9609 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9601-9705 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9706-9803 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9804-0005 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0006-0606 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. EURO2 SPECIFICATION<THN> (A) ID=11X2 L=16 		9-09535-026-0 01 1 0006-0606 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607-0912 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. EURO2 SPECIFICATION<THN> (A) ID=11X2 L=16 		0-95325-026-0 01 1 0607-0912 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 1001- ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09701-258-0 01 1 9702-9702 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9703-9803 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9804-0005 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 0006-0506 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EURO2 SPECIFICATION<THN> (B) ID=13X2 L=32 		1-09701-245-0 01 1 0006-0506 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 0507-0912 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EURO2 SPECIFICATION<THN> (B) ID=13X2 L=32 		1-09701-312-0 01 1 0507-0912 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 1001- ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0512 ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-0806 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0807- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE 		0-28080-825-0 01 1 9601-9606 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 01 1 9607-9809 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 9601-9803 ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 9804-0512 ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ●
298 BRACKET
6HK1 TCC ENG(81L) (C) 		1-36183-235-0 01 1 0608- ●
298 BRACKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-36183-236-0 01 1 0301- ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9601-0212 ●
298 BRACKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-47477-519-2 01 1 0301- ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9601- ●
298 BRACKET
EURO2 SPECIFICATION<THN> (C) 		1-47477-922-0 01 1 9710-9803 ● ● ●
298 BRACKET
EURO2 SPECIFICATION<THN> (C) 		1-47477-922-0 01 1 9804-9810 ● ●
298 BRACKET
EURO2 SPECIFICATION<THN> (C) 		1-47478-354-0 01 1 9811- ● ●
302 CLIP; BAND
6HK1 TCC ENG(81L) L=300 		1-09707-001-1 01 1 0608- ●
302 CLIP; BAND
L=300 		1-09707-001-0 01 1 9601-9803 ● ● ● ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 9804-0103 ● ● ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 02 1 0104- ● ● ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9601-9803 ● ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9804-0607 ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0608- ● ● ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9601-9803 ● ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9804-1011 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●
474 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9601-9606 ●
474 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9610 ●
474 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9611-9803 ●
474 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9804-0512 ●
474 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9607-9709 ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9710-9803 ●
474 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9710-9803 ● ● ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9804- ●
474 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
