Sayfa 0-61 - Isuzu EPC

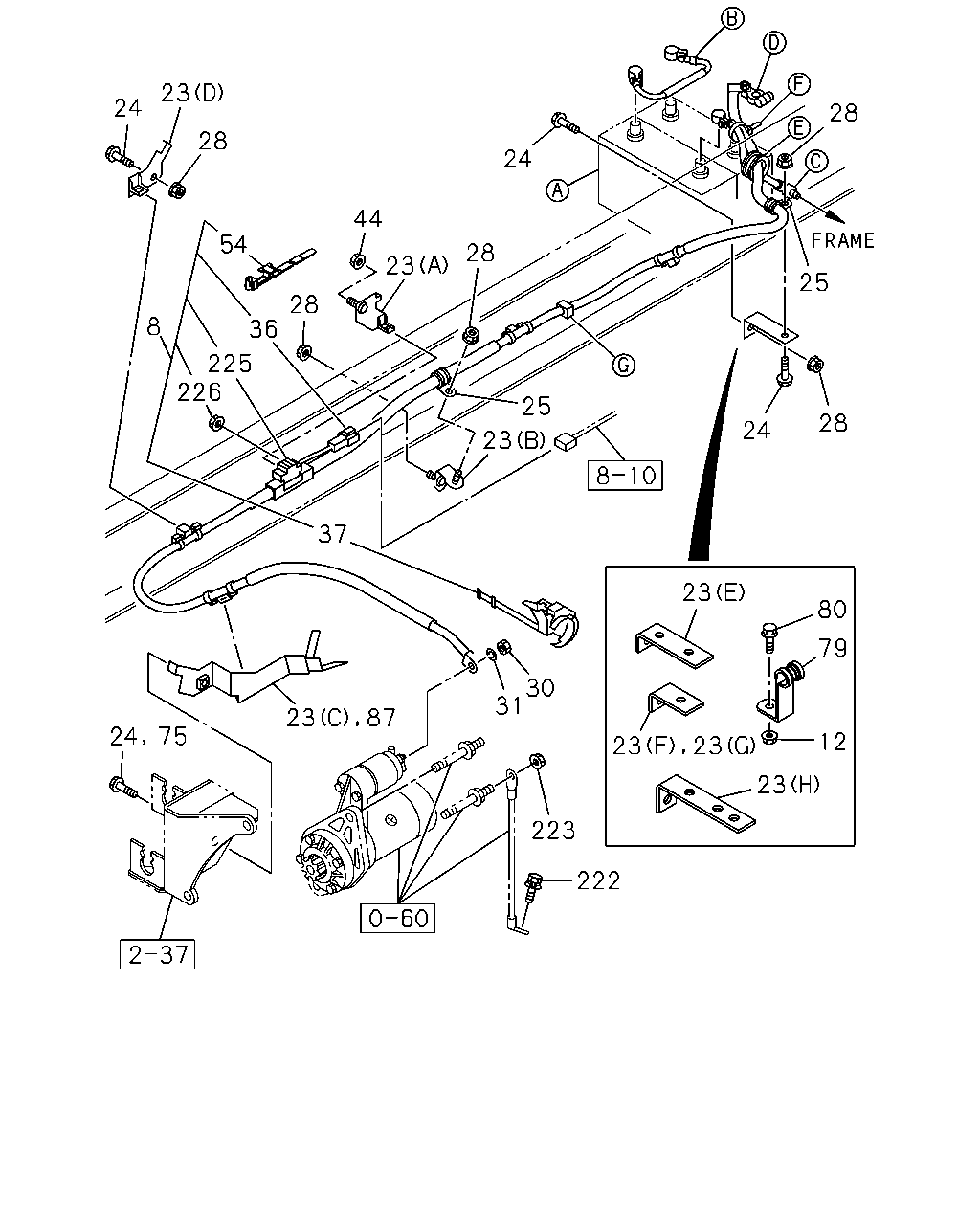

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#37714) — 212 parça

23 24 28 28 24 44 54 28 23 25 28 8 36 225 226 25 28 24 23 37 23 80 79 30 31 24 75 12 23 223 222 23 23 23 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2935	8-98137-361-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MLD6Q M/T(X5J) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2935	8-98137-361-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8>	8-98295-422-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MLD6Q M/T(X5J) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-422-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3010	8-98137-362-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98295-423-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=3150	8-98137-363-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MLD6Q M/T(X5J) BATTERY 115E41L<8MA> L=3150	8-98137-363-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA>	8-98295-424-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MLD6Q M/T(X5J) BATTERY 115E41L<8MA>	8-98295-424-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3225	8-98137-364-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98295-425-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3075	8-98128-434-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-417-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3280	8-98128-432-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-416-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3355	8-98128-435-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-418-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) L=3015	8-98097-406-0	01	1	0712-0808		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) L=3030	8-98122-341-0	01	1	0809-0811		●
8	CABLE; BATTERY,STARTER EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3030	8-98122-341-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-414-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2985	8-98097-404-0	01	1	0712-0808		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3000	8-98122-340-0	01	1	0809-0811		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3000	8-98122-340-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-413-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) L=3480	8-98097-401-3	01	1	0712-1502			●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-407-0	01	1	1503-			●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3440	8-98097-399-3	01	1	0712-1502			●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-405-0	01	1	1503-			●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	0712-		●
23	BRACKET; CABLE CLIP TO FRAME (I)	8-97612-957-1	01	1	1004-1004	●
23	BRACKET; CABLE CLIP TO FRAME (H) L=115	1-82698-360-0	01	1	0712-		●
23	BRACKET; CABLE CLIP TO FRAME (G) L=95	1-82699-085-0	02	1	0712-1107		●
23	BRACKET; CABLE CLIP TO FRAME (G) L=95	1-82699-085-0	01	1	1108-		●
23	BRACKET; CABLE CLIP TO FRAME EURO2 SPECIFICATION<NT2> (G) L=95	1-82699-085-0	01	1	1108-		●
23	BRACKET; CABLE CLIP TO FRAME (F) L=55	1-47475-304-0	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (F) L=55	1-47475-304-0	01	1	0712-0803			●
23	BRACKET; CABLE CLIP TO FRAME (F) L=95	1-82699-085-0	03	1	0804-			●
23	BRACKET; CABLE CLIP TO FRAME (E) L=60 H=30	1-47477-716-1	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (E) L=60 H=30	1-47477-716-1	01	1	0712-0803			●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98047-277-1	01	1	0712-1003		●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98047-277-1	01	1	1004-	●	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	0712-0803			●
23	BRACKET; CABLE CLIP TO FRAME (C)	8-98053-927-1	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (C)	8-98053-927-1	01	1	0712-0803			●
23	BRACKET; CABLE CLIP TO FRAME (E) L=90 B=25	1-47476-630-0	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (E) L=90 B=25	1-47476-630-0	01	1	0712-0803			●
24	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	01	1	0804-0902			●
24	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	01	1	0903-0905		●	●
24	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	01	1	0906-1003		●	●
24	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	01	1	1004-	●	●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0712-0906		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0907-1107		●
24	BOLT; BRKT TO FRAME EURO2 SPECIFICATION<NT2> M8X30 FLANGE	0-28650-830-0	01	1	1108-		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0712-0803		●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0804-0906		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0907-		●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	0712-0712		●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	0712-0712		●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	0712-0803			●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	0712-0803			●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	03	1	0804-			●
24	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	02	1	0712-0803		●	●
24	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	02	1	0804-0809		●
24	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	02	1	0810-0902		●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	02	1	0712-0712		●	●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	02	1	0712-0803			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0804-1107			●
28	NUT; BRKT TO FRAME EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1108-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1108-			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-0712		●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-1003			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1004-1004	●		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1005-			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0712-0803		●	●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	0804-1003		●	●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	1004-	●	●	●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	01	1	0712-0803		●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0804-1107		●
28	NUT; BRKT TO FRAME EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	03	1	1108-		●
30	NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0712-1003		●	●
30	NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1004-	●	●	●
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2	0-91510-508-0	01	1	0712-1003		●	●
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2	0-91510-508-0	01	1	1004-	●	●	●
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	0712-1003		●	●
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1004-1502	●	●	●
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-	●	●	●
37	CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	0712-1003		●	●
37	CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1004-	●	●	●
44	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	0712-0712		●	●
54	CLIP; BAND,BATTERY CABLE L=175	1-09707-176-1	01	1	0712-1004		●	●
75	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0712-0803		●
75	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0804-1003		●	●
75	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1004-	●	●	●
79	CLIP; BATTERY CABLE ID=21 L=24	8-98019-191-0	03	1	0712-		●
79	CLIP; BATTERY CABLE ID=16 L=50 H=25	1-09700-838-0	01	1	0712-0712		●	●
79	CLIP; BATTERY CABLE ID=16 L=50 H=25	1-09700-838-0	01	1	0712-0803			●
79	CLIP; BATTERY CABLE ID=16 H=25 L=25	1-09701-162-0	02	1	0712-0712		●	●
79	CLIP; BATTERY CABLE ID=16 H=25 L=25	1-09701-162-0	02	1	0712-0803			●
80	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0712-		●
87	BRACKET; HARNESS MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98121-187-0	01	1	0906-1003		●
87	BRACKET; HARNESS MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98121-187-0	01	1	1004-	●	●
87	BRACKET; HARNESS MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98126-428-0	01	1	0812-0906		●
87	BRACKET; HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98126-428-0	01	1	0907-1003		●
87	BRACKET; HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98126-428-0	01	1	1004-	●	●
87	BRACKET; HARNESS	8-98053-927-1	01	1	0712-0803		●
87	BRACKET; HARNESS	8-98053-927-1	01	1	0804-0809		●	●
87	BRACKET; HARNESS MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8>	8-98053-927-1	01	1	0810-0905		●
87	BRACKET; HARNESS MLD6Q M/T(X5J)	8-98053-927-1	01	1	0810-0905		●
87	BRACKET; HARNESS	8-98053-927-1	01	1	0810-0905			●
87	BRACKET; HARNESS MZX6P M/T(RSW),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8>	8-98053-927-1	01	1	0906-0906		●
87	BRACKET; HARNESS MZX6P M/T(RSW),MLD6Q M/T(X5J)	8-98053-927-1	01	1	0906-0906			●
87	BRACKET; HARNESS ASSISTOR SHIFT CONTROL<WX8>	8-98053-927-1	01	1	0907-1003		●
87	BRACKET; HARNESS	8-98053-927-1	01	1	0907-1003			●
87	BRACKET; HARNESS ASSISTOR SHIFT CONTROL<WX8>	8-98053-927-1	01	1	1004-	●	●
87	BRACKET; HARNESS	8-98053-927-1	01	1	1004-			●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0712-1003		●	●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1004-	●	●	●
223	NUT; EARTH CABLE M10 FLANGE	0-91180-210-0	01	1	0712-1003		●	●
223	NUT; EARTH CABLE M10 FLANGE	0-91180-210-0	01	1	1004-	●	●	●
225	BLOCK; TERMINAL	8-98029-689-0	01	1	0712-1003		●	●
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1004-1502	●	●	●
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-	●	●	●
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	0712-1003		●	●
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1004-1502	●	●	●
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-	●	●	●

11 10 1 2 13 8 107 112 28 23 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	0712-1003		●	●
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1004-	●	●	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=230	8-98140-103-0	01	1	1004-	●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=500	8-98138-256-0	01	1	1004-	●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=440	8-97615-309-1	01	1	0812-		●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	0712-		●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240	1-82650-403-0	01	1	0712-0712		●	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240	1-82650-403-1	01	1	0712-			●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2935	8-98137-361-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MLD6Q M/T(X5J) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2935	8-98137-361-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8>	8-98295-422-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MLD6Q M/T(X5J) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-422-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3010	8-98137-362-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98295-423-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=3150	8-98137-363-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MLD6Q M/T(X5J) BATTERY 115E41L<8MA> L=3150	8-98137-363-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA>	8-98295-424-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MLD6Q M/T(X5J) BATTERY 115E41L<8MA>	8-98295-424-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3225	8-98137-364-1	01	1	1004-1502	●
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98295-425-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3075	8-98128-434-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-417-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3280	8-98128-432-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-416-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3355	8-98128-435-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-418-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) L=3015	8-98097-406-0	01	1	0712-0808		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) L=3030	8-98122-341-0	01	1	0809-0811		●
8	CABLE; BATTERY,STARTER EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3030	8-98122-341-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-414-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2985	8-98097-404-0	01	1	0712-0808		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3000	8-98122-340-0	01	1	0809-0811		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3000	8-98122-340-1	01	1	0812-1502		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-413-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) L=3480	8-98097-401-3	01	1	0712-1502			●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-407-0	01	1	1503-			●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3440	8-98097-399-3	01	1	0712-1502			●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98295-405-0	01	1	1503-			●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0712-1003		●	●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1004-	●	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0712-1003		●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1004-	●	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-1003		●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-	●	●	●
23	BRACKET; CABLE CLIP TO FRAME (I)	8-97612-957-1	01	1	1004-1004	●
23	BRACKET; CABLE CLIP TO FRAME (H) L=115	1-82698-360-0	01	1	0712-		●
23	BRACKET; CABLE CLIP TO FRAME (G) L=95	1-82699-085-0	02	1	0712-1107		●
23	BRACKET; CABLE CLIP TO FRAME (G) L=95	1-82699-085-0	01	1	1108-		●
23	BRACKET; CABLE CLIP TO FRAME EURO2 SPECIFICATION<NT2> (G) L=95	1-82699-085-0	01	1	1108-		●
23	BRACKET; CABLE CLIP TO FRAME (F) L=55	1-47475-304-0	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (F) L=55	1-47475-304-0	01	1	0712-0803			●
23	BRACKET; CABLE CLIP TO FRAME (F) L=95	1-82699-085-0	03	1	0804-			●
23	BRACKET; CABLE CLIP TO FRAME (E) L=60 H=30	1-47477-716-1	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (E) L=60 H=30	1-47477-716-1	01	1	0712-0803			●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98047-277-1	01	1	0712-1003		●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98047-277-1	01	1	1004-	●	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	0712-0803			●
23	BRACKET; CABLE CLIP TO FRAME (C)	8-98053-927-1	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (C)	8-98053-927-1	01	1	0712-0803			●
23	BRACKET; CABLE CLIP TO FRAME (E) L=90 B=25	1-47476-630-0	01	1	0712-0712		●	●
23	BRACKET; CABLE CLIP TO FRAME (E) L=90 B=25	1-47476-630-0	01	1	0712-0803			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0804-1107			●
28	NUT; BRKT TO FRAME EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1108-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1108-			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-0712		●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-1003			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1004-1004	●		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1005-			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0712-0803		●	●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	0804-1003		●	●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	1004-	●	●	●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	01	1	0712-0803		●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0804-1107		●
28	NUT; BRKT TO FRAME EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	03	1	1108-		●
107	CLIP; BAND L=140	5-09707-031-1	01	1	0712-0712		●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	0712-0902		●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	0712-0902		●
107	CLIP; BAND L=140	5-09707-031-1	01	1	0903-		●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	0712-1003		●	●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1004-1408	●	●	●
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
