0-60 — ENGINE ELECTRICAL CONTROL PARTS (#37713) — 115 parça

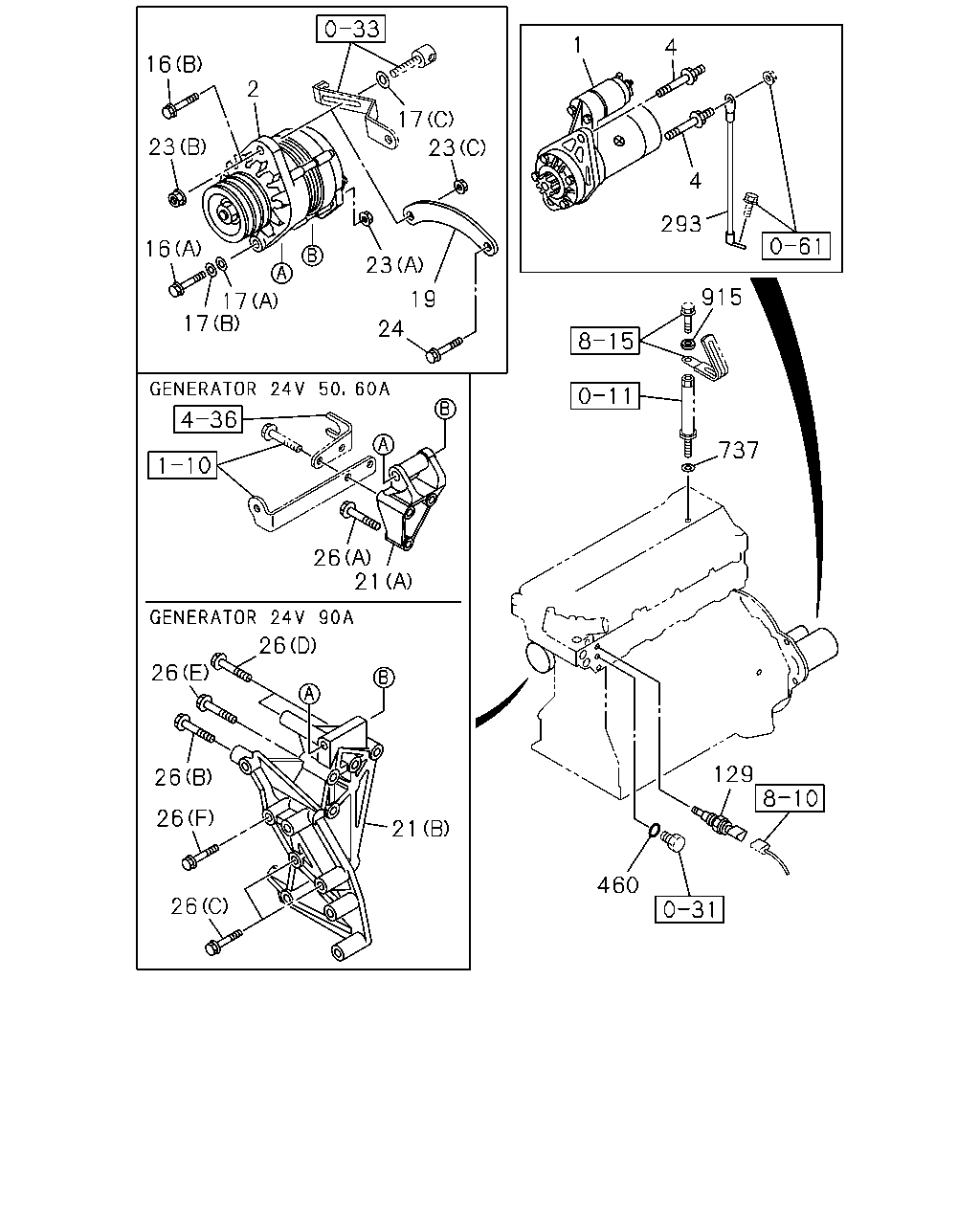

16 23 16 17 17 23 24 19 23 17 2 26 21 26 26 26 26 26 21 1 4 4 293 915 737 129 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98009-043-2	01	1	0712-1003	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98009-043-2	01	1	1004-1207	●	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311	●	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98245-260-0	01	1	1312-	●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	0712-1003	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1004-	●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	0712-1003	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1004-	●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-459-3	01	1	0712-	●	●
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	0712-1003	●	●
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	1004-	●	●	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0712-1003	●	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1004-	●	●	●
16	BOLT; GEN GENERATOR 24V90A(K44) (B) M10X45 FLANGE	0-28051-045-0	01	1	0712-	●	●
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	0712-1003	●	●
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1004-	●	●	●
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (A) ID=14.2	0-91510-514-0	01	1	0712-0803	●	●
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	0804-1003	●	●
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	1004-	●	●	●
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	0712-1003	●	●
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1004-	●	●
17	WASHER; PL,GEN (C) ID=12.5 OD=32	9-09160-712-0	01	1	1004-			●
19	BRACKET; GEN GENERATOR 24V90A(K44)	8-98032-273-0	01	1	0712-	●	●
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98032-271-1	01	1	0712-0901	●	●
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98138-127-0	01	1	0902-1004	●	●
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1005-	●	●
21	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	0712-1003	●	●
21	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	1004-	●	●	●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	0712-1003	●	●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1004-	●	●	●
23	NUT; GEN GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	0712-	●	●
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	0712-1003	●	●
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1004-	●	●
23	NUT; GEN (B) M12 FLANGE	0-91180-112-0	01	1	1004-			●
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	02	1	0712-0804	●	●
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	0805-1003	●	●
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	1004-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (B) M8X70 FLANGE	0-28050-870-0	01	1	0712-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M8X90 FLANGE	0-28050-890-0	02	1	0712-1004	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (D) M10X60 FLANGE	0-28151-060-0	02	1	0712-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (E) M10X70 FLANGE	0-28151-070-0	01	1	0712-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (F) M10X25 FLANGE	0-28751-025-0	02	1	0712-0803	●	●
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	0712-1003	●	●
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	1004-	●	●	●
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	0712-1003	●	●
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	1004-1503	●	●	●
129	SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1504-	●	●	●
293	CABLE; STARTER EARTH	8-97618-304-0	01	1	0712-1003	●
293	CABLE; STARTER EARTH	8-97618-304-0	01	1	1004-	●		●
293	CABLE; STARTER EARTH	8-98097-419-0	01	1	0712-		●
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	0712-1003	●	●
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	1004-	●	●	●
737	WASHER; PL EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	01	1	1005-1009	●	●
737	WASHER; PL EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	02	1	1010-	●	●
915	SPACER; HARNESS EURO2 SPECIFICATION<NT2> ID=8.4 OD=19	5-11779-001-0	01	1	0812-1003	●
915	SPACER; HARNESS EURO2 SPECIFICATION<NT2> ID=8.4 OD=19	5-11779-001-0	01	1	1004-1301	●		●
915	SPACER; HARNESS EURO2 SPECIFICATION<NT2> ID=9 OD=18 T=5	9-14149-173-0	01	1	1302-	●		●

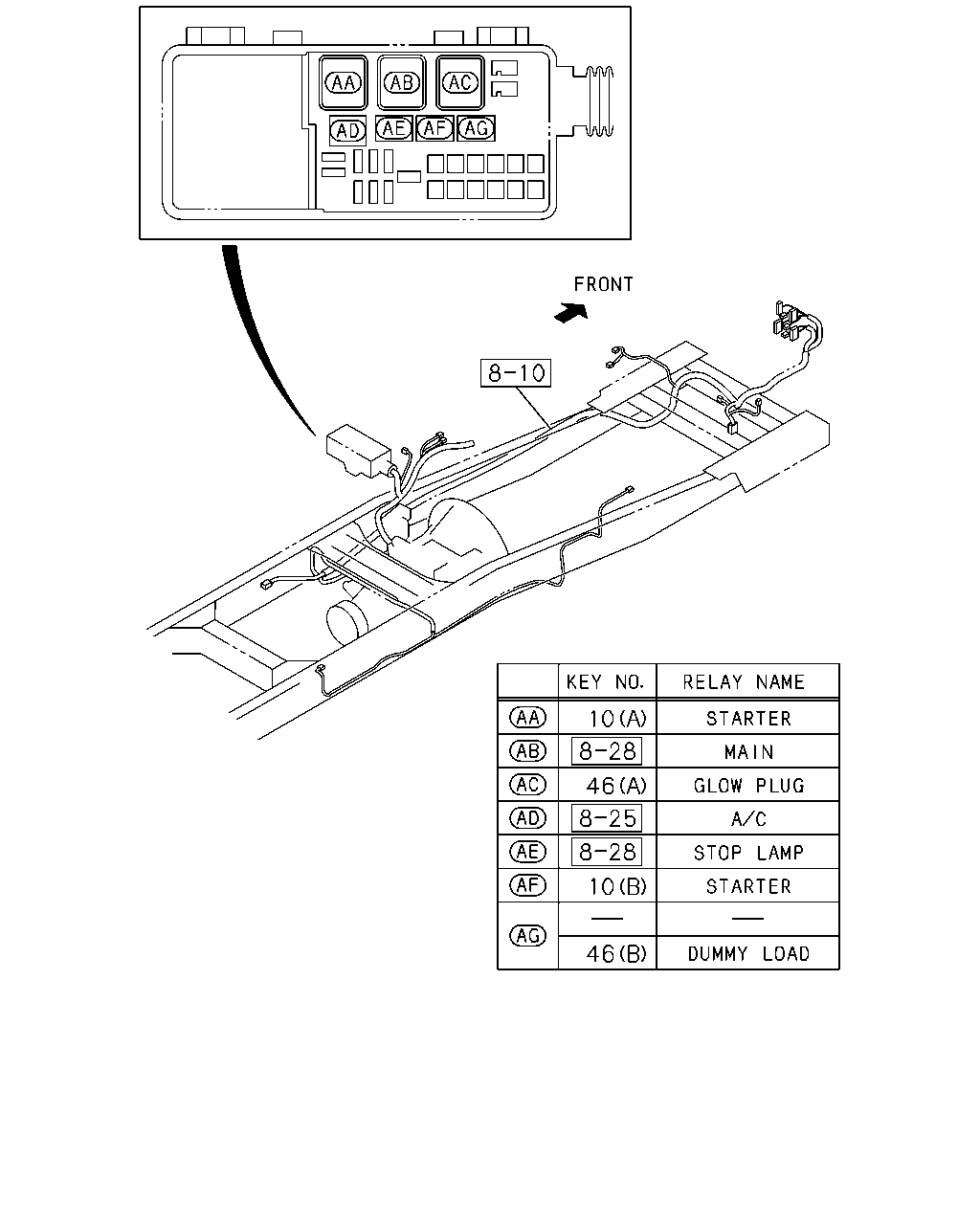

10 46 10 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-1003	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1004-1005	●	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-	●	●	●
10	RELAY; STARTER (B) 24V 50A	8-97264-947-0	01	1	0712-1003	●	●
10	RELAY; STARTER (B) 24V 50A	8-97264-947-0	01	1	1004-	●	●	●
46	RELAY; GLOW PLUG LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1004-			●
46	RELAY; GLOW PLUG (A) 24V 50A	8-97173-947-0	01	1	0712-1003	●	●
46	RELAY; GLOW PLUG (A) 24V 50A	8-97173-947-0	01	1	1004-1311	●	●	●
46	RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> (A) 24V 50A	8-97173-947-0	01	1	1312-	●		●
46	RELAY; GLOW PLUG (A) 24V 50A	8-97173-947-0	01	1	1312-		●

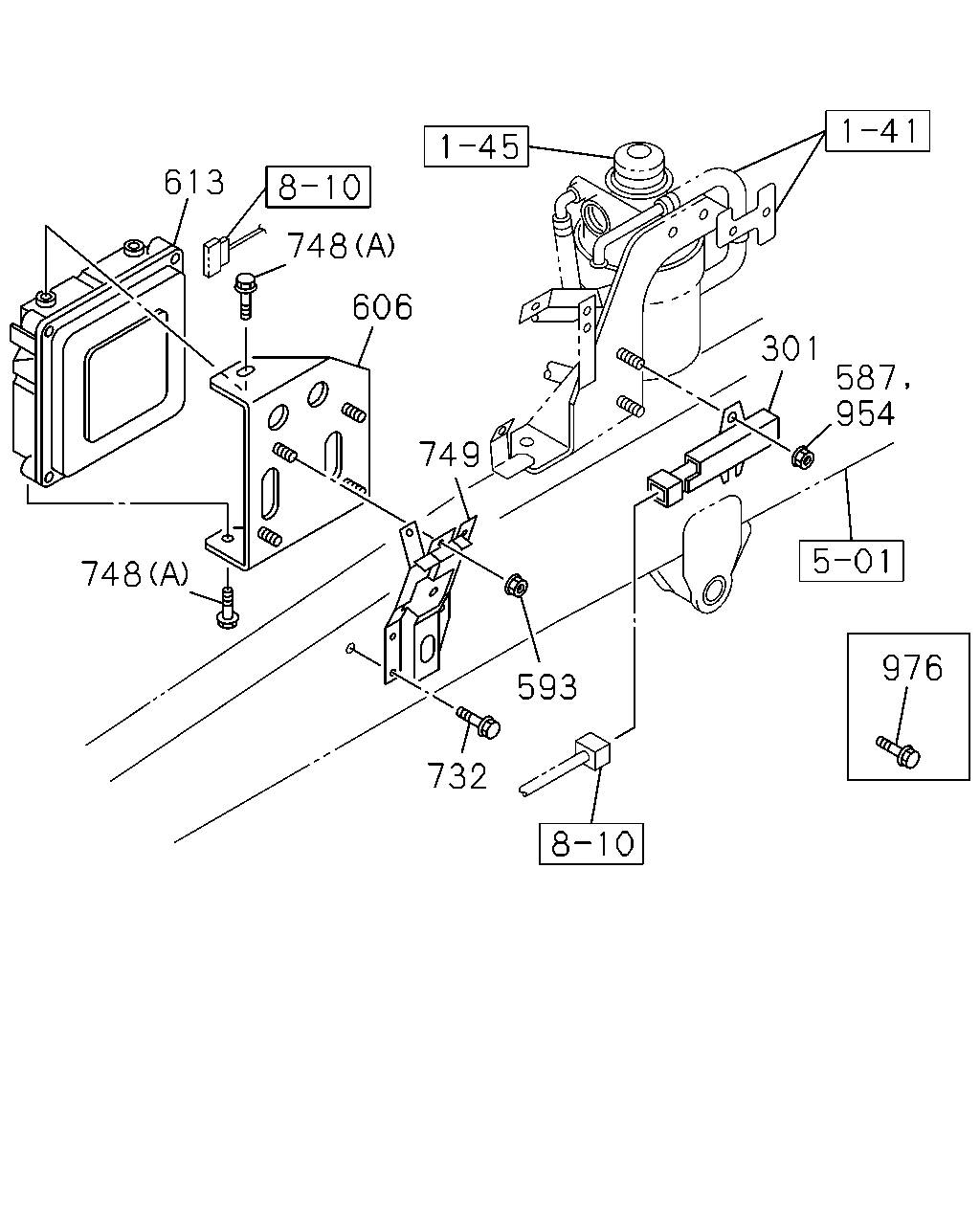

613 748 606 301 587 954 749 748 976 593 732

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0712-0811	●	●
301	RESISTOR; DROPPING CATALYSIS CONTROL WITH DPD<8JM>	8-97357-613-0	01	1	0812-	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0812-		●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	0712-0811	●	●
587	NUT; RESISTOR & RELAY CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	02	1	0812-	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	0812-		●
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	0712-1003	●	●
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	1004-	●	●	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	0712-1003	●	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1004-	●	●	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,IMMOBILIZER SYSTEM<7KC>	8-98257-198-0	01	1	1312-	●
613	CONTROL UNIT; ENG INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK>	8-98257-198-0	01	1	1312-			●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>	8-98257-199-0	01	1	1312-	●
613	CONTROL UNIT; ENG GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-199-0	01	1	1312-			●
613	CONTROL UNIT; ENG AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC>	8-98160-235-0	01	1	0911-0911	●
613	CONTROL UNIT; ENG AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC>	8-98160-223-1	01	1	0911-	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30>	8-98160-234-0	01	1	0911-0911		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30>	8-98160-224-1	01	1	0911-		●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. IMMOBILIZER SYSTEM<7KC>	8-98081-130-4	01	1	0812-1003	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. IMMOBILIZER SYSTEM<7KC>	8-98081-130-4	01	1	1004-1311	●
613	CONTROL UNIT; ENG INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98081-130-4	01	1	1004-1311			●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. AUTO CRUISE<K30>,IMMOBILIZER SYSTEM<7KC>, GLOW SYSTEM DELETE<7RK>	8-98081-130-4	01	1	1312-	●
613	CONTROL UNIT; ENG INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98081-130-4	01	1	1312-			●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A), IMMOBILIZERSYSTEM<7KC>	8-98081-129-4	01	1	0812-1003	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A), IMMOBILIZERSYSTEM<7KC>	8-98081-129-4	01	1	1004-1311	●
613	CONTROL UNIT; ENG EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98081-129-4	01	1	1004-1311			●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE<K30>,INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>,GLOW SYSTEM DELETE<7RK>	8-98081-129-4	01	1	1312-	●
613	CONTROL UNIT; ENG EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEMDELETE<7RK>	8-98081-129-4	01	1	1312-			●
613	CONTROL UNIT; ENG	8-98081-133-3	01	1	0712-0811	●
613	CONTROL UNIT; ENG AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC>	8-98081-133-3	01	1	0812-0910	●
613	CONTROL UNIT; ENG AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE<K30>	8-98081-133-4	01	1	0911-	●
613	CONTROL UNIT; ENG	8-98081-123-3	01	1	0712-0910		●
613	CONTROL UNIT; ENG EXC. AUTO CRUISE<K30>	8-98081-123-4	01	1	0911-		●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0712-1003	●	●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1004-	●	●	●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0712-1003	●	●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1004-	●	●	●
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	0712-0803	●	●
749	STAY; CONT UNIT	1-53194-596-3	01	1	0712-1003	●	●
749	STAY; CONT UNIT	1-53194-596-3	01	1	1004-	●	●	●
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	0712-1003	●	●
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	1004-1006	●	●	●
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	0712-1003	●	●
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	1004-	●	●	●

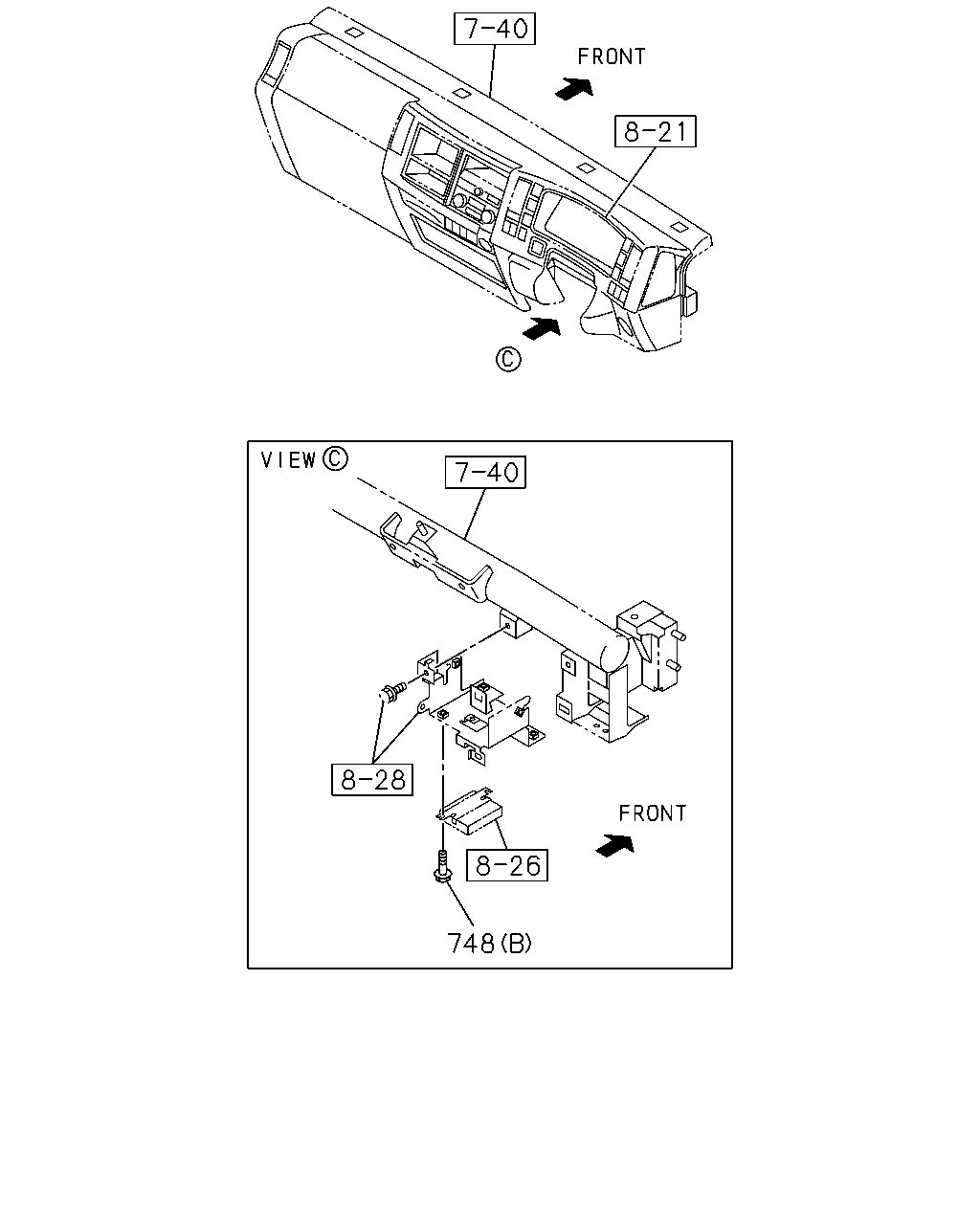

748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0712-1003	●	●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1004-	●	●	●
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	0712-0803	●	●

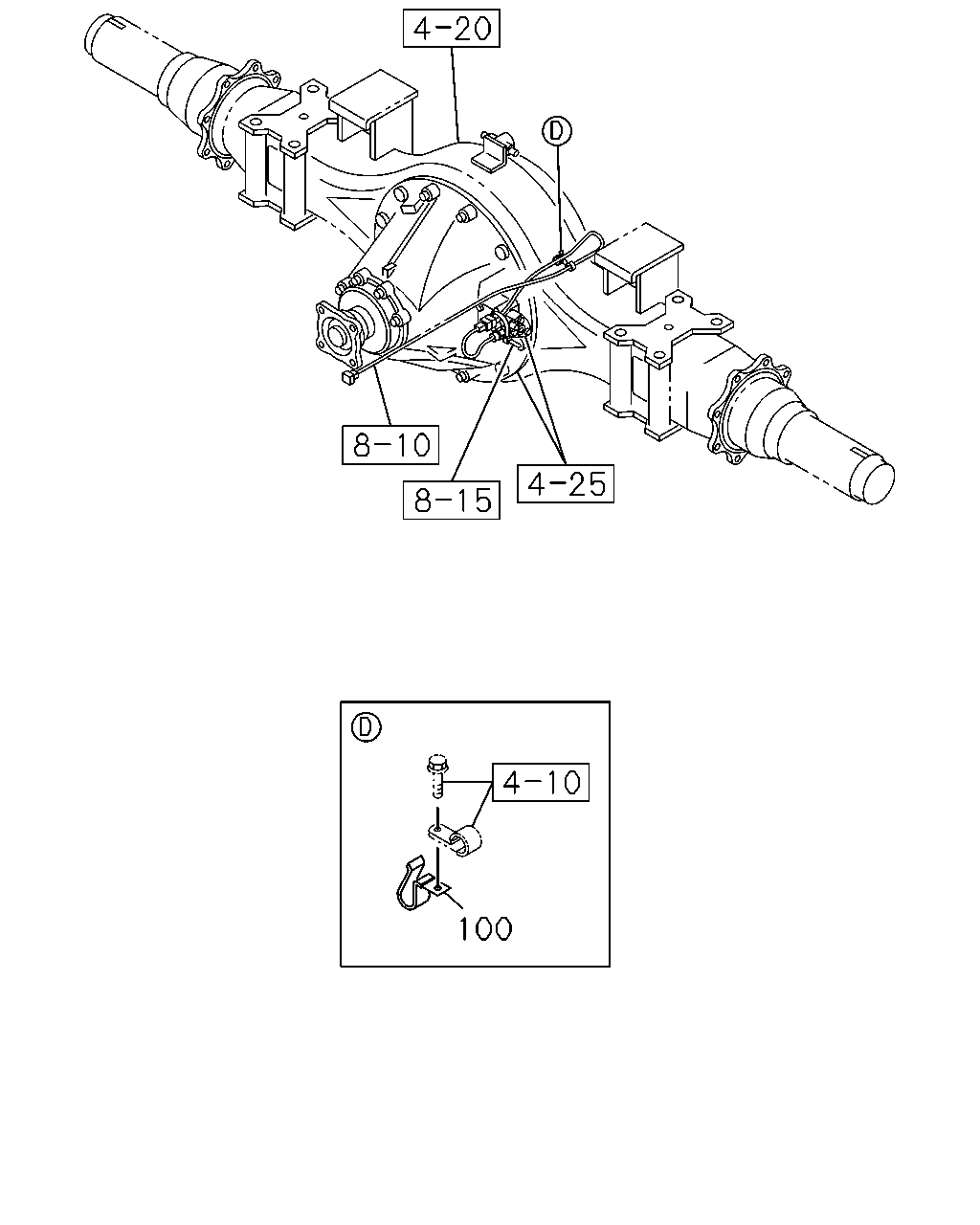

100

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	100	CLIP; HARNESS DIFF LOCK<C3N> ID=10 L=25	8-94208-375-0	01	1	1004-			●
