Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#37712) — 185 parça

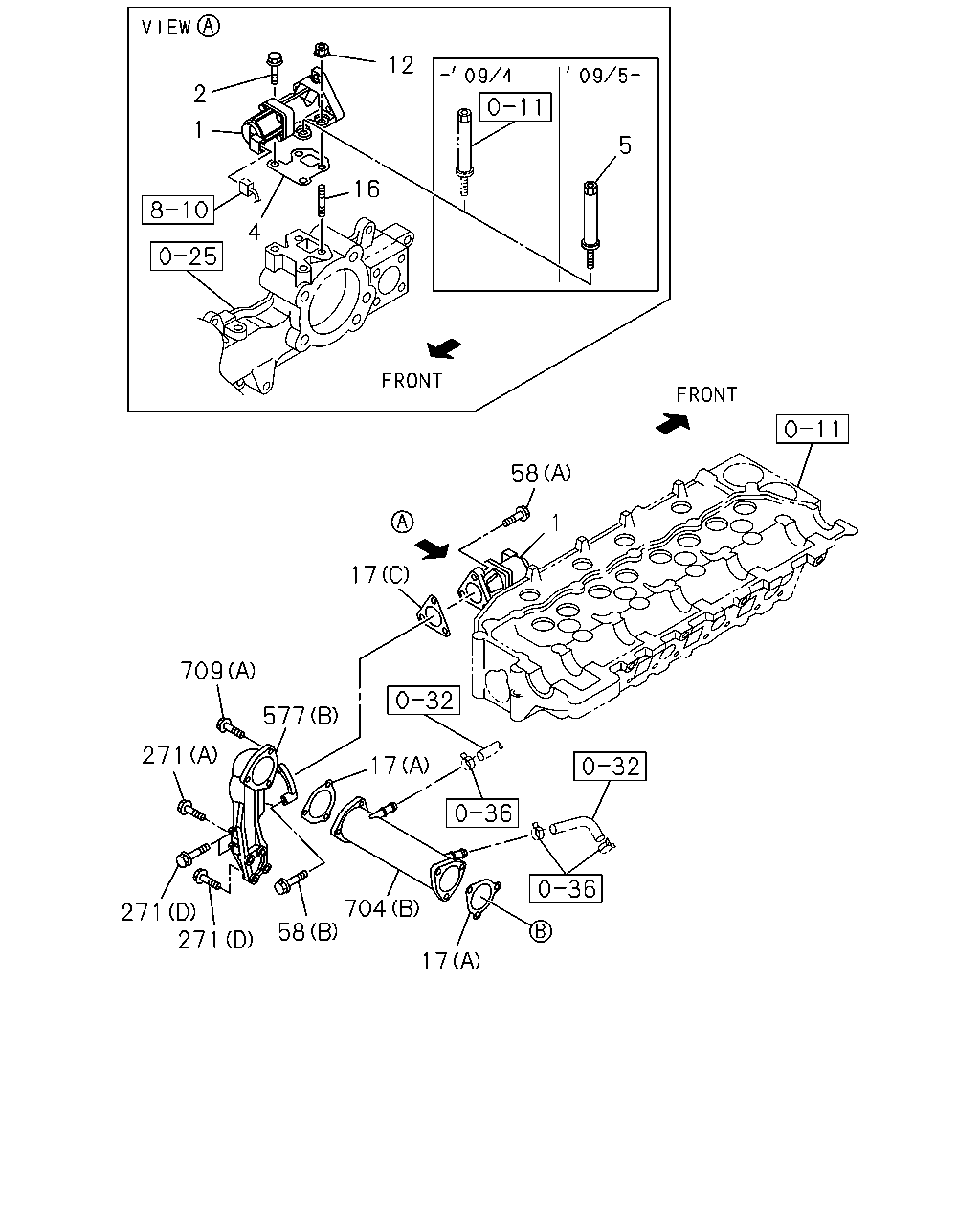

12 2 1 5 16 4 58 1 17 709 577 271 17 704 58 271 271 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; EGR FSS STD CAB(FC****)	8-98018-264-5	01	1	0712-0811
1	VALVE; EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4>	8-98018-264-5	01	1	0812-0906
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98018-264-6	01	1	0907-
2	BOLT; EGR VLV FSS STD CAB(FC****) M8X25 FLANGE	0-28650-825-0	01	1	0712-0811
2	BOLT; EGR VLV FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	0812-0906
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	0907-
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****)	8-97306-040-0	01	1	0712-0811
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0812-
5	ADAPTER ASM	8-97377-804-0	01	1	0905-
12	NUT; EGR VLV FSS STD CAB(FC****) M8 FLANGE	0-91180-108-0	02	1	0712-0811
12	NUT; EGR VLV FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0812-0906
12	NUT; EGR VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0907-
16	STUD; EGR VLV FSS STD CAB(FC****) M8X20 L=32	0-41010-820-0	02	1	0712-0811
16	STUD; EGR VLV FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	0812-0906
16	STUD; EGR VLV EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	0907-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (A)	8-97388-919-0	04	1	0712-0811
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-97388-919-0	04	1	0812-0906
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-97388-919-0	04	1	0907-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (B)	8-97601-836-0	01	1	0712-0811
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-97601-836-0	01	1	0812-0906
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-97601-836-0	01	1	0907-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (C)	8-98036-507-0	01	1	0712-0811
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (C)	8-98036-507-0	01	1	0812-0906
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C)	8-98036-507-0	01	1	0907-
58	BOLT; PIPE FSS STD CAB(FC****) (B) M8X45 FLANGE	0-28050-845-0	02	1	0712-0811
58	BOLT; PIPE FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	02	1	0812-0906
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	02	1	0907-
58	BOLT; PIPE FSS STD CAB(FC****) (A) M8X30 FLANGE	0-28650-830-0	02	1	0712-0811
58	BOLT; PIPE FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0812-0906
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0812-0906
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	0812-0906
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (A) M12X50 FLANGE	0-28151-250-0	03	1	0712-0811
271	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0812-0906
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (B) M12X60 FLANGE	0-28151-260-0	01	1	0712-0811
271	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0812-0906
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (C) M8X25 FLANGE	0-28660-825-0	02	1	0712-0811
271	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0812-0906
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (D) M12X30 FLANGE	0-28751-230-0	03	1	0712-0804
577	PIPE; AIR,EGR FSS STD CAB(FC****) (A)	8-98028-113-2	01	1	0712-0811
577	PIPE; AIR,EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-98028-113-2	01	1	0812-0906
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-113-2	01	1	0907-
577	PIPE; AIR,EGR FSS STD CAB(FC****) (B)	8-98055-858-1	01	1	0712-0811
577	PIPE; AIR,EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-98055-858-1	01	1	0812-0906
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (B)	8-98055-858-2	01	1	0907-
704	COOLER ASM; EGR FSS STD CAB(FC****) (A)	8-98028-110-1	01	1	0712-0811
704	COOLER ASM; EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-98028-110-1	01	1	0812-0906
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-110-1	01	1	0907-1306
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98244-305-0	01	1	1307-
704	COOLER ASM; EGR FSS STD CAB(FC****) (B)	8-98028-112-1	01	1	0712-0811
704	COOLER ASM; EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-98028-112-1	01	1	0812-0906
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98028-112-1	01	1	0907-1204
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-715-0	01	1	1205-
709	BOLT; EGR COOLER FSS STD CAB(FC****) (A) M10X30 FLANGE	0-28751-030-0	06	1	0712-0808
709	BOLT; EGR COOLER FSS STD CAB(FC****) (A) M10X35 FLANGE	0-28751-035-0	06	1	0809-0811
709	BOLT; EGR COOLER FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) M10X35 FLANGE	0-28751-035-0	06	1	0812-0906
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M10X35 FLANGE	0-28751-035-0	06	1	0907-
709	BOLT; EGR COOLER FSS STD CAB(FC****) (B) M10X30 FLANGE	8-98032-158-0	03	1	0712-0811
709	BOLT; EGR COOLER FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	8-98032-158-0	03	1	0812-0906
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	8-98032-158-0	03	1	0907-

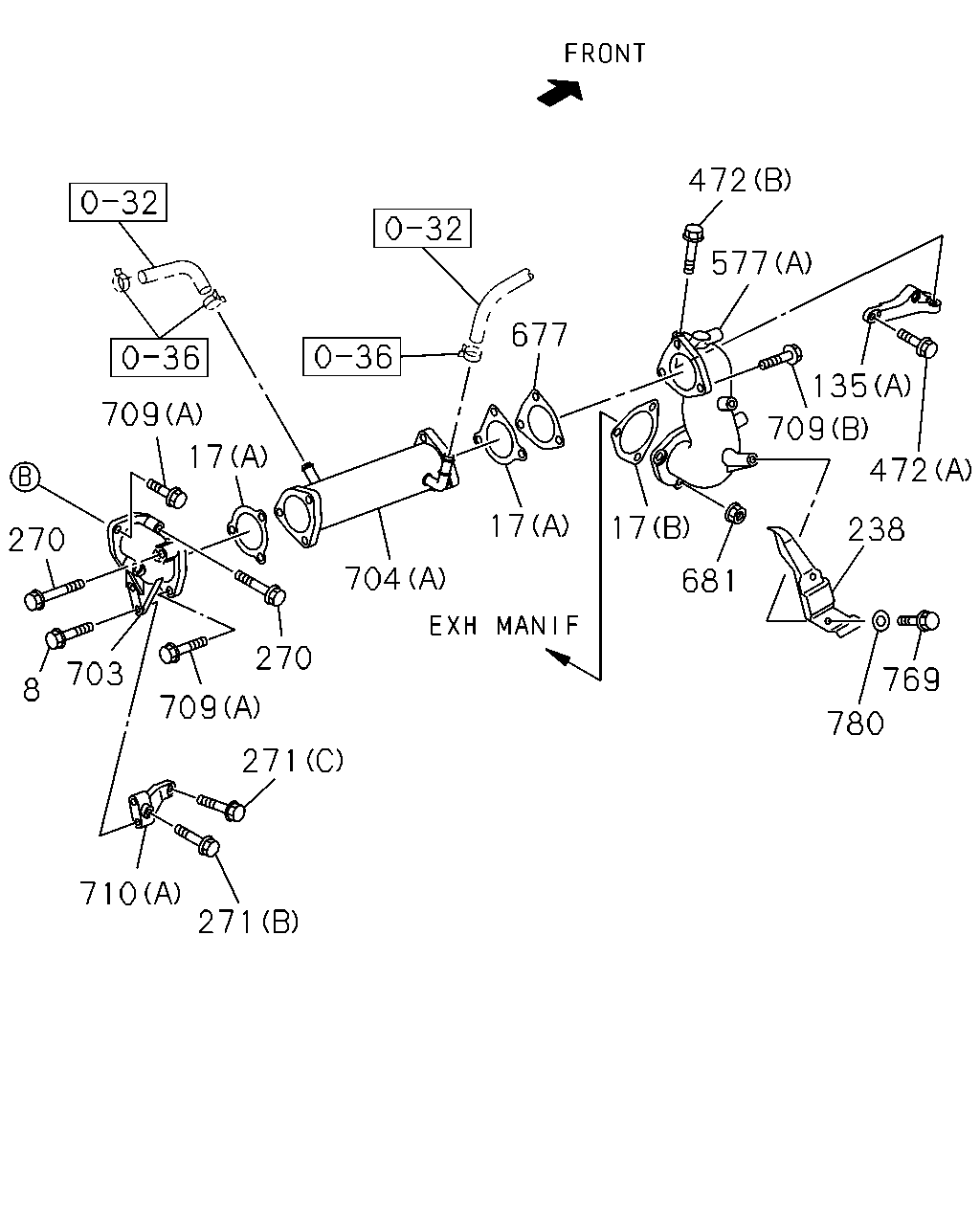

472 577 677 135 709 709 17 472 17 17 238 270 704 681 270 703 769 8 709 780 271 710 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; EGR ADAPTER FSS STD CAB(FC****) M10X40 FLANGE	0-28751-040-0	02	1	0712-0811
8	BOLT; EGR ADAPTER FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> M10X40 FLANGE	0-28751-040-0	02	1	0812-0906
8	BOLT; EGR ADAPTER EURO4 SPECIFICATION<NT4> M10X40 FLANGE	0-28751-040-0	02	1	0907-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (A)	8-97388-919-0	04	1	0712-0811
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-97388-919-0	04	1	0812-0906
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-97388-919-0	04	1	0907-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (B)	8-97601-836-0	01	1	0712-0811
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-97601-836-0	01	1	0812-0906
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-97601-836-0	01	1	0907-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (C)	8-98036-507-0	01	1	0712-0811
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (C)	8-98036-507-0	01	1	0812-0906
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C)	8-98036-507-0	01	1	0907-
135	BRACKET; EGR FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (B)	8-97310-498-2	01	1	0812-0906
135	BRACKET; EGR EURO2 SPECIFICATION<NT2> (B)	8-97310-498-2	01	1	0907-
135	BRACKET; EGR FSS STD CAB(FC****) (A)	8-98025-253-2	01	1	0712-0811
135	BRACKET; EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-98025-253-2	01	1	0812-0906
135	BRACKET; EGR EURO4 SPECIFICATION<NT4> (A)	8-98025-253-2	01	1	0907-
238	PROTECTOR; HEAT,EGR FSS STD CAB(FC****)	8-97386-177-0	01	1	0712-0811
238	PROTECTOR; HEAT,EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4>	8-97386-177-0	01	1	0812-0906
238	PROTECTOR; HEAT,EGR EURO4 SPECIFICATION<NT4>	8-97386-177-0	01	1	0907-
270	BOLT FSS STD CAB(FC****) M10X60 FLANGE	0-28151-060-0	03	1	0712-0811
270	BOLT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> M10X60 FLANGE	0-28151-060-0	03	1	0812-0906
270	BOLT EURO4 SPECIFICATION<NT4> M10X60 FLANGE	0-28151-060-0	03	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0812-0906
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	0812-0906
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (A) M12X50 FLANGE	0-28151-250-0	03	1	0712-0811
271	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0812-0906
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (B) M12X60 FLANGE	0-28151-260-0	01	1	0712-0811
271	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0812-0906
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (C) M8X25 FLANGE	0-28660-825-0	02	1	0712-0811
271	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0812-0906
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (D) M12X30 FLANGE	0-28751-230-0	03	1	0712-0804
472	BOLT; BRKT FSS STD CAB(FC****) (A) M8X25 FLANGE	0-28660-825-0	03	1	0712-0811
472	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE	0-28660-825-0	03	1	0812-0906
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE	0-28660-825-0	03	1	0907-
472	BOLT; BRKT FSS STD CAB(FC****) (B) M10X40 FLANGE	0-28751-040-0	01	1	0712-0811
472	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B) M10X40 FLANGE	0-28751-040-0	01	1	0812-0906
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X40 FLANGE	0-28751-040-0	01	1	0907-
577	PIPE; AIR,EGR FSS STD CAB(FC****) (A)	8-98028-113-2	01	1	0712-0811
577	PIPE; AIR,EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-98028-113-2	01	1	0812-0906
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-113-2	01	1	0907-
577	PIPE; AIR,EGR FSS STD CAB(FC****) (B)	8-98055-858-1	01	1	0712-0811
577	PIPE; AIR,EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-98055-858-1	01	1	0812-0906
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (B)	8-98055-858-2	01	1	0907-
677	PLATE; DUCT FSS STD CAB(FC****)	8-98015-035-0	01	1	0712-0811
677	PLATE; DUCT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4>	8-98015-035-0	01	1	0812-0906
677	PLATE; DUCT EURO4 SPECIFICATION<NT4>	8-98015-035-0	01	1	0907-
681	NUT; EGR PIPE FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	0812-0906
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	0907-
681	NUT; EGR PIPE FSS STD CAB(FC****) M8 FLANGE	8-97061-401-1	03	1	0712-0811
681	NUT; EGR PIPE FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	0812-0906
681	NUT; EGR PIPE EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	0907-
703	DUCT; EGR FSS STD CAB(FC****)	8-98028-114-0	01	1	0712-0811
703	DUCT; EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4>	8-98028-114-0	01	1	0812-0906
703	DUCT; EGR EURO4 SPECIFICATION<NT4>	8-98028-114-0	01	1	0907-
704	COOLER ASM; EGR FSS STD CAB(FC****) (A)	8-98028-110-1	01	1	0712-0811
704	COOLER ASM; EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-98028-110-1	01	1	0812-0906
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-110-1	01	1	0907-1306
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98244-305-0	01	1	1307-
704	COOLER ASM; EGR FSS STD CAB(FC****) (B)	8-98028-112-1	01	1	0712-0811
704	COOLER ASM; EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-98028-112-1	01	1	0812-0906
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98028-112-1	01	1	0907-1204
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-715-0	01	1	1205-
709	BOLT; EGR COOLER FSS STD CAB(FC****) (A) M10X30 FLANGE	0-28751-030-0	06	1	0712-0808
709	BOLT; EGR COOLER FSS STD CAB(FC****) (A) M10X35 FLANGE	0-28751-035-0	06	1	0809-0811
709	BOLT; EGR COOLER FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) M10X35 FLANGE	0-28751-035-0	06	1	0812-0906
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M10X35 FLANGE	0-28751-035-0	06	1	0907-
709	BOLT; EGR COOLER FSS STD CAB(FC****) (B) M10X30 FLANGE	8-98032-158-0	03	1	0712-0811
709	BOLT; EGR COOLER FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	8-98032-158-0	03	1	0812-0906
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	8-98032-158-0	03	1	0907-
710	BRACKET; EGR COOLER FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (B)	8-98079-255-0	01	1	0812-0906
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (B)	8-98079-255-1	01	1	0907-
710	BRACKET; EGR COOLER FSS STD CAB(FC****) (A)	8-98025-254-1	01	1	0712-0811
710	BRACKET; EGR COOLER FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-98025-254-1	01	1	0812-0906
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98025-254-1	01	1	0907-
769	BOLT; HEAT PROTECTOR FSS STD CAB(FC****) M6X12 FLANGE	8-97108-669-0	04	1	0712-0811
769	BOLT; HEAT PROTECTOR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> M6X12 FLANGE	8-97108-669-0	04	1	0812-0906
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> M6X12 FLANGE	8-97108-669-0	04	1	0907-1107
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> M6X12 W/PL WASHER	8-98054-289-0	04	1	1108-
780	WASHER; PROTECTOR FSS STD CAB(FC****) ID=6.4 OD=18	0-91610-706-0	04	1	0712-0811
780	WASHER; PROTECTOR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	04	1	0812-0906
780	WASHER; PROTECTOR EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	04	1	0907-1107

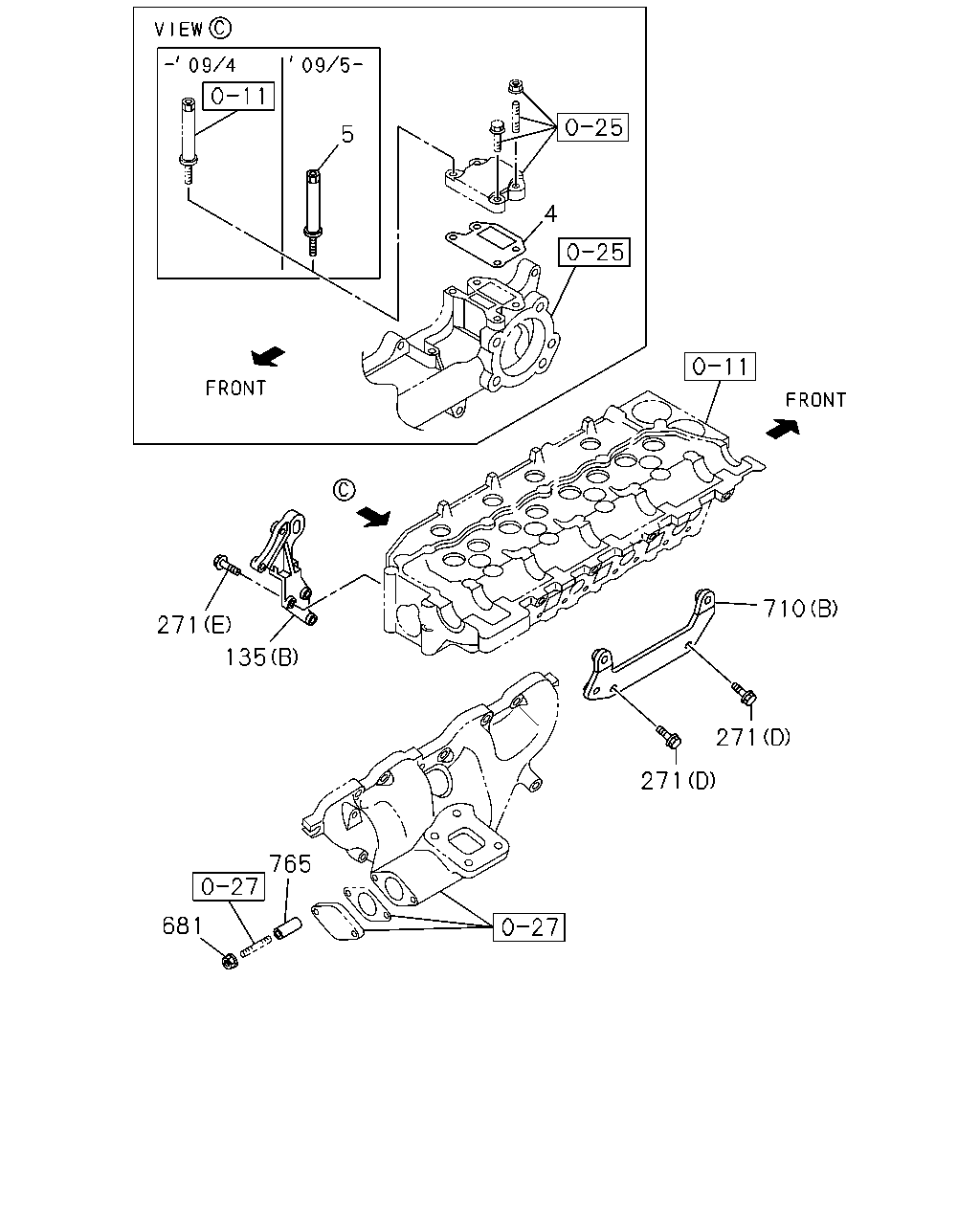

4 710 271 135 271 271 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****)	8-97306-040-0	01	1	0712-0811
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0812-
135	BRACKET; EGR FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (B)	8-97310-498-2	01	1	0812-0906
135	BRACKET; EGR EURO2 SPECIFICATION<NT2> (B)	8-97310-498-2	01	1	0907-
135	BRACKET; EGR FSS STD CAB(FC****) (A)	8-98025-253-2	01	1	0712-0811
135	BRACKET; EGR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-98025-253-2	01	1	0812-0906
135	BRACKET; EGR EURO4 SPECIFICATION<NT4> (A)	8-98025-253-2	01	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0812-0906
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	0812-0906
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (A) M12X50 FLANGE	0-28151-250-0	03	1	0712-0811
271	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0812-0906
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (B) M12X60 FLANGE	0-28151-260-0	01	1	0712-0811
271	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0812-0906
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (C) M8X25 FLANGE	0-28660-825-0	02	1	0712-0811
271	BOLT; BRKT FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0812-0906
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0907-
271	BOLT; BRKT FSS STD CAB(FC****) (D) M12X30 FLANGE	0-28751-230-0	03	1	0712-0804
681	NUT; EGR PIPE FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	0812-0906
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	0907-
681	NUT; EGR PIPE FSS STD CAB(FC****) M8 FLANGE	8-97061-401-1	03	1	0712-0811
681	NUT; EGR PIPE FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	0812-0906
681	NUT; EGR PIPE EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	0907-
710	BRACKET; EGR COOLER FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (B)	8-98079-255-0	01	1	0812-0906
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (B)	8-98079-255-1	01	1	0907-
710	BRACKET; EGR COOLER FSS STD CAB(FC****) (A)	8-98025-254-1	01	1	0712-0811
710	BRACKET; EGR COOLER FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A)	8-98025-254-1	01	1	0812-0906
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98025-254-1	01	1	0907-
765	SPACER; EGR PIPE FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	0812-0906
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
