Isuzu WW
▶
TRUCKS
▶
FSS
▶
11124 - FSS(RHD)EURO2/4
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

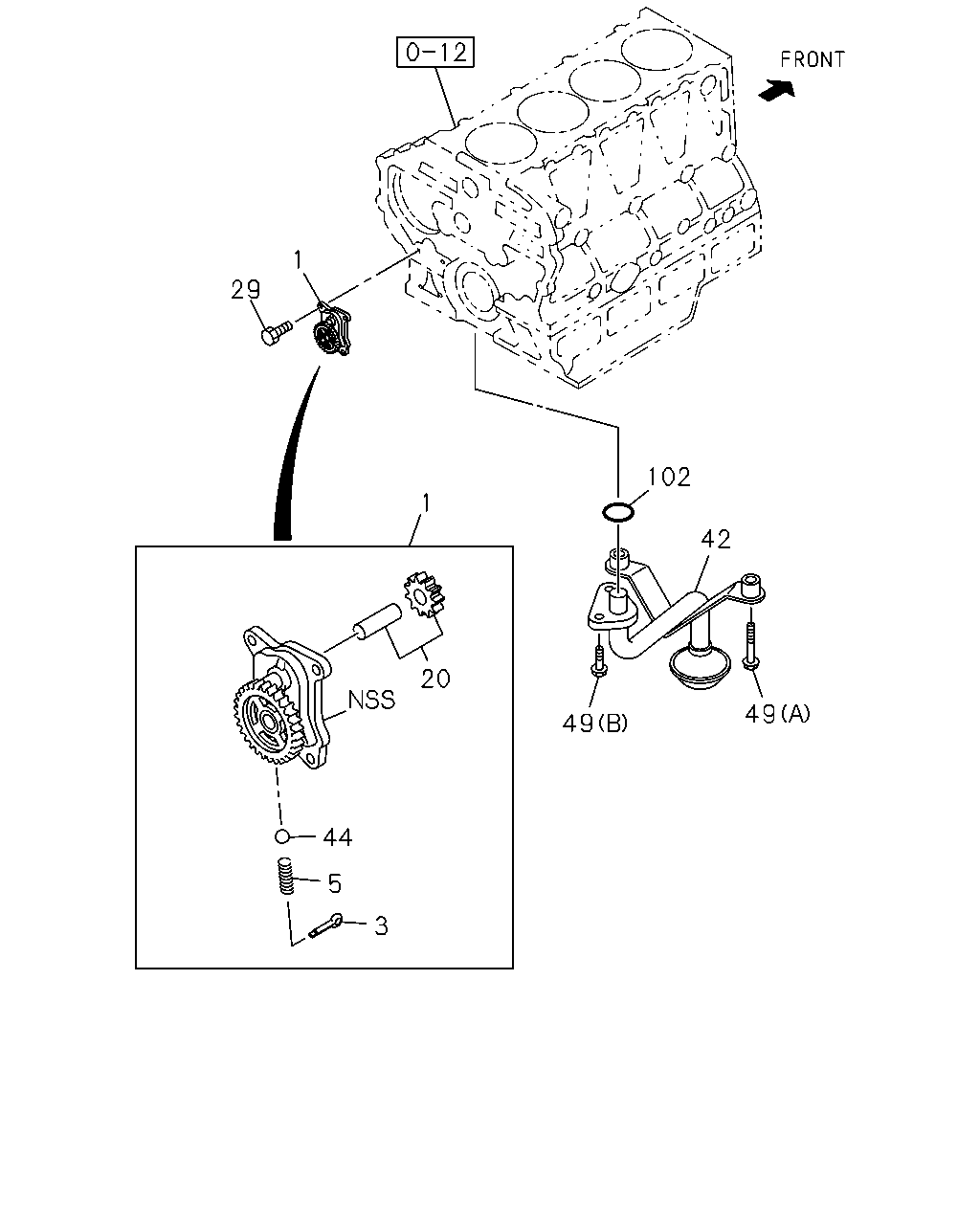

0-51 — OIL PUMP AND OIL STRAINER
(#37710) — 24 parça
1
1
29
102
1
42
20
49
49
44
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
FSS STD CAB(FC****)
8-98017-585-0
01
1
0712-0811
1
PUMP ASM; OIL
8-98017-585-1
01
1
0812-
3
PIN; SPLIT
FSS STD CAB(FC****) OD=3.7 L=30
9-08114-030-0
01
1
0712-0811
3
PIN; SPLIT
OD=3.7 L=30
9-08114-030-0
01
1
0812-0906
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
0907-
5
SPRING; COIL
FSS STD CAB(FC****)
5-09580-098-0
01
1
0712-0811
5
SPRING; COIL
5-09580-098-0
01
1
0812-
20
GEAR; DRIVE,OIL PUMP
FSS STD CAB(FC****)
8-98059-192-0
01
1
0712-0811
20
GEAR; DRIVE,OIL PUMP
8-98059-192-0
01
1
0812-
29
BOLT; OIL PUMP
FSS STD CAB(FC****) M8X25 FLANGE
0-28060-825-0
02
1
0712-0811
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28060-825-0
02
1
0812-
29
BOLT; OIL PUMP
FSS STD CAB(FC****) M8X30 FLANGE
0-28060-830-0
02
1
0712-0811
29
BOLT; OIL PUMP
M8X30 FLANGE
0-28060-830-0
02
1
0812-
42
STRAINER; OIL,OIL PUMP
FSS STD CAB(FC****)
8-98092-535-0
01
1
0712-0811
42
STRAINER; OIL,OIL PUMP
8-98092-535-1
01
1
0812-
44
BALL; RELIEF VLV
FSS STD CAB(FC****)
5-09843-003-0
01
1
0712-0811
44
BALL; RELIEF VLV
5-09843-003-0
01
1
0812-
49
BOLT; STRAINER,OIL PUMP
FSS STD CAB(FC****) (B) M8X16 FLANGE
0-28060-816-0
02
1
0712-0811
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28060-816-0
02
1
0812-
49
BOLT; STRAINER,OIL PUMP
FSS STD CAB(FC****) (A) M10X100 FLANGE
0-28151-000-0
02
1
0712-0712
49
BOLT; STRAINER,OIL PUMP
FSS STD CAB(FC****) (A) M10X100 FLANGE
8-98097-017-0
02
1
0801-0811
49
BOLT; STRAINER,OIL PUMP
(A) M10X100 FLANGE
8-98097-017-0
02
1
0812-
102
GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=24.5
8-94399-398-0
01
1
0712-0811
102
GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0812-
