◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#37707) — 186 parça

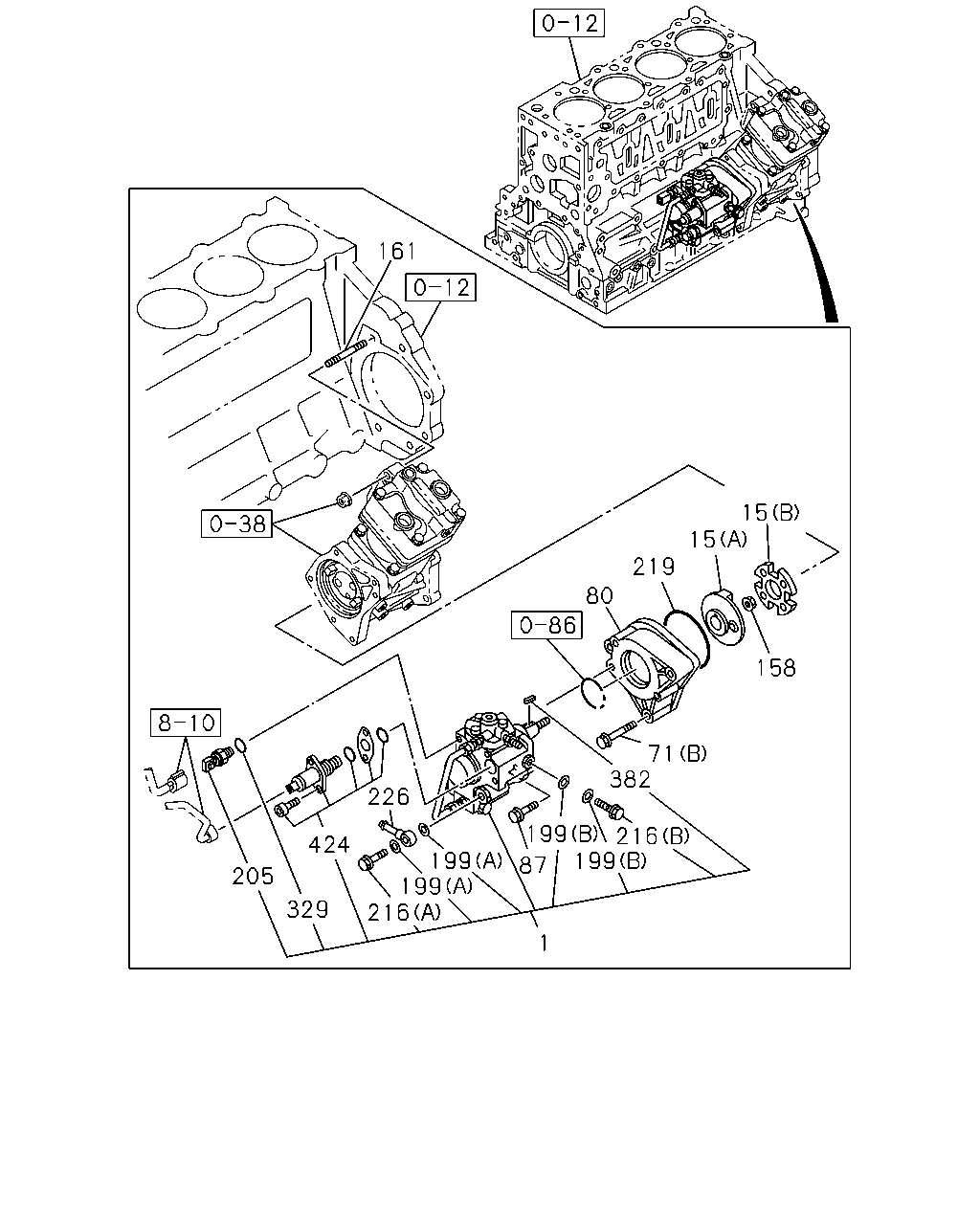

çizim 181663
161 205 329 216 199 424 226 199 199 199 216 382 71 158 15 15 219 80 1 87
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
FSS STD CAB(FC****) 		8-97386-557-3 01 1 0712-0811
1 PUMP ASM; INJ 8-97386-557-5 01 1 0812-
15 COUPLING ASM; INJ PUMP
FSS STD CAB(FC****) (A) 		8-97306-054-0 01 1 0712-0811
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0812-
15 COUPLING ASM; INJ PUMP
FSS STD CAB(FC****) (B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-0 01 1 0712-0811
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 0812-
71 BOLT; BRKT
FSS STD CAB(FC****) (E) M6X10 FLANGE 		0-28050-610-0 02 1 0712-0811
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 0812-
71 BOLT; BRKT
FSS STD CAB(FC****) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0811
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0812-
71 BOLT; BRKT
FSS STD CAB(FC****) (C) M8X40 FLANGE 		0-28050-840-0 01 1 0712-0811
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0812-
71 BOLT; BRKT
FSS STD CAB(FC****) (D) M8X50 FLANGE 		0-28050-850-0 01 1 0712-0811
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 0812-
71 BOLT; BRKT
FSS STD CAB(FC****) (B) M10X60 FLANGE 		0-28051-060-0 03 1 0712-0811
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 0812-
80 BRACKET; PUMP
FSS STD CAB(FC****) 		8-98061-699-0 01 1 0712-0811
80 BRACKET; PUMP 8-98061-699-0 01 1 0812-
87 BOLT; PUMP
FSS STD CAB(FC****) M8X30 FLANGE 		0-28650-830-0 03 1 0712-0811
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 0812-
87 BOLT; PUMP
FSS STD CAB(FC****) M8X40 FLANGE 		0-28650-840-0 02 1 0712-0811
87 BOLT; PUMP
M8X40 FLANGE 		0-28650-840-0 02 1 0812-
158 NUT; INJ PUMP
FSS STD CAB(FC****) M14 FLANGE 		0-91180-114-0 01 1 0712-0811
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 0812-
161 STUD; INJ PUMP
FSS STD CAB(FC****) M10X46.5 L=58.5 		8-97363-237-0 02 1 0712-0811
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0812-0910
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0911-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (A) 		1-15619-507-0 02 1 0712-0811
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0812-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (B) 		8-97602-218-0 04 1 0712-0811
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0812-
205 SENSOR; FUEL TEMP
FSS STD CAB(FC****) 		8-98023-581-0 01 1 0712-0811
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0812-
216 BOLT; EYE
FSS STD CAB(FC****) (A) 		5-15759-003-0 01 1 0712-0811
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0812-
216 BOLT; EYE
FSS STD CAB(FC****) (B) 		8-97351-388-0 01 1 0712-0811
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0812-
216 BOLT; EYE
FSS STD CAB(FC****) (C) 		8-98043-033-0 01 1 0712-0811
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0812-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=94.6 		1-09623-593-0 01 1 0712-0811
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 0812-
226 PIPE; FUEL
FSS STD CAB(FC****) 		8-97353-682-0 01 1 0712-0808
226 PIPE; FUEL
FSS STD CAB(FC****) 		8-98126-332-0 01 1 0809-0811
226 PIPE; FUEL 8-98126-332-0 01 1 0812-
329 GASKET; SENSOR,FUEL TEMP
FSS STD CAB(FC****) ID=9.8 OD=11.7 		9-09566-110-0 01 1 0712-0811
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0812-1201
382 KEY; DRIVE SHAFT
FSS STD CAB(FC****) 		8-97375-384-0 01 1 0712-0811
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0812-1201
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202-
424 OVERHAUL KIT; SUPPLY PUMP
FSS STD CAB(FC****) 		8-98101-288-0 01 1 0712-0811
424 OVERHAUL KIT; SUPPLY PUMP 8-98101-288-0 01 1 0812-0905
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0906-

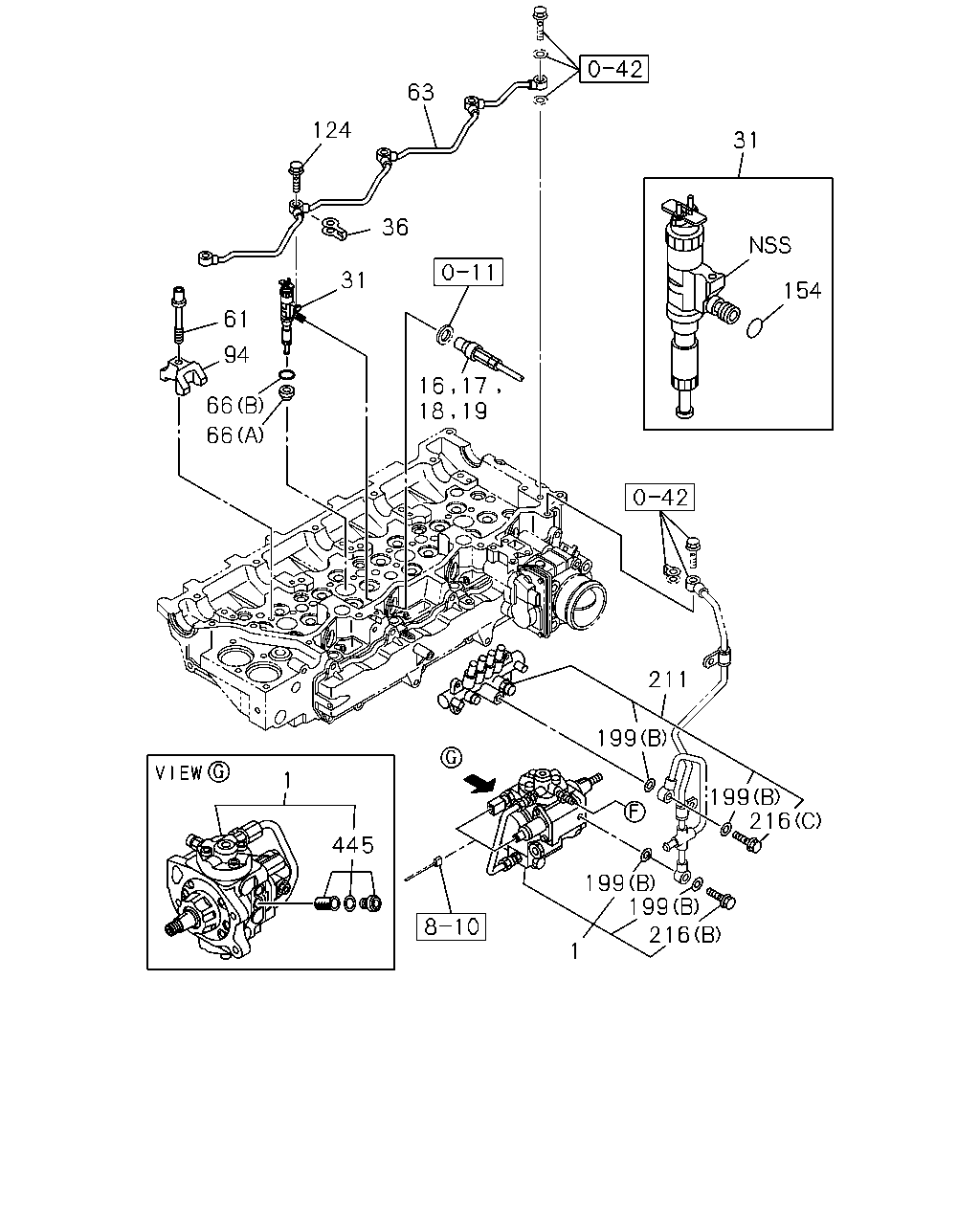

çizim 181664
1 445 66 66 94 61 124 63 36 199 199 1 199 216 199 216 211 154 31 31 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
FSS STD CAB(FC****) 		8-97386-557-3 01 1 0712-0811
1 PUMP ASM; INJ 8-97386-557-5 01 1 0812-
16 PIPE; INJ NO.1
FSS STD CAB(FC****) 		8-98039-934-0 01 1 0712-0811
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0812-1102
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502-
17 PIPE; INJ NO.2
FSS STD CAB(FC****) 		8-98039-935-0 01 1 0712-0811
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0812-1102
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502-
18 PIPE; INJ NO.3
FSS STD CAB(FC****) 		8-98039-936-0 01 1 0712-0811
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0812-1102
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502-
19 PIPE; INJ NO.4
FSS STD CAB(FC****) 		8-98039-937-0 01 1 0712-0811
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0812-1102
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502-
31 NOZZLE ASM; INJ
FSS STD CAB(FC****) 		8-97609-788-3 04 1 0712-0811
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 0812-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FSS STD CAB(FC****) ID=8.3 		8-97600-925-0 04 1 0712-0811
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-97600-925-0 04 1 0812-0908
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 0909-
61 BOLT; CLAMP NOZZLE HOLDER
FSS STD CAB(FC****) M8X54 		8-98008-895-0 04 1 0712-0811
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0812-
63 PIPE; FUEL,NOZZLE LEAK OFF
FSS STD CAB(FC****) 		8-97306-081-0 01 1 0712-0811
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0812-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FSS STD CAB(FC****) (B) ID=23.3 		8-94173-412-0 04 1 0712-0811
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 0812-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FSS STD CAB(FC****) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0712-0811
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0812-0909
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910-
94 BRACKET; INJ NOZZLE
FSS STD CAB(FC****) 		8-98028-999-0 04 1 0712-0811
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0812-
124 BOLT; EYE LEAK OFF PIPE
FSS STD CAB(FC****) M8X18 EYE-BOLT 		1-09675-037-1 04 1 0712-0811
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0812-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FSS STD CAB(FC****) ID=11.0 		9-09561-111-0 04 1 0712-0811
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 04 1 0812-1106
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1107-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (A) 		1-15619-507-0 02 1 0712-0811
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0812-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (B) 		8-97602-218-0 04 1 0712-0811
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0812-
211 RAIL ASM; COMMON
FSS STD CAB(FC****) 		8-98011-888-1 01 1 0712-0811
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0812-
216 BOLT; EYE
FSS STD CAB(FC****) (A) 		5-15759-003-0 01 1 0712-0811
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0812-
216 BOLT; EYE
FSS STD CAB(FC****) (B) 		8-97351-388-0 01 1 0712-0811
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0812-
216 BOLT; EYE
FSS STD CAB(FC****) (C) 		8-98043-033-0 01 1 0712-0811
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0812-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 0907-

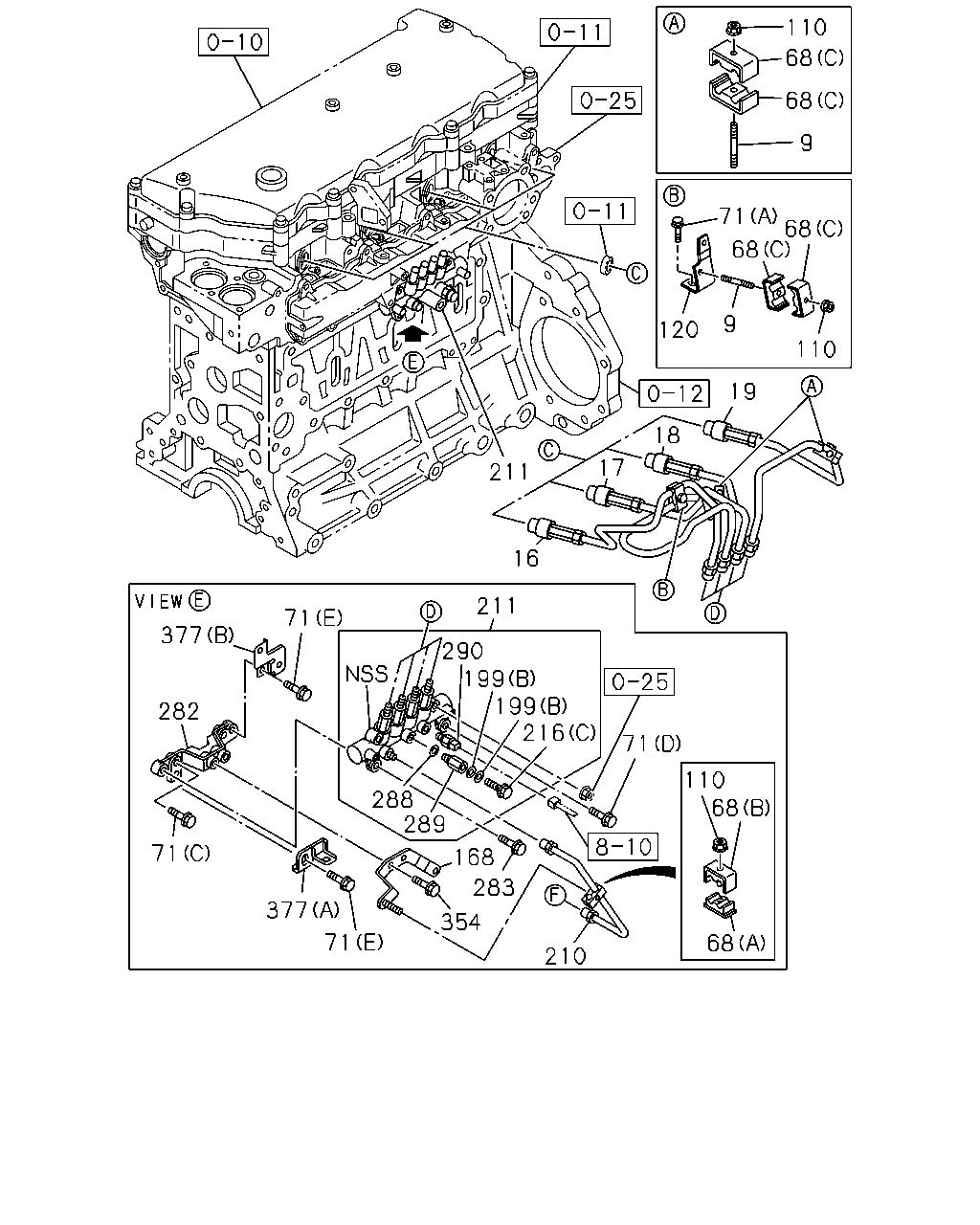

çizim 181665
110 68 68 9 71 68 68 9 120 110 19 18 17 211 16 211 71 377 290 199 199 216 282 71 110 68 288 289 71 168 283 377 354 71 68 210
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
FSS STD CAB(FC****) M6X30 L=38 		0-41010-630-0 02 1 0712-0811
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 0812-
9 STUD; CLIP
FSS STD CAB(FC****) M6X35 L=43 		8-97203-278-0 01 1 0712-0811
9 STUD; CLIP
M6X35 L=43 		8-97203-278-0 01 1 0812-
16 PIPE; INJ NO.1
FSS STD CAB(FC****) 		8-98039-934-0 01 1 0712-0811
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0812-1102
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502-
17 PIPE; INJ NO.2
FSS STD CAB(FC****) 		8-98039-935-0 01 1 0712-0811
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0812-1102
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502-
18 PIPE; INJ NO.3
FSS STD CAB(FC****) 		8-98039-936-0 01 1 0712-0811
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0812-1102
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502-
19 PIPE; INJ NO.4
FSS STD CAB(FC****) 		8-98039-937-0 01 1 0712-0811
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0812-1102
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502-
68 CLIP; INJ PIPE
FSS STD CAB(FC****) (A) 		8-97330-118-1 01 1 0712-0811
68 CLIP; INJ PIPE
(A) 		8-97330-118-3 01 1 0812-
68 CLIP; INJ PIPE
FSS STD CAB(FC****) (B) 		8-97330-119-1 01 1 0712-0811
68 CLIP; INJ PIPE
(B) 		8-97330-119-3 01 1 0812-
68 CLIP; INJ PIPE
FSS STD CAB(FC****) (C) 		8-98039-293-0 06 1 0712-0811
68 CLIP; INJ PIPE
(C) 		8-98039-293-0 06 1 0812-1405
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406-
71 BOLT; BRKT
FSS STD CAB(FC****) (E) M6X10 FLANGE 		0-28050-610-0 02 1 0712-0811
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 0812-
71 BOLT; BRKT
FSS STD CAB(FC****) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0811
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0812-
71 BOLT; BRKT
FSS STD CAB(FC****) (C) M8X40 FLANGE 		0-28050-840-0 01 1 0712-0811
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0812-
71 BOLT; BRKT
FSS STD CAB(FC****) (D) M8X50 FLANGE 		0-28050-850-0 01 1 0712-0811
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 0812-
71 BOLT; BRKT
FSS STD CAB(FC****) (B) M10X60 FLANGE 		0-28051-060-0 03 1 0712-0811
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 0812-
110 NUT; CLIP
FSS STD CAB(FC****) M6 FLANGE 		0-91180-106-0 04 1 0712-0811
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 0812-
120 BRACKET; INJ PIPE
FSS STD CAB(FC****) 		8-98001-041-0 01 1 0712-0811
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 0812-
168 BRACKET; FUEL PIPE
FSS STD CAB(FC****) 		8-98072-403-0 01 1 0712-0811
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 0812-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (A) 		1-15619-507-0 02 1 0712-0811
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0812-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (B) 		8-97602-218-0 04 1 0712-0811
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0812-
210 PIPE; INJ,C/R
FSS STD CAB(FC****) 		8-97376-779-0 01 1 0712-0811
210 PIPE; INJ,C/R 8-97376-779-0 01 1 0812-
211 RAIL ASM; COMMON
FSS STD CAB(FC****) 		8-98011-888-1 01 1 0712-0811
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0812-
216 BOLT; EYE
FSS STD CAB(FC****) (A) 		5-15759-003-0 01 1 0712-0811
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0812-
216 BOLT; EYE
FSS STD CAB(FC****) (B) 		8-97351-388-0 01 1 0712-0811
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0812-
216 BOLT; EYE
FSS STD CAB(FC****) (C) 		8-98043-033-0 01 1 0712-0811
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0812-
282 BRACKET; COMMON RAIL
FSS STD CAB(FC****) 		8-97324-194-0 01 1 0712-0811
282 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0812-1005
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1006-
283 BOLT; COMMON RAIL
FSS STD CAB(FC****) M8X25 FLANGE 		0-28050-825-0 01 1 0712-0811
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 0812-
288 GASKET
FSS STD CAB(FC****) ID=11 OD=16.3 		1-15641-046-0 01 1 0712-0811
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0812-
289 LIMITER; FUEL PRESS
FSS STD CAB(FC****) 		8-98032-549-0 01 1 0712-0811
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0812-
290 SENSOR; PRESS
FSS STD CAB(FC****) 		8-97318-684-0 01 1 0712-0809
290 SENSOR; PRESS
FSS STD CAB(FC****) 		8-98119-790-0 01 1 0810-0811
290 SENSOR; PRESS 8-98119-790-0 01 1 0812-
354 BOLT; FUEL PIPE
FSS STD CAB(FC****) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0811
354 BOLT; FUEL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0812-
377 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 0910-
377 BRACKET; HARNESS
FSS STD CAB(FC****) (A) 		8-97310-438-0 01 1 0712-0811
377 BRACKET; HARNESS
(A) 		8-97310-438-1 01 1 0812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
