Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#37705) — 218 parça

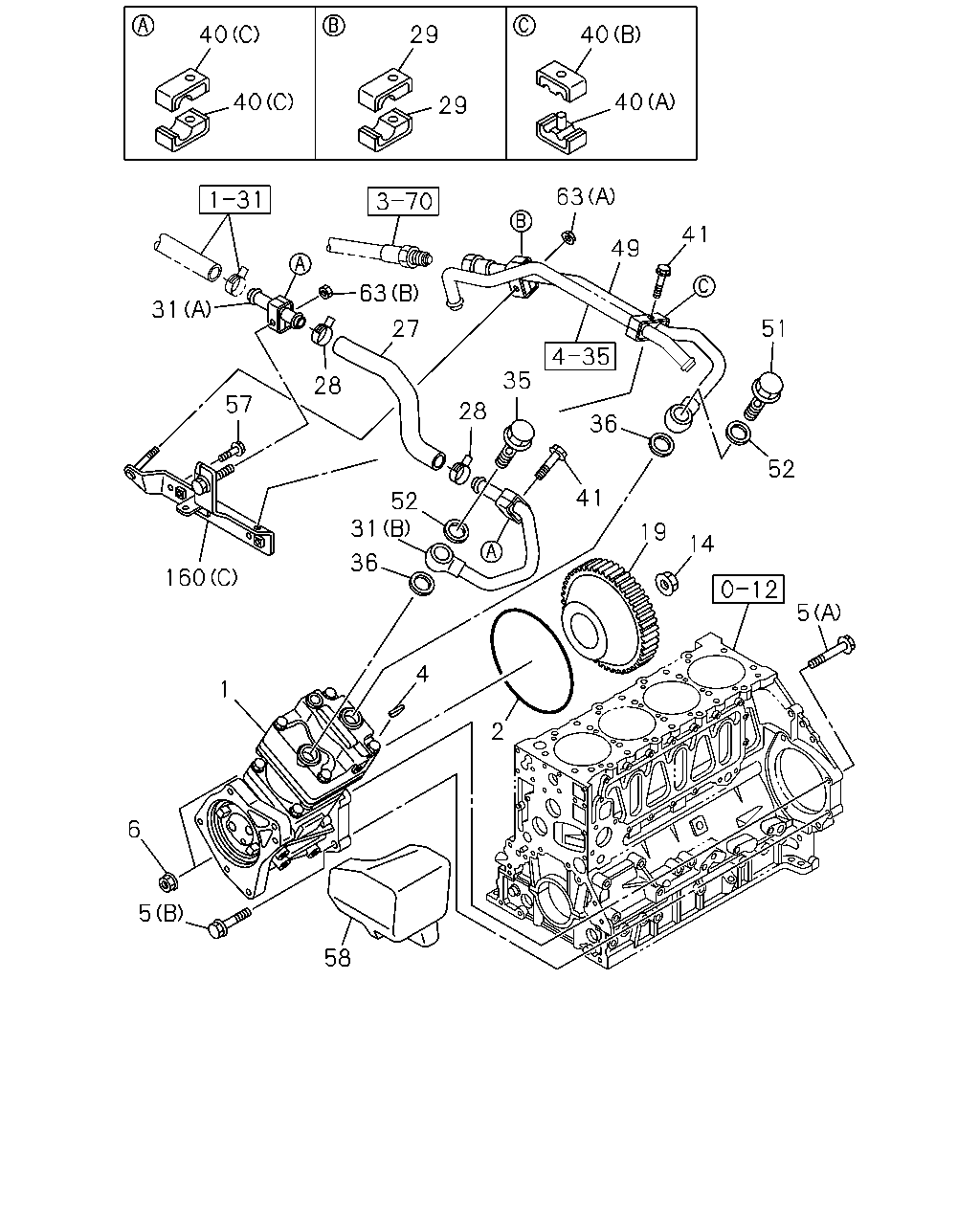

40 29 40 40 40 29 63 41 49 63 31 51 27 35 28 57 28 36 52 41 52 31 19 14 36 160 5 4 1 2 6 5 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSS STD CAB(FC****)	8-97601-449-3	01	1	0712-0811
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	0812-1109
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=139.6	1-09623-464-0	01	1	0712-0811
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0812-
4	KEY; INJ PUMP GEAR FSS STD CAB(FC****)	9-08055-519-0	01	1	0712-0811
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0812-
5	BOLT; AIR CMPR FIX FSS STD CAB(FC****) (B) M12X70 FLANGE	0-28151-270-0	01	1	0712-0811
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0812-
5	BOLT; AIR CMPR FIX FSS STD CAB(FC****) (A) M12X95 FLANGE	8-94396-485-1	01	1	0712-0811
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0812-
6	NUT; AIR CMPR FSS STD CAB(FC****) M10 FLANGE	0-91180-110-0	02	1	0712-0811
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0812-
14	NUT; GEAR FSS STD CAB(FC****) M18	8-97141-154-0	01	1	0712-0811
14	NUT; GEAR M18	8-97141-154-0	01	1	0812-
19	GEAR; INJ PUMP FSS STD CAB(FC****) Z=35	8-97600-987-2	01	1	0712-0811
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	0812-
27	HOSE; AIR CMPR,SUCTION POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-516-0	01	1	0712-
27	HOSE; AIR CMPR,SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-0	01	1	0712-0811
27	HOSE; AIR CMPR,SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-1	01	1	0812-
28	CLIP; HOSE,AIR CMPR FSS STD CAB(FC****) ID=24	8-98025-921-0	02	1	0712-0811
28	CLIP; HOSE,AIR CMPR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0812-0906
28	CLIP; HOSE,AIR CMPR EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0907-
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	0712-
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	0712-
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0812-0906
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0907-
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0712-
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) (B)	8-98023-170-0	01	1	0712-0811
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0812-0906
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0907-
31	PIPE; AIR,AIR CMPR SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0712-0811
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0812-
35	BOLT; EYE,AIR PIPE FSS STD CAB(FC****) M24X39	1-09675-132-1	01	1	0712-0811
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0812-1404
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=24.5 OD=32	9-09571-424-0	02	1	0712-0811
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0812-
40	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	06	1	0712-
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	04	1	0712-
40	CLIP; AIR PIPE FSS STD CAB(FC****) (A)	8-97619-417-0	01	1	0712-0811
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	0812-
40	CLIP; AIR PIPE FSS STD CAB(FC****) (B)	8-97619-418-0	01	1	0712-0811
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	0812-
41	BOLT; CLIP FSS STD CAB(FC****) M8X45 FLANGE	0-28050-845-0	02	1	0712-0811
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0812-
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0712-
49	PIPE; AIR,CHARGE FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	0812-0906
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	0907-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	0712-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0712-0811
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0812-
51	BOLT; EYE,AIR PIPE TO CMPR FSS STD CAB(FC****) M24X39	1-09675-132-1	01	1	0712-0811
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0812-1404
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=24.5 OD=32	9-09571-424-0	02	1	0712-0811
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0812-
57	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	0712-
58	SPACER; AIR CMPR FSS STD CAB(FC****)	8-98059-817-0	01	1	0712-0811
58	SPACER; AIR CMPR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4>	8-98059-817-0	01	1	0812-0906
58	SPACER; AIR CMPR EURO4 SPECIFICATION<NT4>	8-98059-817-1	01	1	0907-
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0712-
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	0712-
63	NUT; CLIP FSS STD CAB(FC****) (B) M8 FLANGE	0-91180-108-0	01	1	0712-0811
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	0712-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	0712-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	0712-

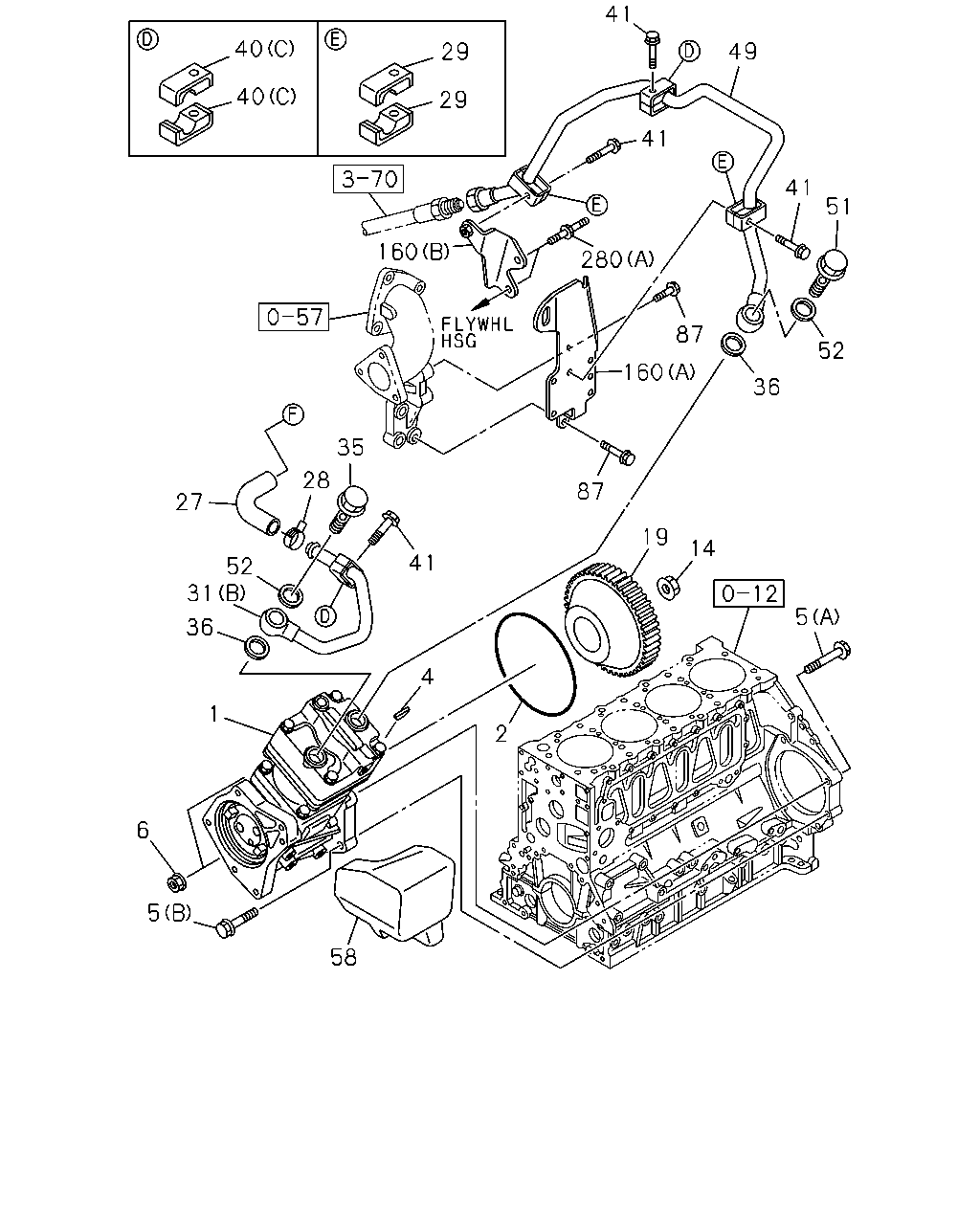

41 40 49 29 40 29 41 41 51 160 280 87 52 160 36 35 28 87 27 19 14 41 52 31 5 36 4 1 2 6 5 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSS STD CAB(FC****)	8-97601-449-3	01	1	0712-0811
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	0812-1109
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=139.6	1-09623-464-0	01	1	0712-0811
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0812-
4	KEY; INJ PUMP GEAR FSS STD CAB(FC****)	9-08055-519-0	01	1	0712-0811
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0812-
5	BOLT; AIR CMPR FIX FSS STD CAB(FC****) (B) M12X70 FLANGE	0-28151-270-0	01	1	0712-0811
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0812-
5	BOLT; AIR CMPR FIX FSS STD CAB(FC****) (A) M12X95 FLANGE	8-94396-485-1	01	1	0712-0811
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0812-
6	NUT; AIR CMPR FSS STD CAB(FC****) M10 FLANGE	0-91180-110-0	02	1	0712-0811
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0812-
14	NUT; GEAR FSS STD CAB(FC****) M18	8-97141-154-0	01	1	0712-0811
14	NUT; GEAR M18	8-97141-154-0	01	1	0812-
19	GEAR; INJ PUMP FSS STD CAB(FC****) Z=35	8-97600-987-2	01	1	0712-0811
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	0812-
27	HOSE; AIR CMPR,SUCTION POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-516-0	01	1	0712-
27	HOSE; AIR CMPR,SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-0	01	1	0712-0811
27	HOSE; AIR CMPR,SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-1	01	1	0812-
28	CLIP; HOSE,AIR CMPR FSS STD CAB(FC****) ID=24	8-98025-921-0	02	1	0712-0811
28	CLIP; HOSE,AIR CMPR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0812-0906
28	CLIP; HOSE,AIR CMPR EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0907-
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	0712-
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	0712-
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0812-0906
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0907-
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0712-
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) (B)	8-98023-170-0	01	1	0712-0811
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0812-0906
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0907-
31	PIPE; AIR,AIR CMPR SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0712-0811
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0812-
35	BOLT; EYE,AIR PIPE FSS STD CAB(FC****) M24X39	1-09675-132-1	01	1	0712-0811
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0812-1404
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=24.5 OD=32	9-09571-424-0	02	1	0712-0811
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0812-
40	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	06	1	0712-
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	04	1	0712-
40	CLIP; AIR PIPE FSS STD CAB(FC****) (A)	8-97619-417-0	01	1	0712-0811
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	0812-
40	CLIP; AIR PIPE FSS STD CAB(FC****) (B)	8-97619-418-0	01	1	0712-0811
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	0812-
41	BOLT; CLIP FSS STD CAB(FC****) M8X45 FLANGE	0-28050-845-0	02	1	0712-0811
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0812-
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0712-
49	PIPE; AIR,CHARGE FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	0812-0906
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	0907-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	0712-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0712-0811
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0812-
51	BOLT; EYE,AIR PIPE TO CMPR FSS STD CAB(FC****) M24X39	1-09675-132-1	01	1	0712-0811
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0812-1404
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=24.5 OD=32	9-09571-424-0	02	1	0712-0811
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0812-
58	SPACER; AIR CMPR FSS STD CAB(FC****)	8-98059-817-0	01	1	0712-0811
58	SPACER; AIR CMPR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4>	8-98059-817-0	01	1	0812-0906
58	SPACER; AIR CMPR EURO4 SPECIFICATION<NT4>	8-98059-817-1	01	1	0907-
87	BOLT; BRKT FIX POWER TAKE OFF-FLYWHEEL(6SZ) M12X30 FLANGE	0-28151-230-0	02	1	0712-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	0712-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	0712-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	0712-
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-97320-627-0	02	1	0712-0805
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-98009-913-0	02	1	0806-
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-971-0	01	1	0712-

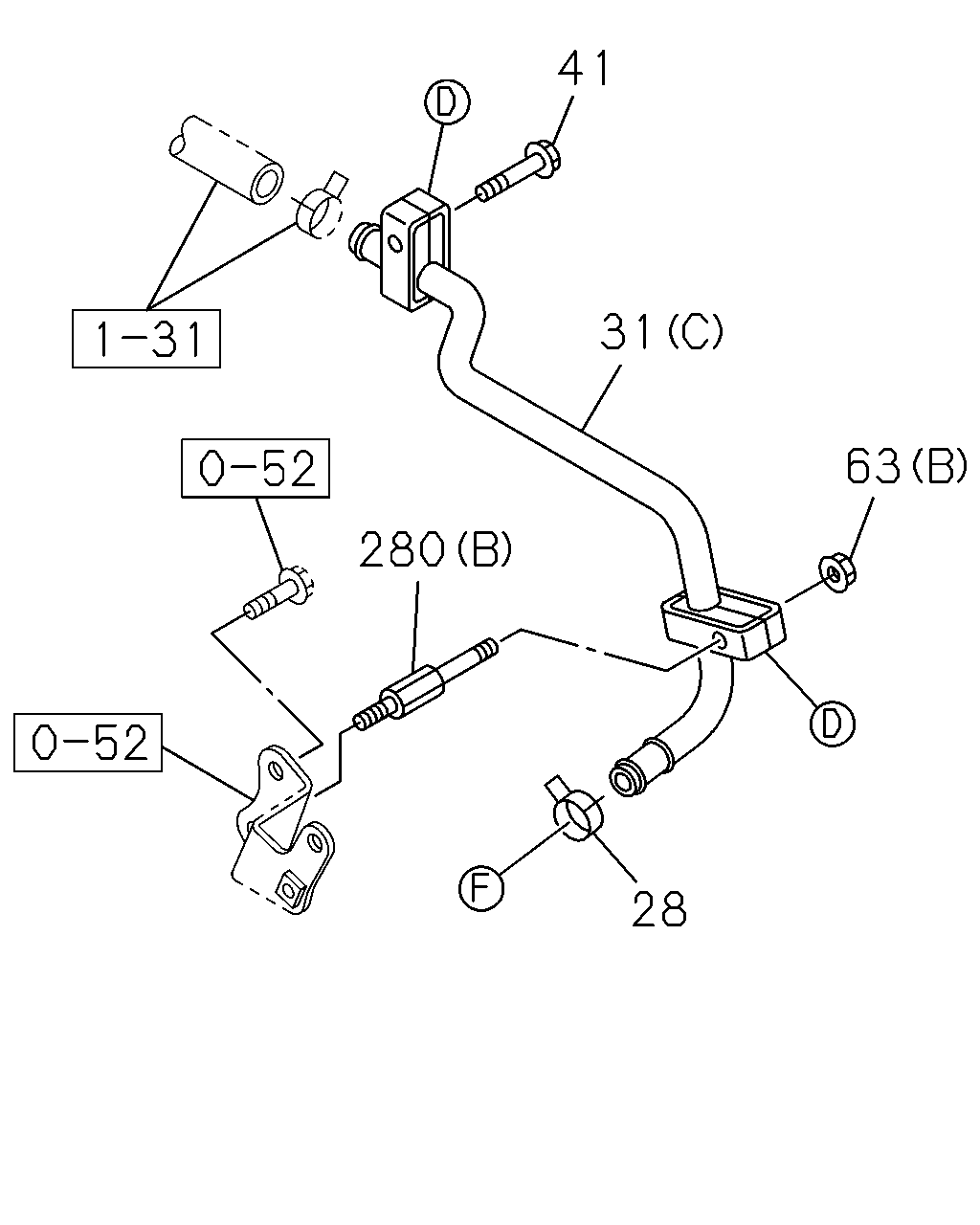

41 31 63 280 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	CLIP; HOSE,AIR CMPR FSS STD CAB(FC****) ID=24	8-98025-921-0	02	1	0712-0811
28	CLIP; HOSE,AIR CMPR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0812-0906
28	CLIP; HOSE,AIR CMPR EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0907-
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0812-0906
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0907-
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0712-
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) (B)	8-98023-170-0	01	1	0712-0811
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0812-0906
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0907-
31	PIPE; AIR,AIR CMPR SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0712-0811
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0812-
41	BOLT; CLIP FSS STD CAB(FC****) M8X45 FLANGE	0-28050-845-0	02	1	0712-0811
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0812-
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0712-
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0712-
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	0712-
63	NUT; CLIP FSS STD CAB(FC****) (B) M8 FLANGE	0-91180-108-0	01	1	0712-0811
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0812-
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-97320-627-0	02	1	0712-0805
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-98009-913-0	02	1	0806-
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-971-0	01	1	0712-

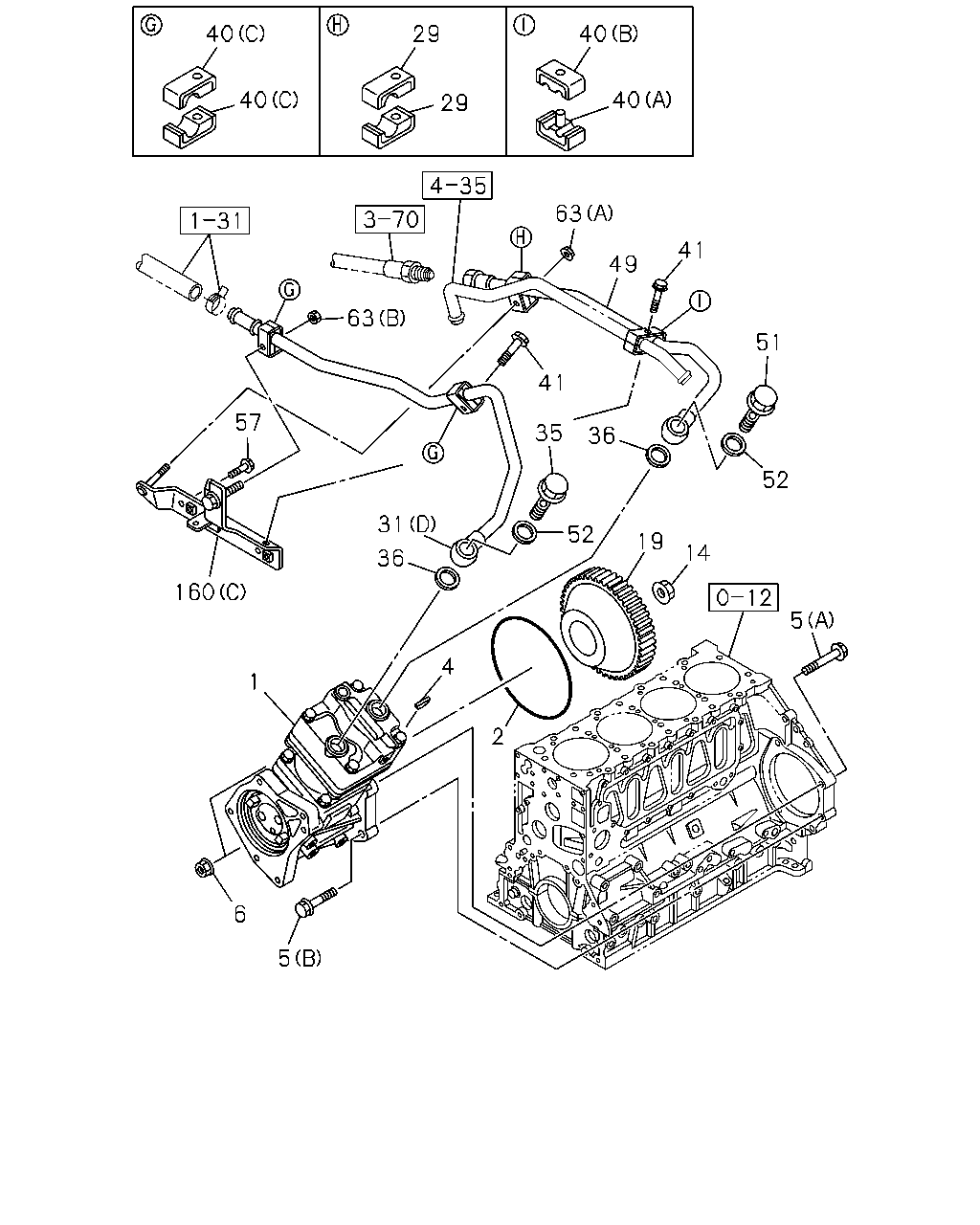

40 29 40 40 40 29 63 41 49 63 51 41 57 35 36 52 31 52 19 14 36 160 5 4 1 2 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSS STD CAB(FC****)	8-97601-449-3	01	1	0712-0811
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	0812-1109
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=139.6	1-09623-464-0	01	1	0712-0811
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0812-
4	KEY; INJ PUMP GEAR FSS STD CAB(FC****)	9-08055-519-0	01	1	0712-0811
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0812-
5	BOLT; AIR CMPR FIX FSS STD CAB(FC****) (B) M12X70 FLANGE	0-28151-270-0	01	1	0712-0811
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0812-
5	BOLT; AIR CMPR FIX FSS STD CAB(FC****) (A) M12X95 FLANGE	8-94396-485-1	01	1	0712-0811
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0812-
6	NUT; AIR CMPR FSS STD CAB(FC****) M10 FLANGE	0-91180-110-0	02	1	0712-0811
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0812-
14	NUT; GEAR FSS STD CAB(FC****) M18	8-97141-154-0	01	1	0712-0811
14	NUT; GEAR M18	8-97141-154-0	01	1	0812-
19	GEAR; INJ PUMP FSS STD CAB(FC****) Z=35	8-97600-987-2	01	1	0712-0811
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	0812-
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	0712-
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	0712-
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0812-0906
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0907-
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0712-
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) (B)	8-98023-170-0	01	1	0712-0811
31	PIPE; AIR,AIR CMPR SUCTION FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0812-0906
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0907-
31	PIPE; AIR,AIR CMPR SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0712-0811
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0812-
35	BOLT; EYE,AIR PIPE FSS STD CAB(FC****) M24X39	1-09675-132-1	01	1	0712-0811
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0812-1404
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=24.5 OD=32	9-09571-424-0	02	1	0712-0811
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0812-
40	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	06	1	0712-
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	04	1	0712-
40	CLIP; AIR PIPE FSS STD CAB(FC****) (A)	8-97619-417-0	01	1	0712-0811
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	0812-
40	CLIP; AIR PIPE FSS STD CAB(FC****) (B)	8-97619-418-0	01	1	0712-0811
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	0812-
41	BOLT; CLIP FSS STD CAB(FC****) M8X45 FLANGE	0-28050-845-0	02	1	0712-0811
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0812-
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0712-
49	PIPE; AIR,CHARGE FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	0812-0906
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	0907-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	0712-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0712-0811
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0812-
51	BOLT; EYE,AIR PIPE TO CMPR FSS STD CAB(FC****) M24X39	1-09675-132-1	01	1	0712-0811
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0812-1404
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=24.5 OD=32	9-09571-424-0	02	1	0712-0811
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0812-
57	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	0712-
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0712-
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	0712-
63	NUT; CLIP FSS STD CAB(FC****) (B) M8 FLANGE	0-91180-108-0	01	1	0712-0811
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	0712-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	0712-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	0712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
