◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#377) — 175 parça

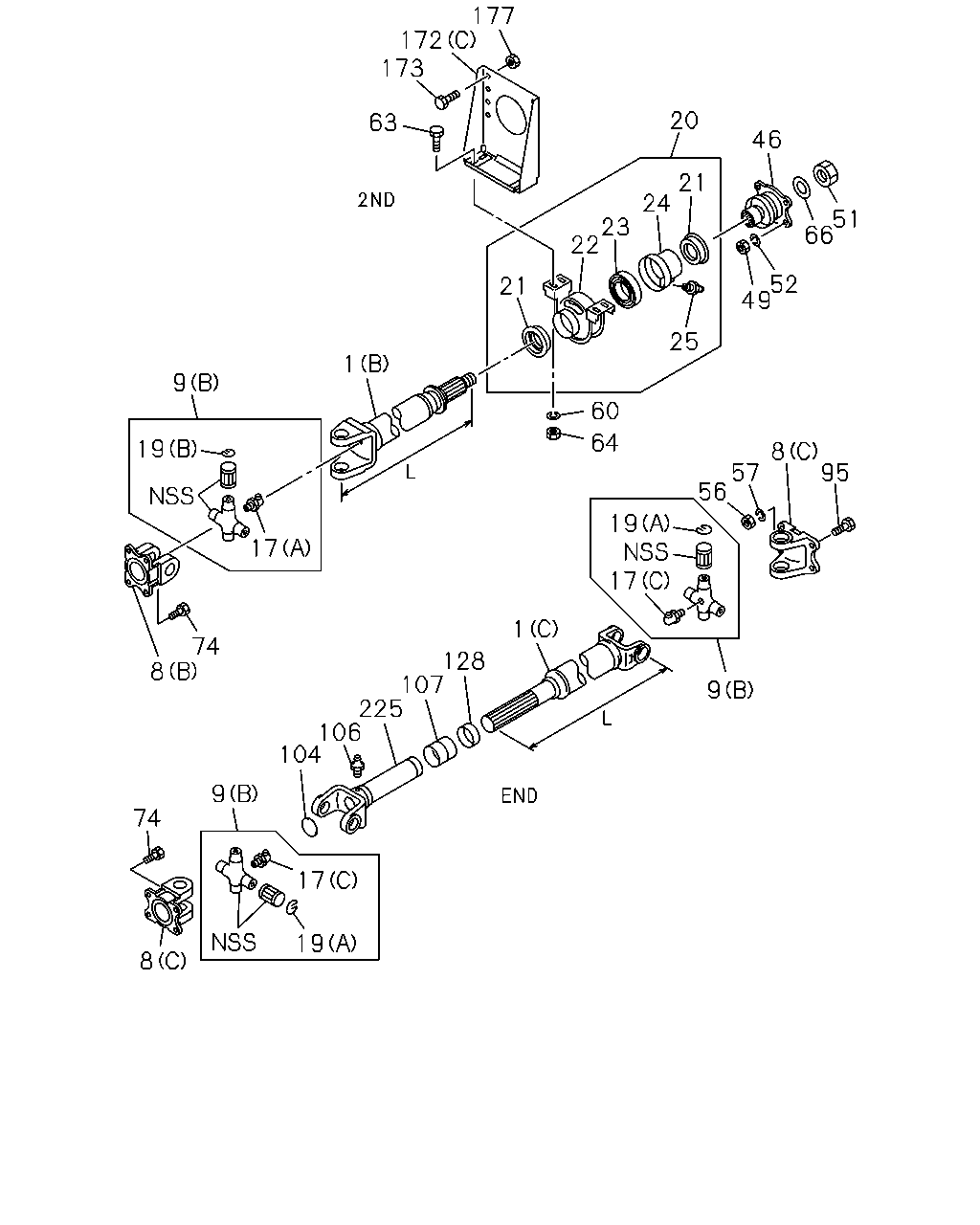

çizim 27396
177 172 173 20 63 46 21 24 51 66 23 22 52 49 21 25 1 9 60 64 19 8 95 57 56 19 17 17 1 74 8 128 107 225 106 104 9 9 74 17 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
(C) L=851 		1-37123-648-0 01 1 9202- ●
1 SHAFT; PROP
ENGINE REAR PTO(SV1) (A) L=481 		1-37151-299-0 01 1 9202- ●
1 SHAFT; PROP
EXC. ENGINE REAR PTO(SV1) (A) L=541 		1-37151-300-0 01 1 9202- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=541 		1-37151-300-0 01 1 9202- ●
1 SHAFT; PROP
SUSPENSION HEAVY DUTY VAR2(F41) (C) L=1231 		1-37141-061-2 01 1 9202- ●
1 SHAFT; PROP
(C) L=1231 		1-37141-061-2 01 1 9202- ●
1 SHAFT; PROP
EXC. SUSPENSION HEAVY DUTY VAR2(F41) (C) L=1241 		1-37123-396-2 01 1 9202- ●
1 SHAFT; PROP
(C) L=1241 		1-37123-396-2 01 1 9202- ● ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) L=794 		1-37117-315-0 01 1 9202- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=746 		1-37151-302-0 01 1 9202- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=646 		1-37151-301-0 01 1 9202- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=729 		1-37151-303-0 01 1 9202- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=729 		1-37151-303-0 01 1 9202- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1141 		1-37151-304-0 01 1 9202- ● ●
1 SHAFT; PROP
(B) L=939 		1-37151-308-0 01 1 9202- ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) L=524 		1-37151-307-0 01 1 9202- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=441 		1-37151-298-0 01 1 9202- ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(RR3) (A) L=806 		1-37117-624-0 01 1 9202- ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(RR3) (B) L=1079 		1-37123-413-2 01 1 9202- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=844 		1-37117-140-2 01 1 9202- ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-2 02 1 9202- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 		1-37211-041-0 01 1 9202- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5 M/T<X9W> (B) 		1-37211-056-2 01 1 9202- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-2 01 1 9202- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-069-0 01 1 9202- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MBG5 M/T<X9W> (B) 		1-37300-069-0 01 1 9202- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-069-0 01 1 9202- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-071-0 01 1 9202- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 		1-37300-071-0 01 1 9202- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(C) PT1/8 ELBOW 		9-09031-210-0 02 1 9202- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9202- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MBG5 M/T<X9W> (A) PT1/8 ELBOW 		9-09031-210-0 01 1 9202- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9202- ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9202- ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9202- ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MBG5 M/T<X9W> (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MBG5 M/T<X9W> (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MBG5 M/T<X9W> (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9202- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9202- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9202- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9202- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9202- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9202- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9202- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9202- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9202- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9202- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9202- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9202- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9202- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9202- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9202- ● ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 9202- ● ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9202- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9202- ● ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9202- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9202- ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9202- ● ● ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9202- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9202-9403 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9202-9403 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 FLANGE 		0-28681-030-0 04 1 9404-9410 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 FLANGE 		0-28681-030-0 04 1 9404-9410 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9411- ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9411- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9202- ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9202- ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9202- ● ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9202- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9202- ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9202- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9202- ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9202- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9202- ● ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9202- ● ● ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9202- ● ● ● ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 9202- ●
172 BRACKET; CENTER BRG
AUSTRALIA EQUIPMENT(RR3) (A) 		1-37515-102-0 01 1 9202- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-071-2 01 1 9202- ● ●
172 BRACKET; CENTER BRG
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-37515-071-2 01 1 9202- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-101-0 01 1 9202- ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9202- ● ● ● ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9202- ●
177 NUT
M10 		9-09110-510-0 04 1 9202- ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-079-1 01 1 9202- ● ● ● ● ●

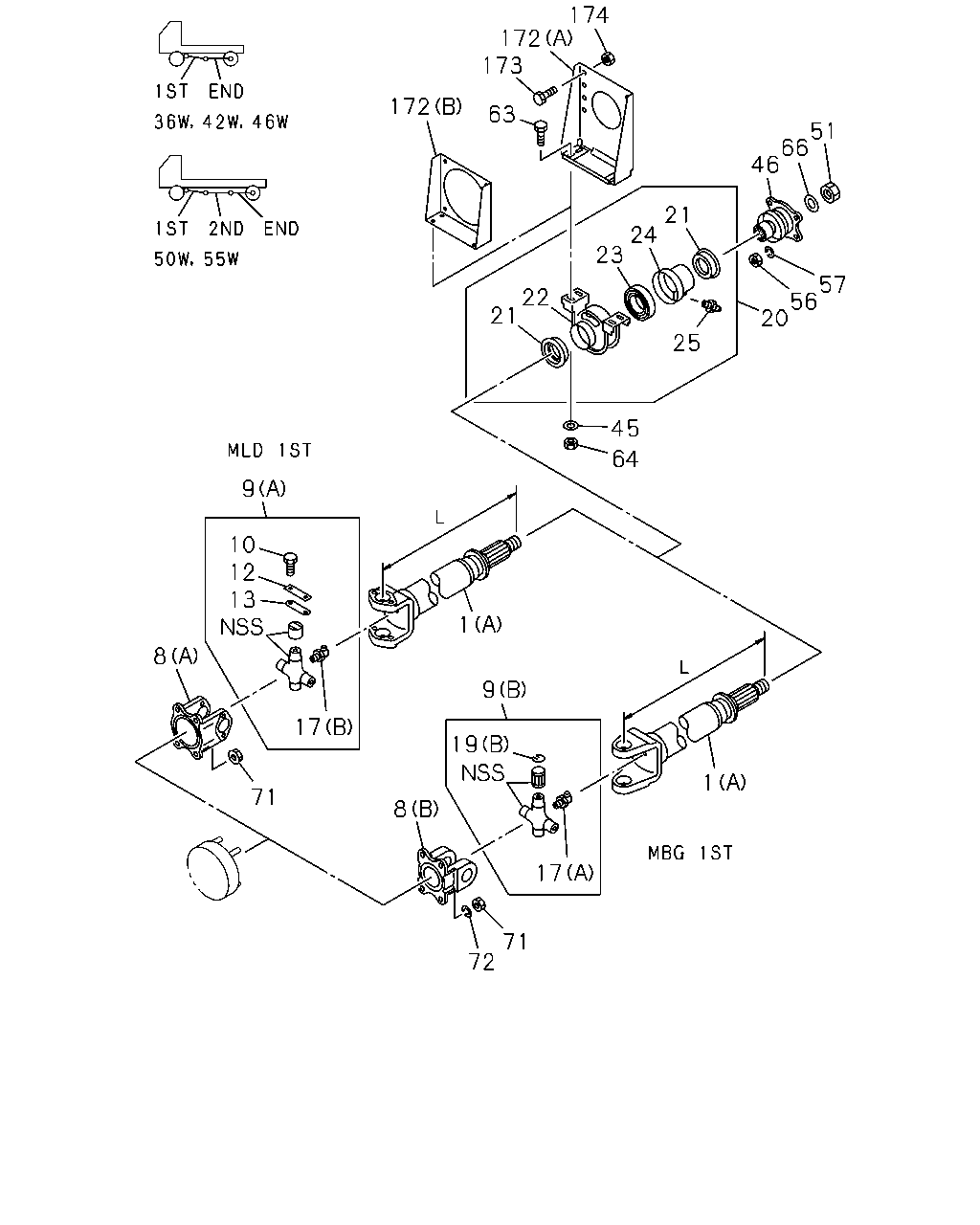

çizim 28858
174 172 173 172 63 51 66 46 21 24 23 57 56 20 22 21 25 45 64 9 10 12 13 1 8 9 17 19 1 71 8 17 71 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
(C) L=851 		1-37123-648-0 01 1 9202- ●
1 SHAFT; PROP
ENGINE REAR PTO(SV1) (A) L=481 		1-37151-299-0 01 1 9202- ●
1 SHAFT; PROP
EXC. ENGINE REAR PTO(SV1) (A) L=541 		1-37151-300-0 01 1 9202- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=541 		1-37151-300-0 01 1 9202- ●
1 SHAFT; PROP
SUSPENSION HEAVY DUTY VAR2(F41) (C) L=1231 		1-37141-061-2 01 1 9202- ●
1 SHAFT; PROP
(C) L=1231 		1-37141-061-2 01 1 9202- ●
1 SHAFT; PROP
EXC. SUSPENSION HEAVY DUTY VAR2(F41) (C) L=1241 		1-37123-396-2 01 1 9202- ●
1 SHAFT; PROP
(C) L=1241 		1-37123-396-2 01 1 9202- ● ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) L=794 		1-37117-315-0 01 1 9202- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=746 		1-37151-302-0 01 1 9202- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=646 		1-37151-301-0 01 1 9202- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=729 		1-37151-303-0 01 1 9202- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=729 		1-37151-303-0 01 1 9202- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1141 		1-37151-304-0 01 1 9202- ● ●
1 SHAFT; PROP
(B) L=939 		1-37151-308-0 01 1 9202- ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) L=524 		1-37151-307-0 01 1 9202- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=441 		1-37151-298-0 01 1 9202- ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(RR3) (A) L=806 		1-37117-624-0 01 1 9202- ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(RR3) (B) L=1079 		1-37123-413-2 01 1 9202- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=844 		1-37117-140-2 01 1 9202- ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-2 02 1 9202- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 		1-37211-041-0 01 1 9202- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5 M/T<X9W> (B) 		1-37211-056-2 01 1 9202- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-2 01 1 9202- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-069-0 01 1 9202- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MBG5 M/T<X9W> (B) 		1-37300-069-0 01 1 9202- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-069-0 01 1 9202- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-071-0 01 1 9202- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 		1-37300-071-0 01 1 9202- ● ●
10 BOLT; UJT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M8X20 		9-09802-702-0 08 1 9202- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 		1-37356-004-0 04 1 9202- ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 		1-37355-002-1 04 1 9202- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(C) PT1/8 ELBOW 		9-09031-210-0 02 1 9202- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9202- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MBG5 M/T<X9W> (A) PT1/8 ELBOW 		9-09031-210-0 01 1 9202- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9202- ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9202- ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9202- ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MBG5 M/T<X9W> (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MBG5 M/T<X9W> (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MBG5 M/T<X9W> (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9202- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9202- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9202- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9202- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9202- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9202- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9202- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9202- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9202- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9202- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9202- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9202- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9202- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9202- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9202- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9202- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9202- ● ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9202- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9202- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9202- ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9202- ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9202-9403 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9202-9403 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 FLANGE 		0-28681-030-0 04 1 9404-9410 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 FLANGE 		0-28681-030-0 04 1 9404-9410 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9411- ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9411- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9202- ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9202- ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9202- ● ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9202- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9202- ●
71 NUT; YOKE
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M16 FLANGE 		1-09449-065-0 04 1 9202- ● ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9202- ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9202- ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 9202- ●
172 BRACKET; CENTER BRG
AUSTRALIA EQUIPMENT(RR3) (A) 		1-37515-102-0 01 1 9202- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-071-2 01 1 9202- ● ●
172 BRACKET; CENTER BRG
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-37515-071-2 01 1 9202- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-101-0 01 1 9202- ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9202- ● ● ● ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9202- ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9202- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
