Isuzu WW
▶
TRUCKS
▶
FSS
▶
11124 - FSS(RHD)EURO2/4
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

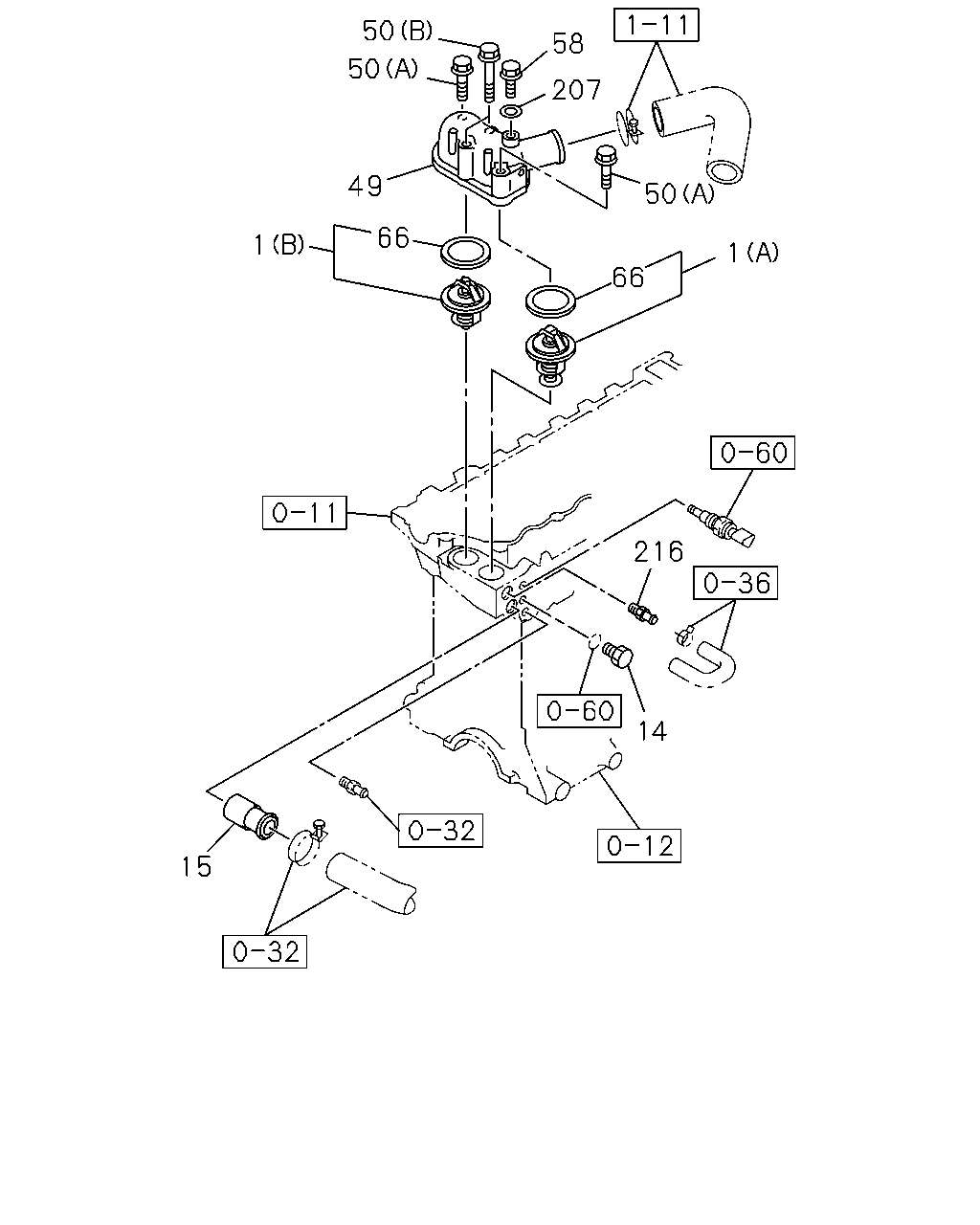

0-31 — THERMOSTAT AND HOUSING
(#37699) — 23 parça
50
58
50
207
49
50
66
1
1
66
216
14
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
FSS STD CAB(FC****) (B) 85 CELSIUS
8-97300-787-2
01
1
0712-0811
1
THERMOSTAT
(B) 85 CELSIUS
8-97300-787-3
01
1
0812-
1
THERMOSTAT
FSS STD CAB(FC****) (A) 82 CELSIUS
8-97300-790-2
01
1
0712-0811
1
THERMOSTAT
(A) 82 CELSIUS
8-97300-790-3
01
1
0812-
14
PLUG; SW
FSS STD CAB(FC****) M16X8 PLUG
9-09661-005-0
01
1
0712-0811
14
PLUG; SW
M16X8 PLUG
9-09661-005-0
01
1
0812-
15
PIPE; BYPASS
FSS STD CAB(FC****)
8-94342-574-0
01
1
0712-0811
15
PIPE; BYPASS
8-94342-574-0
01
1
0812-
49
PIPE; WATER OUTLET
FSS STD CAB(FC****)
8-97329-914-0
01
1
0712-0811
49
PIPE; WATER OUTLET
8-97329-914-0
01
1
0812-
50
BOLT; OUTLET PIPE
FSS STD CAB(FC****) (A) M8X25 FLANGE
0-28650-825-0
02
1
0712-0811
50
BOLT; OUTLET PIPE
(A) M8X25 FLANGE
0-28650-825-0
02
1
0812-
50
BOLT; OUTLET PIPE
FSS STD CAB(FC****) (B) M8X65 FLANGE
1-09044-072-1
02
1
0712-0811
50
BOLT; OUTLET PIPE
(B) M8X65 FLANGE
1-09044-072-1
02
1
0812-
58
PLUG; WATER OUTLET PIPE
FSS STD CAB(FC****) M8X16
8-97021-211-1
01
1
0712-0811
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0812-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FSS STD CAB(FC****) ID=49.5 OD=56.5
8-97300-793-0
02
1
0712-0811
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0812-1501
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=8.2 OD=13.2
1-09630-082-0
01
1
0712-0811
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0812-
216
PIPE ASM; WATER,TURBOCHARGER RETURN
FSS STD CAB(FC****)
8-97358-699-0
01
1
0712-0811
216
PIPE ASM; WATER,TURBOCHARGER RETURN
8-97358-699-0
01
1
0812-
