◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#37695) — 105 parça

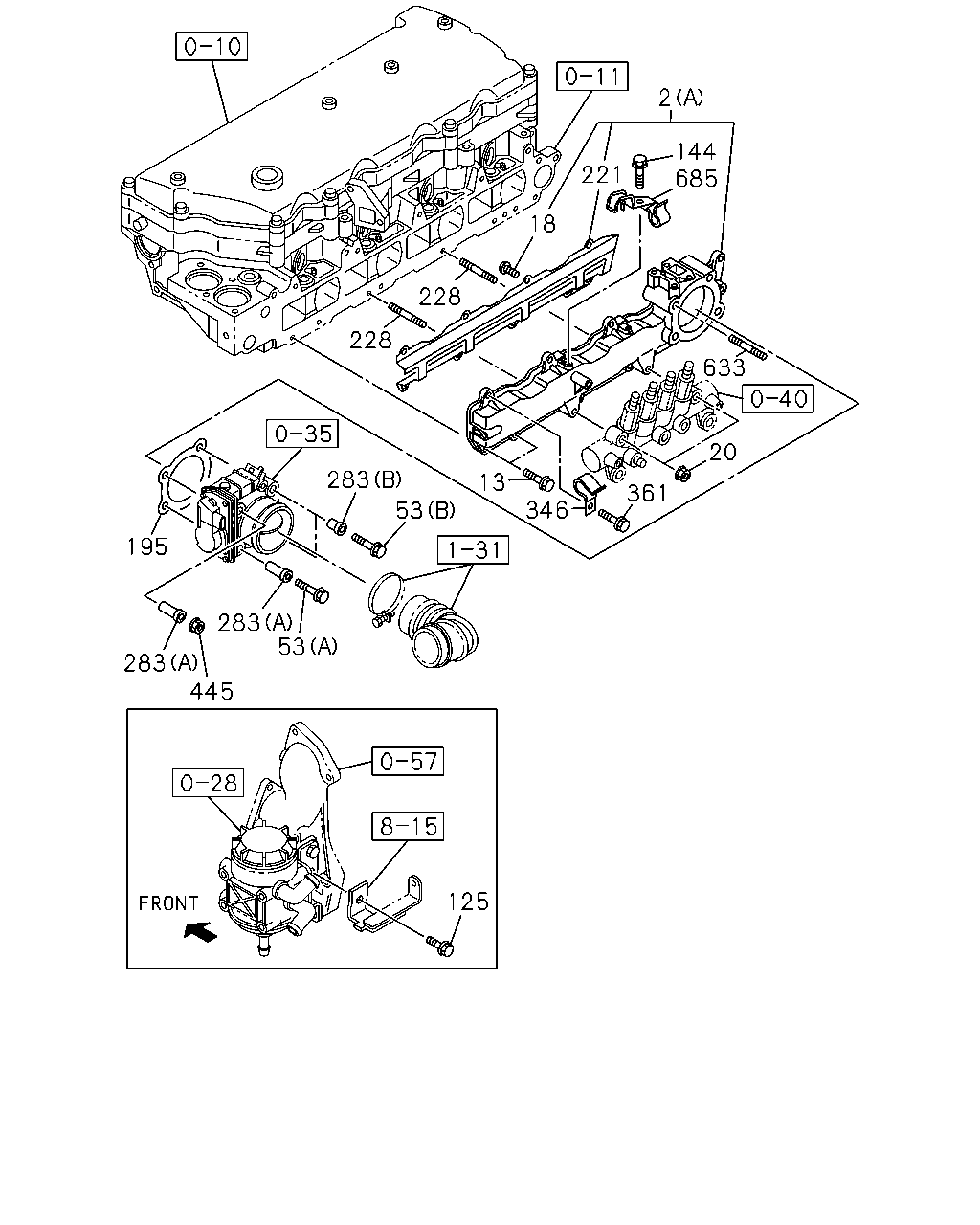

çizim 181635
2 144 685 221 18 228 228 13 346 361 20 633 283 53 283 53 283 445 195 125
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; INL
(B) 		8-97387-039-0 01 1 0907-
2 COVER; INL
FSS STD CAB(FC****) (A) 		8-97387-038-0 01 1 0712-0811
2 COVER; INL
(A) 		8-97387-038-0 01 1 0812-1409
2 COVER; INL
EURO4 SPECIFICATION<NT4> (A) 		8-97387-038-0 01 1 1410-
13 BOLT; INL MANIF
FSS STD CAB(FC****) M8X30 FLANGE 		0-28050-830-0 09 1 0712-0811
13 BOLT; INL MANIF
M8X30 FLANGE 		0-28050-830-0 09 1 0812-
13 BOLT; INL MANIF
FSS STD CAB(FC****) M8X80 FLANGE 		0-28050-880-0 01 1 0712-0811
13 BOLT; INL MANIF
M8X80 FLANGE 		0-28050-880-0 01 1 0812-
18 SCREW; PLATE,INL CVR
FSS STD CAB(FC****) M6X10 		9-03490-610-0 09 1 0712-0811
18 SCREW; PLATE,INL CVR
M6X10 		9-03490-610-0 09 1 0812-1409
18 SCREW; PLATE,INL CVR
EURO4 SPECIFICATION<NT4> M6X10 		9-03490-610-0 09 1 1410-
20 NUT; INL MANIF
FSS STD CAB(FC****) M8 FLANGE 		0-91180-108-0 02 1 0712-0811
20 NUT; INL MANIF
M8 FLANGE 		0-91180-108-0 02 1 0812-
53 BOLT; INL PIPE
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0812-0906
53 BOLT; INL PIPE
EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0907-
53 BOLT; INL PIPE
FSS STD CAB(FC****) (A) M8X70 FLANGE 		0-28050-870-0 01 1 0712-0811
53 BOLT; INL PIPE
FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) M8X70 FLANGE 		0-28050-870-0 01 1 0812-0906
53 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X70 FLANGE 		0-28050-870-0 01 1 0907-
53 BOLT; INL PIPE
FSS STD CAB(FC****) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0811
53 BOLT; INL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-
125 BOLT; BRKT TO INL MANIF
FSS STD CAB(FC****) M12X30 FLANGE 		0-28151-230-0 01 1 0712-0803
144 BOLT; BRKT FIX
FSS STD CAB(FC****) M8X12 FLANGE 		0-28050-812-0 01 1 0712-0811
144 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 01 1 0812-
195 GASKET; THROTTLE BODY INJECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=88 		8-97387-009-0 01 1 0712-0811
195 GASKET; THROTTLE BODY INJECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> ID=88 		8-97387-009-0 01 1 0812-0906
195 GASKET; THROTTLE BODY INJECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=88 		8-97387-009-0 01 1 0907-
221 PLATE; INL COVER
FSS STD CAB(FC****) 		8-97379-202-0 01 1 0712-0811
221 PLATE; INL COVER 8-97379-202-0 01 1 0812-1409
221 PLATE; INL COVER
EURO4 SPECIFICATION<NT4> 		8-97379-202-0 01 1 1410-
228 STUD; INL COVER
FSS STD CAB(FC****) M8X117 L=128 		8-97111-477-0 02 1 0712-0811
228 STUD; INL COVER
M8X117 L=128 		8-97111-477-0 02 1 0812-
283 RUBBER
FSS STD CAB(FC****) (B) L=18 		8-97219-650-0 02 1 0712-0811
283 RUBBER
FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (B) L=18 		8-97219-650-0 02 1 0812-0906
283 RUBBER
EURO4 SPECIFICATION<NT4> (B) L=18 		8-97219-650-0 02 1 0907-
283 RUBBER
FSS STD CAB(FC****) (A) L=58 		8-97387-995-0 02 1 0712-0811
283 RUBBER
FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) L=58 		8-97387-995-0 02 1 0812-0906
283 RUBBER
EURO4 SPECIFICATION<NT4> (A) L=58 		8-97387-995-1 02 1 0907-
346 CLIP; ENG HARNESS
FSS STD CAB(FC****) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0712-0801
346 CLIP; ENG HARNESS
FSS STD CAB(FC****) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-0811
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0812-
361 BOLT; CLIP
FSS STD CAB(FC****) M8X12 FLANGE 		0-28050-812-0 01 1 0712-0803
445 NUT; THROTTLE BODY TO MANIF
FSS STD CAB(FC****) M8 FLANGE 		0-91180-108-0 01 1 0712-0811
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE 		0-91180-108-0 01 1 0812-
633 STUD; THROTTLE BODY
FSS STD CAB(FC****) M8X71 L=83 		9-09830-212-0 01 1 0712-0811
633 STUD; THROTTLE BODY
M8X71 L=83 		9-09830-212-0 01 1 0812-
685 BRACKET; HARNESS
FSS STD CAB(FC****) 		8-97331-921-1 01 1 0712-0811
685 BRACKET; HARNESS 8-97331-921-1 01 1 0812-
803 STUD; COVER
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> M8X20 L=32 		0-41010-820-0 02 1 0812-0906
803 STUD; COVER
EURO2 SPECIFICATION<NT2> M8X20 L=32 		0-41010-820-0 02 1 0907-
çizim 181935
203 208
BalonParca AdiParca NoAdetTipApplied Date
203 TANK; CATCH,PRESSURE CONT VLV
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> 		8-97088-685-1 01 1 0812-0906
203 TANK; CATCH,PRESSURE CONT VLV
EURO2 SPECIFICATION<NT2> 		8-97088-685-1 01 1 0907-
208 BRACKET; CATCH TANK,OIL
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> 		8-98075-767-0 01 1 0812-0906
208 BRACKET; CATCH TANK,OIL
EURO2 SPECIFICATION<NT2> 		8-98075-767-0 01 1 0907-
803 STUD; COVER
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> M8X20 L=32 		0-41010-820-0 02 1 0812-0906
803 STUD; COVER
EURO2 SPECIFICATION<NT2> M8X20 L=32 		0-41010-820-0 02 1 0907-

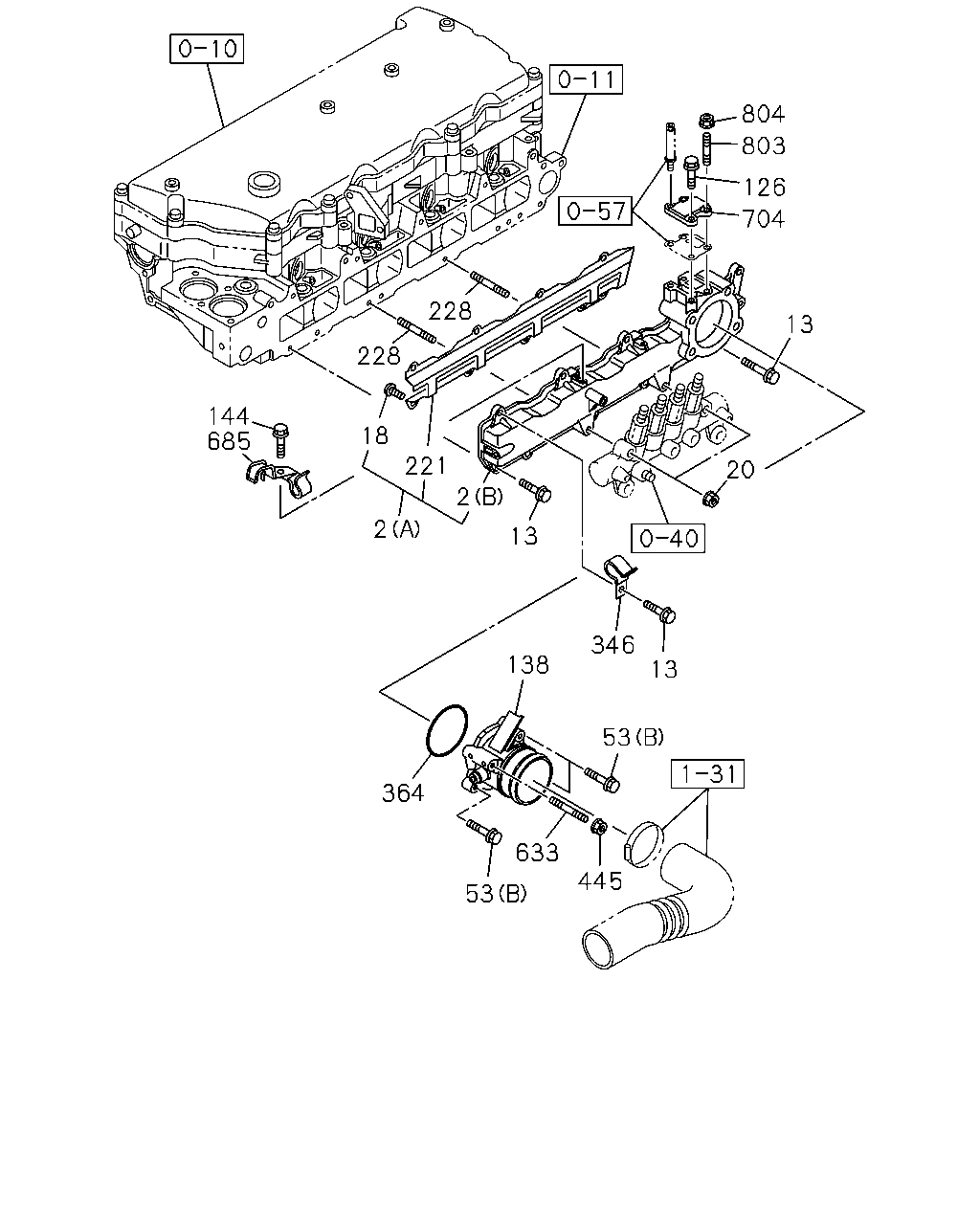

çizim 182023
804 802 704 126 13 20 346 13 138 53 633 445 53 364 13 2 221 2 18 228 228 144 685
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; INL
(B) 		8-97387-039-0 01 1 0907-
2 COVER; INL
FSS STD CAB(FC****) (A) 		8-97387-038-0 01 1 0712-0811
2 COVER; INL
(A) 		8-97387-038-0 01 1 0812-1409
2 COVER; INL
EURO4 SPECIFICATION<NT4> (A) 		8-97387-038-0 01 1 1410-
13 BOLT; INL MANIF
FSS STD CAB(FC****) M8X30 FLANGE 		0-28050-830-0 09 1 0712-0811
13 BOLT; INL MANIF
M8X30 FLANGE 		0-28050-830-0 09 1 0812-
13 BOLT; INL MANIF
FSS STD CAB(FC****) M8X80 FLANGE 		0-28050-880-0 01 1 0712-0811
13 BOLT; INL MANIF
M8X80 FLANGE 		0-28050-880-0 01 1 0812-
18 SCREW; PLATE,INL CVR
FSS STD CAB(FC****) M6X10 		9-03490-610-0 09 1 0712-0811
18 SCREW; PLATE,INL CVR
M6X10 		9-03490-610-0 09 1 0812-1409
18 SCREW; PLATE,INL CVR
EURO4 SPECIFICATION<NT4> M6X10 		9-03490-610-0 09 1 1410-
20 NUT; INL MANIF
FSS STD CAB(FC****) M8 FLANGE 		0-91180-108-0 02 1 0712-0811
20 NUT; INL MANIF
M8 FLANGE 		0-91180-108-0 02 1 0812-
53 BOLT; INL PIPE
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0812-0906
53 BOLT; INL PIPE
EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0907-
53 BOLT; INL PIPE
FSS STD CAB(FC****) (A) M8X70 FLANGE 		0-28050-870-0 01 1 0712-0811
53 BOLT; INL PIPE
FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (A) M8X70 FLANGE 		0-28050-870-0 01 1 0812-0906
53 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X70 FLANGE 		0-28050-870-0 01 1 0907-
53 BOLT; INL PIPE
FSS STD CAB(FC****) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0811
53 BOLT; INL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-
126 BOLT; COVER
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 01 1 0812-0906
126 BOLT; COVER
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 01 1 0907-
138 PIPE; INL
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> 		8-98101-477-0 01 1 0812-0906
138 PIPE; INL
EURO2 SPECIFICATION<NT2> 		8-98101-477-0 01 1 0907-1212
138 PIPE; INL
EURO2 SPECIFICATION<NT2> 		8-98217-016-0 01 1 1301-
144 BOLT; BRKT FIX
FSS STD CAB(FC****) M8X12 FLANGE 		0-28050-812-0 01 1 0712-0811
144 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 01 1 0812-
221 PLATE; INL COVER
FSS STD CAB(FC****) 		8-97379-202-0 01 1 0712-0811
221 PLATE; INL COVER 8-97379-202-0 01 1 0812-1409
221 PLATE; INL COVER
EURO4 SPECIFICATION<NT4> 		8-97379-202-0 01 1 1410-
228 STUD; INL COVER
FSS STD CAB(FC****) M8X117 L=128 		8-97111-477-0 02 1 0712-0811
228 STUD; INL COVER
M8X117 L=128 		8-97111-477-0 02 1 0812-
346 CLIP; ENG HARNESS
FSS STD CAB(FC****) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0712-0801
346 CLIP; ENG HARNESS
FSS STD CAB(FC****) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-0811
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0812-
364 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> 		8-97363-723-0 01 1 0812-0906
364 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> 		8-97363-723-0 01 1 0907-1212
445 NUT; THROTTLE BODY TO MANIF
FSS STD CAB(FC****) M8 FLANGE 		0-91180-108-0 01 1 0712-0811
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE 		0-91180-108-0 01 1 0812-
633 STUD; THROTTLE BODY
FSS STD CAB(FC****) M8X71 L=83 		9-09830-212-0 01 1 0712-0811
633 STUD; THROTTLE BODY
M8X71 L=83 		9-09830-212-0 01 1 0812-
685 BRACKET; HARNESS
FSS STD CAB(FC****) 		8-97331-921-1 01 1 0712-0811
685 BRACKET; HARNESS 8-97331-921-1 01 1 0812-
704 COVER
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> 		8-98062-651-1 01 1 0812-0906
704 COVER
EURO2 SPECIFICATION<NT2> 		8-98062-651-1 01 1 0907-1408
704 COVER
EURO2 SPECIFICATION<NT2> 		8-98260-138-0 01 1 1409-
803 STUD; COVER
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> M8X20 L=32 		0-41010-820-0 02 1 0812-0906
803 STUD; COVER
EURO2 SPECIFICATION<NT2> M8X20 L=32 		0-41010-820-0 02 1 0907-
804 NUT; COVER
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 02 1 0812-0906
804 NUT; COVER
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 02 1 0907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
