0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#37693) — 130 parça

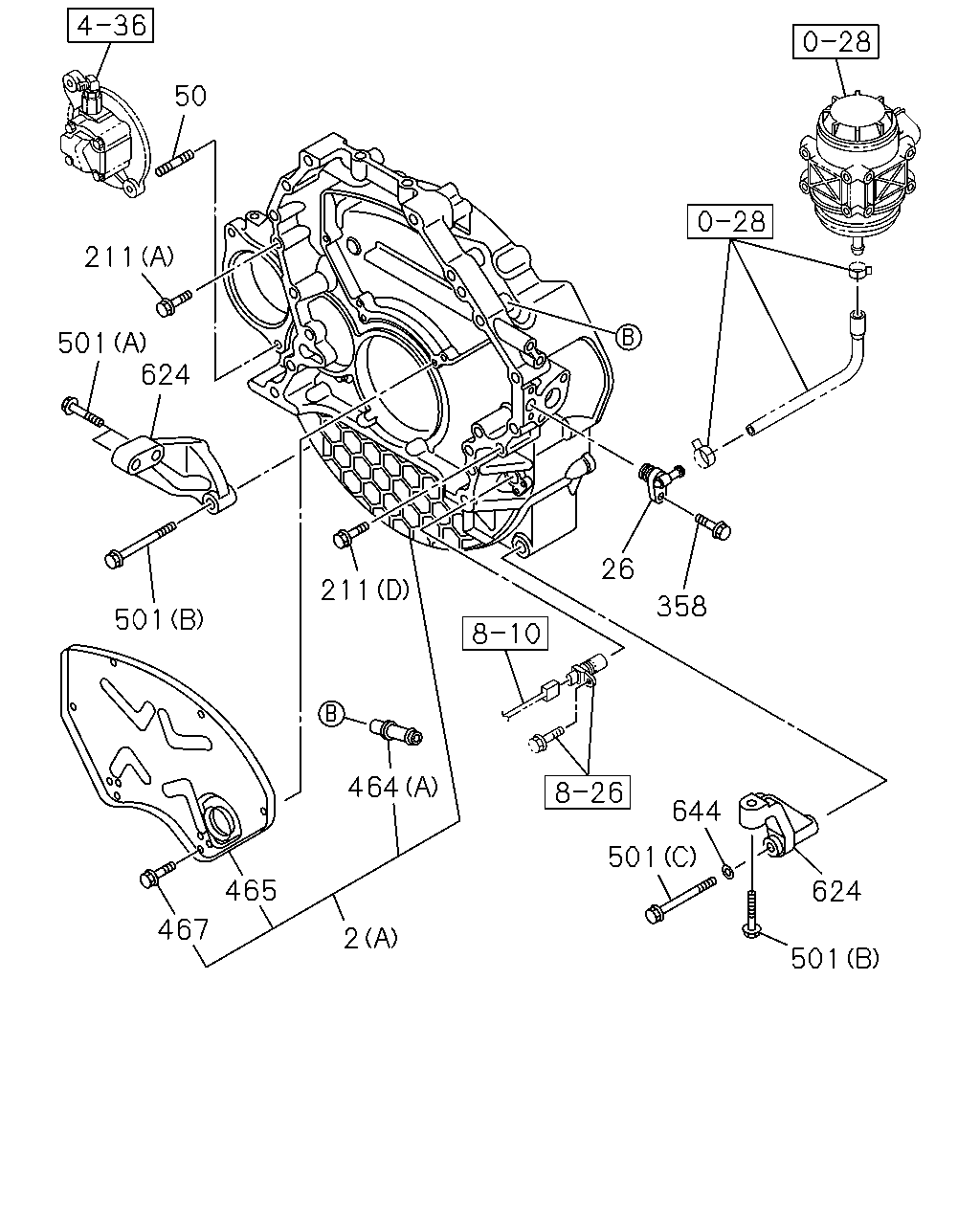

50 211 501 624 26 211 358 501 464 644 501 465 624 467 2 501

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0712-0810
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98135-151-0	01	1	0811-
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-4	01	1	0712-
26	ADAPTER FSS STD CAB(FC****)	8-97354-819-0	01	1	0712-0811
26	ADAPTER	8-97354-819-0	01	1	0812-
50	STUD FSS STD CAB(FC****) M10X25 L=48.5	0-49241-025-0	01	1	0712-0811
50	STUD M10X25 L=48.5	0-49241-025-0	01	1	0812-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (F) M10X45 FLANGE	0-28151-045-0	06	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (I) M12X15	0-28156-215-0	01	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X125 FLANGE	1-09044-099-0	10	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	1-09049-015-0	04	1	0712-0805
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	8-98010-335-0	04	1	0806-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X75	9-01666-275-0	01	1	0712-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X50 FLANGE	0-28151-050-0	01	1	0712-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28751-040-0	01	1	0712-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0712-1102
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-
211	BOLT; HSG FSS STD CAB(FC****) (C) M12X30 FLANGE	8-97135-419-0	01	1	0712-0811
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0812-
358	BOLT; ADAPTER FSS STD CAB(FC****) M6X16 FLANGE	0-28050-616-0	01	1	0712-0811
358	BOLT; ADAPTER M6X16 FLANGE	0-28050-616-0	01	1	0812-
464	PIPE; PCV,FLYWHEEL HSG POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97358-501-0	01	1	0712-
464	PIPE; PCV,FLYWHEEL HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-94373-246-3	01	1	0712-
465	PLATE; FLYWHEEL HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97388-568-1	01	1	0712-
467	BOLT; PLATE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X10	0-20800-610-0	06	1	0712-0805
467	BOLT; PLATE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X10	8-98030-649-0	06	1	0806-
501	BOLT; STIFFENER (B) M12X50 FLANGE	0-28151-250-0	02	1	0712-
501	BOLT; STIFFENER (C) M12X90 FLANGE	0-28151-290-0	01	1	0712-
501	BOLT; STIFFENER (A) M10X40 FLANGE	0-28151-040-0	02	1	0712-
624	STIFFENER	8-97380-613-1	01	1	0712-
624	STIFFENER	8-97380-614-1	01	1	0712-
644	WASHER; STIFFENER EURO2 SPECIFICATION<NT2> ID=12.5 OD=22	8-94279-627-0	01	1	0812-

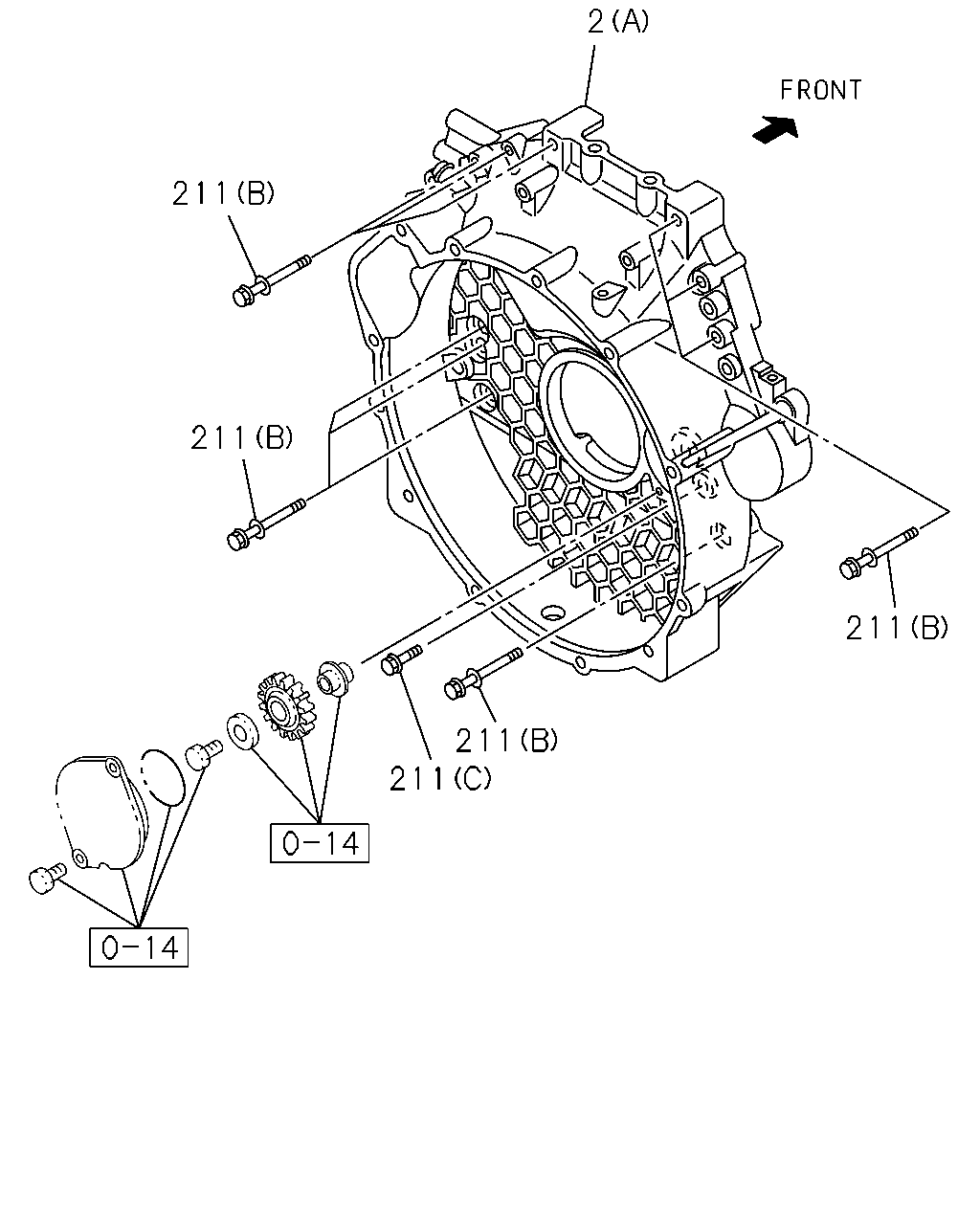

2 211 211 211 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0712-0810
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98135-151-0	01	1	0811-
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-4	01	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (F) M10X45 FLANGE	0-28151-045-0	06	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (I) M12X15	0-28156-215-0	01	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X125 FLANGE	1-09044-099-0	10	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	1-09049-015-0	04	1	0712-0805
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	8-98010-335-0	04	1	0806-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X75	9-01666-275-0	01	1	0712-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X50 FLANGE	0-28151-050-0	01	1	0712-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28751-040-0	01	1	0712-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0712-1102
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-
211	BOLT; HSG FSS STD CAB(FC****) (C) M12X30 FLANGE	8-97135-419-0	01	1	0712-0811
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0812-

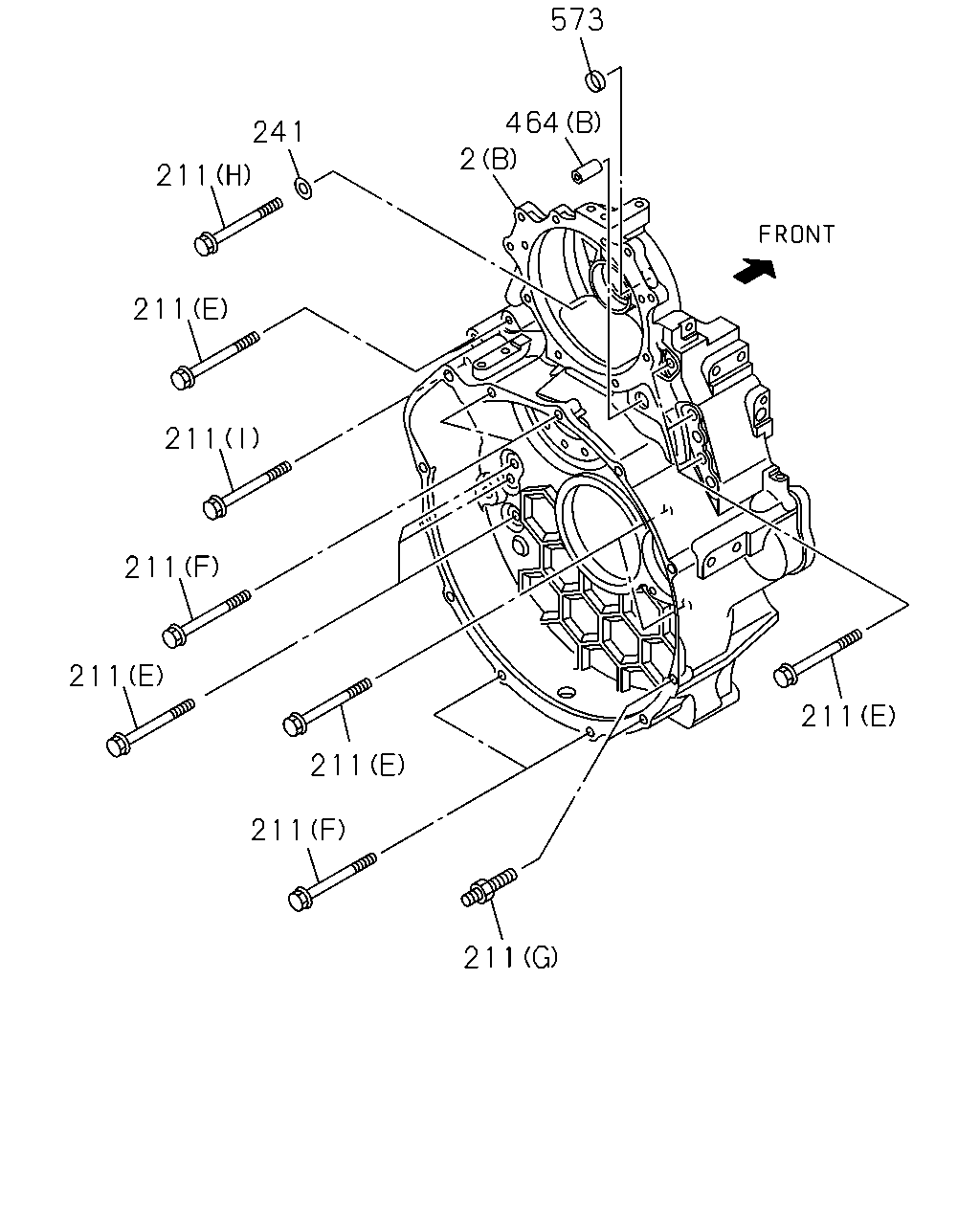

573 464 2 241 211 211 211 211 211 211 211 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0712-0810
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98135-151-0	01	1	0811-
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-4	01	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (F) M10X45 FLANGE	0-28151-045-0	06	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (I) M12X15	0-28156-215-0	01	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X125 FLANGE	1-09044-099-0	10	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	1-09049-015-0	04	1	0712-0805
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	8-98010-335-0	04	1	0806-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X75	9-01666-275-0	01	1	0712-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X50 FLANGE	0-28151-050-0	01	1	0712-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28751-040-0	01	1	0712-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0712-1102
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-
211	BOLT; HSG FSS STD CAB(FC****) (C) M12X30 FLANGE	8-97135-419-0	01	1	0712-0811
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0812-
241	WASHER; PL,HSG POWER TAKE OFF-FLYWHEEL(6SZ) ID=12.5 OD=22	8-94393-140-1	01	1	0712-
464	PIPE; PCV,FLYWHEEL HSG POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97358-501-0	01	1	0712-
464	PIPE; PCV,FLYWHEEL HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-94373-246-3	01	1	0712-
573	CUP; SEALING POWER TAKE OFF-FLYWHEEL(6SZ) OD=36	5-11219-018-0	01	1	0712-

62 268 100 100 102 62 101 62 101 62 62 225 62 62 103 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	BOLT; COVER GENERATOR 24V90A(K44) (B) M8X35 FLANGE	0-28650-835-0	04	1	0901-1004
62	BOLT; COVER GENERATOR 24V90A(K44) (C) M8X30 FLANGE	0-28650-830-0	03	1	0804-
62	BOLT; COVER FSS STD CAB(FC****) (D) M8X65 FLANGE	1-09044-072-1	02	1	0712-0811
62	BOLT; COVER (D) M8X65 FLANGE	1-09044-072-1	02	1	0812-
62	BOLT; COVER POWER TAKE OFF-FLYWHEEL(6SZ) (E) M8X16 FLANGE	0-28050-816-0	02	1	0712-
62	BOLT; COVER FSS STD CAB(FC****) (A) M8X25 FLANGE	0-28650-825-0	06	1	0712-0811
62	BOLT; COVER (A) M8X25 FLANGE	0-28650-825-0	06	1	0812-
62	BOLT; COVER FSS STD CAB(FC****) (C) M8X30 FLANGE	0-28650-830-0	01	1	0712-0803
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M8X30 FLANGE	0-28650-830-0	01	1	0804-
62	BOLT; COVER FSS STD CAB(FC****) (B) M8X35 FLANGE	0-28650-835-0	06	1	0712-0811
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	0812-0812
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M8X35 FLANGE	0-28650-835-0	06	1	0901-1004
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	1005-
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (A) ID=35.1	8-97028-748-1	01	1	0712-0811
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1	8-97028-748-1	01	1	0812-
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) (B) ID=17.8	9-09561-318-0	01	1	0712-0811
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8	9-09561-318-0	01	1	0812-
101	STUD; WATER PUMP (B) M8X18 L=30	0-41010-818-0	01	1	0907-
101	STUD; WATER PUMP (A) M8X18 L=29	8-97028-541-0	01	1	0907-
101	STUD; WATER PUMP FSS STD CAB(FC****) (B) M8X18 L=30	0-41010-818-0	01	1	0712-0811
101	STUD; WATER PUMP (B) M8X18 L=30	0-41010-818-0	01	1	0812-0906
101	STUD; WATER PUMP FSS STD CAB(FC****) (A) M8X18 L=29	8-97028-541-0	01	1	0712-0811
101	STUD; WATER PUMP (A) M8X18 L=29	8-97028-541-0	01	1	0812-0906
102	RETAINER; FRT FSS STD CAB(FC****)	8-98039-932-1	01	1	0712-0811
102	RETAINER; FRT	8-98039-932-2	01	1	0812-
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=109 OD=137	8-97329-780-0	01	1	0712-0811
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0812-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=104 OD=139	8-97602-379-0	01	1	0712-0811
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0812-
225	STUD; OIL PAN FSS STD CAB(FC****) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0712-0811
225	STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0812-
268	COVER; FRT FSS STD CAB(FC****)	8-98039-931-1	01	1	0712-0811
268	COVER; FRT	8-98039-931-2	01	1	0812-

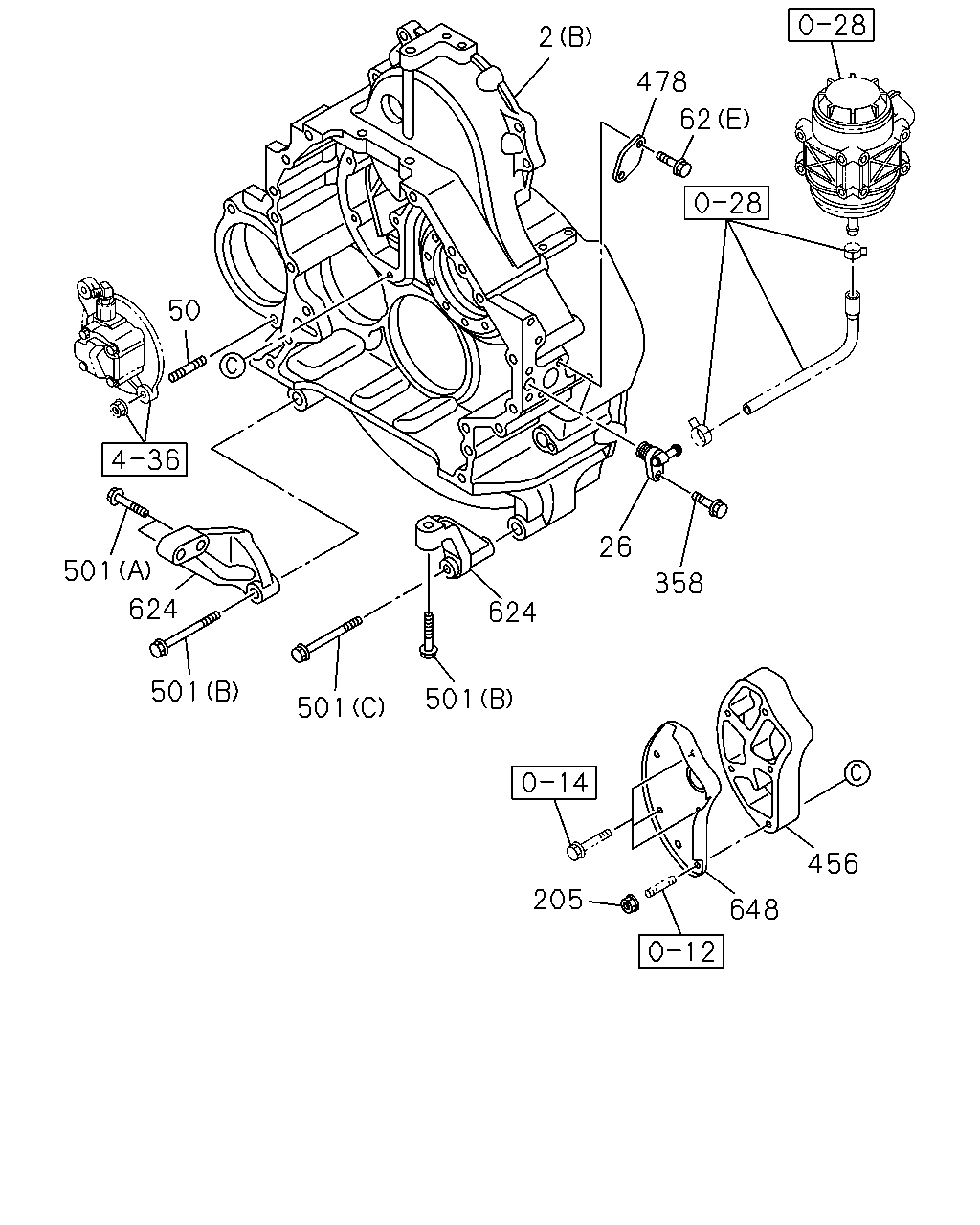

2 478 62 50 26 501 358 624 624 501 501 501 456 205 648

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0712-0810
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98135-151-0	01	1	0811-
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-4	01	1	0712-
26	ADAPTER FSS STD CAB(FC****)	8-97354-819-0	01	1	0712-0811
26	ADAPTER	8-97354-819-0	01	1	0812-
50	STUD FSS STD CAB(FC****) M10X25 L=48.5	0-49241-025-0	01	1	0712-0811
50	STUD M10X25 L=48.5	0-49241-025-0	01	1	0812-
62	BOLT; COVER GENERATOR 24V90A(K44) (B) M8X35 FLANGE	0-28650-835-0	04	1	0901-1004
62	BOLT; COVER GENERATOR 24V90A(K44) (C) M8X30 FLANGE	0-28650-830-0	03	1	0804-
62	BOLT; COVER FSS STD CAB(FC****) (D) M8X65 FLANGE	1-09044-072-1	02	1	0712-0811
62	BOLT; COVER (D) M8X65 FLANGE	1-09044-072-1	02	1	0812-
62	BOLT; COVER POWER TAKE OFF-FLYWHEEL(6SZ) (E) M8X16 FLANGE	0-28050-816-0	02	1	0712-
62	BOLT; COVER FSS STD CAB(FC****) (A) M8X25 FLANGE	0-28650-825-0	06	1	0712-0811
62	BOLT; COVER (A) M8X25 FLANGE	0-28650-825-0	06	1	0812-
62	BOLT; COVER FSS STD CAB(FC****) (C) M8X30 FLANGE	0-28650-830-0	01	1	0712-0803
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M8X30 FLANGE	0-28650-830-0	01	1	0804-
62	BOLT; COVER FSS STD CAB(FC****) (B) M8X35 FLANGE	0-28650-835-0	06	1	0712-0811
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	0812-0812
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M8X35 FLANGE	0-28650-835-0	06	1	0901-1004
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	1005-
205	NUT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	02	1	0712-
358	BOLT; ADAPTER FSS STD CAB(FC****) M6X16 FLANGE	0-28050-616-0	01	1	0712-0811
358	BOLT; ADAPTER M6X16 FLANGE	0-28050-616-0	01	1	0812-
456	ADAPTER; PTO POWER TAKE OFF-FLYWHEEL(6SZ)	8-98088-019-0	01	1	0712-
478	COVER; FLYWHEEL HSG POWER TAKE OFF-FLYWHEEL(6SZ)	1-11219-163-0	01	1	0712-
501	BOLT; STIFFENER (B) M12X50 FLANGE	0-28151-250-0	02	1	0712-
501	BOLT; STIFFENER (C) M12X90 FLANGE	0-28151-290-0	01	1	0712-
501	BOLT; STIFFENER (A) M10X40 FLANGE	0-28151-040-0	02	1	0712-
624	STIFFENER	8-97380-613-1	01	1	0712-
624	STIFFENER	8-97380-614-1	01	1	0712-
648	PLATE; BAFFLE,PTO POWER TAKE OFF-FLYWHEEL(6SZ)	8-98088-017-0	01	1	0712-
